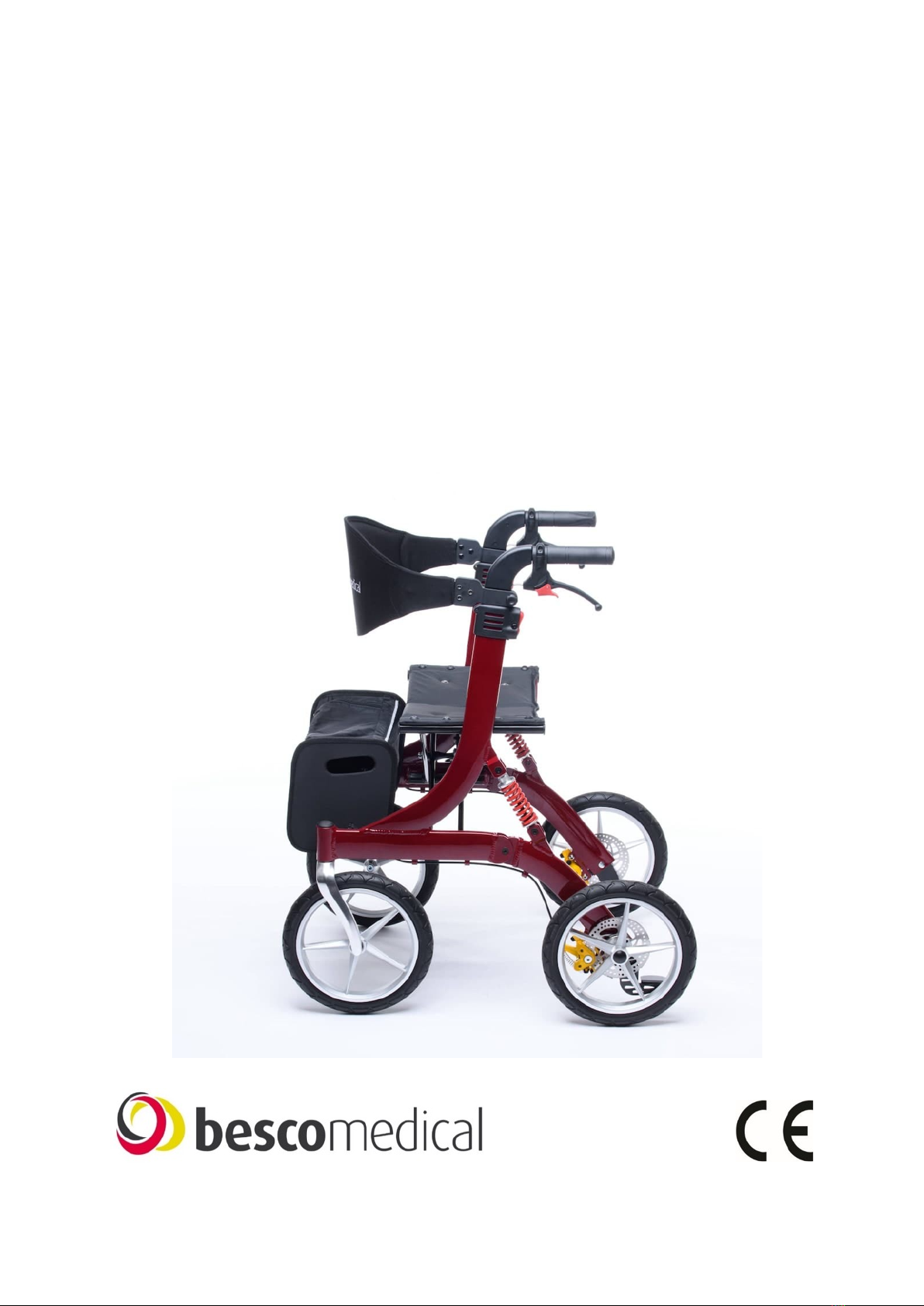

Besco Medical SPRING CROSS COUNTRY User manual

INSTRUCTION MANUAL
SPRING CROSS COUNTRY
Lightweight wheeled walker

Instruction manual for the Spring Cross Country
Page 2
CONTENTS
1. Preliminary Note.................................................................................................4
2. General information .....................................................................................5
2.1. Intended use ....................................................................................................................... 5
2.2. Indications .......................................................................................................................... 5
2.3. Contraindications ................................................................................................................ 5
2.4. Service life ........................................................................................................................... 6
2.5. Responsibility ...................................................................................................................... 6
2.6. Declaration of conformity ................................................................................................... 6
2.7. Incidents ............................................................................................................................. 6
3. Product and delivery overview................................................................7
3.1. Delivery inspection ............................................................................................................. 7
3.2. Delivery contents ................................................................................................................ 7
3.3. Overview of the SPRING CC ................................................................................................ 8
4. Setting up the Spring CC.............................................................................9
4.1. Handle height ...................................................................................................................... 9
4.2. Backrest height ................................................................................................................. 10
4.3. Attaching the cane holder ................................................................................................ 10
4.4. Bag .................................................................................................................................... 11
4.5. Brakes ............................................................................................................................... 11
4.6. Increasing/decreasing the braking effect ......................................................................... 11
5. Using the Spring CC wheeled walker..................................................12
5.1. Unfolding and folding ....................................................................................................... 12
5.2. Unfolding .......................................................................................................................... 12
5.3. Folding up ......................................................................................................................... 13
5.4. Walking with the wheeled walker .................................................................................... 13
5.5. Tilting aid .......................................................................................................................... 14
5.6. Service brakes ................................................................................................................... 14
5.7. Parking brakes .................................................................................................................. 15
5.8. Using the wheeled walker as a seat .................................................................................. 16
5.9. Carrying the wheeled walker ............................................................................................ 16
5.10. Troubleshooting ................................................................................................................ 16
5.11. Safety information ............................................................................................................ 17
5.12. Labelling ............................................................................................................................ 18

Instruction manual for the Spring Cross Country
Page 3
6. Cleaning and disinfection........................................................................18
7. Reuse ......................................................................................................................19
8. Disposal.............................................................................................................19
9. Technical data................................................................................................19
10. Repair and maintenance for specialised dealers.......................20
11. Warranty............................................................................................................21
12. Declaration of conformity........................................................................21
13. Own notes....................................................................................................... 23

Instruction manual for the Spring Cross Country
Page 4
1. PRELIMINARY NOTE
Thank you for choosing the SPRING Cross Country (CC) lightweight
wheeled walker.
You won’t be disappointed by the quality of our product.
Please read the instruction manual in full before using the wheeled
walker for the first time.
It contains important safety information and useful tips for the
proper use and care of the wheeled walker. If you have any
questions or need additional information, please contact the
dealer who supplied you with the SPRING CC wheeled walker who
will be happy to advise you.
Serial number
Enables the assignment of the medical
device to a production batch
Manufacturer
Indicates the manufacturer of the medical
device
Date of manufacture
Time of manufacture
Observe instruction manual
The instruction manual must be read in
full by the user before use.
CE marking
Declaration of conformity, device complies
with the European Medical Device
Regulation MDR 2017/745
Safety information
Important note on the avoidance of
hazards
Labelling
Medical device
Important information
Helpful tips for using the product

Instruction manual for the Spring Cross Country
Page 5
2. GENERAL INFORMATION
This instruction manual is intended to help you familiarise yourself
with the operation and handling of the wheeled walker. It is vital to
follow the instructions in the manual when using the wheeled
walker. Keep the instruction manual handy and include it if you
pass on the wheeled walker to another owner. Please read the
instruction manual in full before using the wheeled walker for the
first time.
2.1. Intended use
The SPRING CC wheeled walker is designed for indoor and outdoor
use. It is intended to be used exclusively as a walking aid. The
wheeled walker must only be used by one person and not for
transporting people.
2.2. Indications
The wheeled walker is suitable for persons with reduced mobility
who still have sufficient walking ability, strength and are stable
enough on foot to be able to leave the home with the support of
the wheeled walker. The wheeled walker is suitable for indoor and
outdoor use.
2.3. Contraindications
Use of the wheeled walker is unsuitable in the following
circumstances:
• Perception disorders
• Severe balance disorders
• Loss of arms
• Inability to sit

Instruction manual for the Spring Cross Country
Page 6
2.4. Service life
The expected service life of the wheeled walker is up to 5 years,
provided it is used as intended and the safety, care and
maintenance instructions are followed. The wheeled walker can
continue to be used beyond this period as long as it is in good
condition.
2.5. Responsibility
As the manufacturer, we can only accept responsibility for the
safety, reliability and fitness for purpose of the wheeled walker if
modifications, extensions, repairs and maintenance work are only
carried out by persons who have been authorised by us and the
wheeled walker is used in compliance with all instruction manual.
2.6. Declaration of conformity
As the manufacturer of the device, Besco Medical Medizin- und
Rehaprodukte GmbH declares that the SPRING CC wheeled walker
complies with the requirements of the European Medical Device
Regulation 2017/745.
2.7. Incidents
Incidents must be reported immediately to the competent federal
authority, the German Federal Institute for Drugs and Medical
Devices (BfArM).
The term incident refers to:
• Any malfunction

Instruction manual for the Spring Cross Country
Page 7
• Any failure and any change in characteristics or performance
• Any improper labelling or instructions for a medical device that
has led, could have led or could lead to the death or serious
deterioration of the state of health of a user, patient or other
person.
3. PRODUCT AND DELIVERY OVERVIEW
3.1. Delivery inspection
The SPRING CC wheeled walker is supplied in a cardboard box. After
unpacking the item, keep the cardboard box and the packaging
material if possible. It can be used to store the wheeled walker at
a later date if necessary.
Upon receipt, check that the contents of the delivery are complete
and intact. In the case of damage, do not use the product and
inform your dealer.
3.2. Delivery contents
The contents consist of the following main components:
• Outer packaging
• Wheeled walker
• Back strap
• Net bag
• Cane holder (2-piece)
• Instruction manual

Instruction manual for the Spring Cross Country
Page 8
⑤
⑦
⑪
⑥
②
①
③
⑩
④
⑨
⑧
3.3. Overview of the SPRING CC
① Back support
② Handle height adjustment
③ Transport bag
④ Front wheels (steerable)
⑤ Disc brake (both sides)
⑥ Rear wheels
⑦ Tilting aid (both sides)
⑧ Push handles
⑨ Seat
⑩ Reflector
⑪ Brake lever
Fig. may differ
Type plate on the inside of the left frame with serial number and
date of manufacture (not visible in the picture).

Instruction manual for the Spring Cross Country
Page 9
4. SETTING UP THE SPRING CC
4.1. Handle height
You can adjust the
handles to one of six
levels according to your
height. You do not need
any tools to do this.
You will find a red toggle
switch below each handle
(pictured). Push this
toggle switch in at the
lower end. Press and hold the button. You can now pull the handle
up or push it down. Release the button. Now pull or push again
until you hear and feel that the handle has clicked into place and
can no longer be adjusted.
Repeat the process on the other side to set both handles to the
same height.

Instruction manual for the Spring Cross Country
Page 10
4.2. Backrest height
You can adjust the height of the
back support to your height. You
do not need any tools to do this.
On the outer sides of the frame
directly below the handles, you
will find a black adjusting screw
on each side (pictured). Loosen
the screw slightly. Now push the
back support holder to the desired height. Tighten the
screw again.
Repeat the process on the other side.
4.3. Attaching the cane holder
You can carry your cane on the wheeled walker. Attach the
lower cane holder with the storage surface to the lower part
of the right-hand side frame. The holder with the clamping
mechanism is attached below the handle holder. To remove
the holders, slide the clip off the frame with your thumb.

Instruction manual for the Spring Cross Country
Page 11
4.4. Bag
The wheeled walker is delivered
with the bag fitted. The bag can
simply be pulled off to the front
via the guide rails (pictured) and
then hooked back in again if
required.
4.5. Brakes
The brakes should be adjusted by trained professionals. If
you have sufficient expertise, however, you can also adjust
the brakes yourself. However, please remember that
incorrectly adjusted brakes can have life-threatening
consequences.
4.6. Increasing/decreasing the
braking effect
• Turn the adjusting screw (pos. 3)
clockwise to decrease the braking
effect. Turn the adjusting screw
anti-clockwise to increase the
braking effect.
If the adjusting screw is not sufficient to
adjust the brake, follow the steps below:
• Turn the adjusting screw (pos. 3)
clockwise until only 2 threads are
visible.
• Loosen the hexagon screw (pos. 1).
1
3
1
2

Instruction manual for the Spring Cross Country
Page 12
• Re-tighten or loosen the Bowden cable by pulling it out or
pushing it in (pos. 2)
• Tighten the hexagon screw (pos. 1)
• Turn the adjusting screw (pos. 3) clockwise to decrease the
braking effect. Turn the adjusting screw anti-clockwise to
increase the braking effect.
• Carry out these steps for the other brake as well.
5. USING THE SPRING CC WHEELED WALKER
5.1. Unfolding and folding
The wheeled walker can be folded for storage or transportation in
order to save space.
5.2. Unfolding
First loosen the red retaining latch. Then unfold the wheeled walker
by pressing down on the outside of the seat. There is a lock on the
bottom of the wheeled walker to stop it from accidentally folding.
If you hear a distinct snapping sound when unfolding, the lock is
properly engaged.

Instruction manual for the Spring Cross Country
Page 13
5.3. Folding up
Make sure that the transport bag is empty or remove it completely.
Pull up the seat by the handle. Guide the two handles towards each
other and lock the wheeled walker with the red retaining latch.
When folded up, the wheeled walker can be conveniently
transported in the boot of a car. Please consult your airline
in advance if you wish to take your wheeled walker on an
aeroplane.
5.4. Walking with the wheeled walker
Try out the wheeled walker on level, dry ground first. If possible,
have someone accompany you. After the first few goes, when you
feel more confident, practise using the wheeled walker on sloping
surfaces. When doing this, always make sure to apply both brakes.
otherwise the wheeled walker will twist around the braked wheel
with the unbraked wheel and you could fall.

Instruction manual for the Spring Cross Country
Page 14
Always try to avoid obstacles, e.g. for steps, look for a ramp, for
stairs, a lift can be taken. If this isn’t possible, the wheeled walker
will need to be carried over the obstacle. If possible, seek the help
of a second person for this.
5.5. Tilting aid
The wheeled walker is equipped with two tilting aids to help you
negotiate kerbs. Stepping on the tilting aid with your foot and
simultaneously pulling the wheeled walker towards you by the
handles raises the front wheels. This means that you can negotiate
kerbs and other smaller obstacles with minimal effort. Please
ensure you have steady footing.
5.6. Service brakes
The wheeled walker has a service brake on each side for slowing
down or stopping. The service brakes can be applied by pulling the
brake levers upwards. The braking force is adjustable and depends
on how hard you pull the brake lever up. Always use both brakes at
the same time, otherwise one wheel will continue to move and
there is a risk of the wheeled walker swerving away and causing
you to fall. When you release the brake levers, the wheeled walker
continues to roll without braking.

Instruction manual for the Spring Cross Country
Page 15
5.7. Parking brakes
Your wheeled walker is equipped with parking brakes to prevent it
from rolling away unintentionally. The parking brake can be applied
by pulling the brake lever of the service brake and then pushing
the locking function forward. The brake lever should be held in the
braked position. To release the parking brake, pull the brake levers
up again.

Instruction manual for the Spring Cross Country
Page 16
5.8. Using the wheeled walker as a seat
The wheeled walker is
equipped with a seat and a
backrest. Before you sit down,
make sure to apply the parking
brakes. Otherwise, the wheeled
walker could roll away and
there is a risk of falling.
Avoid using an extra cushion for the seat as it could slip and
there is a risk of falling. Always make sure that the wheeled
walker is completely unfolded before sitting down.
5.9. Carrying the wheeled walker
If you want to overcome a step or an obstacle that is too high to be
overcome with the tilting aid, you can lift the wheeled walker by the
grab handles.
If you want to carry the wheeled walker over a longer distance, fold
it up and carry it by the side frames.
5.10. Troubleshooting
The wheeled walker is difficult or impossible to push:
• The parking brakes are applied, release the brakes.
• The wheels are very dirty, leaves or similar have accumulated
in the axles. Remove dirt.
The wheeled walker cannot be braked or brakes poorly:
• Brakes are incorrectly adjusted. Check the brakes and have
them readjusted if necessary.
The wheeled walker swerves out sideways:

Instruction manual for the Spring Cross Country
Page 17
• Brakes are being used unilaterally. Always use both brakes.
• The handle height is set differently. Note the scale on the
inside of the handles. Set both handles at the same height.
• Brakes are incorrectly adjusted. Check the brakes and have
them readjusted if necessary.
If the problems cannot be solved, do not use the wheeled walker
and contact your specialist dealer immediately.
5.11. Safety information
Please read the safety information carefully and act
accordingly.
Before each use, inspect the wheeled walker for damage and
check that the brakes are working properly.
The wheeled walker is not suitable for use on escalators (risk
of falling!).
Do not use your wheeled walker on sandy, soft or uneven
surfaces. You could lose your balance and fall.
The material of the wheeled walker is not flame-retardant.
Protect your wheeled walker from sunlight, surfaces can
heat up and cause burns.
Do not hang bags or loads on the handles, this affects the
stability and you could fall.
Do not use the wheeled walker as a climbing aid.
Do not leave your wheeled walker unattended near young
children.
The maximum user weight is 136 kg, the maximum payload
of the carrying bag is 5 kg. The wheeled walker must not be
used to transport loads. The carrying bag is not suitable for
transporting animals.

Instruction manual for the Spring Cross Country
Page 18
The wheeled walker can be folded to save space. Please
note that there is a risk of jamming when folding and
unfolding the wheeled walker. When folding or unfolding
the wheeled walker, always pull on the frame of the
wheeled walker, do not pull on the attachments (brake,
wheels, basket, etc.)
5.12. Labelling
Each wheeled walker is provided with a type plate. This is located
on the inside of the left-hand frame at the level of the spring unit.
Please enter the serial number on the warranty section.
6. CLEANING AND DISINFECTION
The frame parts can be wiped with a damp cloth. A mild household
cleaning agent can be used for heavier soiling.
The wheels can be cleaned with a damp brush with plastic bristles
(do not use a wire brush).
The backrest, seat and transport bag can be washed with mild
soapy water.
Do not use a high-pressure cleaner or a steam
cleaner!

Instruction manual for the Spring Cross Country
Page 19
The wheeled walker can be disinfected with household
disinfectant. Use approved disinfectants or alcohol-based wipe
disinfectants. The Robert Koch list of approved disinfectants can be
found at http://www.rki.de.
7. REUSE
The SPRING CC wheeled walker can be reused on a second-hand
basis. Before passing it on, please thoroughly clean and disinfect
the wheeled walker according to the enclosed care and hygiene
instructions. When passing on the wheeled walker, please
remember to give all the technical documents required for safe use
to the new user. The instruction manual is an integral part of the
wheeled walker and must be passed on with it. The wheeled walker
should be checked by an authorised specialist and handed over in
good condition.
8. DISPOSAL
If your SPRING CC wheeled walker is no longer in use and is to be
disposed of, please contact your dealer. If you want to dispose of it
yourself, please ask local waste disposal companies about the
applicable regulations.
9. TECHNICAL DATA
Dimensions and weights
Seat width
435 cm
Seat height
560 cm
Seat depth
260 cm
Total width
600 cm
Total length
760 cm

Instruction manual for the Spring Cross Country
Page 20
Recommended body height
165 - 195 cm
Distance between the
push handles
460 cm
Total height
(6-way adjustable)
870 - 995 mm
Handle height (from, to)
870 - 995 mm
Unladen weight (without
accessories)
9.0 kg
Weight incl. accessories
9.9 kg
Maximum load capacity
136 kg
Max. load capacity net bag
5 kg
Folding dimensions
760 x 300 x 880 mm
Wheels
(puncture-proof)
Steering wheels (front)
285 x 38 mm
Brake wheels, rigid (rear)
285 x 38 mm
Tube diameter
56 x 18 x 1.8 mm
Turning radius
830 cm
Materials
Frame
Aluminium, painted
Seat
Nylon, black
Back support
Nylon, black
Tyres
Polyurethane
Handles
TPR
Storage conditions
Protect from direct
sunlight and heat
Protect from moisture
10. REPAIR AND MAINTENANCE FOR SPECIALISED DEALERS
This product has spiral springs that provide positive damping
behaviour via vibrating forks. This means that additional screws,
bushings and other components are used. The strength and
mobility should be inspected at least once a year by a specialist
dealer. In the event of malfunctions, the SPRING CC wheeled walker
must be immediately handed over to the specialist dealer for
