Best KEX222 User manual

- 1 -
ENGLISH......................................3
FRANÇAIS................................15
ESPAÑOL..................................27
Model KEX222
In USA - BEST Hartford, Wisconsin
In CANADA - BEST Drummondville, QC, Canada
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 3 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accor-
dance with all applicable codes and standards, including fire-rated construction codes
and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equip-
ment manufacturer’s guidelines and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when cooking flaming foods. (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will
result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate
it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 4 -
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside.Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only.Do not use to exhaust hazardous or explosive materi-
als and vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor if it
becomes overheated. The motor will restart when it cools down. If the motor continues
to shut off and restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of
24" and a maximum of 30" above the cooking surface.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically.To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.
12. To reduce the risk of fire and electric shock, install this range hood only with Best by Broan
Exterior blower models EB6, EB9, EB12, or EB15, or Best by Broan In-Line Blower
models ILB3, ILB6, ILB9, or ILB11. Other Blowers cannot be substituted (Blowers sold
separately).

- 5 -
PREPARE THE HOOD
Unpack hood and check contents.

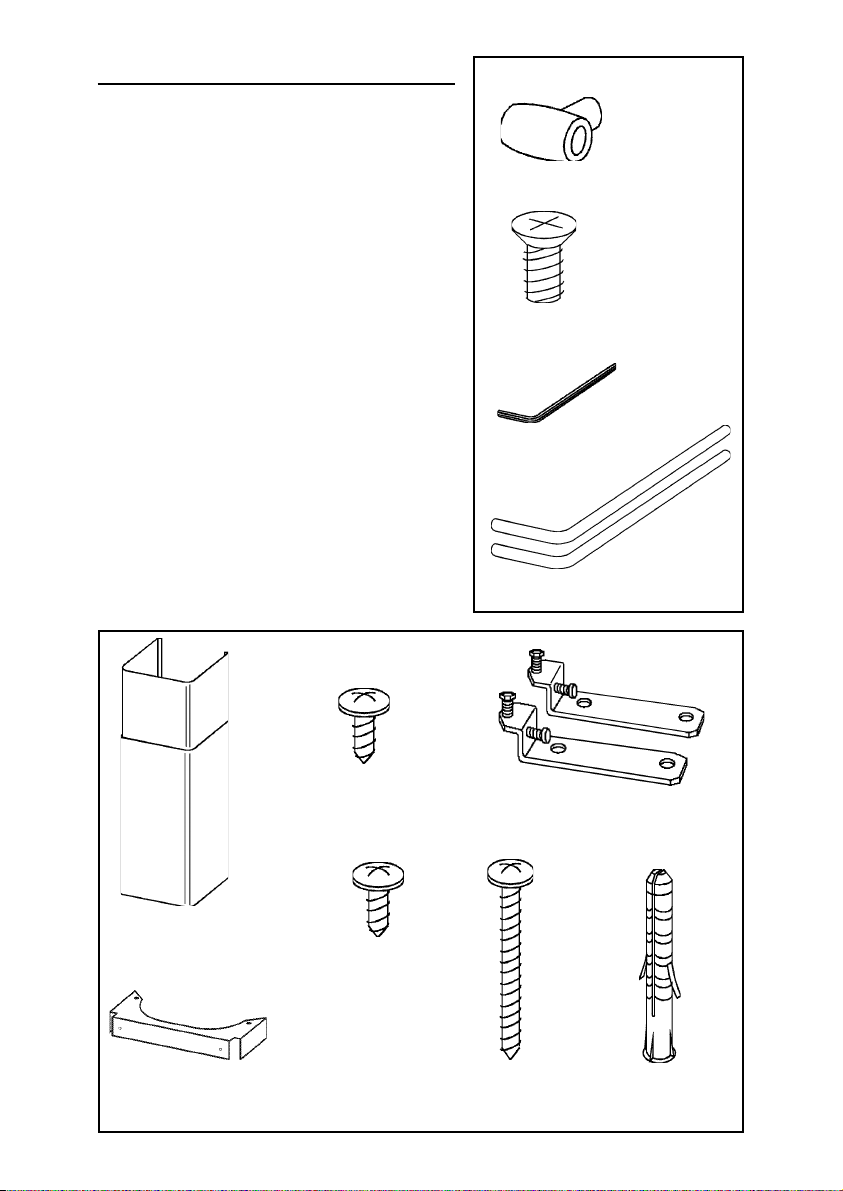

You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Flue Mounting Bracket
1 - Parts Bag (B080810601) containing:
2 - Mounting Brackets
8 - Mounting Screws (4,8x38mm Pan
Head)
4 - Mounting Screws (3,9x9,5mm Pan
Head)
4 - Mounting Screws (3,9x9,5mm Pan
Head Black)
8 - Drywall Anchors
1 - Parts Bag (B080810321) containing:
2 - Side Ladle-Bars
2 - End Bits of the Ladle-Bars
2 - Mounting Screws (M8 x 14mm)
1 - Key
1 - Installation Instructions
MOUNTING
BRACKETS
FLUE MOUNTING
BRACKET
8 MOUNTING
SCREWS (4,8 x
38mm Pan Head)
8 DRYWALL
ANCHORS
4 MOUNTING
SCREWS (3,9 x 9,5mm
Pan Head)
DECORATIVE
FLUE 4 MOUNTING
SCREWS (3,9 x 9,5mm
Pan Head - Black)
SIDE LADLE-
BARS
END BITS OF
THE LADLE-
BARS
2 MOUNTING
SCREWS
(M8x14mm)
KEY

- 6 -
EXTERIOR OR IN-LINE BLOWER SELECTION
CAUTION: Either an exterior blower or in-line blower may be used with this hood.
The KEX222 hood must be installed with blower models EB6, EB9, EB12, EB15,
ILB3, ILB6, ILB9, or ILB11 only. Other Blowers cannot be substituted (Blowers sold
separately).
The blower must be UL listed for Canadian and U.S. use, and evaluated for use with
solid state speed control, rated 120V, 60 Hz, 6.0 A max.
24” TO 30” ABOVE
COOKING SURFACE
DECORATIVE
FLUE
8” ROUND
DUCT
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Choose the location where the Exterior or In-Line Blower will be mounted. See
illustrations below for mounting location suggestions and restrictions.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the
hood. Use as few of them as possible. Larger ducting may be required for best
performance with long duct runs.
4. After the Exterior or In-Line Blower has been installed, connect round metal
ductwork and work back towards the hood location. Use duct tape to seal joints
between ductwork sections.
5. An 8” round to 10” round transition (Model 414) is required. For best air
performance, install the transition as close to the range hood as possible.
OK
OK

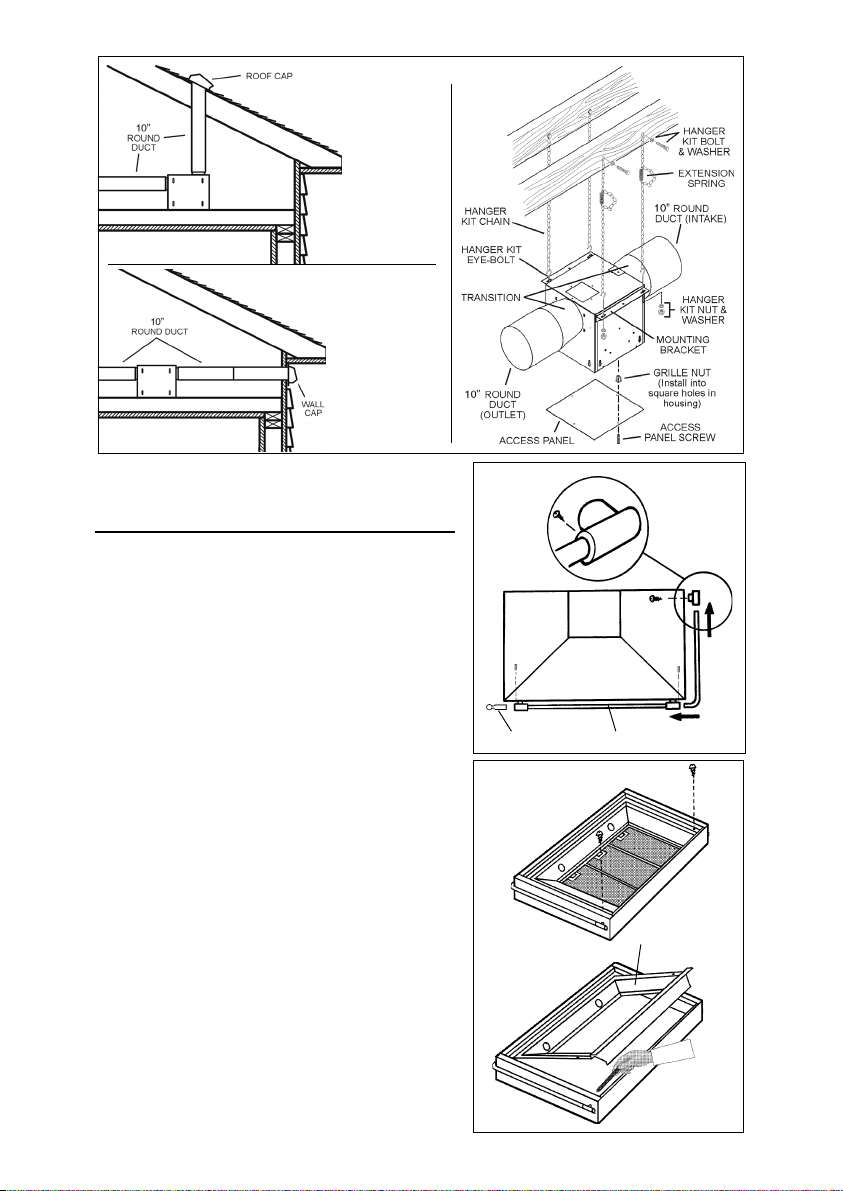

SUGGESTED MOUNTING LOCATIONS
EXTERIOR BLOWER
CAUTION: MAY NOT FIT
UNDER EAVES OF SINGLE
STORY HOMES
EXTERIOR
BLOWER
10” ROUND
DUCT
HOOD
EXTERIOR
BLOWER
8” TO 10”
ROUND
TRANSITION
8” ROUND
ELBOW
10”
ROUND
DUCT

- 7 -
BB
M
C
LADLE BAR
END BITS
LOWER PART OF
THE HOOD
A
A
HOW TO ASSEMBLE THE
LADLE BAR
The side ladle bars must be assembled before
installing the hood against the wall.
To assemble the side ladle -bars follow the
instructions below:
1. Take off the two end bits of the ladle bar
slackening screws B. Insert the side ladle
bars where the end bits were and fix them
by means of screws B.
2. Insert the fixing element M into the side ladle
bar and fix it tightening screw C.
3. To fix definitively the M element onto the
hood, it is necessary to have access from
the inside of the hood:
- remove the grease filters: at the handle,
push the stop inwards and pull the filters
downwards.
- take off the lower part of the hood
unscrewing the two screws A.The lower part
of the hood must not be completely taken
off, but it must be bent slightly until the
screwdriver can have access. Fix element
M to the hood from the inside, by means of
mounting screws (M8x14mm).
4. Reassemble the lower part of the hood.
IN-LINE BLOWER

- 8 -

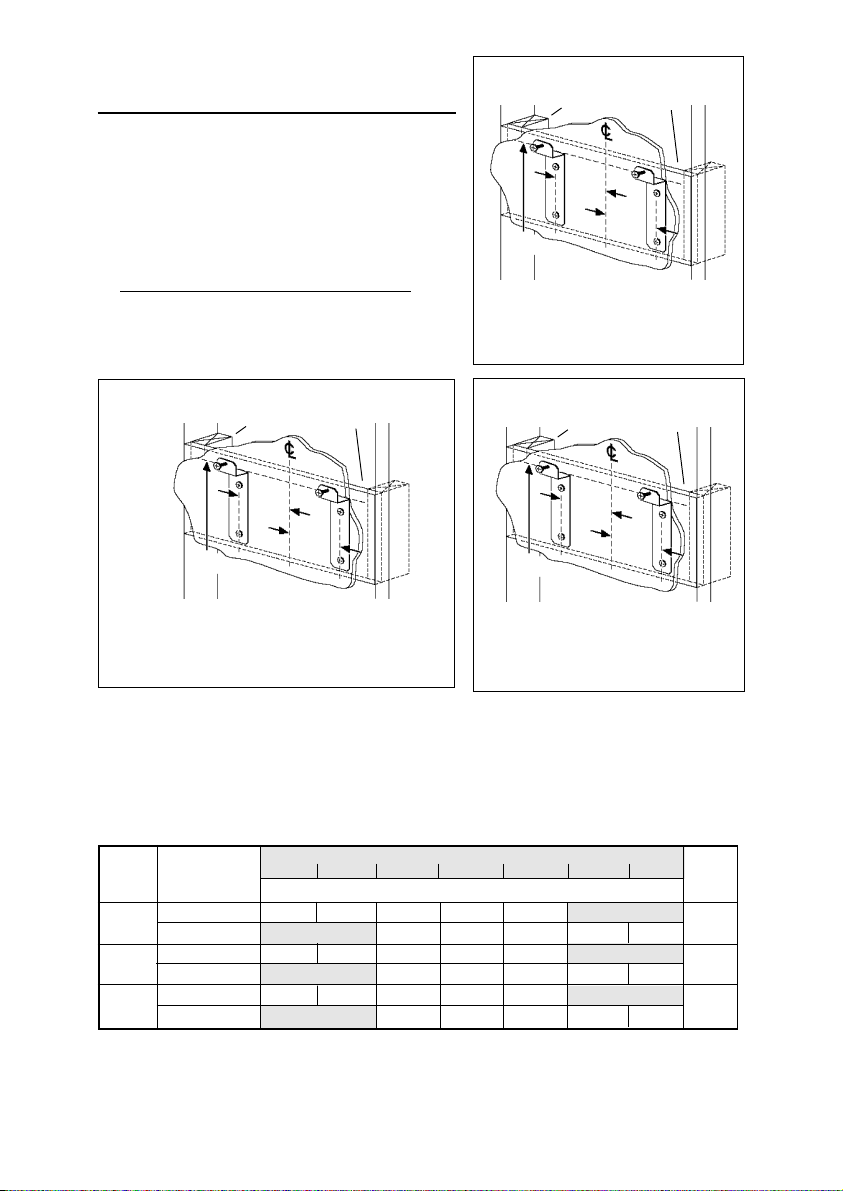

INSTALL MOUNTING
BRACKETS
1. Construct wood wall framing that is flush
with interior surface of wall studs.
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the
mounting brackets to be secured to the
framing within the dimensions shown.
2. After wall surface is finished, secure
mounting brackets to framing using
dimensions shown.
32-11/16î to 38-5/8î above
cooktop
FRAMING BEHIND DRYWALL
VERSION 90cm
9-5/8î
9-5/8î
32-11/16î= bottom of hood 24" above cooktop
38-5/8"= bottom of hood 30" above cooktop
34-7/16î to 40-7/16î above
cooktop
FRAMING BEHIND DRYWALL
VERSION 48”
34-7/16î = bottom of hood 24" above cooktop
40-7/16î = bottom of hood 30" above cooktop
33-15/16î to 39-15/16î above
cooktop
FRAMING BEHIND DRYWALL
VERSION 42”
9-15/16î
9-15/16î
8-7/8î
8-7/8î
33-15/16î = bottom of hood 24" above cooktop
39-15/16"= bottom of hood 30" above cooktop
Note: minimun hood distance above cook top must not be less than 24”. A maximum
of 30” above cook top is highly recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion; and if ceiling height and
flue length permit.
HOOD
WIDTH
90CM
42”
HOOD DISTANCE ABOVE 36” HIGH COOK TOP
24” 25” 26” 27” 28” 29” 30”
BRACKET LOCATION ABOVE 36” COOK TOP
29-13/16” 30-13/16” 31-13/16”
48”
CEILING
HEIGHT
8 FEET
DIM.
“A”
9-5/8”
9 FEET N / A 31-13/16”
32-13/16”
32-13/16”
33-13/16”
33-13/16”
N / A
34-13/16” 35-13/16”
8 FEET
9 FEET 9-15/16”
N / A
N / A
31-1/16” 32-1/16” 33-1/16”
33-1/16”
34-1/16”
34-1/16”
35-1/16”
35-1/16” 36-1/16” 37-1/16”
8-7/8”
8 FEET
9 FEET N / A
N / A
31-9/16” 32-9/16” 33-9/16”
33-9/16”
34-9/16”
34-9/16”
35-9/16”
35-9/16” 36-9/16” 37-9/16”

- 9 -
INSTALL THE HOOD
1. Remove the wiring box.
2. Remove the tape located on the damper.
3. Hang the hood from the brackets through
the rectangular cut-outs on the back of the
hood. Cut-outs are larger than the brackets
to allow for horizontal adjustment.
The bottom of the hood should be 24" to 30"
above the cooking surface.
4. Height adjustment screws provide vertical
adjustment.
5. Depth adjustment screws provide
horizontal adjustment.
6. Secure the hood with mounting screws
(4,8x38mm). Use drywall anchors, provided,
if wall studs or framing are not available.
7. Replace the wiring box.
WALL
FRAMING
MOUNTING
BRACKETS
RECTANGULAR
CUTOUTS
MOUNTING
SCREWS
(4,8x38mm)
HEIGHT ADJUSTMENT SCREWS
DEPTH ADJUSTMENT
SCREWS
MOUNTING
SCREWS
(4,8x38mm)
REMOVE THE TAPE
REMOVE THE
WIRING BOX

- 10 -

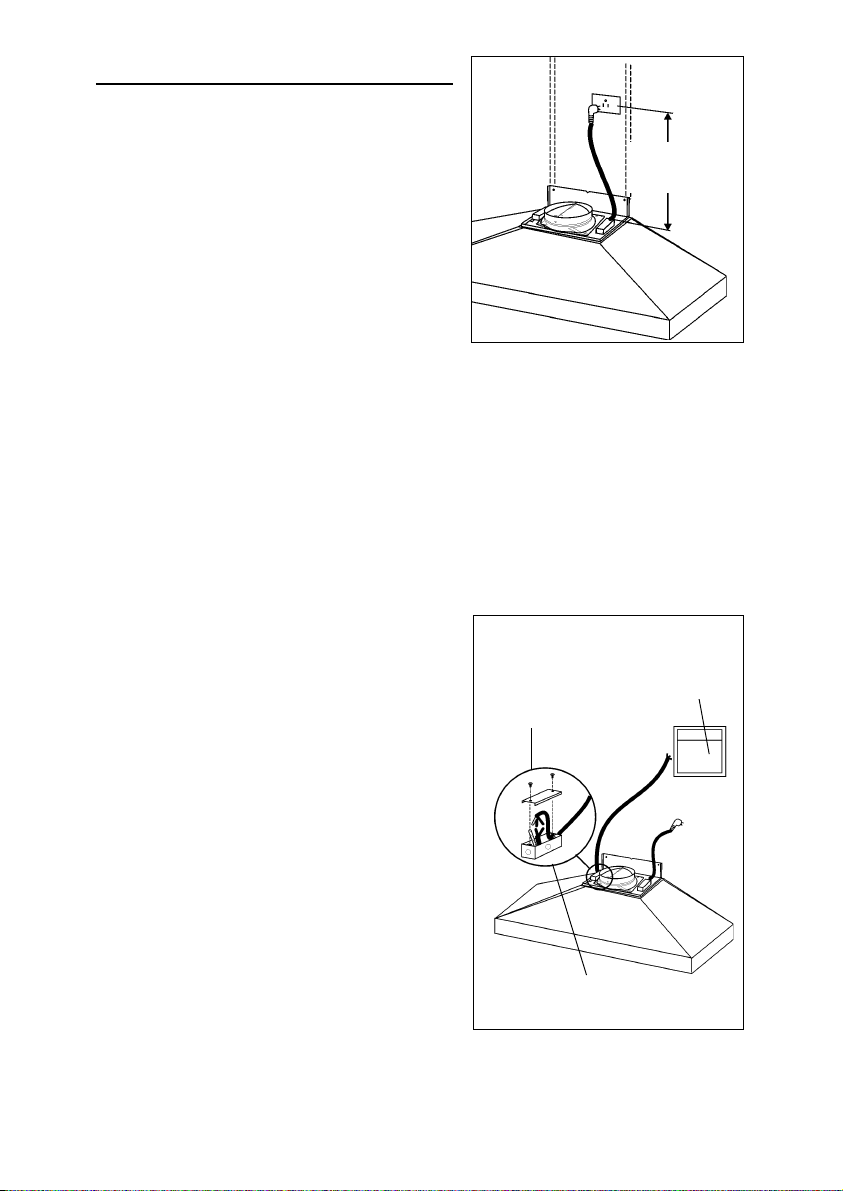

WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical
codes.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of an electrical short circuit, grounding
reduces the risk of electric shock by providing
an escape wire for the electric current. This
appliance is equipped with a cord having a
grounding wire with a grounding plug. The
plug must be plugged into an outlet that is
properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
Set the electrical power supply within the space covered by the decorative flues.
Position an electrical outlet at a maximum distance of 33-7/16” (85 cm) from
where the lead exits from the hood (see illustration alongside). Make sure this
does not interfere with the decorative flues (where the flue touches the wall).
Fit the plug into the outlet.
Blower connection at hood:
1. Run 2-wire plus ground power cable from
the Exterior or In-Line Blower to the hood’s
wiring box marked “motor connection”.
2. Remove the cover from the wiring box and
remove one knockout.
3. Feed 6” of cable through the knockout
opening and secure the cable to the wiring
box with an appropriate connector.
4. Make electrical connections at the hood.
Connect white-to-white, red-to-black and
green-to-ground.
5. Replace the wiring box cover and screws.
make sure wires are not pinched between
the cover and box.
Exterior or In-line blower connection:
1. Make electrical connections at the exterior
or in-line blower (see instructions provided
with the exterior or in-line blower).
Power connection at hood:
1. Plug the power cord into the electrical wall
receptacle.
33-7/16”
(85cm) max
BLOWER CONNECTION AT HOOD
BOX MARKED
“MOTOR
CONNECTION”
CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.
Exterior or
In-Line blower

- 11 -

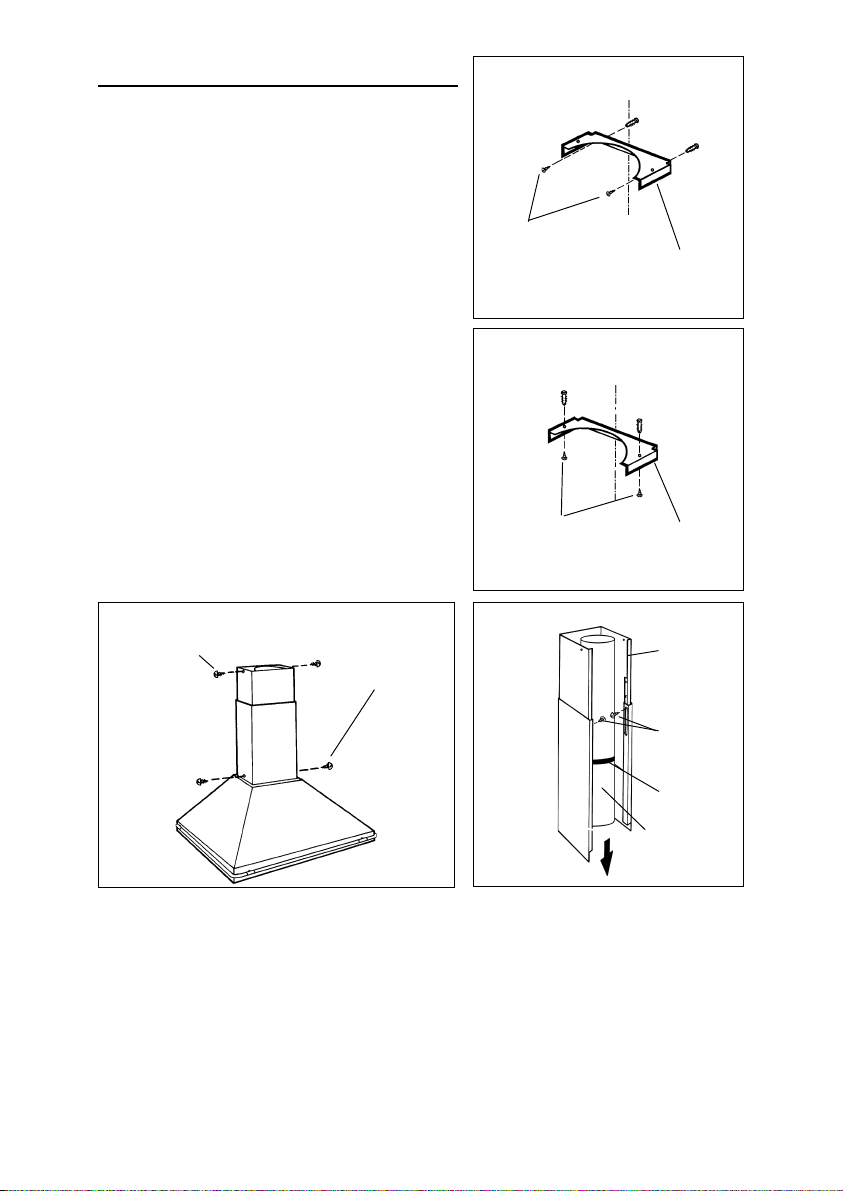

CONNECT DUCTWORK
1. Use mounting screws (4,8x38mm) and wall
anchors to secure flue mounting bracket
to the ceiling or wall as shown.
2. Use 8" round metal duct to connect the duct
collar on the hood to the ductwork above.
3. Use duct tape to make all joints secure and
air tight.
4. Remove the 2 screws securing the flues.
5. Turn the upper flue over so that the holes
is in the upper part.
6. Secure the decorative flue to the mounting
bracket, and to the hood by tightening locking
mounting screws (3,9x9,5mm) as shown.
8" ROUND
METAL DUCT
DUCT TAPE
DECORATIVE
FLUE
FASTEN FLUE
TO HOOD
WITH MOUNTING
SCREWS
(3,9x9,5mm)
FASTEN FLUE TO
BRACKET WITH
MOUNTING SCREWS
(3,9x9,5mm)
REMOVE
THE
SCREWS
FLUE
MOUNTING
BRACKET
MOUNTING
SCREWS
(4,8x38mm)
FIXING TO THE WALL
FIXING TO THE CEILING
FLUE
MOUNTING
BRACKET
MOUNTING
SCREWS
(4,8x38mm)

- 12 -
MAINTENANCE
Proper maintenance of the Range Hood will
assure proper performance of the unit.
Grease Filters
The grease filters should be cleaned fre-
quently. Use a warm detergent solution. Grease
filters are dishwasher safe.
To remove the grease filters: at the handle,
push the stop inwards and pull the filters downwards.
Hood Cleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will
help preserve its fine appearance.
Cleaning tips:
OHot water with soap or detergent is all that is usually needed.
OFollow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to
avoid water marks.
OFor discolorations or deposits that persist, use a non-scratching household cleanser
or stainless steel polishing powder with a little water and a soft cloth.
OFor stubborn cases, use a plastic scouring pad or soft bristle brush together with
cleaser and water. Rub lightly in direction of polishing lines or "grain" of the
stainless finish. Avoid using too much pressure which may mar the surface.
ODO NOT allow deposits to remain for long periods of time.
ODO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere
to the surface causing rust.
ODO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to
remain in contact with stainless steel for extended periods. Many of these com-
pounds contain chemicals which may be harmful. Rinse with water after expo-
sure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
GREASE FILTERS

- 13 -
OPERATION
Controls

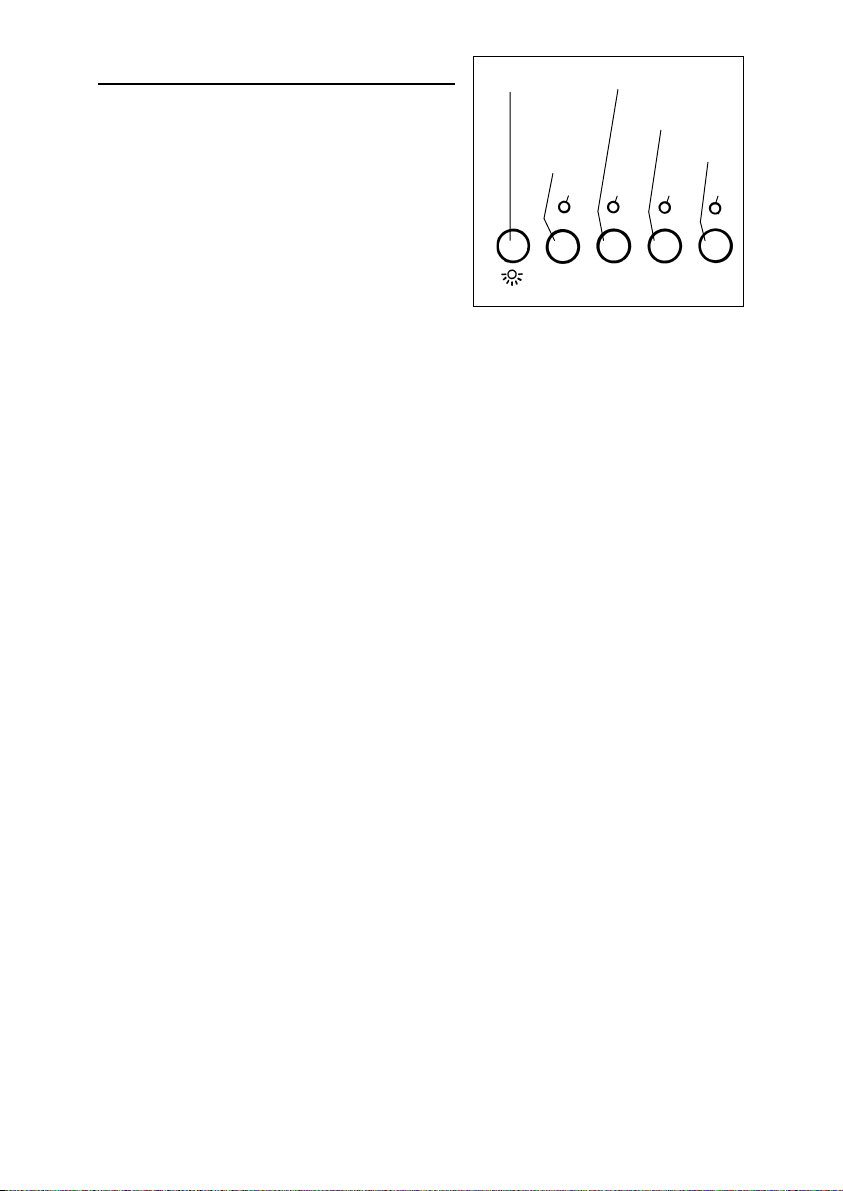

The hood is operated using the (5) push-
buttons located at eye-level, on the front edge
of the hood.
The light switch turns the halogen lights on
and off. Push the light switch once to turn the
lights ON - push a second time to turn the
lights ON to a brighter level - push a third time
to turn the lights OFF.
The blower on-off / speed 1 switch turns the
blower on to its lowest running speed.To turn OFF the blower, push in and hold this
blower switch for approximately 2 seconds.
The blower speed 2 switch turns the blower on to medium-low running speed.
Pressing this switch a second time sets a timer which keeps the blower operating
at this speed for 10 minutes. The LED will blink during this time and the blower will
shut off automatically.
The blower speed 3 and blower speed 4 switches operate the same as blower
speed 2 switch except: Blower speed 3 is medium-high and blower speed 4 is
high.
After every 30 hours of operation, the LED above the “blower speed 1 switch” will
be illuminated (RED) and blink for 30 seconds after turning off the blower. This is a
reminder to clean the grease filter. Once the grease filter is cleaned and installed,
press in and hold the “light switch” button for approximately 2 seconds during the
blink of the LED.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
BLOWER
ON-OFF /
SPEED 1
0-1 234
LED LED LED LED
BLOWER
SPEED 4
LIGHT
SWITCH
BLOWER
SPEED 2
BLOWER
SPEED 3

- 14 -
FUSE REPLACEMENT
SWITCH OFF THE ELECTRICITY SUPPLY.
Remove the grease filters.
Remove the electrical box support and open
the electrical box.
Replace with the same type of fuse (5x20mm,
4A, 125V).
ELECTRICAL
BOX
SUPPORT
FUSE
ELECTRICAL
BOX
HALOGEN BULBS
This range hood requires two (2) or four (4)
halogen bulbs (Type T3, 12Volt, 20Watt Max,
G-4 Base).
ALWAYS SWITCH OFF THE ELECTRICITY
SUPPLY BEFORE CARRYING OUT ANY
OPERATIONS ON THE APPLIANCE.
To change bulbs:
1. Loosen the ring nut by turning it counter-
clockwise.
2. Remove the bulb by pulling sideward - DO
NOT ROTATE. CAUTION: BULB MAY BE
HOT!
3. Replace with Type T3, 12Volt, 20Watt Max,
G-4 Base halogen bulb. Do not touch re-
placement bulb with bare hands!
RING
NUT
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free
from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found
to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does
not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence,
accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recom-
mended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not
allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of
requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

- 15 -
LISEZ ET CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENTS
POUR REDUIRE LES RISQUES D’INCENDIE, DE DECHARGES ELECTRIQUES OU
DE DOMMAGES AUX PERSONNES, OBSERVEZ LES INSTRUCTIONS SUIVANTES:
1. N’utilisezcet appareil quecomme cela est indiquépar le constructeur.Si vous avez des
problèmes,contactezlefabriquantàl’adresseouaunumérodetéléphoneindiquésdans
lagarantie.
2. Avantde pourvoir à l’entretienou au nettoyage devotre appareil, éteignez-le autableau
descommandesoubloquezletableaudescommandesafind’éviterdelemettreenmarche
accidentellement.Sivousnepouvezpasbloquerle système permettant d’éteindre votre
appareil,appliquezunavertissementextérieurd’unefaçonsure,commeparexempleun
panneau,sur le tableau des commandes.
3. L’assemblageet la connexionélectrique doivent être faitspar des personnes qualifiées
enrespectantles normes etrèglementsen vigueur, y comprisles normes et règlements
concernantlespossibilités d’incendie.
4. Ilestindispensablequ’ilyaitsuffisamment d’airpourquelacombustionet l’évacuationdes
gaz à travers le tuyau du brûleur du combustible ait lieu sans retour de flamme. Suivez
lesindicationsdonnéespar lefabricantdubrûleurainsique lesnormesdesécuritécomme
cellesquisontpubliéesparl’Association Nationale pour laProtectioncontrelesIncendies
NationalFireProtectionAssociation(NFPA)etlaAmericanSocietyforHeating,Refrigeration
andAirConditioningEngineers(ASHRAE),etles autorités locales en matièredenormes.
5. Quandvous coupez oupercez des trousdans le murou le plafond, n’abîmez pas les fils
électriquesou autres.
6. Leventilateur canalisé doit toujours évacuerl’air vers l’extérieur.
7. N’utilisez pas cet appareil avec un appareil contrôlant la vitesse à état solide.
8. Afinde diminuer toutrisque d’incendie n’utilisezque des conduitsen métal.
9. Votre appareil doit être relié à la terre.
ATTENTION - POUR REDUIRE LES RISQUES D’INCENDIE DES MATIERES GRASSES
QUI SONT EN TRAIN DE CUIRE:
A. Ne laissez jamais ni vos éléments chauffants, ni vos casseroles ou poêles sur le feu
sans les contrôler si vous réglez l’apport de chaleur sur une position élevée. Si vos
casseroles ou poêles débordent cela provoque de la vapeur et des éclaboussures de
graisse qui peuvent prendre feu. Chauffez les huiles lentement à feu bas ou moyen.
B. Faites toujours fonctionner votre hotte quand vous cuisez à des températures élevées
ou quand vous cuisinez des plats flambés. (par ex. crêpes Suzette, Cerises “Jubilé”,
Steack au poivre flambé).
C. Nettoyez régulièrement les ailes de vos ventilateurs. Ne permettez pas que la graisse
s’accumule sur le ventilateur ou sur le filtre.
D. Utilisez des casseroles de taille appropriée. Utilisez toujours des ustensiles de cuisson
dont la taille est appropriée à la surface de votre élément de cuisson.
AVERTISSEMENTS
POURREDUIRELES RISQUESDEDOMMAGESAUXPERSONNESAUCASOÙVOTRE
CUISINIEREPRENDRAITFEU,OBSERVEZLESINSTRUCTIONSSUIVANTES:*
1. ETEINDRE LES FLAMMES à l’aide d’un couvercle le plus hermétique possible, une
plaque à gâteaux, ou un plateau en métal, puis éteindre le brûleur. ATTENTION à NE
PAS VOUS BRÛLER. Si les flammes ne s’éteignent pas immédiatement, SORTEZ ET
APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS EN MAIN UNE POÊLE OU UNE CASSEROLE QUI A PRIS FEU
- Vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, ni torchons ou serviettes mouillés - vous provoqueriez une
violente explosion de vapeur.
SEULEMENT POUR UTILISATION DOMESTIQUE
!
!

- 16 -
4. Utilisez un extincteur SEULEMENT si:
A. Vous savez que vous avez un extincteur Classe ABC, et vous en connaissez déjà le
mode d’emploi.
B. Ce n’est pas un très gros incendie et qu’il se limite à l’endroi où il a explosé.
C. Vous êtes en train d’avertir les pompiers.
D. Vous avez la possibilité d’essayer d’éteindre l’incendie en ayant le dos tourné vers
une issue.
* D’après les “Suggestions concernant la Sécurité contre les incendies des cuisines”
publiées par NFPA.
ATTENTION
1. Pour usage intérieur seulement.
2. Pour réduire tout risque d’incendie et pour évacuer correctement l’air, assurez-vous de
prévoir un conduit de ventilation extérieur.Ne videz pas l’air dans les espaces limités
par des murs ou des plafonds, les combles, les passages étroits ou les garages.
3. Faites très attention quand vous utilisez des produits de nettoyage ou des détergents.
4. Évitez d’utiliser des aliments pouvant s’enflammer sous la Range Hood.
5. N’utilisez cet appareil que pour une ventilation générale. Ne l’utilisez pas pour évacuer
des matières ou des vapeurs dangereuses ou qui peuvent exploser.
6. Pour éviter de causer des dommages au moteur et de rendre les rotors bruyants et/ou
non équilibrés, évitez que les sprays pour murs secs, la poussière de construction
entrent en contact avec la partie électrique.
7. Le moteur de votre hotte a un thermostat qui éteindra automatiquement le moteur s’il est
surchauffé. Le moteur se remettra en marche lorsqu’il se sera refroidi. Si le moteur
continue à s’éteindre et à se remettre en marche, faites vérifier votre hotte.
8. Pour mieux capturer les impuretés de cuisine, le bas de votre hotte devrait être à une
distance minimum de 24” et à une distance maximum de 30” au-dessus du plan de
cuisson.
9. Vu que cette hotte est grande et lourde, il est recommandé de confier l’installation de
cette hotte à deux personnes.
10. Ce produit est doté d’un thermostat qui active automatiquement le moteur. Pour réduire
le risque de dommages et éviter l’activation accidentelle, positionner l’interrupteur du
panneau de service sur la position OFF et bloquer le panneau de service ou mettre un
avertissement externe, par exemple une plaquette.
11. Nous vous recommandons de lire l’étiquette indiquant les caractéristiques de votre
hotte pour de plus amples informations et exigences.
12. Pour diminuer les dangers d’incendie ou de choc électrique, installer cette hotte de
cuisine uniquement parmi les modèles de ventilateurs externe “Best de Broan” modèles
EB6, EB9, EB12, ou EB15, ou ventilateurs “In-Line, Best de Broan” Modèles ILB3,
ILB6, ILB9, ou ILB11. On ne peut pas utiliser d’autres ventilateurs (Les ventilateurs
sont vendus séparément).
!

- 17 -
PREPAREZ LA HOTTE
Enlever la hotte dans l’emballage et
controller le contenu.
Vous devez recevoir :
1 - Hotte
1 - Conduit décoratif
1 - Étrier de support
1 - Sachet (B080810601) avec:
2 - Étriers d’assemblage
8 - Vis d’assemblage (4,8x38mm Tête
ronde)
4 - Vis d’assemblage (3,9x9,5mm Tête
ronde)
4 - Vis d’assemblage (3,9x9,5mm Tête
ronde Noir)
8 - Chevilles
1 - Sachet (B080810321) avec:
2 - Porte-outils latéraux
2 - Fermoirs des porte-outils latéraux
2 - Vis d’assemblage (M8 x 14mm)
1 - Clé
1 - Instructions pour l’installation
ETRIERS
D’ASSEMBLAGE
ETRIER DE SUPPORT
8 VIS D’ASSEMBLAGE
(4,8 x 38mm Tête ronde)
8 CHEVILLES
4 VIS D’ASSEMBLAGE
(3,9 x 9,5mm Tête
ronde)
CONDUIT
DECORATIF 4 VIS D’ASSEMBLAGE
(3,9 x 9,5mm Tête
ronde - Noir)
PORTE-
OUTILS
LATERAUX
FERMOIRS
DES PORTE-
OUTILS
LATERAUX
2 VIS
D’ASSEMBLAGE
(M8x14mm)
CLE

- 18 -
CHOIX DE VENTILATEUR EXTERNE OU “IN-LINE”
ATTENTION: avec cette hotte, on peut utiliser soit un ventilateur externe soit “In-
Line”. La hotte KEX222 doit être installée avec un ventilateur des modèles
suivants EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9, ou ILB11 uniquement. On ne
peut pas utiliser d’autres ventilateurs (les ventilateurs sont vendus séparément).
Le ventilateur doit être compris dans la liste UL pour l’utilisation au Canada et aux
USA et approuvée pour l’utilisation avec un “dispositif de contrôle de la vitesse” à
l’état solide, dont les données sur la plaque sont 120V, 60 Hz, 6.0 A max.
TUYAU
ROND DE 8”
INSTALLATION DU SYSTEME D’EVACUATION
NOTE: Pour réduire les risques d’incendie n’utiliser que des conduits métalliques.
1. Choisir l’emplacement où le ventilateur externe ou le ventilateur “In-Line” sera
monté. Voir les illustrations ci-dessous pour le choix de l’emplacement et les
éventuelles restrictions à suivre.
2. Un conduit d’évacuation étroit et court rendra la hotte plus performante.
3. Des conduits d’évacuation longs, avec des coudes et des raccords rendront la
hotte moins efficace. Les utiliser le moins possible. En cas de conduits
d’évacuation longs on utilisera un diamètre supérieur.
4. Après avoir installé le ventilateur externe ou le ventilateur “In-Line”, raccorder le
tuyau métallique rond dans le sens de l’emplacement de la hotte. Utiliser du
chaterton pour fermer hermétiquement les joints entre les tuyaux.
5. Dans le modèle 414, il faut un tuyau d’un diamètre de 8” à 10” .Pour obtenir de
bons résultats il faut installer la transition le plus près possible de la hotte
OK
OK
SUGGESTIONS POUR LE MONTAGE
VENTILATEUR EXTERNE
ATTENTION: NE PAS INSTALLER
SOUS L’AVANT-TOIT D’UNE
MAISON A UN ETAGE DE 24”(61cm) À 30”
(76cm) AU-DESSUS
DU PLAN DE CUISSON
VENTILATEUR
EXTERNE
TUYAU ROND
DE 10”
HOTTE
CONDUIT
DÉCORATIF
VENTILATEUR
EXTERNE
ATRANSITION
DE 8” à 10”
(de 20cm à
25cm)
COUDE
ROND
DE 8”
TUYAU
ROND
DE 10”

- 19 -
INSTALLATION DE LA
TRINGLE PORTE-OUTILS
Les tringles latérales doivent être
assemblées avant de fixer votre hotte contre
le mur. Pour assembler les porte-outils latéraux
suivez les indications suivantes:
1. Enlevez les extrémités du porte-outils en
désserrant les vis B. Insérez, à la place des
extrémités le porte-outils latéral en le fixant
toujours à l’aide des vis B.
2. Enfilez le fermoir M dans le porte-outils
latéral et fixez-le en serrant la vis C.
3. Pour fixer définitivement l’élément M à votre
hotte, vous devez pouvoir avoir accès de
l’intérieur de celle-ci:
- enlever les filtres anti-graisse: à l'aide de la
poignée, pousser l’arrêt vers l’intérieur et
tirer le filtre vers le bas.
- démontez le bas de votre hotte en dévissant
les deux vis A. La partie du bas de votre hotte
ne doit pas être enlevée complètement, elle
doit être seulement inclinée afin de permettre
au tourne-vis de passer. Fixez l’élément M à
votre hotte de l’intérieur, en utilisant les vis
d’assemblage (M8x14mm).
4. Remontez le bas de votre hotte.
A
A
BAS DE VOTRE
HOTTE
BB
M
C
EXTREMITE PORTE-OUTILS
VENTILATEUR IN-LINE

- 20 -
INSTALLATION DES ETRIERS
D’ASSEMBLAGE
1. Construisez un cadre en bois pour le mur
dont les vis-pivot ne dépassent pas.
Assurez-vous:
a) que le cadre est centré au-dessus de
l’emplacement de l’installation.
b) la hauteur du cadre permettra que les
étriers d’assemblage soient fixés au cadre
en respectant les dimensions indiquées.
2. Après avoir terminé la surface du mur, fixez
les étriers d’assemblage au cadre en
respectant les dimensions qui sont indi-
quées.
VERSION 90cm
VERSION 48”
34-7/16”(87.5cm) = si la distance entre la hotte
et le plan de cuisson c’est de 24” (61cm)
40-7/16”(102.7cm) = si la distance entre la hotte
et le plan de cuisson c’est de 30” (72cm)
8-7/8”
(22.5cm) 8-7/8”
(22.5cm)
CADRE POUR LE MUR
de 34-7/16î Ú 40-7/16î au-dessus
du plan de cuisson
de 32-11/16î Ú 38-5/8î au-dessus
du plan de cuisson
CADRE POUR LE MUR
32-11/16” (83cm) = si la distance entre la hotte
et le plan de cuisson c’est de 24”(61cm)
38-5/8" (98.1cm) = si la distance entre la hotte
et le plan de cuisson c’est de 30” (72cm)
9-5/8î
(24.5cm)
9-5/8î
(24.5cm)
VERSION 42”
33-15/16”(86.2cm) = si la distance entre la
hotte et le plan de cuisson c’est de 24” (61cm)
39-15/16" (101.4cm) =si la distance entre la
hotte et le plan de cuisson c’est de 30” (72cm)
CADRE POUR LE MUR
9-15/16î
(25.2cm) 9-15/16î
(25.2cm)
de 33-15/16î Ú 39-15/16î au-
dessus du plan de cuisson
Remarque : la distance minimum au-dessus du plan de cuisson doit être
supérieure à 24". Pour que la hotte puisse mieux aspirer les impuretés, il est
recommandé de prévoir une distance maximum de 30" au-dessus du plan de
cuisson. L’installateur et l’utilisateur peuvent décider d’installer la hotte à une
distance supérieure à 30", si la hauteur du plafond et la longueur du conduit le
permettent.
LARGEUR
DE LA
HOTTE
90CM
42”
ESPACEMENT ENTRE LA HOTTE ET LE PLAN DE CUISSON DE 36” DE HAUT
24” 25” 26” 27” 28” 29” 30”
EMPLACEMENT DU SUPPORT DE FIXATION AU-DESSUS DU PLAN DE CUISSON DE 36” DE HAUT
29-13/16” 30-13/16” 31-13/16”
48”
HAUTEUR DU
PLAFOND
8’
DIM. “A”
9-5/8”
9’ N / A 31-13/16”
32-13/16”
32-13/16”
33-13/16”
33-13/16”
N / A
34-13/16” 35-13/16”
8’
9’ 9-15/16”
N / A
N / A
31-1/16” 32-1/16” 33-1/16”
33-1/16”
34-1/16”
34-1/16”
35-1/16”
35-1/16” 36-1/16” 37-1/16”
8-7/8”
8’
9’ N / A
N / A
31-9/16” 32-9/16” 33-9/16”
33-9/16”
34-9/16”
34-9/16”
35-9/16”
35-9/16” 36-9/16” 37-9/16”
