Best IBF4I36SB User manual

Model IBF4I36SB
In USA - BEST®Hartford, Wisconsin
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK,OR INJURYTO PERSON(S)
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer at the address or telephone number listed
in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock
service disconnecting means to prevent power from being switch on accidentally.
When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel
in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s guidelines and safety
standards such as those published by the National Fire Protection
Association (NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any other solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite.Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when cooking flaming foods
(i.e. Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filters.
d) Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCETHE RISK OF INJURYTO PERSON(S) INTHE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT
GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 3 -
!
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep
drywall spray, construction dust, etc. off power unit.
4. Do not use over cooking equipment greater than 60,000 BTU/hr. as the blower
motor will shut down intermittently.
5. Your hood motor has a thermal overload which will automatically shut off the
motor if it becomes overheated. The motor will restart when it will cool down. If
the motor continues to shut off and restart, have the hood serviced.
6. The bottom of the hood MUST NOT BE LESS than 24” and at a maximum of
30” above cooktop for best capture of cooking impurities.
7. Two installers are recommended because of the size of this hood.
8. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do
not exhaust air into spaces within walls or ceilings or into attics, crawl spaces,
or garages.
9. Be careful when installing the decorative flue and hood, they may have sharp
edges.
10. Please read specification label on product for further information and
requirements.
3. DO NOT USE WATER, including wet dishcloths or towels – This could cause
a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

- 4 -
OPERATION

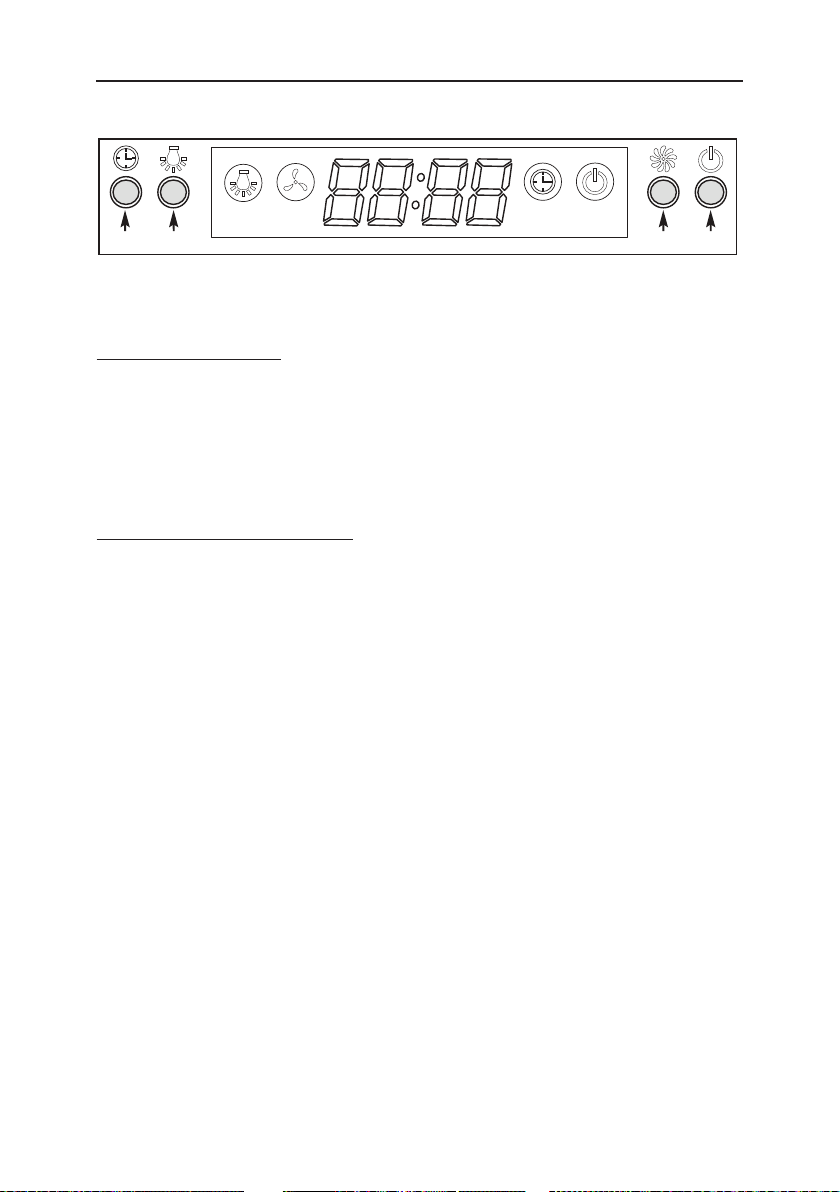

The hood is operated using the push buttons on the front panel.
Lamp Power
Speed Timer
1
nottubhsuprewolB)3nottubhsupyaleD/emiT)1 nottubhsupFFO/NO)4nottubhsupgnithgiL)2
2 3 4
TIME/DELAY (2 Functions)
TIME SETTING
This button is used to set time when lighting and blower are not in use. Time is
displayed in a 12-hour cycle. To set time, press the push button (1) for 3 seconds.
The first two digits will flash. Use the blower push button (3) to increase, and the
lighting pushbutton (2) to decrease. Press the time/delay push button (1) again.The
last two digits will flash. Use the blower push button (3) to increase and the lighting
push button (2) to decrease. Press the time/delay button (1) again to confirm and
exit time setting mode.
DELAY SETTING
When blower is in use, this button is used as the delay off setting button. To set
delay, press the push button (1). The delay is factory set at 5 minutes, but can be
set from 1 up to 60 minutes. Use blower push button (3) to increase, and lighting
push button (2) to decrease. Countdown will be displayed on the LCD screen,
blower symbol will be activated, and the button (1) backlight will flash. Blower
will continue to operate for the programmed time and then will stop automatically
(delay-off setting does not affect lighting as it works independently). To cancel
delay function, press time/delay push button (1) again. The blower will continue
to operate and won’t stop until ON/OFF push button (4) is pressed. To turn delay
function and blower OFF at once, press ON/OFF push button (4). NOTE: Delay will
be reset if blower speed is modified during delay setting mode.
LIGHTING
Press the lighting push button (2) once to turn the LCD screen on. To turn the
lights on, press the lighting push button (2) once more. Press it again to turn the
lights OFF.The LCD screen will turn off automatically after 15 seconds of inactivity
(blower and/or lights).
BLOWER
The blower push button (3) turns the blower on to one of three speed settings:LOW,
MEDIUM or HIGH. Press the blower (3) or ON/OFF (4) push button once to turn
the LCD screen on. Press the blower (3) or ON/OFF (4) push button once more to
turn the blower on at the last selected speed. Blower symbol will be activated. To
change the blower speed, press the blower push button (3) until the desired speed
is obtained. Press the ON/OFF push button (4) to turn the blower OFF. The last
speed used will be memorized. NOTE: When blower is turned on, 100% of power
level is activated for 1 to 2 seconds. It will then operate at the previous setting.

- 5 -
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor.The impeller
should also be replaced.
Grease Filter
The grease filter should be cleaned frequently. Use a warm detergent solution. Grease
filter is dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent.Discoloration of
the filter may occur if using phosphate detergents, or as a result of local water conditions -
but this will not affect filter performance.This discoloration is not covered by the warranty.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-ducted Recirculation Filter
The non-ducted recirculation filter should be changed every 6 months. Replace more
often if your cooking style generates extra grease, such as frying and wok cooking. See
“INSTALL FILTERS” section for removal and installation instructions.
Stainless Steel Cleaning
DO:
• Regularlywashwithcleanclothorrag
soaked with warm water and mild soap
or liquid dish detergent.
• Alwayscleaninthedirectionoforiginal
polish lines.
• Alwaysrinsewellwithclearwater(2or
3 times) after cleaning. Wipe dry com-
pletely.
• Youmayalsouseaspecializedhouse-
hold stainless steel cleaner.
DON’T:
• Useanysteelorstainlesssteelwoolor
any other scrapers to remove stubborn
dirt.
• Useanyharshorabrasivecleansers.
• Allowdirttoaccumulate.
• Letplasterdustoranyotherconstruc-
tion residues reach the hood. During
construction/renovation, cover the range
hood to make sure no dust sticks to the
stainless steel surface.
Avoid:When choosing a detergent
• Anycleanersthatcontainbleachwillattackstainlesssteel
• Anyproductscontaining:chloride,fluoride,iodide,bromidewilldeterioratesurfacesrapidly.
• Anycombustibleproductsusedforcleaningsuchasacetone,alcohol,ether,benzol,etc.,
are highly explosive and should never be used close to a range.
!
CAUTION
Bulbs may be hot. Always allow bulbs to
cool down before removing them.
This range hood requires four halogen bulbs
(Type JC, 12V, 20W Max, G-4 Base).
To change bulbs:
1. Remove light bulb cover by gently pushing
it upward and turning it counterclockwise.
2. Replace bulb.
3. Re-install light bulb cover by gently pushing it upward and turning it clockwise.
LIGHT BULB
COVER
LIGHT BULBS

- 6 -

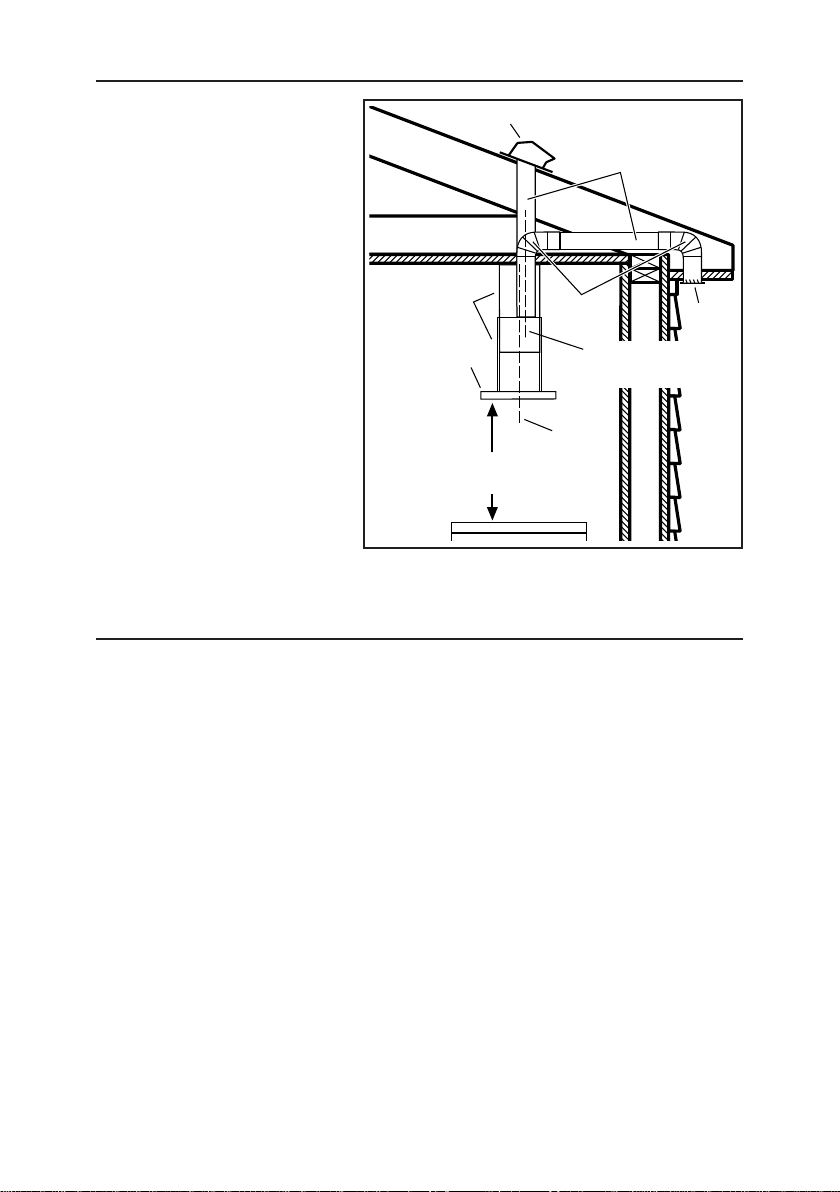

ROOF CAP
DECORATIVE
FLUES EAVE
VENT
6” ROUND
ELBOWS
6” ROUND
DUCT
HOOD
24” TO 30” ABOVE
COOKING SUFACE
HOOD
CENTER
LINE
DUCT CENTER LINE
(1-3/4” to rear of hood
centerline)
INSTALL THE DUCTWORK (Ducted Hoods Only)
1. Decide where the ductwork
will run between the hood
and the outside.
2. A straight, short duct
run will allow the hood to
perform most efficiently.
3. Long duct runs, elbows
and transitions will reduce
the performance of the
hood. Use as few of them
as possible. Larger ducting
may be required for best
performance with longer
duct runs.
4. Install wall cap or roof
cap. Connect round metal
ductwork to cap and work
back towards the hood
location. Use duct tape to
seal the joints between
ductwork sections.
MEASURE THE INSTALLATION
The minimum hood distance above cooktop MUST NOT BE LESS than 24”.
A maximum of 30” above cooktop is highly recommended for best capture of
cooking impurities.
Distances over 30” are at the installer and users discretion; providing that the ceil-
ing height permits.
NOTE:
On 7-ft 8-in. ceilings
Hood distance above cooktop is:
Minimum 24”, Maximum 30” (for ducted discharge).
Minimum 24”, Maximum 29” (for non-ducted discharge).
On 8-ft. ceilings
Hood distance above cooktop is:
Minimum 24”, Maximum 30” (for both ducted and non-ducted discharge).
On 9-ft. ceilings
Hood distance above cooktop is:
Minimum 30”, Maximum 30” (for both ducted and non-ducted discharge).

- 7 -
PREPARE THE HOOD
Unpack hood and check contents.You should receive:
1 - Hood
1 - Decorative Flue Assembly (2 pcs.)
1 - Damper / Duct Connector
1 - Ceiling Mounting Plate
8 - Angle Brackets
3 - Aluminum Grease Filters (installed in hood)

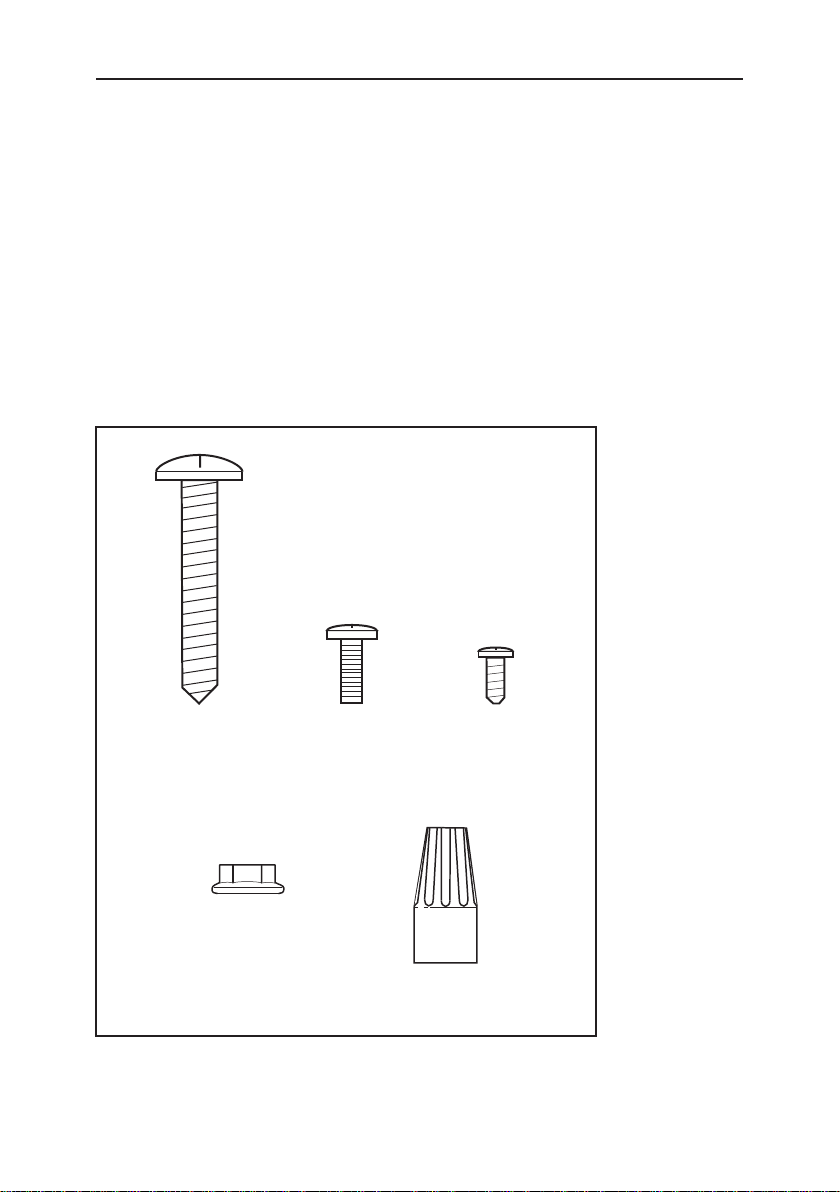

1 - Parts Bag containing:
8 - Mounting Screws (M6 x 40mm Pan Head)
46 - Machine Screws (M4 x 10mm Pan Head)
20 - Serrated Flange Nuts (M4)
8 - Sheet Metal Screws (M4 x 8mm Phillips Head)
3 - Wire Nuts
M4 x
10 mm
Machine
Screw
M4 x 8 mm
Sheet Metal
M6 x
40 mm
Wire Nut
M4
Serrated
Flange
Nut

- 8 -

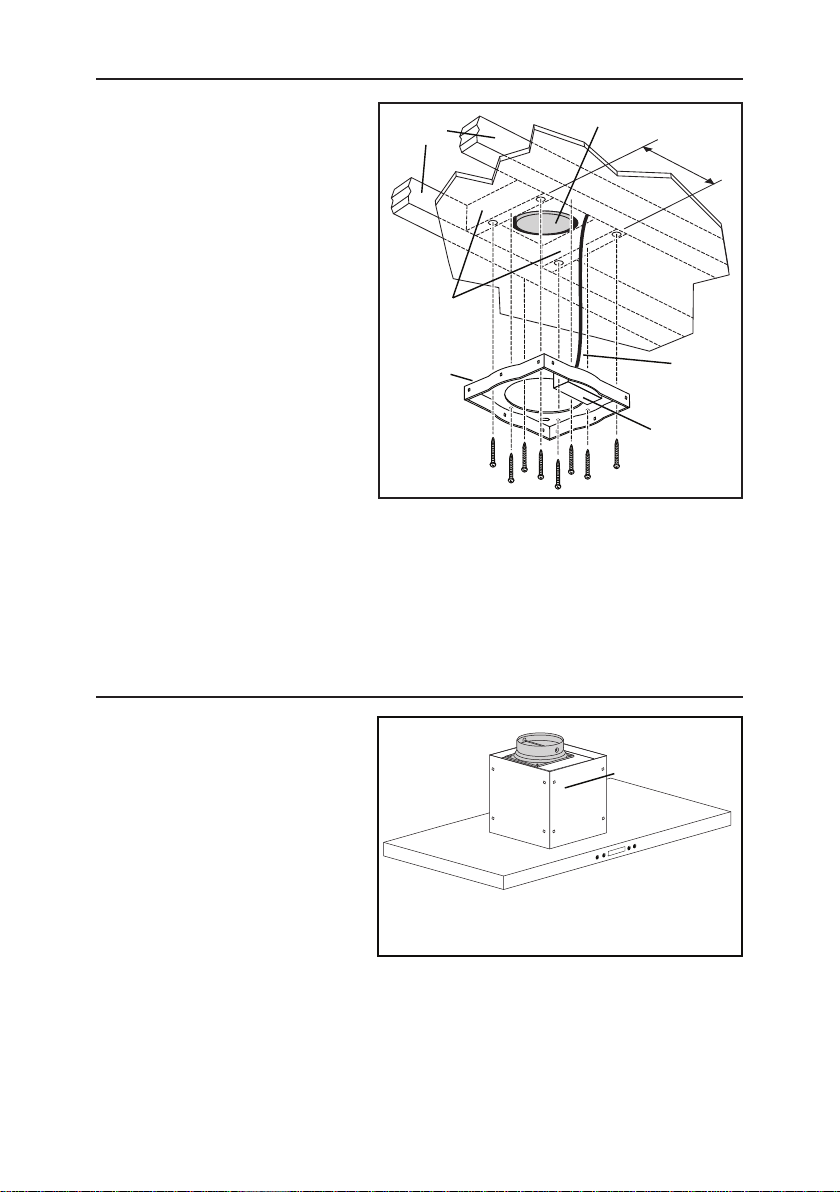

INSTALL CEILING SUPPORT
1. At hood location install 2 x
4 cross framing between
ceiling joists using dimensions
shown. Make sure framing
does not interfere with
electrical outlet box opening
in ceiling mounting plate.
2. Install house wiring and
ductwork.
3. Finish ceiling surface. Be sure
to mark the location of the
ceiling joists & cross framing.
Bring house wiring through
finished ceiling.
4. Remove cover from electrical
outlet box on ceiling
mounting plate. Pull house
wiring through hole on top
of mounting plate and into electrical outlet box. Secure house wiring cable to
mounting plate / electrical box with appropriate connector.
5. Install ceiling mounting plate with the side marked “front” at the desired hood
location. Secure using (8) M6 x 40mm wood screws. Make sure screws are
driven into the center of the framing for maximum strength.
8
¼
”
FRONT
HOUSE
WIRING
CEILING
JOISTS
CROSS
FRAMING
(8) M6 x 40mm
WOOD
SCREWS
ELECTRICAL
OUTLET
BOX
CEILING
MOUNTING
PLATE
6” ROUND DUCTWORK
1. Place the hood on flat
surface with protection
to insure the hood is not
damaged.
2. Attach the damper / duct
connector to the hood with
(4) M4 x 8mm pan head
sheet metal screws.
PREPARE THE HOOD
(4) M4 x 8mm
PAN HEAD
SHEET METAL
SCREWS
DAMPER / DUCT
CONNECTOR

- 9 -
(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS
1. Assemble (4) angle
brackets to the lower hood
mounting locations using
(8) M4 x 10mm pan head
machine screws (2 for each
angle bracket).
INSTALL THE HOOD (Ducted Installation Only)
2. Determine dimension “H”
based upon ceiling height
and height of hood installa-
tion above cooktop:
7-FT. 8-IN. CEILING
Hood 24” above cooktop
H = 32”
Hood 30” above cooktop
H = 30”
8-FT. CEILING
Hood 24” above cooktop
H = 36”
Hood 30” above cooktop
H = 30”
9-FT. CEILING
Hood 30” above cooktop
H = 42”
H
1
7
/
16
”
(16) M4 x 10mm
PAN HEAD
MACHINE
SCREWS &
(16) M4
SERRATED
FLANGE NUTS
(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS
3. Attach the upper set of (4) angle brackets to the outside of the lower angle
brackets according to dimension “H”. Use (16) M4 x 10mm pan head machine
screws and (16) M4 serrated flange nuts (4 at each angle bracket connection).
4. Attach the angle bracket assemblies to the upper hood mounting locations
using (8) M4 x 10mm pan head machine screws (2 for each angle bracket).

- 10 -
5. Measure the length of 6”
round metal duct required
from the damper / duct
connector to the ductwork
rough-in in the ceiling.
Connect the duct to the
damper / duct connector
and seal with duct tape.
6. Remove the protective
coating from the inner the
flue.
FOR CEILING HEIGHTS
7-FT. 8-IN. & 8-FT. ONLY:
Turn the inner flue so
that the louvers are at the
bottom.
FOR ALL CEILING
HEIGHTS:
Carefully slide the inner
flue down into the outer
flue. Slide the flues over
the angle brackets. Make
sure the side marked “front”
faces the control side of
the hood. Feed the power
cable up through the flues.
7. Attach the hood assembly
to the ceiling bracket using
(8) M4 x 10mm machine
screws (2 for each support
leg).
8. Connect metal duct to
ceiling duct and seal with
duct tape.
9. Connect power cable to
house wiring inside of
electrical outlet box. Black
to Black, White to White,
and Green to Green or
Bare wires. Secure power
cable to wiring box with
appropriate connector and
re-attach outlet box cover.
INNER
FLUE
OUTER
FLUE
METAL
DUCT
METAL
DUCT
DUCT
TAPE
DAMPER /
DUCT
CONNECTOR
POWER
CABLE
LOUVERS
FRONT
(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS
POWER
CABLE

- 11 -
10. Slide the inner flue up to
the ceiling and secure with
(4) M4 x 8mm sheet metal
screws.
11. Remove the protective
coating from the hood and
the outer flue. (4) M4 x 8mm
SHEET METAL
SCREWS
INSTALL THE HOOD (Non-Ducted Installation Only)
NON-DUCT
PLENUM
2 TIE
WRAPS FLEXIBLE DUCT
NON-DUCTED
RECIRCULATION
FILTER
NON-DUCT PLENUM
COLLAR
8 MOUNTING
SCREWS
(M4 x 8
Pan Head
Sheet Metal)
FRONT
NOTE:
Non-ducted installations
require Non-Duct
kit; model ANKIBF4
(purchased separately).
Do not use plastic or rigid
metal duct.
DAMPER
FLAPS
1. Remove the damper flaps from
the damper / duct connector and
discard flaps.
FRONT
2. Attach non-duct collar to non-duct
plenum using (4) M4 x 8mm sheet
metal screws.
(4) M4 x 8mm
SHEET METAL
SCREWS

- 12 -
(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS

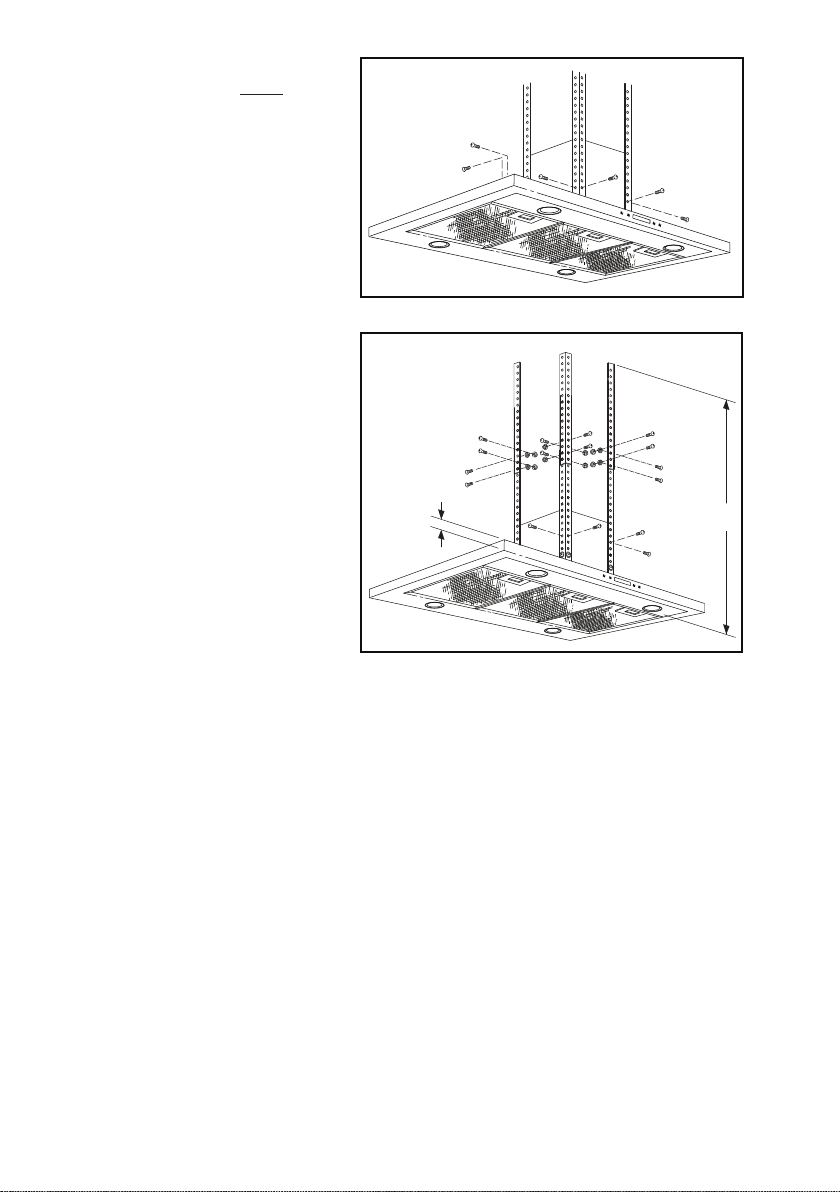

3. Assemble (4) angle
brackets to the lower hood
mounting locations using
(8) M4 x 10mm pan head
machine screws (2 for each
angle bracket).
4. Determine dimension “H”
based upon ceiling height
and height of hood installa-
tion above cooktop:
7-FT. 8-IN. CEILING
Hood 30” above cooktop
H = 30”
Hood 29” above cooktop
H = 27”
8-FT. CEILING
Hood 24” above cooktop
H = 36”
Hood 30” above cooktop
H = 30”
9-FT. CEILING
Hood 30” above cooktop
H = 42”
H
1
7
/
16
”
(16) M4 x 10mm
PAN HEAD
MACHINE
SCREWS &
(16) M4
SERRATED
FLANGE NUTS
(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS
5. Attach the upper set of (4) angle brackets to the outside of the lower angle
brackets according to dimension “H”. Use (16) M4 x 10mm pan head machine
screws and (16) M4 serrated flange nuts (4 at each angle bracket connection).
6. Attach the angle bracket assemblies to the upper hood mounting locations
using (8) M4 x 10mm pan head machine screws (2 for each angle bracket).

- 13 -

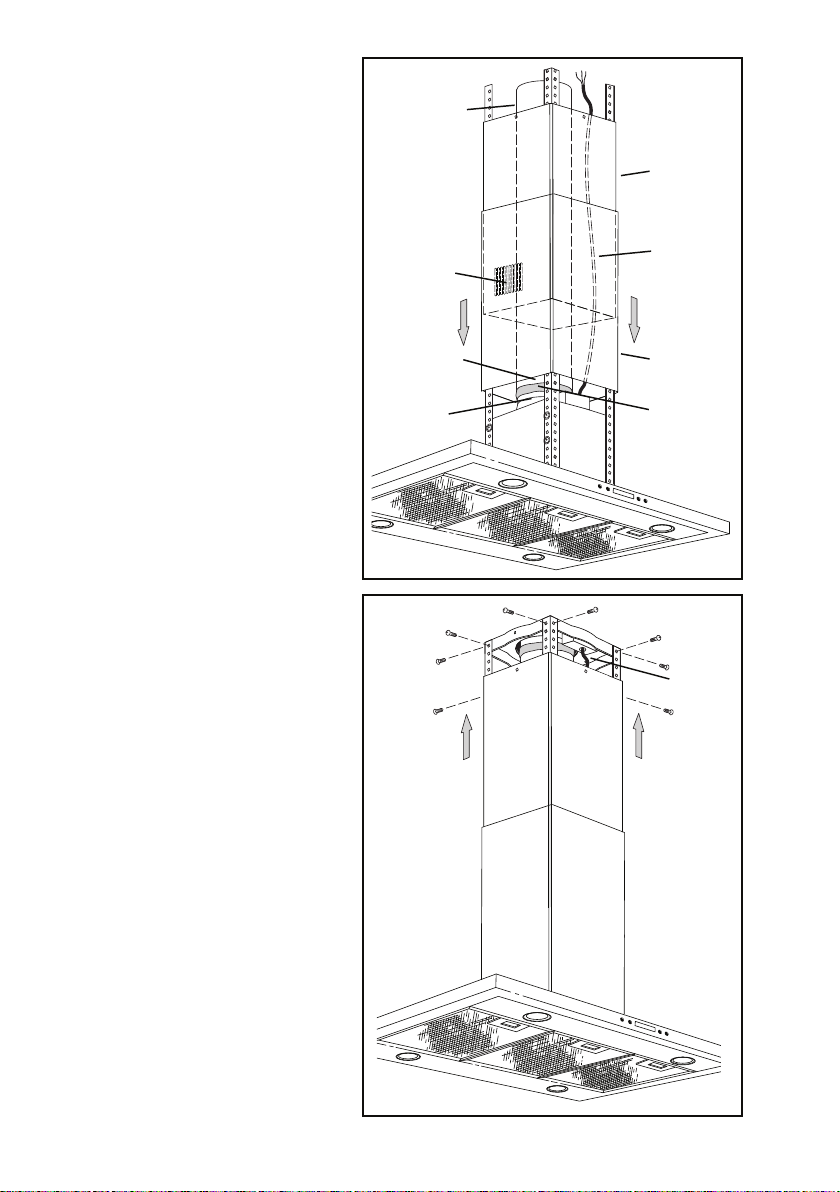

7. Measure the length of
6” round flexible duct
required from the damper
/ duct connector to the
ductwork rough-in in
the ceiling. Connect the
duct to the damper / duct
connector, secure with
tie wrap and seal with
duct tape.
8. Attach the aluminum
flexible duct to the non-
duct plenum collar. Make
sure non-duct plenum
“front” is facing front of
hood. Secure with tie
wrap and seal with duct
tape.
9. Remove the protective
coating from the inner
the flue. Turn the inner
flue so that the louvers
are at the top. Carefully
slide the inner flue down
into the outer flue. Slide
the flues over the angle
brackets. Make sure the
side marked “front” faces
the control side of the
hood. Feed the power
cable up through the
flues.
10. Pull the inner flue up
and attach the non-duct
plenum with collar to
the upper flue using (4)
M4 x 8mm sheet metal
screws.
11. Attach the hood
assembly to the ceiling
bracket using (8) M4 x
10mm machine screws
(2 for each support leg).
12. Connect power cable to
house wiring. Black to
Black, White to White,
and Green to Green
or Bare wires. Secure
power cable to wiring
box with appropriate
connector.
FRONT
(4) M4 x 8mm
SHEET METAL
SCREWS INNER
FLUE
OUTER
FLUE
FLEXIBLE
DUCT
DUCT
TAPE
DAMPER /
DUCT
CONNECTOR
POWER
CABLE
NON-DUCT
PLENUM
FRONT
(8) M4 x 10mm
PAN HEAD
MACHINE
SCREWS

- 14 -
13. Slide the inner flue up to the
ceiling and secure with (4) M4
x 8mm sheet metal screws.
14. Remove the protective coating
from the hood and the outer
flue.
(4) M4 x 8mm
SHEET
METAL
SCREWS
15. Remove the grease
filters by pulling down
the metal latch tab
and tilting the filters
downward to remove.
16. Install the non-duct
recirculation filter as
shown. Turn mounting
tabs on hood to secure
filter.
1 7. Reinstall grease filters
by aligning rear filter
tabs with slots in the
hood. Pull down the
metal latch tab, push
filter into position and
release. Make sure filters are securely engaged after installation.
METAL
LATCH
GREASE
FILTERS
NON-DUCT
RECIRCULATION
FILTER
NON-DUCT
FILTER
MOUNTING
TABS
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products
will be free from defects in materials or workmanship for a period of one year from the date of original purchase.THERE
ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which
is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDES-
CENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject
to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or
installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LI-
ABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTIONWITH
PRODUCT USE OR PERFORMANCE.Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This
warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated
below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.
In USA - BEST®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - BEST®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

- 15 -
SERVICE PARTS
KEY PART NO. DESCRIPTION QTY.
1 S99528360 Decorative Upper and Lower Flues 1
2 S99528361 Motor / Blower Assembly 1
3 S99526975 Light Socket Assembly 4
4 S99527010 Light Trim Ring / Lens Assembly 4
5 S99527660 User Interface Assembly 1
6 S99527665 Control Board 1
7 S97018908 Aluminum Grease Filters 3
8 S99527023 Non-Duct Recirculation Filter 1
9 S99526983 Damper / Duct Connector 1
10 S99526984 6” Dia. Expandable Flexible Aluminum Duct 1
11 S99528362 Non-Duct Plenum Assembly 1
12 S99528363 Angle Mounting Bracket 8
13 S99528364 Ceiling Mounting Bracket w/ Outlet Box 1
S99527662 Capacitor (not shown) 1
S99527132 Parts Bag (not shown) 1
S99528459 Non-Duct Filter Clips (not shown) 1
S99527011 Transformer (not shown) 1
Order service parts by Part No. - not by Key No.

- 16 -
SERVICE PARTS
1
2
4
5
7
8
9
10
11
12
13
Replacement parts can be
ordered on our website:
www.BestRangeHoods.com
8
3
6
99528359F

Modèle I BF4 I 36SB
Aux États-Unis - BEST®Hartford, Wisconsin
ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register
Pour de plus amples informations, visitez www.BestRangeHoods.com

- 18 -
LIRE CES DIRECTIVES ET LES CONSERVER
AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE, DE DÉCHARGES ÉLECTRIQUES
OU DE BLESSURES CORPORELLES, VEUILLEZ OBSERVER LES DIRECTIVES
SUIVANTES :
1. N’utilisez cet appareil que de la manière prévue par le fabricant. Si vous avez des
questions, communiquez avec le fabricant à l’adresse ou au numéro de téléphone
indiqués dans la garantie.
2. Avant de procéder à l’entretien ou au nettoyage de l’appareil, coupez l’alimentation
du panneau électrique et verrouillez l’interrupteur principal afin d’empêcher que le
courant ne soit accidentellement rétabli.S’il est impossible de verrouiller l’interrupteur
principal, fixez solidement un message d’avertissement, par exemple une étiquette,
sur le panneau électrique.
3. L’installation et les branchements électriques doivent être effectués par un personnel
compétent, conformément aux normes et aux codes en vigueur, y compris les normes
et les codes du bâtiment relatifs à la résistance au feu.
4. Pour éviter les refoulements, l’apport d’air doit être suffisant pour brûler les gaz produits
par les appareils à combustion et les évacuer dans le conduit de fumée (cheminée).
Respectez les directives du fabricant de l’appareil de chauffage et les normes de
sécurité, notamment celles publiées par la National Fire Protection Association
(NFPA), l’American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE) et les codes des autorités locales.
5. Veillez à ne pas endommager le câblage électrique ou d’autres équipements non
apparents lors de la découpe ou du perçage du mur ou du plafond.
6. Les ventilateurs canalisés doivent toujours rejeter l’air à l’extérieur.
7. N’utilisez pas de commande de régime à semi-conducteurs avec cet appareil.
8. Pour réduire les risques d’incendie, utilisez seulement des conduits en acier.
9. Cet appareil doit être relié à une mise à la terre.
POUR RÉDUIRE LES RISQUES D’INCENDIE CAUSÉS PAR DE LA GRAISSE SUR
LE PLAN DE CUISSON :
a) Ne laissez jamais les éléments de surface allumés à haute température. Les
débordements peuvent causer de la fumée et occasionner des écoulements de
graisse inflammables.L’huile doit être chauffée graduellement à basse ou à moyenne
température.
b) Mettez toujours la hotte en MARCHE lors de la cuisson à feu vif ou lors de la cuisson
d’aliments à flamber (crêpes Suzette, cerises jubilé, bœuf au poivre flambé).
c) Nettoyez souvent la hotte. Ne laissez pas la graisse s’accumuler sur le ventilateur ou
les filtres.
d) Utilisez des casseroles de dimension appropriée. Utilisez toujours une batterie de
cuisine adaptée à la dimension de la surface chauffante.
OBSERVEZ LES CONSIGNES SUIVANTES AFIN DE RÉDUIRE LES RISQUES DE
BLESSURES CORPORELLES EN CAS D’INCENDIE CAUSÉ PAR DE LA GRAISSE
SUR LE PLAN DE CUISSON :*
1. ÉTOUFFEZ LES FLAMMES à l’aide d’un couvercle étanche, d’une tôle à biscuits
ou d’un plateau en métal puis éteignez le brûleur. FAITES ATTENTION DE NE PAS
!
POUR USAGE DOMESTIQUE SEULEMENT
!

- 19 -
!
ATTENTION
1. Pour usage intérieur seulement.
2. Pour ventilation générale uniquement. N’utilisez pas cet appareil pour évacuer des
matières ou des vapeurs dangereuses ou explosives.
3. Pour ne pas endommager les roulements du moteur, déséquilibrer les pales ou les
rendre bruyantes, protégez l’appareil de la poussière de plâtre, de construction, etc.
4. N’utilisez pas cette hotte au-dessus d’un appareil de cuisson dépassant
60 000 BTU/heure car le moteur du ventilateur s’arrêtera par intermittence.
5. Le moteur de la hotte est muni d’un dispositif de protection thermique qui coupe
automatiquement le moteur en cas de surchauffe. Il se remet en marche lorsqu’il a
refroidi. Faites réparer la hotte si le moteur continue à fonctionner par intermittence.
6. Pour mieux capter les vapeurs de cuisson, le bas de la hotte DOIT ÊTREAU MINIMUM
à 61 cm (24 po) et au maximum à 76 cm (30 po) au-dessus de la surface de cuisson.
7. Il est recommandé que les installateurs soient deux, compte tenu de la taille de
cette hotte.
8. Pour réduire les risques d’incendie et évacuer l’air correctement, assurez-vous qu’il
est canalisé à l’extérieur. Névacuez pas l’air dans des espaces enfermés par des
murs ou un plafond ou dans un grenier, un vide sanitaire ou un garage.
9. Prenez garde en installant la cheminée décorative et la hotte, car elles peuvent
comporter des bords tranchants.
10. Veuillez lire l’étiquette de spécifications du produit pour obtenir plus de renseignements,
notamment sur les exigences.
VOUS BRÛLER. SI LES FLAMMES NE S’ÉTEIGNENT PAS IMMÉDIATEMENT,
QUITTEZ LES LIEUX ET APPELEZ LE SERVICE DES INCENDIES.
2. NE SOULEVEZ JAMAIS UNE CASSEROLE EN FLAMMES – vous pourriez
vous brûler.
3. N’UTILISEZ PAS D’EAU, ni de linges ou de serviettes mouillés – une violente explosion
de vapeur pourrait survenir.
4. Utilisez un extincteur SEULEMENT si :
A. Vous savez qu’il est de classe ABC et vous connaissez déjà son mode
de fonctionnement.
B. L’incendie n’est pas très important et ne se propage pas.
C. Vous avez déjà téléphoné au service des incendies.
D. Vous pouvez combattre l’incendie en faisant dos à une sortie.
* Conseils tirés de la publication de la NFPA « Kitchen Fire Safety Tips ».

- 20 -
FONCTIONNEMENT
La hotte fonctionne à l’aide des boutons-poussoirs situés sur la face avant.
Éclairage Alimentation
Vitesse Minuterie
12 3 4
1) Bouton heure / arrêt différé
2) Bouton d’éclairage 3) Bouton du ventilateur 4) Bouton MARCHE / ARRÊT
HEURE / ARRÊT DIFFÉRÉ (2 fonctions)
RÉGLAGE DE L’HEURE
Ce bouton permet de régler l’heure lorsque l’éclairage et le ventilateur ne sont pas
utilisés. L’heure est affichée en cycle de 12 heures. Pour régler l’heure, appuyez sur le
bouton (1) pendant trois secondes. Les deux premiers chiffres se mettent à clignoter.
Utilisez le bouton du ventilateur (3) pour avancer et le bouton d’éclairage (2) pour
reculer. Appuyez de nouveau sur le bouton heure / arrêt différé (1). Les deux derniers
chiffres se mettent à clignoter. Utilisez le bouton du ventilateur (3) pour avancer et le
bouton d’éclairage (2) pour reculer. Appuyez de nouveau sur le bouton heure / arrêt
différé (1) pour confirmer et quitter le mode de réglage de l’heure.
RÉGLAGE DE L’ARRÊT DIFFÉRÉ
Lorsque le ventilateur est en marche, ce bouton permet de retarder l’arrêt du ventilateur.
Pour régler l’arrêt différé, appuyez sur le bouton (1). Par défaut, l’arrêt différé est réglé à
5 minutes mais il peut aller jusqu’à 60 minutes. Utilisez le bouton du ventilateur (3) pour
retarder l’arrêt et le bouton d’éclairage (2) pour l’avancer. Le compte à rebours s’affiche
sur l’écran ACL, le symbole du ventilateur est activé et le rétroéclairage du bouton
(1) clignote. Le ventilateur continuera de fonctionner pendant le temps programmé
puis s’arrêtera automatiquement (l’arrêt différé ne concerne pas l’éclairage car il est
indépendant). Pour annuler la fonction d’arrêt différé, appuyez de nouveau sur le bouton
(1). Le ventilateur continuera de fonctionner et ne s’arrêtera pas tant que vous n’aurez
pas appuyé sur le bouton MARCHE / ARRÊT (4). Pour annuler la fonction d’arrêt différé
et arrêter le ventilateur du même coup, appuyez sur le bouton MARCHE / ARRÊT (4).
REMARQUE : Le délai sera rétabli si la vitesse du ventilateur est modifiée pendant le
réglage du mode d’arrêt différé.
ÉCLAIRAGE
Appuyez une fois sur le bouton d’éclairage (2) pour allumer l’écran ACL. Pour allumer
les lumières, appuyez sur le bouton d’éclairage (2) une fois de plus. Appuyez de
nouveau pour éteindre des lumières. L’écran ACL s’éteint automatiquement après
15 secondes d’inactivité (ventilateur et/ou lumières).
VENTILATEUR
Le bouton du ventilateur (3) met le ventilateur en marche à l’un des trois réglages de
vitesse : LENT, MOYEN ou ÉLEVÉ.Appuyez une fois sur le bouton du ventilateur (3) ou
sur le bouton MARCHE / ARRÊT (4) pour allumer l’écran ACL. Appuyez une fois de
plus sur le bouton du ventilateur (3) ou sur le bouton MARCHE / ARRÊT (4) pour
actionner le ventilateur à la dernière vitesse sélectionnée. Le symbole du ventilateur est
activé. Pour modifier la vitesse du ventilateur, appuyez sur le bouton du ventilateur (3)
jusqu’à l’obtention de la vitesse voulue. Pour arrêter le ventilateur, appuyez sur le bouton
MARCHE / ARRÊT (4). La dernière vitesse utilisée est mémorisée. REMARQUE :
Lors de la mise en marche du ventilateur, son niveau de puissance est activé à 100 %
pendant 1 à 2 secondes. Puis, il fonctionne à la vitesse préalablement réglée.
