SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Best P.O. Box 140 Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
LANOITPOHTIW
SLEDOMREWOLB
REWOLB
MFC STLOV SPMA TCUD
6BE
foorrollaw
tnuom
etomer
srewolb
.xam006
021
34.0
sthgil(
)ylno
+
0.6
.xam
rewolb(
)ylno
tadnuor.ni-8
.dooheht
rewolbeeS
tcudrofsceps
.stnemeriuqer
9BE .xam009
21BE .xam0021
51BE .xam0051
3BLI
citta
dellatsni
enilni
srewolb
.xam082
6BLI .xam006
9BLI .xam008
11BLI .xam0011

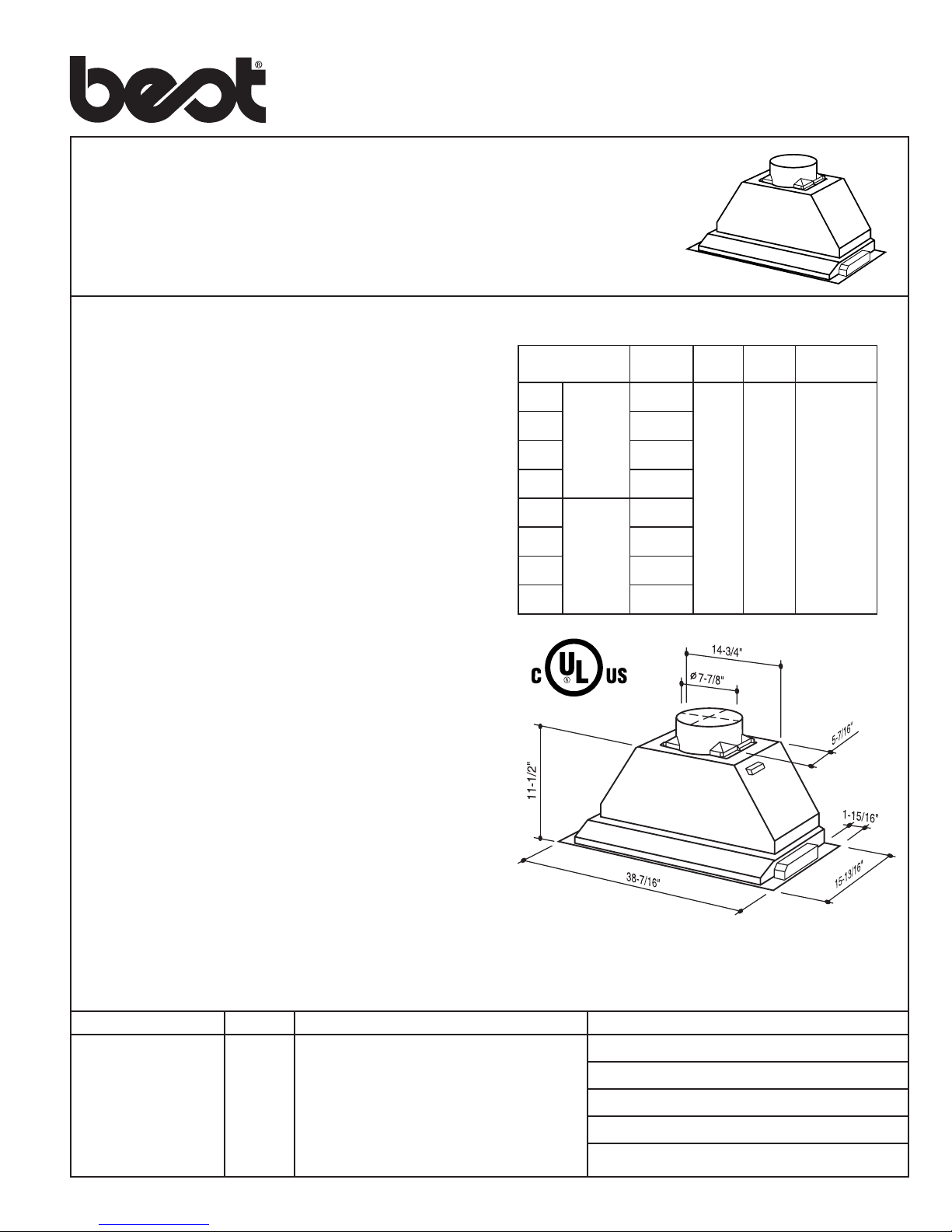

PKEX2238SS
RANGE HOOD
Mount range hood so bottom of hood is
24” to 30” above cooking surface.
80C 99043176H
Exterior blower provides higher exhaust options,
ranging from 600 to 1500 CFM.
Specially designed to be installed in custom canopy
hoods for use over residential commercial-style
cooking surfaces.
FEATURES
•Italian design
•Cabinet mount – custom application
•Finish: 304 Stainless Steel #3 Brushed
•Width: 38-7/16”
•8” round duct connector/backdraft damper
•Halogen lighting. (4 bulbs included. Type GU10, MR16
shielded, 120 volt, 50 watts max.)
•Slide controls: on-off, innite speed
•Exterior mounted blower available in either 600, 900, 1200,
or 1500 CFM
•Easily accessible, dishwasher-safe aluminum/stainless
steel lters
•Heat SentryTM - automatically turns blower to high speed
when excess cooking heat is detected
OPTIONS
•8” to 10” transition (Model 414)
•Stainless liner (Model Nos. L3848, L3854, L3860)
•Ambient light panel (Model Nos. ALP48, ALP54, ALP60)
•Interior blower version (PK22) available, providing 1000
CFM of exhaust
SPECIFICATIONS

Best P.O. Box 140 Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
PKEX2238SS WIRING
PKEX2238SS MOUNTING
2-WIRE
PLUS GROUND
EXTERIOR BLOWER
120 VOLT 60 HZ 2-WIRE PLUS GROUND POWER SUPPLY
WIRING
BOX COVER
WOOD OR METAL FLANGE
TO SECURE SIDES OF UNIT
(2) METAL
SCREWS
SEE
CUTOUT
DIMENSIONS
4 SCREWS
(Typical)
METAL OR
OTHER NON-COMBUSTI-
BLE
MATERIAL
(Build to Measure)
FLUSH UNIT
TO BOTTOM
OF HOOD
