Best WBF4I User manual

Model WBF4I
In USA - BEST®Hartford, Wisconsin
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK,OR INJURYTO PERSON(S)
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer at the address or telephone number listed
in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock
service disconnecting means to prevent power from being switch on accidentally.
When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel
in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s guidelines and safety
standards such as those published by the National Fire Protection
Association (NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any other solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite.Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when cooking flaming foods
(i.e. Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filters.
d) Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCETHE RISK OF INJURYTO PERSON(S) INTHE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT
GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 3 -
!
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep
drywall spray, construction dust, etc. off power unit.
4. Do not use over cooking equipment greater than 60,000 BTU/hr. as the blower
motor will shut down intermittently.
5. Your hood motor has a thermal overload which will automatically shut off the
motor if it becomes overheated. The motor will restart when it will cool down. If
the motor continues to shut off and restart, have the hood serviced.
6. The bottom of the hood MUST NOT BE LESS than 24” and at a maximum of
30” above cooktop for best capture of cooking impurities.
7. Two installers are recommended because of the size of this hood.
8. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do
not exhaust air into spaces within walls or ceilings or into attics, crawl spaces,
or garages.
9. Be careful when installing the decorative flue and hood, they may have sharp
edges.
10. Please read specification label on product for further information and
requirements.
3. DO NOT USE WATER, including wet dishcloths or towels – This could cause
a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

- 4 -
OPERATION

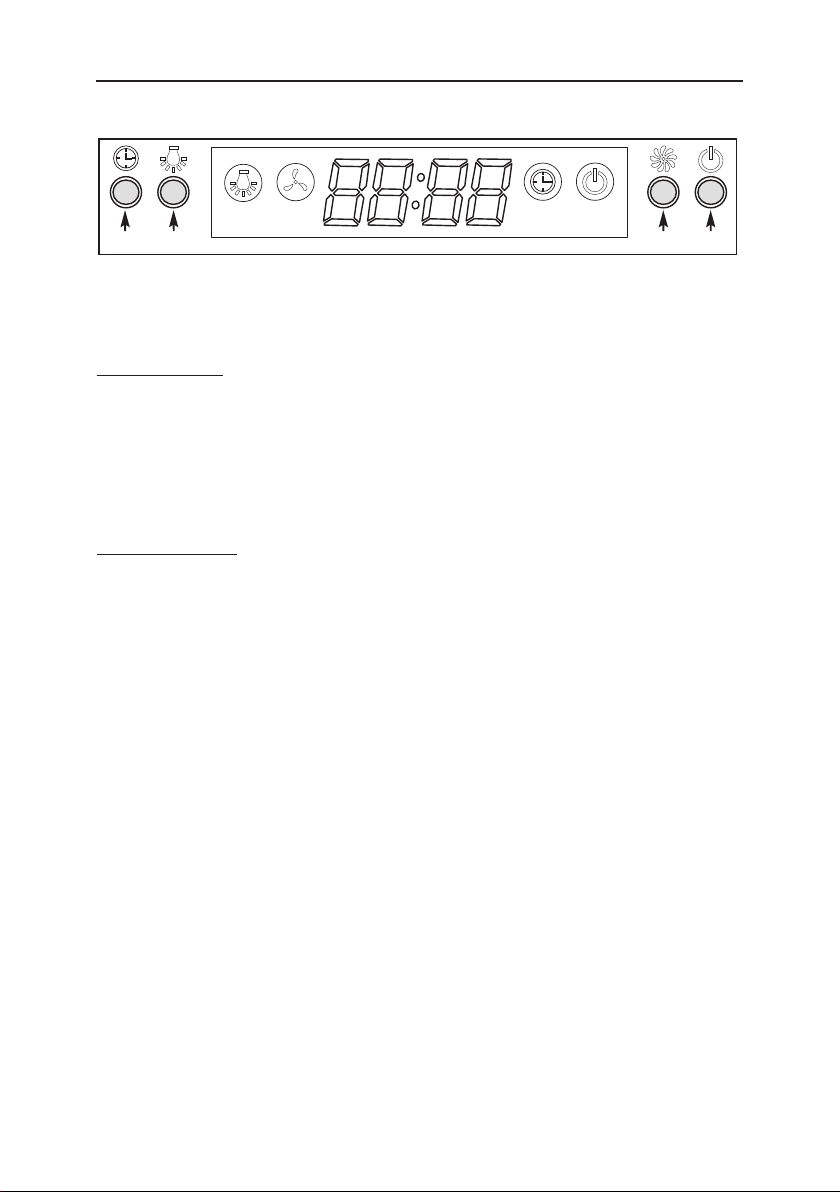

The hood is operated using the push buttons on the front panel.
Lamp Power
Speed Timer
1
nottubhsuprewolB)3nottubhsupyaleD/emiT)1
nottubhsupFFO/NO)4nottubhsupgnithgiL)2
2 3 4
TIME/DELAY (2 Functions)
TIME SETTING
This button is used to set time when lighting and blower are not in use. Time is
displayed in a 12-hour cycle. To set time, press the push button (1) for 3 seconds.
The first two digits will flash. Use the blower push button (3) to increase, and the
lighting pushbutton (2) to decrease. Press the time/delay push button (1) again.The
last two digits will flash. Use the blower push button (3) to increase and the lighting
push button (2) to decrease. Press the time/delay button (1) again to confirm and
exit time setting mode.
DELAY SETTING
When blower is in use, this button is used as the delay off setting button. To set
delay, press the push button (1). The delay is factory set at 5 minutes, but can be
set from 1 up to 60 minutes. Use blower push button (3) to increase, and lighting
push button (2) to decrease. Countdown will be displayed on the LCD screen,
blower symbol will be activated, and the button (1) backlight will flash. Blower
will continue to operate for the programmed time and then will stop automatically
(delay-off setting does not affect lighting as it works independently). To cancel
delay function, press time/delay push button (1) again. The blower will continue
to operate and won’t stop until ON/OFF push button (4) is pressed. To turn delay
function and blower OFF at once, press ON/OFF push button (4). NOTE: Delay will
be reset if blower speed is modified during delay setting mode.
LIGHTING
Press the lighting push button (2) once to turn the LCD screen on. To turn the
lights on, press the lighting push button (2) once more. Press it again to turn the
lights OFF.The LCD screen will turn off automatically after 15 seconds of inactivity
(blower and/or lights).
BLOWER
The blower push button (3) turns the blower on to one of three speed settings:LOW,
MEDIUM or HIGH. Press the blower (3) or ON/OFF (4) push button once to turn
the LCD screen on. Press the blower (3) or ON/OFF (4) push button once more to
turn the blower on at the last selected speed. Blower symbol will be activated. To
change the blower speed, press the blower push button (3) until the desired speed
is obtained. Press the ON/OFF push button (4) to turn the blower OFF. The last
speed used will be memorized. NOTE: When blower is turned on, 100% of power
level is activated for 1 to 2 seconds. It will then operate at the previous setting.

- 5 -
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor.The impeller
should also be replaced.
Grease Filter
The grease filter should be cleaned frequently. Use a warm detergent solution. Grease
filter is dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent.Discoloration of
the filter may occur if using phosphate detergents, or as a result of local water conditions -
but this will not affect filter performance.This discoloration is not covered by the warranty.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-ducted Recirculation Filter
The non-ducted recirculation filter should be changed every 6 months. Replace more
often if your cooking style generates extra grease, such as frying and wok cooking. See
“INSTALL FILTERS” section for removal and installation instructions.
Stainless Steel Cleaning
DO:
• Regularly wash with clean cloth or rag
soaked with warm water and mild soap
or liquid dish detergent.
• Always clean in the direction of original
polish lines.
• Always rinse well with clear water (2 or
3 times) after cleaning. Wipe dry com-
pletely.
• You may also use a specialized house-
hold stainless steel cleaner.
DON’T:
• Use any steel or stainless steel wool or
any other scrapers to remove stubborn
dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construc-
tion residues reach the hood. During
construction/renovation, cover the range
hood to make sure no dust sticks to the
stainless steel surface.
Avoid:When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel
• Any products containing:chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc.,
are highly explosive and should never be used close to a range.
!

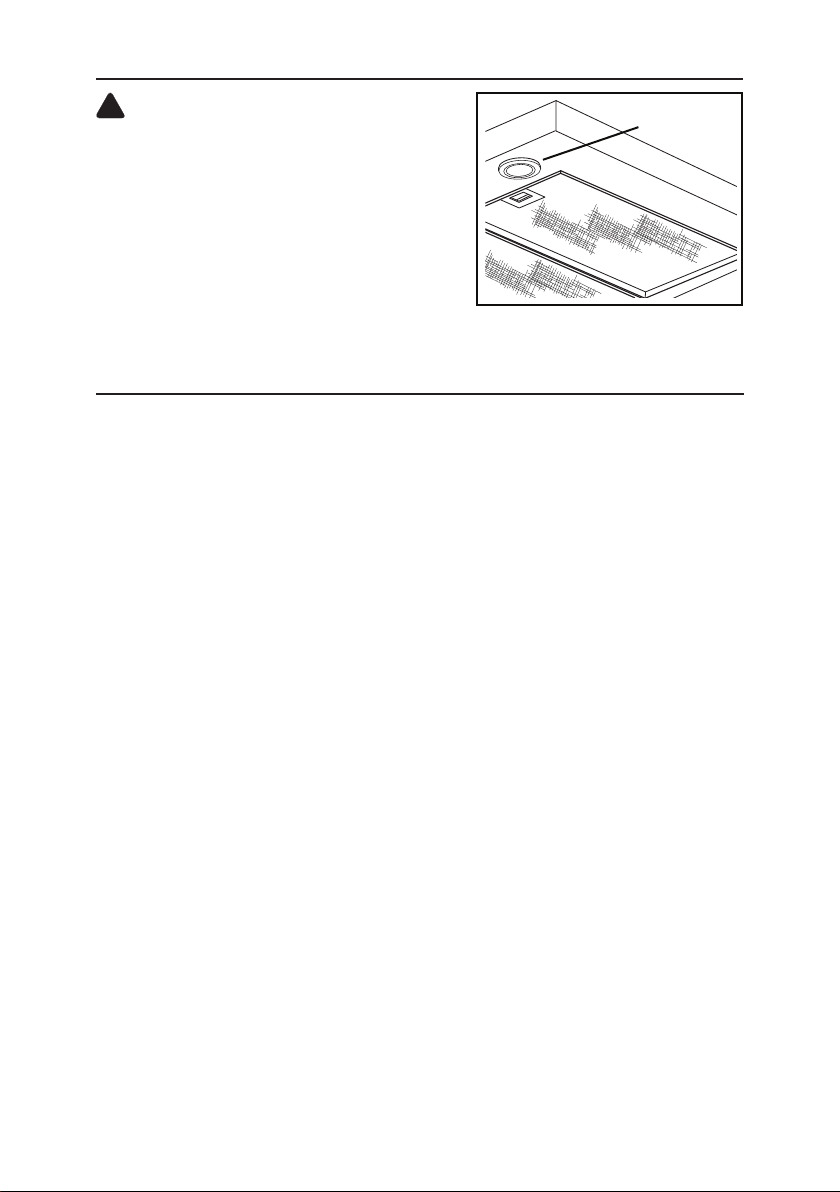

CAUTION
Bulbs may be hot. Always allow bulbs to
cool down before removing them.
This range hood requires two halogen bulbs
(Type JC, 12V, 20W Max, G-4 Base).
To change bulbs:
1. Remove light bulb cover by gently pushing
it upward and turning it counterclockwise.
2. Replace bulb.
3. Re-install light bulb cover by gently pushing it upward and turning it clockwise.
LIGHT BULB
COVER
LIGHT BULBS

- 6 -
ROOF CAP
6” ROUND
DUCT
DECORATIVE
FLUE
HOOD
WALL
CAP
6” ROUND
ELBOW
DAMPER /
DUCT
CONNECTOR
24” TO 30” ABOVE
COOKING SURFACE
INSTALL THE DUCTWORK (Ducted Hoods Only)
INSTALL THE WIRING
11½”
MAX.
NOTE: To reduce the risk of fire, use
only metal ductwork.

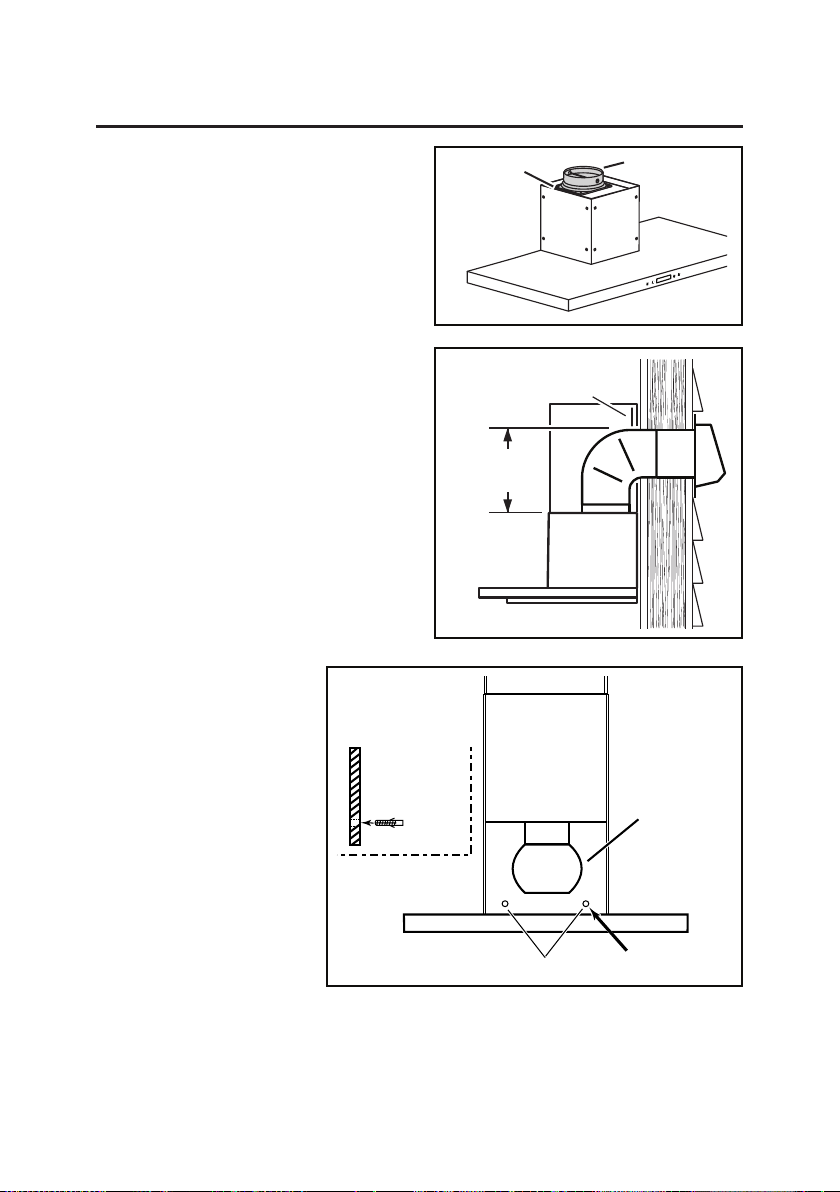

1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow
the hood to perform most efficiently.
3. Long duct runs, elbows, and
transitions will reduce the
performance of the hood. Use as
few of them as possible. Larger
ducting may be required for best
performance with longer duct runs.
4. Install a roof or wall cap. Connect
round metal ductwork to cap and work back towards hood location. Use duct
tape to seal the joints between ductwork sections.
1. GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of an electrical short
circuit, grounding reduces the risk
of electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
cord having a grounding wire with
a grounding plug. The plug must
be plugged into an outlet that is
properly installed and grounded.
2. Position the electrical outlet
within the space covered by the
decorative flue and where it will not
interfere with the round duct. Make
sure the outlet is no further than
11½” from where the cord exits from the hood and that the outlet does not
interfere with a mounting bracket fastening area or where the decorative flue
touches the wall.

- 7 -
PREPARE THE HOOD

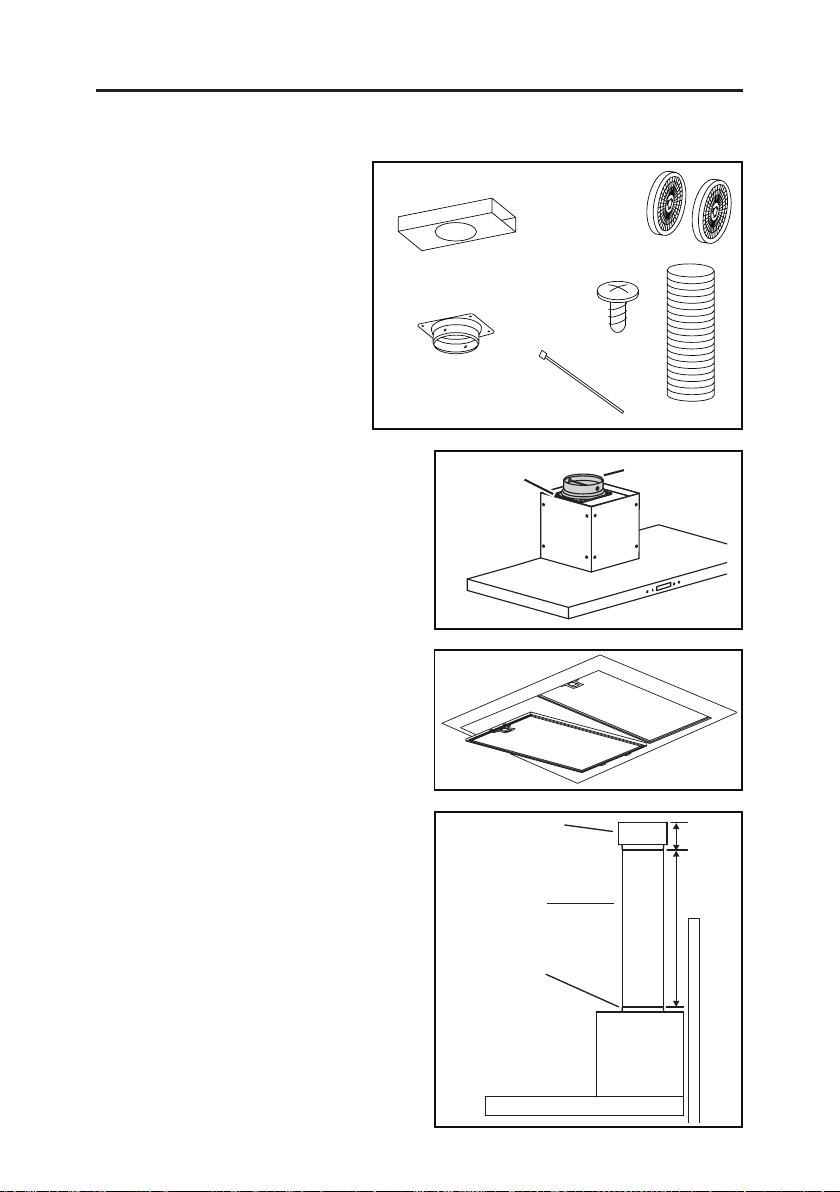

Unpack hood and check contents. You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Damper / Duct Connector
1 - Lower Flue Mounting Bracket
1 - Upper Flue Mounting Bracket
1 - Hood Mounting Bracket
2 - Aluminum Grease Filters (installed in hood) (3 filters - 36” hood only)
1 - Parts Bag containing:
8 - Mounting Screws (#8 x 3/8” Pan Head)
7 - Mounting Screws (#8 x 1-1/2” Flat Head)
7 - Drywall Anchors
2 - Washers
1 - Installation Manual
7 MOUNTING
SCREWS
(#8 X 1-1/2”
Flat Head)
7 DRYWALL
ANCHORS
8 MOUNTING
SCREWS (#8 x
3/8” Pan Head)
DECORATIVE FLUE
2 WASHERS
UPPER
FLUE MOUNTING
BRACKET
HOOD
MOUNTING
BRACKET
LOWER
FLUE MOUNTING
BRACKET
DAMPER / DUCT
CONNECTOR

- 8 -
C
L

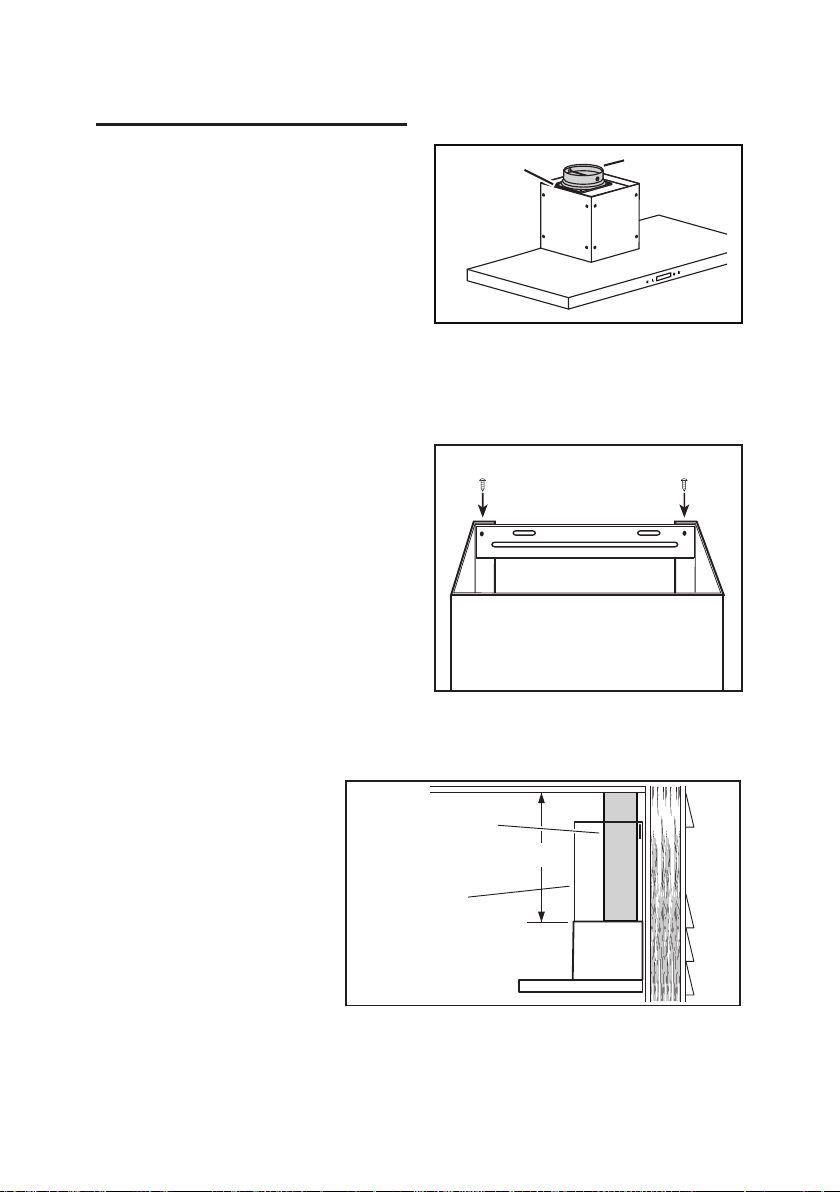

INSTALL THE HOOD MOUNTING BRACKET
1. Construct wood wall framing that is flush with interior surface of wall studs.
Make sure:
a) the framing is centered over installation location.
b) the height of the framing will allow the mounting bracket to be secured to
the framing within the dimensions shown.
2. After wall surface is finished, carefully center and level the hood mounting
bracket and secure it to wall framing with (3) #8 x 1-1/2” mounting screws.
Tighten the screws completely.
9”
35-7/8” = bottom of hood 24” above cooktop
41-7/8” = bottom of hood 30” above cooktop
41⁄2”
FRAMING BEHIND
DRYWALL
19⁄16”
WALL STUDS
Note:
a. Minimum hood distance above cook top must not be less than 24”.
A maximum of 30” above cook top is highly recommended for best capture of cooking impurities.
Distances over 30” are at the installer’s and user’s discretion; and if ceiling height and flue length
permit.
CEILING
HEIGHT DUCT METHOD
HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note a.)
24” 25” 26” 27” 28” 29” 30”
MOUNTING BRACKET LOCATION ABOVE 36” COOK TOP
7-FT. 8-IN.
MINIMUM DUCTED OR NON-DUCTED 35-7/8” 36-7/8” 37-7/8” 38-7/8”
8 OR 9
FEET DUCTED OR NON-DUCTED 35-7/8” 36-7/8” 37-7/8” 38-7/8” 39-7/8” 40-7/8” 41-7/8”

- 9 -
INSTALL UPPER FLUE MOUNTING BRACKET
1. Drill two 5⁄16” diameter holes where shown. Insert drywall an-
chors into the holes.
2. Center the bracket over the hood location and flush with the
ceiling. Make sure that the slots of the upper flue bracket are
at the bottom. Secure the upper flue bracket to the wall using (2)
#8 x 1½” mounting screws.
3. Tighten the screws completely. Make sure that the bracket is
tight against the wall.
C
L
Flush with
the ceiling
Center of
installation
Upper flue mounting
bracket slots
C
L
7½”
3¾”
11⁄8”
Recommended
distance between
screw holes
Ceiling
Ø 5/16” TYP.
Ceiling
Center of installation

- 10 -
INSTALL THE HOOD
(Horizontally Ducted Hoods Only)
1. DO NOT REMOVE the protective
plastic film covering the decorative
flue and the hood at this time.
2. Lay the back side of the hood
flat on a table. Use a piece of
cardboard to avoid damaging the
table or the hood.
3. Attach damper / duct connector to
top of hood using (4) #8 x 3/8” Pan
Head mounting screws.
4. Remove the grease filters by
pushing down the metal latch
tab and tilting filters downward to
remove.
5. Carefully rotate hood upright.
6. Make sure there will be adequate
clearance between top of hood
and lower flue mounting bracket
for ductwork. Elbow must be
located below lower flue mounting
bracket.
7. Align the hood and center it above
the hood mounting bracket. Gently
lower the hood until it securely
engages the bracket.
8. With the hood hanging
in place, drill through
the both holes located
in the inside lower
back of hood using a
5/16” drill bit. Insert
the included drywall
anchors into the
drilled holes (one for
each hole). Install (2)
washers and (2) no. 8
x 1½” mounting screws
through the back of
the hood and into
the drywall anchors.
Verify that the hood is
centered and leveled.
Tighten all screws
completely.
9. Reinstall grease filters by aligning rear filter tabs with slots in the hood. push
down the metal latch tab, push filter into position and release. Make sure
filters are securely engaged after installation.
11½”
MAX.
LOWER FLUE
MOUNTING BRACKET
(4) #8 X 3/8”
PAN HEAD
SHEET METAL
SCREWS
DAMPER / DUCT
CONNECTOR
HOLES LOCATION Ø5/16” TYP.
MOTOR/BLOWER
ASSEMBLY
SIDE VIEW
INSIDE BACK
OF THE HOOD

- 11 -
10. Measure and install 6” round metal
ductwork to roof cap or wall cap
and 900elbow over duct collar on
hood. Use duct tape to make all
joints secure and air tight.
11. Plug hood power cord into the
outlet.
12. Remove the upper flue from inside
the lower flue. Install the lower flue
bracket to the lower flue using (2)
flue bracket screws no. 8 x 3/8”.
Make sure that the slots are at the
top. Carefully replace the upper
flue inside the lower flue, with the
upper flue recirculation slots and
(2) bracket holes on top. Remove
protective plastic film covering the
lower flue only.
13. Carefully place both flues on top of
the hood.
Tabs on bottom edge of lower flue
fit into slots on top of hood.
UPPER FLUE
UPPER FLUE MOUNTING BRACKET
FRONT VIEW
14. Slide the upper flue upward until
it is aligned with its upper flue
mounting bracket. The bracket
should be inside the flue. Secure
the upper flue to the upper flue
mounting bracket using (2) no. 8 x
3/8” mounting screws.
15. Remove protective plastic film
covering the upper flue and the
hood.
6”
ROUND
ELBOW
LOWER FLUE MOUNTING BRACKET
LOWER
FLUE
RECIRCULATION
SLOTS &
BRACKET HOLES

- 12 -
INSTALL THE HOOD
(Vertically Ducted Hoods Only)
1. DO NOT REMOVE the protective
plastic film covering the decorative
flue and the hood at this time.
2. Lay the back side of the hood
flat on a table. Use a piece of
cardboard to avoid damaging the
table or the hood.
3. Attach damper / duct connector to
top of hood using (4) #8 x 3/8” Pan
Head mounting screws.
4. Remove the grease filters by pushing down the metal latch tab and tilting
filters downward to remove.
5. Carefully rotate hood upright.
6. Remove the upper flue from inside
the lower flue. Install the lower
flue bracket to the lower flue using
(2) flue bracket screws #8 x 3/8”,
make sure that the slots are at the
top. Carefully replace the upper
flue inside the lower flue, with the
upper flue recirculation slots and
(2) bracket holes on top. Remove
protective plastic film covering the
lower flue only.
7. Carefully place both flues on top of
hood.
Tabs on bottom edge of lower flue
fit into slots on top of hood.
LOWER FLUE MOUNTING BRACKET
LOWER
FLUE
(4) #8 X 3/8”
PAN HEAD
SHEET METAL
SCREWS
DAMPER / DUCT
CONNECTOR
8. Measure and install
metal ductwork to hood
duct connector. Use duct
tape to make all joints
secure and air tight.
9. Hold hood up close to
wall mounting location
and plug power cord into
wall outlet.
10. Align the hood and
center it above the
hood mounting bracket. Make sure ductwork on hood lines up and attaches
to ductwork in ceiling. Gently lower the hood until it securely engages the
bracket.
11. Use duct tape to make all joints secure and air tight.
DUCT LENGTH
DECORATIVE
FLUE
6” ROUND
STEEL DUCT

- 13 -
12. With the hood hanging
in place, drill through
both holes located
in the inside lower
back of hood using
a 5⁄16” drill bit. Insert
the included drywall
anchors into the
drilled holes (one for
each hole). Install (2)
washers and (2) #8
x 1-1/2” mounting
screws through the
hood back and into
the drywall anchors.
Verify that the hood is
centered and leveled. Tighten all screws completely.
13. Reinstall grease filters by aligning rear filter tabs with slots in the hood.
Pushdown the metal latch tab, push filter into position and release. Make
sure filters are securely engaged after installation.
14. Slightly push aside the upper flue to avoid any damage while installing the
lower flue to the hood top using (2) #8 x 3/8” screws through the lower flue
side slots.
15. Slide the upper flue upward until it
is aligned with its mounting
bracket. The bracket should be
inside the flue. Secure the upper
flue to the upper flue mounting
bracket using (2)
#8 x 3/8” mounting screws.
16. Remove protective plastic film
covering the upper flue and the
hood.
HOLES LOCATION Ø5/16” TYP.
MOTOR/BLOWER
ASSEMBLY
SIDE VIEW
INSIDE BACK
OF THE HOOD
UPPER
FLUE
UPPER FLUE MOUNTING BRACKET
FRONT VIEW

- 14 -
INSTALL THE HOOD (Non-Ducted Hoods Only)
NON-DUCT KIT
MODEL ANKWBF4 CONTENTS
NON-DUCT
PLENUM
2 TIE
WRAPS FLEXIBLE DUCT
NON-DUCTED
RECIRCULATION
FILTERS
NON-DUCT PLENUM
COLLAR
8 MOUNTING
SCREWS
(#8 x 3/8”
PanHead)
(4) #8 X 3/8”
PAN HEAD
SHEET METAL
SCREWS
DAMPER / DUCT
CONNECTOR
6. Remove the grease filters
by pushing down the metal
latch tab and tilting filters
downward. A
NON-DUCT PLENUM
6” ALUMINUM
FLEX DUCT
DAMPER / DUCT
CONNECTOR
4-7/8”
NOTE: Non-ducted installations
require Non-Duct Kit, Model ANKWBF4
(purchase separately).
1. CAUTION: Do not use plastic or rigid
metal duct.
2. Do not remove the protective plastic
film covering the decorative flue and
the hood at this time.
3. Lay the back side of the hood
flat on a table. Use a piece of
cardboard to avoid damaging the
table or the hood.
4. Attach damper / duct connector to
top of hood using (4) #8 x 3/8” Pan
Head mounting screws.
5. Remove damper flaps from
damper / duct connector and
discard flaps.
7. Attach non-duct collar to non-
duct plenum using (4) #8 x
3/8” Pan Head screws.
8. Measure distance “A”. This will
be the length of the extended
flex duct.
9. Attach aluminum flexible duct
to the damper / duct connector
with a tie wrap.
10. Attach flexible duct to non-duct
plenum collar and secure with
tie wrap. Tape all joints with
duct tape.
NOTE: Non-ducted installations
require Non-Duct Kit, Model
ANKWBF4 (purchase
separately).
1. CAUTION: Do not use plastic
or rigid metal duct.
2. Do not remove the protective
plastic film covering the
decorative flue and the hood at
this time.
3. Lay the back side of the hood
flat on a table. Use a piece of
cardboard to avoid damaging
the table or the hood.

- 15 -
11. Remove the upper flue from inside the
lower flue. Install the lower flue bracket to
the lower flue using (2) flue bracket screws
#8 x 3/8”. Make sure that the slots are at
the top. Carefully replace the upper flue
inside the lower flue, with the upper flue
recirculation slots and (2) bracket holes on
top. Remove protective plastic film covering
the lower flue only.
12. Carefully place both flues on top of hood.
Tabs on bottom edge of lower flue fit into slots on top of hood.
13. Attach non-duct plenum with collar to upper flue using (4) #8 x 3/8” Pan Head screws.
LOWER FLUE MOUNTING BRACKET
LOWER
FLUE
14. Hold hood up close to wall
mounting location and plug
power cord into wall outlet.
15. Align the hood and center
it above the hood mounting
bracket. Gently lower
the hood until it securely
engages the bracket.
16. With the hood hanging in
place, drill through both holes
located in the inside lower
back of hood using a 5⁄16”
dril bit. Insert the included
drywall anchors into the
drilled holes (one for each
hole). Install (2) washers and (2) #8 x 1-1/2” mounting screws through the back of
the hood and into the drywall anchors. Verify that the hood is centered and leveled.
Tighten all screws completely.
HOLES LOCATION Ø5/16” TYP.
MOTOR/BLOWER
ASSEMBLY
SIDE VIEW
INSIDE BACK
OF THE HOOD
17. Attach (2) two non-duct recirculation
filters to sides of blower by aligning key
lock slot and rotating until filters lock
into place.
For replacement non-duct recirculation
filters - purchase S97018030 or
ROUNDFILTER.
18. Reinstall grease filters by aligning rear
filter tabs with slots in the hood. Push down the metal
latch tab, push filter into position and release. Make
sure filters are securely engaged after installation.
19. Slide up the upper flue until it is aligned with its
mounting
bracket. The bracket should be inside the flue.
Secure the upper flue on the upper flue mounting
bracket using (2) #8 x 3⁄8” mounting screws.
20. Remove protective plastic film covering the flue and
the hood.
UPPER
FLUE
UPPER FLUE
MOUNTING BRACKET
FRONT VIEW

- 16 -
SERVICE PARTS
KEY PART NO. DESCRIPTION
1 S99528393 Decorative Upper and Lower Flues
2 S99526974 Motor / Blower Assembly
3 S99526975 Light Socket Assembly
4 S99527010 Light Trim Ring / Lens Assembly
5 S99527660 User Interface Assembly
6 S99527665 Control Board
7 S97018027 Aluminum Grease Filters (pair for 30”)
S97018028 Aluminum Grease Filters (set of 3 for 36”)
8 S97018030 Non-Duct Recirculation Filter (pair)
9 S99526983 Damper / Duct Connector
10 S99526984 6” Dia. Expandable Flexible Aluminum Duct
11 S99526985 Non-Duct Plenum Assembly
S99527012 Capacitor (not shown)
S99527011 Transformer (not shown)
S99526994 Parts Bag (not shown)
Order service parts by Part No. - not by Key No.
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products
will be free from defects in materials or workmanship for a period of one year from the date of original purchase.THERE
ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which
is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDES-
CENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject
to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or
installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LI-
ABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTIONWITH
PRODUCT USE OR PERFORMANCE.Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This
warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated
below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.
In USA - BEST®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - BEST®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

- 17 -
SERVICE PARTS
1
2
45
7
8
9
10
11
Replacement parts can be
ordered on our website:
www.BestRangeHoods.com
3
6
99528392B

- 18 -
Modèle WBF4I
Aux États-Unis - BEST®Hartford, Wisconsin
ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register
Pour de plus amples informations, visitez www.BestRangeHoods.com

- 19 -
LIRE CES DIRECTIVES ET LES CONSERVER
AVERTISSEMENT
AFIN DE RÉDUIRE LES RISQUES D’INCENDIE, DE DÉCHARGES ÉLECTRIQUES OU DE
BLESSURES CORPORELLES, VEUILLEZ OBSERVER LES DIRECTIVES SUIVANTES :
1. N’utilisez cet appareil que de la manière prévue par le fabricant.Si vous avez des questions,
communiquez avec le fabricant à l’adresse ou au numéro de téléphone indiqués dans
lagarantie.
2. Avant de procéder à l’entretien ou au nettoyage de l’appareil, coupez l’alimentation du
panneau électrique et verrouillez l’interrupteur principal afin d’empêcher que le courant ne soit
accidentellement rétabli.S’il est impossible de verrouiller l’interrupteur principal, fixez solidement
un message d’avertissement, par exemple une étiquette, sur le panneau électrique.
3. L’installation et les branchements électriques doivent être effectués par un personnel
compétent, conformément aux normes et aux codes en vigueur, y compris les normes et
les codes du bâtiment relatifs à la résistance au feu.
4. Pour éviter les refoulements, l’apport d’air doit être suffisant pour brûler les gaz produits
par les appareils à combustion et les évacuer dans le conduit de fumée (cheminée).
Respectez les directives du fabricant de l’appareil de chauffage et les normes de sécurité,
notamment celles publiées par la National Fire Protection Association (NFPA), l’American
Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) et les codes
des autorités locales.
5. Veillez à ne pas endommager le câblage électrique ou d’autres équipements non apparents
lors de la découpe ou du perçage du mur ou du plafond.
6. Les ventilateurs canalisés doivent toujours rejeter l’air à l’extérieur.
7. N’utilisez pas de commande de régime à semi-conducteurs avec cet appareil.
8. Pour réduire les risques d’incendie, utilisez seulement des conduits en acier.
9. Cet appareil doit être relié à une mise à la terre.
POUR RÉDUIRE LES RISQUES D’INCENDIE CAUSÉS PAR DE LA GRAISSE SUR LE
PLAN DE CUISSON :
a) Ne laissez jamais les éléments de surface allumés à haute température. Les débordements
peuvent causer de la fumée et occasionner des écoulements de graisse inflammables.
L’huile doit être chauffée graduellement à basse ou à moyenne température.
b) Mettez toujours la hotte en MARCHE lors de la cuisson à feu vif ou lors de la cuisson
d’aliments à flamber ( crêpes Suzette, cerises jubilé, bœuf au poivre flambé).
c) Nettoyez souvent la hotte.Ne laissez pas la graisse s’accumuler sur le ventilateur ou les filtres.
d) Utilisez des casseroles de dimension appropriée. Utilisez toujours une batterie de cuisine
adaptée à la dimension de la surface chauffante.
OBSERVEZ LES CONSIGNES SUIVANTES AFIN DE RÉDUIRE LES RISQUES DE
BLESSURES CORPORELLES EN CAS D’INCENDIE CAUSÉ PAR DE LA GRAISSE SUR
LE PLAN DE CUISSON :*
1. ÉTOUFFEZ LES FLAMMES à l’aide d’un couvercle étanche, d’une tôle à biscuits ou d’un
plateau en métal puis éteignez le brûleur.FAITESATTENTION DE NE PASVOUS BRÛLER.
SI LES FLAMMES NE S’ÉTEIGNENT PAS IMMÉDIATEMENT, QUITTEZ LES LIEUX ET
APPELEZ LE SERVICE DES INCENDIES.
2. NE SOULEVEZ JAMAIS UNE CASSEROLE EN FLAMMES – vous pourriez vous brûler.
!
POUR USAGE DOMESTIQUE SEULEMENT
!

- 20 -
!
ATTENTION
1. Pour usage intérieur seulement.
2. Pour ventilation générale uniquement.N’utilisez pas cet appareil pour évacuer des matières
ou des vapeurs dangereuses ou explosives.
3. Pour ne pas endommager les roulements du moteur, déséquilibrer les pales ou les rendre
bruyantes, protégez l’appareil de la poussière de plâtre, de construction, etc.
4. Ne pas utiliser cette hotte au-dessus d’un appareil de cuisson dépassant
60,000 BTU/heure car le moteur du ventilateur s’arrêtera par intermittence.
5. Le moteur de la hotte est muni d’un dispositif de protection thermique qui coupe
automatiquement le moteur en cas de surchauffe.Il se remet en marche lorsqu’il a refroidi.
Faites réparer la hotte si le moteur continue à fonctionner par intermittence.
6. Pour mieux capter les vapeurs de cuisson, le bas de la hotte DOIT ÊTRE AU MINIMUM
à 61 cm (24 po) et au maximum à 76 cm (30 po) au-dessus de la surface de cuisson
7. Il est recommandé que les installateurs soient deux, compte tenu de la taille de cette hotte.
8. Pour réduire les risques d’incendie et évacuer l’air correctement, assurez-vous qu’il est
canalisé à l’extérieur. N’évacuez pas l’air dans des espaces enfermés par des murs ou
un plafond ou dans un grenier, un vide sanitaire ou un garage.
9. Prenez garde en installant la cheminée décorative et la hotte, car elles peuvent comporter
des bords tranchants.
10. Veuillez lire l’étiquette de spécifications du produit pour obtenir plus de renseignements,
notamment sur les exigences.
3. N’UTILISEZ PAS D’EAU, ni de linges ou de serviettes mouillés – une violente explosion
de vapeur pourrait survenir.
4. Utilisez un extincteur SEULEMENT si :
A. Vous savez qu’il est de classe ABC et que vous connaissez déjà son mode
de fonctionnement.
B. L’incendie n’est pas très important et ne se propage pas.
C. Vous avez déjà téléphoné au service des incendies.
D. Vous pouvez combattre l’incendie en faisant dos à une sortie.
* Conseils tirés de la publication de la NFPA « Kitchen Fire Safety Tips ».
