- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards, including fire-rated construction
codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating
equipment manufacturer’s guidelines and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electrical shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 3 -
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not
vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or
garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor
if it becomes overheated. The motor will restart when it cools down. If the motor
continues to shut off and restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum
of 20” and a maximum of 30” above the cooking surface. See “Install Mounting
Bracket” section for mounting restrictions.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan
or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion
will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate
it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

- 4 -
OPERATION
CONTROLS (FIG. 1)
Speed display:
PU5: ON/OFF Motor 4th speed
PU4: ON/OFF Motor 3rd speed
PU3: ON/OFF Motor 2nd speed
PU2: ON/OFF Motor 1st speed
PU1: HI/LOW/OFF Lights
10-minute timer function:
Pressing PU2, PU3 or PU4 for two seconds when the motor
is set to the corresponding speed, activates the 10-minute
timer function.
The corresponding LED starts blinking to display this
function.
After ten minutes of operation the motor is turned off. If you
change the speed while the timer is running, the function
is NOT deactivated. To deactivate the function, press the
blinking key for two seconds. FIG. 1
NOTE – the 10-minute timer function can be activated for the normal speeds
only (1st, 2nd, 3rd).
Filter alarm:
After 30 hours of motor operation, the grease filter alarm is activated (all the
LEDs come on). The alarm is activated when the motor is off and remains
displayed for 30 minutes. To deactivate the alarm, press one of the keys for 2
seconds during alarm display. After 120 hours of motor operation, the charcoal
filter alarm is activated (all the LEDs blink). The alarm is activated when the motor
is off and remains displayed for 30 minutes. To deactivate the alarm, press one of
the keys for 2 seconds during alarm display.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.

- 5 -
HALOGEN BULBS
This range hood requires two halogen
bulbs (Type T4, 120Volt, 25Watt Max,
G9 Base).
WARNING: Always switch off the
electrical supply before carrying out
any operation on the appliance.
To change bulbs:
1. Open the cover by prying from the
proper slots. Fig. 2.
2. Remove the bulbs by pulling sideways. (DO NOT ROTATE).
!
CAUTION: Bulbs may be hot.
3. Replace with Type T4, 120Volt, 25Watt Max, G9 Base halogen bulbs. Do not
touch replacement bulbs with bare hands!
FIG. 2
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor. The impeller
should also be replaced.
Grease Filter
The grease filter should be cleaned frequently. Use a warm detergent solution. Grease filter
is dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of
the filter may occur if using phosphate detergents, or as a result of local water conditions
- but this will not affect filter performance. This discoloration is not covered by the warranty.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-ducted Recirculation Filter
The non-ducted recirculation filter should be changed every 6 months. Replace more often if
your cooking style generates extra grease, such as frying and wok cooking. See “INSTALL
FILTERS” section for removal and installation instructions.
Stainless Steel Cleaning
DO:
• Regularly wash with clean cloth or rag
soaked with warm water and mild soap
or liquid dish detergent.
• Always clean in the direction of original
polish lines.
• Always rinse well with clear water (2 or 3
times) after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
DON’T:
•
Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the hood. During
construction/renovation, cover the range
hood to make sure no dust sticks to the
stainless steel surface.
Avoid: When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc.,
are highly explosive and should never be used close to a range.

- 6 -
PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Blower Guard
1 - Parts Bag containing:
2 - Mounting Brackets
6 - Mounting Screws (4.8 x 38mm Pan Head)
6 - Drywall Anchors
2 - Non-Duct Filters
1 - Installation Instructions
2 MOUNTING
BRACKETS
6 MOUNTING SCREWS
(4.8 x 38mm Pan Head)
6 DRYWALL
ANCHORS
FIG. 3
1 BLOWER GUARD
2 NON-DUCT FILTERS

- 7 -
PLAN INSTALLATION
LOCATION
DUCTED and NON-DUCTED HOODS
1. Choose a hood location above the
cook top and prepare the wall for
the electrical outlet and mounting
brackets.
2. Mount the hood a minimum of 20” and
a maximum 30” above the cook top
for best capture of cooking impurities.
3. The hood is supplied for non-ducted
installation only. Follow instructions
marked “NON-DUCTED HOODS”.
4. For ducted installations, purchase
Flue Kit Model AEWC43SP and
follow instructions marked “DUCTED
HOODS”.
INSTALL ELECTRICAL
DUCTED and NON-DUCTED HOODS
WARNING : Electrical wiring must
be done by a qualified person(s) in
accordance with all applicable codes
and standards. This range hood
must be properly grounded. Turn off
electrical power at service entrance
before wiring.
1. Plan where the hood will be located
above the cook top. Refer to the
“INSTALL MOUNTING BRACKET”
section for hood mounting height
options.
2. Install a standard 2” x 4” wall outlet
box and 3-blade 125 volt, 15 Amp
grounded receptacle.
3. Mount the center of the wall outlet 5”
to 8” above the top of the hood. Fig. 5.
4. Locate the box and the receptacle
within boundary shown and off center
of the ductwork (to allow for power
cord plug and flue clearance).
FIG. 4
FIG. 5
6" ROUND
DUCT
ROOF CAP
6" ROUND
ELBOW
20" TO 30" ABOVE
COOKING SURFACE
(see “INSTALL
MOUNTING
BRACKET”
section for mounting
restrictions)
WALL CAP
HOOD
DECORATIVE
FLUE
5” to 8”
4¼”
8½”
CENTERLINE
OF HOOD

- 8 -
HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note below)
26”
MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP
CEILING
HEIGHT
8 FEET
20” 21” 22” 23” 24” 25”
34-1/2” 35-1/2” 36-1/2” 37-1/2”
DUCTED*
NON-DUCTED
DUCT
METHOD
34-1/2” 35-1/2”
9 FEET DUCTED*
NON-DUCTED 35-1/2” 36-1/2” 37-1/2” 38-1/2” 39-1/2” 40-1/2” 41-1/2” 42-1/2” 43-1/2” 44-1/2”
30”27” 28” 29”
38-1/2” 39-1/2” 40-1/2” 41-1/2” 42-1/2” 43-1/2” 44-1/2”
INSTALL MOUNTING
BRACKET
DUCTED and NON-DUCTED HOODS
1. Construct wood wall framing that
is flush with interior surface of wall
studs. Fig. 6.
Make sure:
a) the framing is centered over
installation location.
b) the height of the framing will allow
the mounting brackets to be
secured to the framing within the
dimensions shown.
2. After wall surface is finished,
secure each mounting bracket
to framing with (2) 4.8 x 38 mm
mounting screws. See chart below
for mounting bracket location.
Note : Minimum hood distance above cook top must not be less than 20”. A maximum
of 30” above cook top is highly recommended for best capture of cooking impurities.
Distances over 30” are at the installer and user’s discretion; and if ceiling height
and flue length permit.
* Ducted hood requires the purchase of flue kit model AEWC43SP.
FRAMING BEHIND
WOOD CROSS
SUPPORT
WOOD CROSS
SUPPORT BEHIND
DRYWALL
DRYWALL
FIG. 6
36-1/2” 37-1/2” 38-1/2” 39-1/2” 40-1/2” 41-1/2” 42-1/2” 43-1/2” 44-1/2”
36-1/2” 37-1/2”
34-1/2”

- 9 -
FIG. 9
INSTALL THE HOOD
Note: Remove the plastic protective
film from all exterior surfaces,
decorative flues and filters, prior to
final installation.
DUCTED and NON-DUCTED
INSTALLATION
1. Open the front glass panel and
remove shipping tape from both air
cylinders.
2. Pull each cylinder to extend its length.
Fig. 8.
3. Align end of cylinder with mounting
bracket and push in to engage. Fig. 9.
4. Install hood onto (2) wall mounting
brackets. Make sure hood is level with
floor. Fig. 10.
FIG. 8
Click!
FIG. 10

- 10 -
FIG.11

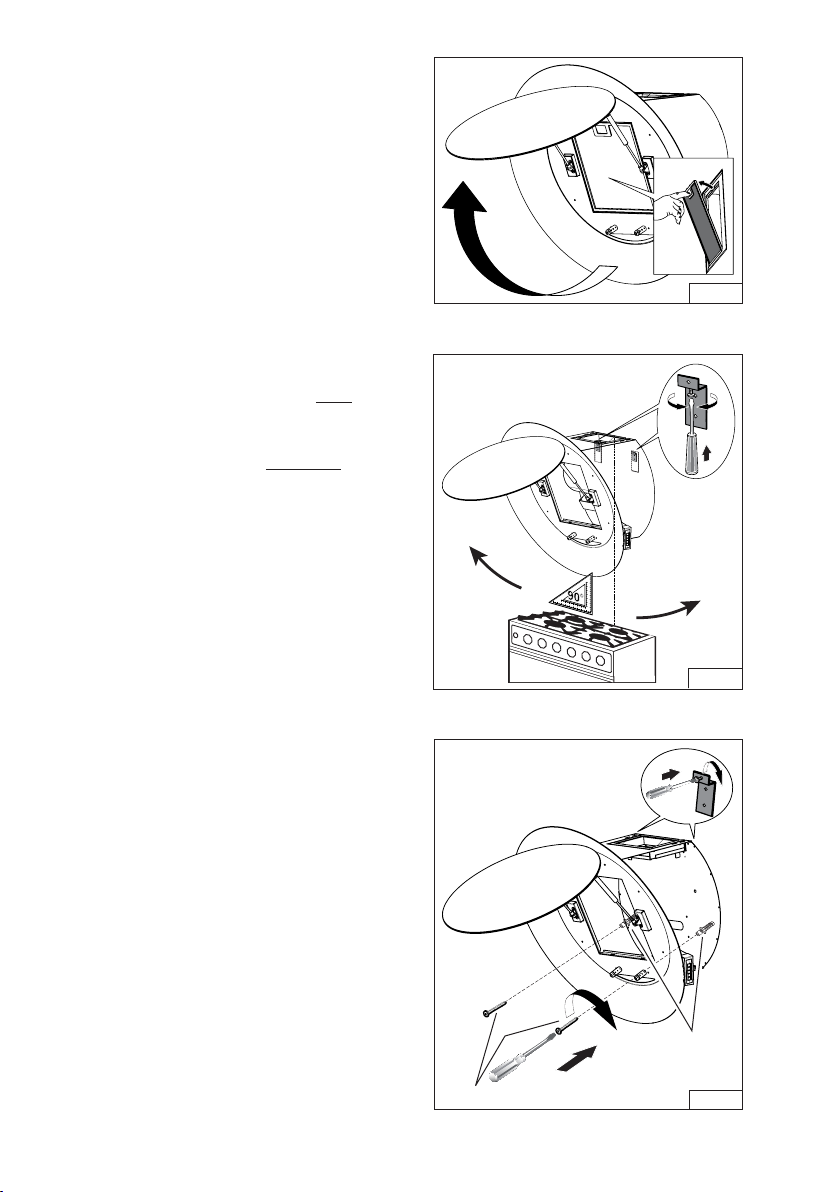

5. Lift glass front panel and remove
grease filter. Fig. 11.
6. Level the hood using (2) screws
provided on mounting brackets. Fig.
12.
7. Mark and install (2) additional drywall
anchors as shown. Fig. 13.
8. Secure range hood to the wall with
(2) 4.8 x 38 mm mounting screws.
9. Tighten upper screws on mounting
brackets until hood is tight against
the wall.
NON-DUCTED INSTALLATION -
CONTINUE TO STEP 10 AT TOP OF
PAGE 11.
DUCTED INSTALLATION -
SKIP TO STEP 17 AT BOTTOM OF
PAGE 11.
FIG.12
FIG.13
4.8 x 38 mm SCREWS
DRYWALL
ANCHORS
IN WALL

- 11 -
FIG.14
DISCHARGE
COLLAR
6”
ROUND
DUCT
DUCTED INSTALLATION ONLY
• Purchase Flue Kit Model
AEWC43SP from your local dealer.
• Purchase 6” round metal duct, metal
elbows, wall cap or roof cap as
required.
• Purchase aluminum duct tape.
1 7. Center mounting bracket directly
over range hood. Fig. 18.
18. Secure bracket to wall using (2)
4.8 x 38 mm mounting screws and
drywall anchors (provided).
19. Press discharge collar / damper into
blower duct connector. Fig. 19.
20. Install an appropriate wall or roof
cap, with damper, to exhaust air to
the outside. Run 6” round metal duct
to the outside location.
2 1. Tape all duct joints with aluminum
duct tape.
NON-DUCTED INSTALLATION ONLY
10. Install blade guard. Align tabs of the
guard with slots on top of the hood.
Fig. 14.
11. From inside the hood, bend tabs over
to secure the blade guard to the hood.
12. Plug power cord into 120 VAC
receptacle. Fig. 15.
13. Coil and tape remaining power cord
to the top of the range hood.
14. Install two charcoal filters onto the
blower. Fig. 16.
15. Re-install grease filter. Fig. 17.
16. Close the glass front panel.
TABS
TAPE
FIG.16 FIG.17
FIG.19
CENTERLINE
OF HOOD
4.8 x 38 mm
SCREWS
DRYWALL
ANCHORS
MOUNTING
BRACKET
FIG.15
FIG.18

- 12 -
FIG.21
FIG.20
22. Plug power cord into 120V wall
outlet. Fig. 20.
23. Install upper and lower decorative
flue onto range hood. Tabs on lower
flue engage slots on top of hood.
Fig. 21.
24. Secure upper flue to flue mounting
bracket with (2) 3.9 x 6 mm screws.
POWER
CORD
3.9 x 6mm
SCREWS (2)
INSTALL FILTERS
DUCTED AND NON-DUCTED HOODS
1. To remove the grease filter, push in
latch tab to disengage the filter from
the hood. Tilt the filter downward and
remove. Fig. 22.
2. To install the grease filter, align rear
filter tabs with slots in the hood. Push
latch tab in, push filter into position
and release. Make sure the filter is
securely engaged after installation.
NOTE: Prior to use, remove protective
film from the filter frame.
NON-DUCTED HOODS ONLY
1. Lift glass front panel and remove
the grease filter.
2. Install (2) charcoal filters to the
blower, as shown. Fig. 23.
3. Re-install grease filter and close the
front panel.
FIG.23
CHARCOAL FILTERS
FIG.22
GREASE FILTER

- 13 -
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will
be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE
NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES
OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which
is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND
INCANDESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR
DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have
been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty
installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH
PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This
warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated
below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

- 14 -
SERVICE PARTS
KEY NO. PART NUMBER DESCRIPTION
5 B03115314 BLADE GUARD
9 B08087827 GREASE FILTER
14 B02300233 CAPACITOR
16 BE3350518 ELECTRICAL BOX SUPPORT
26 B02300890 LAMP BULB
37 B02300804 THERMOSTAT
38 B03295595 ELECTRICAL PRINTED CIRCUIT
BOARD BOX
45 BW0000021 BLOWER
48 B02310260 MOTOR (CLOCK WISE)
49 B03295071 FAN (CLOCK WISE)
53 B03204177 RUBBER WASHER
60 B02300983 POWER CORD
67 B02300961 WIRES
76 B08092853 TOP GLASS (BLACK)
76 B08092929 TOP GLASS (WHITE)
147 BR2300132 JUNCTION CLAMP
166 B08080852 ELECTRICAL PRINTED CIRCUIT BOARD
167 B03295596 ELECTRICAL BOX COVER
195 BE3351278 BRACKET
332 B03115207 COVER
415 B03202454 FAIRLEAD
472 BE3350520 BRACKET
474 B02300918 HALOGEN LAMP
482 B03293180 RUBBER RING
998 B080810973 FITTING SET
999 B080813592 INSTALLATION INSTRUCTIONS SET
AQI B06103891 SWITCH BOX ASSEMBLY
ASM B08092852 MOVEMENT ASSEMBLY
CAS B06002157 BLOWER ASSEMBLY (including key No.:
45, 48, 49, 53)
IME B06145125 ELECTRICAL INSTALLATION ASSEMBLY
(includes key No.:14, 38, 60, 67, 147,
166, 167)
-- B03300495 NON-DUCT FILTERS (2)

- 15 -
SERVICE PARTS
474
26
332
472
195
482
9
167
14
166
38
415
147
16
60
AQI
45
49
67
5
76
ASM
48
37
53
CAS
NON-DUCT
FILTERS

- 16 -
04308339
99044840A

- 17 -
Modèle WC43I80
ENGLISH.................................... 2
FRANÇAIS.................................17
ESPAÑOL.................................. 33
Aux États-Unis - BEST Hartford, Wisconsin
Au CANADA - BEST Drummondville, QC, Canada
ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register
Pour de plus amples informations, visitez www.BestRangeHoods.com

- 18 -
LIRE CES DIRECTIVES ET LES CONSERVER
AVERTISSEMENT
OBSERVEZ LES DIRECTIVES CI-DESSOUS AFIN DE RÉDUIRE LES RISQUES
D’INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES CORPORELLES :
1. N’utilisez cet appareil que de la manière prévue par le fabricant. Si vous avez des questions,
communiquez avec le fabricant à l’adresse ou au numéro de téléphone indiqués dans la
garantie.
2. Avant de procéder à la réparation ou à l’entretien de l’appareil, coupez l’alimentation du
panneau électrique et verrouillez l’interrupteur principal afin d’empêcher que le courant
ne soit accidentellement rétabli. S’il est impossible de verrouiller l’interrupteur principal,
fixez solidement un message d’avertissement, par exemple une étiquette, sur le panneau
électrique.
3. La pose de l’appareil et les travaux d’électricité doivent être effectués par des personnes
qualifiées conformément à la réglementation en vigueur, notamment les normes de la
construction ayant trait à la protection contre les incendies.
4. Pour éviter les refoulements, l’apport d’air doit être suffisant pour brûler les gaz produits par
les appareils à combustion et les évacuer dans le conduit de fumée (cheminée). Respectez
les directives du fabricant de l’appareil de chauffage et les normes de sécurité, notamment
celles publiées par la National Fire Protection Association (NFPA), l’American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) et les codes des autorités
locales.
5. Veillez à ne pas endommager le câblage électrique ou d’autres équipements non apparents
lors de la découpe ou du perçage du mur ou du plafond.
6. Les ventilateurs canalisés doivent toujours rejeter l’air à l’extérieur.
7. N’utilisez pas de commande de régime à semi-conducteurs conjointement avec cet appareil.
8. Pour réduire les risques d’incendie, utilisez seulement des conduits en métal.
INSTRUCTIONS DE MISE À LA TERRE
Cet appareil doit être correctement mis à la terre. Dans l’éventualité d’un court-circuit, la mise
à la terre réduit les risques de décharge électrique en permettant au courant de s’échapper
dans un fil. Cette appareil comporte un cordon électrique muni d’un fil et d’une fiche de mise
à la terre. Cette fiche doit être branchée dans une prise de courant correctement installée et
mise à la terre.
AVERTISSEMENT - Une mise à la terre incorrecte peut entraîner un risque de choc électrique.
Consultez un électricien qualifié si vous ne comprenez pas complètement les directives de
mise à la terre ou si vous n’êtes pas sûr que l’appareil comporte une mise à la terre adéquate.
N’utilisez pas de rallonge électrique. Si le cordon électrique est trop court, demandez à un
électricien qualifié d’installer une prise de courant près de l’appareil.
!
POUR USAGE DOMESTIQUE SEULEMENT
!

- 19 -
!
ATTENTION
1. Pour usage intérieur seulement.
2. Pour réduire les risques d’incendie et évacuer l’air correctement, assurez-vous qu’il est canalisé
à l’extérieur. Ne pas évacuer l’air dans des espaces enfermés par des murs ou un plafond ou
dans un grenier, un vide sanitaire ou un garage.
3. Faites attention lorsque vous utilisez des agents nettoyants ou des détergents.
4. Évitez d’utiliser des produits alimentaires pouvant produire des flammes sous la hotte.
5. Pour ventilation générale uniquement. Ne pas utiliser cet appareil pour évacuer des matières
ou des vapeurs dangereuses ou explosives.
6. Pour éviter d’endommager les roulements de moteur, de déséquilibrer les pales ou de les
rendre bruyantes, débarrassez l’appareil de la poussière de plâtre, de construction, etc.
7. Le moteur de la hotte est muni d’un dispositif de protection thermique qui coupe
automatiquement le moteur en cas de surchauffe. Il se remet en marche lorsqu’il a refroidi.
Faites réparer la hotte si le moteur continue à fonctionner par intermittence.
8. Pour mieux capter les vapeurs de cuisson, le bas de la hotte doit être au minimum à 51cm
(20po) et au maximum à 76 cm (30 po) de la surface de cuisson. Pour les restrictions
s’appliquant au montage, voir la section « Installation de la bride de montage ».
9. Il est recommandé que les installateurs soient deux, compte tenu de la taille et du poids de
cette hotte.
10. Ce produit est doté d’un thermostat qui peut faire démarrer automatiquement le ventilateur.
Pour réduire les risques de blessures, coupez l’alimentation sur le panneau électrique et
verrouillez-le ou accrochez-y une étiquette de manière à éviter que le courant ne soit rétabli
par accident.
11. Veuillez lire l’étiquette de spécifications du produit pour obtenir plus de renseignements,
notamment sur les exigences.
AVERTISSEMENT
POUR RÉDUIRE LES RISQUES D’INCENDIE CAUSÉS PAR DE LA GRAISSE SUR LE PLAN
DE CUISSON :
A. Ne laissez jamais les éléments de surface allumés à haute température. Les débordements
peuvent causer de la fumée et occasionner des écoulements de graisse inflammables. L’huile
doit être chauffée graduellement à basse ou à moyenne température.
B. Mettez toujours la hotte en MARCHE lors de la cuisson à feu vif ou lors de la cuisson d’aliments
à flamber ( crêpes Suzette, cerises jubilé, bœuf au poivre flambé).
C. Nettoyez souvent la hotte. Ne laissez pas la graisse s’accumuler sur le ventilateur ou les filtres.
D. Utilisez des casseroles de dimension appropriée. Utilisez toujours une batterie de cuisine
adaptée à la dimension de la surface chauffante.
OBSERVEZ LES CONSIGNES SUIVANTES DE MANIÈRE À RÉDUIRE LES RISQUES DE
BLESSURES CORPORELLES EN CAS D’INCENDIE CAUSÉ PAR DE LA GRAISSE SUR LE
PLAN DE CUISSON :*
1. ÉTOUFFEZ LES FLAMMES à l’aide d’un couvercle étanche, d’une tôle à biscuits ou d’un
plateau en métal puis éteignez le brûleur. FAITES ATTENTION DE NE PAS VOUS BRÛLER.
Si les flammes ne s’éteignent pas immédiatement, QUITTEZ LES LIEUX ET APPELEZ LE
SERVICE DES INCENDIES.
2. NE SOULEVEZ JAMAIS UNE CASSEROLE EN FLAMMES - vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, ni de serviettes ou de linges mouillés – une violente explosion de
vapeur pourrait survenir.
4. Utilisez un extincteur SEULEMENT si :
A. Vous savez qu’il est de classe ABC et vous connaissez déjà son mode de fonctionnement.
B. L’incendie n’est pas très important et ne se propage pas.
C. Les pompiers ont été avisés.
D. Vous pouvez combattre l’incendie en faisant dos à une sortie.
* Conseils tirés de la publication de la NFPA « Kitchen Fire Safety Tips ».

- 20 -
FONCTIONNEMENT
COMMANDES (FIG. 1)
Affichage du régime :
PU5: MARCHE/ARRÊT Moteur 4e vitesse
PU4 : MARCHE/ARRÊT Moteur 3e vitesse
PU3 : MARCHE/ARRÊT Moteur 2e vitesse
PU2 : MARCHE/ARRÊT Moteur 1re vitesse
PU1 : Éclairage ÉLEVÉ/FAIBLE/ÉTEINT
Minuterie de 10 minutes :
Appuyer sur PU2, PU3 ou PU4 pendant deux secondes, lorsque le
moteur est réglé à la vitesse correspondante, active la fonction de
minuterie de 10 minutes.
La DEL correspondante se met à clignoter pour indiquer cette
fonction.
Après dix minutes de fonctionnement le moteur s’arrête. Si vous
changez la vitesse pendant que la minuterie est en marche, la
fonction N’EST PAS désactivée. Pour désactiver la fonction,
appuyez sur le bouton qui clignote pendant deux secondes. FIG. 1
REMARQUE – La fonction de minuterie de dix minutes peut être activée uniquement
pour les vitesses normales (1re, 2e, 3e).
Alarme de filtre :
Après 30 heures d’utilisation du moteur, l’alarme du filtre à graisses se déclenche (toutes
les DEL s’allument). L’alarme est activée lorsque le moteur est arrêté et demeure affichée
pendant 30 minutes. Pour désactiver l’alarme, appuyez sur une touche pendant deux
secondes alors que l’alarme est affichée. Après 120 heures d’utilisation du moteur, l’alarme
du filtre au charbon se déclenche (toutes les DEL clignotent). L’alarme est activée lorsque
le moteur est arrêté et demeure affichée pendant 30 minutes. Pour désactiver l’alarme,
appuyez sur une touche pendant deux secondes alors que l’alarme est affichée.
Thermostat HEAT SENTRYMC
Votre hotte est équipée d’un thermostat HEAT SENTRYMC. Il s’agit d’un détecteur de chaleur
qui actionne le ventilateur ou en augmente le régime en cas de chaleur excessive dégagée
par les éléments de cuisson.
1) En position ARRÊT, le ventilateur est mis en MARCHE au régime MAXIMUM.
2) En position MARCHE à régime lent, le ventilateur passe au régime MAXIMUM.
Une fois la température revenue à la normale, le ventilateur revient à son réglage d’origine.
AVERTISSEMENT
Le thermostat HEAT SENTRY peut faire démarrer le ventilateur même si la hotte est
sur ARRÊT. Lorsque cela se produit, il est impossible d’ARRÊTER le ventilateur avec
son interrupteur. Si vous devez arrêter le ventilateur, coupez le disjoncteur du panneau
d’alimentation électrique.
