Best WPB9 User manual

In USA - BEST Hartford, Wisconsin
In CANADA - BEST Drummondville, QC, Canada
Model WPB9
ENGLISH........................................3
FRANÇAIS...................................18
ESPAÑOL.....................................35
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 3 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the
risk of electrical shock by providing an escape wire for the electric current.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 4 -
WARNING
TO REDUCETHE RISK OF INJURYTO PERSONS INTHE EVENT OF A RANGETOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and
restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24” and
a maximum of 36” above the cooking surface.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To reduce
the risk of injury and to prevent power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.

- 5 -
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor. The impeller
should also be replaced.
Grease Filters
The grease filters should be cleaned frequently. Use a warm detergent solution. Grease
filters are dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of
the filter may occur if using phosphate detergents, or as a result of local water conditions -
but this will not affect filter performance. This discoloration is not covered by the warranty.
See “INSTALL FILTERS” section for removal and installation instructions.
Stainless Steel Cleaning
DO:
• Regularly wash with clean cloth or rag
soaked with warm water and mild soap or
liquid dish detergent.
• Always clean in the direction of original
polish lines.
• Always rinse well with clear water (2 or 3
times) after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
DON’T:
• Use any steel or stainless steel wool or
any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the hood. During construc-
tion/renovation, cover the range hood to
make sure no dust sticks to the stainless
steel surface.
Avoid: When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces
rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc.,
are highly explosive and should never be used close to a range.

- 6 -
OPERATION
Controls (Fig.1)
HALOGEN BULBS
This range hood requires 4 halogen bulbs (Type T4,
120 Volt, 25 Watt Max, G9 Base).
WARNING: Always switch off the electrical
supply before carrying out any operation on the
appliance.
To change bulbs:
1. Open the cover by gently prying from proper slots
(Fig.2).
2. Remove the bulb by pulling sideways (DO NOT
ROTATE).
CAUTION: Bulb may be hot.
3. Replace with Type T4, 120 Volt, 25 Watt Max, G9
Base halogen bulbs. Do not touch replacement bulbs with bare hands!
AC BD R
!
Button A = turns the lights on/low/high/off.
Button B = Activates/Deactivates the delay-off feature. Press once (when blower is on)
to activate the delay-off feature. The selected speed level that is displayed in display “C”
will blink when this feature is activated. After 10 minutes, the blower will then turn off.
Delay can be deactivated at any time by pressing the button again.
Display C = Indicates the selected speed of the blower 1, 2, 3, or b for boost.
“-” indicates the need to clean the grease filter.
Button D = Turns on the blower. Hood will turn on to the last speed selected. The blower
speed will change each time the button is pushed (from 1 to “b”). To turn the blower off,
press and hold button for approximately 2 seconds.
Button R = Filter clean indicator reset. Press and hold for 2 seconds to reset the indicator.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that
will turn on or speed up the blower if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF.
When this occurs, it is impossible to turn the blower OFF with its switch. If you
must stop the blower, do it from the main electrical panel.
REMOTE CONTROL:
An optional ACR Series remote control (purchase separately) can be used to operated
the range hood.
FIG. 2
FIG. 1

- 7 -

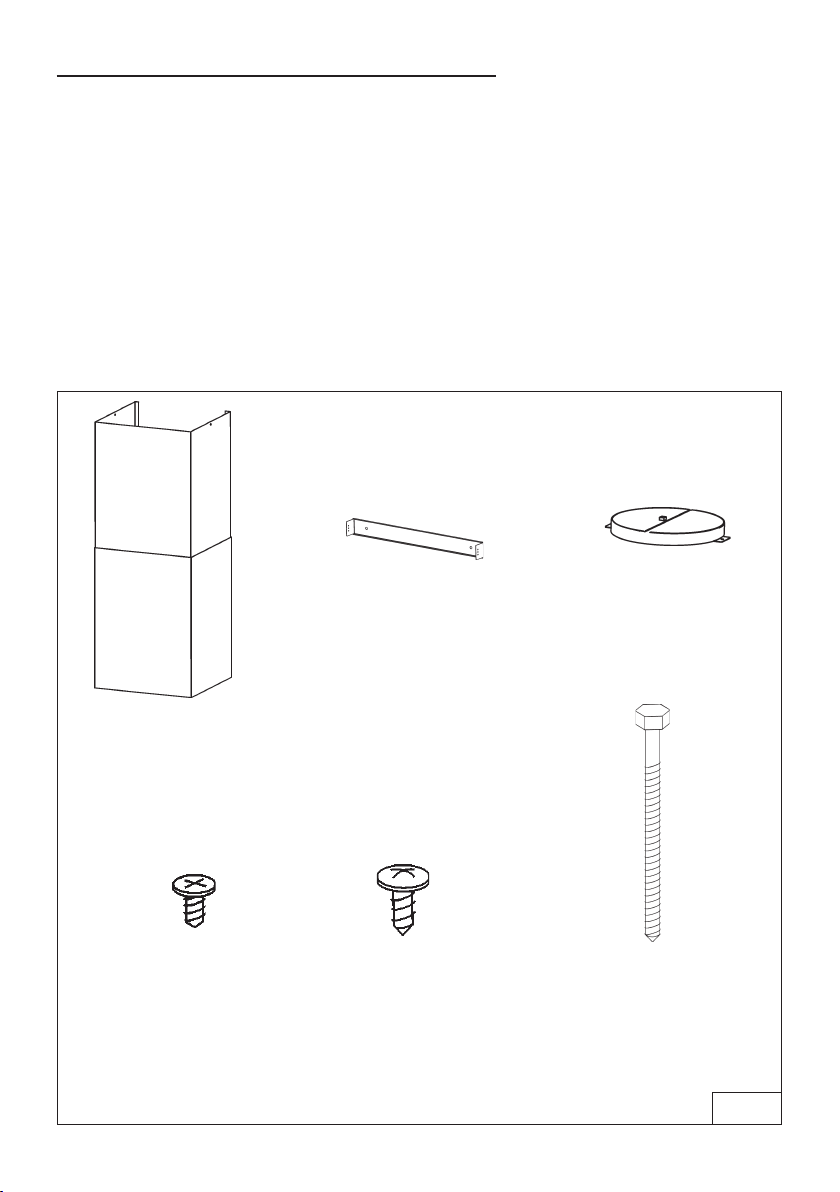

PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flues
1 - Parts Bag (080811032) containing:
1 - Duct Collar
6 - Mounting Screws (3,9 x 9,5mm Pan Head)
2 - Mounting Screws (3,9 x 6mm Flat Head)
6 - Mounting Lag Screws (6 x 60mm)
1 - Flue Mounting Bracket Set
1 - Installation Instructions
DUCT COLLAR
DECORATIVE
FLUES
6 MOUNTING SCREWS
(3,9x9,5mm Pan
Head)
6 MOUNTING LAG
SCREWS (6x60mm)
FIG. 3
FLUE MOUNTING
BRACKET SET
2 MOUNTING SCREWS
(3,9x6mm Flat Head)

- 8 -
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use
as few of them as possible.
4. Install a roof or wall cap. Connect 10”
round metal ductwork to cap and work back
towards hood location. Use duct tape to
seal the joints between ductwork sections
(Fig.4). 24” TO 36” ABOVE CO-
OKING SURFACE
ROOF CAP
WALL
CAP
10” ROUND
ELBOW
HOOD
DECORATIVE
FLUE
10” ROUND DUCT
FIG.4

- 9 -
FIG. 6
FRAMING BEHIND WOOD
CROSS SUPPORT
WOOD CROSS
SUPPORT BEHIND
DRYWALL
DRYWALL
MOUNTING
SCREWS
3,9x9,5mm
FIG.5

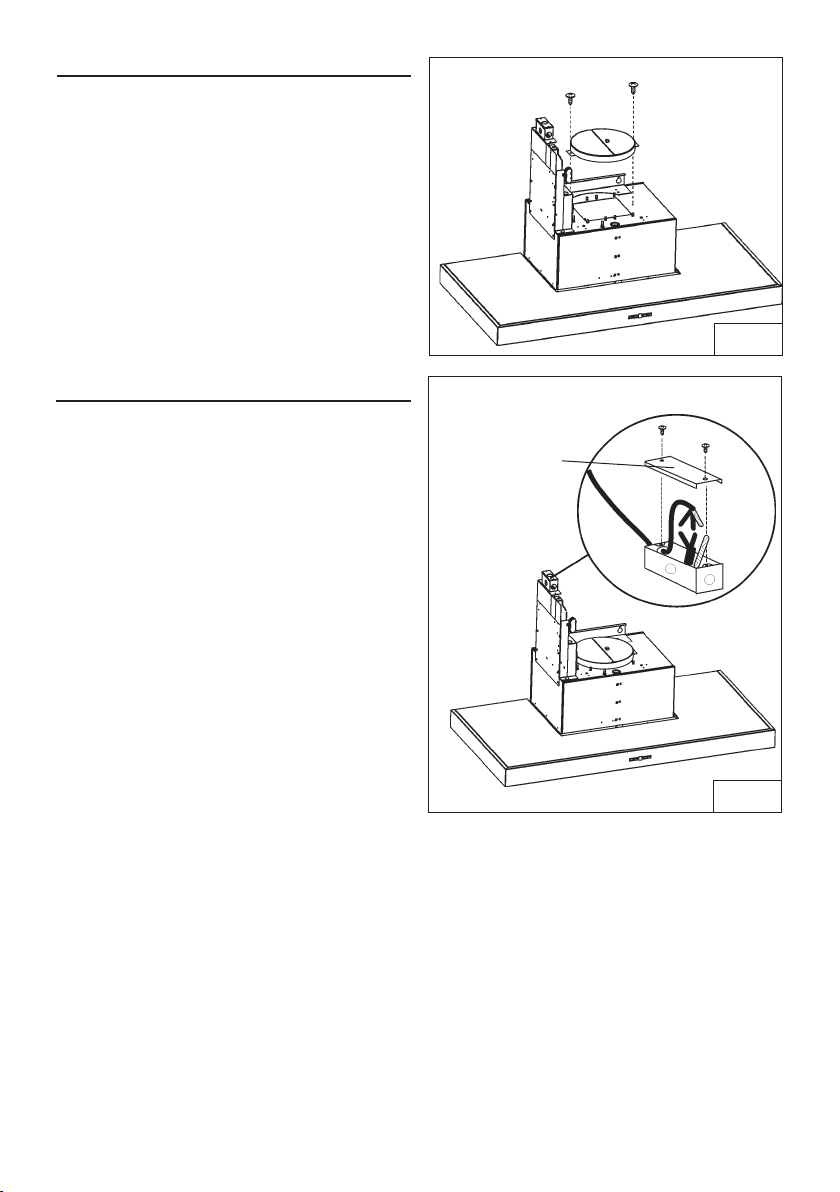

MOUNT ELECTRICAL PLATE
Fix the elctrical plate with 4 screws (3.9x9.5mm)
to the hood, the screws are located in the
Hardware Package (Fig. 5).
INSTALL THE HOOD
Remove the plastic protective film from
all exterior surfaces, decorative flues and
filters, prior to final installation.

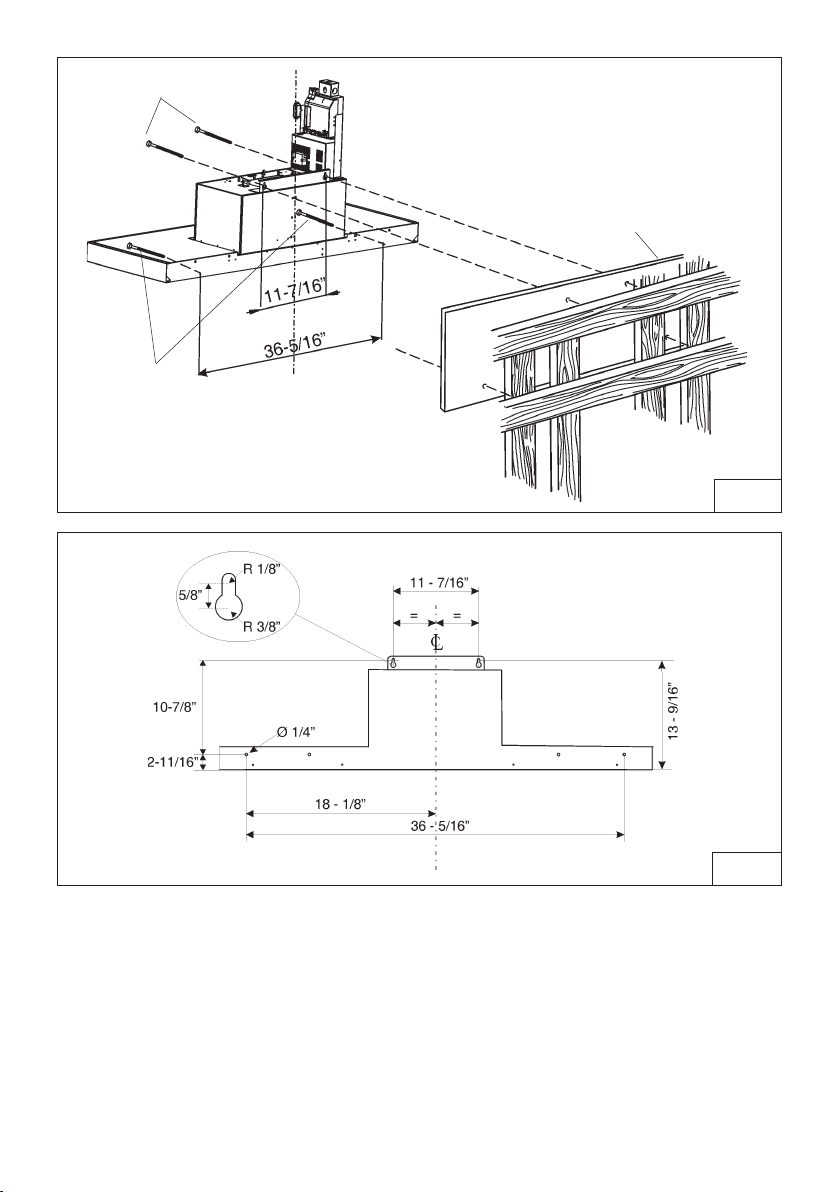

1. Construct wood wall framing that is flush
with interior surface of wall studs (Fig. 6).
Make sure:
a) the framing is centered over installation
location.
b) the height and width of the framing will
allow the hood to be secured to the framing
within the dimensions shown in Fig.8.
2. Install the (2) 6 x 60mm screws for the top
of the hood at the locations shown in Fig.7.
Use the two upper keyhole slots, do not
completely tighten the screws.
3. Hang the hood onto the screws.
4. Secure (2) 6 x 60mm screws at the lower
locations of the hood. Tighten all (4)
screws.
Notes:
a. Minimum hood distance above cook top
must not be less than 24”. A maximum of
36” above cook top is highly recommend-
ed for best capture of cooking impurities.
Distances over 36” are at the installer
and the users discretion; and if ceiling
height and flue lenght permit.
Mounting Hole Height Above 36”High Cook Top (inches)
Ceiling
Height
(Feet)
Duct
Method
37-5/8
8Ducted
9Ducted 38 36
48 47 46 44 43 42 41 40 39
45
26 25
37
36 35 34 32 31 30 29 28 27
33
Hood Distance Above 36” High Cook Top (inches)
38-5/8 39-5/8 40-5/8 41-5/8 42-5/8 43-5/8 44-5/8 45-5/8 46-5/8 47-5/8 48-5/8 49-5/8
24
33 35
24 25 27 28 29 30 31 32
26 34 36

- 10 -
MOUNTING LAG
SCREWS (6x60mm)
WALL FRA-
MING
FIG. 7
FIG. 8
MOUNTING LAG
SCREWS (6x60mm)

- 11 -
WIRING
Note: This range hood must be properly
grounded.The unit should be installed by
a qualified electrician in accordance with
all applicable national and local electrical
codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box (Fig.10).
2. Secure the conduit to the wiring box
through a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws.
Make sure that wires are not pinched
between cover and box.
WIRING BOX
COVER
FIG.10
MOUNT THE DUCT COLLAR
Fix the duct collar to blower discharge with 2
screws (3.9x9.5mm), the screws are located
in the Hardware Package (Fig. 9).
FIG. 9
MOUNTING SCREWS 3.9x9.5mm

- 12 -

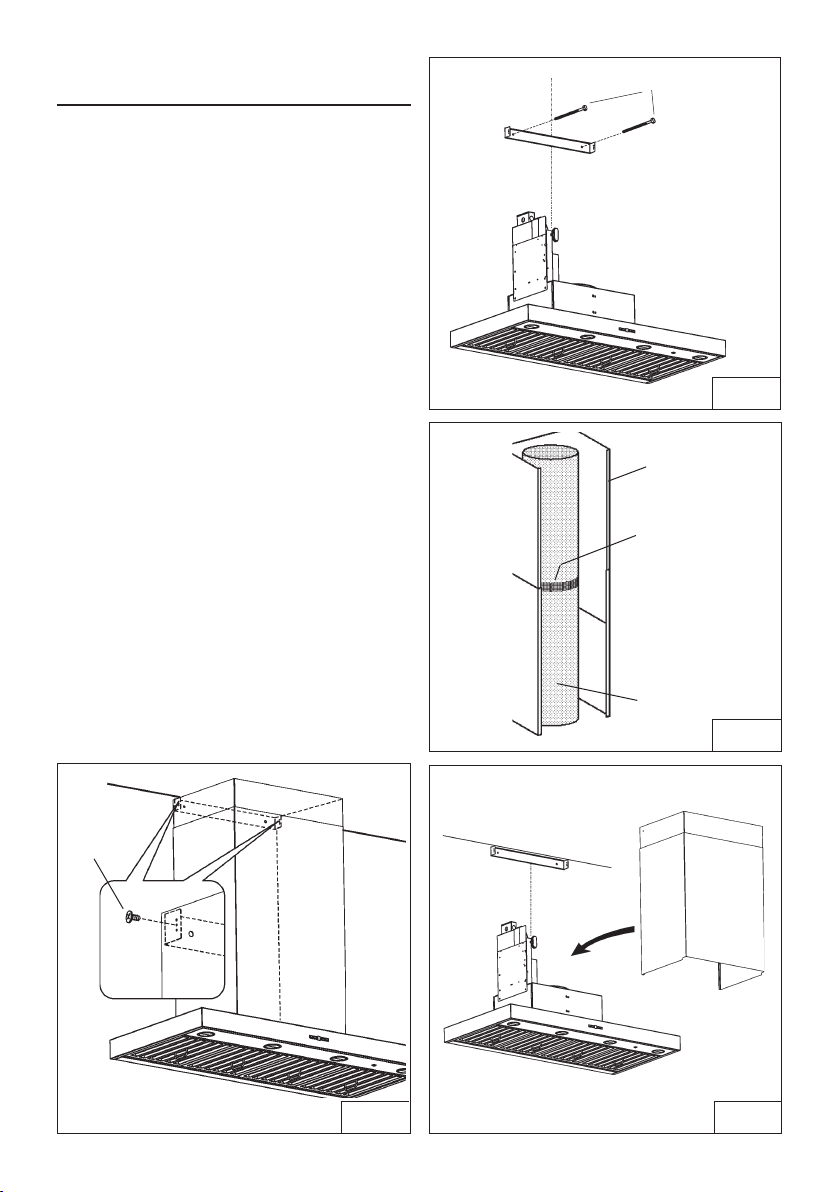

INSTALL FLUE MOUNTING
BRACKET
1.Carefully center the mounting bracket
directly over the range hood location.
2.Secure the bracket to the wall using (2)
6 x 60mm mounting lag screws (Fig.11).
Make sure the bracket is pushed into the
corner, tight against the wall if necessary,
and centered over the hood. Complete the
installation.
3. Attach ductwork to damper/duct connector.
4. Run 10” diameter metal ductwork to the
outside location (Fig.12).
5. Install an appropriate wall or roof cap with
damper to exhaust the air to the outside.
6. Tape all duct joints with aluminum duct
tape.
7. Install upper and lower decorative flues onto
the range hood (Fig.13).
8. Secure upper flue to flue mounting bracket
with (2) 3.9 x 6mm screws (Fig.14).
10”ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
CEILING
FIG. 11
FIG. 12
FIG. 13FIG. 14
MOUNTING
SCREWS
(3,9x6mm)
MOUNTING LAG
SCREWS (6x60mm)

- 13 -
FIG. 15

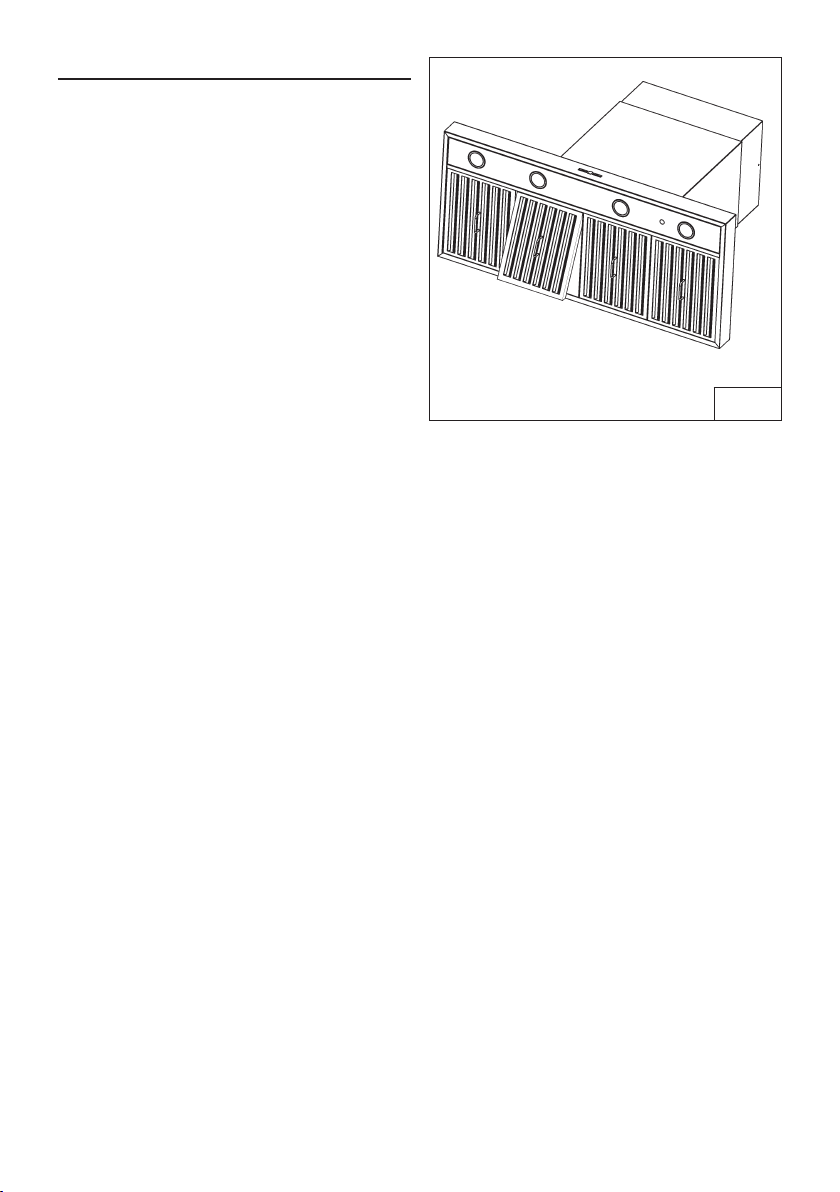

INSTALL FILTERS
NOTE: Prior to use, remove protective film
from the filter frame.
1.Toremovethe GREASE filter,(Fig.15) push
thefilter towards thefront so thatitclears the
filter channel, then pull down on the handle
to disengage the filter from the hood. Tilt the
filter downward and remove.
2.The grease filters (see page 5 for cleaning
instructions) should be cleaned frequently.
Use a warm detergent solution. Grease
filters are dishwasher safe.
3.To install the GREASE filter, align rear fil-
ter tabs with spring in the hood. Pull down
handle, push filter into position and release.
Make sure the filter is securely engaged
after installation.

- 14 -

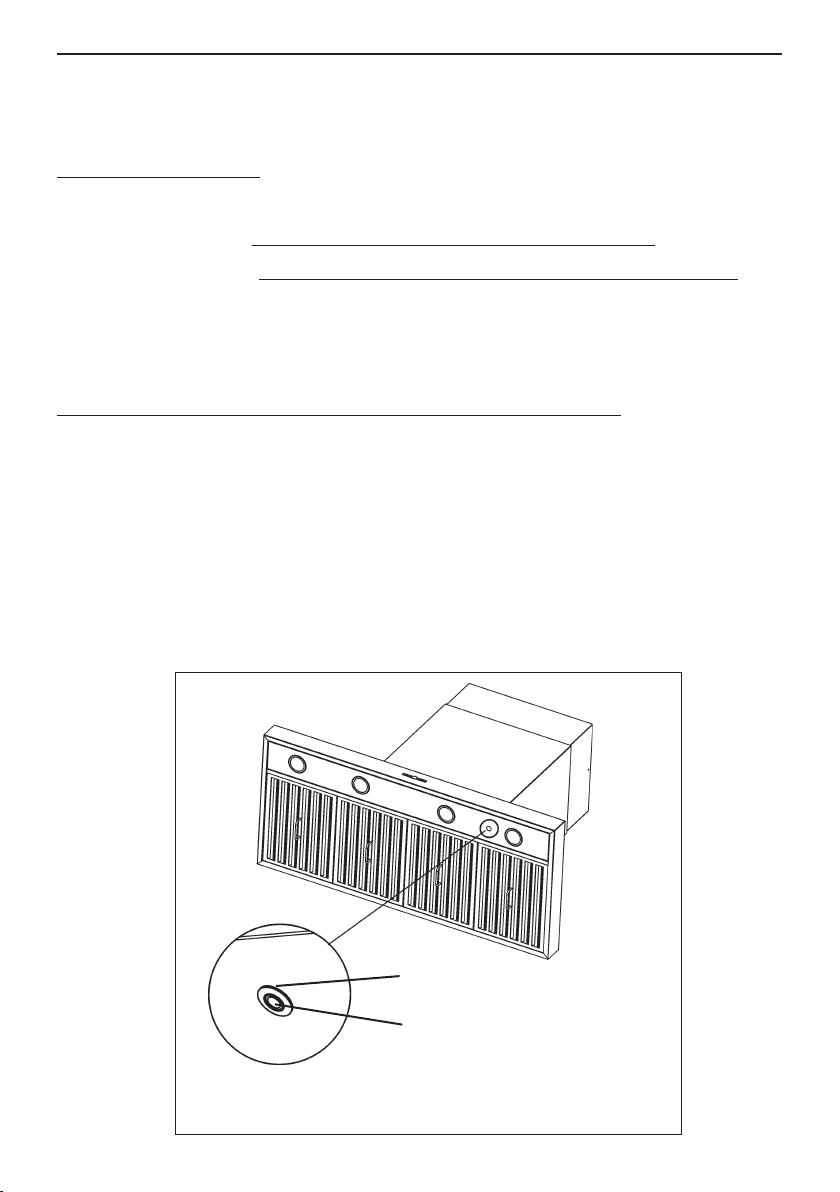

CALIBRATION
LIGHT
CALIBRATION
BUTTON
CALIBRATE IQ BLOWER SYSTEMTM
INTERNAL BLOWER DUCTED UNITS ONLY
After the hood is installed and wired, engage the calibration process (our Guaranteed Performance
System Technology to ensure full-rated airflow is being delivered). Prior to calibration, ensure that
all filters, light bulbs and duct system are installed.
CALIBRATION PROCESS
Hold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13
minutes. The blower will start and begin the calibration process. When calibration is complete, one
of two things will occur:
1. The blower turns off and calibration button light stays on = Successful calibration. Press the button
to turn off the LED. Note: The LED will also turn off if you select any blower speed on the control.
2. The blower turns off and calibration button light blinks continuously = Too much restriction in the
ductwork is preventing the IQ Blower System™ from achieving the rated airflow. The blower is
automatically set to maximum intensity.
NOTE: Common items that cause restrictions: restricted damper flap (backdraft damper, wall
cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of
flex ducting and/or crushed ducting.
Three options are available if your hood system has too much restriction:
1. Accept airflow as is.
a. Press the calibration button to accept airflow as is. The IQ Blower System™ is nowconfigured
to the highest possible performance. The blinking calibration light goes out. Note: The LED
will also turn off if you select any blower speed on the control.
2. Correct duct restriction, clear the original calibration data, and repeat the calibration
process.
a. Correct the duct restriction.
b. Clear the original calibration data by holding calibration button for 10 seconds. The light will
blink 3 times to confirm and the blower configuration will go back to default settings.
c. Repeat calibration process from the beginning.
3. Clear calibration data to reset hood to default factory setting and achieve standard high
pressure blower performance.
a. Clear calibration data and reset hood to factory default setting by holding calibration
button for 10 seconds. The light will blink 3 times to confirm and the blower configuration
will go back to default settings.

- 15 -
Limited Warranty
Warranty Period and Exclusions: Broan-NuTone, LLC(the “Company”) warrants to the consumer purchaser of its product (“you”) that the
product (the “Product”) will be free from material defects in the materials or its workmanship for a period of five (5) years from the date of
original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of service for any
labor provided on the Product.
The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited
warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBESAND BULBS, FUSES, FILTERS, DUCTS, ROOF
CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service, (b)
normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper
or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation
or use contrary to recommendations or instructions, (f) damage caused by exposure to salt air, (g) damage in transit, (h) natural wear of
finish, (i) Products in commercial or nonresidential use, (j) damage caused by fire, flood or other act of God, or (k) Products with altered,
defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America.
This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.
No Other Warranties: This Limited Warranty contains the Company’s sole obligation and your sole remedy for defective Products. The
foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDESALL OTHER EXPRESS WARRANTIES AND CONDI-
TIONS,AND DISCLAIMSAND EXCLUDES ALLWARRANTIESAND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion
of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the
express warranty above. Some jurisdictions (which may include the Province of Quebec or specific US states) do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the
sole purpose of identifying it and shall not be construed as an express warranty.
Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable
law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity,
without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.
Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace,
without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty
under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are
responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product
or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the
Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished,
repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable
in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer
period as may be required by applicable law).
Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component
is no longer available, replacement may be made with a similar product of equal or greater value, at Company’s sole discretion. This is
your sole and exclusive remedy for breach of this limited warranty.
Exclusion of Damages: THE COMPANY’S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE
COMPANY’S OPTION, SHALL BE YOUR SOLEAND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY’S
SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR
SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdi-
ction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.
This warranty covers only replacement or repair of defective Products or parts thereof at the Company’s main facility and does not include
the cost of field service travel and living expenses.
Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not
constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.
The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those
incurred with the Company’s prior written permission.
How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number
stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the
nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase
date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company’s most current written limited
warranty for your particular product will control.
PRODUCT SPECIFICATIONS
All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone,
LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifications and
models, place of manufacture and to discontinue models or equipment.
Best
Broan-NuTone, LLC- 926 W. State Street, Hartford, WI 53207
1-800-637-1453
Best®, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770) www.bestrangehoods.com

- 16 -

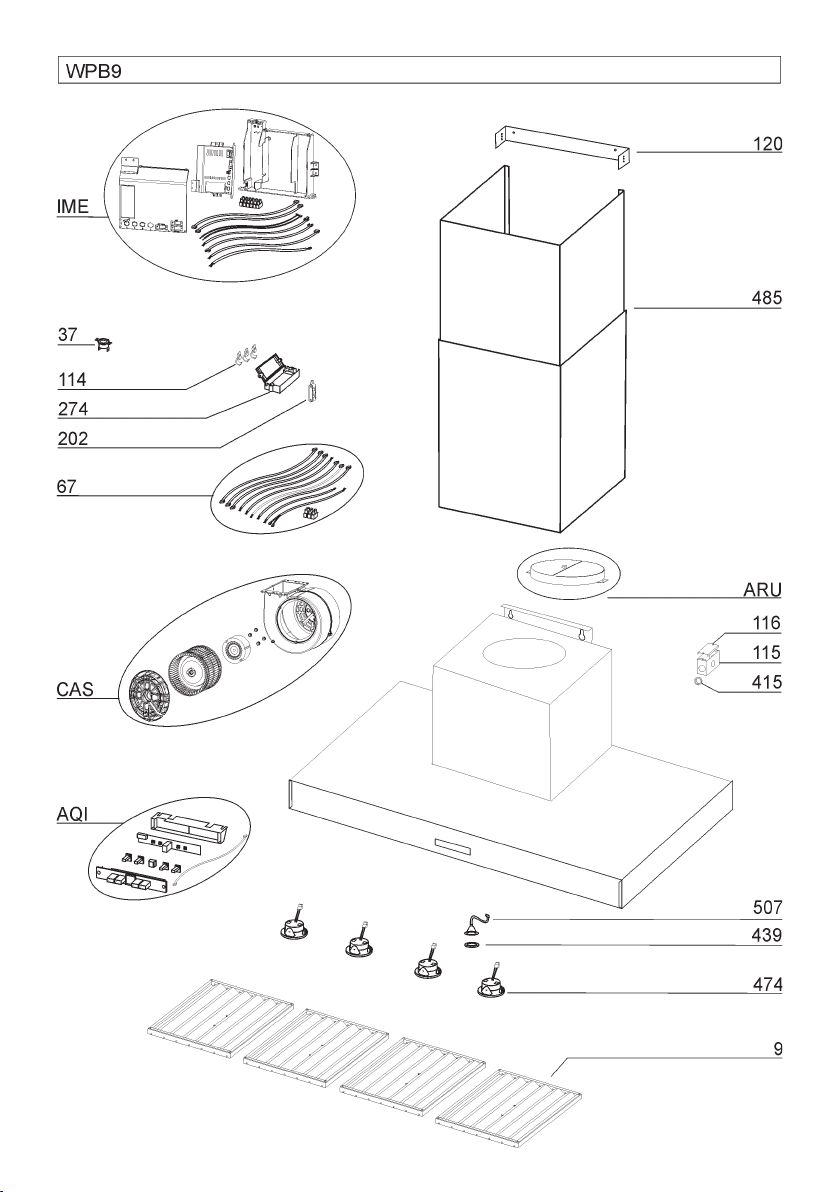

KEY NO. PART NO. DESCRIPTION
9 B08087951 Grease Filters
37 B02300804 Heat Sentry
67 B06102611 Wires Assembly
114 B03292499 Runner Wires
115 BE3350233 Wiring Box
116 BE3334252 Wiring Box Cover
120 BE3353371 Flue mounting Bracket
202 B03292290 Wire Clamp
274 B03295035 Fuse Box
415 B03292596 Fairlead
439 B02320034 Grommet
474 B02300918 Halogen Lamp
485 B08016409 Decorative Flue Assembly
507 B06102584 Calibration Button Assembly
AQI B06102596 Switch Box Assembly
ARU BE3405192 Duct Connector Assembly 10”
IME B06145225 Electrical Installation Assembly
CAS B06002259 Blower Assembly
998 B080811032 Fitting Set
* Not shown assembled
SERVICE PARTS
MODEL WPB9

- 17 -

- 18 -
Modèle WPB9
ENGLISH........................................3
FRANÇAIS...................................18
ESPAÑOL.....................................35
Aux États-Unis - BEST Hartford, Wisconsin
Au CANADA - BEST Drummondville, QC, Canada
ENREGISTREZ VOTRE PRODUIT EN LIGNE À : www.BestRangeHoods.com/register
Pour de plus amples informations, visitez www.BestRangeHoods.com

- 19 -

- 20 -
LIRE CES DIRECTIVES ET LES CONSERVER
CONÇUE POUR LES CUISINES PRIVÉES UNIQUEMENT
!
!
AVERTISSEMENTS
POUR RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION OU DE BLESSURES PHY-
SIQUES, RESPECTEZ LES INSTRUCTIONS CI-DESSOUS:
1. Utilisez cet appareil uniquement de la manière prévue par le fabricant. Si vous avez des
ques- tions, contactez le fabricant à l’adresse ou au numéro de téléphone indiqués dans la
garantie.
2. Avant d’effectuer l’entretien ou le nettoyage de l’appareil, mettez-le hors tension sur le pan-
neau de service et verrouillez ce dernier pour éviter que l’appareil soit mis sous tension par
inadvertance. S’il n’est pas possible de verrouiller le dispositif de déconnexion, apposez un
avertissement bien visible (par exemple une étiquette) sur le panneau de service.
3. L’installation et le raccordement électrique doivent être effectués par du personnel qualifié
con- formément à toutes les réglementations et normes en vigueur, y compris celles concer-
nant les constructions cotées pour leur résistance au feu.
4. Afin d’éviter un refoulement lors de l’utilisation d’équipements à combustible, une quantité
d’air suffisante est nécessaire pour assurer une combustion et un échappement adéquats
des gaz à travers le conduit (la cheminée). Suivez les consignes du fabricant de l’équipement
chauffant et les normes de sécurité publiées, entre autres, par l’Association nationale de
protection contre l’incendie (NFPA) et l’American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), ainsi que les réglementations locales.
5. Quand vous effectuez une découpe ou un forage dans un mur ou un plafond, veillez à ne pas
endommager des câblages électriques ou d’autres équipements non visibles.
6. Les soufflantes canalisées doivent toujours être dirigées vers l’extérieur.
7. N’utilisez pas cet appareil avec un dispositif de commande de vitesse transistorisée séparé.
8. Pour réduire les risques d’incendie, utilisez uniquement des canalisations en métal.
INSTRUCTIONS DE MISE À LA TERRE
Cet appareil doit être mis à la terre. En cas de court-circuit électrique, la mise à la terre réduit le
risque d’électrocution grâce à un fil permettant au courant électrique de s’échapper.
AVERTISSEMENT - Une mise à la terre inappropriée peut donner lieu à un risque d’électrocution.
Consultez un électricien qualifié si vous ne comprenez pas parfaitement les instructions de mise
à la terre ou si vous n’êtes pas certain(e) que l’appareil est mis à la terre comme il se doit.
POUR RÉDUIRE LE RISQUE D’UN FEU DE FRITURE SUR LA TABLE DE CUISSON
A. Ne laissez jamais les appareils de surface sans surveillance quand ils sont sur un réglage
élevé. Les débordements peuvent provoquer de la fumée et des déversements gras risquant
de prendre feu. Chauffez les huiles lentement sur un réglage bas ou moyen.
B. ALLUMEZ toujours la hotte quand vous cuisinez à une chaleur élevée ou quand vous
flambez des aliments (p. ex. des crêpes Suzette, des cerises jubilé ou du boeuf au poivre
flambé).
C. Nettoyez souvent les ventilateurs d’aération. Évitez que de la graisse s’accumule sur le
ventilateur ou le filtre.
D. Utilisez des poêles de la taille appropriée. Utilisez toujours des ustensiles de cuisine adaptés
à la taille de l’élément de surface.

- 21 -
AVERTISSEMENTS
POUR RÉDUIRE LE RISQUE DE BLESSURES PHYSIQUES EN CAS DE FEU DE FRITURE
SUR LA TABLE DE CUISSON, VEUILLEZ PROCÉDER COMME SUIT :*
1. ÉTOUFFEZ LES FLAMMES avec un couvercle hermétique, une plaque à biscuits ou un
plateau en métal, puis éteignez le brûleur. SOYEZ PRUDENT(E) AFIN D’ÉVITER LES
BRÛLURES. Si les flammes ne s’éteignent pas immédiatement, ÉVACUEZ LE LIEU ET
APPELEZ LE SERVICE DES POMPIERS.
2. NE SAISISSEZ JAMAIS UNE POÊLE ENFLAMMÉE, vous risquez de vous brûler.
3. N’UTILISEZ JAMAIS D’EAU ni de torchons ou serviettes mouillé(e)s : cela donnerait lieu à
une violente explosion de vapeur.
4. Utilisez un extincteur UNIQUEMENT si :
A. Vous savez qu’il s’agit d’un extincteur de Classe ABC et savez déjà comment vous en
servir.
B. L’incendie est de petite taille et confiné à l’endroit où il a commencé.
C. Le service des pompiers a été averti.
D. Vous pouvez éteindre l’incendie en ayant une sortie derrière vous.
* Basé sur « Kitchen Fire Safety Tips », publié par la NFPA.
ATTENTION
1. Uniquement pour l’utilisation intérieure.
2. Pour réduire le risque d’incendie et obtenir un échappement d’air adéquat, veillez à bien ca-
naliser l’air vers l’extérieur. Ne ventilez pas l’air d’échappement vers des espaces confinés,
des plafonds, des combles, des vides sanitaires ou des garages.
3. Soyez prudent(e) quand vous utilisez des agents de nettoyage ou des détergents.
4. Évitez d’utiliser sous la hotte de cuisine des denrées alimentaires produisant des flammes.
5. À utiliser uniquement pour la ventilation générale. N’utilisez pas la hotte pour l’échappement
de matériaux ou de vapeurs comportant un danger ou un risque d’explosion.
6. Pour éviter que le roulement moteur s’endommage et que des hélices deviennent bruyantes
ou déséquilibrées, faites en sorte que le bloc d’alimentation n’entre pas en contact avec un
atomiseur pour cloisons sèches, de la poussière de construction, etc.
7. Le moteur de la hotte est doté d’un rupteur thermique qui éteint automatiquement le moteur
en cas de surchauffe. Le moteur redémarrera après avoir refroidi. Si le moteur s’éteint et se
rallume constamment, faites réparer la hotte.
8. Pour mieux capturer les impuretés de cuisson, la partie inférieure de la hotte doit se trouver
au minimum à 61 cm (24”) et au maximum à 91 cm (36”) au-dessus de la surface de cuisson.
Consultez la section « Installation du support de montage » pour connaître les restrictions de
montage.
9. Étant donné la taille et le poids de la hotte, il est conseillé d’avoir recours à deux personnes
pour la monter.
10. Ce produit est doté d’un thermostat qui peut activer la soufflante automatiquement. Pour
éviter les risques de blessure et l’allumage accidentel de la hotte, mettez-la hors tension sur
le panneau de service et verrouillez ce dernier ou fixez-y une étiquette d’avertissement.
11. Pour en savoir plus et connaître les exigences sur le produit, veuillez lire l’étiquette des
spécifications.
!
