Best UP27I SERIES User manual

UP27I and UP27E SERIES
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE AND OPERATION INFORMATION ON
PAGES 13 AND 14.
V07855 rev. A
HB0061
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
!
!
In USA - BEST BY BROAN®P.O. Box 140, Hartford, WI 53027
In Canada - BEST BY BROAN®550 Lemire Blvd., Drummondville, QC, J2C 7W9
REGISTER YOUR PRODUCT ON LINE AT: www.bestbybroan.com/register
For additional information - visit www.bestbybroan.com

WARNING WARNING
- 2 -
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
2. Before servicing or cleaning unit, switch power
off at service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be
done by qualified personnel in accordance with all
applicable codes and standards, including fire-rated
construction codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any additional solid-state
speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers
that may ignite. Heat oils slowly on low or medium
settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (i.e.: Crêpes Suzette,
Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fans or filters.
d) Use proper pan size. Always use cookware appropriate
for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie
sheet or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. IF THE
FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE
AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN—You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels—This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you
know how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
!
!
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
3. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes
overheated. The motor will restart when it will be
cooled down. If the motor continues to shut off and
restart, have the hood serviced.
4. For best capture of cooking impurities, the bottom
of the hood should be at a minimum of 24” and at
a maximum of 30” above the cooking surface.
5. Two installers are recommended because of the
large size and weight of this hood.
6. To reduce the risk of fire and to properly exhaust
air, be sure to duct air outside—Do not exhaust air
into spaces within walls or ceiling or into attics,
crawl space or garage.
7. This product is equipped with a thermostat which
may start blower automatically. To reduce the risk
of injury and to prevent power from being switched
on accidentally, switch power off at service panel
and lock or tag service panel.
8. To reduce the risk of fire and electric shock, the
Best by Broan UP27E Series hoods must be
installed with Best by Broan exterior blower models
EB6, EB9, EB12 or EB15; or Best by Broan in-line
blowers models ILB3, ILB6, ILB9, ILB11. Other
blowers cannot be substituted. (Blowers sold separately.)
9. Please read specification label on product for
further information and requirements.

HL0086
- 3 -
Model 415
(7” round
adjustable
elbow,
optional)
Model 418
8” round
adjustable
elbow,
(optional)
UP27I SERIES
HOOD
(Canopy with internal
blower, controls &
lighting. Required for
all installations.)
NON-DUCT KIT FLUE
ANKUP SERIES

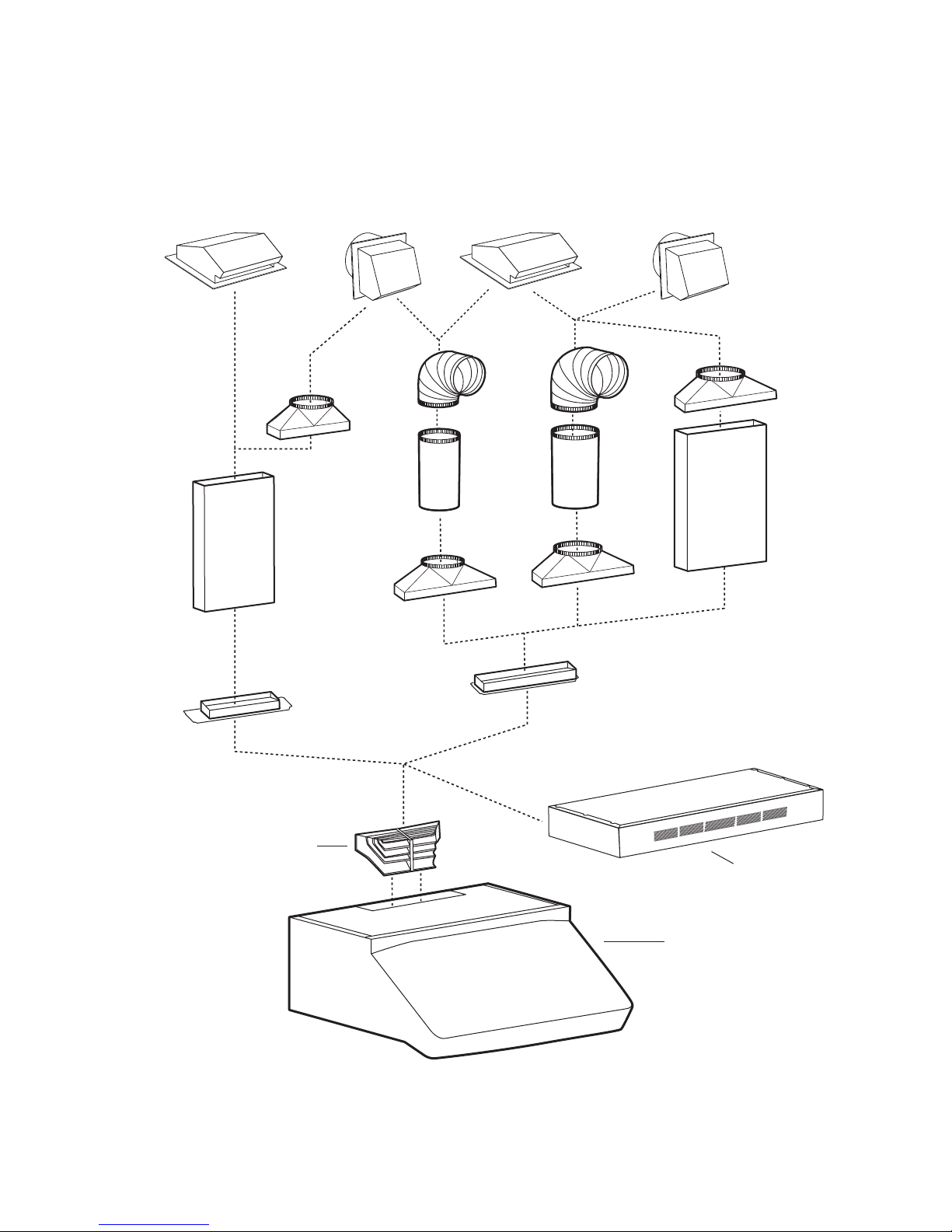

- UP27I SERIES RANGE HOOD SYSTEM -
INTERIOR BLOWER
Model 634 or 644
(roof cap) Model 647
(7” Round wall cap) Model 643 (8” Round wall cap)
Model 407
(7” round duct
2 ft. sections)
8” round
standard
duct
Left and right flow
deviators (supplied
with hood)
Adapter/damper
3¼” x 14” to 3¼” x 10”
(supplied with hood)
Adapter/damper 3¼” x 14”
(supplied with hood)
3¼” x 10”
rectangular
standard duct
3¼” x 14”
rectangular
standard duct
Model T460 transition
3¼” x 14” to 7” round
Model 459 transition
3¼” x 14” to 8” round
Model 412
transition
3¼” x 10”
to 7” round
Model 459
transition
3¼” x 14”
to 8” round
Model 634 or 644
(roof cap)

- 4 -
HL0087

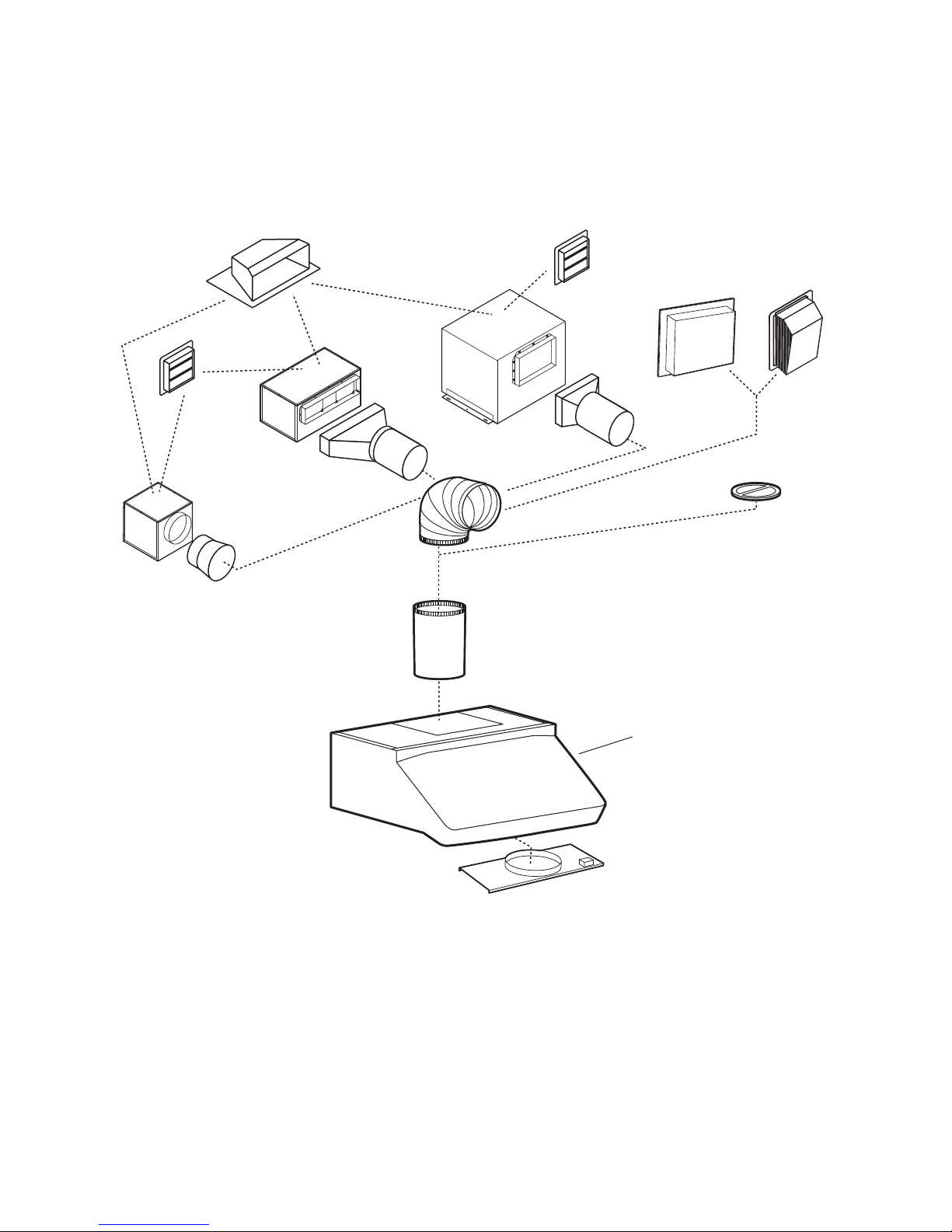

- UP27E SERIES RANGE HOOD SYSTEM -
IN-LINE AND EXTERIOR BLOWERS
In-line and exterior blower rough-in kit
(included with EB6, EB9, EB12, EB15,
ILB3, ILB6, ILB9 and ILB11 blowers.)
Model 418
10” Round
adjustable elbow
(optional)
Model ILB3 (280 cfm)
in-line blower
(includes one 8” to 10”
round transition)
Model EB6 (600 cfm)
or EB9(900 cfm)
exterior blower
Model EB12 (1200 cfm)
or EB15 (1500 cfm)
exterior blower
Model 441
(10” Round
wall cap)
Model 437
(High capacity roof cap)
Model 441
(10” Round wall cap)
Model 421
(10” Round vert.
in-line damper)
Recommended
for use with
exterior blowers
Model 410
(10” Round duct
—2ft. sections)
Model ILB6 (600 cfm)
in-line blower
(includes two 4½” x 18½”
to 10’’ round transitions)
Model ILB9 (800 cfm)
or ILB11 (1100 cfm)
in-line blower
(includes two 8” x 12” to
10’’ round transitions)
UP27E SERIES
HOOD
(Canopy with
controls & lighting.
Required for all
installations.)

- 5 -
1. SELECT BLOWER OPTION AND INSTALLATION TYPE
1.2 DUCTED INSTALLATION
Either UP27I or UP27E Series range hoods may be ducted. For a UP27E Series range hood, either an exterior blower or
in-line blower may be used. The Best by Broan UP27E Series must be installed with blower models ILB3, ILB6, ILB9,
ILB11, EB6, EB9, EB12 or EB15 only. Other blowers cannot be substituted. (Blowers sold separately.)
Plan where and how the ductwork will be installed.
NOTE: There is no horizontal exhaust on UP27E Series range hood.
If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1 up to 3, 5 up to 10,
and 12 and up of this manual.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Use metal duct tape to
seal duct joints.
1.3 ALL INSTALLATIONS
The minimum hood distance above cooktop must not be less than 24’’. A maximum of 30” above cooktop is highly
recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion.
1.1 NON-DUCTED INSTALLATION (ONLY FOR UP27I SERIES HOODS)
The non-duct kit ANKUP Series (sold separately) must be installed. This kit fits hood from 30-inch width up to 48-inch
width. See installation instructions included with the non-duct kit ANKUP Series.
3¼” x 10”
or 3¼” x 14” DUCT
(83 mm x 254 mm or
83 mm x 356 mm)
ROOF CAP
24” TO 30”
(609 mm to 762 mm)
ABOVE COOKING SURFACE
WALL CAP
HOOD
CABINET
HH0076A
3¼” x 10” or
3¼” x 14” ELBOW
(83 mm x 254 mm or
83 mm x 356 mm)
UP27I (DUAL INTERIOR BLOWER)
TYPICAL RECTANGULAR DUCTWORK
10” (254 mm)
ROUND DUCT
24” TO 30”
(609 mm to 762 mm)
ABOVE COOKING SURFACE
EXTERIOR
BLOWER
HOOD
CABINET
HH0078A
10” (254 mm)
ROUND ELBOW
EXTERIOR
BLOWER
UP27E WITH MODEL EB6, EB9, EB12 OR EB15
EXTERIOR BLOWER TYPICAL DUCTWORK
IN-LINE BLOWER
10” (254 mm)
ROUND DUCT
HH0079A
24” TO 30” (609 to 762 mm)
ABOVE COOKING SURFACE
ROOF CAP
WALL
CAP
HOOD
UP27E WITH MODEL ILB3, ILB6, ILB9 OR ILB11
IN-LINE BLOWER TYPICAL DUCTWORK
7” OR 8” ROUND DUCT
(178 mm or 203 mm)
ROOF CAP
24” TO 30”
(609 mm to 762 mm)
ABOVE COOKING SURFACE
WALL CAP
HOOD
CABINET
HH0077A
7” OR 8”
ROUND ELBOW
(178 mm or 203 mm)
3¼” x 14” to 7” OR
3¼” x 14” to 8”
ROUND TRANSITION
(83 mm x 356 mm to 178 mm
or 83 mm x 356 mm to 203 mm)
(see page 3)
UP27I (DUAL INTERIOR BLOWER)
TYPICAL ROUND DUCTWORK

Remove the installation kit from inside the hood.
Make sure that the following items are included:
- Installation manual
- Adapter/damper 3¼” x 14” to 3¼” x 10” (exclusively for UP27I Series range hoods, temporarily assembled to pan, behind
Evolutionary™ hybrid baffle filters)
- Adapter/damper 3¼” x 14” (exclusively for UP27I Series range hoods, temporarily assembled to pan, behind Evolutionary™
hybrid baffle filters)
- Right and left flow deviators (exclusively for UP27I Series range hoods)
- Accessories including:
• 3 Evolutionary™ hybrid baffle filters
• Shielded halogen lights (GU10 type base, 120 V, 50 W) (2 for hoods up to 36” width, 4 for hoods from 42” to 48” width)
• Bag of parts including:
(4) no. 10-32 lock nuts, (1) electrical cable clamp, (8) no. 8 x 1/2” double thread screws, (2) wire connectors,
(2) no. 6 x 1/2” standard screws, (6) no.8 x 3/8” screws.
Parts sold separately:
- In-line blower assembly ILB3, ILB6, ILB9 or ILB11 (all include transition and rough-in plate, exclusively for UP27E Series range hoods)
- Exterior blower assembly EB6, EB9, EB12 or EB15 (all include rough-in plate, exclusively for UP27E Series range hoods)
- Transitions, duct, elbows, dampers, wall and roof caps. Refer to pages 3 and 4 for a complete list of venting options and model
numbers
- Non-duct kit ANKUP Series, mandatory for non-ducted installation (exclusively for UP27I Series range hoods).
- 6 -
2. PREPARE THE INSTALLATION
CAUTION
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and
gloves.

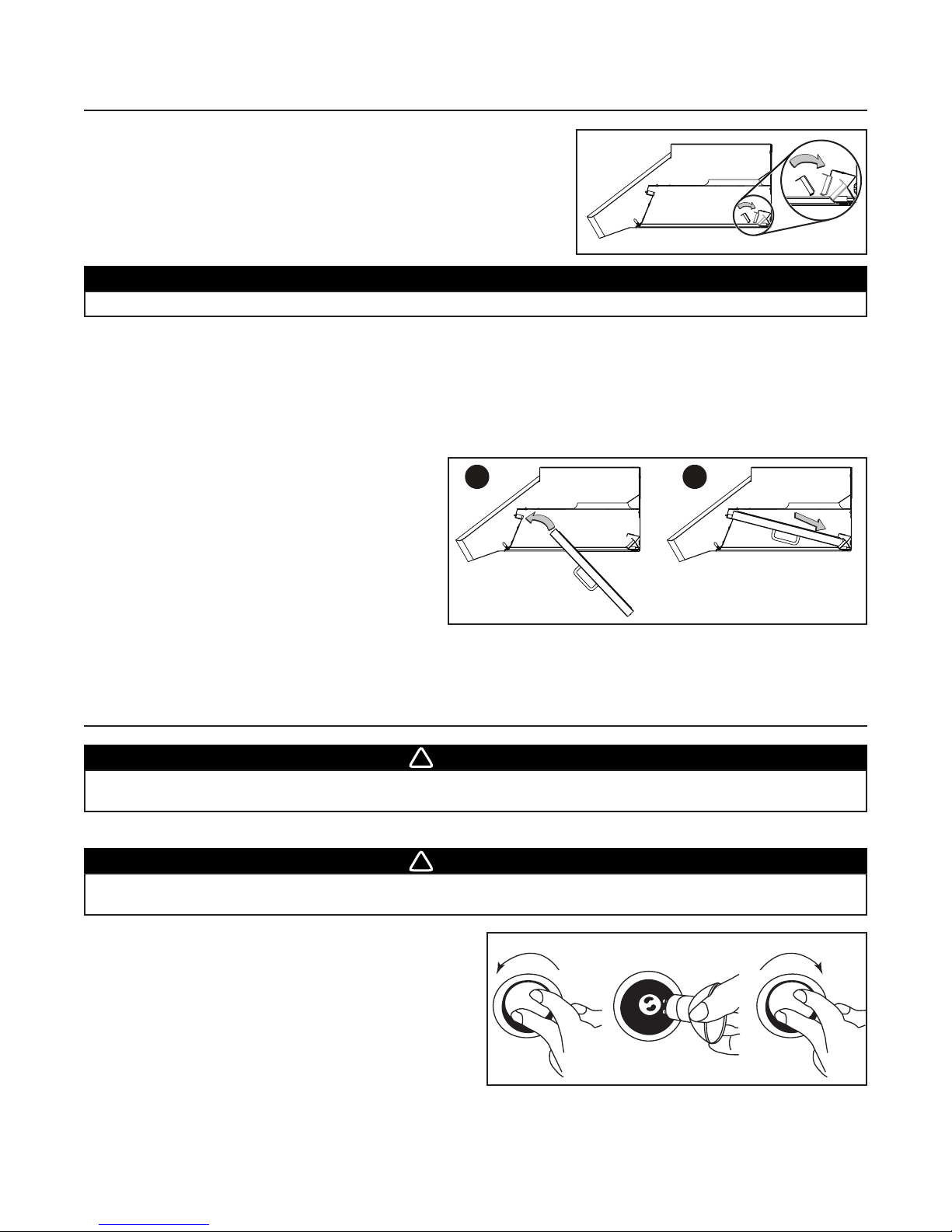

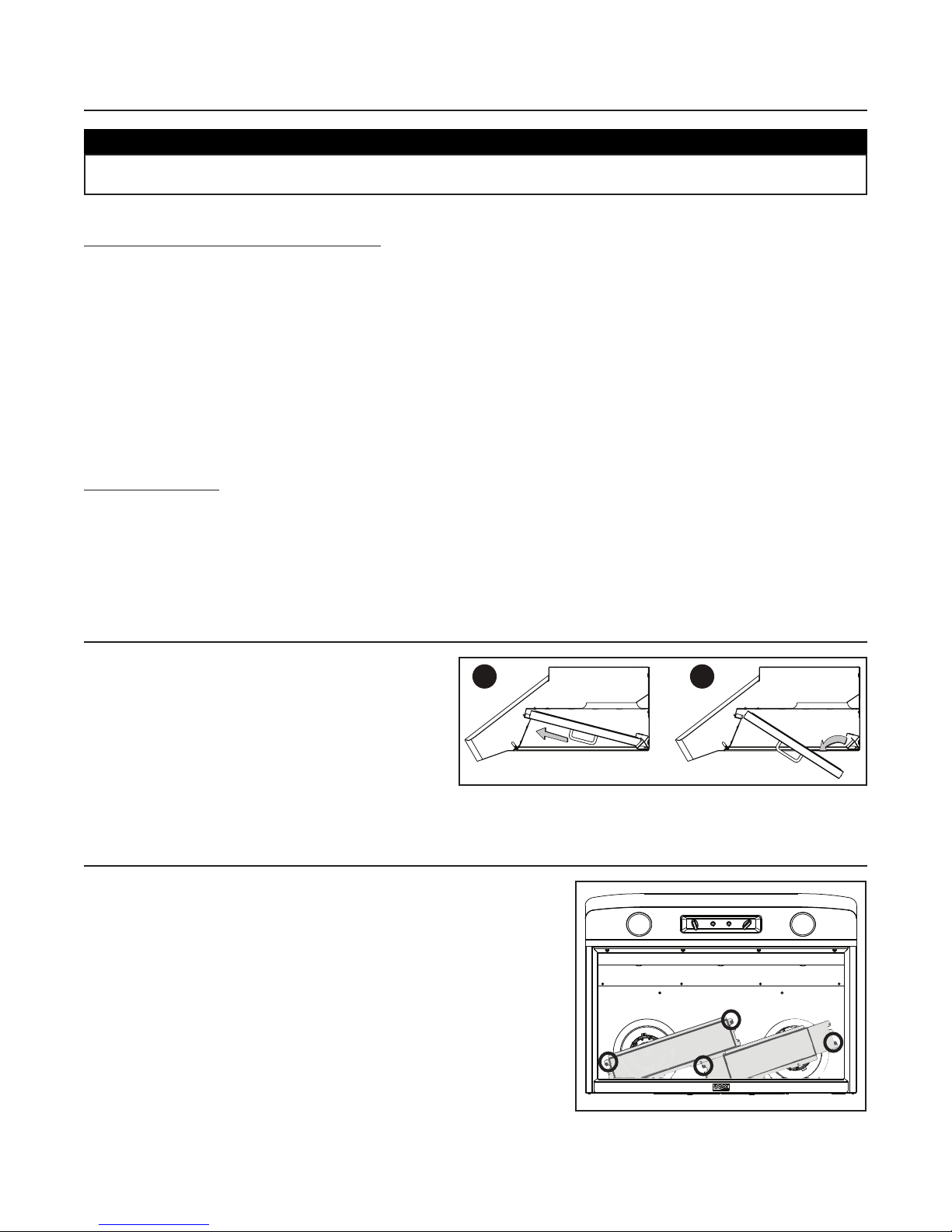

3. REMOVE THE FILTERS
Remove tape on baffle filters.
Remove baffle filters from hood by pushing them towards
the front of hood (1) and rotating downward (2).
Set aside filters.
NOTE: It is recommended to start with the central one.
HD0206
1 2
4. REMOVE BOTH ADAPTER/DAMPERS (UP27I SERIES RANGE HOODS ONLY)
Disassemble both adapter/dampers (shaded parts on illustration beside) from
hood pan by removing their retaining screws (2 screws per adapter and
damper). Discard the screws.
HD0211
ADAPTER/DAMPERS RETAINING
SCREWS LOCATION

- 7 -
7. PREPARE THE CABINET
For cabinets with recessed bottom, attach two wood filler strips cut to length (not included), on each side, as shown below. See
table below for wood filler strips location.
HD0208
L
C
AA
HOOD CENTER OF WOOD
WIDTHS STRIP LOCATION (A)
30” 13 3⁄8”
36” 16 3⁄8”
42” 19 3⁄8”
48” 22 3⁄8”
5. REMOVE THE GREASE DRIP RAIL
Remove tape on grease drip rail. Lift out grease drip rail and set aside.
HD0212
6. REMOVE THE PAN
Using a Phillips no. 2 screwdriver, remove the screws retaining the pan (shaded parts on illustration below) to the hood. Remove
the pan and set aside.
NOTE: There are 2 screw models for UP27I pan retaining screws; the flat end type (A) (n°. 8 x 3/8”) are shorter and located
near the front of the hood and the pointed end ones (B) (n°. 6 x 1/2”) are longer located in the middle of the hood. UP27E
pan retaining screws are all the same.
HD0207
UP27E RETAINING SCREWS LOCATION
UP27I RETAINING SCREWS LOCATION
AAA
A
AAA A
BB
B
A: no. 8 x 3/8” A: no. 8 x 3/8”
B: no. 6 x 1/2”

- 8 -
7. PREPARE THE CABINET (CONT’D)
7.1 DUCTED INSTALLATION:
Cut-out the openings for
duct (A) and house
wiring (120 V AC)(B)
according to the direction
of discharge chosen.
See figures beside.
NOTE: For all UP27I Series
(internal blower)
range hoods, the
cut-out opening for
house wiring (120 V AC)
can be made in cabinet
bottom OR wall, no
matter the discharge
chosen (horizontal or
vertical).
L
C
B
2”
CABINET BOTTOM
2”
14”
7¼”7¼”
A
36”, 42” OR 48” INTERNAL BLOWER HOOD
HD0200A
L
C
BØ 1¼”
CABINET BOTTOM
13”
7¼”7¼”
3¾”
A
30” INTERNAL BLOWER HOOD
L
C
13”
30” INTERNAL BLOWER HOOD
Ø 1¼”
3¼”
B
3¾”
7¼” 7¼”
A
L
C
14”
36”, 42” OR 48” INTERNAL BLOWER HOOD
2” 2”
B
3¾”
7¼” 7¼”
A
½”
3¾”
½”
L
C
CABINET BOTTOM
958”
5”
6¼”
HOOD WITH IN-LINE OR EXTERIOR BLOWER
3¼”
458”
B
A
Ø 10”
¾”
10³8”
7.2 NON-DUCTED INSTALLATION: NON-DUCT KIT FLUE ANKUP SERIES
(ONLY FOR UP27I SERIES RANGE HOODS)
Refer to the installation sheet included with the non-duct kit for details.
8. PREPARE THE HOOD
8.1 UP27I SERIES RANGE HOOD (INTERNAL BLOWER)
VERTICAL DISCHARGE
Seal the metal shut-off plate on the back of the hood using duct tape.
HD0199
TOP OF HOOD
BACK OF HOOD

- 9 -
HORIZONTAL DISCHARGE (DUCTED INSTALLATION ONLY)
The UP27I Series range hoods are factory set to exhaust vertically. If the
horizontal discharge is chosen, remove the metal shut-off plate from the
back of the hood, by removing its 3 screws. Set aside the screws. Discard
both left and right flow deviators assembled to the metal shut-off plate.
Press the metal shut-off plate on a flat surface to completely flatten bent
flange, and install on top of hood using 3 screws previously removed plus
another no. 8 x 3/8” screw (from parts bag).
Fold down the foldable flange of the chosen adapter/damper. This flange
must be at 90° from the remaining flanges. See picture beside.
HD0203
HD0119
8. PREPARE THE HOOD (CONT’D)
8.1 UP27I SERIES RANGE HOOD (INTERNAL BLOWER) (CONT’D)
VERTICAL DISCHARGE (CONT’D)
Using 4 no. 8 x 3/8” screws provided with hood, secure the chosen
adapter/damper to the top of the hood. Remove tape from damper flap.
Seal the adapter/damper to the hood using duct tape.
HD0201
HD0202
HO0112

- 10 -
8. PREPARE THE HOOD (CONT’D)
8.1 UP27I SERIES RANGE HOOD (INTERNAL BLOWER) (CONT’D)
HORIZONTAL DISCHARGE (DUCTED INSTALLATION ONLY)(CONT’D)
Using 3 no. 8 x 3/8” screws provided with hood, secure the adapter/damper
on the back of the hood. Remove tape from damper flap.
Seal the adapter/damper and the metal shut-off plate to the hood using
duct tape.
8.2 UP27E SERIES RANGE HOOD (EXTERIOR OR IN-LINE BLOWER)
HD0204
Run house wiring (120 V AC) to installation location. Refer to the instructions
included with the selected blower/rough-in kit (sold separately) for details
on installing the rough-in plate. Install the rough-in plate so that the wiring
box is located on the right side as you are facing the hood.
HD0210
ROUGH-IN PLATE
ON TOP OF HOOD
LOCKNUTS
WIRING COVER
HD0205
ADAPTER/DAMPER
SCREW LOCATION
TOP OF HOOD
BACK OF HOOD
WARNING
Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all
applicable codes and standards. Before connecting wires, switch power off at service panel and lock
service disconnecting means to prevent power to be switched on accidentally.
!
9.1 UP27I SERIES RANGE HOOD (INTERNAL BLOWER)
Run house wiring (120 V AC) to installation location. Place the electrical cable clamp, insert the cable in the hood and
tighten the electrical cable clamp to secure the cable. Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare
wire under GREEN ground screw.
9.2 UP27E SERIES RANGE HOOD (EXTERIOR OR IN-LINE BLOWER)
Remove wiring cover from rough-in plate and set aside.
Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.
Reinstall wiring cover on rough-in plate.
9. CONNECT WIRING

- 11 -
10.INSTALL THE HOOD
Place the hood at its location. Using a pen, mark the position of the screw (smaller part of the keyholes [A]). Remove the hood
and install (4) 1/2” double thread screws at marked positions, leaving a 1/8” gap.
Place the hood under the cabinet and slide it in position. Make sure the adapter/damper enters the ducting and the damper
opens freely (UP27I Series range hood only), or ensure ducting connects to rough-in plate (UP27E Series range hood only).
Secure the hood by tightening the screws completely. Install the last 1/2” double thread screws in the remaining holes [B].
HD0213
A
B
A
B
UP27I HOOD RETAINING SCREWS LOCATION UP27E HOOD RETAINING SCREWS LOCATION
12.REINSTALL THE PAN
Using a Phillips screwdriver and the pan retaining screws, reinstall the pan (previously removed in step 6) inside the hood (shaded
parts on illustration below).
11.INSTALL THE BLOWER (EXTERIOR BLOWER, UP27E SERIES RANGE HOOD ONLY)
Refer to instructions included with blower.
Once the blower is installed, plug the blower cord (A) into the female receptacle
and the power supply cord (B) onto the male connector inside the hood.
HE0078
WARNING
Do not plug the two cords into each other.
!
AB
HD0207
UP27E RETAINING SCREWS LOCATION
UP27I RETAINING SCREWS LOCATION
AAA
A
AAA A
BB
B
A: no. 8 x 3/8” A: no. 8 x 3/8”
B: no. 6 x 1/2”

Reinstall the grease drip rail.
13.REINSTALL GREASE DRIP RAIL AND BAFFLE FILTERS
13.1 DUCTED INSTALLATION:
Reinstall Evolutionary™ hybrid baffle filters on the hood.
13.2 NON-DUCTED INSTALLATION:
Slide out and discard the secondary micromesh filters from the back of the baffle filters. Slide in the charcoal filters included
in the non-duct kit. Reinstall the baffle filters on the hood.
It is recommended to install side filters first and finish with center one.
1. Insert one end of Evolutionary™ hybrid baffle filter
into the front channel of the hood.
2. Raise the other end toward the inside of hood and
insert in the grease drip rail of the hood.
Replacement filters are available from your dealer. See
label inside hood for size and part number.
For charcoal filter replacement kit, see table on pages 15
and 16.
CAUTION
Remove protective plastic film covering Evolutionary™ hybrid baffle filters before installing them.
HD0209
1 2
- 12 -
HD0214
14.LIGHT BULBS REPLACEMENT
This hood must use 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (included).
WARNING
In order to prevent the risk of personal injury, do not install a lamp identified for use only in enclosed
fixtures.
!
WARNING
In order to prevent the risk of personal injury, the halogen lamps must be cooled down before removing
them.
!
1. To remove lamps, gently push upwards and turn counterclockwise
to disengage bulb leads from their grooves.
NOTE: If need be, use a rubber dishwashing glove to add grip
when removing the bulb.
2. Install the new lamps by placing the bulb leads into their
grooves in the socket.
3. Gently push upwards and turn clockwise until secure.
12 3
HO0089

- 13 -
15.USE AND CARE
Evolutionary™ Hybrid Baffle Filters
The Evolutionary™ hybrid baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your
cooking style generates greater grease—like frying foods or wok cooking.
Remove Evolutionary™ hybrid baffle filters by pushing them towards the front of hood and rotating filters downward. Slide out
the secondary micromesh filter from the back of each hybrid baffle filter before cleaning. Baffle filters are dishwasher safe. Clean
secondary filters with a warm detergent solution. Allow filters to dry completely before reinstalling them in the hood.
Grease Drip Rail
The grease drip rail should be cleaned frequently. Lift it out from the hood and use a warm detergent solution. As for the baffle
filters, wash more often if your cooking style generates greater grease—like frying foods or wok cooking. Allow grease drip rail
to dry completely before reinstalling it in the hood.
Blower Cleaning
I
NTERIOR BLOWER
Remove the filters in order to access the blower. Vacuum blower to clean. Do not immerse in water.
E XTERIOR OR IN - LINE BLOWER
Refer to blower instruction manual for more details.
Hood Cleaning
Stainless steel cleaning: How to maintain its “BRIGHT LOOK”
Avoid: When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should
never be used close to a range.
CAUTION
Never attempt to wash the carbon filters in the non-duct kit. Those filters must be replaced by new ones.
Refer to the non-duct kit installation instructions for details.
Do:
• Regularly wash with clean cloth or rag soaked with warm
water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after
cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel
cleaner.
Don’t:
• Do not use any steel or stainless steel wool or any other
scrapers to remove stubborn dirt.
• Do not use any harsh or abrasive cleansers.
• Do not allow dirt to accumulate.
• Do not let plaster dust or any other construction residues
reach the hood. During construction/renovation, cover the
hood to make sure no dust sticks to stainless steel surface.
16.OPERATION
Always turn ON your hood before you begin cooking in order to establish an air flow in the kitchen. Let the blower run for a few
minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.
1. ON/OFF Blower switch 3. ON/OFF Halogen light switch
2. Blower speed control 4. Light intensity control
Blower
The blower is operated using two (2) controls.
Use the ON/OFF toggle switch (item 1on picture above) to start and stop the blower. When turned on, the blower will operate
at the previous setting of the speed control (item 2on picture above).
Turn the speed control knob counterclockwise to increase blower speed—clockwise to decrease speed.
HC0030
1
234

- 14 -
16.OPERATION (CONT’D)
HEAT SENTRY
Both UP27I and UP27E series are equipped with a HEAT SENTRY thermostat.
• If blower is ON at a lower speed setting and excessive heat is detected above the cooking surface, it turns the blower up to
HIGH speed. When the temperature level drops to normal, the blower will return to its original setting.
• If blower is OFF and excessive heat is detected above the cooking surface, HEAT SENTRY will turn the blower to HIGH
speed. When the temperature level drops to normal, the blower turns back OFF.
UP27I SERIES UP27E SERIES
Cooktop Lighting (Halogen)
The halogen lighting is controlled by two switches; one ON/OFF switch and one light intensity control switch.
When turned on, the halogen bulbs will light cooktop at the previous setting of the light intensity control.
Turn the light intensity control knob counterclockwise to increase lighting—clockwise to decrease lighting.
Use 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (included).
WARRANTY
BROAN ONE-YEAR LIMITED WARRANTY
Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials
or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
During this one-year period, Broan will, at its option, repair or replace, without charge, any product or part which is found to
be defective under normal use and service.
This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to
misuse, negligence, accident, improper maintenance or repair (other than by Broan), faulty installation or installation contrary
to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or
provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states
or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province
to another. Any modification performed on this product without the authorization of Broan will void this warranty. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan at the address or telephone number stated below, (b) give the model
number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty
service, you must present evidence of the original purchase date.
Best by Broan®, P.O. Box 140, Hartford, WI 53027 USA (1-800-637-1453)
Best by Broan®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 CANADA (1-866-737-7770)
WARNING
The HEAT SENTRY can start the blower even if the hood is turned OFF. In this case, it is impossible to turn
the blower OFF with blower switch. To stop the blower on UP27I series, the main power switch located
behind the baffle filters must be in the “OFF” position. As for UP27E series, disconnect the power supply
cord from the male hood connector. See illustrations below.
!
HE0078
POWER
SUPPLY
CORD
HD0215
MAIN
POWER
SWITCH

- 15 -
SERVICE PARTS
KEY PART QTY (HOOD WIDTH)
NO. NUMBER DESCRIPTION 30’’ 36’’ 42’’ 48
1 V14971 ADAPTER/DAMPER 3¼” X14” 1 1 1 1
2 T461 ADAPTER/DAMPER 3¼” X14” TO 3¼” X10” 1 1 1 1
3 V03435 THERMISTOR HEAT SENTRY 1111
4 V07834 ROTARY CONTROL 2222
5 V07689 TOGGLE SWITCH 2222
6 V16966 PLASTIC CONTROL FRAME AND KNOB ASS’Y1111
7 V07688 KNOB 2222
8 V16569 LAMP SHELL, SOCKET AND TRIM ASS’Y2244
9 V05921 HALOGEN BULBS (50 W, 120 V, PAR16, GU-10) 2 2 4 4
10 V02160 CAPACITOR 15 µF2222
11 V01857 WIRE COVER 2222
12 V01766 MOTOR 165 W CLOCKWISE 1111
13 V03457 MOTOR 165 W COUNTERCLOCKWISE 1111
14 V03399 HOOD BLOWER WHEEL, 7.094” X3.375”, COUNTERCLOCKWISE 1111
15 V03400 HOOD BLOWER WHEEL, 7.094” X3.375”, CLOCKWISE 1111
16 V08070 SECONDARY MICROMESH FILTER 8.84” X13.35” 3 2 1 -
V08071 SECONDARY MICROMESH FILTER 14.84” X13.35” - 1 2 3
17 V17025 EVOLUTIONARY™ HYBRID BAFFLE FILTER 8.95” X13.5” X1” (INCL. ITEM 16) 3 2 1 -
V17026 EVOLUTIONARY™ HYBRID BAFFLE FILTER 14.95” X13.5” X1” (INCL. ITEM 16) - 1 2 3
V16793 GREASE DRIP RAIL 30” 1 - - -
18 V16794 GREASE DRIP RAIL 36” - 1 - -
V16795 GREASE DRIP RAIL 42” - - 1 -
V16796 GREASE DRIP RAIL 48” - - - 1
19 V05869 BEST BY BROAN LOGO 1111
V15457 INTERNAL FRAME ASS’Y30” X22” X10” (INCLUDING ITEM 19) 1 - - -
20 V15458 INTERNAL FRAME ASS’Y36” X22” X10” (INCLUDING ITEM 19) - 1 - -
V15459 INTERNAL FRAME ASS’Y42” X22” X10” (INCLUDING ITEM 19) - - 1 -
V15460 INTERNAL FRAME ASS’Y48” X22” X10” (INCLUDING ITEM 19) - - - 1
21 V15512 BACK PLATE 1111
22 V06242 LEFT FLOW DEVIATOR 1111
23 V06243 RIGHT FLOW DEVIATOR 1111
* V03503 MAIN POWER SWITCH 1111
* V02001 MOTOR GROMMET G-431-1 6 6 6 6
* V07855 INSTALLATION GUIDE 1111
PARTS BAG (ELECTRICAL CABLE CLAMP LP16-AP (1),
* V13278 WIRE CONNECTORS NO. 74B (2), DOUBLE THREADED SCREWS 6-12 X0.5 (6), 1 1 1 1
SCREWS NO. 8 X3/8’’ (6), NUTS NO. 10-32 (4), SCREWS NO. 6 X1/2’’ (2))
* V17020 ANKUP CHARCOAL FILTER KIT (INCLUDING 3 CHARCOAL FILTERS)1---
* V17021 ANKUP CHARCOAL FILTER KIT (INCLUDING 3 CHARCOAL FILTERS)-1--
* V17022 ANKUP CHARCOAL FILTER KIT (INCLUDING 3 CHARCOAL FILTERS)--1-
* V17023 ANKUP CHARCOAL FILTER KIT (INCLUDING 3 CHARCOAL FILTERS)---1
*N
OT SHOWN.
UP27I MODEL
HL0088
1
2
9
4
12
5
3
11
10
14
15
17
16
18
21
20
22
23
19 13
7
6
8

- 16 -
SERVICE PARTS
KEY PART QTY (HOOD WIDTH)
NO. NUMBER DESCRIPTION 30’’ 36’’ 42’’ 48’’
1 V13923 FEMALE CONNECTOR 1111
2 V13924 MALE CONNECTOR 1111
3 V03435 THERMISTOR HEAT SENTRY 1111
4 V07688 KNOB 2222
5 V16966 PLASTIC CONTROL FRAME AND KNOB ASS’Y1111
6 V07689 TOGGLE SWITCH 2222
7 V07834 ROTARY CONTROL 2222
8 V16569 LAMP SHELL, SOCKET AND TRIM ASS’Y2244
9 V05921 HALOGEN BULBS (50 W, 120 V, PAR16, GU-10) 2 2 4 4
10 V08070 SECONDARY MICROMESH FILTER 8.84” X13.35” 3 2 1 -
V08071 SECONDARY MICROMESH FILTER 14.84” X13.35” - 1 2 3
11 V17025 EVOLUTIONARY™ HYBRID BAFFLE FILTER 8.95” X13.5” X1” (INCL. ITEM 10) 3 2 1 -
V17026 EVOLUTIONARY™ HYBRID BAFFLE FILTER 14.95” X13.5” X1” (INCL. ITEM 10) - 1 2 3
V16793 GREASE DRIP RAIL 30” 1 - - -
12 V16794 GREASE DRIP RAIL 36” - 1 - -
V16795 GREASE DRIP RAIL 42” - - 1 -
V16796 GREASE DRIP RAIL 48” - - - 1
13 V05869 BEST BY BROAN LOGO 1111
V15461 INTERNAL FRAME ASS’Y30” X22” X10” (INCLUDING ITEM 13) 1 - - -
14 V15462 INTERNAL FRAME ASS’Y36” X22” X10” (INCLUDING ITEM 13) - 1 - -
V15463 INTERNAL FRAME ASS’Y42” X22” X10” (INCLUDING ITEM 13) - - 1 -
V15464 INTERNAL FRAME ASS’Y48” X22” X10” (INCLUDING ITEM 13) - - - 1
* V07855 INSTALLATION GUIDE 1111
PARTS BAG (ELECTRICAL CABLE CLAMP LP16-AP (1),
* V13278 WIRE CONNECTORS NO. 74B (2), DOUBLE THREADED SCREWS 6-12 X0.5 (6), 1 1 1 1
SCREWS NO. 8 X3/8’’ (6), NUTS NO. 10-32 (4), SCREWS NO. 6 X1/2’’ (2))
*N
OT SHOWN.

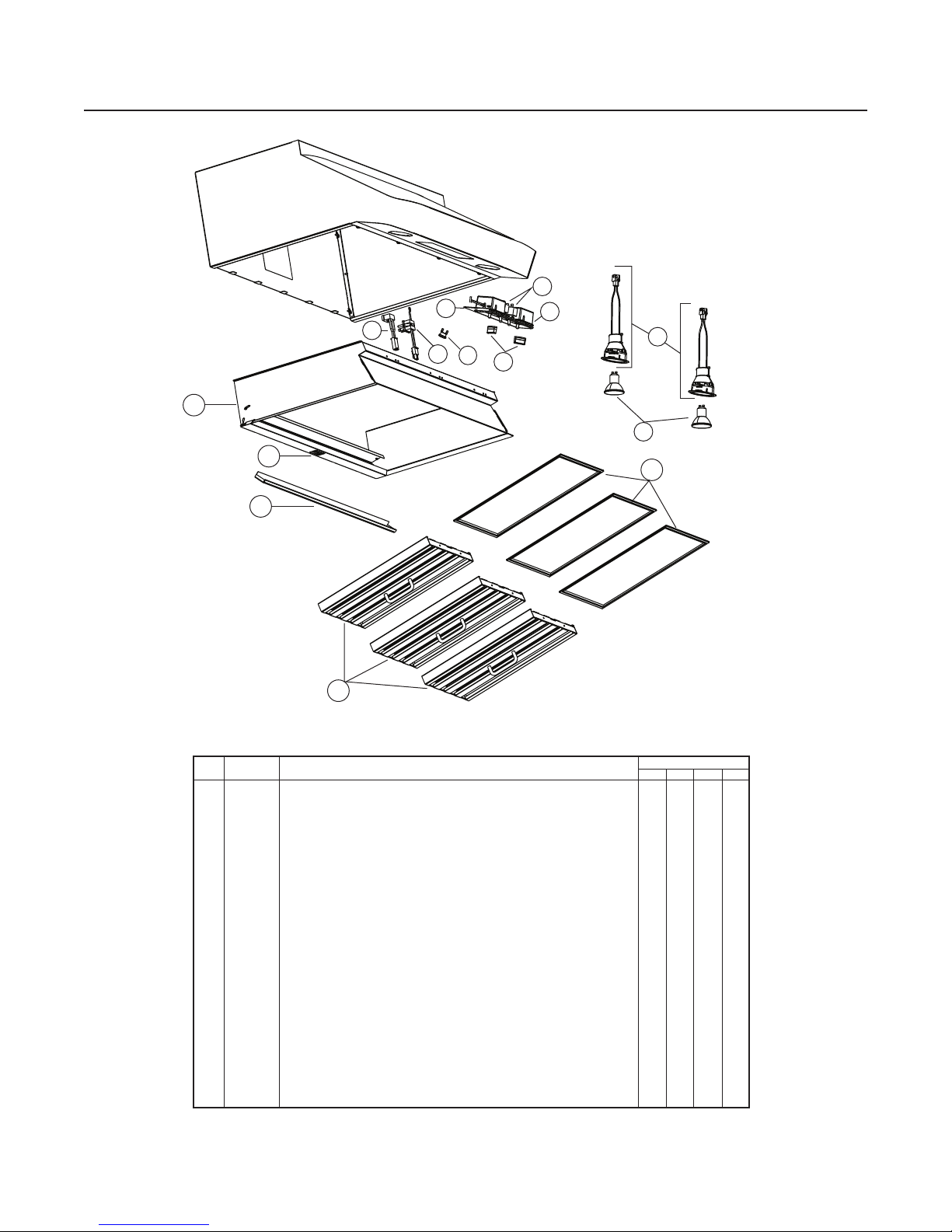

UP27E MODEL
HL0089
1
2
9
7
8
4
11
5
3
10
13
12
14
6
