•Bed frame maximum supporting weight: 1000 lb (455 kg).
•Maximum mattress thickness: 10 in (25.5 cm).
•Mattress weight must be between: 60 lb (27 kg) and 90 lb (41 kg).
•Minimum ceiling height: 85 in (2.16 m).
•Minimum holding force required for each fastener: 142 lb (630 N).
•Not for use with folding mattress.
NOTICE
Important information to read
before starting the assembly.
Keep this information for future reference.
MODEL
COLOR
WO
85183-2
IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall,
it can suddenly fall, resulting in serious injury or death.
•For wood, metal, or masonry wall structure, a qualified person must install the bed to the wall.
•For all other types, a construction professional must install the bed to the wall in compliance
with the codes and regulations in the province, state, or country where installed.
•The choice of wall attachment screw depends on wall type. Use wall attachment screws
suitable for your wall material.
•Verify structural integrity of floor and wall prior to installation.
•Do not open or use the bed if the bed cabinet moves while opening, or if you notice any other
signs of loose or detaching screws.
•Never remove wall attachment screws without first disassembling and removing the mattress
frame and lift cylinders.
•Qualified person must have the skills and tools necessary to locate wall studs, identify type
of wall structure (wood, metal, masonry or other) and install screws correctly to wall structure.
Skills and tools include electronic stud finder, drill motor and bits, screwdriver, and ability
to correctly use these tools.
WARNING
FOR ANY PROBLEM OR INFORMATION
1-888 8BESTAR (1-888 823-7827)

Should you need more information concerning the warranty, do not call to the place
of purchase. Please call our customer service department for immediate assistance
using the toll free number below. Please have your assembly instruction manual on
hand when you call.
BESTAR products are warranted to the original purchaser against defects in material
or workmanship in the furniture. Defects as mentioned in this warranty refer to any
imperfections which may impair the use of the product. Our warranty is expressly
limited to the replacement of furniture parts and components for the time specified
in the product description and following the date of purchase. BESTAR will replace
any part that is defective. This warranty applies under conditions of normal use.
Our furniture products are not intended for outdoor use, except those in the Outdoor
Collection. The warranty does not cover labor or assembly costs or defects caused by
improper assembly or disassembly, after-purchase product modifications, intentional
damage, accidents, or exposure to the elements. Bestar reserves the right to request
a proof of purchase to document a warranty claim. In no event shall BESTAR be liable
for incidental or consequent damages resulting from the misuse of the product.
This warranty is not transferable and is valid only in Canada and the United States
excluding Alaska, Hawaii and Puerto Rico.
Warranty Information
www.bestar.com/warranty

Customer Service
If there are parts missing from your order or if your product was damaged during shipping,
PLEASE CONTACT US DIRECTLY.
Need help?
If you have any questions or concerns,
please visit our website:
or call our toll-free number:
1-888 823-7827
www.bestar.com/support
www.bestar.com/support
Send us an email
www.bestar.ca/contact-us
Need help?
www.bestar.com/faq
Make a phone appointment
www.bestar.com/online-appointment

Activate your Warranty
Activate your warranty now:
Information required to make a warranty claim
A copy of your receipt.
Pictures of the damaged parts.
You must know the name of the product, the item number and the name
of the store where the item was purchased.
Please collect this information BEFORE contacting our customer service.
www.bestar.com/activate-my-warranty
www.bestar.com/activate-my-warranty

Maintenance Tips
Never leave damp clothes, liquids or damp cloths on the furniture.
If a liquid has spilled on the furniture, clean the liquid up immediately.
Clean the furniture with a damp cloth, then wipe dry.
To avoid damaging the finish, do not use cleaning products on the furniture.
Do not put devices with plastic or rubber pads directly on your furniture.
Instead, attach cloth or felt pads to your device.
To avoid dulling the finish, do not place furniture in direct sunlight.
www.bestar.com/maintenance

At Bestar, we take pride in manufacturing stylish and functional furniture for your
home and workspace. We go beyond manufacturing furniture: we oer solutions to
optimize and customize your home and workspace. That’s why customer satisfaction
is our number one priority!
Satisfaction Survey
www.bestar.com/satisfaction
www.facebook.com/Bestar1948/ www.instagram.com/bestarfurniture/ www.youtube.com/user/bestar1948/ www.pinterest.ca/bestarcanada/
www.bestar.com/about-bestar
Stay in touch with us
www.bestar.com/blog

Parts & Hardwares
85183-2 AN 7SERVICE: 1-888 8BESTAR (1-888 823-7827)
Parts
Code Qty
30 1
31 1
40 1
41 1
42 1
Code Qty
60 1
61 1
62 1
63 1
Code Qty
64 1
70 2
81 1
82 1
Code Qty
83 1
84 1
87 1
MO-7493 2
00
Part number on the top or on edge
87
41
31
30
31
60
64
63
62
42
82
83
61
84
70
MO-7493

85183-2 AN 8SERVICE: 1-888 8BESTAR (1-888 823-7827)
KI-993-N 8
KI-993-O 3
KI-993-P 2
KI-993-Q 1
KI-993-R 4
KI-993-S 8
Code Qty
EQ-1035 3
H206514 1
H206515 1
H206517 4
H206518 2
H206528 1
H206529 1
KI-993-A 1
KI-993-B 1
KI-993-C 1
KI-993-D 1
KI-993-E 2
KI-993-F 2
KI-993-G 1
KI-993-H 1
KI-993-I 1
KI-993-J 2
KI-993-K 18
KI-993-L 4
KI-993-M 12
Code Qty Code Qty Code Qty
Code Qty
AC-1009 1
BT-1048 1
CA-77 4
CA-99 2
CA-100 12
CA-1014 1
CH-838 8
CR-1041 1
EQ-143 4
GO-796 16
H-03 4
H-36 4
KI-932-H 24
PA-844 4
PL-1043 1
PO-1036 2
PO-1040 1
RO-994 8
RU-420 1
SU-1007 2
SU-1037 2
LEG WARNING STICKER 1
Code Qty Code Qty Code Qty
Parts & Hardwares
Hardwares in box 1
3/32 in
(2,5 mm)
5/8 in
(15 mm)
3/8 in
(10 mm)
1 in
(25 mm)
3/4 in
(18 mm)
Outside diameter
3/4 in (19 mm)
Hardwares in box 3
5/8 in (16 mm)
1 1/2 in (38 mm)
2 3/4 in (70 mm)
5/8 in
(16 mm)
1 3/4 in (44 mm)
2 3/4 in (70 mm)
AC-1009-A
2 lights
AC-1009-B
Power supply
AC-1009-C
Switch
AC-1009-D
2 Extensions
Do not use the screws included
Do not use the screws included
http://bestar.ca
http://bestar.com
•Bed frame maximum supporting weight: 1000 lb (455 kg).
•Maximum mattress thickness: 10 in (25.5 cm).
•Mattress weight must be between: 60 lb (27 kg) and 90 lb (41 kg).
•Minimum ceiling height: 91.5 in (2.32 m).
•Minimum holding force required for each fastener: 142 lb (630 N).
•Not for use with folding mattress.
NOTICE
Important information to read
before starting the assembly.
Keep this information for future reference.
MODEL
COLOR
WO
85183-2
Impact or Crushing Hazard: If bed is not properly attached to the wall,
it can suddenly fall, resulting in serious injury or death.
•For wood, metal, or masonry wall structure, a qualified person must install the bed to the wall.
•For all other types, a construction professional must install the bed to the wall in compliance
with the codes and regulations in the province, state, or country where installed.
•The choice of wall attachment screw depends on wall type. Use wall attachment screws
suitable for your wall material.
•Verify structural integrity of floor and wall prior to installation.
•Do not open or use the bed if the bed cabinet moves while opening, or if you notice any other
signs of loose or detaching screws.
•Never remove wall attachment screws without first disassembling and removing the mattress
frame and lift cylinders.
•Qualified person must have the skills and tools necessary to locate wall studs, identify type
of wall structure (wood, metal, masonry or other) and install screws correctly to wall structure.
Skills and tools include electronic stud finder, drill motor and bits, screwdriver, and ability
to correctly use these tools.
WARNING
FOR ANY PRO BLEM OR INFORM ATION
1-888 8BESTAR (1-888 823-7827)
For future reference and to allow us to serve
you better, please complete the self-adhesive
sticker and apply it in an accessible space
such as the back of part 60.
Model / Modèle:
Production Number
Numéro de production:
Customer Service
Service à la clientèle
To better serve you!
Pour mieux vous servir!
1-888-823-7827
PRODUCTION 0000 PRODUCTION 0000

85183-2 AN 9SERVICE: 1-888 8BESTAR (1-888 823-7827)
Code Qty Code Qty
H206517 4
H206518 2
KI-932-I 18
KI-993-L 4
KI-993-M 12
KI-993-N 8
VC-204 17
VF-1013 6
KI-993-O
VR-1125
VF-1065 4
VM-601 2
VR-210 2
VR-211 12
VR-215 8
VR-462 5
3500-400350 52
3
6
Real Size
2 3/4 in (70 mm)
3 1/2 in (89 mm)
1 3/4 in (44 mm)
Parts & Hardwares
2 in (50 mm)
5/8 in (16 mm)
1 1/2 in (38 mm)
2 3/4 in (70 mm)
7/8 in (22 mm)
3/4 in (19 mm)
5/8 in (16 mm)
2 in (51 mm)
1/2 in (13 mm)
5/8 in (16 mm)
5/8 in (16 mm)
3/8 in (10 mm)
1 in (25 mm)
1 1/2 in (38 mm)

85183-2 AN 10SERVICE: 1-888 8BESTAR (1-888 823-7827)
Make sure to properly tighten each cam to ensure
furniture solidity. Otherwise, parts could be
damaged or the user could be injured.
Main hardware system. Assembly steps.
1
Insert
2
Required tools
A
Important
Tighten
3B
Main hardware system. Installation steps.
Pull out
B
Turn
A
How to remove a misplaced assembly bolt (H-36).
Arrow
H-03
2
Insert the cam with the arrow pointing
toward the hole in the edge.
Proper position
H-36
Push down
1
When you have completed the assembly
of your new furniture, install plastic caps
CA-1014
When you have completed
the assembly of your new
furniture, install self-adhesive
caps on unused holes.
Important Notice
TWO people are required
to assemble and move
this model.
CA-99
23/32 in
18 mm
H-03
CA-100
3/32 in
2,5 mm
VC-204
CA-77
3/8 in
10 mm
Unused holes
#3
Electronic
stud finder
Wood drill bit
1/8 in (3 mm)
Diameter
1/4 in (7 mm)
Required tools
L’utilisation d’outils électriques doit être faite avec vigilance.

85183-2 AN 11SERVICE: 1-888 8BESTAR (1-888 823-7827)

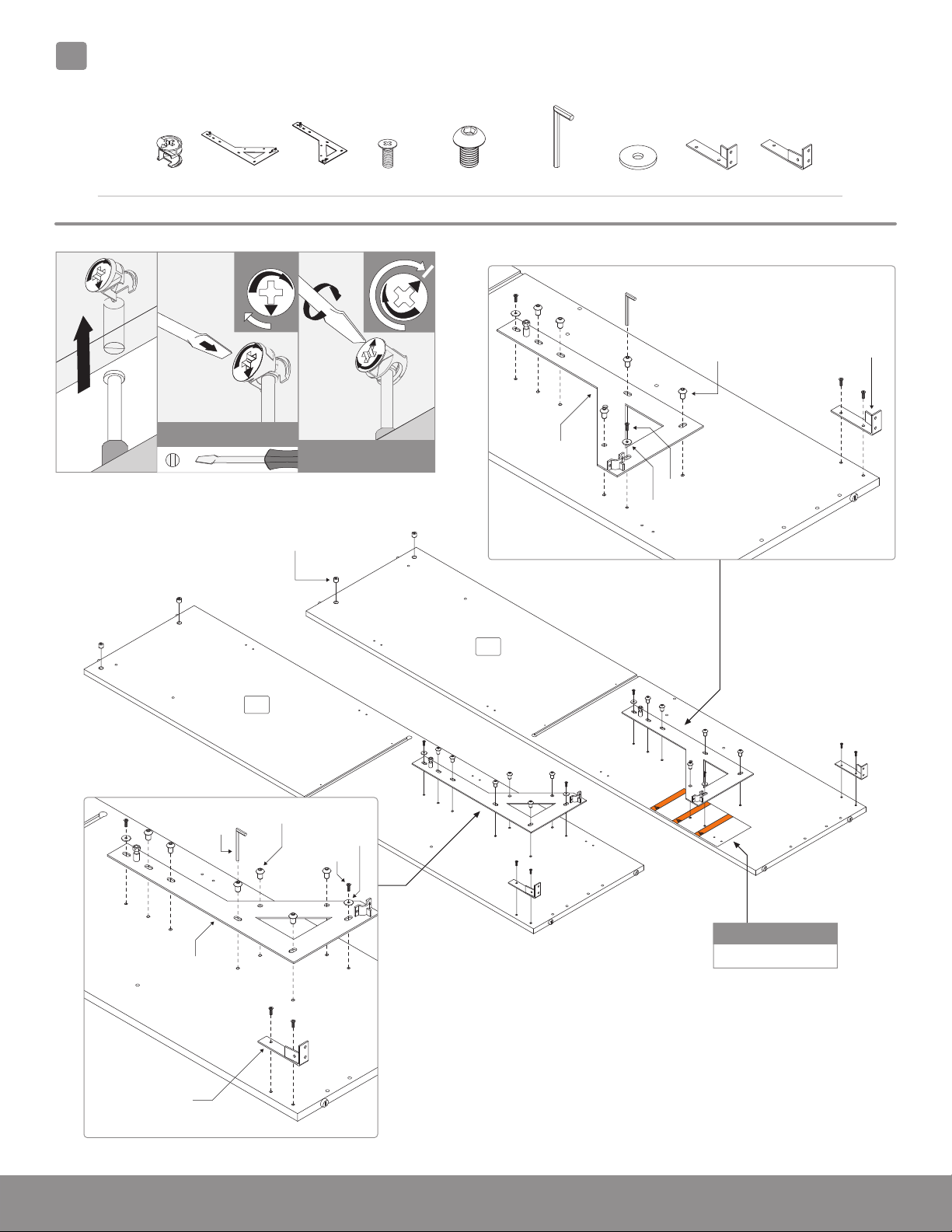

Hardware installation & assembly
Murphy bed
1
Code
Qty
EQ-1035
x 3
KI-932-H
x 12
KI-932-I
x 6
KI-932-H
NOTICE
Place boxes under parts during
the assembly to avoid damage.
UNDERSIDE
Tag visible
on this side
122-183184-0
3/4 in (18 mm) 5/8 in (16 mm)
EQ-1035
87
41
5/8 in
(15 mm)
5/8 in
(15 mm)
NOTICE
The EQ-1035 bracket is
designed to allow the
bed structure to adjust
up to 5/8 in. (15 mm)
for the compaction of
a carpet for example.
(See the wall anchoring
step)
KI-932-I
Use a screwdriver for these screws
WARNING AVERTISSEMENT ADVERTENCIA
IMPACT or CRUSHING HAZARD: if bed is not
properly attached to the wall, it can suddenly
fall, resulting in serious injury or death.
• For wood, metal, or masonry wall structure, a
qualified person must install the bed to the wall.
• For all other wall types, a construction
professional must install the bed to the wall.
• The choice of wall attachment screw depends on
wall type. Use wall attachment screws suitable
for your wall material.
• Verify structural integrity of floor and wall prior
to installation.
• Only attach wall bed to wood stud, steel stud,
or masonry wall structure.
• NEVER use hollow wall anchors.
• ALWAYS use 12 screws for floor and wall
attachment.
RISQUE DE CHOC ou D’ÉCRASEMENT : si le lit n’est pas
correctement fixé au mur, il peut tomber subitement
entraînant des blessures graves ou la mort.
• Pour les structures murales en bois, en métal ou en
maçonnerie, une personne qualifiée doit fixer le lit au mur.
• Pour tous les autres types de murs, un professionnel
de la construction doit fixer le lit au mur.
• Le choix de vis de fixation murale dépend du type de mur.
Utilisez des vis de fixation murale adaptées au matériau
de votre mur.
• Vérifiez l’intégrité structurale du plancher et du mur
avant l’installation.
• Fixez seulement le lit escamotable à des montants de bois,
de métal ou à une structure murale en maçonnerie.
• N’utilisez JAMAIS de chevilles pour cloison sèche.
• Utilisez TOUJOURS 12 vis de fixation murale.
IMPACTO o PELIGRO DE APLASTAMIENTO: si la cama no
está bien fijada a la pared, puede caer repentinamente,
provocando lesiones graves o la muerte.
• Para las estructuras de madera, metal o mampostería,
una persona cualificada debe instalar la cama a la pared.
• Para todos los demás tipos de paredes, un profesional
de la construcción debe instalar la cama a la pared.
• La elección del tornillo de fijación a la pared depende
del tipo de pared. Utilice tornillos de fijación a la pared
adecuados para el material de la misma.
• Verifique la integridad estructural del suelo y la pared
antes de la instalación.
• Fije la cama a la pared sólo a una estructura de
madera, acero o mampostería.
• NUNCA utilice anclajes de pared huecos.
• SIEMPRE utilice 12 tornillos para la fijación al suelo
y a la pared.

85183-2 AN 12SERVICE: 1-888 8BESTAR (1-888 823-7827)
5/8 in
(15 mm)
5/8 in
(15 mm)
NOTICE
The EQ-1035 bracket is
designed to allow the
bed structure to adjust
up to 5/8 in. (15 mm)
for the compaction of
a carpet for example.
(See the wall anchoring
step)
NOTICE
Place boxes under parts during
the assembly to avoid damage.
Hardware installation & assembly
Murphy bed
2
Code
Qty
VF-1013
x 6
TOP
41
122-183184-0
1 in (25 mm)
VF-1013
Use a screwdriver for these screws
WARNING AVERTISSEMENT ADVERTENCIA
IMPACT or CRUSHING HAZARD: if bed is not
properly attached to the wall, it can suddenly
fall, resulting in serious injury or death.
• For wood, metal, or masonry wall structure, a
qualified person must install the bed to the wall.
• For all other wall types, a construction
professional must install the bed to the wall.
• The choice of wall attachment screw depends on
wall type. Use wall attachment screws suitable
for your wall material.
• Verify structural integrity of floor and wall prior
to installation.
• Only attach wall bed to wood stud, steel stud,
or masonry wall structure.
• NEVER use hollow wall anchors.
• ALWAYS use 12 screws for floor and wall
attachment.
RISQUE DE CHOC ou D’ÉCRASEMENT : si le lit n’est pas
correctement fixé au mur, il peut tomber subitement
entraînant des blessures graves ou la mort.
• Pour les structures murales en bois, en métal ou en
maçonnerie, une personne qualifiée doit fixer le lit au mur.
• Pour tous les autres types de murs, un professionnel
de la construction doit fixer le lit au mur.
• Le choix de vis de fixation murale dépend du type de mur.
Utilisez des vis de fixation murale adaptées au matériau
de votre mur.
• Vérifiez l’intégrité structurale du plancher et du mur
avant l’installation.
• Fixez seulement le lit escamotable à des montants de bois,
de métal ou à une structure murale en maçonnerie.
• N’utilisez JAMAIS de chevilles pour cloison sèche.
• Utilisez TOUJOURS 12 vis de fixation murale.
IMPACTO o PELIGRO DE APLASTAMIENTO: si la cama no
está bien fijada a la pared, puede caer repentinamente,
provocando lesiones graves o la muerte.
• Para las estructuras de madera, metal o mampostería,
una persona cualificada debe instalar la cama a la pared.
• Para todos los demás tipos de paredes, un profesional
de la construcción debe instalar la cama a la pared.
• La elección del tornillo de fijación a la pared depende
del tipo de pared. Utilice tornillos de fijación a la pared
adecuados para el material de la misma.
• Verifique la integridad estructural del suelo y la pared
antes de la instalación.
• Fije la cama a la pared sólo a una estructura de
madera, acero o mampostería.
• NUNCA utilice anclajes de pared huecos.
• SIEMPRE utilice 12 tornillos para la fijación al suelo
y a la pared.

Hardware installation
Murphy bed
3
85183-2 AN 13SERVICE: 1-888 8BESTAR (1-888 823-7827)
GO-796
x 4
Code
Qty
KI-932-H
x 8
PA-844
x 4
3/4 in (18 mm) 1 in (25 mm)
PA-844
KI-932-H
30
31
GO-796

Impactor CrushingHazard: Ifbedisnotproperly attachedtothewall,
itcansuddenly fall,resultinginseriousinjuryor death.
•Forwood,metal,ormasonrywallstructure,aqualified person mustinstallthebedto thewall.
•Forallothertypes,aconstructionprofessionalmustinstallthebedto thewallincompliance
withthecodesandregulationsinthe province,state,orcountrywhereinstalled.
•Thechoiceofwallattachmentscrewdependsonwalltype.Usewallattachmentscrews
suitablefor yourwallmaterial.
•Verifystructuralintegrityoffloorandwallpriorto installation.
•Donotopen orusethebedif thebedcabinetmoveswhileopening,orifyou noticeanyother
signsoflooseordetachingscrews.
•Neverremovewallattachmentscrewswithoutfirstdisassemblingandremovingthe mattress
frameandliftcylinders.
•Qualifiedpersonmusthavetheskillsandtoolsnecessarytolocatewallstuds,identifytype
ofwallstructure(wood,metal,masonryor other)andinstallscrews correctlyto wallstructure.
Skillsandtoolsincludeelectronicstudfinder,drillmotorandbits,screwdriver,andability
tocorrectlyusethesetools.
WARNING
PELIGRODEIMPACTOOAPLASTAMIENTO:Sila cama n o estábien sujetaalapared,
puedecaerrepentinamente,provocandolesionesgraveso lamuerte.
•Enelcasodeunaestructuradepared de madera,metalomampostería,unapersonacualificada
debeinstalarlacamaalapared.
•Paratodoslosdemástipos,un profesionalde laconstrucción debe instalarlacamaala pared
deacuerdoconconloscódigosyreglamentosde laprovincia,estadoopaísdonde se instale.
•Laeleccióndeltornillodefijaciónalapared dependedeltipode pared.Utilicetornillosde fijación
alaparedadecuadosparaelmaterialde lamisma.
•Verifiquelaintegridad estructuraldelsuelo yla pared antesde lainstalación.
•Noabraniutilice la camasielmueble de la camase mueve al abrirla,osiobservacualquierotro
signodetornillossueltosodesprendidos.
•Nuncaretirelostornillosde fijación alapared sinantesdesmontar yretirarel marcodelcolchón
yloscilindrosdeelevación.
•Unapersonacualificadadebetenerlashabilidadesyherramientasnecesariasparalocalizar los
montantesde lapared,identificareltipode estructurade lapared (madera,metal,mampostería
uotra)einstalarlostornilloscorrectamenteala estructuradelapared.Lashabilidadesyherramientas
incluyenunlocalizadorelectrónico de montantes,unmotorde
taladroybrocas,undestornillador,
ylacapacidaddeutilizarcorrectamenteestasherramientas.
ADVERTENCIA
RISQUEDECHOCOUD’ÉCRASEMENT:Silelit n’estpascorrectementfixéaumur,
ilpeuttombersubitemententraînantdesblessuresgravesoulamort.
•Pourlesstructuresmuralesenbois,enmétalou enmaçonnerie, unepersonne qualifiéedoit fixer
lelitau mur.
•Pourtouslesautrestypesdemur, unprofessionnel dela constructiondoitfixerlelit aumur
conformémentauxcodesetauxréglementationsde laprovince,l’Étatou le paysoùilestinstallé.
•Lechoixdevisdefixationmuraledépenddutypede mur. Utilisez desvisdefixationmuraleadaptés
aumatériaude votre mur.
•Vérifiezl’intégritéstructuraleduplancheret dumuravantl’installation.
•N’ouvrezpasoun’utilisezpaslelitsilecaissond ulitbougelorsdel’ouverture,ou si vousremarquez
toutautresigne que des vissontdesserréesoudétachées
•Neretirezjamaislesvisdefixationmuralesansavoirpréalablementdémontéouretirélecadredu
matelasetlesvérinsdelevage.
•Unepersonnequalifiéedoit avoirlescompétenceset lesoutilsnéce ssairesafindelocaliserles montants
dumur, d’identifierle typedestructuremurale (bois,métal,maçonnerie ou autre) etd’installer correcte-
mentlesvisdanslastructure du mur.Lescompétences etles outilsincluent un détecteurde montant
électronique,une perceuseetdesmèches,untournevisetlacapacité àutilisercorrectementcesoutils.
AVERTISSEMENT
NOTICE
Remove this label.
1
Insert
2
Required tools
A
Important
Tighten
3B
Make sure to properly tighten each cam to ensure furniture solidity.
Otherwise, parts could be damaged or the user could be injured.
H-03
85183-2 AN 14SERVICE: 1-888 8BESTAR (1-888 823-7827)
H-03
x 4
Hardware installation
Murphy bed
4
Code
Qty
KI-993-C
x 1
KI-993-D
x 1
KI-993-M
x 12
KI-993-Q
x 1
RO-994
x 4
H206028
x 1
H206029
x 1
KI-932-I
x 8
5/8 in (16 mm)
5/8 in (16 mm)
30
31
KI-993-D
KI-932-I
H206028
KI-993-M
KI-932-I
RO-994
KI-993-Q
H206029
KI-993-C
KI-932-I
KI-932-I
RO-994
KI-993-M
KI-993-Q

GO-796
x 10
Code
Qty
85183-2 AN 15SERVICE: 1-888 8BESTAR (1-888 823-7827)
Hardware installation
Murphy bed
5
GO-796
40
70
84

84 70 30 40 31
Sequence
VC-204
x 8
Code
Qty
85183-2 AN 16SERVICE: 1-888 8BESTAR (1-888 823-7827)
Hardware installation & assembly
Murphy bed
6
40
31
30
70
84
VC-204
2 in (50 mm)
TWO people
are required
for this step.

Code
Qty
85183-2 AN 17SERVICE: 1-888 8BESTAR (1-888 823-7827)
Hardware installation & assembly
Murphy bed
7
40
31
41
30
H-36
x 4
H-36
TWO people
are required
for this step.

Assembly
Murphy bed
8
85183-2 AN 18SERVICE: 1-888 8BESTAR (1-888 823-7827)
TWO people
are required
for this step.

85183-2 AN 19SERVICE: 1-888 8BESTAR (1-888 823-7827)
Adhere the RU-420
into the groove and
glue the wires of the
switch on it.
Hardware installation & assembly
Murphy bed
9
Code
Qty
AC-1009-B
x 1
AC-1009-A
x 2
AC-1009-C
x 1
AC-1009-D
x 1
RU-420
x 1
AC-1009-C
AC-1009-D
AC-1009-A
AC-1009-B
The installation of switch
can be on left side or
on right side.

85183-2 AN 20SERVICE: 1-888 8BESTAR (1-888 823-7827)
3/4 in (19 mm)
Hardware installation & assembly
Murphy bed
10
Code
Qty
SU-1007
x 2
VR-211
x 4
MO-7493
SU-1007
VR-211
