BevLes CS82-CH8 User manual

This equipment has been engineered to provide you with dependable service when used according to the
instructions in this manual and standard commercial kitchen practices.
1
!!
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
!!
WARNING
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this
equipment.
!!
WARNING
Initial heating of unit may generate smoke or fumes and must be done in a
well-ventilated area. Overexposure to smoke or fumes may cause nausea or
dizziness.
Hot Holding Cabinet
Model: CS82-CH8 & CS36-CH3
!"# $%&''&& (()'*
Innovative Foodservice Equipment
Custom Designed for Performance, Service and Value.
INSTALLATION AND OPERATING
INSTRUCTIONS
INTENDED FOR OTHER THAN HOUSEHOLD USE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
ANSI/NSF4
Phone: +1
Fax: [phone]
Toll Free: [phone]
Website: www.apwwyott.com
E-mail: [email protected]
[phone]
BevLes Company, Inc.
729 Third Avenue
Dallas, TX 75226

!
!"#$#%& !"# #$%&'( )*+*)# ,' - .',*/,"-( !-0-)1 ') 2/#-+* .)-3,"3*4 5!"3! 3'2(1 )*#2(, "/
#*)"'2#"/62)$') 1*-,!7
!
!
!
'!#%("& !"##$%&'(5-)/#'+ "%%"/*/,!-0-)15!"3!5"(()*#2(,"/ #*)"'2#"/62)$') 1*-,!7
!
!
)!*+$,#& !"# #$%&'( )*+*)#,' - .',*/,"-( !-0-)1') 2/#-+* .)-3,"3*45!"3! %-$ )*#2(, "/ %"/') ')
%'1*)-,*"/62)$').)'123,') .)'.*),$1-%-8*7
!
!
#,+$)(& !"# #$%&'( )*+*)# ,' "/+')%-,"'/ ,!-, /**1# #.*3"-( -,,*/,"'/') %2#, &* +2(($ 2/1*)#,''1
*9*/,!'28!/', 1-/8*)'2#7
GENERAL INFORMATION
THIS MANUAL SHOULD BE RETAINED FOR FUTURE REFERENCE
BevLes Company takes pride in the design and quality of our products. When used as intended and with
proper care and maintenance, you will experience years of reliable operation from this equipment. To
ensure best results, it is important that you read and follow the instructions in this manual carefully.
Installation and start-up should be performed by a qualified installer who thoroughly reads, understands
and follows these instructions.
If you have questions concerning the installation, operation, maintenance or service of this product, write
Technical Service Department BevLes Company, Inc., 729 ThirdAvenue, Dallas, TX 75226.
Before installing and operating this equipment be sure everyone involved in its operation is fully trained and
aware of all precautions. Accidents and problems can result by a failure to follow fundamental rules and
precautions.
The following words and symbols, found in this manual, alert you to hazards to the operator, service
personnel or the equipment. The words are defined as follows:
SAFETY PRECAUTIONS
!
)!*+$,#& !*#* %'1*(# -)* 1*#"8/*14 &2"(,4 -/1 #'(1 +') 3'%%*)3"-( 2#*7 :+ ,!*#* %'1*(# -)*
.'#","'/*1 #' ,!* 8*/*)-( .2&("3 3-/ 2#* ,!* *;2".%*/, %-<* #2)* ,!-, 3-2,"'/#4 5-)/"/8#4 -/1
'.*)-,"/8 "/#,)23,"'/# -)* 3(*-)($ .'#,*1 /*-) *-3! 2/", #' ,!-, -/$'/* 2#"/8 ,!* *;2".%*/, 5"((
2#*", 3'))*3,($-/1/', "/62)*,!*%#*(9*#')!-)%,!* *;2".%*/,7
!
!
!"#$#%& =!*3< ,!* 1-,- .(-,* '/ ,!"# 2/", &*+')* "/#,-((-,"'/7='//*3,,!* 2/", '/($ ,' ,!* 9'(,-8*
-/1+)*;2*/3$("#,*1'/ ,!*1-,-.(-,*7='//*3,'/($ ,' > ') ? .!-#*-# ("#,*1'/ ,!* 1-,-.(-,*7
!
!
!
!"#$#%& @(*3,)"3-( -/1 8)'2/1"/8 3'//*3,"'/# %2#, 3'%.($ 5",! ,!* -..("3-&(* .'),"'/# '+ ,!*
/-,"'/-(*(*3,)"3-(3'1*-/1A')',!*)('3-( *(*3,)"3-(3'1*#7
2
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
All containers should be examined for damage before and during unloading. The freight carrier has
assumed responsibility for its safe transit and delivery. If equipment is received damaged, either apparent or
concealed, a claim must be made with the delivering carrier.
A) Apparent damage or loss must be noted on the freight bill at the time of delivery. It must then be signed by
the carrier representative (Driver). If this is not done, the carrier may refuse the claim. The carrier should
supply the necessary forms.
B) Concealed damage or loss if not apparent until after equipment is uncrated, a request for inspection
must be made to the carrier within 15 days. The carrier should arrange an inspection.
Installation and start-up should be performed by a qualified installer who thoroughly reads, understands and
follows these instructions.
BE CERTAIN TO HOLD ALL CONTENTS AND PACKAGING MATERIAL.

!!

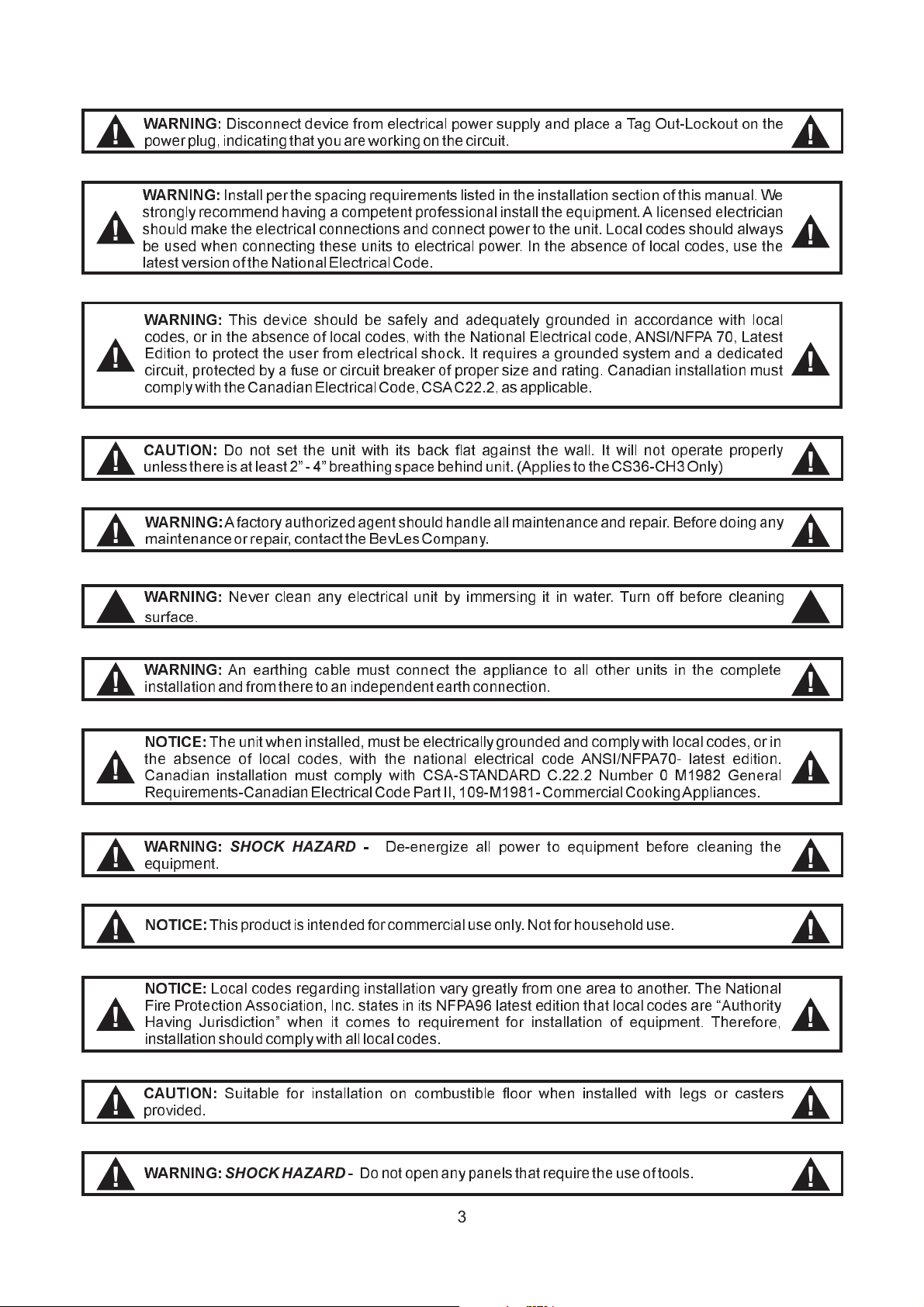

!"#$#%& !"!# $%!&' &'( !%!$)#*$&% +'*) ,( *--!#.*'/ *) *' 0&)!#1 2+#' 344 ,!43#! $%!&'*'/
.+#4&$!1
!!
'!()$*#& 53 '3) .!) )6! +'*) 0*)6 *). ,&$7 4%&) &/&*'.) )6! 0&%%1 8) 0*%% '3) 39!#&)! 9#39!#%(
+'%!.. )6!#!*. &) %!&.):; < =; ,#!&)6*'/.9&$! ,!6*'> +'*)1 ?@99%*!.)3 )6!ABCD<AECF'%(G
!!
!"#$#%& @' !&#)6*'/ $&,%! -+.) $3''!$) )6! &99%*&'$! )3 &%% 3)6!# +'*). *' )6! $3-9%!)!
*'.)&%%&)*3'&'>4#3- )6!#!)3 &'*'>!9!'>!')!&#)6$3''!$)*3'1
!!
#*)$'+& 26*.9#3>+$)*. *')!'>!>43#$3--!#$*&%+.!3'%(1 3)43# 63+.!63%>+.!1
!!
!"#$#%& , SHOCK HAZARD 5!<!'!#/*H! &%% 930!# )3 !I+*9-!') ,!43#! $%!&'*'/ )6!
!I+*9-!')1
!
!
#*)$'+& 26! +'*) 06!' *'.)&%%!>J -+.) ,! !%!$)#*$&%%( /#3+'>!> &'> $3-9%( 0*)6 %3$&% $3>!.J 3# *'
)6! &,.!'$! 34 %3$&% $3>!.J 0*)6 )6! '&)*3'&% !%!$)#*$&% $3>! @ B8K LM@NO< %&)!.) !>*)*3'1
A&'&>*&' *'.)&%%&)*3' -+.) $3-9%( 0*)6 AB@<B2@ 5@P5 A1::1: +-,!# O QRST: U!'!#&%
P!I+*#!-!').<A&'&>*&'V%!$)#*$&%A3>!M&#) 88J ROS<QRSTR<A3--!#$*&%A337*'/@99%*&'$!.1
!
!
#*)$'+& W3$&% $3>!. #!/&#>*'/ *'.)&%%&)*3' "&#( /#!&)%( 4#3- 3'! &#!& )3 &'3)6!#1 26! &)*3'&%
L*#! M#3)!$)*3'@..3$*&)*3'J 8'$1 .)&)!. *' *). LM@SD %&)!.) !>*)*3' )6&) %3$&% $3>!. &#! X@+)63#*)(
E&"*'/ Y+#*.>*$)*3'; 06!' *) $3-!. )3 #!I+*#!-!') 43# *'.)&%%&)*3' 34 !I+*9-!')1 26!#!43#!J
*'.)&%%&)*3'.63+%>$3-9%(0*)6&%% %3$&%$3>!.1
!!
!"#$#%& , SHOCK HAZARD 53'3) 39!'&'(9&'!%.)6&) #!I+*#! )6! +.! 34 )33%.1
3
!!
'!()$*#& B+*)&,%! 43# *'.)&%%&)*3' 3' $3-,+.)*,%! 4%33# 06!' *'.)&%%!> 0*)6 %!/. 3# $&.)!#.
9#3"*>!>1
!!
!"#$#%& @4&$)3#( &+)63#*H!>&/!') .63+%> 6&'>%! &%% -&*')!'&'$! &'> #!9&*#1 Z!43#! >3*'/ &'(
-&*')!'&'$!3# #!9&*#J $3')&$) )6! Z!"W!. A3-9&'(1
!"#$#%& 8'.)&%% 9!# )6! .9&$*'/ #!I+*#!-!'). %*.)!> *' )6! *'.)&%%&)*3' .!$)*3' 34 )6*. -&'+&%1 [!
.)#3'/%( #!$3--!'> 6&"*'/ & $3-9!)!') 9#34!..*3'&% *'.)&%% )6! !I+*9-!')1@ %*$!'.!> !%!$)#*$*&'
.63+%> -&7! )6! !%!$)#*$&% $3''!$)*3'. &'> $3''!$) 930!# )3 )6! +'*)1 W3$&% $3>!. .63+%> &%0&(.
,! +.!> 06!' $3''!$)*'/ )6!.! +'*). )3 !%!$)#*$&% 930!#1 8' )6! &,.!'$! 34 %3$&% $3>!.J +.! )6!
%&)!.)"!#.*3'34 )6! &)*3'&%V%!$)#*$&%A3>!1
!
!
!
!
!"#$#%& 26*. >!"*$! .63+%> ,! .&4!%( &'> &>!I+&)!%( /#3+'>!> *' &$$3#>&'$! 0*)6 %3$&%
$3>!.J 3# *' )6! &,.!'$! 34 %3$&% $3>!.J 0*)6 )6! &)*3'&% V%!$)#*$&% $3>!J @ B8K LM@ NOJ W&)!.)
V>*)*3' )3 9#3)!$) )6! +.!# 4#3- !%!$)#*$&% .63$71 8) #!I+*#!. & /#3+'>!> .(.)!- &'> & >!>*$&)!>
$*#$+*)J 9#3)!$)!> ,( & 4+.! 3# $*#$+*) ,#!&7!# 34 9#39!# .*H! &'> #&)*'/1 A&'&>*&' *'.)&%%&)*3' -+.)
$3-9%(0*)6)6! A&'&>*&'V%!$)#*$&%A3>!JAB@A::1:J &. &99%*$&,%!1
!
!
!"#$#%& 5*.$3''!$) >!"*$! 4#3- !%!$)#*$&% 930!# .+99%( &'> 9%&$! & 2&/ F+)<W3$73+) 3' )6!
930!#9%+/J*'>*$&)*'/)6&)(3+ &#!03#7*'/3' )6!$*#$+*)1

4
TABLE OF CONTENTS
SECTION ITEM PAGE
Safety Precautions 2
General Information 2
1. Introduction 5
2. Operational Procedures 5
3. 6
4. 7
5. Troubleshooting Guide 8
6. Preventative Maintenance 9

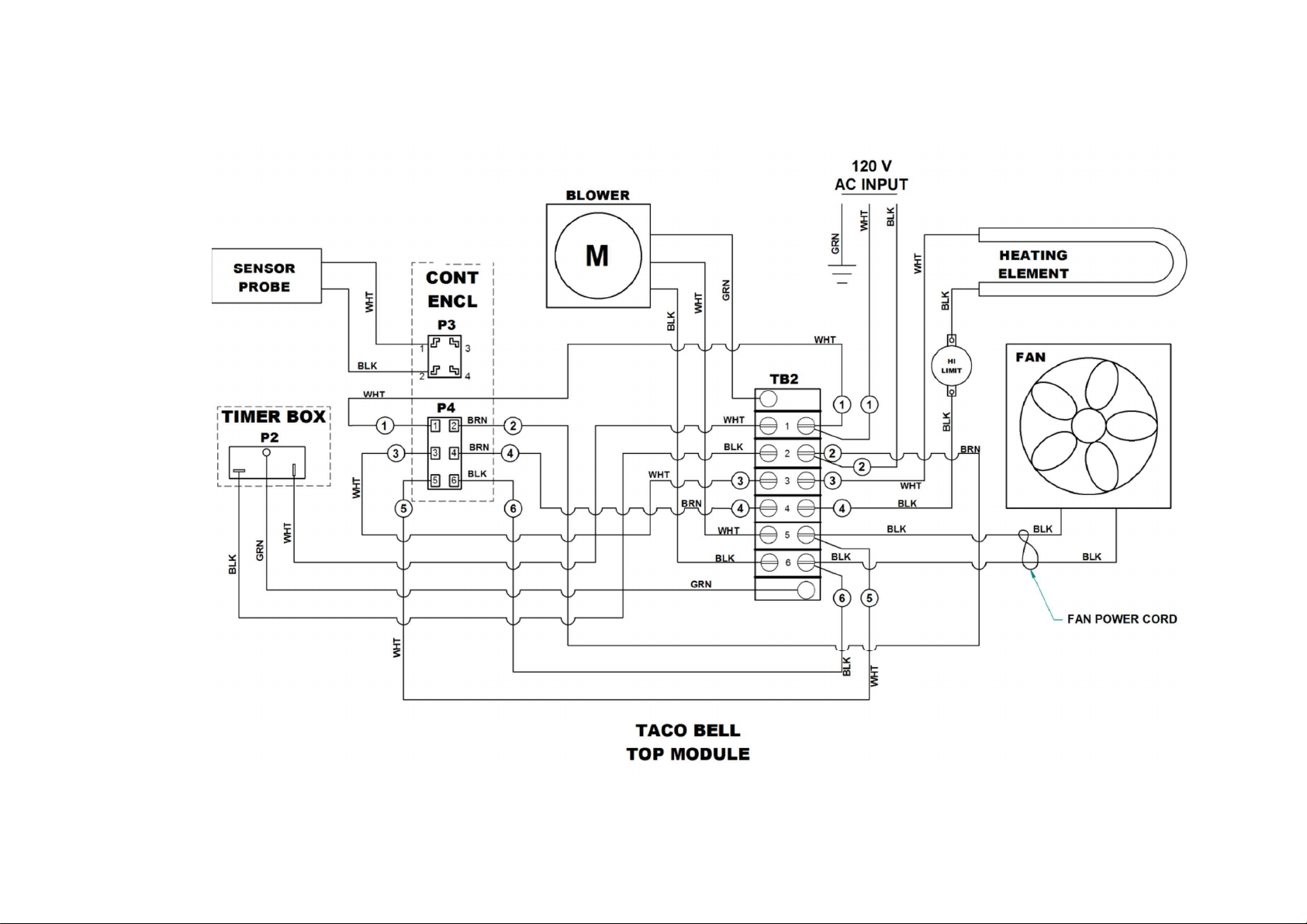

7. Wiring Diagrams 10
A. Taco Bell Top Module 10
B. Taco Bell Control Panel 11
C. Taco Bell Front Panel Enclosure 12

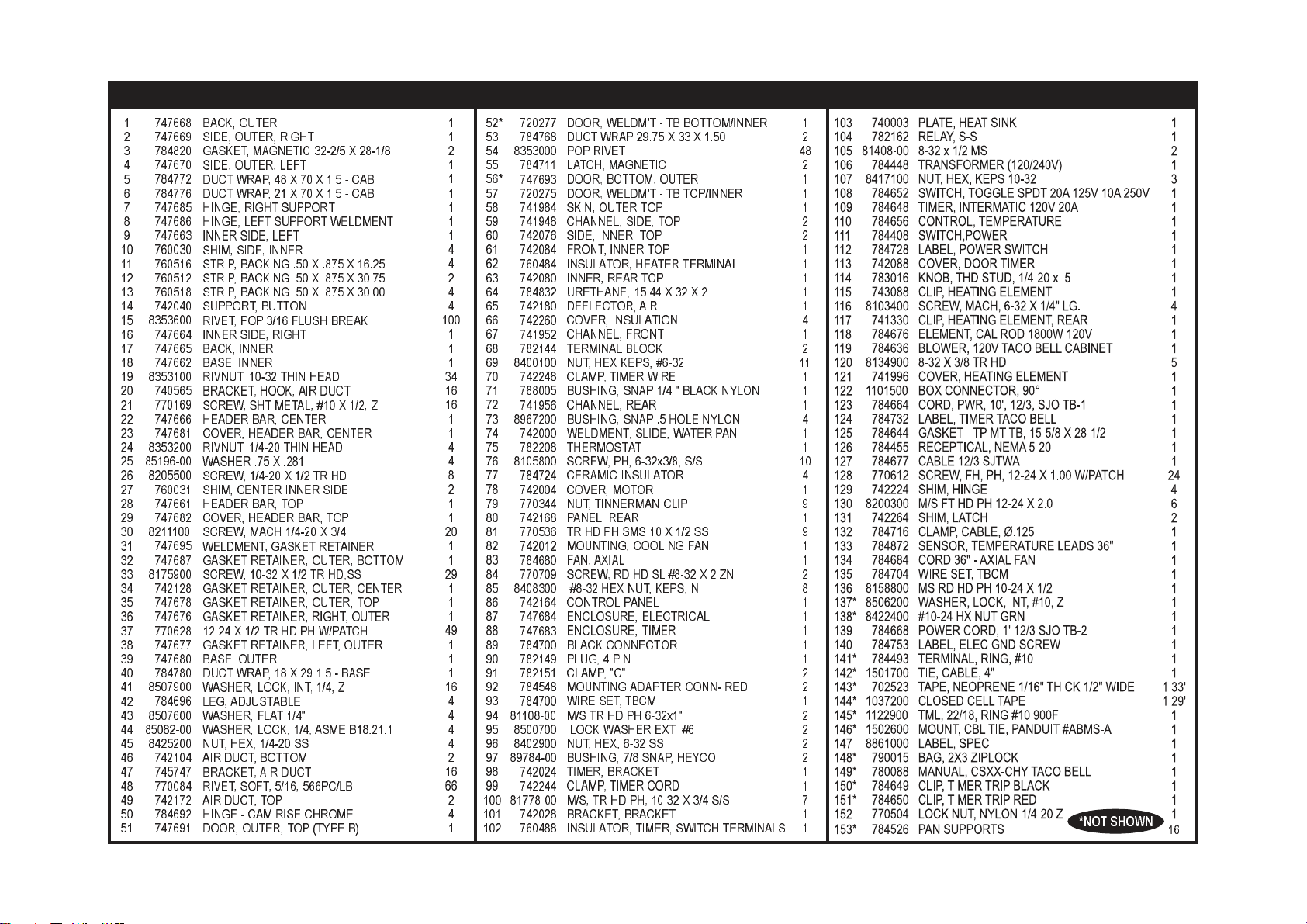

8. Parts List & Exploded Views 13
A. Main Cabinet (Exploded View) 13
B. Top Module
C. Door Assembly
D. Parts List 15
9. Warranty 16
Cleaning
Specifications
(Exploded View) 14
(Exploded View) 14
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or Parts, this information is required.
Model Number Serial Number Date Purchased
Notes:

1. INTRODUCTION
2. OPERATIONAL PROCEDURES
BevLes Hot Holding Cabinets are designed and engineered to hold prepared foods within a precise
temperature range. Built from the finest materials available, BevLes Hot Holding Cabinets are custom
designed for performance, service and value.
All models are U.L., C.U.L., and U.L. Sanitation listed.
BevLes Hot Holding Cabinets are furnished with a 10-foot power cord with a 20 amp molded plug. A
NEMA5-20R receptacle is required.
Each cabinet is equipped with self-closing door hinges designed to open to a maximum of 180°.
Hot Holding Cabinets require a minimum of 4” between each Hot Holding Cabinet and other
equipment or surfaces for proper air circulation to and from fan motor air vents; full size models (over
50” tall) also require 4” between the and other surfaces.
If your Hot Holding Cabinet is equipped with stationary legs, it is important to level your cabinet for
proper operation. To level, simply turn the adjustable hex foot as needed on each leg.
Plug the cabinet into the power source. Use a separate electrical line (120V-20A), protected by a
circuit breaker of the proper rating. (NEMA 5-20R receptacle is required).
All personnel responsible for the operation and maintenance of BevLes Hot Holding Cabinets
should become familiar with this manual prior to operating the equipment.
Notes
Do not flex doors beyond 180 . Excessive stress on the hinge may lead to metal fatigue and
possible breakage.
top of the cabinet
Do not place any objects over motor air vents located on right side of cabinet top mounted
heating unit.
Step 1.
WARNING:
Care should be exercised when adjusting to avoid loosening or removing the leg from the
cabinet base. Hold the leg firmly and adjust the hex foot. NOTE: Model CS82-CH8 must
remain equipped with factory authorized legs, and can never be mounted on casters of any
type.
Step 2.
WARNING: Before plugging in cabinet, ensure compatibility with your electrical source by
referring to the serial number label located on the top side of the Hot Holding Cabinet. For
any necessary assistance, please contact the BevLes factory.
5
Step 3.
NOTE: Some models may be
equipped with other types of shelf supports; please
contact the BevLes factory with any questions on
shelf support installation.

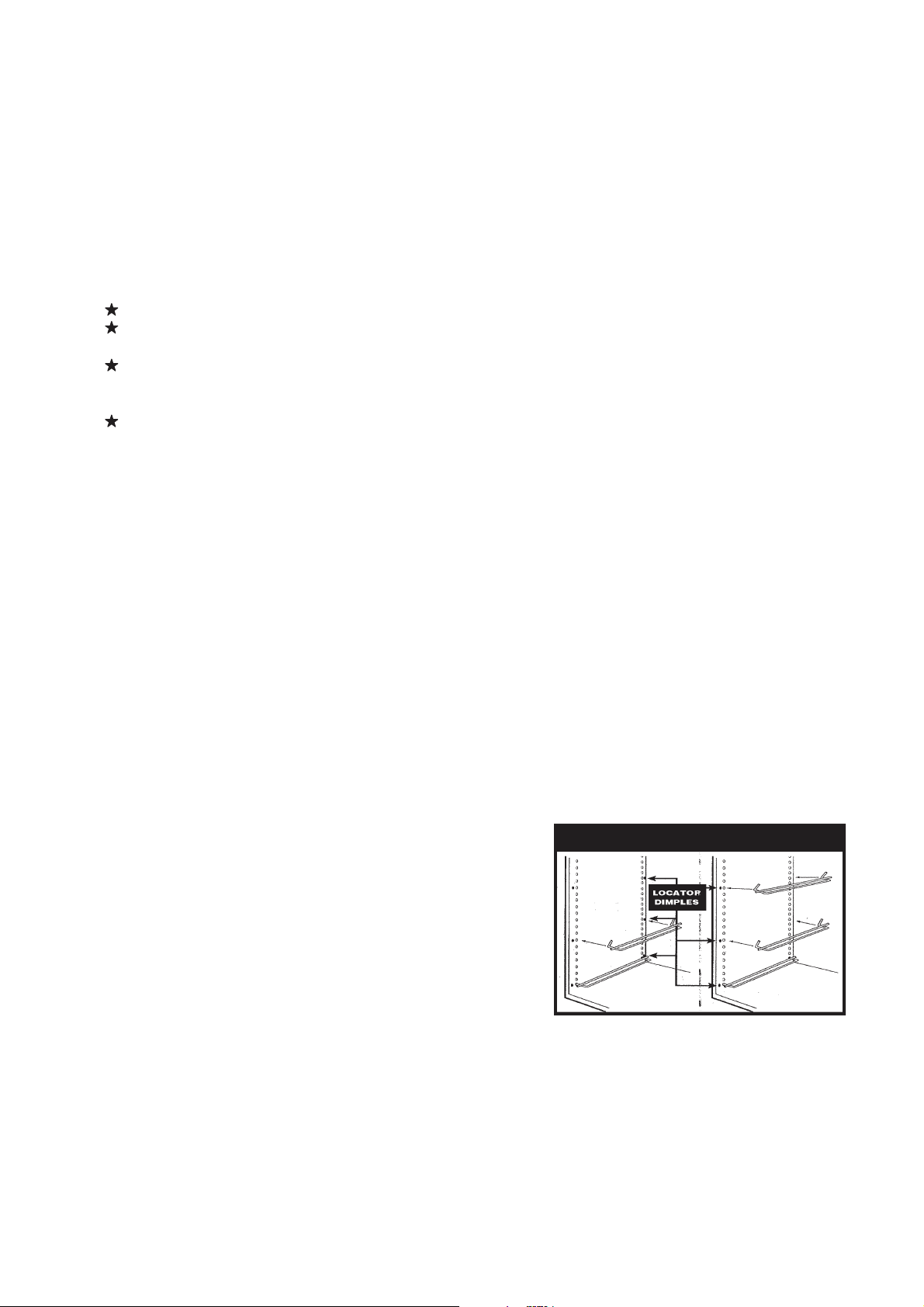

Make certain that the wire shelf supports have been
properly installed. Improperly spaced shelves may
affect air flow circulation within the cabinet interior
leading to “hot” or “cold” spots. As shown in Figure 1,
supports attach to the airflow (side) panels beginning
with the bottom holes in each airflow panel (left and right
side of cabinet). Small indentations (dimples) on the
airflow panels indicate the correct placement holes for
each wire shelf support.
Figure 1
Step 4.
Step 5.
Push power switch to “ON” position. The digital display will light and show the current cabinet
temperature. A red LED light (located in the upper left corner of the display) will be displayed anytime
the cabinet temperature falls below the set temperature.
After five minutes, check the digital display and the air flow inside the cabinet to be sure that it is
heating properly. As a point of reference, most “empty” full size cabinets will reach their set
temperatures within approximately 30 minutes.

6
Your BevLes Hot Holding Cabinet features a 24-hour mechanical Timer to allow for automatic operation.
The Timer and a Timer ON-OFF switch are located behind the 3¾” x 6” door at the right of the black power
switch near the top of the cabinet. To open the door, turn the black knob counterclockwise until you can slide
the door up about ½ inch and then lift the door out and upward.
TO SET TIMER (See Figure 2)
Step 1.
Step 2.
Step 3.
ON
OFF
Step 4.
Access the timer behind the sliding door next to the main power
switch near the top of the BevLes cabinet.
Activate the automatic ON/OFF Timer by toggling the switch to
the “ON” position. (NOTE: the switch is not shown in diagram - it
is located to the left of the Timer.)
Determine when you want the BevLes cabinet to automatically
turn on and turn off. Remove the RED TAB and replace it in the
slot when you want the BevLes cabinet to be turned . Press
down to attach the TAB to the Timer. Remove the BLACK TAB
and replace it in the slot when you want the BevLes cabinet to be
turned . Press down to attach the TAB to the Timer.
Turn the dial clockwise until the TIME ARROW (B) (the black
arrow located in the center of the Timer) is pointing at the correct
Figure 2
time of day.
Be sure that the main heated cabinet power switch (black) remains in the “ON” position.Step 5.
Note: For unscheduled ON/OFF operation of the cabinet the Manual Knob may be used to
override the timer’s ON/OFF mode settings.
IN CASE OF POWER LOSS, RESET TIMER AS DESCRIBED IN STEP 4.
3. CLEANING
Step 1.
Step 2. WARNING: Always unplug the cabinet before
dismantling or cleaning.
Step 3. CAUTION: At least two people should do the
lifting to avoid possible injury.
Step 5.
Step 6.
CAUTION: Use care when handling the airflow (side) panels. Any
damage or bending may make re-installation difficult.
Step 7.
WARNING: Avoid splashing water or any other liquid into the top mounted heating unit to
prevent possible damage to electrical components.
Push power switch to OFF position.
Unplug power cord from power source.
If needed, remove the top mounted heating unit.
Remove the wire shelf supports.
Remove the airflow (side) panels by carefully lifting each panel and tilting the bottom toward the
center of the cabinet.
Clean all parts thoroughly with soapy water and soft cloths or sponges. Never use steel wool or
caustic cleaning compounds.
IF YOU HAVE ANY QUESTIONS REGARDING THE INSTALLATION OR OPERATION OF YOUR
BEVLES HOT HOLDING CABINET, REVIEW THIS MANUAL AND THEN CALL THE BEVLES FACTORY
CUSTOMER SERVICE SUPPORT HOTLINE:
Step 4.
BEVLES 800/441-1601
Open door(s) to 90 position.

7

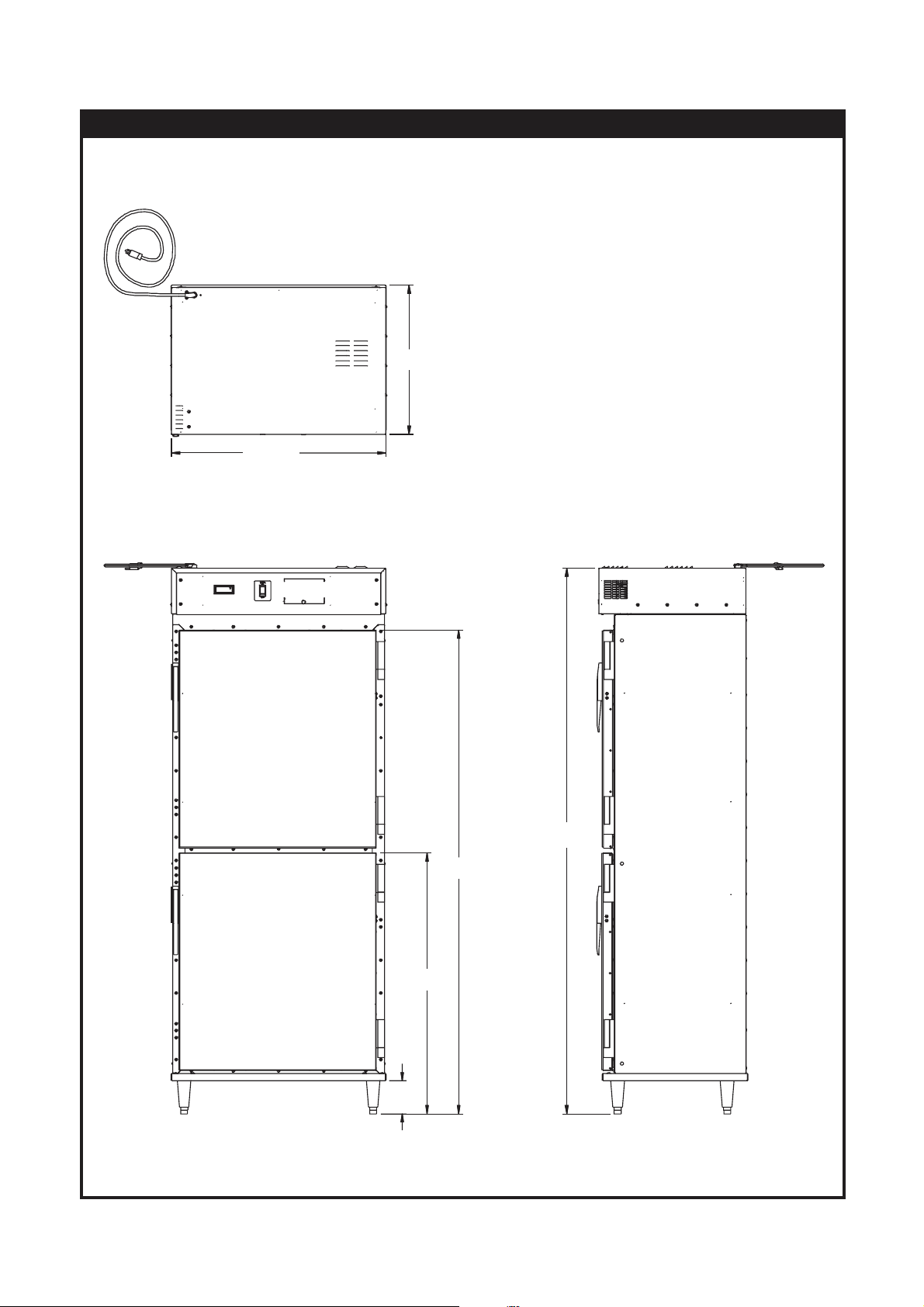

4. SPECIFICATIONS
72.882
82.221
39.314
4.977
32.344
22.507

SYMPTOM MOST LIKELY CAUSE SOLUTION
Digital Controller displays 2 dots
at bottom of display (Open
Sensor Indicator Lights, See
Diagram).
Temperature Sensor has
failed or the connector is
loose or not plugged in.
Call the BevLes Technical Service
Department to verify symptoms and
for a possible solution involving
removing the Control Module (If
further repairs are required under
warranty obtain your Authorization
Number for repairs).
5. TROUBLESHOOTING GUIDE
Digital Controller Displays Temp.
Between 165-180 ºF.
VERIFY: 1)Actual cabinet temp. is
low, 2)There IS NO air movement
from left side air duct.
Main Blower (fan) has
failed.
Call the BevLes Technical Service
Department to verify symptoms and if
under warranty to obtain your
Authorization Number for repairs.
IS
The Relay has failed in
the Closed position (will
not turn the heater off).
Call the BevLes Technical Service
Department to verify symptoms and if
under warranty to obtain your
Authorization Number for repairs.
Digital Controller Displays a
Temp. Between 200-240 ºF.
VERIFY: 1)Actual cabinet temp. is
between 200-240 ºF, 2)Heater
Indictor Light is OFF, 3)There IS
air movement from left side air
duct.
Digital Controller Displays a
Temp. Less Than 100 ºF.
VERIFY: 1)Actual cabinet temp. is
between 70-100 ºF, 2)Heater
Indicator Light is ON, 3)There IS Air
movement from left side air duct.
The Relay has failed in
the Open position (will not
turn the heater on).
Call the BevLes Technical Service
Department to verify symptoms and if
under warranty to obtain your
Authorization Number for repairs.
Digital Controller is Blank
VERIFY: 1)Power switch is on,
2)Unit is plugged in appropriate
outlet, 3)There is air movement
from left side air duct.
The Transformer and/or
Temperature Controller
has failed.
Call the BevLes Technical Service
Department to verify symptoms and if
under warranty to obtain your
Authorization Number for repairs.
Digital Controller is Blank
VERIFY: 1)Power switch is on,
2)Unit is plugged in appropriate
outlet, 3)There IS NO air
movement from left side air duct.
1)Power Cord not
plugged in, 2)Circuit
Breaker may have
tripped, 3)Outlet may be
damaged, 4)Power cord
plug could be damaged,
5)Timer is being used
(Timer Bypass switch in
ON Position) but the time
or trippers are indicating
the wrong time, 6)Power
switch may have failed.
1)Verify Power Cord is plugged in
appropriate outlet, 2)Verify Circuit
Breaker is not tripped, 3)Verify Outlet
is functioning properly (unplug BevLes
unit, plug a known working appliance
into outlet with same voltage and turn
on, plug BevLes unit back into outlet),
4)Verify Plug is not damaged, 5)Set
the correct time and manually trip
timer to on position if necessary,
6)Call the BevLes Technical Service
Department to verify symptoms and if
under warranty to obtain your
Authorization Number for repairs.
DIGITAL
CONTROLLER
DISPLAY
Heat Indicator Light
Open Sensor Indicator Lights
8

6. Preventive Maintenance (
POWER CORD SHOULD ALWAYS BE DISCONNECTED FROM POWER SOURCE BEFORE
PERFORMING ANY PREVENTIVE MAINTENANCE ON THE TOP MOUNTED HEATING UNIT.
DO
NOT get any liquid in the area behind the Control Module (where the 12 connector terminal
block is mounted).
BevLes (800)
!" #$%! &'(( )!* )!(+,-. /$0,-'* 1!+'(23 /4567/)58 /49:7/)9;
A minimum clearance of 4” should be maintained at the sides, back and top of all CS82-CH8 models. This
will allow for proper operation of all fan blowers and cooling fans. No objects should be placed on top of the
cabinet. The cabinet should be level with all hex feet of the 6” legs firmly adjusted. The CS36 model should
have a minimum of 2” to 4” clearance at the sides and back.
The following should be performed at least once every three to six months:
All models have louver openings at the left front side corner of the Top Mounted Heating Unit.
These openings must remain open so that ambient air can circulate past the control module (cooling
the electrical components inside the Front Panel). On the CS82 model there are additional louver
openings located on the top of the Top Mounted Heating Unit that must also remain open to
prevent the main internal fan blower (motor) assembly from over heating. The CS36 model has
additional louver openings located in the rear panel (back) of the Top Mounted Heating Unit that
must also remain open to prevent it’s main internal fan blower (motor) assembly from over heating.
Use a slotted screwdriver to remove the four screws from the corners of the front Panel of the Control
Module. Carefully lift out the Control Module (you do not have to disconnect any wires at the rear of
the Control Module) and place it on top of the cabinet. Inspect the axial cooling fan located in the left
front corner of the Top Mounted Heating Unit, and make certain that it is clean and free of any dirt
or grease build-up. Next, inspect the left end of the Control Module (where the cooling fan blows) for
any dirt or grease build-up. You can use a damp cloth and mild cleanser to clean this surface
After cleaning, place the Control Module back into the Top Mounted Heating
Unit and secure with the four slotted screws. On CS36 model there a second axial cooling fan
located inside the rear panel (back) of the Top Mounted Heating Unit. It is extremely important that
this cooling fan also remain clean and free of any dirt or grease build-up.
Visually inspect the magnetic door gaskets for any damage (dirt or grease, tears, exposed magnet,
etc.). Clean or replace if needed.
Visually inspect power cord and 20Amp molded plug for any excessive wear or damage.
On CS82 model, check 6” legs to be certain that all hex feet are properly adjusted and making firm
contact with the floor. (Check to see that cabinet is level). On CS36 model check to see that the
casters are free of any dirt or debris, and the brakes are in locked position when cabinet is in use.
Visually inspect the door latch and hinges to verify that they are securely attached to the door and
cabinet. Check attachment screws for snugness. If any screws are loose or missing they must be
placed back to correct position. Use a permanent “high strength threadlocker” to re-install screws,
or order replacement screws (with a threadlock patch) from .
Inspect to see that airflow side panels are properly mounted on the inner side walls of the cabinet.
Check to see that the Top Mounted Heating Unit is properly seated on the cabinet. This can be
easily verified by removing the left and right “top” airflow side panels and visually inspecting the fit of
the Top Mounted Heating Unit into the cabinet frame. Also, make certain that the wire shelf
supports (8 sets) are located in the proper positions for uniform airflow and temperature distribution.
Small indentations (dimples) on the airflow side panels indicate the correct placement holes for each
wire shelf support. The first wire shelf support should be located in the bottom hole of the airflow side
panel (next to the base of the cabinet). The second is located 7 ½” above the first, and this continues
up the side of the cabinet.
733-2203
9




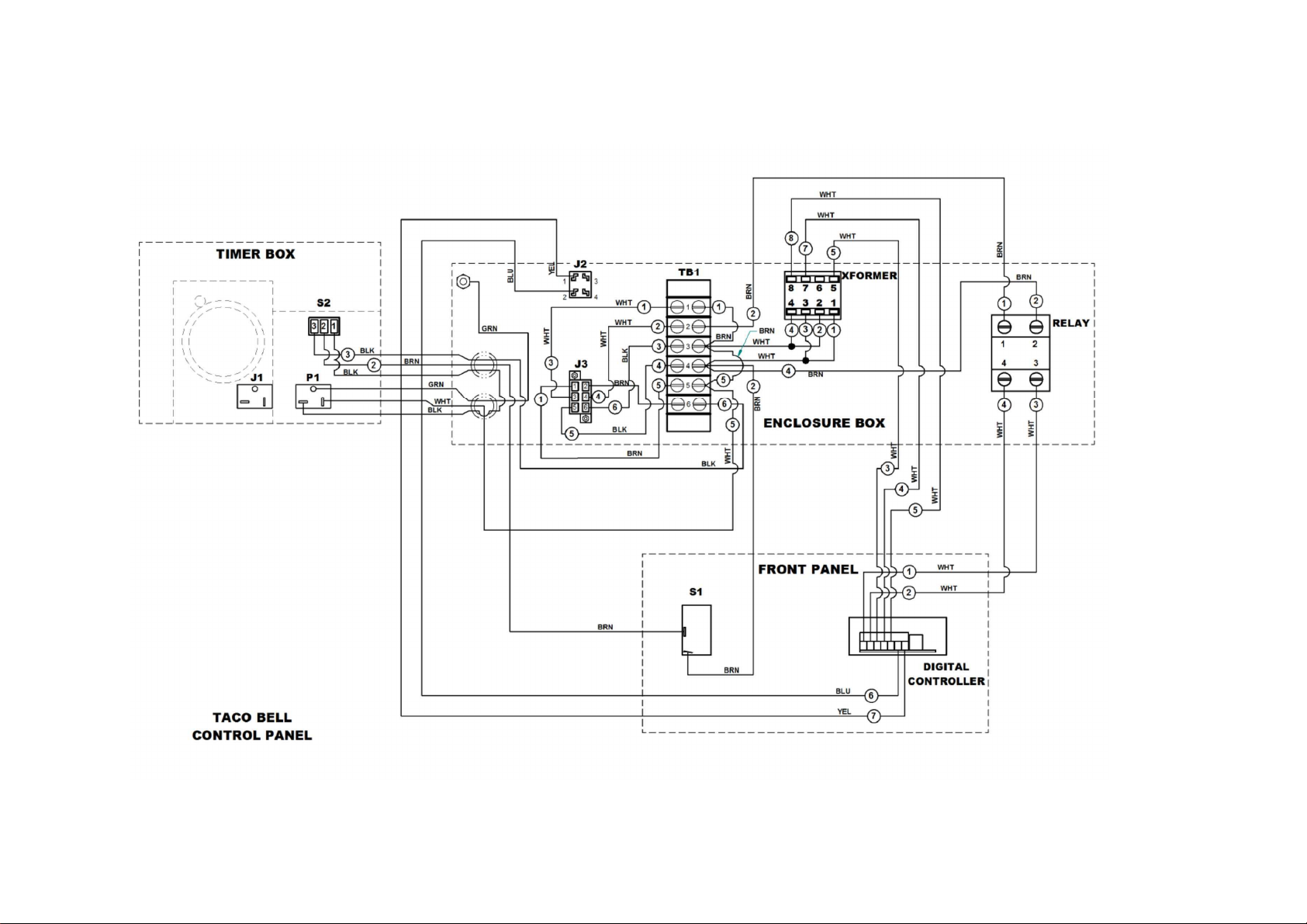

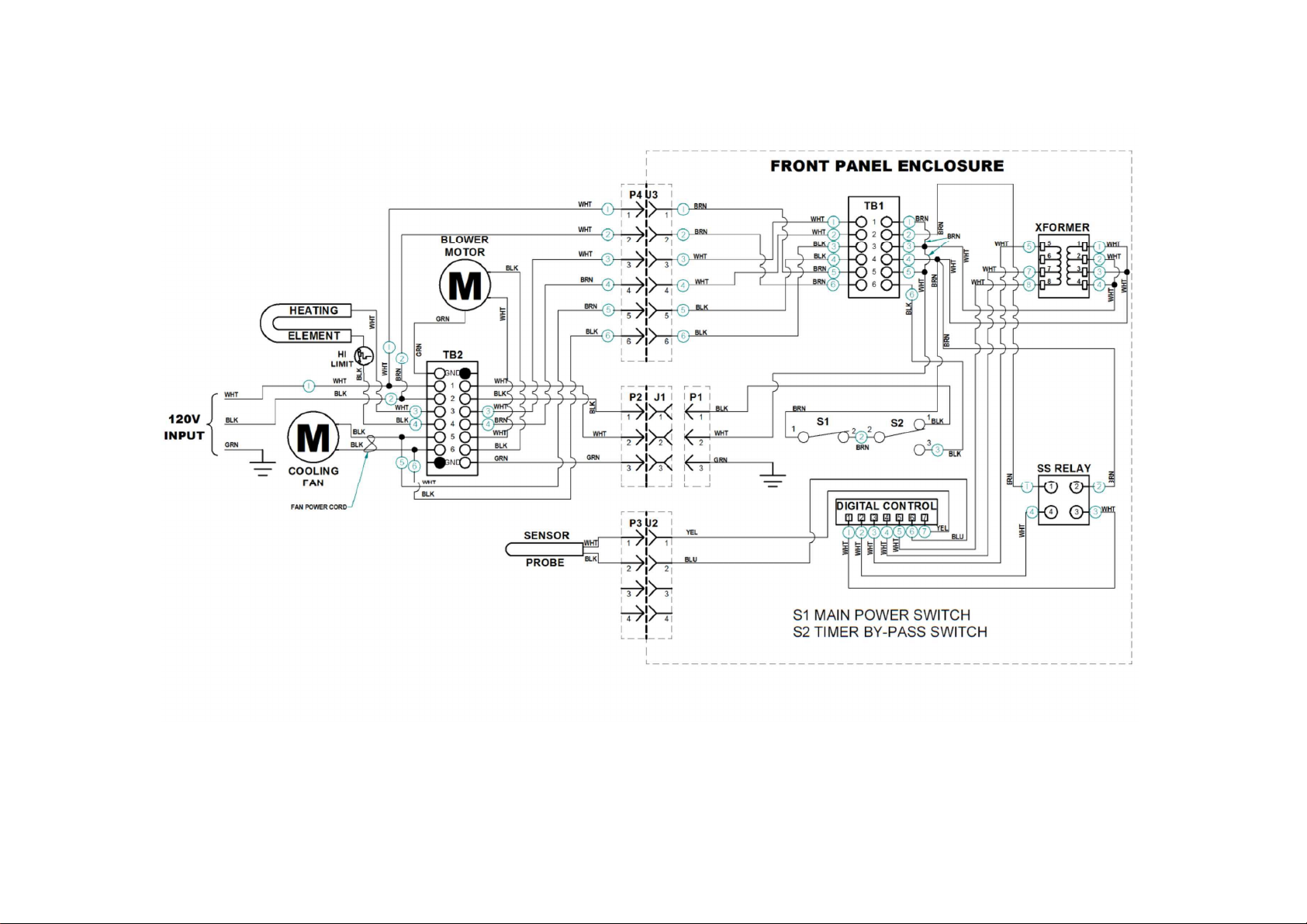

7. WIRE DIAGRAMS (1 of 3) 






















7. WIRE DIAGRAMS (2 of 3) 





















7. WIRE DIAGRAMS (3 of 3) 








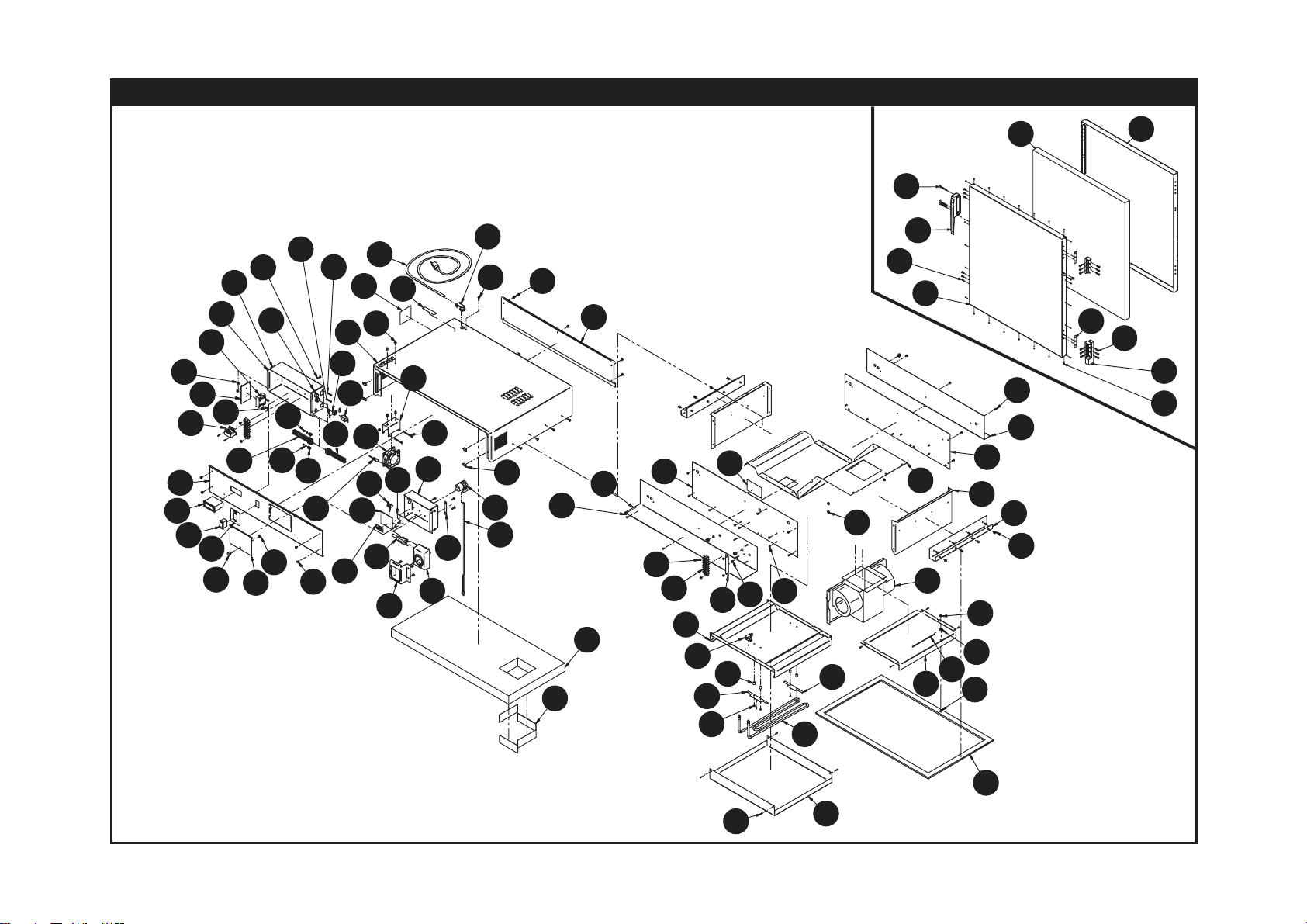

8. PARTS LIST & EXPLODED VIEW
MAIN CABINET
13
20
16
14
4
46
2
34
1
49
2
47
16
28
1
18
1
9
1
16
1
17
1
22
1
1
1
2
1
4
1
36
1
38
1
35
1
39
1
23
1
29
1
7
1
8
1
32
1
31
1
10
4
27
2
12
2
11
4
13
4
48
66
48
66
21
16
37
49
42
4
5
1
6
1
40
1
19
34
15
100
45
4
43
441
16
25
4
33
29
26
8
30
20
24
4
44
4
3
2
131
2
35
37
4
8
10 11
20
9
21
29
49
6
17
12
25
27
26
34
36
32
38
31
33
18
40
19
42
43
44
45
39
41
30 16
46
48
48
13
2
15
7
47
24
23
22
28
5
1
3
14
131

103
1
117
1
59
2
67
1
72
1
121
1
74
1
78
1
98
1
101
1
60
2
63
1
61
1
113
1
86
1
80
1
65
1
99
1
70
1
66
4
115
1
88
1
62
1
79
9
81
9
84
2
68
2
90
1
104
1
75
1
114
1
111
1
106
1
92
2
119
1
125
1
109
1
110
1
123
1
118
1
83
1
77
4
112
1
64
1
71
1
19
34
15
100
96
2
85
8
107
11
95
2
116
4
76
10
105
2
33
29
120
5
85
8
126
1
127
1
140
1
133
1
132
1
107
3
120
5
136
1
152
1
81
9
139
1

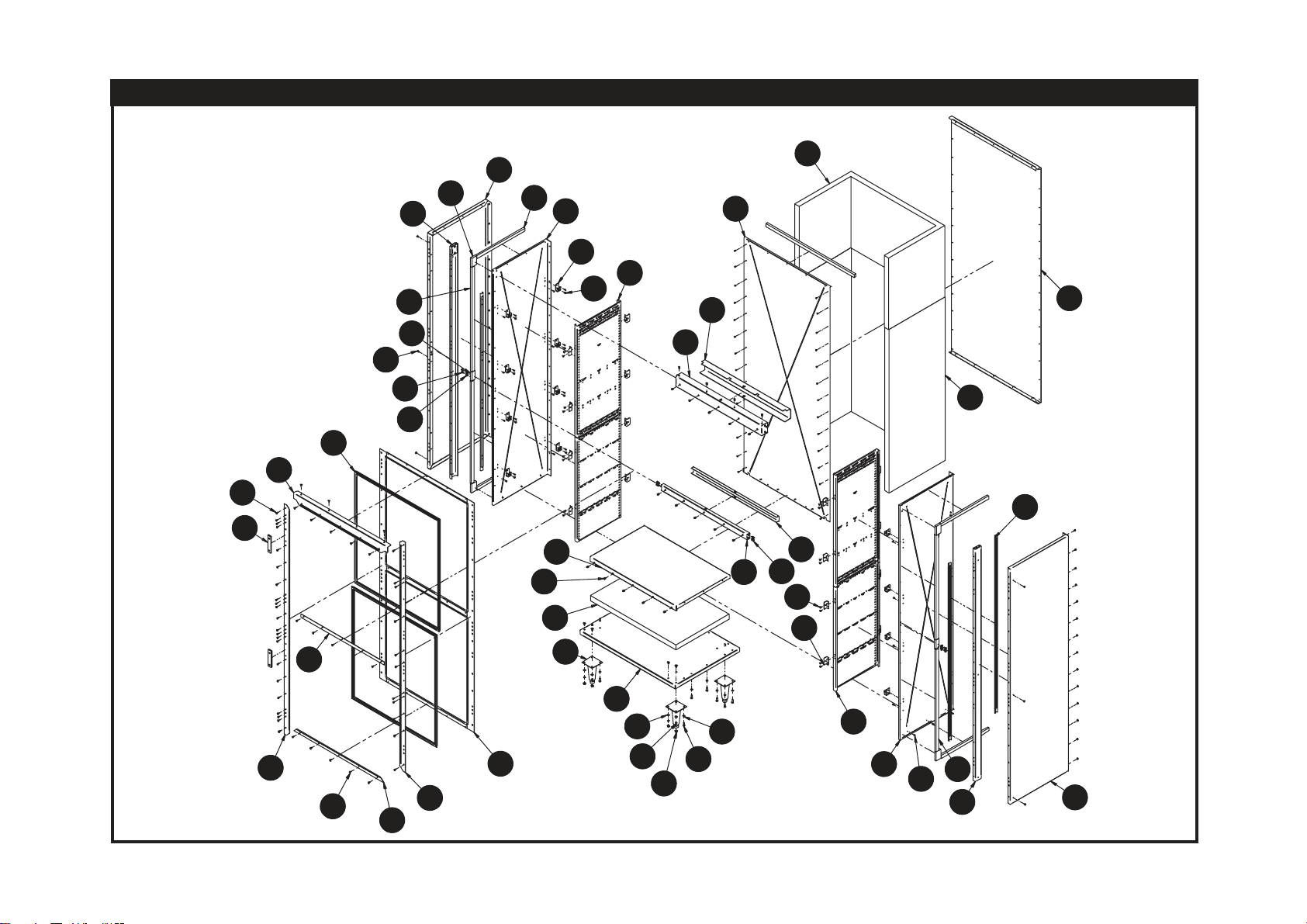

PARTS LIST & EXPLODED VIEW (Continued)
Top Module
14
54
50
57
Door
Assembly
53
2
129
4
55
51
37
53
87
69
104
100
97
94
91
90
89
82
135 83
96
106 105
103
85
85
86
110
111112
113
114
152
81
81
93 92
95
101
108 102
134
84
88 79
126
127
124
139
98
99
109
58 33
140
147
122
123
136
80
61 62
67
73
107
107
68 70
74
71 120
120
64
66
75
115
116
77
118
78
117
132
133
119
59
19
125
121
76
65 60
63
72
15
128
129
130

15
Item P/N Description Quan Item P/N Description Quan Item P/N Description Quan
!
"#
!
!
!
"
!
"
$
"
%
%
!
#
!
!
!
!
!
!
&
'(()* +,-'./0 1 02 2(00(.3455,)
'670 +)89 !%:&; < == < :;$
9(9 )4>,0
-807?* .8@5,047
'(()* 2(00(.* (60,)
'(()* +,-'./0 1 02 0(93455,)
AB45* (60,) 0(9
7?855,-* A4',* 0(9
A4',* 455,)* 0(9
C)(50* 455,) 0(9
45A6-80()* ?,80,) 0,).458-
455,)* ),8) 0(9
6),0?85,* ;:"" < =! < !
',C-,70()* 84)
7(>,)* 45A6-804(5
7?855,-* C)(50
0,).458- 2-(7B
560* ?,< B,9A* DE1=!
7-8.9* 04.,) +4),
26A?45@* A589 3" F 2-87B 5G-(5
7?855,-* ),8)
26A?45@* A589 :; ?(-, 5G-(5
+,-'.,50* A-4',* +80,) 985
0?,).(A080
A7),+* 9?* E1=!H=3#* A3A
7,)8.47 45A6-80()
7(>,)* .(0()
560* 0455,).85 7-49
985,-* ),8)
0) ?' 9? A.A $ < 3! AA
.(65045@* 7((-45@ C85
C85* 8<48-
A7),+* )' ?' A- D#1=! < ! I5
D#1=! ?,< 560* B,9A* 54
7(50)(- 985,-
,57-(A6),* ,-,70)478-
,57-(A6),* 04.,)
2-87B 7(55,70()
9-6@* " 945
7-8.9* F7F
.(65045@ 8'890,) 7(551 ),'
+4), A,0* 027.
.3A 0) ?' 9? E1=!H F
-(7B +8A?,) ,<0 DE
560* ?,<* E1=! AA
26A?45@* &3# A589* ?,G7(
04.,)* 2)87B,0
7-8.9* 04.,) 7()'
.3A* 0) ?' 9?* $1=! < =3" A3A
2)87B,0* 2)87B,0
45A6-80()* 04.,)* A+407? 0,).458-A
&!$!&&
&#"&E#
#=;=$$$
&#"&
&"&E%=
&!$!&;
&" %#"
&" %"#
&"!$&E
&"!$#"
&E$"#"
&"!$#$
&#"#=!
&"! #$
&"!!E$
&" %;!
&#! ""
#"$$ $$
&"!!"#
&##$$;
&" %;E
#%E&!$$
&"!$$$
&#!!$#
# $;#$$
&#"&!"
&"!$$"
&&$=""
&"! E#
&&$;=E
&"!$ !
&#"E#$
&&$&$%
#"$#=$$
&"! E"
&"&E#"
&"&E#=
&#"&$$
&#! "%
&#! ;
&#";"#
&#"&$$
# $#1$$
#;$$&$$
#"$!%$$
#%&#"1$$
&"!$!"
&"!!""
# &&#1$$
&"!$!#
&E$"##
;!J
;=
;"
;;
;EJ
;&
;#
;%
E$
E
E!
E=
E"
E;
EE
E&
E#
E%
&$
&
&!
&=
&"
&;
&E
&&
&#
&%
#$
#
#!
#=
#"
#;
#E
#&
##
#%
%$
%
%!
%=
%"
%;
%E
%&
%#
%%
$$
$
$!
!
"
"
!
"
"
$$
="
E
E
"
"
#
!
!$
!%
"%
E
"
"
"
"
!
E
EE
!
"
287B* (60,)
A4',* (60,)* )4@?0
@8AB,0* .8@5,047 =!1!3; < !#1 3#
A4',* (60,)* -,C0
'670 +)89* "# < &$ < :; 1 782
'670 +)89* ! < &$ < :; 1 782
?45@,* )4@?0 A699()0
?45@,* -,C0 A699()0 +,-'.,50
455,) A4',* -,C0
A?4.* A4',* 455,)
A0)49* 287B45@ :;$ < :#&; < E:!;
A0)49* 287B45@ :;$ < :#&; < =$:&;
A0)49* 287B45@ :;$ < :#&; < =$:$$
A699()0* 2600(5
)4>,0* 9(9 =3 E C-6A? 2),8B
455,) A4',* )4@?0
287B* 455,)
28A,* 455,)
)4>560* $1=! 0?45 ?,8'
2)87B,0* ?((B* 84) '670
A7),+* A?0 .,08-* D $ < 3!* I
?,8',) 28)* 7,50,)
7(>,)* ?,8',) 28)* 7,50,)
)4>560* 3"1!$ 0?45 ?,8'
+8A?,) :&; < :!#
A7),+* 3"1!$ < 3! 0) ?'
A?4.* 7,50,) 455,) A4',
?,8',) 28)* 0(9
7(>,)* ?,8',) 28)* 0(9
A7),+* .87? 3"1!$ < =3"
+,-'.,50* @8AB,0 ),0845,)
@8AB,0 ),0845,)* (60,)* 2(00(.
A7),+* $1=! < 3! 0) ?'*AA
@8AB,0 ),0845,)* (60,)* 7,50,)
@8AB,0 ),0845,)* (60,)* 0(9
@8AB,0 ),0845,)* )4@?0* (60,)
!1!" < 3! 0) ?' 9? +39807?
@8AB,0 ),0845,)* -,C0* (60,)
28A,* (60,)
'670 +)89* # < !% :; 1 28A,
+8A?,)* -(7B* 450* 3"* I
-,@* 8'K6A082-,
+8A?,)* C-80 3"F
+8A?,)* -(7B* 3"* 8A., 2 #:! :
560* ?,<* 3"1!$ AA
84) '670* 2(00(.
2)87B,0* 84) '670
)4>,0* A(C0* ;3 E* ;EE973-2
84) '670* 0(9
?45@, 1 78. )4A, 7?)(.,
'(()* (60,)* 0(9 L0G9, 2M
&"&EE#
&"&EE%
&#"#!$
&"&E&$
&#"&&!
&#"&&E
&"&E#;
&"&E#E
&"&EE=
&E$$=$
&E$; E
&E$; !
&E$; #
&"!$"$
#=;=E$$
&"&EE"
&"&EE;
&"&EE!
#=;= $$
&"$;E;
&&$ E%
&"&EEE
&"&E#
#=;=!$$
#; %E1$$
#!$;;$$
&E$$=
&"&EE
&"&E#!
#! $$
&"&E%;
&"&E#&
# &;%$$
&"! !#
&"&E&#
&"&E&E
&&$E!#
&"&E&&
&"&E#$
&#"&#$
#;$&%$$
&#"E%E
#;$&E$$
#;$#!1$$
#"!;!$$
&"! $"
&";&"&
&&$$#"
&"! &!
&#"E%!
&"&E%
!
=
"
;
E
&
#
%
$
!
=
"
;
E
&
#
%
!$
!
!!
!=
!"
!;
!E
!&
!#
!%
=$
=
=!
==
="
=;
=E
=&
=#
=%
"$
"
"!
"=
""
";
"E
"&
"#
"%
;$
;
!"# $%"&!
!

16
4/02

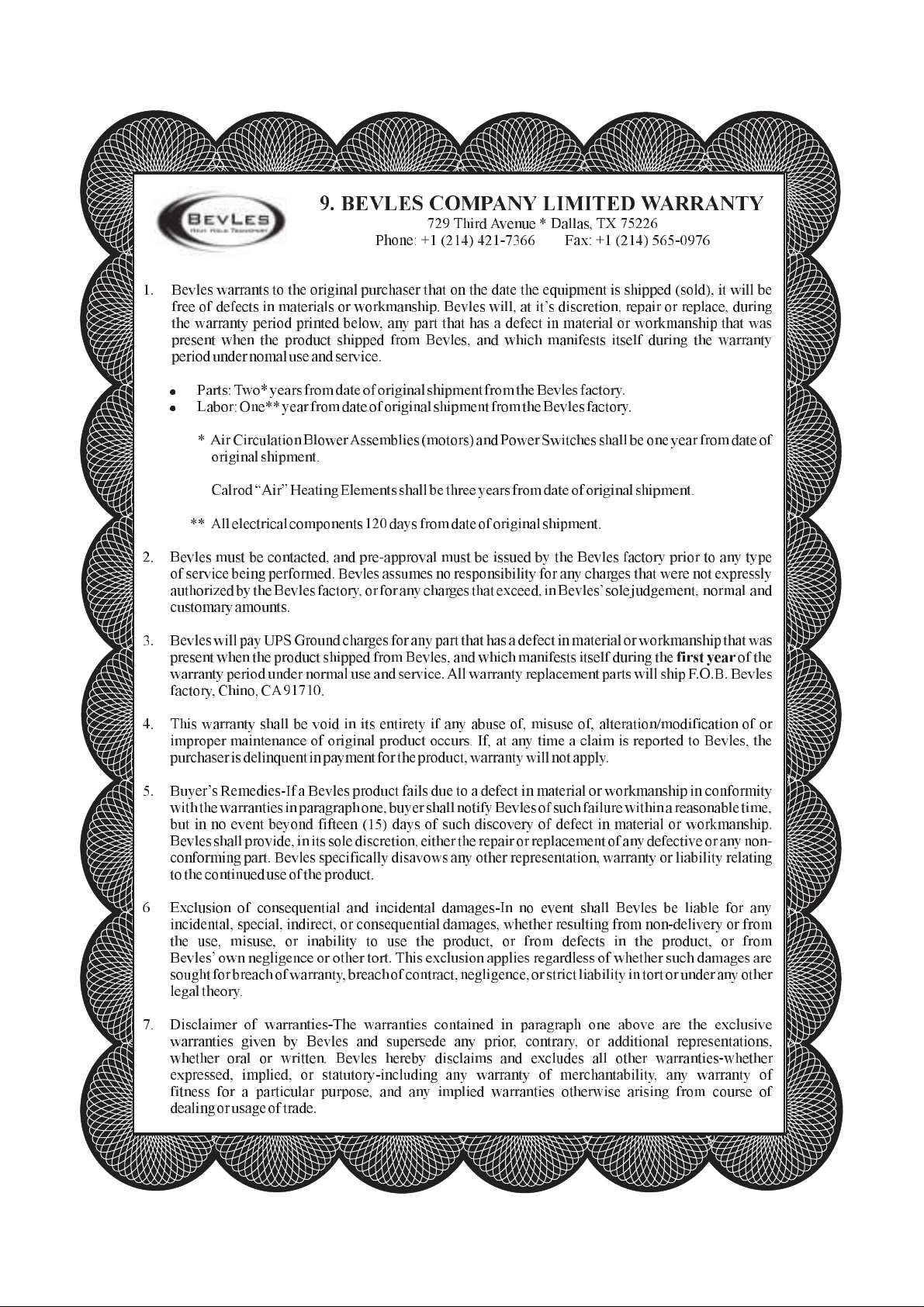

! "#$%#& '()*+,- %.)./#0 1+22+,/-
!" #$%&' ()*+,* - ./00/12 #3 4!!5
6$7+*8 9: ;!:<= <!:> ?55 @/A8 9: ;!:<= 454>B" 5
:C D*)0*1 E/&&/+F1 F7 F$* 7&%G%+/0 H,&I$/1*& F$/F 7+ F$* '/F* F$* *J,%HK*+F %1 1$%HH*' ;170'=2 %F E%00 L*
M&** 7M '*M*IF1 %+ K/F*&%/01 7& E7&NK/+1$%HC D*)0*1 E%002 /F %FO1 '%1I&*F%7+2 &*H/%& 7& &*H0/I*2 ',&%+G
F$* E/&&/+FP H*&%7' H&%+F*' L*07E2 /+P H/&F F$/F $/1 / '*M*IF %+ K/F*&%/0 7& E7&NK/+1$%H F$/F E/1
H&*1*+F E$*+ F$* H&7',IF 1$%HH*' M&7K D*)0*12 /+' E$%I$ K/+%M*1F1 %F1*0M ',&%+G F$* E/&&/+FP
H*&%7',+'*&+7K/0,1*/+'1*&)%I*C
6/&F18#E7-P*/&1M&7K'/F*7M7&%G%+/01$%HK*+FM&7KF$*D*)0*1M/IF7&PC
Q/L7&8R+*--P*/&
- (%& S%&I,0/F%7+ D07E*&(11*KL0%*1;K7F7&1= /+' 67E*& TE%FI$*11$/00 L* 7+* P*/& M&7K '/F* 7M
7&%G%+/01$%HK*+FC
S/0&7'U(%&VW*/F%+GX0*K*+F11$/00L*F$&**P*/&1M&7K'/F*7M7&%G%+/01$%HK*+FC
-- (00*0*IF&%I/0I7KH7+*+F1:!B'/P1
!C D*)0*1 K,1F L* I7+F/IF*'2 /+' H&*>/HH&7)/0 K,1F L* %11,*' LP F$* D*)0*1 M/IF7&P H&%7& F7 /+P FPH*
7M 1*&)%I* L*%+G H*&M7&K*'C D*)0*1 /11,K*1 +7 &*1H7+1%L%0%FP M7& /+P I$/&G*1 F$/F E*&* +7F *AH&*110P
/,F$7&%Y*'LPF$*D*)0*1M/IF7&P27&M7&/+PI$/&G*1F$/F*AI**'2%+ D*)0*1O170*Z,'G*K*+F2 +7&K/0 /+'
I,1F7K/&P/K7,+F1C
?C D*)0*1 E%00H/P [6T \&7,+'I$/&G*1M7& /+P H/&F F$/F $/1/ '*M*IF %+ K/F*&%/07& E7&NK/+1$%HF$/F E/1
H&*1*+F E$*+ F$* H&7',IF 1$%HH*' M&7K D*)0*12 /+' E$%I$ K/+%M*1F1 %F1*0M ',&%+G F$* 7M F$*
E/&&/+FP H*&%7' ,+'*& +7&K/0 ,1* /+' 1*&)%I*C(00 E/&&/+FP &*H0/I*K*+F H/&F1 E%00 1$%H @CRCDC D*)0*1
M/IF7&P2 S$%+72S(": :BC
<C #$%1 E/&&/+FP 1$/00 L* )7%' %+ %F1 *+F%&*FP %M /+P /L,1* 7M2 K%1,1* 7M2 /0F*&/F%7+]K7'%M%I/F%7+ 7M 7&
%KH&7H*& K/%+F*+/+I* 7M 7&%G%+/0 H&7',IF 7II,&1C ^M2 /F /+P F%K* / I0/%K %1 &*H7&F*' F7 D*)0*12 F$*
H,&I$/1*&%1'*0%+J,*+F%+ H/PK*+FM7&F$*H&7',IF2E/&&/+FPE%00+7F /HH0PC
4C D,P*&O1 _*K*'%*1>^M / D*)0*1 H&7',IF M/%01 ',* F7 / '*M*IF %+ K/F*&%/0 7& E7&NK/+1$%H%+ I7+M7&K%FP
E%F$F$*E/&&/+F%*1%+ H/&/G&/H$7+*2L,P*&1$/00+7F%MPD*)0*17M 1,I$M/%0,&*E%F$%+/&*/17+/L0*F%K*2
L,F %+ +7 *)*+F L*P7+' M%MF**+ ;:4= '/P1 7M 1,I$ '%1I7)*&P 7M '*M*IF %+ K/F*&%/0 7& E7&NK/+1$%HC
D*)0*11$/00H&7)%'*2%+ %F1170* '%1I&*F%7+2*%F$*& F$*&*H/%& 7& &*H0/I*K*+F7M /+P '*M*IF%)*7& /+P +7+>
I7+M7&K%+G H/&FC D*)0*1 1H*I%M%I/00P '%1/)7E1 /+P 7F$*& &*H&*1*+F/F%7+2 E/&&/+FP 7& 0%/L%0%FP &*0/F%+G
F7F$*I7+F%+,*',1*7MF$*H&7',IFC
5 XAI0,1%7+ 7M I7+1*J,*+F%/0 /+' %+I%'*+F/0 '/K/G*1>^+ +7 *)*+F 1$/00 D*)0*1 L* 0%/L0* M7& /+P
%+I%'*+F/02 1H*I%/02 %+'%&*IF2 7& I7+1*J,*+F%/0 '/K/G*12 E$*F$*& &*1,0F%+G M&7K +7+>'*0%)*&P 7& M&7K
F$* ,1*2 K%1,1*2 7& %+/L%0%FP F7 ,1* F$* H&7',IF2 7& M&7K '*M*IF1 %+ F$* H&7',IF2 7& M&7K
D*)0*1O7E+ +*G0%G*+I* 7& 7F$*& F7&FC #$%1 *AI0,1%7+ /HH0%*1 &*G/&'0*11 7M E$*F$*& 1,I$ '/K/G*1 /&*
17,G$FM7&L&*/I$7M E/&&/+FP2L&*/I$7M I7+F&/IF2+*G0%G*+I*27&1F&%IF0%/L%0%FP%+F7&F7&,+'*&/+P7F$*&
0*G/0F$*7&PC
C .%1I0/%K*& 7M E/&&/+F%*1>#$* E/&&/+F%*1 I7+F/%+*' %+ H/&/G&/H$ 7+* /L7)* /&* F$* *AI0,1%)*
E/&&/+F%*1 G%)*+ LP D*)0*1 /+' 1,H*&1*'* /+P H&%7&2 I7+F&/&P2 7& /''%F%7+/0 &*H&*1*+F/F%7+12
E$*F$*& 7&/0 7& E&%FF*+C D*)0*1 $*&*LP '%1I0/%K1 /+' *AI0,'*1 /00 7F$*& E/&&/+F%*1>E$*F$*&
*AH&*11*'2 %KH0%*'2 7& 1F/F,F7&P>%+I0,'%+G /+P E/&&/+FP 7M K*&I$/+F/L%0%FP2 /+P E/&&/+FP 7M
M%F+*11 M7& / H/&F%I,0/& H,&H71*2 /+' /+P %KH0%*' E/&&/+F%*1 7F$*&E%1* /&%1%+G M&7K I7,&1* 7M
'*/0%+G7&,1/G*7MF&/'*C
M&7K'/F*7M7&%G%+/01$%HK*+FM&7KF$*D*)0*1M/IF7&PC
M&7K'/F*7M7&%G%+/01$%HK*+FC
!"#$ %&'"
