BH FITNESS RS5 RECUMBENT CYCLE
OWNER’S MANUAL
BH FITNESS
20155 Ellipse, Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www%+)LWQHVV86$FRP

1
INTRODUCTION
Congratulations for selecting the RS5 Recumbent Cycle as a fitness resource. The BH Fitness
RS5 offers many exercise programs that benefit users of all levels and ages. The RS5 is
designed to make your workouts more effective and enjoyable.
Please read this manual carefully before using the RS5. This will allow you to get a full
understanding of all the features the BH Fitness Recumbent Cycle provides. If you have
questions or concerns, please contact BH FITNESS or any authorized BH FITNESS distributors
in your area.
BH FITNESS
20155 Ellipse, Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.%+)LWQHVV86$FRP
BEFORE YOU BEGIN
It is very important to become familiar with the frequently used components of your RS5.
RS5 RECUMBENT CYCLE
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

TABLE OF CONTENTS
SECTION PAGE
1. IMPORTANT SAFETY INSTRUCTIONS ..................................................... ..3
2. PRE & ASSEMBLY INSTRUCTIONS....................................................... . 5

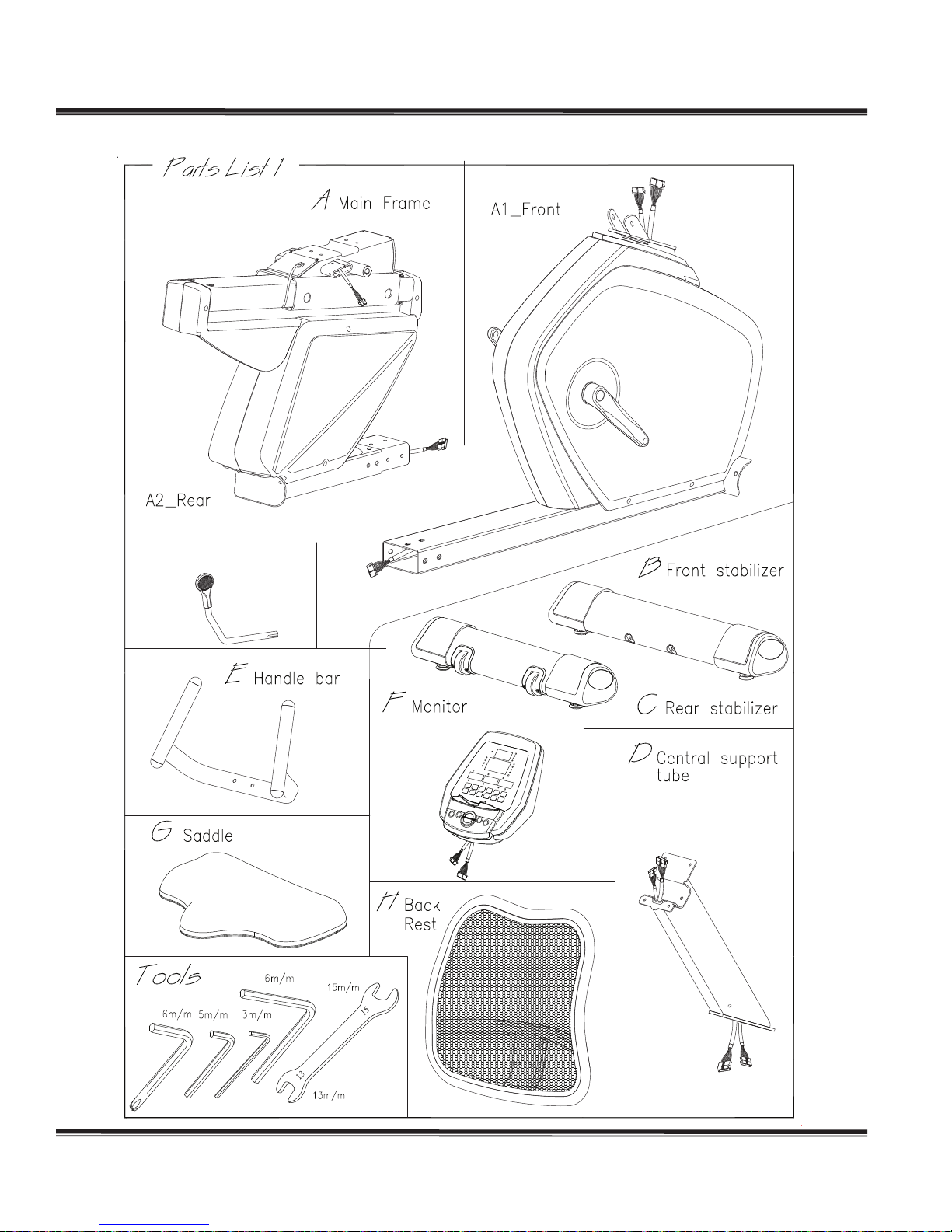

3. PARTS LIST................................................................................................. 15

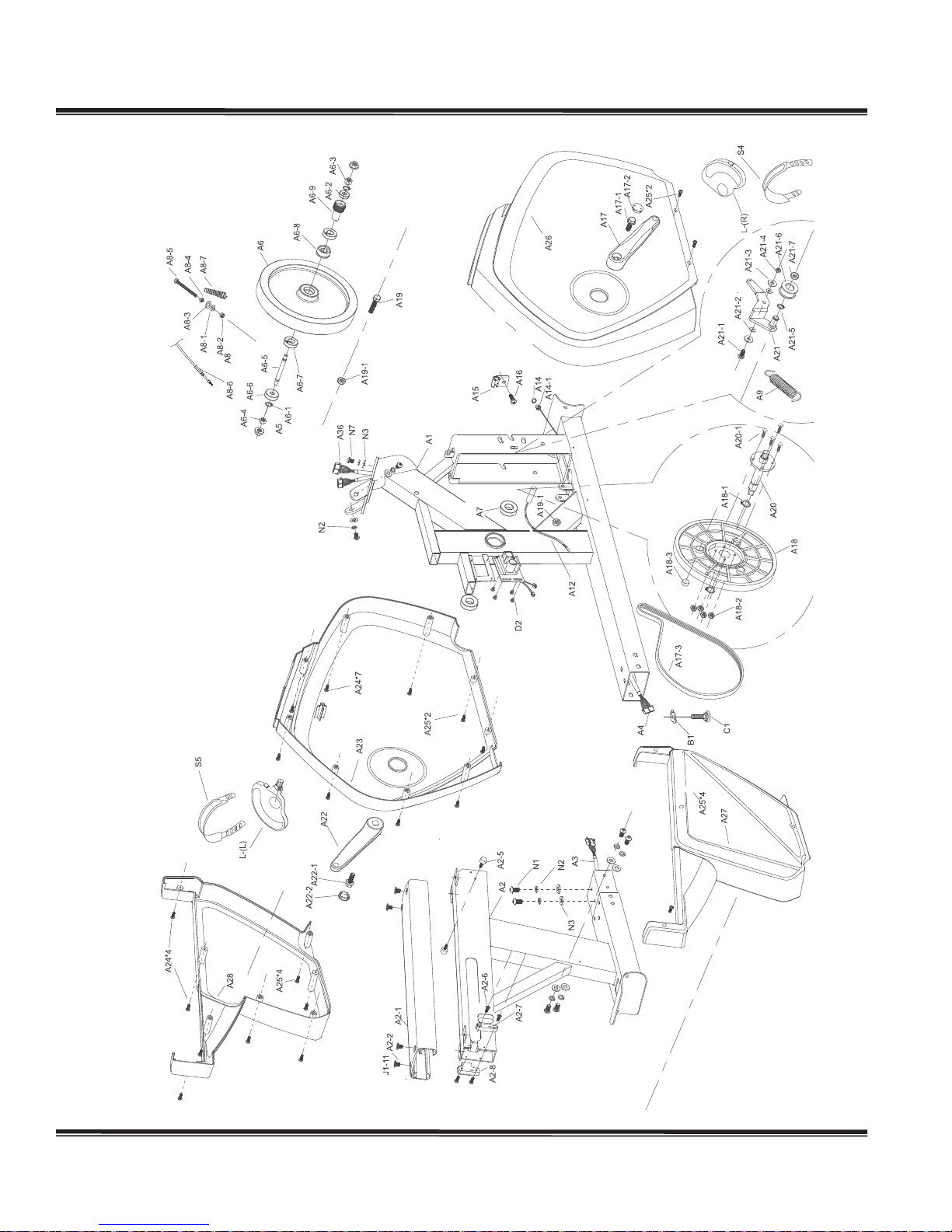

4. EXPLODED VIEW ....................................................................................... 18
5. COMPUTER CONSOLE.............................................................................. 20
6. HEART RATE CALCULATION..................................................................... 25
7. MAINTENANCE .......................................................................................... 26
RS5 RECUMBENT CYCLE
2
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5
8. WARRANTY ................................................................................................ 27

SECTION 1 - IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using the Unit.
User Safety:
Before using this or any other exercise equipment consult your family physician or health care
professional in order to develop a well-planned exercise program to fit your health needs. If you
encounter any pain or breathing discomfort while working out, STOP!, and consult a physician before
continuing.
1. Close supervision is necessary when this unit is used by or near children, invalids or disabled
persons. Children are curious and vulnerable to accidents. Do not use the unit as a toy.
2. Do not wear loose or dangling clothing while using the unit.
3. Maximum user weight is 350 lbs.
4. Only one person can use the unit at a time.
5. Keep hands away from moving parts.
6. The owner is responsible for explaining safety instructions to each user.
Unit Safety:
WARNING: To reduce the risk of fire, electric shock, injury to persons or inflicting the
harm of a burn:
7. Never leave the unit unattended when plugged in. Unplug the unit from the electrical power before
leaving the room, when unused and before cleaning, servicing or adding or removing parts.
8. Unplug the unit prior to cleaning to reduce the risk of electric shock, serious burns, and the risk of
injuries.
9. Never operate this unit if it has a damaged electrical cord or plug. Do not operate this unit if it is not
working properly. Do not operate this unit if it has been dropped or damaged. Do not operate this unit
if it has been immersed into water. Return the unit to a service center for examination and repair.
10. Do not pull or carry the unit by the electrical cord. Do not use the cord as a handle.
11. Keep the electrical cord away from heated surfaces.
12. Connect this unit to a properly grounded 110-120V, 15 or 20 Amp dedicated outlet only.
13. Call your service center or BH Fitness with your concerns before taking your unit in for repair.
14. Do not place sharp objects near the unit. Never drop or insert any object into any opening.
15. Do not use outdoors.
16. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
RS5 RECUMBENT CYCLE
3
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

IMPORTANT SAFETY INSTRUCTIONS (cont’d)
17. Use the unit only as described in this manual. Only use attachments recommended by the
manufacturer.
18. For safety, keep a minimum clearance of 18” on the front and each side and 24” at the rear of the unit.
Place the unit on a flat stable surface.
Please save these Instructions
ELECTRICAL POWER CONNECTOR
Your RS5 Recumbent Cycle has a two prong external electrical power connector for use on a
nominal 110-120 volt circuit. Use only the electrical power connector provided with your RS5
Recumbent Cycle. If you misplace the electrical connector, please contact BH Fitness for an
original replacement. Use of the wrong electrical connector may cause damage to your RS5
Recumbent Cycle. Do not use an adapter or extension cords with this product.
CLEANING
Clean with soap and slightly damp cloth only; never use solvents.
RS5 RECUMBENT CYCLE
4
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

RS5 RECUMBENT CYCLE
PRE-ASSEMBLY INSTRUCTION
GENERAL INSTRUCTIONS
Carefully read through the instructions contained in this manual. It provides you with important
information about assembly, safety and use of the machine.
1. This unit has been designed for light commercial use. The weight of the user must not exceed
350 lbs. (156 kg.)
2. Keep your hands well away from any of the moving parts.
3. Parents and/or those responsible for children should always take their curious nature into
account and how this can often lead to hazardous situations and behavior resulting in
accidents. Under no circumstances should this appliance be used as a toy.
4. The owner is responsible for ensuring that anyone who uses the machine is duly informed
about the necessary precautions.
5. Your unit can only be used by one person at a time.
6. Use suitable clothing and footwear. Make sure all laces/cords are tied correctly.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE
BH North America Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com
Mon - Fri 8am - 5pm PST
5
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

SECTION 2 - PRE- ASSEMBLY INSTRUCTIONS
RS5 RECUMBENT CYCLE
Slider Lock/Release Handle
A11
6
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

PRE ASSEMBLY INSTRUCTIONS (cont’d)
RS5 RECUMBENT CYCLE

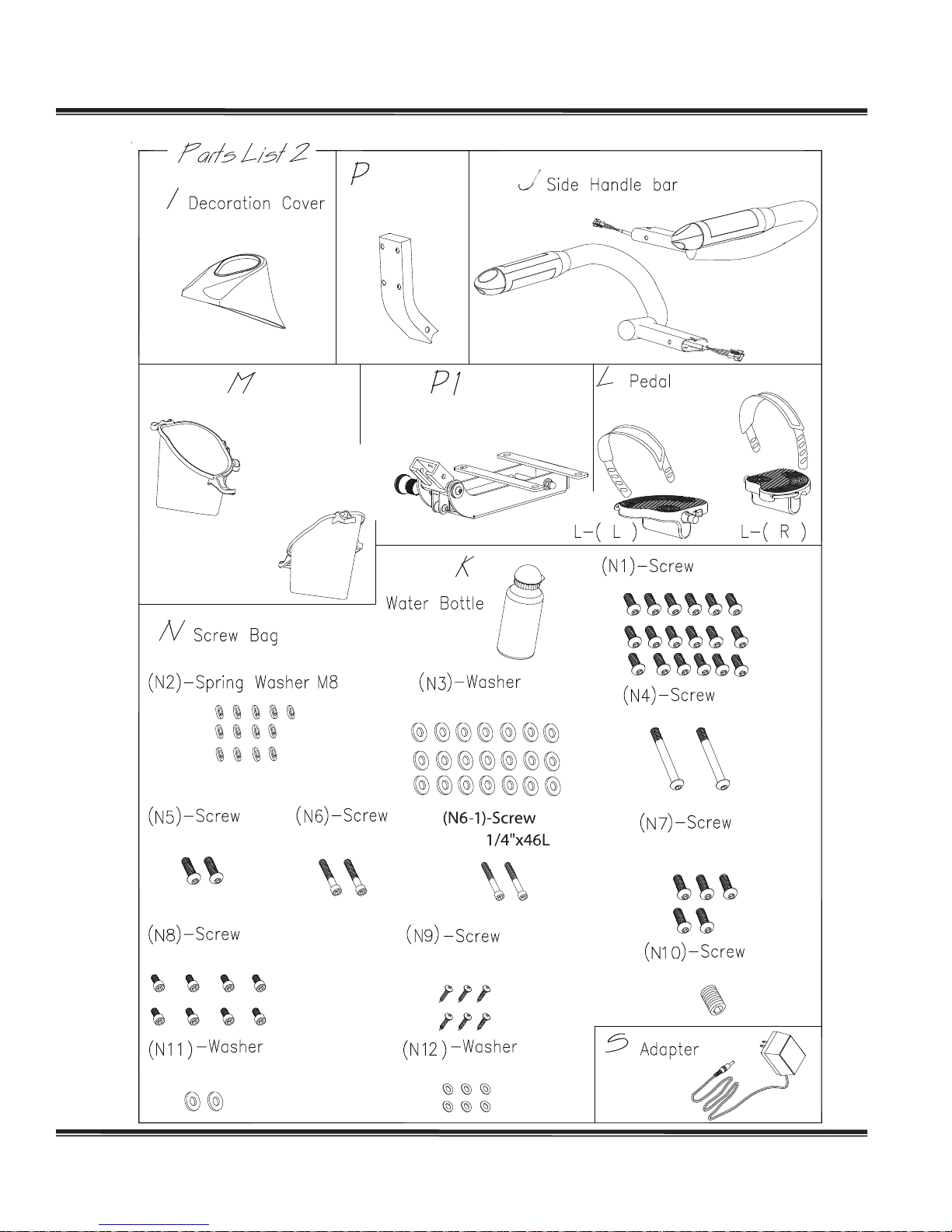

1/4"x40L
Saddle
Tube
M4X15
J2-(R)
J1-(L)
M1 Accessory
tray(LEFT)
M2 Accessory
tray(RIGHT)
Back Pad
Support Tub e
M8X15
M8X16X1.2T M8X105
M8X35 M8X20
M6X10 M6X8
M8X16X1.2T(BLACK)
(S4)Strap(R)
(S5)Strap(L)
8X4.5
7
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

ASSEMBLY INSTRUCTIONS
RS5 RECUMBENT CYCLE
HOW TO KEEP THE MACHINE STABLE
A1
B
N7
C1
A2
N4
C
C1
**Following the assembly of Figure 1 & Figure 2
and the machine is unstable or rocking, adjust the footpads
(C1) under the stabilizers by tightening (turning clockwise) or
loosening (turning counterclockwise)
until stability is achieved

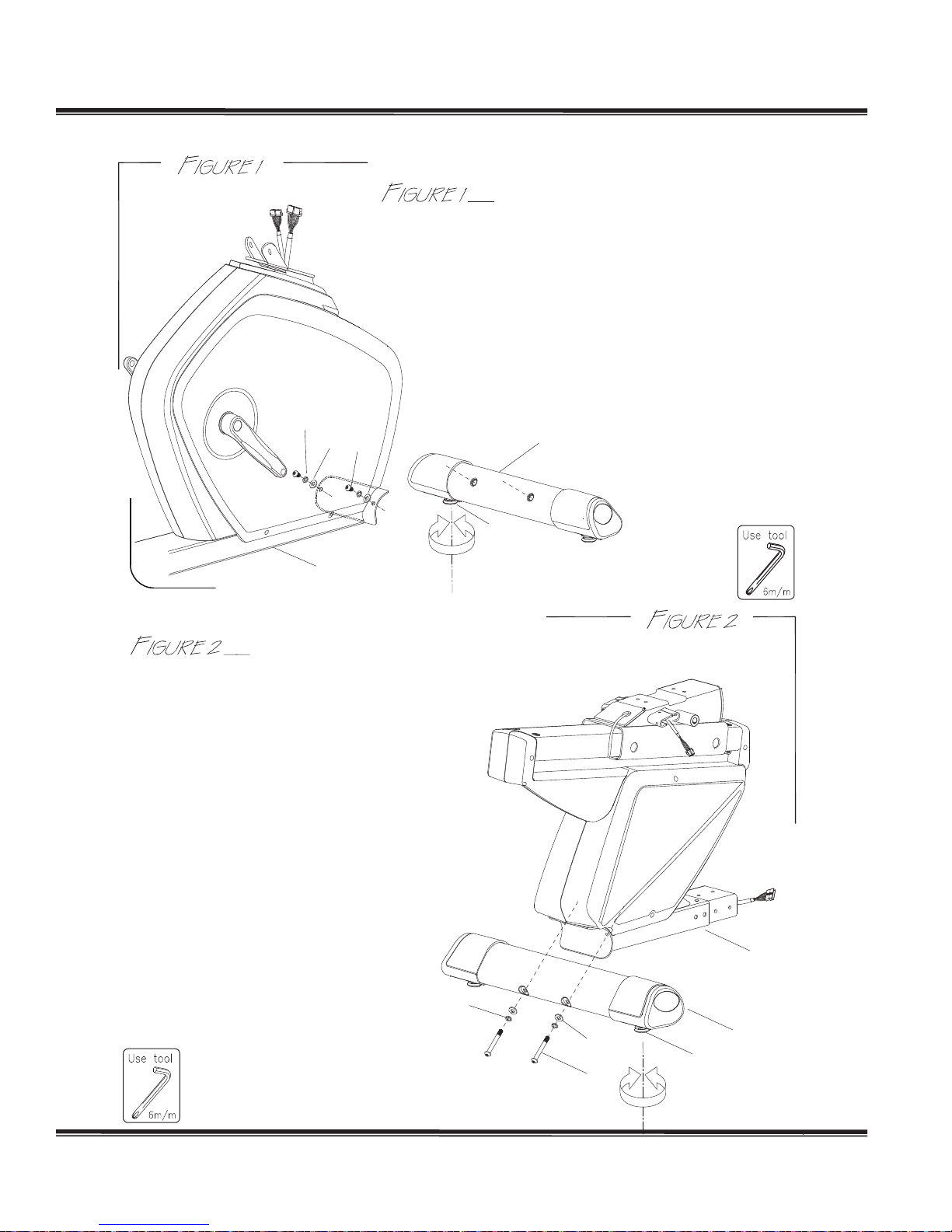

FIGURE 1: FRONT STABILIZER ASSEMBLY
Step1.Attach the front stabilizer(B) to the main
frame(A1) using two ,spring(N2), washer(N3)
and screw(N7).
Step1. Attach the rear stabilizer(C) to the main
frame(A2) using two ,spring(N2),
washer(N3) and screw(N4).
N2
N3
N2
N3
FIGURE 2: REAR STABILIZER ASSEMBLY
8
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

ASSEMBLY INSTRUCTIONS (cont’d)
RS5 RECUMBENT CYCLE
ATTENTION: TAKE CARE NOT TO PINCH THE
THE CABLES DURING THE ASSEMBLY
PROCESS.
A1
A2
N1
N2
N3
A3
A4
A1
FIGURE_4 CENTER SUPPORT ASSEMBLY
I
D
N7
N2
N3
A34
A33
A4
A36
Step1. Connect hand pulse sensor wire (A3) to (A4).
Step2. Slide the front(A1) and rear(A2) main frames
onto each other and secure the joint with 6 screws (N1)
6 washers (N2) and 6 washers (N3)
Make sure not to pinch the cables
Step1. Slide the tube cover(I) onto the .main support tube(D)
Step2. Connect hand pulse sensor cable(A33) coming
from main support tube to cable(A36) from the main frame
Connect power cable(A34) coming from main support
tube(D) to cable(A4) of the main frame
Step3. Secure main support tube to main frame(A1) using 3 bolts(N7)
washer(N2) and 3 washer(N3).and 3 spring
Slide main support tube cover down until it covers the joint completely
C1
FIGURE 3: FRONT & REAR MAIN FRAME ASSEMBLY
9
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

ASSEMBLY INSTRUCTIONS (cont’d)
RS5 RECUMBENT CYCLE

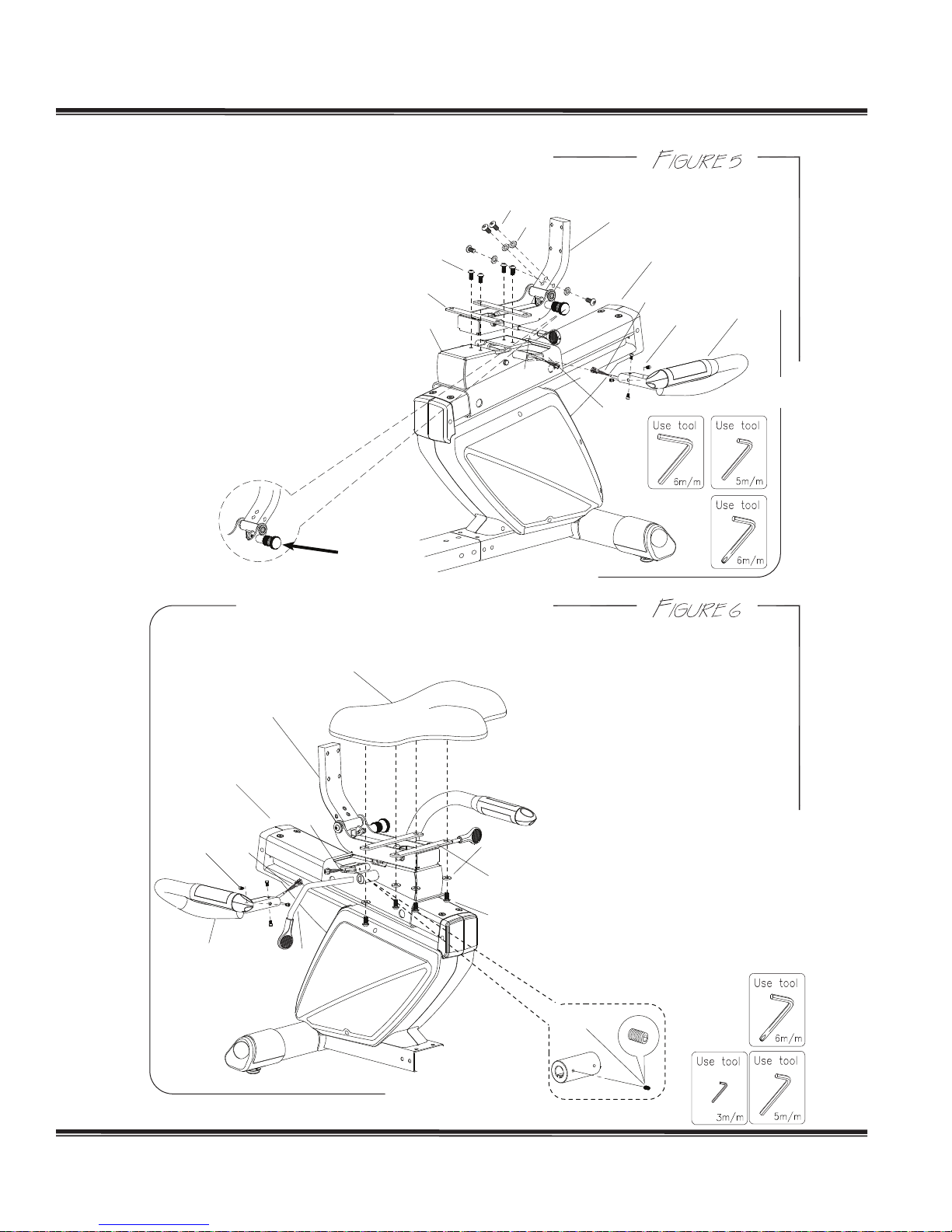

FIGURE_6 SLIDER HANDLE & RIGHT
HANDLE BAR ASSEMBLY
A2
P
N1
J1
N8
J1-1
N1
A3
N10
N3
P
A11
A2
N8
J2
J2-1
G
FIGURE 5: BACKREST TUBE & LEFT HANDLE BAR ASSEMBLY
seat base slider (A10)
with screw(N1). A10
Step2. Insert the slider handle (A11)
into the round peg and use set
N10 to fix it in placescrew
Step1. Use the same assembly step
in Figure 5 to attach the right
Step3. Secure the seat cushion(G)
onto base slider(P1) from underneath
with 4 bolt(N1),washer(N3)
R
A3
Step3. Connect sensor cable (J1-1) to
to sensor cable (A3)
Slide handle bar (J1) onto
(A10) and sseat base slider ecure
using 4 screws (N8).
For Cosmetic
Purposes Only
P1
P1
N1
N3
Step1. Place backrest tube(P) on the seat base slider
tube(P1) and secure tightly with
washer(N3) and screw(N1).
Step2. Secure seat tube(P1) with
handle bars.
10
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

ASSEMBLY INSTRUCTIONS (cont’d)
RS5 RECUMBENT CYCLE

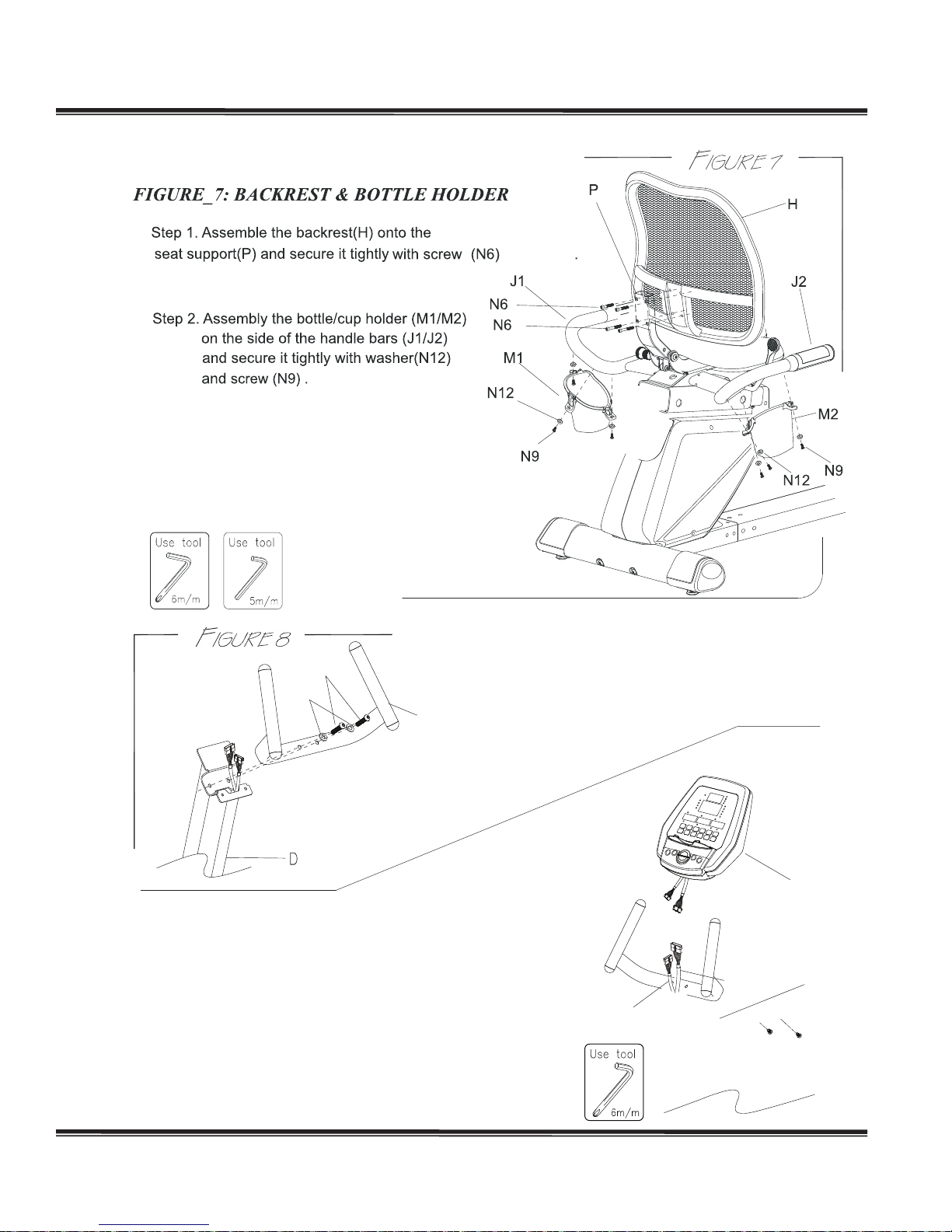

FIGURE_8-2 ASSEMBLY FOR COMPUTER
FIGURE_8-1 ASSEMBLY FOR SMALL HANDLE
Step 1.Attach the small handle bar(E)
onto the plate of the console tube(D) and use 2
bolt(N5) and 2 washer (N11) to secure tightly.
Step1: Locate console(F) and connect sensor cables(A33,
A34) to the cables coming from the console.
Step2: Gently tuck all excess wires into the console
cavity. Slide console onto the console bracket and secure
E
N5
N11
D
F
A33
A34
D1
using two screws(D1)
Remove screws(D1)before sliding onto console bracket
11
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5
-1
for top and N6-1 for bottom

ASSEMBLY INSTRUCTIONS (cont’d)
RS5 RECUMBENT CYCLE
A1
L-(L)

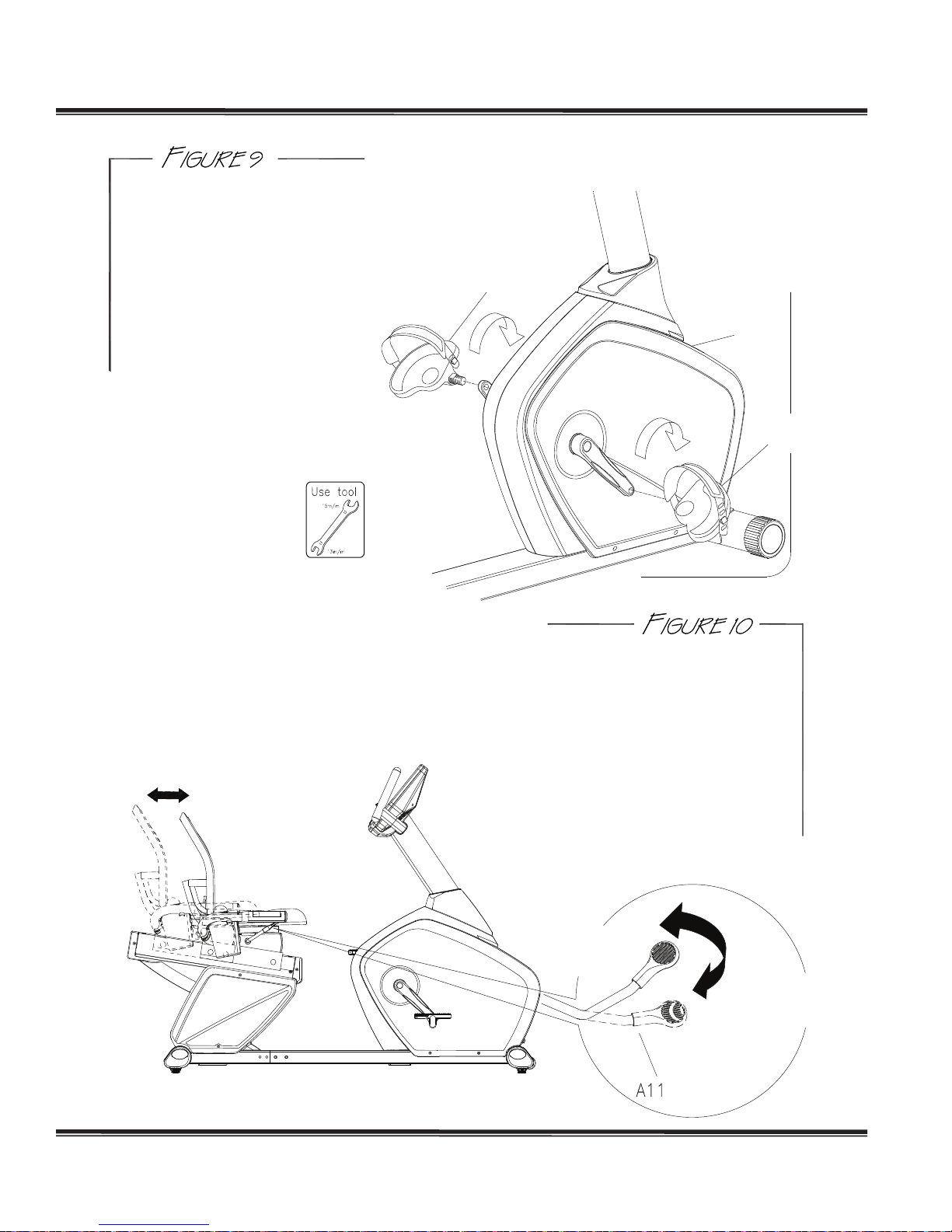

FIGURE_10 SEAT ADJUSTMENTS
Secure in place by turning it clockwise.
Note: Right pedal(L-R) is marked with an “R”
Step2:Thread the left pedal(L-L)
onto the left crank. Secure in place
by turning it counter-clockwise
.
Left Pedal(L-L) is marked with an
Note: "L".
Push the seat slide adjustment handle forward, then slide the seat back or forth
as desired. Pull the adjustment handle back up to lock the slider in place.
Install the strap on each pedal
PULL UP
(LOCK)
PULL DOWN
(RELEASE)
FIGURE_9 PEDAL ASSEMBLY
Step1:Thread the right pedal(L-R) onto the right crank
12
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

ASSEMBLY INSTRUCTIONS (cont’d)
RS5 RECUMBENT CYCLE
FIGURE_12 HOWTO MOVE THE MACHINE
The front stabilizer has built-in mobility wheels. Stand at the rear of the
machine and lift it up until the weight of the machine is transferred to the
wheels. Push or pull to move the machine to a new location.
Backrest position is controlled by a pneumatic cylinder (A13-2) which can be activated
to change backrest angles. Pull the left side handle forward and lean on the backrest to change angle.
Wheels
Mobility
13
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

RS5 RECUMBENT CYCLE
FIGURE_13 USING THE ADAPTOR
S
Position the machine near a wall outlet
Plug the adaptor(S) in to the outlet and plug the DC end (round plug) to the jack on the machine
Be sure not to damage the cord and the plugs to avoid electrical shocks
ASSEMBLY INSTRUCTIONS (cont’d)
14
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

RS5 RECUMBENT CYCLE
P/N Part DESCRIPTION Q’TY P/N YT’QNOITPIRCSEDtraP
A1 FRONT MAIN FRAME 1 A10-6 PULLBAR 9.3*66.8 1
A2 1EMARFNIAMRAER A10-7 1TUN
A2-1 ALUMINUMTRACKING52.4*104.8*587L 1 A10-8 1GNIRPS
A2-2 9-01A401*8MWERCS AXLE FOR BACKREST TUBE 1
A2-3 01-01A422*8MWERCS 1NIPGNIXIF
A2-4 WHEEL .8* 37.5*11L 4 A10-12 ROAT ATE RECIPROCATOR 1
A2-5 31-01A222*51
WERCS ENDCAP25*50 1
A2-6 421*4MWERCS
A11
SEAT ADJUSTMENT HANDLE 12*236 1
A2-7
SLIDE FIXING SUPPORT (RIGH T) 1
A11-1 PLASTICWRAP 8*71L 1
A2-8 SLIDE FIXING SUPPORT (LEFT) 1 A11-2 CONNECTING HOUSING 12*50 1
A3
HAND PULSE SENSOR REAR 1 A11-3
CCLIPC10 2
A4 HAND PULSE SENSOR MIDDLE 1
A11-4
AXLE FOR BRAKING 12*122 1
A5 NUT 3/8”5-11A2mm7*62* BUSHING 12* 24*33.2 1
A6 FLYWHEEL 260*9KGS 1 A11-6 BRAKE PAD 40.5*65 1
A6-1 201CPILCC
A11-7
SCREWS TOPPING M6*10 2
A6-2 8-11A1ZZ0006GNIRAEB BUSHING 12* 24*33.2 1
A6-3 NUT 3/8”9-11A1T5.0* BRAKINGSTOPPERT2.0*28*58 1
A6-4 NUT 3/8”21A1mm3*62* 1ERIWROSNES
A6-5 31A1L021*01
ELXA 1N006REDNILYCSAG
A6-6 1-31A2ZZ3006GNIRAEB SCREWM8*86 1
A6-7 2-31A1ZZ0036GNIRAEB PLASTICWRAP 8*71L 1
A6-8 PULLY 37* 19.06*71 A13-3 PLASTIC BUSHING 2
A6-9 5-31A1GNIRAEBYAWENO NUTM8 1
A7 6-31A2ZZ3026GNIRAEB SCREWM8*30 1
A8 7-31A1TENGAM-GNISUOH NUTM8 1
A8-1 WASHER M6* 19*T1.5 1A14 NUT 1
A8-2 1-41A16MTUN POWERCORD 1
A8-3 WASHER 6* 2*T1.0 1A15 SENSOR PIPE HOUSING 1
A8-4 61A16MTUN SCREW#6*32*12L 1
A8-5 71A106*6MWERCS CRANKRIGHT170L 1
A8-6 1-71A1L771ELBACNOISNET SCREWM8*25 1
A8-7 SPRING 10.2* .2*11*55L 1 A17-2 ENDCAP 1
A9 3-71A1L101*3
GNIRPS BELT6PJ46” 1
A10 81A1KCARTGNIDILS BELT PULLY 260 1
1-81A CCLIPC17 2
A10-3
2-81A
20.2*52*8MREHSAW
NUTM6 4
A10-4
MAGNET 1
A10-5 AXLEFOR BACKREST TUBE 16*79L
SCREWM8*52 1
SECTION 3 – PARTS LIST
15
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

RS5 RECUMBENT CYCLE
A19-1 NUTM8 1HBACKREST 1
A20 AXLE FOR BELT PULLEY 17*153 1ICOVER 1
41-02A61*6MWERCS J1(L) LEFT SIDE HANDBAR 1
A21 1-1J1EPIPGNISSERP HAND PULSE SENSOR WIRE 1
21-12A -1J152*8MWERCS PLASTIC CIRCUIT BOARD LEFT 1
22-12A5.1*22*8MREHSAW J1-3 PA D FOR HAND PULSE 2
A21-3 2T3.0*42*01REHSAW J1-4 2L53*3MWERCS
A21-4 18MTUN J1-5 HAND PULSE 1
A21-5 121CPILCC J1-6 HAND PULSE 1
A21-6 WHEEL 44* 39*21.9L 1J1-7 23MTUN
A21-7 1ZZ1006GNIRAEB J1-8 ENDCAP 1
A22 1L071TFELKNARC J1-9 ENDCAP 1
A22-1 125*8MWERCS
J1-10 CONTROLLER FOR RIGHT HANDLE BAR
26* 42*60.6
1
A22-2 11-1J1PACDNE CONTROLLER FOR RIGHT HANDLE BAR 1
A23 FRONT LEF T CHAIN COVER 1J2-(R) RIGHTSIDE HAND BAR 1
A24 1-2J1102*4MWERCS HAND PULSE SENSOR WIRE 1
A25 2-2J2102*5MWERCS PLASTICCIRCUITBOARDRIGHT 1
A26 FRONT RIGHT CHAIN COVER 1J2-3 PA D FORHAND PULSE 2
A27 REAR RIGHT CHAIN COVER 1 J2-4 SCREWM3*35L 2
A28 REAR LEFT CHAIN COVER 1J2-5 HAND PULSE 1
A33 6-2J1 HAND PULSE 1
A34 NUTM3 2
A36 8-2J1ROTOM ENDCAP 1
B9-2J1REZILIBATSTNORF ENDCAP 1
B1 5DNEDETSUJDA
J2-10 CONTROLLER FOR RIGHT HANDLE BAR
26* 42*60.6
1
B2 11-2J2PACDNE CONTROLLER FOR RIGHT HANDLE BAR 1
B3 1K2LEEHWNOITAROPSNART ELTTOBRETAW
B4 SCREW #8*32*5/8”)L(-L61/9A22-DJTHGIRLADEP4 ”1
C)R(-L1REZILIBATSRAE 61/9A22-DJTFELLADEPR ”1
C1 ADJUSTED END M8* 29*42.5 5M1 ACCESSORY TRAY(LEFT) 1
C2 ENDCAP 2M2 ACCESSORY TRAY(RIGHT) 1
D MAIN SUPPORTING TUBE 01N1 251*8MWERCS
D1 2N2WERCS 318MREHSAW
D2 SCREW 13N401*5M 2T2.1*61*8MREHSAW
E FRONT SMALL HANDLE BAR 1N4 SCREWM8*105 2
RIWROSNNS
PARTS LIST (cont’d)
16
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5

RS5 RECUMBENT CYCLE
N8 SCREW M6*10
SADDLE TUBE 1
N9 SCREW M4*15 6
SADAPTOR 1
N10 SCREW M6*8 2
S1 ENDCAP 1
N11 WASHER M8*16*1.2T 2
S2 ENDCAP 1
N12 WASHER 8*4.5 6
S3 ENDCAP 1
PBACK PAD SUPPORT TUBE 1
S4 STRAP(R) 1
15S STRAP(L)
U SHAPE PLASTIC 2
PARTS LIST (cont’d)
E1 5N4PACDEC SCREW M8*35 2
F MONITOR 1N6 SCREW1/4”*40L 2
G SEAT 1
N7 SCREW M8*20 5
17
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.%+)LWQHVV86$.com • Phone [phone] • Fax [phone]
RS5
N6-1 SCREW1/4”*46L 2

SECTION 4 –EXPLODED VIEW
RS5 RECUMBENT CYCLE
18
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
RS5
2A
-
32A
-
4
-2J
(
)R
M1
8N
2J
-
1
9N
2J
-
2
2J
-
4
2J
-
5
2J
-
6
2J
-
7
2J
-
8
-2J
1
0
-2J
1
1
(-1J
L
)
M1
8N
1J
-
1
9N
1J
-
2
1J
-
31J
-
4
1J
-
5
1J
-
6
1J
-
7
1J
-
8
1J
-
9
-1J0
-1J
1
1
B
C
G
H
R
P
4N
1A
0
1N
1N
3N
6N
31A
-
2
2B
3B
4B
2C
1P
3-01A
4-01A
5-01A
6-01A 7-01A
8-01A
9-01A
-01A
1
0
-01A
1
3
-01A
1
2
1A
3
31A
-
131A
-
3
31A
-
6
31A
-
7
I
1A
1
1N
0
11A
-
1
11A
-
2
3-11A
*
2
11A
-
4
11A
-
5
11A
-
67-11A
*
2
11A
-
7
11A
-
8
11A
-
9
E
D
3A
43A
3
1N
1
1D
1E
7N
5N
1B
1C
1B
1C
1B
1C
1B
1C
7N
2N 3N
2N 3N
2N 3N
1N
1N
3N
3N 1A
3
-5
2J
-
9
-2J
1S
2S
3S
1N
2
1N
2
F
2P
3A

RS5 RECUMBENT CYCLE
RS5 EXPLODED VIEW
19
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone [phone] • Fax [phone]
RS5
