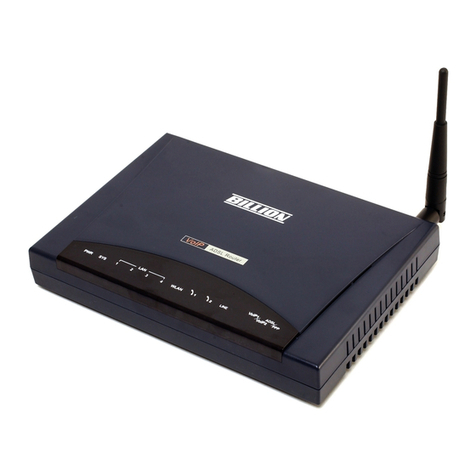

BiPAC 74xx series
VoIP ADSL2/2+ Modem/Routers
VoIP
Quick Install Guide
LThis guide covers the initial VoIP
set-up only. Please contact your
VoIP service provider for their
full VoIP setting. This guide is
based on the Billion BiPAC 7404
VGP so be aware that for other
models in the 74xx series the
screen shots may vary slightly.
CD supplied.
www.billion.uk.com

This symbol on the product or in the instructions means that your electrical and electronic
equipment should be disposed at the end of its life separately from your household waste. There
are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the
product.

Setting up the router
If you have been supplied with a Demon Voice over Broadband disk you can use this to set up your
VoIP service. Just follow the simple 1-2-3 step instructions below to set up your Demon VoIP service.
1. Attach your standard analogue phone handset to Phone Port 1 (marked with a phone handset icon)
on the back of the router, using the supplied white VoIP phone adapter if necessary.
2. Attach the supplied white telephone cable from the LINE port of the router to the phone side of
your ADSL filter (or into an installed ADSL faceplate if you have one).
3. Insert the supplied Demon Voice over Broadband CD and follow the on-screen instructions to set
up your VoIP service.
Alternatively you can set up your VoIP service manually (see “Choosing a VoIP service provider” below.)
Choosing a VoIP service provider
Your will need to sign up with a VoIP service provider that supports SIP (Session Initiation Protocol),
which is the most commonly used protocol for VoIP. They will provide you with their server settings as
well as your account details. Examples of server settings that you might be provided with:
•SIP Username - SIP Password
•SIP Proxy - Outbound Proxy
•Listen RTP Port - Listen SIP Port
We have used VoIP User (http://www.voipuser.org) as an example for this guide.
Setting up the Voipuser.org VoIP service on Billion VoIP routers
Setting up VoIP accounts on the Billion VoIP series routers is easy, and usually only involves entering the
VoIP server address, port number (usually 5060 for SIP) and your username and password.
1) Log into your Billion router’s web interface by typing http://192.168.1.254 on your browser’s
address bar and pressing ‘OK’ or ‘Enter’.

2) Then enter the username and password to log into the router (default: admin / admin) and click
‘OK’.
3) You have now successfully logged onto the router’s ‘Status’ page. Now click on ‘VoIP’ on the left
hand side menu bar.
4) Click on ‘General Settings’.

5) On the ‘General Settings’ page you will need to enable SIP if it is not already enabled, and input the
settings as shown below. Usually the only field you will need to complete is the Registrar Address
field (in this case: sip.voipuser.org). Scroll down and click on ‘Apply’ at the bottom.
6) Next click on ‘Phone Port’ on the left hand side menu bar.

7) On the ‘Phone Configuration’ page you will see phone port 1 and 2. Click ‘Edit’ on Phone Port 1, as
we will only setup one phone port in this example. (For the Billion 7401VGP you will only have 1
phone port option.)
8) Enter your username and password details as provided by your VoIP service provider. Your
username should be entered both in the “Phone Number” field and the “Authentication Username”
field as illustrated below. Your password should also be entered twice, in the “Authentication
Password” and “Confirm Password” fields. Enter a “Display Name” or number for your reference.
Now click ‘Apply’.

9) You should now be back on the ‘Phone Configuration’ page and you should see that ‘Phone Port 1’
is now shown as ‘Registered’. You have now successfully setup your Voipuser account on your Billion
VoIP router. The final step is to save your configuration by pressing ‘SAVE CONFIG’ at the bottom
right of your screen.
10) Click ‘Apply’ to confirm that you would like to save your configuration.

11) Once the router has successfully saved your configuration it will inform you with the ‘Save Config
to FLASH Successful’ message.
12) This completes the initial VoIP configuration. Make sure your standard analogue telephone is
connected to the router’s FXS port 1 (with the telephone icon) as we configured phone port 1 in this
example, using the white VoIP telephone adapter provided if necessary. Now you can start
experiencing your new VoIP service.
If you are having difficulties connecting to your VoIP service, then we suggest you contact your VoIP
service provider for further advice.
Telephone Support for Internet access ONLY is available during office hours from Mon-Fri 10am–5pm on
0870-8501528. If you are successfully connected to the Internet and have a support query you can also
contact support at:
www.billion.uk.com/esupport
