BIOLAN ICELETT
Instructions for installation, use and maintenance
The Biolan Icelett is an odourless, tidy and environmentally friendly toilet. The Icelett is placed
on the oor. It requires neither water nor a sewer to operate ─ just electric power. The operat-
ing principle of the unit is to freeze the waste. The unit cools the waste to -15 °C, at which the
microbial activity stops. Thanks to the heat lock formed by the condensing air, the Icelett is
more pleasant to sit on, and the seat does not feel cold.
Contents
Dimensions EN-1
1. Planning and installation EN-2
 1.1Technicalspecications EN-2
1.2 Placing in the toilet space EN-2
2. Use and maintenance EN-2
2.1 Before use EN-2
2.2 Setting the freezing temperature EN-2
2.3 What you can put into the Icelett EN-2
2.4 Using bulking material EN-2
2.5 Emptying EN-2
2.6 Cleaning EN-2
2.7 Longer breaks in operation EN-2
3. Composting the toilet waste EN-3
4. Problems that may occur EN-3
4.1 The unit does not work EN-3
4.2 The mass does not freeze or is freezing slowly EN-3
4.3 The running noise of the unit sounds abnormal EN-3
4.4 A red signal light is illuminated in the unit EN-3
4.5 A green signal light is illuminated in the unit EN-3
5. Disposal of the product EN-3
Biolan accessories EN-4
About the guarantee EN-4
Dimensions
length 64 cm
width 44 cm
height 56 cm
sitting height 48 cm
weight 30 kg
size of the inner receptacle 20 litres
length of the power cord 2.20 m
voltage 230 V
fuse 4 A
capacity 60 W
consumption of electricity at maximum 1.44 kWh/day
included in the delivery toilet unit and 30 pcs. biodegradable bags

EN-2
EN
2. Use and maintenance
2.1 Before use
After transportation, wait one hour before starting the unit, in order
to allow the oil to return from the pipeline.
• make sure that the unit is horizontally positioned. If necessary,
adjust using the adjustable feet of the unit.
• Press the bottom of the bag onto the bottom of the vessel, and
fold the edges of the bag over the vessel's rim.
• Position the pail inside the unit. The position of the pail is cor-
rect, when the seat ring and the cover close snugly.
• Plug in the unit and turn it on using the switch on the rear wall
(Fig. 2) – the green signal light will illuminate.
• The red signal light remains lit until the temperature inside drops
to -12 °C, but the toilet can be used immediately. (Fig. 1)
2.2 Setting the freezing temperature
The factory setting of the freezing temperature is 3½, and then the
unit operates between -14 and -18 °C. Check the setting. If it is
not correct, set the thermostat to 3½. Apply the setting using the
thermostat (Fig. 3) behind the unit.
2.3 What you can put into the Icelett
The Biolan Icelett is intended for composting toilet waste, includ-
ing toilet paper. Do not put into the unit anything that hampers the
compostingprocess,doesnotcompostorisarehazard,suchas:
• debris, sanitary towels
• chemicals, lime
• detergents, washing water
• matches, ash, cigarette butts
2.4 Using bulking material
You do not need to use bulking material in the Biolan Icelett. Adding
itduringpost-compostingissufcient.Forvisualreasons,bedding
material, such as for example Biolan Compost and Toilet Bulking
Material or Biolan Peat, can be applied to the deposited matter
(see Accessories on page EN-4). On the other hand, using these
substances reduces the need to add bulking material during the
composting stage.
2.5 Emptying
TheBiolanIcelettshall be emptiedwhenitllsup.Theemptying
interval depends on the frequency of use.
Emptying:
• Turn the mouth of the bag inside the vessel and lift the vessel
out of the unit.
• Compost the waste in a composter for household waste or gar-
den waste.
• To bind liquid, apply litter abundantly to the compost before add-
ing toilet waste.
• Break the surface of the bag using, for example, a pitchfork or
a Compostmixer. (see Accessories on page EN-4). Finally, cover
with a generous layer of bulking material.
• Check whether ice has formed on the edges of the pail. If neces-
sary, melt the ice and wipe it off. Also dry the walls of the pail
before putting a new bag into place.
2.6 Cleaning
Clean the Biolan Icelett by wiping with a damp cloth. Any common
domestic cleaning agents can be used. Avoid using too much water.
Youcanwashthepailwithwater,ifyourstremoveitfromtheunit.
Dry the pail before replacing it.
Do not use water for cleaning the rear wall. Vacuum out the dust
from the rear wall of the unit at least once a year.
2.7 Longer breaks in operation
Ifyoudonotusetheunitforalongtime:
• unplug the unit from the wall outlet
• empty the unit
• clean and dry the freezing basin of the unit and the pail
• leave the seat lid open
1. Planning and installation
When deciding where to locate the Biolan Icelett, make sure it
hasasupplyofelectricityandthereissufcientspacetouseand

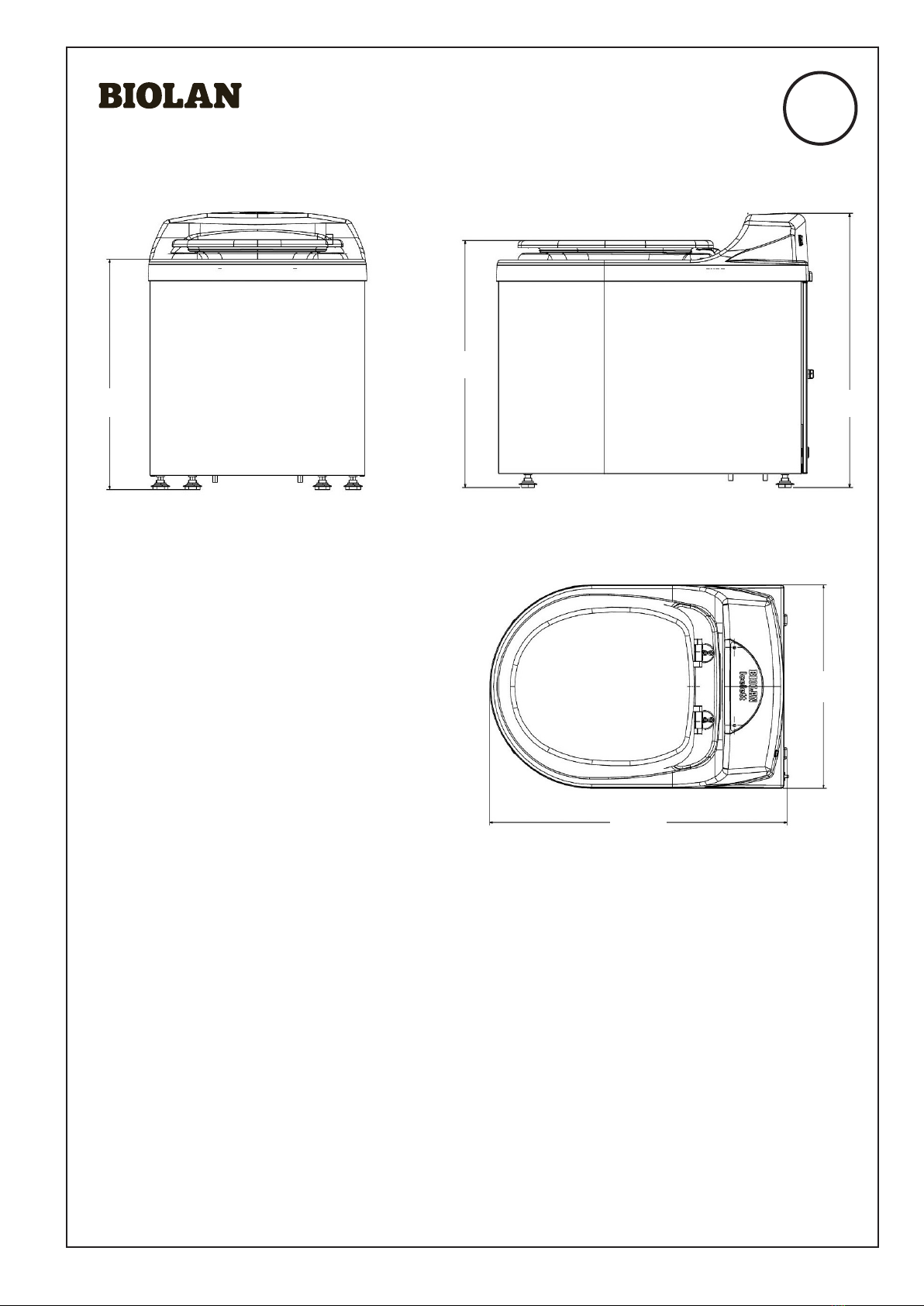

maintain it (see dimension drawing on page 2). The toilet unit is not
attached to either the ventilation system or the sewer. The unit is
placedinalevelpositionontheoor.Planningtheinstallationof
the toilet unit should also take into account composting of the toilet
waste or its disposal in some other way.
1.1 Technicalspecications
• capacity:for1–5people
• dimensions 64 x 44 x 56 cm (d x w x h)
• sitting height 48 cm
• volume of the inner vessel 20 l
• length of the power cord 2.2 m
• weight 30 kg
• voltage 230 V
• output 60 W
• fuse min. 4 A
• maximum consumption of electricity at 1.44 kWh/day
•
1.2 Placing in the toilet space
The unit shall be installed in a warm space indoors. Installation of
thetoiletunitinaspacewithoorheatingorintheimmediatevi-
cinity of a radiator or any other heat source is not recommended.
Heat increases the unit's electricity consumption. Optimal room
temperature is 10-22 °C. Install the unit in a horizontal position.
You can bring the unit to a level position by turning the legs that are
provided for this purpose.
When moved, the unit should be gripped at as low a point as pos-
sible. Do not lift the unit by the seat ring.

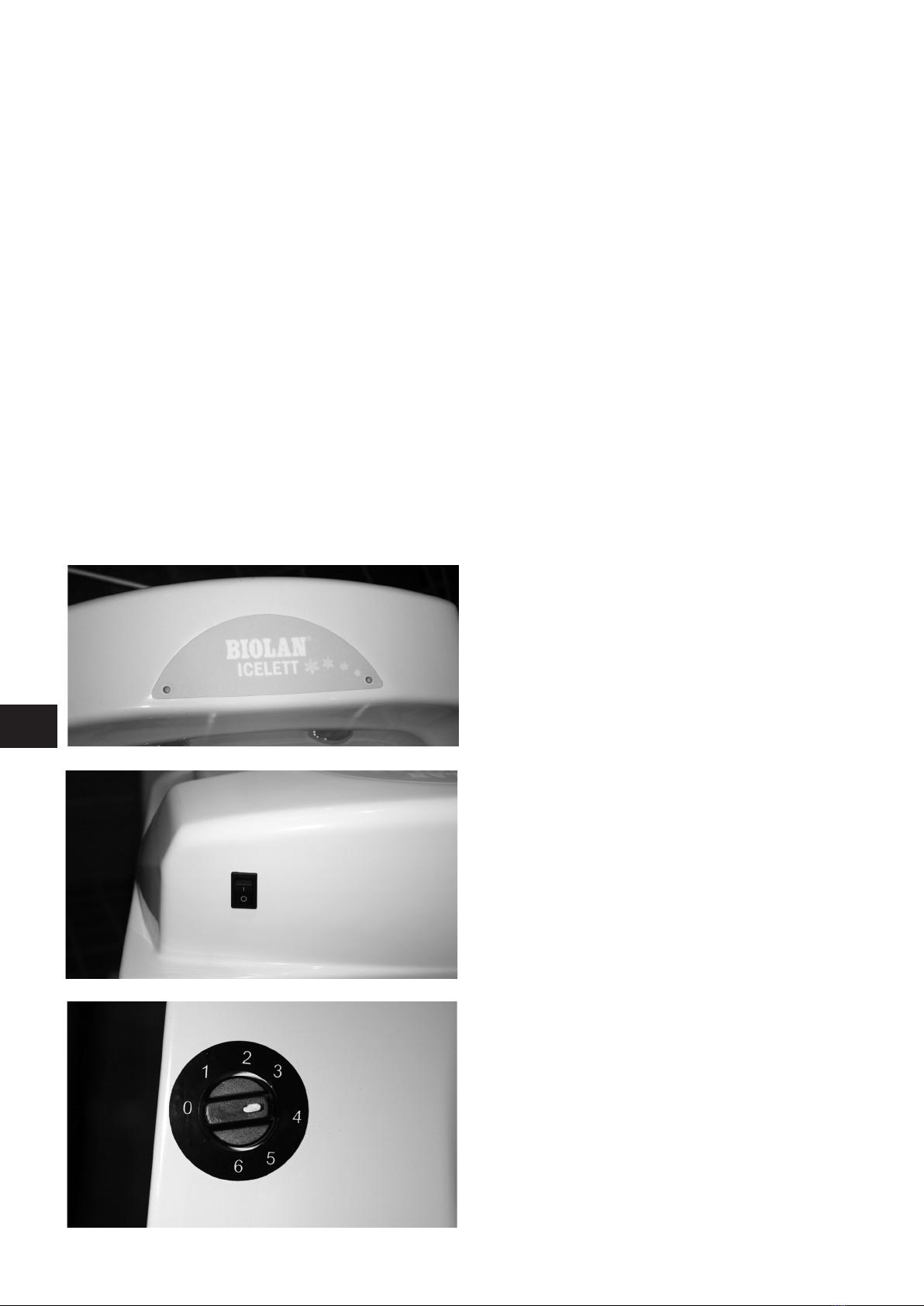

3. Adjusting the freezing temperature
2. Power switch
1. Signal lights in the front panel: left red, right green.

EN-3
EN
5. Disposal of the product
When disposing of the Biolan Icelett, take it to a collecting point for
refrigerators for orderly dismantling. Always follow the regional and
collecting-point-specicinstructions.
3. Composting the toilet waste
Waste emptied from the Biolan Icelett always requires composting
before it can be utilized.
You can compost toilet waste just as it is or together with garden
or domestic waste. While composting, make sure to observe the lo-
calregulationsonwastehandlingandconsidersufcientprotective
distances to neighbours, wells and nearby bodies of water.
Organise the composting so that no liquids seep from the compost
into the soil. The Biolan Composter, the Biolan Garden Composter
or the Biolan Stone Composter (see Accessories on page EN-4) is
well-suited to the purpose.
For hygienic reasons, compost the toilet waste for at least a year
before applying it to edible plants. Composting for half a year is
sufcientbeforeapplicationtoornamentalplants.Buryingwastein
the ground is prohibited.
The micro-organisms in the compost decompose organic matter un-
der aerobic conditions. After the composting has continued for 1–3
years the result will be compost soil. To ensure that the composting
is efcient, the living conditions of the micro-organisms must be
taken care of. The basic requirements for compost are the pres-
ence of oxygen, moisture and nutrients.
The micro-organisms in the compost require moist conditions, so
the compost must be suitably moist, but not wet. The toilet waste
emptied from the Icelett contains plenty of liquid. Therefore, add
Biolan Compost and Toilet Bulking Material to the toilet waste be-
fore adding the waste to the composter. This reduces the wetness
of the composter (see 2.5 Emptying).
Toensurethatthecompostissufcientlyairy,usecoarsebulking
material or branch chaff in layers among the waste. Compost that
is too tightly packed or too wet is anaerobic and starts to rot and
smell.
Cover the surface of the compost carefully with bulking material,
garden waste or peat after the addition of toilet waste. When com-
posting, follow the instructions for the composter that you are us-
ing. Toilet waste, composted with care, makes excellent soil condi-
tioner for perennial plants, shrubs, trees and a vegetable plot.
4. Problems that may occur
4.1 The unit does not work
Checkthat:
• the plug is plugged in
• electricity is being supplied to the unit, and the green light in the
panel is illuminated
• the power has been turned on with the power switch
• the thermostat stands at 3½.
4.2 The mass does not freeze or is freezing slowly
The mass freezes more slowly, if the number of users and the load-
ingareveryhigh.Iftheunithasbeenusednormally,checkthat:
• the room temperature does not exceed +25 °C.
• the unit is not located in the immediate vicinity of a radiator.
• the thermostat stands at 3½.
• the walls of the freezing basin are not covered with an ice layer
• If ice has formed on the walls, empty and thaw the unit manually
in accordance with points 2.5 - 2.7 of this manual.
4.3 The running noise of the unit sounds abnormal
Bubbling or hissing noises from the cooling circuit are quite normal
sounds from a refrigeration appliance. If the sound is not normal,
checkthat:
• theunitisrmlysupportedonallfourlegs
• the unit is not in contact with a water pipe, the wall or any other
object
4.4 A red signal light is illuminated in the unit
The red light indicates that the temperature inside the toilet is
above -12 °C.
• whenthetoiletisswitchedonforthersttime,orafterabreak
in operation, a red light remains lit in the unit until the basin's
internal temperature the reaches -12 °C.
4.5 A green signal light is illuminated in the unit
This does not indicate an emergency. The green signal light only
indicates that the power supply to the unit is normal.
While being transported, some compressor oil may
have entered the pipeline. Wait one hour before start-
ing the unit, to allow the oil to return from the pipeline.
Please consult your local waste advisor for regulations
on composting.
Pleasevisitwww.biolan.formoreinformationoncom-
posting.

EN-4
EN
Biolan Compost and Toilet Bulking Material
Biolan Compost and Toilet Bulking Material is a
blend made of pure, dried and ground conifer
bark and peat for composting and dry toilets.
Applying it regularly to the compost keeps the
compost mass airy and ensures the composting
isefcientandodourless.
Packagesize:abagof40litres,abagof85li-
tres
Productnumber:40l70562100,85l70562500
HVACcode:40litres3663112,85litres3663122
Biolan Peat
Biolan Peat is clean, white non-fertilised or
limed sphagnum peat. It is naturally sour. Bio-
lan Peat is suitable for, for example, storing
root crop, use as soil conditioner, and use in
an evaporating pan for seep liquid.
Packagesize:abagof70litres
Productnumber:55544200
Biolan Compostmixer
TheBiolan Compostmixeris made ofglass bre-re-
inforced propene, so it neither corrodes nor oxidises
even over time. The Biolan Compostmixer offers ef-
fortless mixing of the compost.
Productnumber:70575200
Biolan Garden Composter
The Biolan Garden Composter is intended
for the composting of domestic, garden
and toilet waste in a detached house or
a holiday home. Its large, hinged cover
makesthellingofthecompostereasier.
The hermetic structure and adjustable air
exchange prevent the compost mass from drying, and reduce the
need for maintenance.
Productnumber:green70572000,grey70576700
Biolan Stone Composter
The Biolan Stone Composter is intended
for the composting of domestic and gar-
den waste in a detached house or holiday
home. Thanks to its large size, it is well-
suited to the composting of garden waste
and toilet waste from a summer cottage.
Biolan Stone Composter having the colour
of natural stone merges well with its sur-
roundings, and is well-suited even to small
yards.
Productnumber:redgranite70573100,greygranite70573200
Composter Biolan 220eco and 550
Biolan Composters are suitable for year-
round composting of domestic, garden and
toilet waste. The thermal insulation ensures
that the Composter continues operating ef-
cientlyevenduringthecoldofwinter.
Composter Biolan 220eco:
Productnumber:green70579000,grey
70579200
Composter Biolan 550
Productnumber:green70573400,grey
70576600
About the guarantee
The Biolan Icelett has a guarantee of one year.
The guarantee is valid from the date of purchase and covers pos-
sible defects in material and workmanship. The guarantee does not
cover any indirect damage.
Biolan Oy retains the right to decide about repairing or replacing
damaged parts at its discretion.
Any damage resulting from careless or forcible handling of the de-
vice – from failure to observe the operating instructions, or from
normal wear – will not be covered by this guarantee.
For matters related to the guarantee, please consult Biolan Oy di-
rectly.
Biolan Oy
P.O. Box 2, FI-27501 KAUTTUA
Tel.+35825491600
Fax+35825491660
www.biolan.
Biolan accessories
Availability varies from country to country. Consult your local dealer for details.

Biolan Oy, P. O. Box 2, FI-27501 KAUTTUA
Tel. [phone], fax [phone]
www.biolan.
052012
