biomag Lumina Operation and maintenance manual
Pulse magnetotherapy device
EN The design and technical solution of the unit and the applicators are registered with the IPO CR
and other international institutions.
Modifi cation of the appearance not affecting the functions is reserved.
The colour shown in the illustrations may vary from your particular model.
DE Das Aussehen und die technische Ausführung des Geräts und der Applikatoren wurden beim Tschechischen
Amt für Industrieeigentum und bei andere internationalen Institutionen registriert.
Änderungen der äußeren Gestaltung ohne Einfl uss auf die Funktion vorbehalten.
Die farbliche Darstellung muss nicht der Farbe der gelieferten Produkte entsprechen.
Date of issue Instruction Manual: 1. 6. 2013
Datum der Ausgabe der Anleitung: 1. 6. 2013
Authorised Distributor
Autorisierter Vertreiber
Karel Hrnčíř - BIOMAG
Chomutice 81, 507 53 Chomutice
Product of Czech Republic
The European Union
www.biomag.cz
Instructions for Operation
Bedienungsanleitung
EN
DE
Lumina
Lumina
Patented
technology
Data on Completeness of Product
Angaben über die Vollständigkeit des Produkts
Modern
rehabilitation
Moderne
Rehabilitation
N. kit completamento / dotazione / regime
Komplettierungsnummer des Sets / der Ausstattung / Betriebsart
Lumina
Lumina
Device for home care
Gerät für die Heimanwendung
Device for professional
Gerät für die Profi anwendung
Usermanual page | 1
List of abbreviations and symbols 2
1. INTRODUCTION BASIC INFORMATION 3
Safe operation rules 4
Contraindications 5
List and descriptions of programs 5
2. DEVICE CONTROLS 9
a) Description of the system and controls 9
b) Basic operation – quick start 10
Simplified instructions for the Biomag®Lumina system operation 10
Example of proper connection of the Biomag®Lumina system before starting the application 11
c) Control and setting of the Biomag®Lumina device 12
3. APPLICATIONS 14
Areas of possible use 14
Therapeutic effects of LPMF 14
Selection and use of applicators 15
Brief plan of the LPMF application 16
Brief instructions for settings based on required therapeutic effects 16
Further information for LPMF applications 17
Water treatment by magnetisation 17
4. TECHNICAL SPECIFICATIONS 17
a) Technical description and specifications of the system 17
b) Technical description and specifications of applicators 21
Use of the applicators 21
Technical specifications of the applicators 22
Biomag®applicators Lumina 22
Light applicator AL16-LUM (Alfa) 24
c) Information on EMC 25
5. OTHER INFORMATION 28
Maintenance 28
Service 28
Operation environment, storage, transport 28
Warranty 28
Health protection during work with LPMF 28
Troubleshooting 29
Contact information 29
Recommended literature 30
Certificate 31
Contents
Final_navod_Lumina_EN.indd 1Final_navod_Lumina_EN.indd 1 9.8.2013 8:57:099.8.2013 8:57:09
2| page Usermanual
List of abbreviations and symbols
List of symbols
Read the User Manual Alternating current
Device with protection class II Direct current
BF type applied part Explanation provided
Environmentally friendly disposal
of the device
The device may affect the function
of other medical systems. Utmost
caution required.
Program repeat recommended Basic program time
Applicator polarity symbol Keep away from moisture
Caution Symbol for identical polarity of all
parts on one side of the applicator
List of icons
List of all programs
MY PROGRAMS
Confirmation button
Navigation within the menu
Input for applicator
Power supply symbol
Next menu
Start automatic repeat
Information on the program
Continue with the program selection
Copy to MY PROGRAMS
Remove from MY PROGRAMS
Display the menu
Back
Display operation information
Display basic effects
Contraindications
System settings
Program INDIVIDUAL
List of abbreviations
LPMF Low-frequency pulse
magnetic field INT Intensity
MIMF Maximum intensity
of magnetic field PRG Program
Hz Frequency unit = pulse rate min. Minute (abbreviation in the
displayed information)
fFrequency= pulse rate EMC Electromagnetic compatibility
mT Unit of magnetic field intensity
Yes/No setting
Favourite programs
Transfer of programs
Time
Reminder setting
Sound/volume down
PIN1/PIN2
Language selection
Keyboard lock
Number of pre-paid applications
Battery
Application history
Program type
EASY/CLINIC programs
Activate rotary/synchronised programs
Gradual switch-on of the inputs
Number of my programs
Save/Do not save
charged low
List of the used icons
Final_navod_Lumina_EN.indd 2Final_navod_Lumina_EN.indd 2 9.8.2013 8:57:109.8.2013 8:57:10
Usermanual page | 3
Biomag®Lumina
It is a system with an integrated adapter and up to four independently
attachable applicators. This top quality device is a portable magneto
therapeutic system, the features of which are based on the older system
series Biomag® (Biomag®89, Biomag®92, Biomag®duo, Biomag®Quat-
tro, Biomag®mini, Biomag®Family, Biomag®Laguna, Biomag®Litus, Bi-
omag®Mona, Biomag®Monada, Biomag®Monai, Biomag®Monada plus)
which belong among the most frequently used systems in the healthcare
sector.
Biomag®Lumina expands the features of the previous systems by an
option of gradual switch-on of the outputs to the applicators ( 3Dtech-
nology). Another advantage of the Biomag®Lumina system includes the
possibility of using a battery, allowing the use of the device without con-
nection to the electrical grid.
Purpose and specifications for use
The Biomag®Lumina system (magneto therapeutic device Biomag®Lumina
and connectable applicators) is designed for application on all parts of the
body for all age groups (from 3 years of age) to improve regeneration of the
body, soothe pain, stimulate metabolism, enhance the immune system and
maintain good health. It is designed for use in many medical areas (see
the application section – on page 14) and very often it is an essential
part of a complex rehabilitation process. Operation of the Biomag®Lu-
mina device is described on pages 10–11. Frequency of applications of
the Biomag®magnetic therapy, and conditions and methods of the use
of applicators are described in the application section on pages 15–16.
During the use of the Biomag®Lumina system, follow particularly the rules
of safe operation and contraindications (page 4–5) and use it in compli-
ance with the specified environmental requirements listed on page 28.
The Biomag®Lumina system may only by operated by adults who are
familiar with the user manual, method of operation and handling with the
device, and are aware of contraindications. The Biomag®Lumina system
may only be used by trained persons. The system may not be handled by
children or other unauthorised or untrained persons!
The Biomag®Lumina system has two modes: the CLINIC mode which is
designed for healthcare providers and experienced users, and the EASY
mode which allows the system’s use not only by healthcare providers,
but also in home care.
Main advantages of the Biomag®Lumina
system
• Useful: compact, low weight, easy portable;
• The advantage of the device equipped with a battery is the possibility
of its operation without the need for an electric grid;
• High efficiency, easy operation;
• Combination of polarised light and magnetic field in the AL16-LUM (Alfa)
applicator ;
• System information displayed on a sufficiently large display;
• Text menu listing therapeutic programs;
• Display switched off automatically if idle for 6 minutes;
• After switching off, the last used parameters are stored;
• Four outputs with identical parameters; gradual switch-on of outputs in
selected programs 3D;
• Large range of applicators, unique software, optimised magnetic pulse
profile to the requirements of each program;
• Selection of frequency from 1 Hz to 162 Hz, in 1-Hz steps;
• The selected frequency may be added by frequency wobbling;
• Special program for water magnetisation;
• Attractive and smart design of the device and applicators;
• Option to fix the device using the strap;
• Washable applicators;
• Optional expansion functions of the system.
1. INTRODUCTION BASIC INFORMATION
Final_navod_Lumina_EN.indd 3Final_navod_Lumina_EN.indd 3 9.8.2013 8:57:229.8.2013 8:57:22
4| page Usermanual
The Biomag®brand is the oldest and most frequently used brand of the
pulse magnetic therapy systems produced currently in our country. Due
to its versatility, easy operation, portability and complete accessories,
the Biomag®Lumina system is capable of satisfying virtually all require-
ments for applications using a pulse magnetic field.
The effectiveness of the applications is individual; on average, independ-
ent sources report up to seventy-five percent efficiency if the system is
used properly. In comparison with other types of physical therapy, this is
a very high rate of success. Biomag®Lumina generates a low-frequency
pulse magnetic field. The whole system is controlled by a processor
which generates precise voltage and current pulses, depending on the
type of the applicator, whose curves can be adjusted to the shape of a
pike, triangle, rectangle or half-sinusoid. These induce a pulse magnetic
field in the applicator. Mode EASY allows setting the pulse frequency
range from 1 to 81 Hz, mode CLINIC from 1 to 162 Hz.
The low-frequency pulse magnetic field penetrates the human body
without any harmful side effects whatsoever. The use of the magnetic
field is painless and convenient. The technical design of the Biomag®
Lumina device provides massage deep in the tissues and lymphatic
passages. In addition, there are other positive effects of stimulation of
metabolism and bloodstream by increased oxygen supply in the whole
body.
BEFORE USE, PLEASE STUDY THIS MANUAL CAREFULLY!
The Biomag®Lumina system may only be operated by adults who are
familiar with the User Manual, method of operation and handling the
system, and who are aware of contraindications specified in the manual.
The Biomag®Lumina system may only be used by trained persons. It is
the duty of the supplier to train the operator in the method of operation,
maintenance, inspection of the machine, and safety operation. The
system may not be handled by children or other unauthorised and
untrained persons!
1 | The system should be put into operation according to the informa-
tion provided in this manual. Therefore, read the User Manual carefully
before the first use of the device!
2 | Be aware of the contraindications, the patient’s current state of health,
and the instructions given by a health-care professional. The Biomag®
Lumina system should not be used when having problems of unknown
origin, or in contradiction with a special medical procedure.
3 | Any modifications or interventions to the system and applicators are
forbidden.
4 | Do not connect the device to any inadequate electric grid.
If in doubt, the grid should be inspected by a safety inspector.
5 | Never use the device or applicators if they are damaged.
6 | Do not pull the applicator out of the device connector while the ap-
plication program is running. Always end the program first, using the
button [4] or wait until the end of the application.
7 | Always use the original applicators; never connect any other devices to
the system connectors.
WARNING – DO NOT LOOK into the flashing LEDs during the
use of the AL16-LUM (Alfa) applicator and polarised light operation!
8 | Do not pull the power cord of the applicator or unit.
9 | Portable and mobile high-frequency communication devices may im-
pact on the function of the Biomag®Lumina system. No wireless com-
munication system should be operated within a 3.3 m distance; it might
impact on the function of the Biomag®Lumina system.
10 | The Biomag®Lumina system may cause radio interferences or it
may discontinue the operation of a device in its vicinity. It may be nec-
essary to take measures to mitigate these effects, e.g. to change the
orientation or move the Biomag®Lumina system. During application,
the applicators may damage devices in their immediate vicinity, e.g.
watch, magnetic media (diskettes, cassettes, computers, credit cards),
etc. A distance of 1 m from the applicator is safe.
11 | Avoid any contact of the device with water; do not rinse or wash it with
water. Never use it in a wet environment (while bathing, in a sauna,
etc.). Never expose the device or the applicators to dampness.
12 | Avoid dropping and any damage to the device and applicators; utmost
care should be taken of the unit connectors and applicators. Do not
place the device near sources of heat.
13| During therapeutic applications of the Biomag®Lumina system
complies with all local legal provisions.
14 | The manufacturer is not responsible for improper use of the system.
15 | Mode EASY (programs up to 81 Hz) is designed for individual preven-
tion and rehabilitation provided that items 1 and 2 are adhered to and
rules for operation are followed.
16 | Mode CLINIC (programs up to 162 Hz) is designed for healthcare
providers.
17 | When selecting programs, the best rule is first to ease acute pain (program
No. 1 – Pain) and then to select a program based on the type of problems
for which the applications are designed.
In case of long-term or combined health problems, it is recommended to
use program No. 2 – MEDICAL (use the more detailed information on
page 15).
18 | When setting parameters for program No. 32 (INDIVIDUAL) follow the
table listing the effects of pulse magnetic therapy.
19 | Treatment should not be performed after 9 p.m. – to avoid sleep distur-
bances.
20 | If the system including the applied parts (applicators) is used by more
than one user, the applicators should be disinfected before each use by
another user. Disinfection and cleaning is described on page 28.
21 | WARNING – Do not wind the device power cord or the applicator
cables around your neck – due to the risk of strangulation.
22 | CAUTION – Any modifications to the system are forbidden.
23 | CAUTION – For the system with a lithium battery the battery
function should be checked regularly every month.
________________________________________________________________
Information for healthcare providers
The Biomag®Lumina device requires special precaution related to EMC and
should be put into operation in compliance with information on EMC specified
on page 24 (information on EMC).
Safe operation rules
Final_navod_Lumina_EN.indd 4Final_navod_Lumina_EN.indd 4 9.8.2013 8:57:239.8.2013 8:57:23
Usermanual page | 5
1• Musculoskeletal pain 60 min
Generally, low frequencies affect all painful conditions – including de-
generative, inflammatory and post-traumatic conditions. Do not use in pa-
tients with acute abdominal pain or suspected myocardial infarction – to
avoid masking any clinical symptoms and making early diagnosis of acute
diseases difficult.
Purpose of the applications >To reduce pain, relieve muscle spasms,
support the healing and regeneration process.
2 • Medical program 25 min
This is a versatile program with automatically changing frequency, from
pain-reducing to healing and stimulating applications.
Purpose of the applications >Recommended for long-term chronic
diseases, where it is desirable to reduce pain and stimulate healing and
regeneration. Suitable for long-term maintenance treatment following sup-
pression of acute symptoms, e.g. in joint degenerative and inflammatory
diseases, to enhance metabolism in the tissues of patients with diabetes
and in chronic inflammation of tissues and organs.
3 • Joint arthrosis 45 min
Recommended to reduce pain in patients with degenerative changes in
joint tissues – including bones, cartilage and ligaments.
Purpose of the applications >To reduce pain and support healing
and regenerative processes. To be applied preferably in the acute phase.
When the pain has been reduced, it is recommended to proceed with
long-term applications of the Medical program.
4 • Arthrosis of the spine (degener. damage of the spine)
30 min
Degenerative changes in the vertebrae and intervertebral discs, with pos-
sible nerve root compression.
Purpose of the applications >To reduce pain, release muscle con-
tractures and achieve better mobility of the spine.
5 • Joint pain 60 min
Pain in the joints and articular capsules due to morphological changes
caused by degenerative and inflammatory processes.
Purpose of the applications >To reduce pain, suppress the inflamma-
tory process, and provide conditions for better regeneration.
6 • Spinal pain 45 min
Pain in the spinal column due to degenerative, inflammatory processes,
and also due to overexertion, unusual movement activities, or cold.
Purpose of the applications >To reduce acute pain, provide relief
from muscle spasms, achieve better spinal mobility, allow further rehabili-
tation and enhance the regeneration process.
7 • Sciatica (acute) (sciatic nerve pain) 60 min
Nerve root compression in the lumbar and sacral spine, with pain radiat-
ing to the lower extremities, intense acute pain and limited mobility. This
often occurs when exposed to cold or physical exertion with the body in a
non-physiological position.
Purpose of the applications >To provide relief from pain and allow
restoration of the physiological anatomy of the spinal column, helping to
eliminate nerve root compression.
The below information on all programs can be viewed in the device using the arrows while the program is running.
Contraindications
The Biomag®Lumina system may not be used with the contraindications listed below.
Ignoring the contraindications may result in damage to the user's or operator's health!
List and descriptions of programs; purpose of application of the Biomag®
magnetic therapy
• Pregnancy
• Pacemaker
• Bleeding conditions
• Menses (bleeding phase)
• Neoplasms
• Serious septic states
• Fever conditions
• Active tuberculosis
• Mycosis at the site of the application
• Paroxysmal nerve diseases
• Hyperthyroidism
• Pain of unknown origin
• Unspecified diagnosis
• Contradiction to a medical procedure determined by
a specialist
During application, special attention should be paid to
patients with hypotension (or with a tendency towards
it) and hypertension.
During the first application steps, blood pressure may
decrease and lead to potential negative reactions.
If discomfort is experienced, it is recommended, as a
precaution, to discontinue the application.
Final_navod_Lumina_EN.indd 5Final_navod_Lumina_EN.indd 5 9.8.2013 8:57:259.8.2013 8:57:25
6| page Usermanual
8 • Compression of nerves (chronic) 25 min
Nerve root compression in the lumbar and sacral spine, with pain radiat-
ing to the lower extremities, intense pain and limited mobility. Unlike the
acute form, this is a permanent disorder which may improve or worsen
temporarily. Frequently, this is a result of degenerative changes in the spi-
nal column.
Purpose of the applications >To provide relief from pain, allow further
recovery of mobility, enhance the regeneration process and maintain a
long-term bearable condition.
9 • Arthritis of joints 25 min
It is an inflammatory joint disease including rheumatoid arthritis, as well as
arthritis related to other diseases such as gout, psoriasis, etc.
Purpose of the applications >To reduce inflammatory symptoms and
relieve pain. To establish better conditions for healing and regeneration by
stimulating the vascular system and by enhancing blood flow, oxygen and
nutrient supply and elimination of metabolites.
10 • Arthritis of the spine 25 min
Inflammatory diseases in the vertebral column due to rheumatic disease or
other conditions, such as gout, psoriasis, etc.
Purpose of the applications >To suppress inflammatory symptoms, re-
duce pain and improve mobility. To establish better conditions for healing
and regeneration by stimulating the vascular system and by enhancing blood
flow, oxygen and nutrient supply and elimination of metabolites.
11 • Bekhterev’s disease 30 min
A specific inflammatory disease of the spinal column associated with an
immune system disorder, characterised by long-term duration and gradual
progression. The disease results in significant mobility limitation and is ac-
companied by severe pain.
Purpose of the applications >To reduce pain and allow better recov-
ery of mobility. To suppress inflammatory symptoms and slow down pro-
gression of the disease.
12 • Rheumatism 30 min.
An inflammatory disease of joints, joint capsules and other tissues charac-
terised by a significant immune component.
Purpose of the applications >To suppress inflammatory symptoms
and reduce pain. To improve metabolic conditions for healing, regenera-
tion and normal function of the affected tissues.
13 • Endoprotheses 20 min
Conditions with implanted artificial joint or another replacement of dam-
aged tissues. In most cases, metal or plastic implants are used for the
replacement. All the metal components are made of non-magnetic metal,
so the low-frequency pulse magnetic therapy can be commonly used in
patients with these conditions.
Purpose of the applications >To provide better metabolic conditions
in tissues before and after prosthetic device implantation to improve the
healing process, accelerate the recovery, reduce pain and help maintain the
best possible condition and function of the surrounding tissues.
14 • Post-surgery conditions 20 min
Postoperative conditions require intensive recovery and an increased
metabolic turnover in the affected tissues to accelerate the healing pro-
cess and avoid complications.
Purpose of the applications >By widening the bloodstream, the low-
frequency pulse magnetic fi
eld supplies more oxygen and nutrients to the
blood, therefore aiding the healing process. It also releases and removes
metabolites and harmful substances that hinder the healing process.
15 • Fractures 45 min
Treatment of fractures and injuries to bones and cartilages. Therapy should
be started as soon as possible after the injury and surgical treatment.
Purpose of the applications >Low-frequency pulse magnetic therapy
affects not only the soft tissues but also bone and cartilage tissues, sig-
nifi
cantly supporting and accelerating the healing process, new formation
and restoration of the damaged tissues.
16 • Carpal tunnel 60 min
Carpal tunnel is a syndrome caused by compression of the neurovascular
bundle and tendons of the finger flexors in the narrowed channel of the
wrist, resulting in numerous neurological and mobility disorders, including
pain.
Purpose of the applications >To support anti-swelling and anti-in-
fl
ammatory effects, to provide relief from or elimination of the compres-
sion, and to improve regeneration of the affected tissues.
17 • Tennis elbow 60 min
This includes pain in the elbow joint, called epicondylitis or tennis elbow,
resulting from one-sided overexertion.
Purpose of the applications >To reduce pain and support the healing
process, in addition to other surgical and rehabilitation treatments. Inflam-
matory diseases of the tendons and ligaments tend to become chronic
and recur in case of early exertion or insufficient treatment and recovery.
Therefore, magnetic therapy is recommended for prevention even during
the remission stage.
18 • Postamputation pain 30 min
Post-amputation pain, or phantom pain, is sometimes experienced in the
phantom limb or stump after limb amputation.
Purpose of the applications >To reduce pain and increase the chance
of elimination of these painful sensations.
19 • Prostate inflammation 20 min
Benign prostatic hypertrophy and inflammation of the prostate are com-
mon diseases in men and their incidence increases with age, usually start-
ing at around the age of 50. Swelling and inflammatory changes result
in impaired urine flow, with more frequent urination of small amounts of
urine. This condition is not only annoying but also poses a serious risk of
developing malignant prostatic disease.
Purpose of the applications >To use the anti-swelling and anti-inflam-
matory effects of the low-frequency pulse magnetic therapy for healing
and restoration of normal functions.
Final_navod_Lumina_EN.indd 6Final_navod_Lumina_EN.indd 6 9.8.2013 8:57:259.8.2013 8:57:25
Usermanual page | 7
20 • Extremity ischaemia (reduced blood flow to extremities)
25 min
Damage to blood vessels in the extremities (arteriosclerotic changes and other
causes) results in insufficient supply of oxygen and nutrients to the muscles and
tissues. This leads to many trophic changes that may result in limb amputation.
Purpose of the applications >Low-frequency pulse magnetic therapy
dilates minor capillaries and pre-capillaries, and signifi
cantly improves
blood flow and supply of oxygenated blood to the tissues. In this way, it
provides better conditions for normal functioning.
21 • Diabetic foot 20 min
Diabetes may cause diabetic neuropathy and microangiopathy – i.e. dam-
age to minor arteries that supply oxygen and nutrients to the tissues. Acid
metabolites accumulate in the tissues leading to further progression of
the disease. Trophic changes may result in venous ulcers and amputation.
Purpose of the applications >To reduce pain and improve blood cir-
culation in the tissues. The therapy supports vascular flow – i.e. blood
vessel dilation – to increase oxygen and nutrient supply to the tissues and
release and remove accumulated acid metabolites. This will increase the
chance of saving the limb while reducing the secondary consequences of
the diabetes in the vascular system.
22 • Tinnitus 30 min
Tinnitus (murmur or whistling in the ears). This condition is caused by a
dysfunction of a part of the inner ear, mostly due to ischaeamic vascular
changes.
Purpose of the applications >The goal of magnetic therapy is to influ-
ence the vascular system and improve oxygen and nutrient supply, and to
try to preserve the function of the hair cells in the inner ear, which leads
to normalisation of functional pathological manifestations, and minimises
further permanent damage.
23 • Venous ulcer 15 min
Venous ulceration is disintegration of the superficial tissues of limbs due
to vascular changes in the lower extremities.
Purpose of the applications >To support healing regenerative pro-
cesses and create the best possible conditions for healing of the lesion
and improved viability of the affected tissues.
24 • Brain dysfunction in children and adults 25 min
Minimal brain dysfunction in children is a disorder of the central nervous
system in children. It is developed during intrauterine life, due to birth trau-
ma, ischaemia and many other factors. The extent of damage determines
a wide range of pathological manifestations – from mobility disorders to
impaired concentration, learning, etc. Targeted long-term rehabilitation is
the cornerstone of the treatment.
Brain dysfunction in adults is usually related to insufficient vascular supply
of the brain and degenerative changes due to ischaemic, autoimmune,
toxic, and other changes.
Purpose of the applications >Pulse magnetic therapy is recom-
mended because it improves muscle tone, and accelerates and improves
regeneration. Remarkable effects have been described in scientific litera-
ture even in children with severe musculoskeletal dysfunction.
In adults, low-frequency pulse magnetic therapy is intended to improve
oxygen and nutrient supply to create better conditions for preservation of
the brain’s functions.
25 • Polyneuropathy 25 min
Polyneuropathy is a diverse group of disorders related to the peripheral
nerves. Usually, this is a systemic process with involvement of multiple
nerves, resulting from various internal and external causes (such as inflam-
mation, metabolic, immunopathogenic mechanisms, toxic factors, nutri-
tional and vitamin deficiency, degenerative causes, etc.). The usual symp-
toms include tingling, burning, pain, reduced sensitivity, uncertain walking,
muscle weakness, aches and spasms, and many other symptoms.
Purpose of the applications >Magnetic therapy is an optimal sup-
portive treatment for all types of polyneuropathy. It modifies the immune
system and its responses, has anti-inflammatory effects, reduces pain,
improves blood circulation and metabolism in tissues, improves oxygen
supply to the tissues and supports regeneration.
26 • Periodontitis 45 min
Periodontitis is chronic inflammation and damage to the periodontium, i.e.
the tissues that surround and support the teeth. The very first symptoms
are swelling and reddening of the gums, bleeding, painful sensations
when cleaning teeth, and halitosis.
Purpose of the applications >Stimulation of tissues by low-frequency
pulse magnetic fi
eld significantly improves blood oxygen supply to the af-
fected gums to support the healing process, eliminate swelling, suppress
inflammation, and reduce pain. Magnetic therapy is an effective comple-
ment to dental care.
27 • Muscle fatigue 30 min
Muscle fatigue after exercise, heavy physical work and when exhausted.
Purpose of the applications >To reduce pain and create metabolic
conditions to accelerate muscle recovery.
28 • Regeneration 25 min
Regeneration after physical work and sport, targeted preparation for in-
tended demanding activities.
Purpose of the applications >To accelerate the recovery process and
restore energy reserve in muscles by improving blood oxygen and nutrient
supply and removing acid metabolites. This will help create optimal condi-
tions for the next demanding physical activity.
29 • Before a massage 20 min
A 20-minute preparation before a massage session and before the use of
manipulation procedures.
Purpose of the applications >To enhance blood circulation in tissues,
release and remove acid metabolites, relax muscle spasms and contrac-
tures and provide optimal preparation for the massage session so that the
final effect is much greater and stronger.
30 • Relaxation 45 min.
The application is intended for individuals who need to achieve intensive
relaxation. Recommended after increased physical and mental exertion
and in those suffering from psychological stress.
Purpose of the applications >To achieve calming and overall relaxa-
tion of the blood circulation and nervous system.
Final_navod_Lumina_EN.indd 7Final_navod_Lumina_EN.indd 7 9.8.2013 8:57:269.8.2013 8:57:26
8| page Usermanual
31 • Magnetisation of water 20 min
The low-frequency pulse magnetic field may be used to treat drinking
water and/or foods with a high water content (drinks, fruits, etc.).
Purpose of the applications >By affecting the inner structure and
bonds of water molecules, water is activated and the bonding capability
of water as a solvent is increased, stimulating all metabolic processes in
the body.
32 • Program INDIVIDUAL
Factory setting: 30 min, frequency 50 Hz, wobbling 10 Hz pulse after
pulse, intensity 80 %, pulse profile: rectangle
Program which enables custom setting of parameters for the applications:
frequency, frequency wobbling, application type, wobbling type, pulse
profile, intensity and time.
For setting the Program INDIVIDUAL, refer to the table of prevailing thera-
peutic effects and other information specified on page 16.
Purpose of the applications >Allows the user to enter their own set-
ting of the program and fi
nd the best frequency range with optimised
parameters.
Automatic program repeat max. 4x 2 h = 8 h + time of the
last repeat
Allows to repeat the selected program 4 times in a row.
Each repeat is started 2 hours after the beginning of the program ap-
plication.
For example, program No. 3 – Joint arthrosis, 45 min
First application 45 minutes, then 1 hour 15 minutes pause, second ap-
plication 45 minutes and again 1 hour 15 min pause, etc.
Purpose of the applications >Allows the user to enter their own set-
ting of the program and fi
nd the best frequency range with optimised
parameters.
Other applications of magnetic therapy can be found in professional lit-
erature (brief list - see page 30).
For various methods of using magnetic therapy according to the application
points, see the book "Health and Biomag Magnetic Therapy"®(pages
20–48).
Cellulite
Cellulite starts at an early age, especially in overweight people, in certain
vulnerable areas of the body, in connection with malfunction of the vascu-
lar and lymph skin circulation and insufficient removal of metabolites and
toxic substances from these areas. This results in changes in the ligament
and subcutaneous adipose tissue which are enlarged, hypertrophic and
stiff, which leads to unsightly, “orange peel” skin.
The healing method is derived from the cause of the disease. The aim is to
improve the vascular and lymph circulation, improve the supply of oxygen-
ated blood, enhance metabolite and toxic substance removal, and reduce
excessive subcutaneous adipose tissue.
Purpose of the applications >Low-frequency pulse magnetic therapy
– due to the significant vasodilatation, anti-swelling, counter-inflammatory
and detoxification effects – supports other healing procedures and mo-
tor activities (lymph drainage, stabilisation of weak ligaments, diet and
exercise procedures, medical cosmetics, etc.), which results in higher ef-
ficiency of the healing process. The applications can be made even more
effective by combining magnetic therapy and polarised light.
Properly functioning vascular and lymphatic systems require sufficient in-
take of liquids – the basic condition of any detoxification process.
Magnetic therapy should be applied every day, repeatedly, on the affected
parts of the body.
It is recommended to use program No. 28 – Regeneration preferably
twice in a row at least once daily.
The low-frequency pulse magnetic therapy system allows prepa-
ration of magnetised water, which has greater capability to re-
move waste products of the metabolic process from the body,
complementing the general care of people with cellulite prob-
lems. (page 17).
In addition to the programs above, magnetic therapy is also used in health-
care practice for its beneficial effects on other health problems. The most
frequent conditions are pre-set in the Biomag®Lumina CLINIC system.
(see the table providing a list of conditions – on page 19).
Frequency Wobbling/type
Intensity/pulse shape
Time
User's records of the Program INDIVIDUAL settings
Final_navod_Lumina_EN.indd 8Final_navod_Lumina_EN.indd 8 9.8.2013 8:57:269.8.2013 8:57:26
Usermanual page | 9
a) Description of the device and controls
At the top and at the bottom
hole for attachment of fixation strap
At the back - system restart
button
2. DEVICE CONTROL
8–11 LEDs indicating the applicators are connected to single outputs 1–4
13–16 Outputs (connectors) for connection of applicators
(connector 1 – connector 4)
12 Connector for power cord
1Graphic information display
2Button UP
3Button for displaying the list of all
installed programs
4Confirmation button START/STOP
5Button for displaying the MY
PROGRAMS list
6Button DOWN
7LED
indicating connection to power supply
(lights permanently)
battery recharging (flashes)
Final_navod_Lumina_EN.indd 9Final_navod_Lumina_EN.indd 9 9.8.2013 8:57:289.8.2013 8:57:28
10 | page Usermanual
1 | Connect the device to the socket using the power
cord *
The device displays identification data and then the program that was
used last.
2 | Connect 1 to 4 selected applicators **
The outputs for the applicators are at the bottom of the device. (13 to 16).
Apply the applicators conveniently on the affected areas of the body.
3 | Program selection
If the selected program suits you, go to step 4.
You may select another program using the following steps:
Use the button (3) to display the list of all programs.
Use the button (5) to display the most frequently used, favourite pro-
grams .
Use the buttons (2 and 6) to select the required program.***
4 | Starting the program
Use the button (4) to start the program.****
The application is running.
After 6 minutes, the display switches over to the energy-saving mode.
5 | Switching off the system
First, use the button (4) to suspend the running program.
Hold the button (4) for the period of 6 beeps and confirm by "YES"
to switch off the system.
The system automatically turns off after 6 minutes of idling.
Notes
* If a charged battery is in the system (the battery is recharged any time
the system is connected to the electric grid), applications can be per-
formed in the same manner as with the system connected to the electric
grid.
Due to reduced power of the system when powered from a battery, the
application time is automatically prolonged by 30%. For example, 1 hour
of operation when powered from the electric grid = 1 hour 20 minutes of
operation when powered from a battery.
** The double connector and triple connector are properly plugged in if
the connector side with the Biomag®logo is facing upwards.
*** In the CLINIC mode, you can repeatedly press the button to
search for programs by entering the program number right on the display.
**** In the CLINIC mode, you can press the round button(4) to dis-
play the screen with options for the application time adjustment. Use the
arrows (2 and 6) to change the application time. Press the
button (4) repeatedly to display the screen with options for intensity ad-
justment. Use the arrows (2 and 6) to change the intensity. Press
the button (4) to start application.
Tips
• You can interrupt the program at any time by briefly pressing the
button (4).
• You can resume the application by pressing the round button (4)
again.
• The program ends after the time displayed on the screen has lapsed.
• By selecting program No. 32 INDIVIDUAL you can adjust parameters
of the program.
• Hold the button (4) for 3 beeps to start automatic program repeat (if
the automatic repeat is available in the program ).
• If you want to set other features of the system, follow the instruction
on the display by selecting the "Next menu" item. Display the screen
with the "Next menu" item before starting the application, or from the
suspended program from both lists of the programs by double-
clicking the round button (4). To proceed, select the item using the
arrows (2 and 6) and press the button (4).
• You can quickly copy programs from the the list of all programs, rename
them and remove the unused programs from the list of your own pro-
grams.
Triple click the button to display the menu for copying and renam-
ing programs.
Triple click the button to display the menu for removing a program.
Other possible system settings are described on pages 12–13.
Parallel run of another program
The system may be equipped (as an option) with the function for inde-
pendent running of 2 programs, i.e. for outputs 1, 2 and 3 and separately
for output 4, or for outputs 1 and 2 and separately for outputs 3 and 4.
• The function of a separate run of the right output / right outputs is done
after starting the application on the left outputs by triple clicking the
button (4). You will know you have entered the program selection for the
right outputs by the purple colour of fonts. In this "purple zone" you can
select, start and suspend the programs.
• During the application you can display information on the running pro-
grams on the left and right outputs / right output by double clicking the
button (4).
This quick start is intended for easy orientation. Use it only after you have been provided with professional training and have
studied the complete User Manual. Always follow the safe operation rules (page 4) and the contraindications (page 5).
For the magnetic therapy application, at least one applicator must be connected to the device. You are recommended to
use two applicators at a time (the first to the causative area of the problems and the latter to the affected part of the body).
The system can run in the EASY or CLINIC modes. Before starting the program, double click the round button (4) to
display the set mode.
b) Basic operation – quick start
Brief instructions for the Biomag®Lumina device operation
Final_navod_Lumina_EN.indd 10Final_navod_Lumina_EN.indd 10 9.8.2013 8:57:309.8.2013 8:57:30
Usermanual page | 11
Explanations
Light signals
The bottom part of the device includes LEDs (1 green, 4 blue) indicating certain states of the device. If the green LED is lit permanently, the system is
connected to electric grid. Flashing green LED indicates recharging the battery (when the battery is fully charged the LED stops flashing).
Blue LEDs light permanently (when applicators are connected). When the blue LED flashes or is not lit (when applicators are connected), it indicates
a fault of the applicator (see page 29).
– this button displays the 4 most frequently used programs as standard and 4 copied programs from . The user can order expansion of their
own programs from their local dealer.
Other
Parameters of programs cannot be changed in the MY PROGRAMS list.
Two rotary programs 3D(No. 1 – Pain conditions and No. 31 – Magnetisation of water). You can order program expansions with 3D technology
according to the user's requirements for any other program.
The system is connected to the electric
grid (this is not necessary when powered
from a battery) and is placed on a stable
surface within the reach of the user's
application position.
Selected applicators are properly
connected to the device.
The device is switched on and the user
has selected an application program.
The user has applied the selected
applicators on the application site (sites)
and is in a comfortable position (lying or
sitting).
Example of proper connection of the Biomag®Lumina system before starting
the application
Final_navod_Lumina_EN.indd 11Final_navod_Lumina_EN.indd 11 9.8.2013 8:57:309.8.2013 8:57:30
12 | page Usermanual
c) Operation of the Biomag®Lumina system and
other possible settings

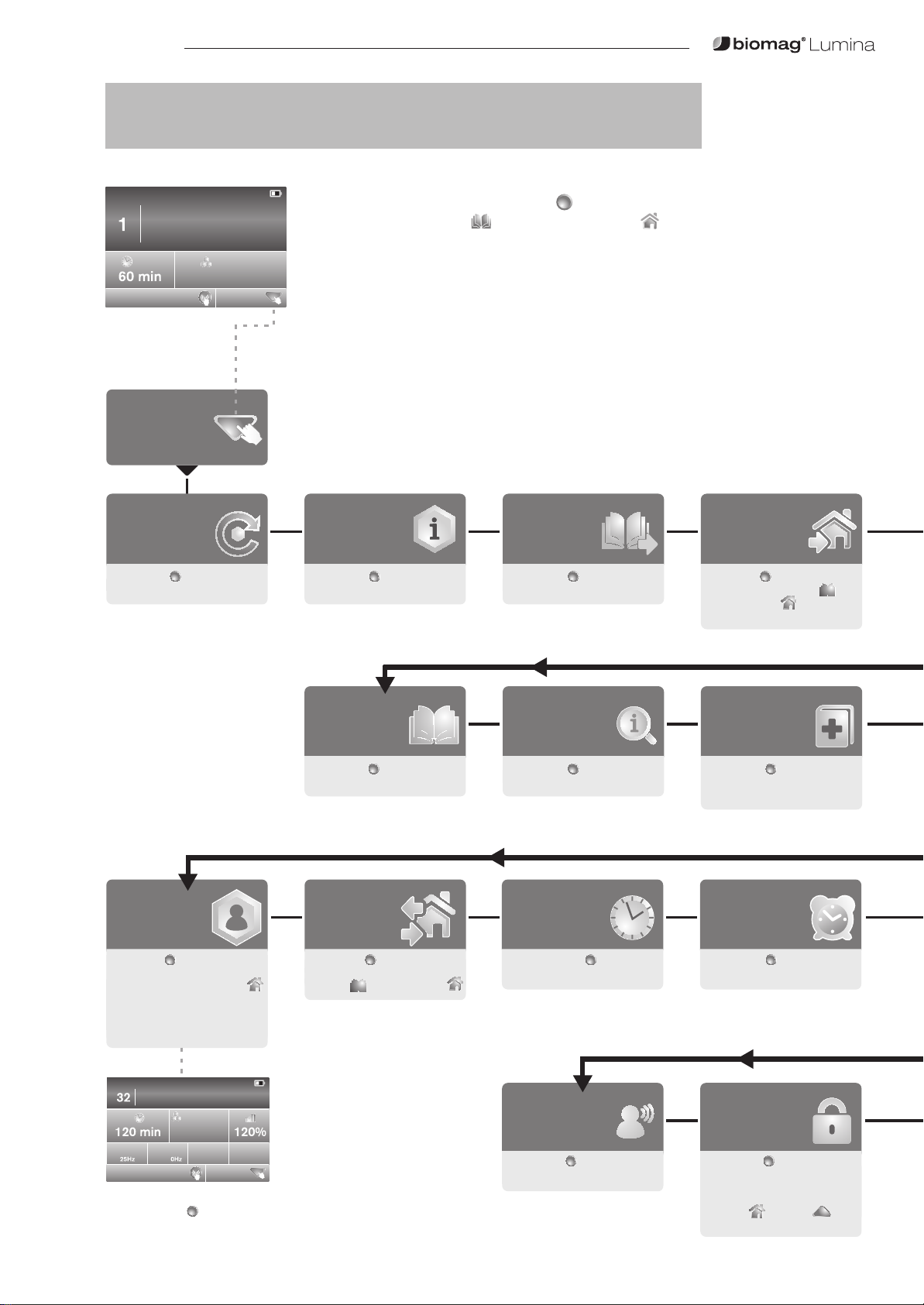

To display program details, double click the button on any program
from the list of all programs or from MY PROGRAMS
Pain
conditions
Program details
Start with the button Next menu
Duration Program type
Program details
Program type
EASY
ROTARY
Start with the button Next menu
Frequency Modulation Pulse-by
pulse type Pulse profile:
rectangular
EASY, ROTARY
Next menu
Start
automatic
repeat
Program
INDIVIDUAL
Program INDIVIDUAL
Transfer of
programs
Confirm with
to start the
program repeat
Information
on program
Confirm with to display
information for each program
List of all
programs
Confirm with
to display the list
of all programs
Continue by
program
selection
Confirm with button to display
the list of all programs
Copy to
MY
PROGRAMS
Confirm with to set your own
parameters of the program which
can be saved in
MY PROGRAMS
(frequency, frequency modulation,
application type, modulation type,
pulse type, intensity and time), see
page 16
To set the Program INDIVIDUAL
quickly, press the button three
times in quick succession.
Confirm with to add or remove
programs from the list of all
programs to
MY PROGRAMS
Time
setting
Confirm with the button to set
the time
Set the
reminders
Confirm with
to set up to 3
reminders
Display the
instructions
for use
Confirm with to display the
instructions for use of the system
Display the
basic effects
Confirm with to display
information on basic effects of
Biomag®magnetic therapy
Language
selection
Confirm with to change the
system language
Keypad
lock
Confirm with to lock the system
in the current program. Then you
cannot change it. After unlocking
the system you have to enter a
PIN (then
and press three
times)
Confirm with to copy any program
from the list of all programs to
MY PROGRAMS ; you can input
your own name.
Final_navod_Lumina_EN.indd 12Final_navod_Lumina_EN.indd 12 9.8.2013 8:57:329.8.2013 8:57:32
Usermanual page | 13
Touch the display to select your own name and
use the round button to save it.
• Key combinations
Press the and buttons simultaneously
to display the screen to enter the code (when
buying other functions of the system).
Press the buttons simultaneously to
display the screen with information necessary for
your communication with the service centre.

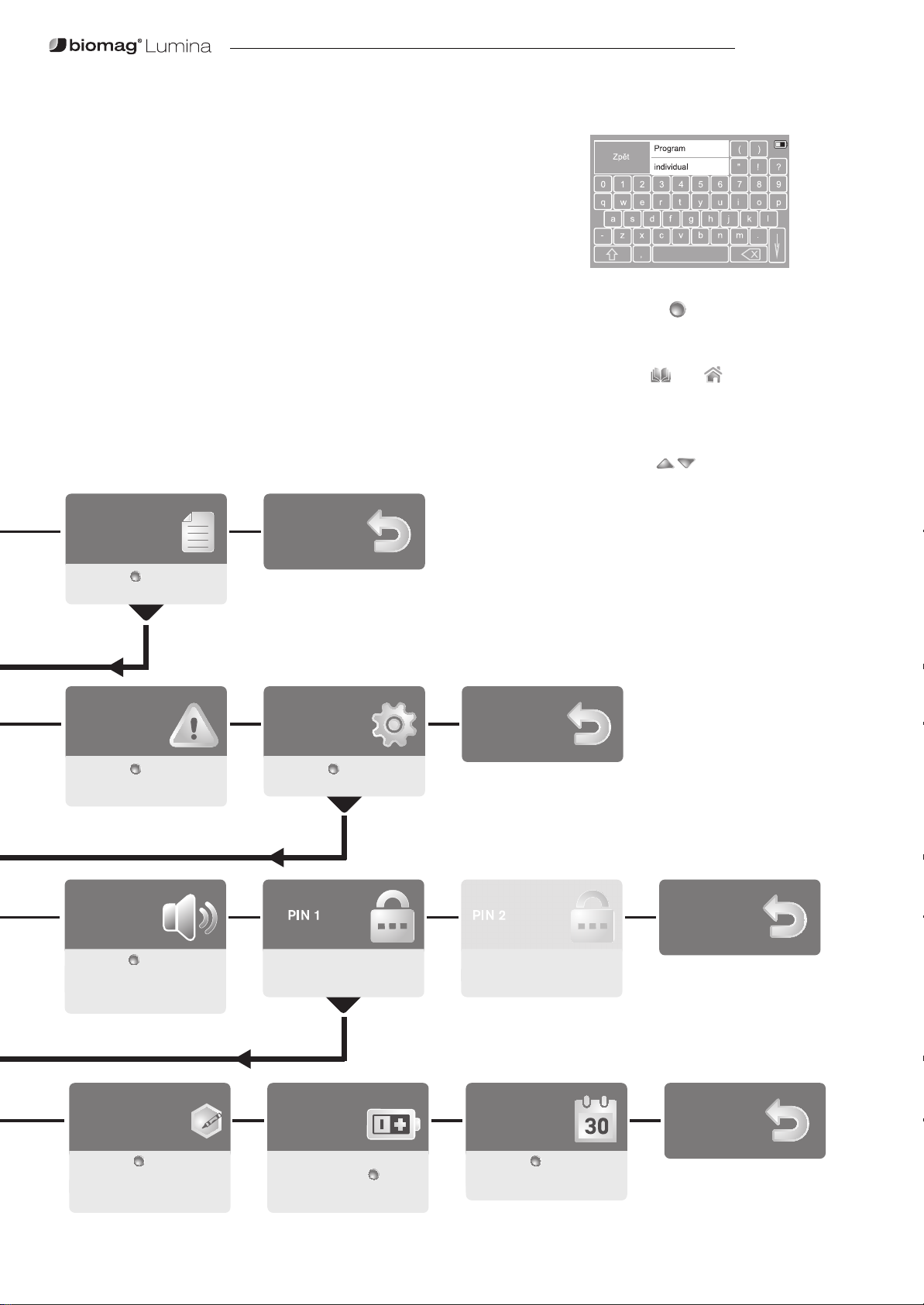

• How to rename programs
Display the
MENU
Confirm with to browse
through the system MENU
Set the
audio
indication
Back
Back
Back
Back
Confirm with
to set the volume
of audio indication (welcome tone,
button tone, fault alarm, end of
program, reminder)
Displays the field to enter PIN 1;
contact your dealer to obtain
PIN 1
For authorised service only
System
settings
Confirm with to enter the
system settings menu
Display the
contraindi-
cations
Confirm with to display the list
of contraindications - pay special
attention to them!
Number of
pre-paid
applications
Application
history
Confirm with
to set the number
of applications after which the
system will switch off. No default
number of applications is pre-set.
Battery
For the system with an integrated
battery: Confirm with
to
activate/deactivate powering the
system from the battery
Confirm with
to display the
history of applications within the
system operation
Final_navod_Lumina_EN.indd 13Final_navod_Lumina_EN.indd 13 9.8.2013 8:57:329.8.2013 8:57:32
14 | page Usermanual
The following text describes the basic effects of the low-frequency pulse
magnetic field (LPMF).
Based on the application purposes specified on page 3, the Biomag®
Lumina system is used to apply pulse magnetic fields.
Biomag®Lumina is a very beneficial part of treatment and rehabilitation
and an excellent aid in treating health problems providing that the instruc-
tions for use are observed and contraindications respected. It is also very
suitable as part of preventive care.
The application is recommended especially for the musculoskeletal sys-
tem diseases, vascular system disorders and a wide range of degenera-
tive diseases.
Professional literature provides more detailed information on possibilities
and methods of applications. Recommended Czech literature is listed on
page 30.
Scope of use and concept of biological effects
Magnetic therapy is based on the influence of an artificial magnetic field
of certain parameters on the human body. It is a physical therapy which
generates large-area pulse magnetic field of low frequency. Pulse mag-
netic field acts on the cell membrane permeability, i.e. it improves and ac-
celerates metabolism. Blood circulation and oxygen supply is significantly
better in the part of the body to which the pulse magnetic field is applied.
Increased metabolic turnover and improved supply of exposed tissues with
oxygenated blood and nutrients provide optimal conditions for healing and
regeneration. It is important that the magnetic field passes through the en-
tire body and therefore affects each cell.
Areas of possible use
Rehabilitation, orthopaedics, surgery and traumatology, dermatology,
neurology, rheumatology, balneology, internal medicine, sports medicine,
gynaecology, urology, paediatrics, gerontology and dentistry.
Therapeutic effects of LPMF
Biological changes in the tissues resulting from the effects of low-fre-
quency pulse magnetic field can be beneficially used in a number of
health problems. The effects can be summarised in six treatment groups
and effects:
• Pain-relieving (analgesic)
• Myo-relaxing (relief from spasms)
• Anti-swelling (anti-oedema)
• Vasodilating (widening the bloodstream)
• Detoxification (eliminating harmful substances) and accelerating
metabolism
• Healing and regenerative, anti-inflammatory, anti-rheumatic
Frequencies inducing preferably the therapeutic effects are described
and provided graphically in the table on page 16.
Pain-relieving (analgesic) effect – due to magnetic induction, the LPMF
stimulates generation of current in nerve fibres, which blocks painful
sensations moving from the pain source via the spinal cord to the brain
centres, and as a result of this and some other mechanisms (enhanced
endorphin production, suppression of inflammation and swelling, myo-
relaxation), it leads to pain relief. Increased production of endorphins
and control of calcium ion transfer across the cell membrane also helps
achieve vasodilation, and analgesic and calming effects. After applica-
tion of LPMF, increased activity of lactate dehydrogenase (required for
removal of lactic acid which stimulates nerve receptors and causes pain)
has been demonstrated in exposed muscles. Especially good pain-reliev-
ing results with the Biomag®system have been proven in radicular (root)
and pseudoradicular syndromes (sciatica, compression of nerves for vari-
ous reasons). The analgesic effect is the basic effect, for which magnetic
therapy is used in most people. It can be widely used in a whole range of
degenerative diseases of the musculoskeletal system, post-traumatic and
postoperative conditions.
Myo-relaxing effect (relief from spasms) – relaxing skeletal muscles.
Low-frequency pulse therapy is used to remove acid metabolites faster
(due to enhanced perfusion and improved activity of lactate-dehydro-
genase), which results in relief from painful irritation in muscles and in
the sites of chronic inflammation. This reduces pain and relieves painful
muscle spasms (contractions). Magnetic therapy has also demonstrated
significant deceleration of nerve conduction in the lower extremities of
athletes – this effect also contributes to myo-relaxation (muscle relaxa-
tion). The myo-relaxing effect of the Biomag®system on the back muscles
(para-vertebral striated musculature around the spinal column) brings
relief from many problems, e.g. stiff cervical spine, headache, dizziness,
impaired hearing, limited mobility, pain that spreads from the spine to the
extremities, etc.
The myo-relaxing effect on the muscles brings relief during colic and re-
laxation of the skeletal muscles is necessary in the treatment of any painful
conditions of the musculoskeletal system.
Anti-oedema (anti-swelling) effect – of accelerated metabolism after
the LPMF application enables faster re-absorption of swelling and pro-
vides significant anti-inflammatory and analgesic effects in the affected
area. Position the Biomag®system applicators over the affected area
(e.g. in the case of an ankle sprain) and repeatedly perform 30-minute to
45-minute stimulations three times daily to achieve significant relief from
swelling and pain. Anti-swelling and anti-inflammatory effects can also be
used successfully for upper respiratory tract infections, sinusitis, inflam-
mation of the gums, in allergic rhinitis, etc.
Vasodilating effect (improved blood circulation) – LPMF affects the
polarization of red blood cells by positive charge. It acts against the stack-
ing (coin-roll formation) of red blood cells as it causes their re-disper-
sion, thereby increasing the surface area capable of binding and carrying
oxygen. Blood which has passed through a magnetic field has a higher
ability to bind oxygen (it is easier to oxidise). Polarisation of red blood
cells improves the muscle tone of blood vessels, arteries and capillar-
ies – causing their dilation (vasodilation) and enhancing the supply of
oxygenated blood and nutrients to the tissues and faster removal of toxic
substances out of the cells. The partial oxygen pressure is significantly in-
creased. The LPMF acts positively on erythrocyte plasticity. More flexible
blood cells can better adapt to "obstacles" in the vasculature. LPMF also
reduces the risk of blood clots (thrombi). Low-frequency pulse magnetic
therapy activates the parasympathetic nervous system and promotes the
3. APPLICATION
Final_navod_Lumina_EN.indd 14Final_navod_Lumina_EN.indd 14 9.8.2013 8:57:339.8.2013 8:57:33
Usermanual page | 15
efflux of Ca2+ ions, which leads to relaxation of the blood vessel muscles
(particularly pre-capillary sphincters) and to subsequent vasodilation. All
this contributes to harmonisation of the heartbeat, circulation and blood
pressure. LPMF has proven successful, mainly in mild forms of ischaemic
heart disease, but also in lower and upper limb ischaemia, non-healing
lower leg ulcers, and in all perfusion disorders. No recanalisation of al-
ready obstructed vessels occurs, but the collateral circulation in the skin
and muscle tissues is greatly dilated.
Vasodilation is desired in any vascular system disorders where the oxy-
genated blood flow is impaired, i.e. in ischaemic disorders of the extremi-
ties, heart or brain, all cases where a better supply of oxygen helps healing
and improving the function of the tissues and organs and also provides
anti-inflammatory effects.
Detoxifying effects (purifying) – stimulation of metabolism. LPMF (low-
frequency pulse magnetic field) passes evenly through the exposed tis-
sues, i.e. through every cell, inducing weak electrical currents there. This
leads to changes in the surface potentials of the cells, changes in cellular
membrane permeability, increased blood circulation, improved oxygena-
tion, nutrient supply and better removal of metabolic waste from the ex-
posed tissues, which are the basic requirements for any healing process.
Enhanced metabolism, removal of waste products and detoxification initi-
ate any healing and regenerative process. For example, exposition of the
liver using the Biomag®system stimulates liver function, and accelerates
and enhances detoxification processes in the whole body. Local effects
are achieved by placing the applicator on the affected area – e.g. muscle,
joint, spine, etc. By using a small applicator, we can achieve stronger local
effects due to a higher induction, while the use of the applicator with a
larger application area results in a greater positive whole-body metabolic
effect despite the lower induction.
This effect leads to improvement in many diseases and conditions, e.g.
diabetes, gout, regeneration of tissues after infections (hepatitis, mono-
nucleosis, toxic destruction of tissues, etc.), and also in eczema and al-
lergies.
Healing and regenerative effect – has been demonstrated for bones
and soft tissues, and it is explained by a nonspecific irritation of the cyto-
plasmic membrane, which leads to the activation of the metabolic chain,
where the key point is the alteration of the cAMP/cGMP ratio and in-
creased activation of osteoclasts during bone healing. LPMF significantly
accelerates the healing process, activates the formation of new tissue
(rapid building of bone tissue and calcification) and leads to increased
sensitivity to the parathyroid hormone. Therefore, low-frequency pulse
magnetic field is used to accelerate the healing of fractures, pseudo-ar-
throsis (false joint), and for the reinforcement of loose and painful endo-
prostheses. The LPMF application increases the level of proteoglycans in
cartilage by up to 22% (according to Chvojka), which allows healing and
regeneration of cartilage that is otherwise difficult and influenced only to
a limited extent. Accelerated wound healing has been demonstrated not
only in blood, but also in soft tissue. The Biomag®series systems have
a positive effect on both sterile (rheumatoid diseases) and microbial in-
flammations and their healing. They induce increased phagocytic activity,
including production of superoxide, which inhibits microbial flora, but can
also be a source of temporary impairment, such as in patients with rheu-
matism during the first applications. Subsequent activation of superoxide
dismutase leads to alleviation of symptoms and onset of healing changes.
Especially good results are achieved in the radicular and pseudo-radicular
syndromes (sciatica, nerve oppression of various origin). This effect is a
complex of other partial effects and it supports the natural ability of the
human body to heal and regenerate.
Characteristics of the LPMF and frequency range used
in the Biomag systems
Polarity of applicators
Pulse of one polarity generated by the Biomag®systems allows the ap-
plicators to always have the same polarity at a certain area (applicator
polarity and its identification are described on page 21).
Low frequency – 1 to 10 Hz
Analgesic and myo-relaxing effects prevail.
Medium frequency – 10 to 15 Hz
Anti-inflammatory, suitable for chronic and degenerative diseases. It has
vasodilating and anti-oedematous effects, and enhances blood and lymph
circulation.
Higher frequency up to 25 Hz
Stimulating effects prevail which support bone healing, improve post-
traumatic conditions and burns, stimulate healing process during acute
disease and provide detoxification.
Frequencies above 25 Hz (26 to 162 Hz)
Used when we need to increase the intensity of the LPMF effects, or for
certain types of health problems such as burns, difficult fracture heal-
ing, and pseudoarthrosis. Intended for more intensive stimulation of the
healing process, regeneration, and detoxification. Applications of higher
frequencies should be consulted with a specialist doctor providing con-
sultancy for pulse magnetic therapy.
Every authorised dealer is able to put you in contact with specialists
providing professional consultancy.
Selection and use of the
applicators
From the applicators available (see below), always select the type that
best suits the particular therapeutic purpose, and place it as close to the
surface of the treated part of the body as possible. Some applicators can
be fixed to the affected part of the body with an elastic strap. Most of the
other applicators can be fixed on the body using the relevant orthopaedic
FIX DUO fixtures. It is good to use it if necessary because precise posi-
tioning of the applicator increases the application process efficiency (for
solenoids generating the spatial pulse magnetic field, it is sufficient just
to insert the treated part of the body into the inner space of the solenoid).
When selecting a suitable applicator, focus on positioning the applicator
comfortably on the body, as close to the affected part of the body as pos-
sible; you should also consider whether the deep treatment (SOLENOID)
is required or whether just a flat applicator will be sufficient.
In both modes (EASY and CLINIC) in programs marked with the
symbol, it is convenient to use the applicator with a triple-connector (page
10), which turns on the individual components of the applicator gradually
and guarantees that when the applicator components are assembled, or
get close to each other, the magnetic field intensity is not reduced. It also
provides better penetration of magnetic field into the treated part of the
body, which improves the efficiency of the application.
®
Final_navod_Lumina_EN.indd 15Final_navod_Lumina_EN.indd 15 9.8.2013 8:57:339.8.2013 8:57:33

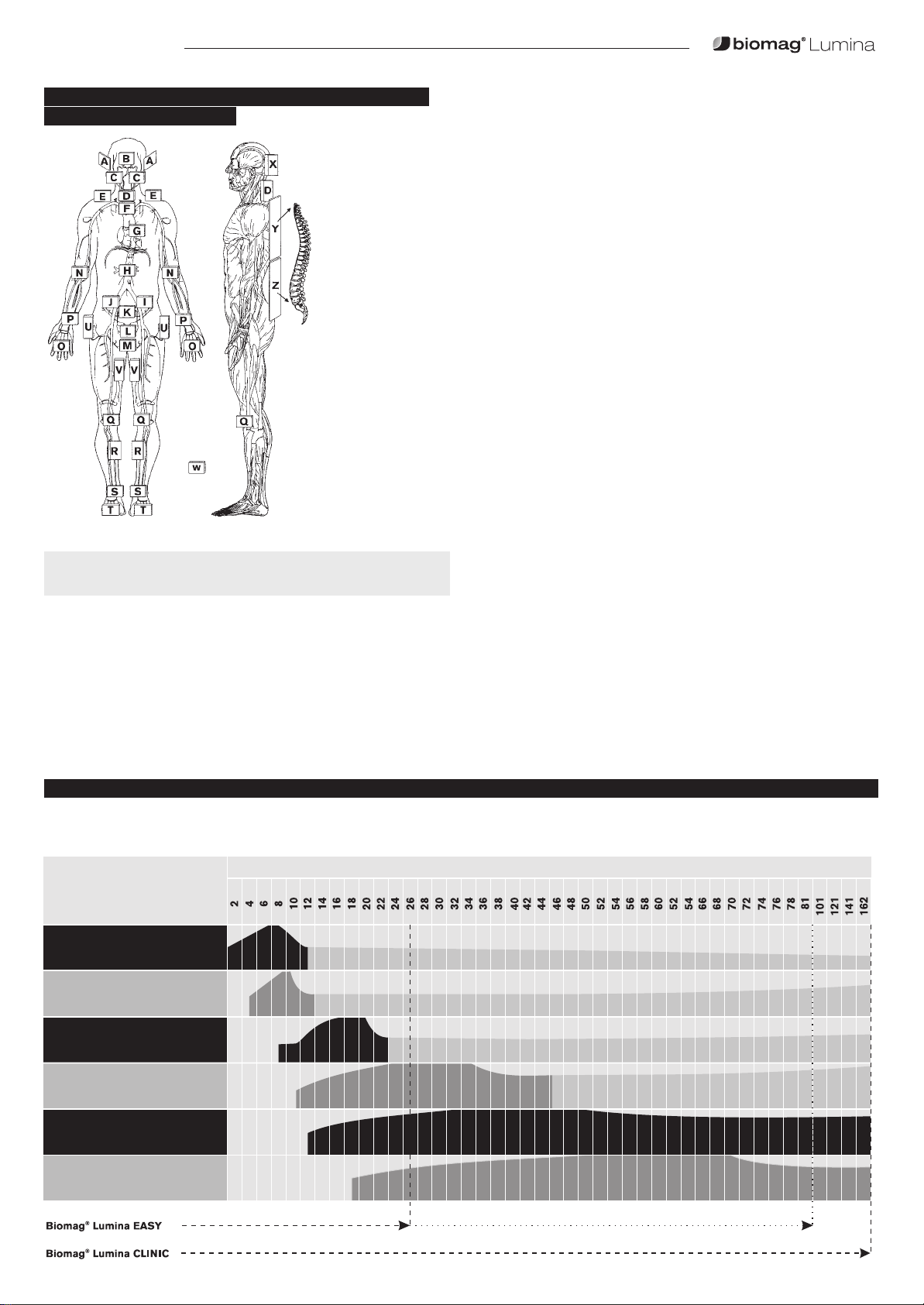

16 | page Usermanual
Brief instructions for settings based on required therapeutic effects
For setting pulse shape, LPMF intensity and frequency modulation use program No. 32 – INDIVIDUAL and set the required parameters.
The table shows prevailing therapeutic effects based on frequencies (guide for the Program INDIVIDUAL).
Points for orientation when positioning applicators
during magnetic therapy *
The following description is focused on the choice of frequency and
other LPMF parameters by therapeutic effects. It is used for the Pro-
gram INDIVIDUAL. Therapeutic effects are provided on page 14–15.
For easier setup you can also select the option of preset parameters
for each program (description of simple setup procedure is provided
on page 10; for a list of preset programs, see pages 5–8 and 18–20).
Knowledge of the cause of the problems is a critical requirement
for the application. It determines the frequency that is to deliver the
desired effect. To provide benefits in a number of medical conditions
and disorders, it is suitable to use more effects, in a successive or
alternate manner.
For example, problems with severe pain will be addressed first by using
frequencies inducing analgesic effect, and after remission of the acute
pain frequencies inducing healing or other desired final effects should
be used.
Pulse profile, intensity of LPMF and frequency modulation (wobbling)
The program INDIVIDUAL indicates pulse profile for each frequency and
intensity. A sharp pulse profi
le has a stimulating effect (PIKE, TRIANGLE)
while other profiles (ROUNDED, RECTANGULAR) have pain-soothing
effects and relax spasms. Modulation of frequencies in three-minute se-
quences provides the desired effect in a smooth manner. Modulation of
frequency after a pulse provokes more pronounced response of the body.
These facts should therefore be taken into consideration when choosing
the right application.
In this manual, we mainly describe and recommend the program frequen-
cy range of 1-81 Hz. Frequencies above 81 Hz (designed for special ap-
plications) are used for certain types of disabilities, such as burns, poorly
healing fractures and pseudo-arthrosis. In cases where the cause of local
pain is somewhere else, we recommend applying pulse magnetic field
using two applicators at both sites simultaneously.
Each effect and the use of magnetic therapy should be judged by the
specific condition and response of each patient. In the event of an
unexpected reaction, stop the application immediately! The applica-
tion should not be resumed unless checked by the specialist doctor
based on the procedure specified by them.
When using magnetic therapy as part of treatment for orthopedic and
similar difficulties, in some people a slight temporary increase in sensitiv-
ity may be expected. This is a so-called spa syndrome and is frequently
followed by a significant improvement. You are advised not to stop the
application, but only to reduce the application intensity for 2-5 days.
Frequencies in Hz
Prevailing
therapeutic
effect
Myo-relaxing
Regenerating and healing
Vasodilating
Analgesic
Anti-oedema
Detoxifying
*) For more details about the
application points, see the
book "Health and Biomag
Magnetic Therapy"®on
page 22.
Brief plan of the LPMF application
Final_navod_Lumina_EN.indd 16Final_navod_Lumina_EN.indd 16 9.8.2013 8:57:339.8.2013 8:57:33
Usermanual page | 17
The Biomag®Lumina electronic system is a modern system for the ap-
plication of pulse magnetic fields of low frequency which have a positive
regenerative effect on human health boosting the immune system. Op-
eration of the system is very easy. There is indication of states, including
failures. Some states are indicated by audio signals.
In the EASY mode (for home care), the system offers 32 programs with
the frequency range of 1 to 81 Hz, and in the CLINIC mode (for health-
care providers), there are 108 programs with the frequency range of 1
to 162 Hz. The system generates pulses of one polarity and has 10 time
ranges, five levels of output power, four outputs and it is relatively powerful
despite its very small size. The components of the device and the applica-
tor are tested at a test voltage of 4000 V which guarantees absolutely
safe operation.
Biomag®Lumina is a portable magnetic therapeutic system designed for
non-continuous operation. The application is ended when the selected
program has finished. All indicators and controls are on the front panel of
the device. At the bottom of the front part of the device there are 4 con-
nectors for the applicators and a connector for the power cord. The back
side includes a label with identification data of the system and the manu-
facturer, and the bottom part includes the serial number and the system
restart button.
Disconnection of the system from power supply is done either by pulling
the power cord from the device connector (the power cord connector is
shown on page 10 in the description of the system and its controls), or by
pulling out the power cord plug from the mains socket.
Specifications of the system are provided in Table 1 on page 18; software
is specified in Tables 2 and 3 on pages 18–20.
4. TECHNICAL SPECIFICATIONS
Number of applications
In general, the application time of magnetic therapy should be different
for different cases, sometimes also repeatedly in long cycles. Applica-
tions are usually performed twice a day; in more severe cases they can
be performed 3 times times a day on average or more often, at the rec-
ommended time interval of 6 hours. Where it is possible, do not stop
magnetic therapy suddenly, but at the end lengthen the intervals between
applications.
We recommend that patients with low blood pressure should rest for
about 20 minutes after the application. The recommended number of ap-
plications for short-term difficulties is 20 to 30, but at least 10 applica-
tions. Long-term repeated applications are recommended particularly for
chronic conditions and aftercare.
Before using the system, you should first consider all contraindica-
tions!
Further information for LPMF
applications
General information:
• Physiological mechanisms of the magnetic therapy act on the systemic,
organ, tissue, cellular and molecular levels.
• Magnetic therapy may accelerate the remission of problems in pain-
ful conditions of vertebrogenic or muscle origin, during inflammatory
conditions of nerves, muscles, tendons and bones, in the treatment of
joint swellings, arthrosis, while also accelerating the healing of bone
fractures, improving blood circulation in the affected areas, etc. In most
cases, the patient does not perceive any sensation during the application.
• The Biomag®tester is used to check the presence of pulsed magnetic
field.
• Magnetic field lines penetrate all parts of the body, bones and tissues
equally, the patient does not need to undress and even plaster casts are
not a problem.
• Metal implants are not contraindicated for the low-frequency pulse mag-
netic therapy.
• Before starting the treatment, have the patient assume a comfortable
position (sitting or lying).
• Attach the applicator close to the surface of the body portion to be treat-
ed, or the painful area.
• If possible, the first five applications should be performed on successive
days.
• If there is a slight impairment in the course of day 1 – 5 of the treatment, it
is a well-known process in the initial reactive phase and it is not a reason
for discontinuing the treatment. The pain usually disappears during the
following applications and is followed by significant improvement.
• If there is no reaction to treatment within 5 – 6 applications, there is a
resistance to therapy. In such cases the effects may appear with 15–20
applications.
• Minimum application time is 20 minutes; the minimum number of appli-
cations is 10 while the optimum number is 15-20, in severe cases even
more.
• Apply magnetic therapy as soon as possible. Pulsed magnetic field may
affect functional disorders, not fixed pathological changes. An important
fact is that low-frequency magnetic therapy is not addictive and has no
known harmful side effects. Contraindications are also negligible (page 5).
Magnetisation gives water unique and biologically significant properties.
Water becomes softer (surface and internal tension is reduced) and its
taste changes as well. Recommended exposure time is from 15 minutes
up to 4 hours. Magnetisation of fluids is accelerated and effects extended
if the liquid is brought to the boil and allowed to cool in the magnetic field.
This procedure is most suitable when making tea, particularly from herbs.
Food can also be magnetised, especially fruits with high water content.
For medical purposes, mostly magnetisation of water by bio-north pole
is used. Experiments have shown greater resistance of the body against
infection, regulatory effects on the digestive tract, anti-atherosclerotic ef-
fects and calming effects on the nervous system.
The Biomag®series devices can be used for very simple preparation of
magnetised water at home, e.g. by inserting a water bottle into the sole-
noid. This water is a very good detoxifier and generally helps in maintain-
ing and improving the quality of metabolism.
a) Technical description and specifications of the system
Water treatment by magnetisation
Final_navod_Lumina_EN.indd 17Final_navod_Lumina_EN.indd 17 9.8.2013 8:57:379.8.2013 8:57:37
18 | page Usermanual
Table No. 2: Biomag®Lumina software
Table No. 1: Technical specifications of the system
*
Description Values
Power supply voltage ~100 to 240 V, 50/60 Hz
Input power 60 VA
Voltage of integrated power source 24 V =
Device insulation class II.
Applied part type BF type
Environment Normal
Protection class IP 30*
MIMF Max. 51 mT
Output regulation (intensity) EASY
8 levels
CLINIC
10 levels
Number of outputs for applicators 4
Number of the EASY programs 31 programs
+ Program INDIVIDUAL, 1 to 81 Hz
Basic number of programs in MY PROGRAMS for the EASY variant 4 most frequently used + 4 customised programs
Number of the CLINIC programs 107 programs
+ Program INDIVIDUAL, 1 to 162 Hz
Basic number of programs in MY PROGRAMS for the CLINIC variant 4 most frequently used + 101 customised programs
Program frequencies EASY CLINIC
From 1 to 81 Hz From 1 to 162 Hz
Pulse profile to be selected from the menu Pulse: pike, triangular, rounded, rectangular
Pulse leading edge width (is dependent on the selected program and applicator induction) 0.4–2.5 ms
Pulse width 1.1–11.1 ms**
Pulse descending edge depending on the applicator induction 0.5–3.5 ms
Number of time ranges 10
Application times 5, 10, 15, 20, 25, 30, 45, 60, 90 and 120 min
End of application Audio alarm + display
Warning messages Audio indication + display
EMC – electromagnetic compatibility CSN EN 60601-1-2
Ambient temperature around the device +5°C to +35 °C
Dimensions 240 x 162 x 75 mm
Device weight 0.845 kg
Battery (if included in the system) – type LIP745690P/2S
Battery weight 165g
Operation time when powered from battery (with 4 outputs occupied) approx. 160 min
Battery recharging time 7 hours
*IP 3 – protected from penetration by solid objects of 2.5mm size and larger; IP 0 – not protected against water; ** changes between three levels based on the program, to induce maximum cell response
In the EASY mode, only frequencies up to 81 Hz are used.
Program No. List of programs Time (min)DF EASY intensity (%) CLINIC intensity (%) EASY frequency CLINIC frequency
1Pain 60 80 80 6 + 4, 5, 6 Hz
2Medical program 25 80 100 2–25 Hz
3Joint arthrosis 45 80 90 4–10 and 2–25 Hz 4–10 and 10–50 Hz
4Arthrosis of the spine 30 80 90 4–10 and 2–25 Hz 4–10 and 10–50 Hz
5Joint pain 60 80 100 4–10 and 2–25 Hz 4–10 and 10–50 Hz
6Spinal pain 45 80 90 4–10 and 2–25 Hz 4–10 and 10–50 Hz
7Sciatica (acute) 60 80 100 4–6 Hz
8Nerve compression (chronic) 25 80 100 13–17 Hz
9Arthritis of joints 25 70 70 2–4 and 2–25 Hz
10 Arthritis of the spine 25 70 70 2–4 and 2–25 Hz
11 Bekhterev’s disease 30 80 80 2–4 and 2–25 Hz
12 Rheumatism 30 80 90 2–25 and 8–20 Hz
13 Endoprostheses 20 80 80 8–12 Hz
14 Post-surgery conditions 20 80 100 9–11 Hz
15 Fractures 45 80 100 21–25 Hz 30–36 Hz
16 Carpal tunnel 60 80 90 4–10 and 2–25 Hz
17 Tennis elbow 60 80 80 4–10 and 2–25 Hz
18 Postamputation pain 30 50 50 2, 5, 10, 12, 15, 20, 25 Hz
19 Prostate inflammation – prostatitis 20 80 100 21–25 and 2–25 Hz
20 Extremity ischaemia 25 80 100 22–25 Hz 36–44 Hz
21 Diabetic foot 20 50 50 20–25 Hz 44–56 Hz
22 Tinnitus 30 80 90 8–20 Hz
23 Venous leg ulcer 15 50 50 10–14 Hz
24 Brain dysfunction 25 70 70 25 + 2–25 Hz
25 Polyneuropathy 25 80 90 10 and 2–25Hz 10–50 Hz
26 Periodontal disease 45 80 100 4–6 and 16–20Hz
27 Muscle fatigue 30 80 100 23–25 Hz 65–79 Hz
28 Regeneration 25 80 90 20–25 Hz 65–79 Hz
29 Before massage 20 80 100 6–10 and 10–14 Hz
30 Relaxation 45 70 70 2 + 4–11 Hz
31 Magnetisation of water 20 80 100 16 + 8–20 Hz
32 Program INDIVIDUAL 5 to 120 10 to 80 10 to 100 Your settings
1 to 81 Hz Y
our settings
1 to 162 Hz
Final_navod_Lumina_EN.indd 18Final_navod_Lumina_EN.indd 18 9.8.2013 8:57:409.8.2013 8:57:40
Other manuals for Lumina
1
Table of contents
Languages:
Other biomag Medical Equipment manuals
