Biosan UVR-Mi User manual

2
Contents
1. About this edition of user instructions.......................................................................2
2. Safety precautions ...................................................................................................3
3. General information..................................................................................................4
4. Getting started..........................................................................................................5
5. Operation .................................................................................................................6
6. Specifications...........................................................................................................8
7. Ordering information ................................................................................................8
8. Care and maintenance.............................................................................................9
9. Warranty.................................................................................................................10
10. EU Declaration of conformity..................................................................................11
1. About this edition of user instructions
The current edition of the user instructions applies to the following models and ver-
sions of UV Cleaner-Recirculators:
UVR-M ................... versions V.2AA, V.2AB, V.2AC, V.2A3
UVR-Mi ...............................versions V.2AA, V.2AB, V.2A3

3
2. Safety precautions
The following symbols mean:
Caution! Make sure you have fully read and understood the present Manual
before using the equipment. Please pay special attention to sections
marked by this symbol.
Caution! Do not switch on the unit with the cover removed or without filters! UV
lamp must be covered at all times during operation. Otherwise, UV
lamp can expose the operator and other people to dangerous levels
of UV light.
GENERAL SAFETY
The unit is designed only for decontamination.
The protection provided can be ineffective if the operation of the appliance does not
comply with the manufacturer's requirements.
Save the unit from shocks and falling.
After transportation or storage and before connecting it to the electric circuit, keep the
unit under room temperature for 2-3 hrs.
Store and transport the unit at ambient temperatures between -20°C and +60°C and
maximum relative humidity of 80%.
Before using any cleaning or decontamination methods except those recommended
by the manufacturer, check with the manufacturer that the proposed method will not
damage the equipment.
Do not make modifications in design of the unit.
The unit is not moisture resistant.
ELECTRICAL SAFETY
Connect only to the mains with voltage corresponding to that on the serial number
label.
Do not plug the unit into an ungrounded power socket, and do not use an ungrounded
extension lead.
Ensure that the power plug is easily accessible during use.
Disconnect the unit from the mains before moving.
If liquid penetrates into the unit, disconnect it from the mains and have it checked by
a repair and maintenance technician.
Do not operate the unit in premises where condensation can form. Operating condi-
tions of the unit are defined in the Specifications section.
DURING OPERATION
Do not operate the unit in environments with aggressive or explosive chemical mix-
tures. Please contact manufacturer for possible operation of the unit in specific at-
mospheres.
Do not operate the unit if it is faulty or has been installed incorrectly.
Do not use outside laboratory rooms.
BIOLOGICAL SAFETY
The user is responsible to carry out appropriate decontamination if hazardous mate-
rial spills on or penetrates into the equipment.

4
3. General information
UV DNA/RNA cleaner-recirculators UVR-M & UVR-Mi are compact airflow exchange
chambers with built-in UV lamp and a fan unit equipped with dust filters and a control unit.
UV DNA/RNA recirculators provide active constant airflow in close vicinity to UV lamp, en-
suring maximum efficiency of disinfection, as shown in figure 1. Low ozone 25 W G13 lamps
with 9000-hour lifetime are used, one in the UVR-M model and two in the UVR-Mi model.
The UVR-Mi model provides the scheduling option for switching on and off and the
estimation of lamp overall operating time and condition.

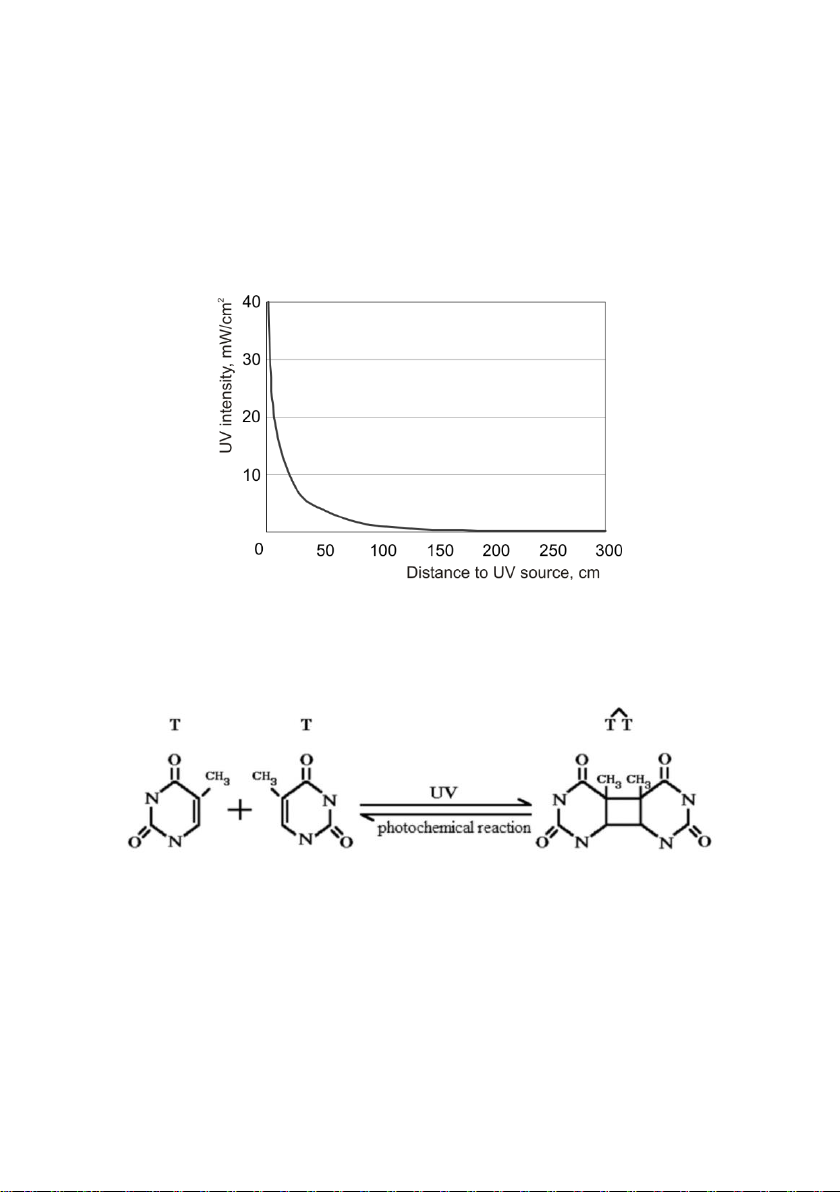

Figure 1. Dependence of UV radiation intensity from distance to UV source (25 W lamp, 254 nm)
UV radiation affects viability of microorganisms by causing photochemical reactions
in the structure of DNA and RNA. Adjacent pyrimidine molecules form dimers and block the
reproduction of microorganisms, as a result, causing their death. The diagram on figure 2
shows the process of formation of pyrimidine dimers, using thymine as an example.
Figure 2. Photochemical reaction, the formation of pyrimidine dimers,
thymine taken as an example
(source http://www.photobiology.info)

5
4. Getting started
4.1. Unpacking. Remove packing materials carefully and retain them for future shipment
or storage of the unit. Examine the unit carefully for any damage incurred during
transit. The warranty does notcover in-transit damage.Warranty covers only the units
transported in the original package.
4.2. Complete set. Package contents:
4.2.1. Standard set:
- UVR-M /UVR-Mi, UV Cleaner-Recirculator.....................................................1 pce.
- Spare dust filters..............................................................................................2 pcs.
- Spare fuse .......................................................................................................1 pce.
- Screw with dowel .............................................................................................1 pce.
- Operating manual, declaration of conformity ..................................................1 copy
4.2.2. Optional accessories:
- UVR-S support stand ................................................................................on request
4.3. Setup.
- Choose recirculator location so that the air intake and discharge operate unim-
peded, providing the best air circulation in the room.
Caution! UV recirculator must be used only in clean rooms! Dust accumulation
on the electrical parts of the device can cause a short circuit.
- Fix the unit on the wall with the screw and dowel, or on a UVR-S movable support
stand (figure 3).
- Position the unit so that the access to the mains plug is unobstructed.

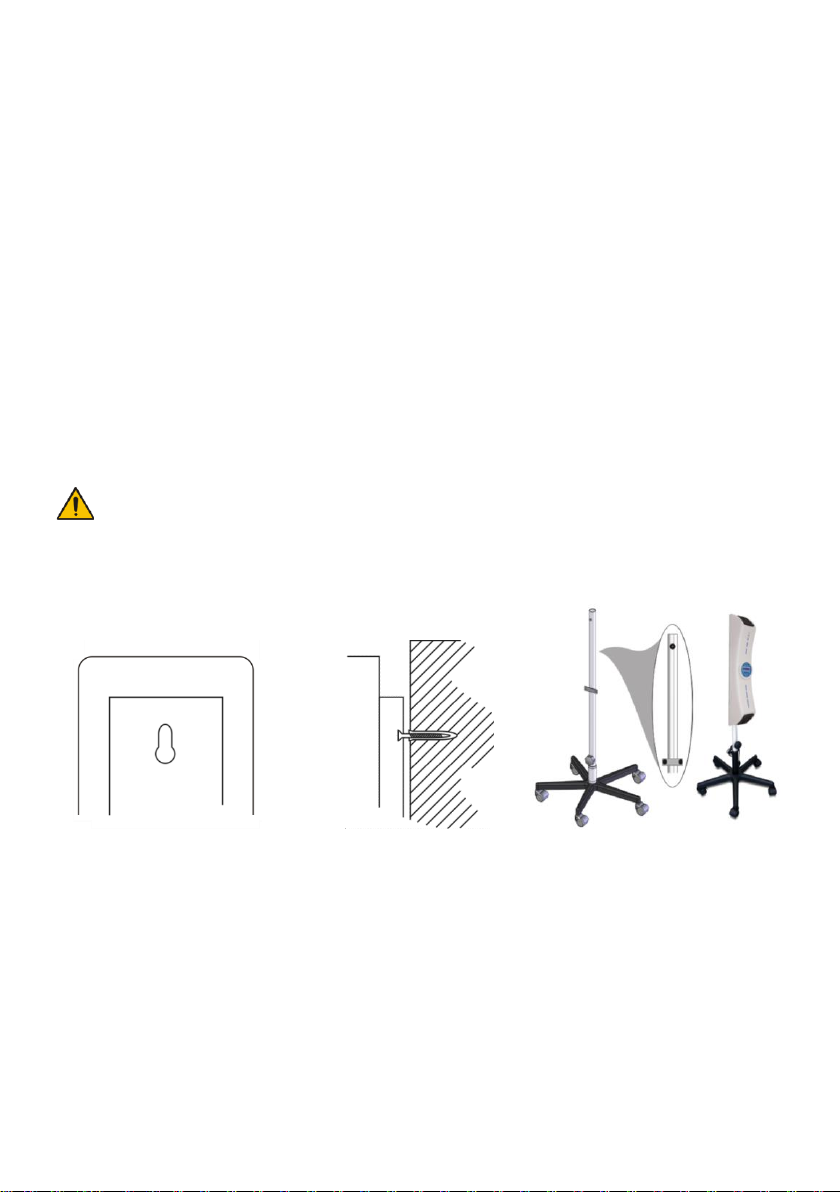

Attachment point Screw and dowel Attachment on UVR-S stand
Figure 3. Unit attachment methods

6
5. Operation
Caution! Bactericidal lamp properties reduce by ~12% after 5000 hours of op-
eration (data given by the manufacturer), so lamp replacement or air
recirculation time extension by 12% is recommended in order to
achieve the desired air cleaning result.
Figure 4. UVR-M overview Figure 5. UVR-Mi control panel and overview
5.1. Working with model UVR-M.
5.1.1. Plug the power cord into a grounded mains socket. Switch on the power switch (fig.
4/1).
5.1.2. Unit starts the recirculator automatically. Lit indicator (fig. 4/2) shows that the UV lamp
is working.
5.1.3. After finishing the operation, switch off the power switch and unplug the power cable
from the mains.
5.1.4. Lamp failure. In case of UV lamp failure, unit terminates operation and does not
resume until the lamp is replaced. Check the indicator (fig. 4/2) to see if the lamp is
working. To replace the lamp, see 8.6.

7
5.2. Working with model UVR-Mi.
5.2.1. Plug the power cord to a grounded mains socket. Switch on the power switch (fig.
5/9) on the side to the right.
5.2.2. The following parameters appear on the display:
- Air flow recirculation start time in the automatic mode - Time On (fig. 5/1);
- Air flow recirculation end time in the automatic mode - Time Off (fig. 5/4);
- UV-recirculator operating indicator - UV lamp (fig. 5/2);
- Real time clock (fig. 5/3).
5.2.3. Parameter setting. Hold the Set key (fig. 5/5) pressed for more than 6 seconds to
activate parameter setting mode.
5.2.3.1Change the currently flashing parameter using the ▼ and ▲ keys (fig. 5/6). Pressing
the key down longer than 2 seconds makes the values change quicker.
5.2.3.2Press Set key to switch to the next parameter.
5.2.3.3If no key is pressed for more than 10 s, the changes will be saved.
5.2.4. The unit can operate in automatic or manual modes.
5.2.4.1Manual mode. Press the Run/Stop key (fig. 5/7) to start or stop recirculation. While
recirculator is working, symbol “↑” indication is shown on the display (fig. 5/2).
Note. Automatic mode time interval has priority over the manual mode.
5.2.4.2Automatic mode. Set recirculation start (Time On, fig. 5/1) and end (Time Off, fig.
5/4) times, as described in 5.2.3. Unit saves the parameters after unplugging. On set
start time, a powered unit starts recirculator, if it was not started already. On reaching
the end time, unit turns off the recirculator.
5.2.5. Recirculation can be stopped at any time by pressing the Run/Stop key.

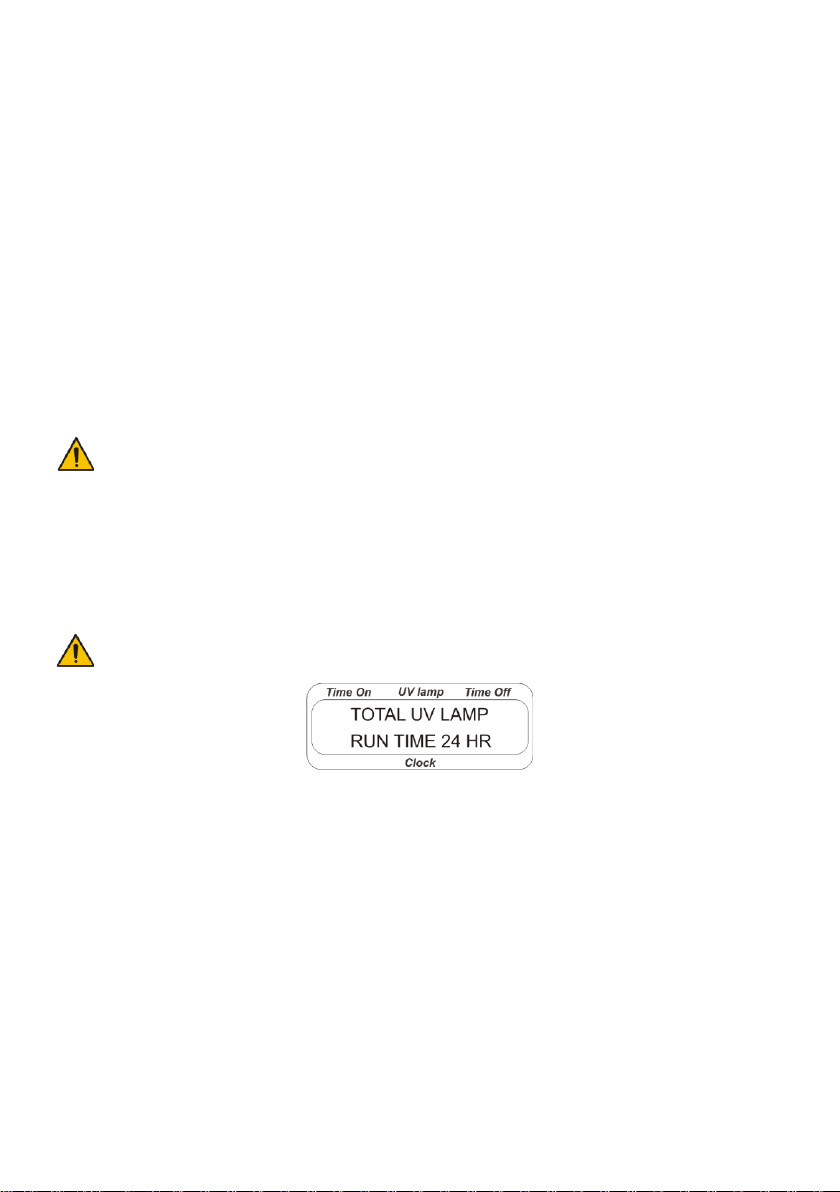

5.2.6. Press the Set key once to display total lamp runtime (fig. 6). Display reverts to timers
after some time.
Caution! Holding the Set key pressed for more than 10 s in this screen resets
the UV lamp runtime timer.
Figure 6. Lamp runtime
5.2.7. End of lamp lifetime and lamp failure. At the end of lamp lifetime (9000 h) or in
case of UV lamp failure, unit terminates operation and does not resume until lamps
are replaced. Display shows “END OF UV LAMP LIFETIME” or “ERROR UV LAMP
FAILURE” messages, respectively. Additionally, check the indicator (fig. 5/8) to see
if the lamps are working. To replace the lamps, see 8.6.
5.2.8. After finishing the operation, switch off the power switch and unplug the power cable
from the mains.

8
6. Specifications
The unit is designed for operation in cold rooms and closed laboratory rooms at am-
bient temperature from +4°C to +40°C in a non-condensing atmosphere and maximum rel-
ative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity
at 40°C.
Biosan is committed to a continuous programme of improvement and reserves the
right to alter design and specifications of the equipment without additional notice.
Model
UVR-M
UVR-Mi
UV radiation source
Low ozone, bactericidal, TUV 25W G13 UV-C
1 lamp
2 lamps
Wavelength
253.7 nm
UV emission intensity (averaged)
18 mW/cm2/s
36 mW/cm2/s
Airflow speed
14 m3/h
Protection from direct UV light
Full
Lamp service life
9000 h
Lamp operation indicator
Yes
Display
No
LCD, 2x16 characters
Lamp service life counter
No
Yes
Lamp fault detection
No
Yes
Timer
No
1 min - 24 h / non-stop
Clock and on/off scheduler
No
Yes
Dimensions
130x110x660 mm
Weight1
3.4 kg
Nominal operating voltage,
frequency
230 V, 50 Hz
or 120V, 60 Hz
230 V, 50 Hz
Power consumption
125 W (0.54 A)
or 160 W (1.3 A)
110 W (0.5 A)
7. Ordering information
7.1. Models and versions available:
Model
Version
Description
Catalogue number
UVR-M
V.2AA
230 V, 50 Hz, EU plug (type E/F)
BS-040105-AAA
V.2AB
230 V, 50 Hz, UK plug (type G)
V.2A3
230 V, 50 Hz, AUS plug (type I)
V.2AC
120 V, 60 Hz, US plug (type B)
UVR-Mi
V.2AA
230 V, 50 Hz, EU plug (type E/F)
BS-040110-AAA
V.2AB
230 V, 50 Hz, UK plug (type G)
V.2A3
230 V, 50 Hz, AUS plug (type I)
1
Accurate within ±10%

9
7.2. To inquire about or order the optional accessories, contact Biosan or your local Bio-
san representative.
7.3. Optional accessories:
Optional accessory
Catalogue number
UVR-S tripod
BS-040105-AK
8. Care and maintenance
8.1. If the unit requires maintenance, disconnect the unit from the mains and contact Bio-
san or your local Biosan representative.
8.2. All maintenance and repair operations must be performed only by qualified and spe-
cially trained personnel.
8.3. Dust filter control/replacement. The dust filters on either end of the UV-recirculator
should be checked monthly and cleaned or replaced when they become clogged. To
check, replace or clean the filters, simply unclip the covers (fig. 4/), if necessary, fit
a new one; otherwise rinse in water, dry and set up existing filters. Clip covers back
in place. This maintenance operation is performed by the user.
8.4. Cleaning the outside parts. Standard ethanol (75%) or other cleaning agents rec-
ommended for cleaning of laboratory equipment can be used for cleaning and decon-
tamination of the unit. This maintenance operation is performed by the user.
8.5. Cleaning of the inside parts. Cleaning of the inside parts must be performed only
by qualified and specially trained personnel. In order to ensure proper efficiency in
the long run, it is recommended to clean the UV-recirculator once a month.
8.6. UV-lamp replacement. Replacement must be performed only by qualified and spe-
cially trained personnel. UV lamp replacement is necessary after lamp stops func-
tioning or at the end of manufacturer specified lifetime. Use the indicator in the centre
of recirculator (fig. 4/2 or 5/8) to check UV lamps inside the recirculator. If the indicator
is alight while the switch is ON, then the UV lamps are functioning. If it is not, replace
the lamp, single lamp in case of UVR-M, both - in case of UVR-Mi.
Caution! Do not switch on the unit with the cover removed or without filters! UV
lamp must be covered at all times during operation. Otherwise, UV
lamp can expose the operator and other people to dangerous levels
of UV light.
8.7. Fuse replacement. Replacement must be performed only by qualified and specially
trained personnel. Disconnect the unit from the mains and unscrew the fuse holder
cap (fig. 4/3 or 5/10). Check the fuse and replace if necessary with a correct one.

10
9. Warranty
9.1. The Manufacturer guarantees the compliance of the unit with the requirements of
Specifications, provided the Customer follows the operation, storage and transporta-
tion instructions.
9.2. The warranted service life of the unit from the date of its delivery to the Customer is
24 months. For extended warranty, see 9.5.
9.3. Warranty covers only the units transported in the original package.
9.4. If any manufacturing defects are discovered by the Customer, an unsatisfactory
equipment report shall be compiled, certified and sent to the local distributor address.
To obtain the claim form, visit Technical support page on our website at link below.
9.5. Extended warranty.
For UVR-Mi, the Premium class model, one year of extended warranty is available
free of charge after registration, during 6 months from the date of sale. Online regis-
tration form can be found in section Warranty registration on our website at the link
below.
For UVR-M, the Basic Plus class model, extended warranty is a paid service. Contact
your local Biosan representative or our service department through the Technical
support section on our website at the link below.
9.6. Description of the classes of our products is available in the Product class descrip-
tion section on our website at the link below.
Technical support
Registration
Product class description
biosan.lv/en/support
biosan.lv/register-en
biosan.lv/classes-en
9.7. The following information will be required in the event that warranty or post-warranty
service comes necessary. Complete the table below and retain for your records.
Model
UVR-M /UVR-Mi, UV airflow cleaners-recirculators
Serial number
Date of sale

11
10. EU Declaration of conformity
Unit type UV airflow cleaners-recirculators
Models UVR-M, UVR-Mi
Serial number 14 digits styled XXXXXXYYMMZZZZ, where XXXXXX is
model code, YY and MM –year and month of production,
ZZZZ –unit number.
Manufacturer SIA BIOSAN
Latvia, LV-1067, Riga, Ratsupites str. 7/2
Applicable Directives EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
RoHS2 2011/65/EU
WEEE 2012/19/EU
Applicable Standards LVS EN 61326-1: 2013
Electrical equipment for measurement, control and
laboratory use. EMC requirements. General requirements.
LVS EN 61010-1: 2011
Safety requirements for electrical equipment for
measurement, control, and laboratory use. General
requirements.
We declare that this product conforms to the requirements of the above Directives
____________________ ____________________
Signature Signature
Svetlana Bankovska Aleksandr Shevchik
Managing director Engineer of R&D
____________________ ____________________
Date Date

Biosan SIA
Ratsupites 7, build.2, Riga, LV-1067, Latvia
Phone: [phone] Fax: [phone]
http://www.biosan.lv
Edition 2.07 –November of 2018
