BIRO AFMG-52 Service manual

Item No. 57037
Form No. AFMG52-232-6-17-18 B
Model AFMG-52 AUTOMATIC FEED MIXER GRINDER
OPERATING AND SERVICE MANUAL
STARTING WITH SERIAL NO. 52001
STARTING WITH SERIAL NO. 52101
(SIDE OPENING LID)
STARTING WITH SERIAL NO. 52345
(35 ° INLET/TRI DIRECTIONAL LID)
IMPORTANT NOTICE
This Manual contains important
safety instructions which must
be strictly followed when using
this equipment.

TABLE OF CONTENTS:
NOTICE TO OWNERS AND OPERATORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE
SAFETY TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
3
7
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TO PROCESS PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MIXING PADDLE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
SAFETY LABEL LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
UNCRATING AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
MOTOR WIRING AND ELECTRICAL REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
MOTOR SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PARTS DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-18
STANDARD AND OPTIONAL BOWL ASSEMBLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
CONNECTION INSTRUCTIONS FOR TANDEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . .
25, 26
OPERATOR’S SIGNATURE PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
GRINDING BOWL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
NORD TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-10
DORRIS TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
MIXER DRIVE BELT TENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
MAIN DRIVE CHAIN AND SPROCKET LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
MIXER DRIVE CHAIN TENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
CHAIN REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
OPTIONAL EAGLE BELT DRIVE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
PRODUCT MIXER SAFETY COVERS & LID LOCKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
JOURNAL BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
ELECTRIC FOOTSWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
ITEMS REQUIRED FOR TANDEM OPERATION UP TO S/N 52344. . . . . . . . . . . . . . . . . . . . . .
22, 23
ITEMS REQUIRED FOR TANDEM OPERATION AFTER S/N 52345. . . . . . . . . . . . . . . . . . . . . . . . . 24
SUPPLY CORD REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
MIXER DRIVE SHAFT SEAL REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13

NOTICE TO OWNERS AND OPERATORS
BIRO’s products are designed to process food products safely and efciently. Unless the opera-
tor is properly trained and supervised, however, there is the possibility of a serious injury. It is the
responsibility of the owner to assure that this machine is used properly and safely, strictly following
the instructions contained in this Manual and any requirements of local law.
Warnings related to possible damage to the equipment are indicated by:
BIRO also has provided warning labels on the equipment. If any warning label, instruction label
or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distributor or
BIRO directly for a replacement.
Remember, however, this Manual or the warning labels do not replace the need to be alert and to
use your common sense when using this equipment.
- NOTE -
A copy of this manual is included with each MODEL AFMG-52 MIXER GRINDER.
The descriptions and illustrations contained in this manual are not binding.
The manufacturer reserves the right to introduce any modication without
updating the manual.
1
No one should use or service this machine without proper training and supervision. All operators
should be thoroughly familiar with the procedures contained in this Manual. Even so, BIRO cannot
anticipate every circumstance or environment in which its products will be used. You, the owner
and operator, must remain alert to the hazards posed by the function of this equipment particularly
the ROTATING GRINDING AUGER and the ROTATING MIXING PADDLE, which can severely
injure an inattentive operator amputating ngers and limbs. No one under eighteen (18) years of age
should operate this equipment. If you are uncertain about a particular task, ask your supervisor.
This Manual contains a number of safe practices in the SAFETY TIPS section. Additional warn-
ings are placed throughout the Manual. Warnings relate to your personal safety are indicated by:
This Manual applies to machines with serial number 52001 and higher, to machines with
tri-directional product mixer safety cover and 35 degree inlet, serial number 52345 and higher.
or

2
SAFETY TIPS
ROTATING GRINDING AUGER & ROTATING MIXING PADDLE
TO AVOID SERIOUS PERSONAL INJURY
• NEVER Touch This Machine without Training and Authorization by Your Supervisor.
• NEVER Place Hands into Machine Input or Output Openings.
• NEVER Open Machine During Operation.
• ONLY Use a Qualied Electrician to Install According to Local Building Codes: Machine MUST
Be Properly Grounded.
• ALWAYS Connect to PROPER Voltage & Phase.
• ONLY Install on Level, Non-Skid Surface in a Clean, Well-Lighted Work Area Away from
Children and Visitors.
• ALWAYS Lock Machine Castors After Moving This Machine.
• NEVER Use This Machine For Non-Food Products.
• NEVER Operate Machine With Product Mixer Safety Cover Open or Removed or Magnetic
Interlock Switch By-Passed.
• ALWAYS Turn Off, Unplug Machine From Power Source and Perform Lockout/Tagout Procedure
to this Machine BEFORE Attempting to Unjam or Unclog, Cleaning or Servicing.
• NEVER Leave Machine Unattended While Grinder is Running.
• NEVER Alter This Machine From its Original Form as Shipped From Factory. DO NOT Operate
Machine With Missing Parts.
• PROMPTLY REPLACE Any Worn or Illegible Warning Labels.
• ALWAYS Read Operation and Service Manual BEFORE Operating, Cleaning, or Servicing.
• USE ONLY BIRO Parts and Accessories Properly Installed.

INSTALLATION
TO AVOID SERIOUS PERSONAL INJURY, PROPERLY INSTALL
EQUIPMENT IN ADEQUATE WORK AREA
3
• ALWAYS Connect to Proper Voltage & Phase.
• NEVER Operate Machine With Product Mixer Safety Cover Open or Removed or Magnetic
Interlock Switch By-Passed.
• ALWAYS Use Qualied Technician and Electrician for Installation.
• ALWAYS Install Equipment in Work Area with Adequate Light and Space Away From Children
and Visitors.
• ONLY Operate on a Solid, Level, Non-Skid Surface.
• ALWAYS Lock Machine Castors After Moving Machine to Operating Location.
• NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.
• NEVER Operate Without all Warning Labels Attached and Owner/Operator Manual Available to
the Operator.
UNCRATING AND SET UP
1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and
operation if you have any questions or do not understand anything in this Manual. Contact your local
Distributor, or BIRO rst.
2. Remove all banding, shipping carton, and all equipment from inside the tub. Then take machine off
shipping pallet.
3. This machine is shipped with the adjustable legs fully retracted. The legs allow for a height adjustment
from the oor to centerline of bowl 239/16” minimum to 331/16” maximum.
4. This machine weighs approximately 750 pounds. To avoid accidents block up machine after raising to
desired operating height.
5. The adjustable legs can now be unbolted and lowered to the oor using the following steps.
6. Install machine on a level, non-skid surface in a well-lighted work area away from children and visitors.
7. This machine is complete except for knife and plate. There is a bowl shipping plug (cardboard)
placed in the output end of the grinding bowl to retain the grinding auger during shipment. REMOVE
THE BOWL SHIPPING PLUG AND THE GRINDING AUGER.
8. After checking and making sure the power supply is correct, plug in your machine. NEVER OPERATE
MACHINE WITH PRODUCT MIXER SAFETY COVER OPEN. (Machine will not run with cover
open.)
9. Machine must be properly grounded. Use qualied electrician to install according to local building codes.
a. Unbolt leg and while holding leg turn leg adjusting stud (Item No. 54310) clockwise until castor rests
on oor.
b. Be sure bolt holes line up. Replace bolts and tighten securely.

MOTOR WIRING AND ELECTRICAL REQUIREMENTS
1. Interchange of current is made in motor outlet box. Leads are properly marked. Changing instructions are on the
motor plate or motor outlet box.
4
2. All grinders are wired 220 volts unless otherwise specied. Be sure motor specications (voltage, cycle, phase)
match power supply line. Be sure line voltage is up to specication.
3. Electrical connections to be in accordance with safety codes and National Electrical Code.
4. Rated voltage of the unit shall be identical with full supply voltage.
5. Voltage drop on the supply line shall not exceed 10% of full supply voltage.
7. The feederline conductor shall only be used for the supply of one unit of the relevant horsepower. For connections
of more than one unit on the same feederline, a local electrician will have to be consulted to determine the proper
conductor size.
6. The feederline conductor size in the raceway from the branch circuit to the unit must be correct to assure adequate
voltage under heavy starting and short overload conditions.
8. The size of the electrical wiring required from the power source to the mixer grinder with a 7½ HP grind
motor is a MINIMUM OF No. 10 WIRE. With 10 HP grind motor MINIMUM OF No. 8 WIRE to be used.
3-PHASE MOTOR SPECIFICATIONS AND OVERLOADS
MIXER MOTOR GRINDER MOTOR
BALDOR/DORRIS
MOTOR Voltage Cycles Overload Amps Item No.
200 60 E-41 3.7 539001 HP/ .75kw
208 60 E-41 3.6 539001 HP/ .75kw
220 60 E-41 3.5 539001 HP/ .75kw
230 60 E-41 3.4 539001 HP/ .75kw
440 60 E-29 1.8 539221 HP/ .75kw
460 60 E-29 1.7 539221 HP/ .75kw
575 60 E-27 1.3 539971 HP/ .75kw
220 50 E-44 4.2 539241 HP/ .75kw
380 50 E-34 2.1 539261 HP/ .75kw
415 50 E-34 2.0 539261 HP/ .75kw
BALDOR/DORRIS
MOTOR Voltage Cycles Overload Amps Item No.
200 60 E-48 5.5 506691.5 HP/ 1.1kw
220 60 E-48 5.0 506691.5 HP/ 1.1kw
440 60 E-38 2.5 527401.5 HP/ 1.1kw
460 60 E-36 2.4 527391.5 HP/ 1.1kw
575 60 E-33 1.9 527291.5 HP/ 1.1kw
220 50 E-48 6.0 506691.5 HP/ 1.1kw
380 50 E-39 3.5 527321.5 HP/ 1.1kw
415 50 E-39 3.2 527321.5 HP/ 1.1kw
BALDOR MOTOR Voltage Cycles Overload Amps Item No.
200 60 E-70 25 539257.5 HP/ 5.6kw
208 60 E-69 24 542197.5 HP/ 5.6kw
220 60 E-67 23 526097.5 HP/ 5.6kw
230 60 E-67 22 526097.5 HP/ 5.6kw
440 60 E-56 11.5 527437.5 HP/ 5.6kw
460 60 E-56 11 527437.5 HP/ 5.6kw
575 60 E-54 8.8 507057.5 HP/ 5.6kw
220 50 E-70 27.6 539257.5 HP/ 5.6kw
380 50 E-61 16 527447.5 HP/ 5.6kw
415 50 E-60 14.6 506677.5 HP/ 5.6kw
BALDOR MOTOR Voltage Cycles Overload Amps Item No.
200 60 E-72 30 5702810 HP/ 7.5kw
208 60 E-72 28.8 5702810 HP/ 7.5kw
220 60 E-70 27.2 5392510 HP/ 7.5kw
230 60 E-70 26 5392510 HP/ 7.5kw
440 60 E-60 13.6 5066710 HP/ 7.5kw
460 60 E-60 13 5066710 HP/ 7.5kw
575 60 E-56 10.4 5274310 HP/ 7.5kw
220 50 E-72 32.6 5702810 HP/ 7.5kw
380 50 E-62 18.8 5070410 HP/ 7.5kw
415 50 E-62 17.3 5070410 HP/ 7.5kw
NORD
HIGH EFF. MOTOR Voltage Cycles Overload Amps Item No.
200 60 E-50 5.9 506681.75 HP/ 1.3kw
208 60 E-48 4.8 506691.75 HP/ 1.3kw
220 60 E-48 4.6 506691.75HP/ 1.3kw
230 60 E-46 4.2 527421.75 HP/ 1.3kw
440 60 E-36 2.7 527391.75 HP/ 1.3kw
460 60 E-34 2.1 539261.75 HP/ 1.3kw
550 60 E-34 2.2 539261.75 HP/ 1.3kw
575 60 E-34 2.1 539261.75 HP/ 1.3kw
200 50 E-48 7.1 506691.75 HP/ 1.3kw
380 50 E-36 2.5 527391.75 HP/ 1.3kw
415 50 E-34 2.3 539261.75 HP/ 1.3kw
9. The recommended amp service size for the mixer grinder with a 7½ HP, 400V grind motor is 40 Amp service.
With a 10 HP, 400V grind motor is 50 Amp service.
10. The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installation.
NOTE TO OWNER AND ELECTRICIAN:
IF THIS MACHINE IS NOT CORD AND
PLUG CONNECTED TO THE
ELECTRICAL SUPPLY SOURCE, THEN
IT SHOULD BE EQUIPPED WITH, OR
CONNECTED TO, A LOCKABLE,
MANUALLY-OPERATED DISCONNECT
SWITCH (OSHA 1010.147)

For best results, use knife and plate as a set. Do not operate machine for any period of time
without product in the grinding bowl. This will cause heating and dulling of the knife and plate.
5
13. If machine runs clockwise(backwards), it must be rewired to correct rotation, otherwise serious
irreparable damage may occur to the grinding components. Both the auger and the mixing paddle must
operate in the proper direction.
14. Check operation of optional footswitch if equipped. Plug footswitch cord into tting at the bottom of
the pushbutton control box. Move toggle selector to foot. The machine will operate with pressure on the
footswitch treadle. Releasing the treadle stops the machine. The footswitch operates the mix and grind
together.
15. Insert auger assembly into the grinding bowl and fully engage the auger into the drive shaft. Place knife
(sharp edges out) then grinding plate into end of grinding bowl. The grinding plate slides over the
knife drive pin, and is held from rotating during operation by three pins in the grinding bowl. Install the
end retaining ring.
ONLY HAND TIGHTEN RETAINING RING
16. Check placement of all warning labels and Manual. Machine is now ready for trained operators to process
product.
17. Use meat deector attached to grinding bowl to eliminate meat splatter.
18. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation
or operation of this machine.
10. Two sets of green and red pushbuttons are located on the front of the machine that activate the magnetic
contactors that control the mix and grind motors. The magnetic interlock switch is mounted in the
pushbutton box. It lines up with the magnet attached to the product mixer safety cover. When the safety
cover is raised the machine will stop operation.
12. Push the green start button for mix. CHECK THE ROTATION OF THE MIXING PADDLE;
ROTATION MUST BE COUNTER-CLOCKWISE as indicated by the rotation decal afxed to the
mixer paddle front mounting hub. Backwards operation will not allow mixing paddle to feed product to
the grinding auger efciently.
11. Push the green start button for grind. CHECK THE ROTATION OF THE AUGER DRIVE SHAFT;
ROTATION MUST BE COUNTER-CLOCKWISE as indicated by the rotation decal located on the
grinding bowl. ROTATION MUST ONLY BE CHECKED WITH THE GRINDING AUGER
REMOVED, otherwise serious irreparable damage may occur to grinding components.

OPERATION
• NEVER Place Hands into Machine Input or Output Openings.
• ONLY Properly Trained Personnel Should Use This Equipment.
• NEVER Open Machine During Operation.
• NEVER Operate Machine With Product Mixer Safety Cover Opened or Removed or Magnetic
Interlock Switch By-Passed.
• ALWAYS Turn Off and Unplug Machine from Power Source and Perform Lockout/Tagout
Procedure to This Machine Before Attempting to Unjam, Unclog, Cleaning or Servicing.
• NEVER Operate Without All Warning Labels Attached and Owner/Operator Manual Available to
the Operator.
• DO NOT Wear Gloves While Operating.
• DO NOT Tamper With, Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.
• NEVER Leave Machine Unattended While the Grinder is Running.
A. TO PROCESS PRODUCT
1. Before starting the mixer grinder, have a container for receiving ground product at the output end of the
grinding bowl.
2. FIRST GRIND
3. SECOND GRIND
4. Unplug machine from power source and perform lockout/tagout procedures.
a. Fill Product Hopper (Maximum 200 Pounds), close Product Mixer Safety Cover.
b. Push the mix green start button only. During this mix operation seasonings may be added through the
sight holes in the Product Mixer Safety Cover.
c. After the desired mix, push the green grind start button to operate grinding auger and grind out product.
c. Push both grind and mix red stop buttons when all product has been ground out.
a. Fill Product Hopper (Maximum 200 Pounds), close Product Mixer Safety Cover.
d. Push both grind and mix red stop buttons when all product has been ground out.
ROTATING GRINDING AUGER & ROTATING MIXING PADDLE
TO AVOID SERIOUS PERSONAL INJURY
6
b. Push both grind and mix green start buttons to feed rst grind. It is recommended to use a breaker plate
with a ⅜” diameter or larger holes.

7
CLEANING
• ALWAYS Turn Off, Unplug Machine From Power Source and Perform Lockout/Tagout
Procedures to this Machine BEFORE Cleaning or Servicing.
• ONLY Use Recommended Cleaning Equipment, Materials, and Procedures.
• NEVER Spray Water or Other Liquid Substances Directly at Motor, Power Switch or any Other
Electrical Components.
• ALWAYS Thoroughly Clean Equipment at Least Daily.
CLEANING THE BIRO MIXER-GRINDER
l. Disconnect mixer grinder from power-source and perform lockout/tagout procedures.
3. Remove mixing paddle. Be sure front most paddle arm is pointing up. Loosen the thumb screw on the mix-
er paddle lock arm (Item No. 53852). While supporting the mixing paddle, remove the lock arm. Turn the
mixing paddle clockwise, slide forward to disengage the drive shaft and lift from product hopper.
DO NOT POWER SPRAY DIRECTLY AT ELECTRICAL COMPONENTS
6. After machine has been cleaned and allowed to air dry, all exposed metal surfaces should be coated with a
good food grade light oil or grease.
1. Do not use abrasive cleaning materials, such as brillo pads or metal scrapers. Tin is a soft metal and should
be cleaned with a soft cloth and dried.
2. Do not use a cleaning agent containing a high percentage of free alkali or acid.
3. Do not use a detergent containing a high percentage of tri-sodium phosphate or meta-silicate.
Tin is reactive to both.
4. Rinse well and dry thoroughly after washing to remove agents that may be reactive to tin.
5. If sterilizing agent containing chlorine is used, the tinned surface must be thoroughly rinsed.
Chlorine is corrosive to tin.
6. Dry thoroughly after rinsing and store in a dry environment.
7. If water is exceptionally hard, drying will be necessary to prevent spotting.
ROTATING GRINDING AUGER & ROTATING MIXING PADDLE
TO AVOID SERIOUS PERSONAL INJURY
CLEANING THE BOWL- RING AND WORM
CARE OF TIN COATED PRODUCTS
(DO’S AND DON’TS)
5. The grinding head can be removed for cleaning if desired. This is accomplished by removing the three nuts
on the back ange of the grinding head.
4. Machine is now ready to be cleaned using warm soapy water and rinsed with clean water. Clean all
removed parts, grinding bowl end ring, breaker plate, knife, grinding auger, mixing paddle and mixer
paddle lock arm. Machine may be cleaned by power spray washing, taking care not to spray directly at any
electrical controls. Do not spray directly at switches, motors or electrical enclosure.
2. Remove grinding bowl end ring, breaker plate, knife and grinding auger. Care is needed when handling the
knife. Take care when handling the knife during cleaning.

MAINTENANCE
A. GRINDING BOWL INSTALLATION
1. Mount the grinding bowl on the three threaded studs on the front of the machine. Tighten in position with
provided nuts.
2. Place the grinding auger in the grinding bowl and fully seat rear drive tang into auger drive shaft.
3. Install knife, breaker plate and end retaining ring.
B. MIXING PADDLE INSTALLATION

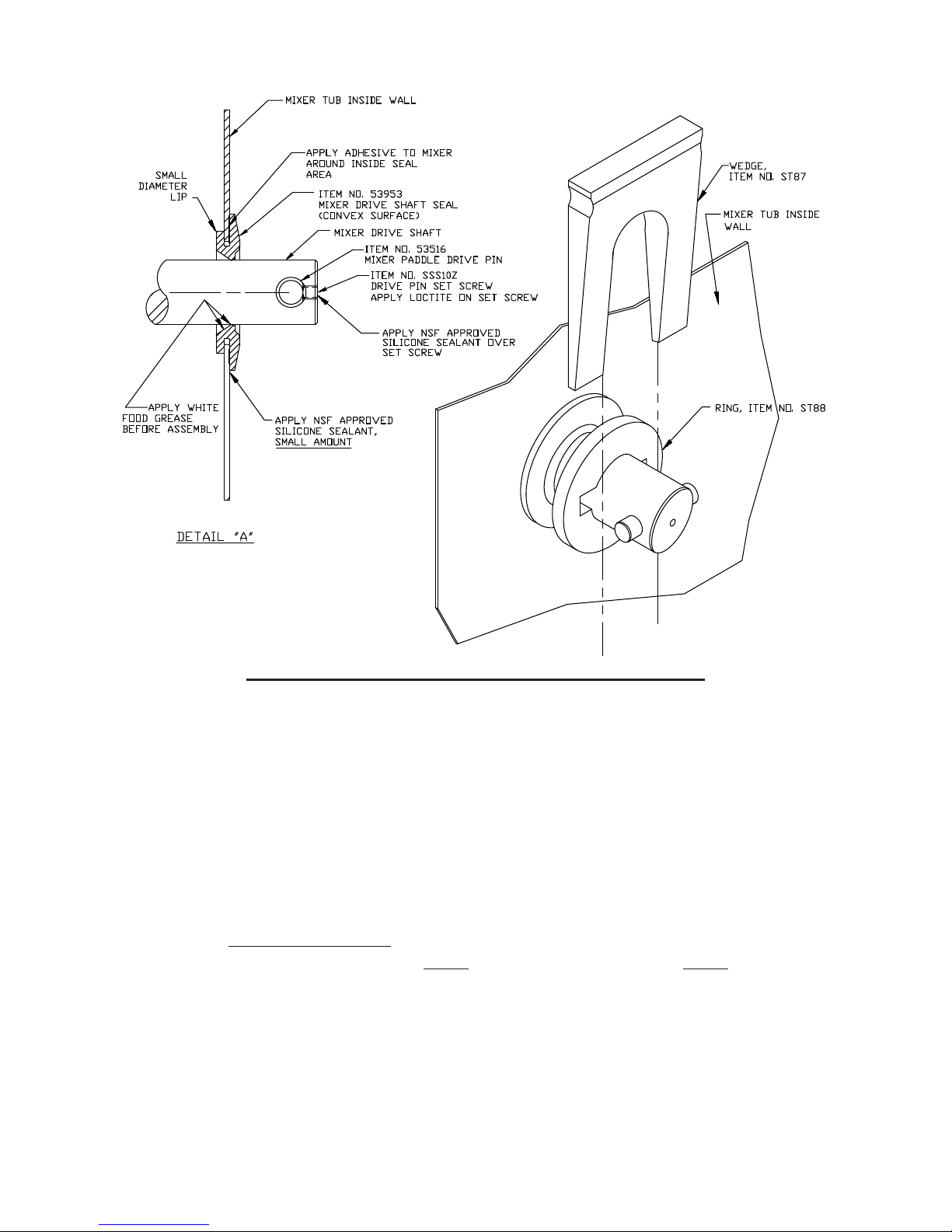

1. Check that mixer paddle drive pin (Item No. 53516) in the mixer paddle drive shaft (Item No. 53955-N)
is positioned vertically.
2. Holding the mixing paddle by the center shaft and with the front blade up carefully t drive receiving
collar onto the end of the drive shaft. Insert paddle lock arm assembly (Item No. 53852) into the front
of the mixing tub and onto the front of the mixing paddle.
8
• ALWAYS Turn Off, Unplug Machine From Power Source and Perform Lockout/Tagout
Procedure to this Machine BEFORE Servicing.
• NEVER Touch This Machine without Training and Authorization by Your Supervisor.
• NEVER Place Hands into Machine Input or Output Openings.
• NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.
• PROMPTLY REPLACE Any Worn or Illegible Warning Labels.
• USE ONLY GENUINE BIRO Parts and Accessories Properly Installed.
ROTATING GRINDING AUGER & ROTATING MIXING PADDLE
TO AVOID SERIOUS PERSONAL INJURY
3. When fully seated, turn the lock arm counterclockwise so the protruding arm is behind the lock set screw
bracket. Tighten the mixer paddle lock set screw (Item No. 53568).
C. LUBRICATION
1. MOTORS: This machine has pre-lubricated motor bearings. These bearings should be re-lubricated
annually with a good grade of bearing grease, such as POLYREX EM (EXXON-MOBILE) or equivalent.
Do not over-grease.
2. BEARING HOUSING: The main bearings are housed in an enclosed and sealed journal box. Re lubricate
semi-annually with a good grade of bearing grease. Do not over-grease.
ONLY HAND TIGHTEN RETAINING RING
4. When the bowl assembly is mounted and tight, there should be approximately ⅛” gap between the back
inside wall of the grinding trough and the back of the auger. The bowl ring wrench is provided with each
mixer grinder is used only for REMOVAL of the end retaining ring for cleaning purposes or for changing
knife and breaker plate.
