Bischoff & Bischoff Terra User manual

Enjoy mobility.
Bedienungsanleitung
Enjoy mobility.
Instruction Manual
Terra/Terra SX

Bischoff & Bischoff GmbH |13.12.2017
EN
32
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
4. Using the wheelchair 14
4.1. General functions 14

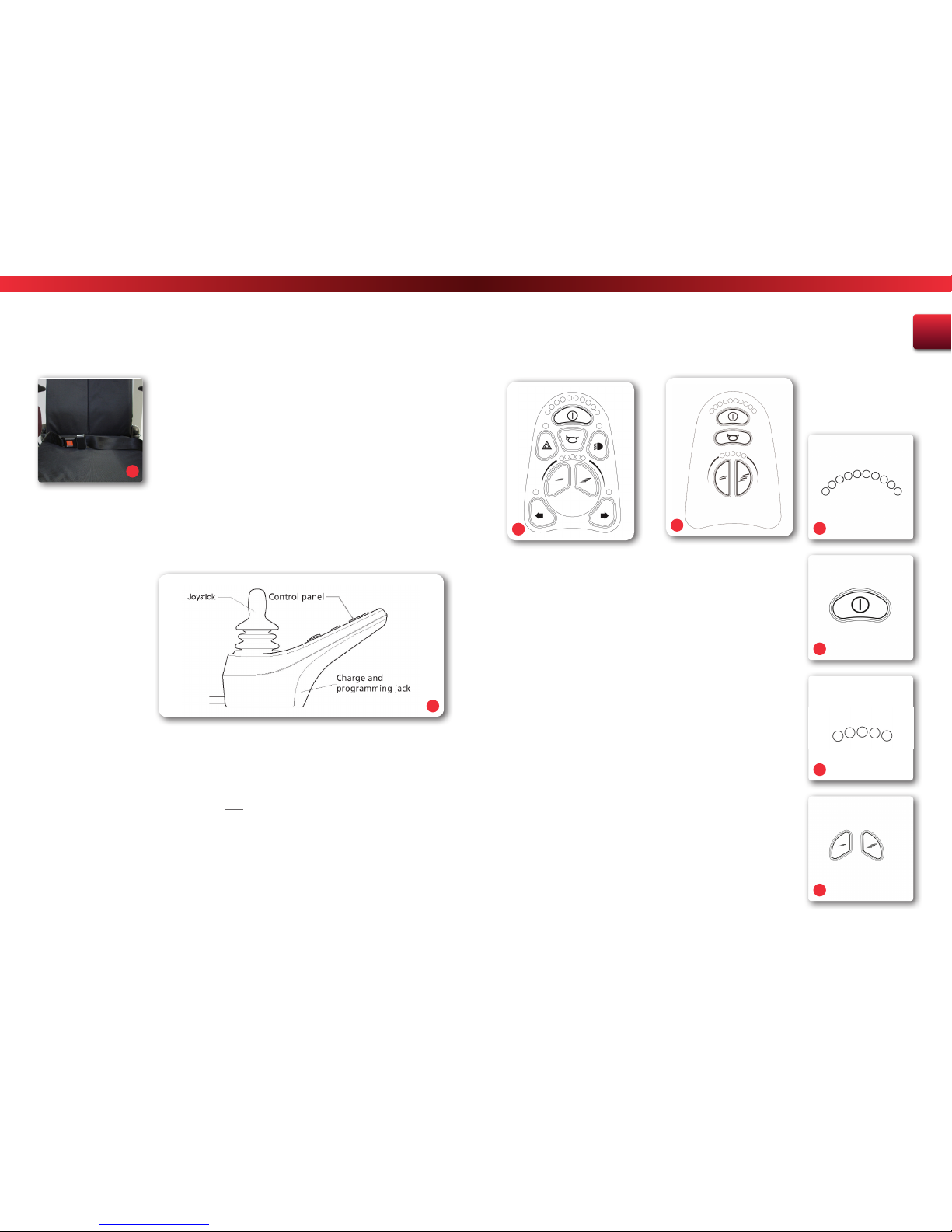

4.2. Description of control functions 14
4.3. Getting in and out 17
4.4. Driving the wheelchair 18
4.5. Leg rests 19
4.6. Pushing the wheelchair 19
5. Technical data 20
6. Maintenance tips for the user 21
6.1. Cleaning and disinfection 21
6.2. Check before use 22
6.2.1. Brake check 22
6.2.2. Checking lights, indicators and horn 22
6.2.3. Checking the tyres 22
6.3. Batteries 23
6.3.1. Charging 23
6.3.2. Replacing batteries 24
7. Maintenance tips for retailers 25
8. Disposal 26
9. Transfering the wheelchair 26
10. Maintenance 26
11. Transport 26
12. Warranty 28
Index
1. Introduction 04
1.1. Signs and symbols 04
2. Important safety instructions 05
2.1. General safety instructions 05
2.2. Advice regarding EMC interference 06
2.3. Brakes 06
2.4. Use on public roads 07
2.5. Purpose 07
2.6. Indications for use 07
2.7. Contraindication 08
2.8. Declaration of conformity 08
3. Product and delivery overview 09
3.1. Inspection on delivery 09
3.2. Content of delivery 09
3.3. Summary 09
3.4. Type plate and serial number 09
3.5. Basic settings 11
3.5.1. Leg rests 11
3.5.2 Seat 11
3.5.3. Backrest 12
3.5.4. Armrests 12
3.5.5. Side parts 13
3.5.6. Control unit 13
3.5.7. Seatbelt 14

Bischoff & Bischoff GmbH |13.12.2017
EN
54
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
1. Introduction
Dear user,
You have decided on a high-quality B+B electric wheelchair, and we
would like to thank you for your trust.
The electric wheelchair was designed to offer you many advantages
and meet your needs. The wheelchair can be fitted to your individual
body size thanks to a multitude of adjustable features and optimal
adaptability such as the length of the lower leg, the recline of the
backrest, length of the lower leg, the angle of the seat and the recline
of the backrest as well as the swing away function as well as the swing
away function of the control unit and the choice of mounting the
control unit either
to the left or the right side.
The electric wheelchair is designed for indoor and outdoor use.
Before using your new electric wheelchair for the first time, please read
and follow the instructions in this manual carefully. The instruction
manual is an integral and necessary part of the wheelchair. This is
why you should keep it close by and include it when passing on the
wheelchair to someone else.
Any repairs and adjustments require special technical training and may
therefore only be carried out by authorized B+B dealers
1.1. Signs and Symbols
Warning! These are especially safety-relevant inst-
ructions. Follow the directions in the manual!
Important! This is especially useful information on
a given subject.
2. Important Safety Instructions
2.1. General Safety Instructions
• In order to avoid tipping and dangerous situations, you should
practice safe handling of your new wheelchair on a flat and familiar
surface. In such a case, an assisting person is recommended.
• Prior to using the wheelchair, please check whether all parts
attached have been fastened properly.
• Never lift the wheelchair by parts that are not fixed firmly (the
armrests or legrests).
• Ensure that instantaneous/quick-release axles are positioned
correctly in the axle holders, as otherwise there is a danger of
injury.
• Please note that the danger of tipping is increased by shifts
in weight (e.g. strong upper body movements or overcoming
obstacles).
• Steps and larger obstacles may only be crossed with the help of at
least two assisting persons. For this, use lifting points 1 and 2 (see
overview of the wheelchair). If equipment such as ramps, lifts or
step climbing aids are available, these should be used.
• When using on a downward incline, it must be noted that a danger
of tipping exists from 12% (7°). It is recommended to use tilt
protection.
• Avoid running against obstacles (steps, kerbs) without braking or
moving down steps.
• Avoid using on uneven, loose surfaces.
• An assisting person should be used if going over obstacles (steps
etc.). Use the tip assist (see overview of wheelchair) to tip the
wheelchair appropriately.
• When getting into or out of the wheelchair, apply both locking
brakes.
• Ensure a sufficient profile depth of your tyres.
• Observe the road traffic regulations when on the road.
• The passive lighting (reflectors) of your wheelchair must always be
visible to other road users.

Bischoff & Bischoff GmbH |13.12.2017
EN
76
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
• The locking brake must not be used for braking when the
wheelchair is moving.
• When braking at fast speeds or on long downward slopes when
using the push rims, fingers and hand surfaces become hot.
Caution! Danger of burning!
• We recommend that leather gloves are used for use outdoors. These
increase grip and protect fingers and hands from dirt and injury at
the same time.
• Please note that padded parts can become hot in direct sunlight
and lead to skin injury on contact. Therefore, cover these parts or
protect the wheelchair from direct sunlight.
• When transferring between wheelchair and bed, always ensure that:
• both locking brakes are applied
• the side part on the side for getting in/out is swung backwards.
• the foot plates (for getting in/out) are folded upwards, swing
inwards/outwards or are removed.
Please note that operating the wheelchair in push mode
by uncoupling the drive mechanism will deactivate
the electro-magnetic brakes. The wheelchair should
therefore only be used on level ground in this mode.
Non-observance may lead to life-threatening situations.
2.2. Advice Regarding EMC
Interference
Despite meeting all applicable EMC guidelines and standards it is
possible that the wheelchair will experience interference from other
electrical devices (e. g. cell phones) or interfere with these. Should you
notice such interference, either turn off the other device or your electric
wheelchair and move it outside the interference range.
2.3. Brakes
After letting go of the joy-stick, the automatic brakes will slow the
wheelchair until it comes to a complete stop. In push mode, the drive
mechanism is decoupled and there is no handbrake. To secure the chair
you have to engage the drive again.
2.4. Use on Public Roads
The wheelchair is designed for indoor and outdoor use. Please keep in
mind that you are using public roads and therefore have to observe all
road traffic regulations.
Do not endanger other road users through inconsiderate driving,
especially on walkways.
2.5. Purpose
The Terra/Terra SX electric wheelchair is designed for indoor and
outdoor use by persons with impaired mobility.
It is therefore sufficiently compact and agile for indoor use and also
capable of handling medium distances and overcoming small obstacles
outdoors. It is classified under category B according to the EN 12184
standard. The maximum weight capacity is 136 kg.
Please note:
We are only able to issue a guarantee if the product is used in
accordance with the specified conditions and for the specified purpose.
2.6. Indications for Use
Inability or severely impaired ability to walk due to:
• paralysis
• loss of limb
• defect/deformity of limb
• joint contracture
• joint damage (not in both arms)
• other diseases
The provision of an electric wheelchair is indicated if the use of a hand-
driven wheelchair is no longer possible but the proper operation of an
electric drive is possible.

Bischoff & Bischoff GmbH |13.12.2017
EN
98
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
2.7. Contraindications
The provision of an electric wheelchair is unsuitable for persons
• with severe balance disorders
• with impaired or insufficient vision
• with strongly impaired cognitive abilities
2.8. Declaration of Conformity
B+B as manufacturer and solely responsible party, hereby declares that
the electric wheelchair Terra complies with the requirements of the EC
Directive 93/42.
3. Product and delivery overview
3.1. Inspection on delivery
All B+B wheelchairs are subjected to a proper final inspection in our
house and are provided with the CE mark.
The wheelchair is delivered in a special carton. After unpacking, please
keep the cardboard if it is possible. You may need it later for storage or
for the return of the wheelchair. The Terra/Terra SX wheelchair comes
disassembled in its component parts.
Supply, assembly and instruction of use of the wheelchair are done by
a qualified medical supply dealer.
If delivered by rail or a forwarding agent, the product shall be checked
at once, with regard to transportation damage at once in the presence
of the shipper.
Check the content for completeness and intactness. If there are
irregularities and damages do not hesitate to call our customer service
(Tel: + 49 (0)700/6000 7070).
3.2. Content of delivery
After receipt of the goods, please check the content for completeness
right away. The content consists of:
• outer package
• electric wheelchair (ready for use with 2 batteries)
• battery charger
• instruction manual

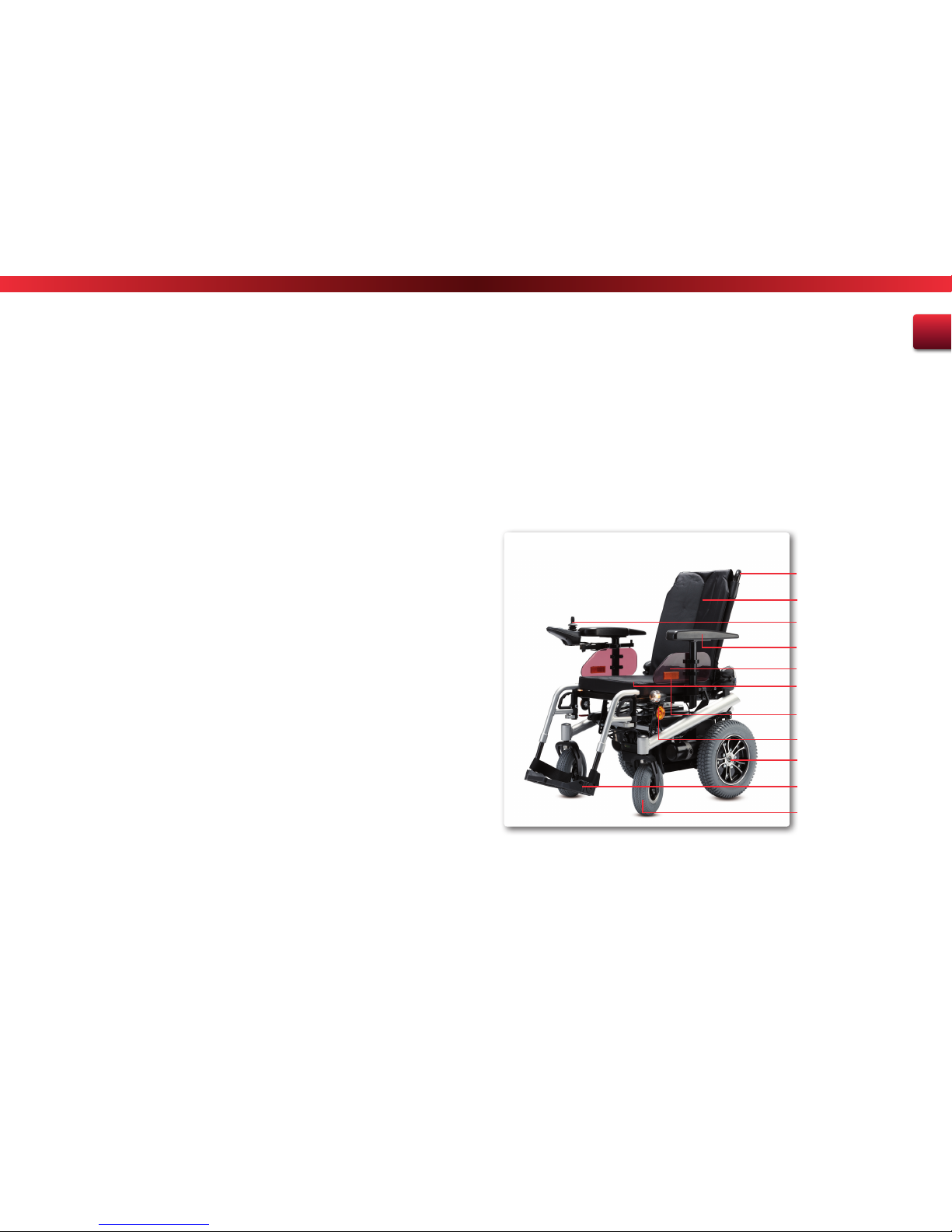

3.3. Summary
3.4. Type plate and serial number
The type plate (Fig. 01) and serial number are located under the seat.
push handles
backrest
control unit
armrest
side part
seat cushion
reflector
indicator light
drive wheels
footrest
steering wheels

Bischoff & Bischoff GmbH |13.12.2017
EN
1110
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D - 76307 Karlsbad
Telefon 0700 - 60007070
GB
CE Sticker & EAN Codes (Size 80 mm x 23 mm)
Power Wheelchairs (crash tested)
EAN 13 SN
Model: Terra Model no.: 8351
2017-12
Class: B (Outdoor | Indoor)
Max. weight capacity: 136kg Max. speed: 10 km/h
3.5. Basic settings
Before using the wheelchair for the first time it must be adjusted for
your body size. This is the only way to ensure extended use without
fatigue in a physiologically correct posture. The basic adjustments of
the wheelchair are described below. You should have all adjustments
made by a qualified medical supply dealer. You need a set of 4 mm to
6 mm Allen keys, a screwdriver and ring spanners, 10 mm and 13 mm.

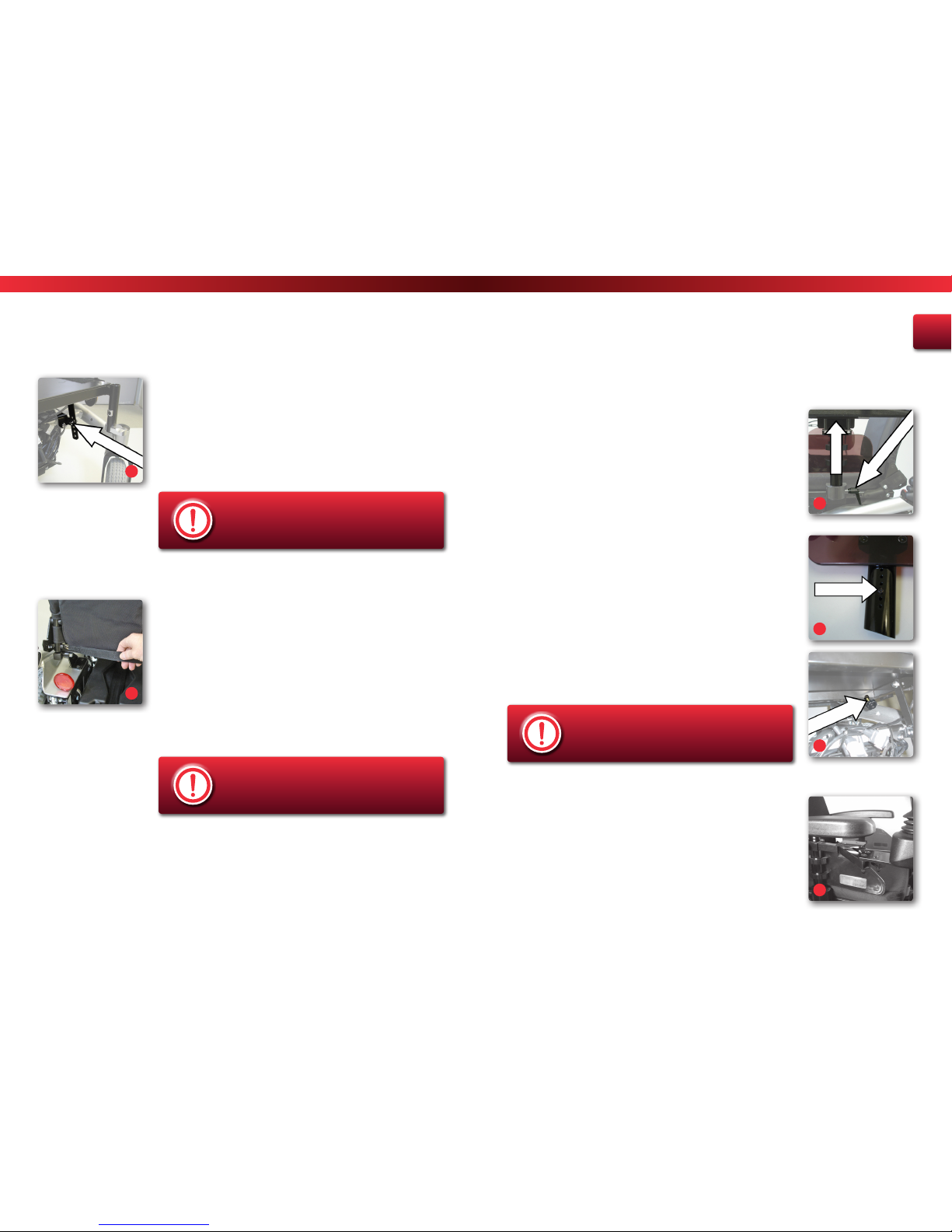

3.5.1. Leg rests
Length of lower leg rests
• The lower leg rests can be adjusted from 47 to 55 cm.
• To do so, loosen the two Allen screws (SW 4).
• Adjust to the desired height (fig. 02).
• Tighten the screws again.
• Use Loctite 243 to lock screws in place.
Make sure to always use two screws for secure
fastening!
Angle of footrest
• The angle of the footrests is adjustable in 25° steps.
• Loosen the screwing at the side of the footrest.
• Adjust to the desired angle (fig. 03).
• Tighten the screw again.
• Use Loctite 243 to lock screw in place.
Make sure to set the angle only within the marked
range!
3.5.2. Seat
Seat depth
• The seat depth is initially set to 45cm.
• You may reduce the seat depth to 40cm. Subsequently, you should
use an adjusted new seat cushion.
• To adjust the seat depth, loosen the fasteners of the backrest, move
the backrest forward and tighten the screws again (fig. 04)
02
03
04
Manufacturer logo
Manufacturer information
RoHS logo
CE mark
Not suitable for use as a seat in a vehicle
Important - Adhere to the operating instructions
Model designation
Model number
Application class
Date of manufacture
Maximum load capacity
Maximum speed
Serial number
A
B
C
D
E
F
G
H
I
J
K
L
M
A B C D
E F
GHI
JKL
M01

Bischoff & Bischoff GmbH |13.12.2017
EN
1312
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
Seat angle
• The initial setting of the seat angle is 1° backward.
• The seat angle can be set from -2° to +10° in steps of 3°.
• Release the front seat fastener (fig. 05).
• Take out the screws and adjust the seat to the desired angle.
• Place the screws into the nearest hole, then tighten them
• again.
Always be sure to use self-locking nuts to secure the
attachment.
3.5.3. Backrest
The angle of the backrest of your electric wheelchair has a manual
recline function and can be easily adjusted to the wanted position by
pulling the strap at the lower end of the backrest. You also have the
option of folding the backrest completely down to the front.
• You can adjust the angle of the backrest from 90° to 120° in four
steps.
• Pull the cable behind the back while holding the backrest with the
other hand (fig. 06).
• After letting go of the cable the bolts will lock into place.
Make sure that both bolts on the left and right are
completely locked in place.
3.5.4. Armrests
The armrests can be completely taken off, to be able to get in and out
of the chair from the side. In addition, the height of the armrests can
be adjusted. They can also be adjusted sideways by adjusting the side
parts (see side parts).
Removing the armrests
• To remove the armrest, loosen the wing bolt and pull out the
armrest to the top (fig. 07).
• When installing the armrest, make sure it is inserted all the way
and fastened again.
Adjusting the height
• First take the armrest out of the mounting.
• Remove the arresting bolt and screw it back into the armrest at the
desired position (fig. 08).
• The lowest hole represents the maximum height of the armrest.
3.5.5. Side parts
You can move the side parts sideways.
• Loosen the fastening screw underneath the seat and move the side
part into the desired position (fig. 09).
• Tighten the screw again.
Make sure the fastening is firmly tightened.
3.5.6. Control unit
The control unit can be mounted either on the right or lefthand side
underneath the armrest in each case. In addition, the distance can be
adapted to the lower arm length.
• Unscrew the toggle screw below the armrest and adjust to the
required length (fig. 10).
• Tighten the toggle screw again.
09
10
06
07
08
05

Bischoff & Bischoff GmbH |13.12.2017
EN
1514
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
3.5.7. Seatbelt
The seatbelt is attached to the side of the backrest.
• Adjust the length of the seatbelt by positioning the buckle
accordingly (fig. 11).
• Fasten the seatbelt with the latch.
• Open the seatbelt by pushing the red button at the latch.
4. Using the Wheelchair
After adjusting the wheelchair to your personal needs, familiarize
yourself with the control functions.
4.1. General functions
4.2. Description of control
functions
The Terra model with lighting system (fig. 13) is equipped with the VR2
joystick controller with light.
The Terra SX model variant without a lighting system (fig. 14) is
equipped with the VR2 joystick controller without light and only
supplied for export (outside of Germany).
Battery Status Display (fig. 15)
The battery status display shows to what extent the batteries are
charged. If the indicator is within the green range, you have enough
battery power available. If the indicator is within the red range, only
short drives are possible and the batteries should be recharged (see
charging procedure).
ON/OFF Button (fig. 16)
Pushing this button will put your wheelchair into operational mode.
Speed Range Display (fig. 17)
The speed range display shows you the pre-selected speed range.
You can set the speed between level 1 and 5, with the corresponding
number of LEDs lighting up. The speed range indirectly tells you the
maximum speed possible at full deflection of the joystick, i.e. with level
5 you can reach the maximum speed possible, while level 1 will keep
you within the lowest speed range.
Setting the Speed Range (fig. 18)
These buttons allow you to increase (right) or decrease (left) the
maximum speed possible. Within each range you control the speed
with the joystick.
13 14 15
16
17
11
12
18

Bischoff & Bischoff GmbH |13.12.2017
EN
1716
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
Lightning, only for Terra
Lights (fig. 19)
Use this button to switch on the active lighting system of your
wheelchair when darkness falls or when travelling through dark areas
such as tunnels. This will make you more visible to other traffic.
Warning idicators (fig. 20)
Press this button to switch on the warning indicators in emergency
situations, such as inability to move the wheelchair. All four indicator
lights will flash and signal other traffic that your wheelchair is disabled.
Indicators (left/right), (fig. 21)
Use this button to switch on the left or right indicators of your wheelchair
to signal other traffic that you wish to change your direction of travel
to the left or right. Press the button again to switch off the indicators.
Immobilizer System
To protect your wheelchair against unauthorized use or theft, park it in
a locked room or activate the immobilizer system.
• Push the ON/OFF button until you hear a beep, then let go.
• Move the joystick forwards, then backwards and then back into the
neutral position. You will hear a beep each time. Now the control is
blocked.
• Activate the control again by pushing the ON/OFF button.
• Move the joystick forwards, then backwards and then back into the
neutral position. You will hear a beep each time. Now the control is
activated again.
4.3. Getting In and Out
Getting in and out from the side
• Move the wheelchair as close as possible parallel to the other seat.
• Should you want to transfer from or to another wheelchair or
rehabilitation stroller, secure this one first by activating the
handbrake.
• Secure the Terra against rolling away unintentionally by pushing
the ON/OFF button and thus turning off the control (all displays
cleared).
• Take off the armrest/side part.
• Fold the footrests to the side or take off the leg rests.
• Now slide sideways onto the other seat.
• Please make sure you are sitting on the seat as far back as possible.
• Put the armrest and leg rests back into their original position.
Getting in and out from the front
• First fold up the footrests or take off the leg rests.
• Move the Terra as close as possible to the other seat so that they
face each other.
• Should you want to transfer from or to another wheelchair or
rehabilitation stroller, secure this one first by activating the
handbrake.
• Now slide to the other seat by twisting your body.
• Finally, put the leg rests back into their original position.
20
19
21

Bischoff & Bischoff GmbH |13.12.2017
EN
1918
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
4.4. Driving the Wheelchair
Startup
• Sit down in your B+B wheelchair and rest your legs on the footrests.
• Make sure you are sitting on the seat as far back as possible. Also
make sure that no loose items of clothing such as scarves, shirts
and the like are hanging from the side of the wheelchair, since they
could be caught in the wheels!
• Make sure you are sitting comfortably and securely. By pushing the
ON/OFF button the Terra/Terra SX is put into operational mode.
• You can now use all electrical drive control functions.
Drive Control Functions
Your qualified medical supply dealer can set the values for speed,
acceleration and delay within the scope of statutory specifications.
Select a low speed range at first and then increase it during your drive,
if necessary.
You can start driving by pushing the joy-stick forward. With the joystick
you can also increase the speed and control the direction of travel.
Putting the joystick in the neutral position will engage the brakes and
secure the wheelchair against rolling away.
Driving straight ahead:To drive straight ahead, carefully push the
joystick forward. The further you push the joystick forward, the faster
the wheelchair will go. If you let go of the joystick you will automatically
slow down.
Driving backwards:To drive backwards, carefully pull back on the
joystick. The further you pull back on it, the faster your wheelchair will
go. If you let go of the joystick, you will automatically slow down.
Turning: To change direction, push the joystick to the left or right. This
is also possible when the joystick is in a forward or backward position,
that is when you are going forwards or backwards.
4.5. Leg rests
To make it as easy as possible to get in and out of your wheelchair, you
can fold the footrests up or pull the leg rests to the side and/or take
them out.
• Open the locking mechanism to pull the leg rest to the side (fig.
22)
• In the “outside position“ the leg rest can be taken off completely
(fig. 23).
• To reinstall the leg rest, repeat the steps in reverse order.
• Push the leg rest back to the front until it catches with an audible
click.
4.6. Pushing the wheelchair
If you want to push the wheelchair in certain situations, the brakes
have to be disengaged. In the free-wheeling mode the wheelchair is
easy to push.
Warning! The electro-mechanical brakes then don’t
work.
• Move the release lever up into the “Free Wheel” position (right and
left).
• A small jolt will let you know that the drive is now disengaged (fig.
24).
• To re-engage the drive, push the lever back into the “Drive”
position. It will lock automatically.
For safety reasons the motor drive is locked in
freewheel mode.
23
22
24
Warning! Risk to Life!
The drives may only be disengaged on level ground.

Bischoff & Bischoff GmbH |13.12.2017
EN
2120
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
5. Technical Data
Dimensions and Weights
Max. Weight: 136 kg
Seat width: 41 – 50 cm
Seat height: 54 cm
Depth of seat: 40 – 45 cm
Seat angle: -2° – +10°
Height of backrest: 55 cm
Backrest angle: 90°, 100°, 110°, 120°
Overall length: 106 cm including footrests
Total width: 60,5 cm
Empty weight: 88,3 kg including batteries
Tires
Drive Wheels: 3.00-8 mm (PU)
Castors: 2,80/2,50-4 mm (PU)
Electrical System
Main fuse: 50 A
Batteries: 2 x 12V / 55 Ah
Charging Unit: 24VDC / 4A (HP8204B)
Motor: 2 x 450 W / 5100 RPM
Controller: PG Drives VR2 with light (Terra)
PG Drives VR2 without light (Terra SX)
Light and indicators: according to the German traffic regulations
[StVZO] (Terra)
Driving Specifications
Max. safe angle: 6°
Speed: 10 km/h
Max. incline: 8°
Max. ground clearance: 125 mm
Max. obstacle height: 50 mm
Range: 32 km
Turn radius: 120 cm
Fittings
Frame: powder-coated aluminum frame
Brake: automatic braking system according to the
German traffic regulations [StVZO]
Operating forces
Joystick: approx. 1 N
Buttons on the controller: approx. 1 N
Disconnecting the drives: > 60 N
6. Maintenance tips for the user
6.1. Cleaning and Disinfection
Make sure the wheelchair is turned off before starting to clean.
• The frame and the paneling of the wheelchair can be cleaned with
a moist cloth. You can use a mild detergent for more stubborn dirt.
• The wheels can be cleaned with a wet synthetic fiber brush (do not
use a wire brush!)
• You can remove dust and small stains from your seat, backrest and
armrests with a moist cloth. Do not use any aggressive cleaning
agents, since they could disintegrate the surface of the fabric. The
upholstery can be washed in 40°C water and disinfected with a
commercially available disinfectant.
• Make sure that the electric and electronic components do not come
into contact with water unnecessarily!
Caution! Do not use high pressure cleaners or steam
cleaners.

Bischoff & Bischoff GmbH |13.12.2017
EN
2322
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
6.2. Check before use
6.2.1. Brake check
Every time you use the wheelchair check the brake system. Move
forward slowly and release the joystick. The wheelchair must come to
a stop in the normal manner. When it is at a standstill the mechanical
brake must lock with an audible click. If you detect unusual brake
behaviour, inform your qualified medical supply dealer immediately
and do not use the wheelchair.
The motor brake operates correctly if you cannot push the wheelchair
when it is switched off. However, if it can be moved, the electromagnetic
brake is faulty. Do not use the wheelchair if this is the case. Contact
your qualified medical supply dealer immediately.
6.2.2. Checking lights, indicators
and horn
Before moving off in the wheelchair always check the operation of the
lighting system, the indicators and horn. If you press the button and
there is no response from the equipment, inform your qualified medical
supply dealer immediately and do not use the wheelchair.
6.2.3. Checking the tyres
Prior to each use, please check the sound condition of the tyres.
Regularly check the profile depth of the tyres once a month. The profile
depth should measure at least 1mm.
Defective or worn tyres must be replaced by your qualified mobility
dealer.
6.3. Batteries
The wheelchair is equipped with maintenance-free gel batteries whose
fluid level does not need to be checked.
If you do not use your wheelchair for an extended period, the batteries
should be charged every two months, otherwise they may be destroyed
by deep discharge.
Make a habit of checking the battery status display on the control
every time before using your wheelchair. If the battery status display
shows only the red LEDs, do not travel long distances and connect the
battery charger to the wheelchair as soon as possible.
We recommend charging the battery after every time the wheelchair
is used.
6.3.1. Charging
Charging for the first time
To charge the batteries to their maximum capacity proceed as follows:
• Discharge the factory-charged batteries until the LED display shows
two bars.
• Charge the batteries as described below (approx. 16 hours).
• Discharge the batteries again to two bars on the LED indicator.
Use only approved battery chargers to charge the
batteries (see Technical Data). Follow the instruc-
tions for use of the battery charger.
Before using the battery charger check that the mains connection is
230 V.

Bischoff & Bischoff GmbH |13.12.2017
EN
2524
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX

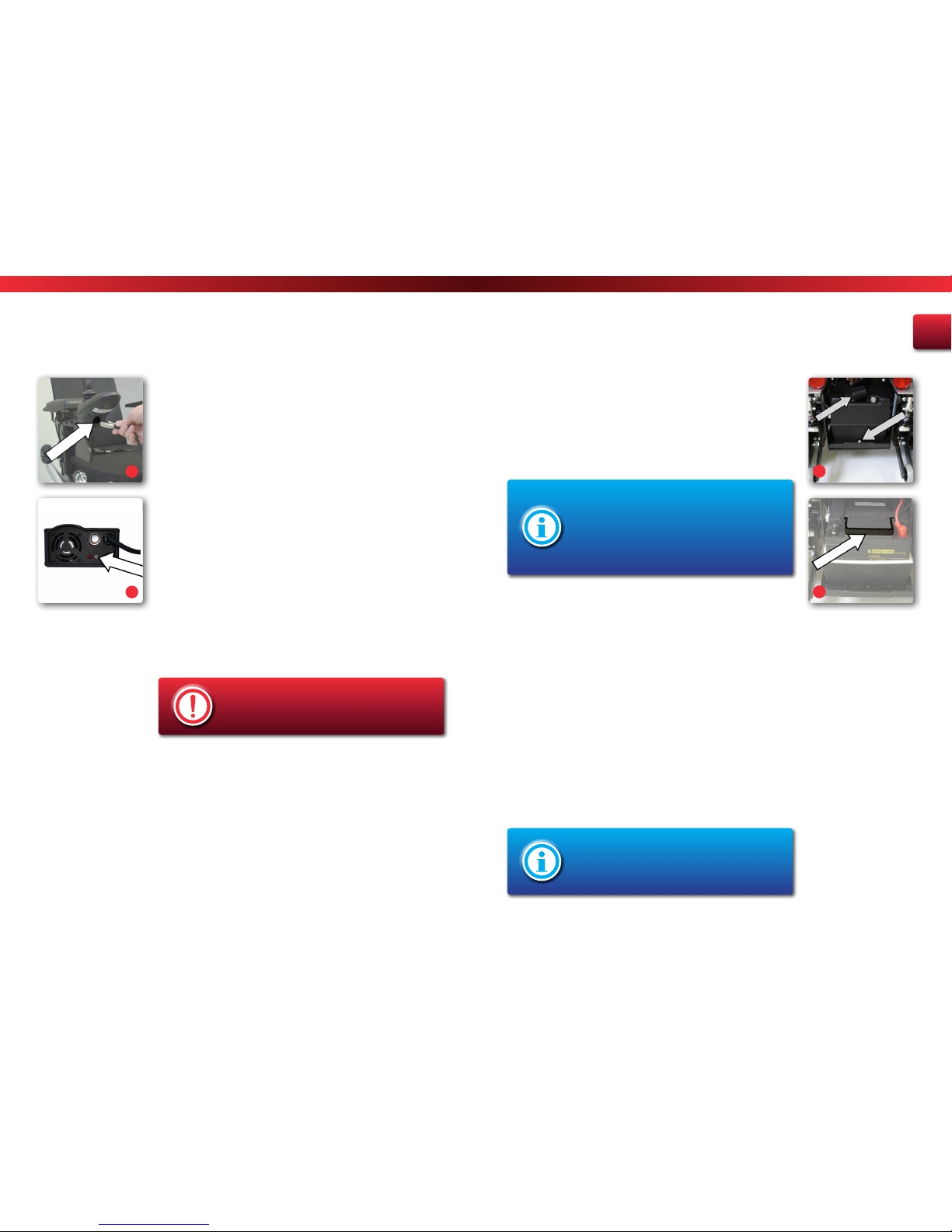

• Switch off the wheelchair first.
• Connect the battery charger to the wheelchair. The charging jack is
on the side under the control.
• Plug the mains plug of the battery charger into the mains socket
(230 V), (fig. 25).
• The charge indicator (green) of the battery charger shows the
status of the charging process (fig. 26).
• Red – battery charger is switched on
• Yellow – charging
• Green : charging is complete (batteries charged)
• Once charging is complete, disconnect the mains plug and
disconnect the battery charger from the wheelchair.
6.3.2. Replacing batteries
When working on the batteries be very careful, do not use metal tools,
do not touch the battery terminals and follow the directions of the
battery manufacturer.
Caution! This work should only be done by a trained
technician. Danger of electrocution!
Use only batteries approved for this wheelchair (see technical data).
Make sure that the wheelchair is switched off before starting to replace
batteries.
• First remove the battery cover.
• Loosen the screws on the right and left. (Abb. 27).
• Now the belts that hold the battery can be released.
• Disconnect the battery cable. First the red terminal and then the
black terminal. Make sure you use insulated tools and do not
contact metal frame parts while disconnecting the cables.
• Lift the batteries carefully out by the handles.
• Install the new batteries in their correct position and connect the
terminals. Note the correct colour-coding (red and black).
• Push the battery compartment back into the original position,
mount the slide-in module and fasten the battery cover by means
of the Velcro strap.(fig. 28).
When the batteries have reached the end of their
life, i.e. they can no longer be adequately charged,
they must not be disposed of with household rub-
bish. Old batteries are returned to the dealer when
new batteries are purchased and correctly disposed
of.
7. Maintenance tips for retailers
We recommend having the wheelchair inspected by your qualified
mobility dealer at least once a year. If faults or defects at the wheelchair
are found, it must be returned to the dealer for repair immediately. The
dealer can receive the required information, documentation and circuit
diagrams for repair and service on request. A training program is also
available for dealers.
B+B customer service is available at +49 (0)700/60007070.
8. Disposal
If the wheelchair is no longer used and you wish to dispose it, please
contact your dealer.
If you wish to dispose the wheelchair yourself, please
contact a local recycling company for the disposal
regulations of your local jurisdiction.
25
26 28
27

Bischoff & Bischoff GmbH |13.12.2017
EN
2726
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
9. Transfering the wheelchair
When the wheelchair is transferred to a new owner, please include all
the technical documentation with it for the new user.
The wheelchair must be inspected in accordance
with the service schedule and must be in good con-
dition.
10. Maintenance
Our customer service can provide a service schedule for the wheelchair.
11. Transport
You can determine whether or not your wheelchair is approved for use
as a seat in a vehicle for transporting disabled people by referring to
the symbols on the CE sticker on the product:
• Wheelchair suitable for use as a seat in a vehicle for
transporting disabled people (see fig. A)
• Wheelchair not suitable for use as a seat in a vehicle for
transporting disabled people (see fig. B)
The wheelchair has also been marked with symbols on the frame
which quickly show you and your transport service if it is suitable for
transport in wheelchair accessible vehicles and where the fastening
points are located:
• Wheelchair not suitable for use as a seat in a vehicle for
transporting disabled people (see fig. C)
• Fixation points on the restraint system (see fig. D)
All products approved by B+B for use as seats in vehicles are tested
in accordance with ISO 7176-19. The tests in accordance with ISO
7176-19 were performed using restraint systems from AMF-Bruns. The
correct mounting of the restraint system is a prerequisite for the safe
transportation of the products in a vehicle for transporting disabled
people and the basis for the approval. The restraint systems from AMF-
Bruns provide the ideal points for the provision of restraint force for
the purpose of securing the products in the vehicle for transporting
disabled people (known by the German term „Kraftknoten“, which is
defined in the standard DIN 75078-2). For the purpose of providing
restraint in the vehicle for transporting disabled people (see fig. D), the
products must only be secured at these specific points („Kraftknoten“
points).
If possible, use a permanently installed car seat and its belt system.
Stow the wheelchair in the luggage space. The person responsible for
the transportation should be familiar with the current regulations for
transportation as well as with the method of operating the vehicle
for transporting disabled people and the restraint system. Anchored
4-point restraint systems must be used to secure the wheelchair in
the vehicle. If you have any queries about securing your product in
a vehicle for transporting disabled people, please contact the B+B
customer service on +49 (0)700/60007070.
A
B
C
D

Bischoff & Bischoff GmbH |13.12.2017
EN
2928
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
12. Warranty
The warranty covers all defects of the wheelchair that are demonstrably
due to material or manufacturing defects.
Any claim must be accompanied by the completely filled-out warranty
certificate.
Warning! Non-observance of the instruction
manual, improper maintenance and in particular
any technical changes and supplements (added
fittings) without the approval of B+B will generally
lead to forfeiture of warranty and product liability
claims.
Our products come with a statutory guarantee of 2 years. Batteries,
replacement units and repairs are covered by a 1 year warranty.
Warranty-Certificate
(Please note our general business terms and conditions)
Model: Terra / Terra SX
Serial Number:*
* (to be filled in by your qualified medical supply dealer.
Dealer:
Date and Stamp
*The serial number is located on the side frame.

Bischoff & Bischoff GmbH |13.12.2017
EN
3130
TERRA/TERRA SX | Electric Wheelchair Electric Wheelchair | TERRA/TERRA SX
Tip!
In spite of careful research and editing, incorrect information may have
crept into our operating manuals. The current version of each of the
operating manuals can be found in the download area of our website:
www.bischoff-bischoff.com
Notes

Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D-76307 Karlsbad
www.bischoff-bischoff.com
