Table of Contents
1. Introduction 04
1.1. Signs and Symbols 05
2. Important Safety Instructions 05
2.1. General Safety Instructions 05
2.2. Advice regarding EMC Interference 07
2.3. Brakes 07
2.4. Use on Public Roads 07
2.5. Purpose 07
2.6. Indications for Use 08
2.7. Contraindication 08
2.8. Declaration of Conformity 08
3. Description of Product and Contents 08
3.1. Inspection on Delivery 08
3.2. Type plate and serial number 09
3.3. Contents 10
3.4. Summary 10
3.5. Basic Settings 11
3.5.1. Leg Supports 11
3.5.2. Backrest 12
3.5.3. Backrest Sag 12
3.5.4. Suspension 13
3.5.5. Armrests 13
3.5.6. Side Parts 14
3.5.7. Control unit 14
3.5.8. Seatbelt 15

Bischoff & Bischoff GmbH | 14.02.2020
EN
54
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
1. Introduction
Dear user,
You have decided on a high-quality Bischoff & Bischoff electric
wheelchair, and we would like to thank you for your trust.
The electric wheelchair was designed to offer you many advantages
and meet your needs. The wheelchair can be fitted to your individual
body size thanks to a multitude of adjustable features and optimal
adaptability such as the length of the lower leg, the recline of the
backrest, the sag of the backrest as well as the swing away function
of the control unit and the choice of mounting the control unit either
to the left or the right side.
The electric wheelchair is designed for indoor and outdoor use.
Before using your new electric wheelchair for the first time,
please read and follow the instructions in this manual carefully.
The instruction manual is an integral and necessary part of the
wheelchair. This is why you should keep it close by and include it
when passing on the wheelchair to someone else.
Any repairs and adjustments require special technical training and
may therefore only be carried out by authorized Bischoff & Bischoff
mobility dealers.
1.1. Signs and Symbols
Warning! These are especially safety-relevant
instructions. Follow the directions in the manual!
Important! This is especially useful information on
a given subject.
2. Important Safety Instructions
2.1. General Safety Instructions
• To avoid falls and dangerous situations, you should first practice
driving your new wheelchair on level, unobstructed ground. We
recommend having an assistant with you.
• Please make sure that all parts have been properly installed before
using the wheelchair.
• Practice driving on level, unobstructed ground before first use.
Get a good understanding for the way the wheelchair brakes and
accelerates when driving straight ahead or a curve.
• Please note that displacing the center of gravity by shifting the
body or by adding loads may increase the risk of tipping over the
wheelchair to the side or backwards.
• The wheelchair may not be used for transport of more than one
person or any additioonal load. Make sure to only use it for the
intended purpose.
• Never use the wheelchair under the influence of alcohol or other
substances that may impair your attention and/or your physical
and mental capacity.
• Please make sure to always use ramps to overcome obstacles.
• Avoid hitting obstacles (steps, curbs) at full speed.

Bischoff & Bischoff GmbH | 14.02.2020
EN
76
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
• Please pay attention to the anti-tipper wheels when climbing steps,
lifting platforms and ramps. Make sure there is enough clearance
on top, on the bottom and on the sides.
• The control unit must always be switched off when getting in or out
of the wheelchair.
• All road traffic regulations must be observed when driving on
public roads.
• The rear lights at the wheelchair must always be visible to other
road users.
• If possible, wear bright, conspicuous clothing. This will make it
easier for other road users to see you.
• Please note that the upholstery will heat up if directly exposed to
sunlight and may cause injuries to your skin when touched. You
should therefore cover these parts or protect the wheelchair from
exposure to direct sunlight.
Please note that operating the wheelchair in push
mode by uncoupling the drive mechanism will deac-
tivate the electro-magnetic brakes. The wheelchair
should therefore only be used on level ground in this
mode. Non-observance may lead to life-threatening
situations.
2.2. Advice Regarding EMC
Interference
Despite meeting all applicable EMC guidelines and standards it is
possible that the wheelchair will experience interference from other
electrical devices (e.g. cell phones) or interfere with these. Should
you notice such interference, either turn off the other device or your
electric wheelchair and move it outside the interference range.
2.3. Brakes
After letting go of the joy-stick, the automatic brakes will slow the
wheelchair until it comes to a complete stop.
In push mode, the drive mechanism is decoupled and there is no
handbrake. To secure the chair you have to engage the drive again.
2.4. Use on Public Roads
The wheelchair is designed for indoor and outdoor use.
Please keep in mind that you are using public roads and therefore
have to observe all road traffic regulations.
Do not endanger other road users through inconsiderate driving,
especially on walkways.
2.5. Purpose
The Eltego electric wheelchair is designed for indoor and outdoor use
by persons with impaired mobility.
It is therefore sufficiently compact and agile for indoor use and
also capable of handling medium distances and overcoming small
obstacles outdoors. It is classified under category B according to the
EN 12184 standard. The maximum load capacity is 120 kg.

Bischoff & Bischoff GmbH | 14.02.2020
EN
98
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
2.6. Indications for Use
Inability or severely impaired ability to walk due to
• paralysis
• loss of limb
• defect/deformity of limb
• joint contracture
• joint damage (not in both arms)
• other diseases
The provision of an electric wheelchair is indicated if the use of a
hand-driven wheelchair is no longer possible but the proper operation
of an electric drive is possible.
2.7. Contraindication
The provision of an electric wheelchair is unsuitable for persons
• with severe balance disorders
• with impaired or insufficient vision
• with strongly impaired cognitive abilities
2.8. Declaration of Conformity
Bischoff & Bischoff, as manufacturer and solely responsible party,
hereby declares that the electric wheelchair Eltego complies with the
requirements of the EC Directive 93/42.
3. Description of Product and
Contents
3.1. Inspection on Delivery
All B+B products undergo a proper final inspection in our company
and are labeled with the CE mark.
The wheelchair is delivered in a special carton. Keep the carton after
unpacking, if possible. It is useful for later storage of the product or
for sending it back. The Eltego wheelchair comes disassembled in its
component parts.
Assembly, adjustment to your body size and first instructions are
taken care of by your qualified mobility dealer.
If the wheelchair is shipped by rail or road, the goods should be
checked immediately for transport damages (carton) in the presence
of the bearer. Should there be any damage, please contact our
customer service (Tel.: [phone]) immediately.
Check the contents for completeness and make sure nothing is
damaged. Should you find any irregularities or damage, please
contact our customer service (Tel.: [phone]).
3.2. Type plate and serial number
The type plate and serial number are located under the seat.
Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D - 76307 Karlsbad
Telefon 0700 - 60007070
GB
CE Sticker & EAN Codes (Size 80 mm x 23 mm)
Power Wheelchairs (not crash tested)
EAN 13 SN
Model: Eltego Model no.: 8312
2014-08
Class: B (Outdoor | Indoor)
Max. weight capacity: 120kg Max. speed: 6 km/h
AB
C D
E
H
F
G
01
I
Manufacturer logo
Manufacturer
information
RoHS logo
CE mark
Not suitable for use as a
seat in a vehicle
Important - Adhere to the
operating instructions
Model designation
Model number
Application class
Date of manufacture
Maximum load capacity
Maximum speed
Serial number
A
B
C
D
E
F
G
H
I
J K L
M
J
K
L
M

Bischoff & Bischoff GmbH | 14.02.2020
EN
1110
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
3.3. Contents
After receipt of the goods, please check the contents for completeness
right away. The contents consist of:
• outer package
• electric wheelchair (ready for use incl. 2 batteries)
• charging unit
• instruction manual
3.4. Summary
3.5. Basic Settings
It is necessary to adjust the wheelchair to your body size before
first use. This is the only way to ensure a correct posture allowing
long drives without tiring. Below you find a description of the basic
settings of the wheelchair. You should carry out these adjustments
with the help of your mobility dealer. You need a set of 4 mm, 5 mm
and 6 mm Allen keys, a screw driver and ring spanners, 10 and 13.

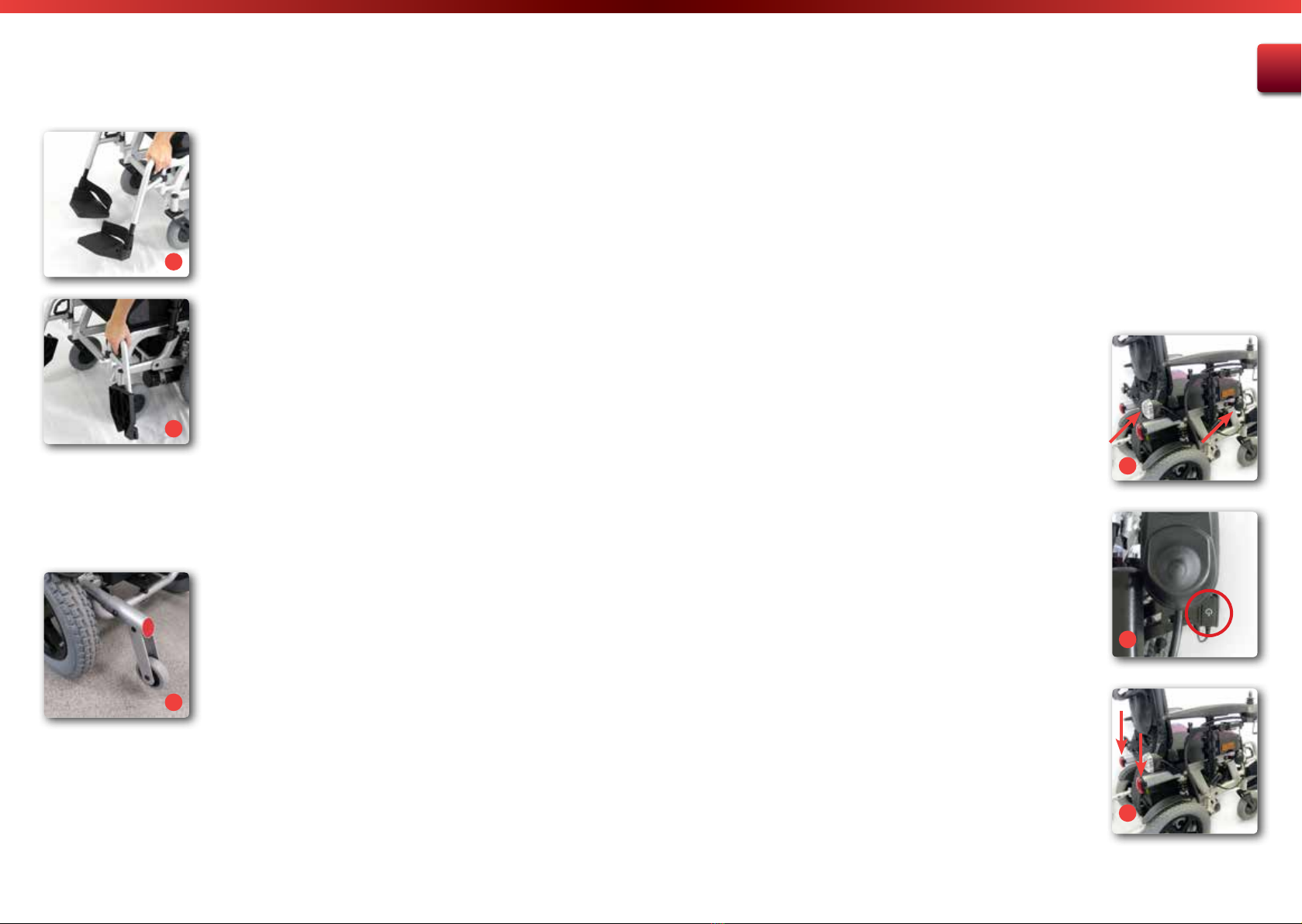

3.5.1. Leg Supports
Length of lower leg supports
• The lower leg supports can be adjusted from 470 to 550 mm.
• To do so, loosen the two Allen screws (SW 4).
• Adjust to the desired height.
• Tighten the screws again. Use Loctite 243 to lock screws in place.
Make sure to always use two screws for secure fas-
tening!
Angle of footrest
• The angle of the footrests is adjustable in 25° steps.
• Loosen the screwing at the side of the footrest.
• Adjust to the desired angle.
• Tighten the screw again. Use Loctite 243 to lock screw in place.
Make sure to set the angle only within the marked
range!
02
03
push handles
backrest
control unit
armrest
side part
seat cushion
rear reflectors
front reflectors
suspension
drive wheel
foot rest
steering wheel 01

Bischoff & Bischoff GmbH | 14.02.2020
EN
1312
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
3.5.2 Backrest
The angle of the backrest of your electric wheelchair has a manual
recline function and can be easily adjusted to the wanted position by
pulling the strap at the lower end of the backrest. You also have the
option of folding the backrest completely down to the front.
• You can adjust the angle of the backrest from 90° to 120° in four
steps.
• Pull the cable behind the back while holding the backrest with the
other hand.
• After letting go of the cable the bolts will lock into place.
3.5.3 Backrest Sag
A well-adjusted backrest makes it easier to relax and sit for a long
time and effectively reduces the risk of developing pressure sores.
Make sure there is enough sag in the pelvic area.
• Remove the padding from the tension straps of the backrest.
• Loosen the Velcro fasteners on the straps.
• The straps are adjusted one after the other from the bottom up.
• Slide the padding over the tension straps again.

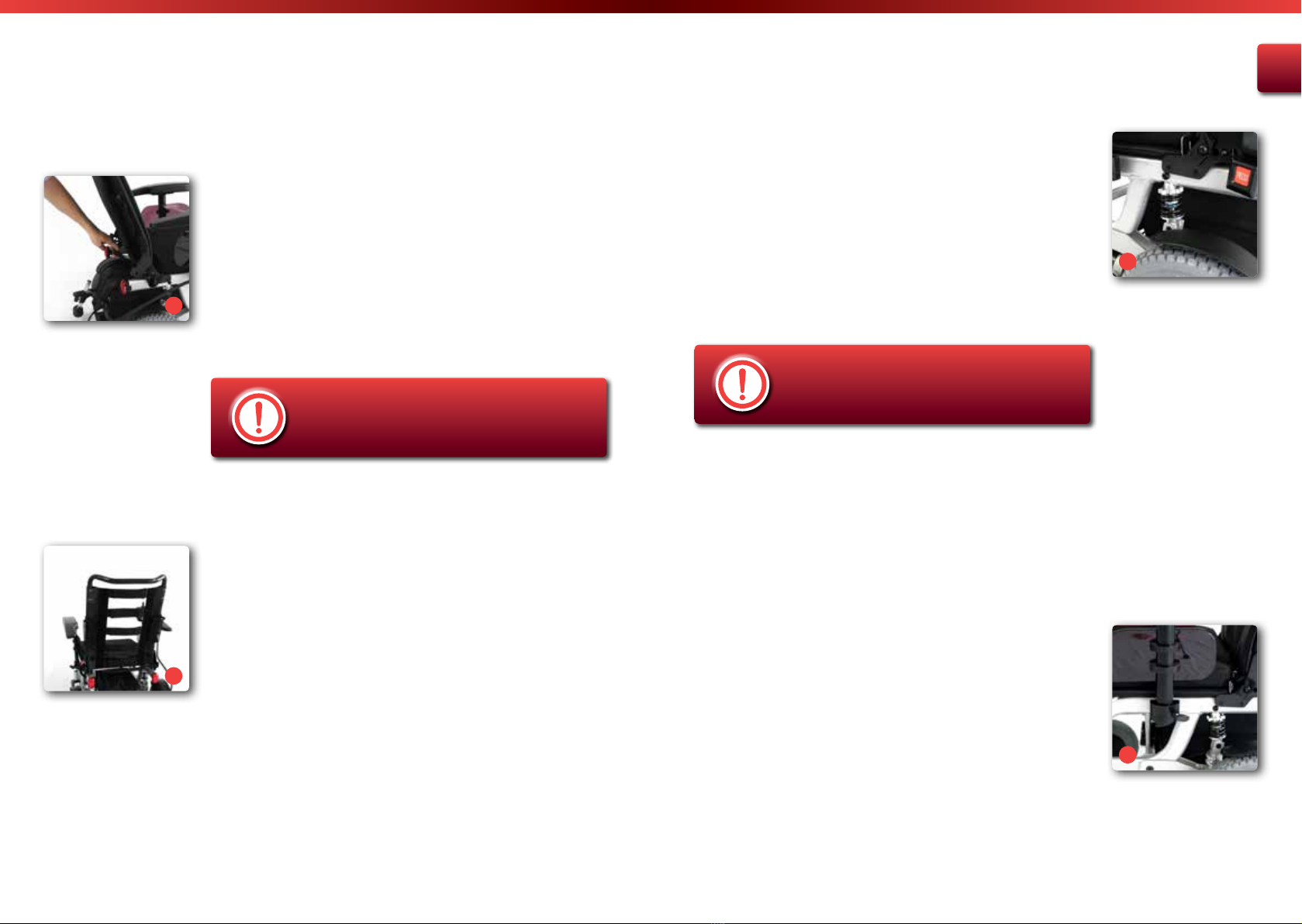

3.5.4. Suspension
You can adjust the suspension to your weight for a comfortable drive.
• You will need a special wrench to adjust the spring deflection.
(Please contact the service department)
• Pushing the spring together results in a reduced spring deflection
and a “harder” setting.
• Expanding the spring increases the spring deflection and
guarantees a “softer” setting.
Make sure that both suspensions on the right and
left are adjusted the same.
3.5.5. Armrests
The armrests can be completely taken off to be able to get in and out
of the chair from the side. In addition, the height of the armrests can
be adjusted. They can also be adjusted sideways by adjusting the side
parts (see side parts).
Removing the armrests
• To remove the armrest, loosen the wing bolt and pull out the
armrest to the top.
• When installing the armrest, make sure it is inserted all the way
and fastened again.
Adjusting the height
• First take the armrest out of the mounting.
• Remove the arresting bolt and screw it back into the armrest at the
desired position.
• The lowest hole represents the maximum height of the armrest.
04
05
06
07
Make sure that both bolts on the left and right are
completely locked in place.

Bischoff & Bischoff GmbH | 14.02.2020
EN
1514
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
3.5.6. Side Parts
You can slide the side parts sideways.
• Loosen the fastening (SW 13) below the seat and slide the side part
into the desired position.
• Tighten the fastening again.
Make sure the fastening is firmly tightened.
3.5.7. Control unit
The control unit can be mounted either on the right or left-hand side
underneath the armrest each.
• The control unit must be adjusted by a qualified mobility dealer to
warrant safe functionality of the wheelchair.
Adjusting the height
• The distance to the armrest can be adjusted.
• Loosen the screw connection on the inner side of the side part.
(Fig. 10)
• Move the control unit into the desired position, then tighten the
screw again.
Distance from the armrest
• You can adjust the position of the control unit to your forearm
length.
• Loosen the hand screw on the outer side of the side part. (Fig. 11)
• Move the control unit into the desired position, then tighten the
screw again.
Don’t forget that the cables to the control unit have
to be repositioned. This should be done by a quali-
fied mobility dealer.
3.5.8. Seatbelt
The seatbelt is attached to the side of the backrest.
• Adjust the length of the seatbelt by positioning the buckle
accordingly.
• Fasten the seatbelt with the latch.
• Open the seatbelt by pushing the red button at the latch.
10
11
12
08
09

Bischoff & Bischoff GmbH | 14.02.2020
EN
1716
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
4. Using the Wheelchair
After adjusting the wheelchair to your personal needs, familiarize
yourself with the control functions.
4.1. Description of Control
Functions
13
14

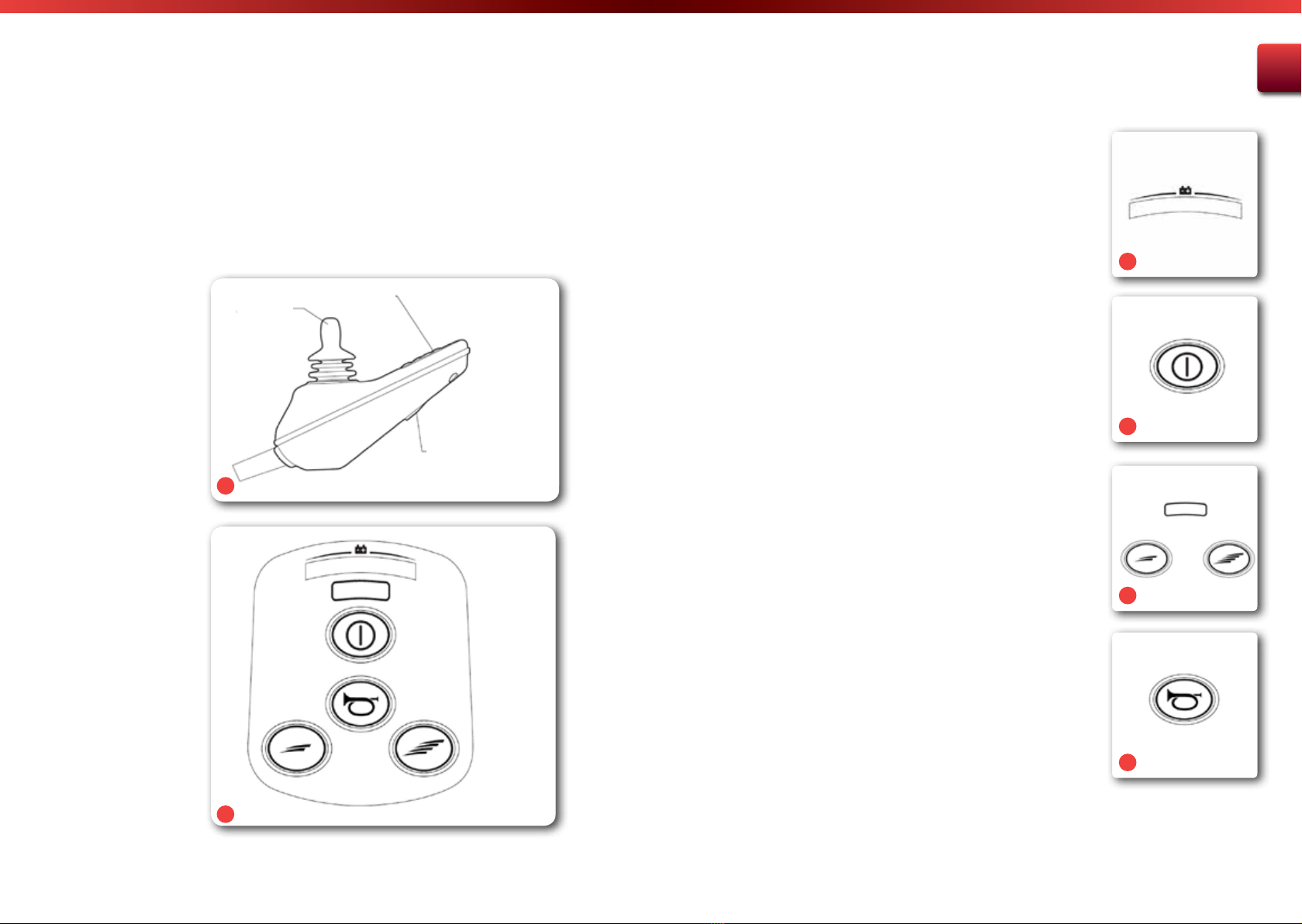

Battery Status Display (Fig. 15)
The battery status display shows to what extent the batteries are
charged. If the indicator is within the green range, you have enough
battery power available. If the indicator is within the red range, only
short drives are possible and the batteries should be recharged. (See
charging procedure)
ON/OFF Button (Fig. 16)
Pushing this button will put your wheelchair into operational mode.
Speed Range Display (Fig. 17)
The speed range display shows you the pre-selected speed range.
You can set the speed between level 1 and 5, with the corresponding
number of LEDs lighting up. The speed range indirectly tells you the
maximum speed possible at full deflection of the joystick, i.e. with
level 5 you can reach the maximum speed possible, while level 1 will
keep you within the lowest speed range.
Setting the Speed Range (Fig. 17)
These buttons allow you to increase (right) or decrease (left) the
maximum speed possible. Within each range you control the speed
with the joystick.
Horn (Fig. 18)
The horn allows you to attract attention in difficult situations.
15
17
18
16
Charger and
Programmer Socket
Control Pannel
Joystick

Bischoff & Bischoff GmbH | 14.02.2020
EN
1918
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
Immobilizer System
To protect your wheelchair against unauthorized use or theft, park it
in a locked room or activate the immobilizer system.
• Push the ON/OFF button until you hear a beep, then let go.
• Move the joystick forwards, then backwards and then back into the
neutral position. You will hear a beep each time. Now the control is
blocked.
• Activate the control again by pushing the ON/OFF button.
• Move the joystick forwards, then backwards and then back into the
neutral position. You will hear a beep each time. Now the control is
activated again.
4.2. Getting In and Out
Getting in and out, sideways transfer
• Move the wheelchair as close as possible parallel to the other seat.
• Should you want to transfer from or to another wheelchair or
rehabilitation stroller, secure this one first by activating the
handbrake.
• Secure the Eltego against rolling away unintentionally by pushing
the ON/OFF button and thus turning off the control (all displays
cleared).
• Take off the armrest/side part.
• Fold the footrests to the side or take off the leg supports.
• Now slide sideways onto the other seat.
• Please make sure you are sitting on the seat as far back as possible.
• Put the armrest and leg supports back into their original position.
Getting in and out from the front
• First fold up the footrests or take off the leg supports.
• Move the Eltego as close as possible to the other seat so that they
face each other.
• Should you want to transfer from or to another wheelchair or
rehabilitation stroller, secure this one first by activating the
handbrake.
• Secure the Eltego against rolling away unintentionally by pushing
the ON/OFF button and thus turning off the control (all displays
cleared).
• Now slide to the other seat by twisting your body.
• Finally, put the leg supports back into their original position.
4.3. Driving the Wheelchair
Before embarking on any journey, check that the ma-
gnetic brake is properly locked.
Startup
Sit down in your B+B wheelchair and rest your legs on the footrests.
Make sure you are sitting on the seat as far back as possible. Also
make sure that no loose items of clothing such as scarves, shirts and
the like are hanging from the side of the wheelchair, since they could
be caught in the wheels!
Make sure you are sitting comfortably and securely. By pushing the
ON/OFF button the Eltego is put into operational mode.
You can now use all electrical drive control functions.

Bischoff & Bischoff GmbH | 14.02.2020
EN
2120
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
Drive Control Functions
Your qualified mobility dealer can set the values for speed,
acceleration and delay within the scope of statutory specifications.
Select a low speed range at first and then increase it during your
drive, if necessary.
You can start driving by pushing the joy-stick forward. With the
joystick you can also increase the speed and control the direction
of travel. Putting the joystick in the neutral position will engage the
brakes and secure the wheelchair against rolling away.
Driving straight ahead: To drive straight ahead, carefully push
the joystick forward. The further you push the joystick forward, the
faster the wheelchair will go. If you let go of the joystick you will
automatically slow down.
Driving backwards: To drive backwards, carefully pull back on the
joystick. The further you pull back on it, the faster your wheelchair will
go. If you let go of the joystick, you will automatically slow down.
Turning: To change direction, push the joystick to the left or right.
This is also possible when the joystick is in a forward or backward
position, that is when you are going forwards or backwards.
4.4. Push Mode Operation
If you want to push the wheelchair manually in certain situations,
the brakes have to be disengaged. In the free-wheeling mode the
wheelchair is easy to push. The drive of the Eltego is equipped with
mini-switches that deactivate automatically when free wheel mode is
activated. When the on/off button is pressed, the battery indicator
blinks nine times; the wheelchair can no longer be operated.
Warning! The electro-mechanical brakes then don’t
work.
• Move the release lever up into the “Free Wheel” position (right and
left).
• A small jolt will let you know that the drive is now disengaged.
• To re-engage the drive, push the lever back into the “Drive”
position. It will lock automatically.
Warning! Always have both drives in the same posi-
tion. (Risk of accident)
19
Warning! Risk to Life!
The drives may only be disengaged on level ground.

Bischoff & Bischoff GmbH | 14.02.2020
EN
2322
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
4.5. Leg Supports
To make it as easy as possible to get in and out of your wheelchair,
you can fold the footrests up or pull the leg supports to the side and/
or take them out.
• Open the locking mechanism to pull the leg support to the side.
(Fig. 20)
• In the “outside position“ the leg support can be taken off
completely. (Fig. 21)
• To reinstall the leg support, repeat the steps in reverse order.
• Push the leg support back to the front until it catches with an
audible click.
4.6. Anti-tipping Wheels
The anti-tilt rollers prevent the wheelchair from tipping over
backwards.
• The anti-tipping wheels are especially recommended for novice or
leg-amputated wheelchair users.
• The anti-tipping wheels are attached to the left and right side of
the frame as a pair.
4.7. Lighting system
The electric wheelchair is equipped with a lighting system in
accordance with the German traffic regulations (StVZO) for safe
participation in street traffic (fig. 23). The lighting unit consists of
2 front reflectors, 2 side reflectors and 2 rear lights, which can also
serve as reflectors simultaneously.
The active components are controlled with a button next to the
joystick (fig. 24). Press the button briefly to switch the lighting system
on/off. Hold the button down to adjust the brightness. The lighting
system is independent of the controller and can also be operated
when the wheelchair is switched off. When exiting the wheelchair,
make sure that the light is switched off.
4.8. Rear reflectors
The electric wheelchair is equipped with two rear reflectors which at
the same time also serve as reflectors.
Switch the rear on as soon as it starts to get dark, or when there
are poor light conditions, so as to get a better perception of your
surroundings.
They are attached by a clip to the frame at the back and can simply
be pulled away to the side. By pressing the red button, you can switch
on the rear reflex reflector, choose between different flashing modes
and also switch it off again.
20
21
22
24
25
23

Bischoff & Bischoff GmbH | 14.02.2020
EN
2524
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
5. Technical Data
Dimensions and Weights
Max. Load 120 kg
Seat width: 400 - 540 mm (via armrest adjustment)
Seat height: 485 mm (without cushion)
Depth of Seat: 440 mm
Seat Angle: 3°
Height of Backrest: 540 mm
Backrest angle: 90° - 120° (in 4x10° steps)
Overall length: 1050 mm (including footrests)
Total Width: 600 mm
Empty weight: 74.5 kg (including batteries)
Battery weight: 14.2 kg
Tires
Drive Wheels: 12,5“ x 2 1/4“ PU / 320 x 55 mm PU
Castors: 8“ PU / 200 x 50 mm PU
Electrical System
Main fuse: 50 A
Batteries: 2 x 12V / 50Ah
Charging Unit: 24V DC 4A
Motor: 2 x 24V / 250W / 4600RPM
Controller: PG Drive VSI
Lighting: rear lights with separate activation
Lighting (optional): headlights and rear lights according to
the German traffic regulations [StVZO]
Driving Specifications
Speed: 6 km/h (forwards) / 4 km/h (reverse)
Braking distance at 6km/h: 1000mm (may be significantly greater on
slopes than on level ground)
Max. Incline: max. 8°
Max. Obstacle Height: max. 50 mm
Range: 25 km (may be reduced by frequent use
on slopes, rough ground, climbing kerbs,
etc.)
Turning Radius: 1200 mm
Fittings
Frame: powder-coated aluminum frame
Brake: automatic braking system Electromagnetic
motor brake according to the German
traffic regulations [StVZO]
Resistance to ignition according to EN1021-1/-2
Operating forces
Joystick: approx. 1 N
Buttons on the controller: approx. 1 N
Disconnecting the drives: > 60 N
Ambient conditions
Temperature: -25-50°C
Air humidity: 20-80%
Storage conditions
Temperature: -40-65°C
Air humidity: 20-80%
6. Maintenance Tips for Users
6.1. Cleaning and Disinfection
Make sure the wheelchair is turned off before cleaning it.
• The frame and the paneling of the wheelchair can be cleaned with
a moist cloth. You can use a mild detergent for more stubborn dirt.
• The wheels can be cleaned with a wet synthetic fiber brush (do not
use a wire brush!)
• You can remove dust and small stains from your seat, backrest and

Bischoff & Bischoff GmbH | 14.02.2020
EN
2726
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
armrests with a moist cloth. Do not use any aggressive cleaning
agents, since they could disintegrate the surface of the fabric. The
upholstery can be washed in 40°C water and disinfected with a
commercially available disinfectant.
• Make sure that the electric and electronic components do not come
into contact with water unnecessarily!
6.2. Check Before Use
6.2.1. Brake Inspection
Make sure your brakes are operating properly before each use.
Start off carefully and letDo not use the wheelchair if it is behaving
abnormally or erratically.e to a complete stop.
When stopped, the mechanical brakes must engage with an audible
click. Should you notice any unusual braking behavior, please notify
your qualified mobility dealer right away and ensure the wheelchair is
not being used.
The motor brake is functioning correctly if you can’t push the
wheelchair when it is turned off.
Should you nevertheless be able to do so, then the electro-magnetic
brakes are defective. In this case you may no longer use the
wheelchair. Contact your qualified mobility dealer immediately.
6.2.2. Checking the lights and horn
Make sure your lights and horn are functioning properly before each
use.
If a unit under inspection does not react when the corresponding
button on the control panel is pushed, please notify your qualified
mobility dealer immediately and ensure the wheelchair is not being
used.
6.2.3. Inspection of Tires
Before embarking on any journey, check that the tires are in good
condition. Carry out a regular check of the tread depth of the tires
once a month. This should be at least 1 mm.
Any faulty or worn out tires must be changed through the specialist
retailer.
6.3. Batteries
Your wheelchair is equipped with maintenance-free gel batteries
whose fluid level doesn’t need to be checked and which are
electronically protected against total discharge.
Should your wheelchair not be used for a longer time, it should be
connected to the charging unit every 2 months; otherwise a total
discharge could destroy the batteries.
Before driving off, just look at the battery status display on your
control panel to check the charging status of your batteries. If only
the red LEDs light up in the battery status display, then you shouldn’t
drive for longer distances but connect the wheelchair to the charging
unit immediately.
We recommend connecting the charging unit after every use.
Warning!
Do not use a high-pressure or steam cleaner.
Warning!
Do not use the wheelchair if it is behaving
abnormally or eratically.

Bischoff & Bischoff GmbH | 14.02.2020
EN
2928
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
6.3.1. Charging Procedure
First Charging:
To achieve maximum charging capacity of the batteries, proceed as
follows:
• Drive until the factory-charged batteries are down to 2 bars on the
LED display.
• Then recharge the batteries as described below (app. 16 hrs).
• Drive until the batteries are down again to 2 bars on the LED
display.
• Recharge the batteries again as described below.
Only use approved charging units to recharge the
batteries (see Technical Data). Also observe the in-
structions in the charging unit’s operating manual!
• Before turning on the charging unit, check whether the supply
voltage is 230 V.
• First turn off the wheelchair.
• Connect the charging unit to the wheelchair. The charging jack is
located under the control panel to one side.
• Put the power plug of the charging unit into the power outlet
(230 V) and turn on the charging unit.
• The charging indicator on the charging unit shows the status of the
charging process.
• Flash Green: Standby
• Solid Red: Charging
• Solid Green: Fully Charged, the charging unit is switched on.
• Flash Red: Error
• After completing the charging process, pull the power plug and
disconnect the charging unit from the wheelchair.
6.3.2. Exchanging Batteries
Be extremely careful when working with the batteries. Avoid working
with metal tools, do not touch the battery terminals and observe the
instructions of the manufacturer.
Warning! This work should only be carried out by a
qualified mobility dealer. There is a risk to life!
Only use batteries that are approved for this wheelchair (see Technical
Data).
Make sure the wheelchair is turned off before starting to exchange
the batteries.
• Loosen the fitting holding the batteries in place and pull out the
battery sled.
• Loosen the cover of the battery compartment.
• Loosen the battery cable, first the red one and then the black one.
You won’t need a tool to do this.
• Carefully lift the batteries out on their straps.
• Lift the new batteries into their designated place and reconnect the
terminals. Observe the correct color coding (red and black).
• Secure the battery cover with the Velcro strap and slide the
battery compartment back into its original position. It will catch
automatically.
26
27
When the service life of the batteries has expired, i.e.
when they can no longer be charged sufficiently, the
batteries may not be disposed of with the ordinary
household garbage. Old batteries are taken back by
the dealer and disposed of properly when buying a
new battery from him!
24
25

Bischoff & Bischoff GmbH | 14.02.2020
EN
3130
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
7. Maintenance Tips for Retailers
We recommend to have the entire wheelchair inspected by an
authorized mobility dealer at least once a year.
Should the wheelchair be faulty or defective, it should be brought to
an authorized mobility dealer for repair without delay.
All information, documents and schematics necessary for repair are
made available to the authorized dealer on request. There is also a
training program for to qualify mobility dealers into authorized B+B
dealers.
Should you have any questions, please contact the B+B customer
service at +49 700 - 6000 7070.
8. Disposal
If your wheelchair is no longer needed and you want to dispose it,
please contact your authorized mobility dealer.
If you want to dispose of it yourself, please ask your
local disposal company for the applicable disposal
regulations in your town or city.
9. Use by others
The Eltego is appropriate for use by others. For use by others, the
wheelchair must first be thoroughly cleaned and disinfected according
to the accompanying care and hygiene instructions.
The product shall get checked by an authorised mobility dealer for
general condition, wear and shall get repaired if necessary.
10. Maintenance
Our customer service can make a maintenance schedule available to
you.
The wheelchair must be inspected according to the
maintenance schedule and must be in faultless con-
dition.

Bischoff & Bischoff GmbH | 14.02.2020
EN
3332
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
disabled people, please contact the B+B customer service department
on
+49 (0)700/60007070.
12. Warranty
The warranty covers all defects of the wheelchair that are demonstrably
due to material or manufacturing defects.
Any claim must be accompanied by the completely filled-out warranty
certificate.
Warning! Non-observance of the instruction ma-
nual, improper maintenance and in particular any
technical changes and supplements (added fittings)
without the approval of Bischoff & Bischoff will ge-
nerally lead to forfeiture of warranty and product
liability claims.
Our wheelchair carries a 2-year warranty for all frame components.
The warranty for batteries is 6 months. All other components are
covered by a 1-year warranty.
11. Transport

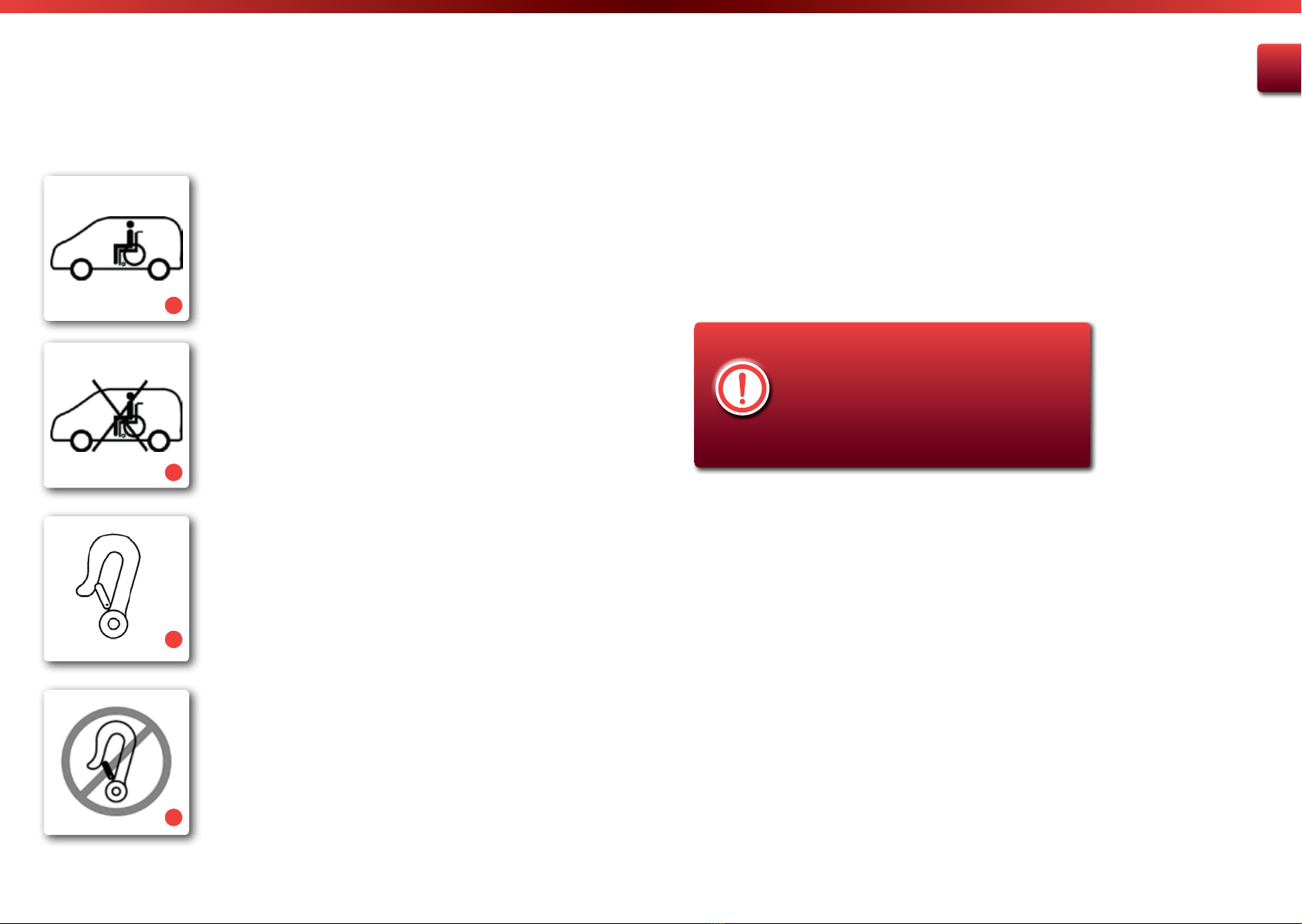

You can determine whether or not your wheelchair is approved for use
as a seat in a vehicle for transporting disabled people by referring to
the symbols on the CE sticker on the product:
Wheelchair suitable for use as a seat in a vehicle for
transporting disabled people (fig. A)
Wheelchair not suitable for use as a seat in a vehicle for
transporting disabled people (fig. B, D)
All products approved by B+B for use as seats in vehicles are tested
in accordance with ISO 7176-19. The tests in accordance with ISO
7176-19 were performed using restraint systems from AMF-Bruns. The
correct mounting of the restraint system is a prerequisite for the safe
transportation of the products in a vehicle for transporting disabled
people and the basis for the approval.
Fixation points on the restraint system (fig. C)
The restraint systems from AMF-Bruns provide the ideal points for the
provision of restraint force for the purpose of securing the products in
the vehicle for transporting disabled people (known by the German
term „Kraftknoten“, which is defined in the standard DIN 75078-2).
For the purpose of providing restraint in the vehicle for transporting
disabled people (fig. C), the products must only be secured at these
specific points („Kraftknoten“ points). If possible, use a permanently
installed car seat and its belt system. Stow the wheelchair in the
luggage space. The person responsible for the transportation should
be familiar with the current regulations for transportation as well as
with the method of operating the vehicle for transporting disabled
people and the restraint system. Anchored 4-point restraint systems
must be used to secure the wheelchair in the vehicle. If you have
any queries about securing your product in a vehicle for transporting
A
B
C
D

Bischoff & Bischoff GmbH | 14.02.2020
EN
3534
Eltego | Electric Wheelchair Electric Wheelchair | Eltego
Notes
Warranty-Certificate
(Please note our general business terms and conditions)
Model: Eltego
Serial Number:*
* (to be filled in by authorized dealer)
Dealer:
Date and Stamp
*The serial number is located on the side frame
Note!
In spite of careful research and editing, incorrect information may
have crept into our operating manuals. Rights to technical changes
reserved. Illustrations may include accessories. The current version of
each instruction manual is ready for download at the B+B website:
www.bischoff-bischoff.com

Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D-76307 Karlsbad
www.bischoff-bischoff.com
