BitFenix Prodigy M ARGB User manual

Quick Installation Guide

Prodigy M 2022 Case
Prodigy M 2022 Case Quick Installation Guide
Accessory Pack
Package Content
3 X ARGB 12cm fans
2 X 30cm ARGB LED strips
Control & Remote
ARGB Only
Accessory Pack
Motherboard standoff 5PCS
HDD shockproof pad 20PCS
HDD screw 16PCS
Copper column sleeve 1PCS
PSU screw 4PCS
M/B screw 25PCS
Cable tie 6PCS
01
4. Graphics Cards support
max Up to 339mm
5. Acrylic see-through top cover
1. Magnetic filter on top
3. High flow filter front panel
6. UP TO 280mm Radiator bracket on top
2. New Enhanced Edition Handle
BitFenix FyberFlex™ Composite Handles
7. Removable SDD/HDD 5 bracket
11. Magnetic filter on bottom
12. Pre-installed 60mm fan
13. ARGB 120mm Fan x 3
ARGB LED Strips 300mm x 2
Controller and Remote
9. Vertical graphics card bracket
8. 120 mm water cooling bracket
10. Tempered glass

02

Prodigy M 2022 Case
Prodigy M 2022 Case Quick Installation Guide
Accessory Pack
Package Content
Accessory Pack
Motherboard standoff 5PCS
HDD shockproof pad 20PCS
HDD screw 16PCS
Copper column sleeve 1PCS
PSU screw 4PCS
M/B screw 25PCS
Cable tie 6PCS
03

Basic Installation
How to remove the left side panel
Front Top Back Side
Remove both thumb screws Slide the side panels towards
the back of the case
4. Graphics Cards support
max Up to 339mm
5. Acrylic see-through top cover
1. Magnetic filter on top
3. High flow filter front panel
6. UP TO 280mm Radiator bracket on top
2. New Enhanced Edition Handle
BitFenix FyberFlex™ Composite Handles
7. Removable SDD/HDD 5 bracket
11. Magnetic filter on bottom
12. Pre-installed 60mm fan
13. Pre-installed 120mm fan
9. Vertical graphics card bracket
8. 120 mm water cooling bracket
10. Tempered glass
04

Move the handles a little bit towards the back of the case
Suggest to remove the handles before installing the PC.And please do not screw too
tight on handles when install the handles back to the case.
DH
A. Power Button
B. Reset Button/ LED Button
C. USB 3.0 Ports
D. Microphone Jack
E. Headphone Jack
F. HDD LED
G. Power LED
H. USB3.1 Gen2 TypeC
A
B
C
E
F
G
06

Choose magnetic acrylic top cover or magnetic
mesh top cover.
(Suggest to use magnetic mesh top cover when
install fans or all-in-one water cooling)
07
1
2

Drive locations
HDD or SSD
SSD
HDD
08

Installed 2.5”Drivers on bracket
If you would like to install SSD here then you will be
unable to install HDD at the back of this bracket
09
Please install 2.5’’ Drivers first if you have both 3.5’’ and 2.5’’ Drivers.

Installed 3.5“Drivers on bracket
10

Installed 2.5”Drivers at the bottom
Installed 3.5“Drivers at the bottom
11

How to install graphics card
Graphics card which can be installed in case doesn’t means it can
also be installed vertically
Install the PCIE panel from inside after screwing the graphics card
12

How to install vertical graphics card
Please connect PCIE cables to the graphics card before install it vertically.
Vertical VGA Length Support:
Length up to 339mm / 2 Slot /
Thickness up to 55 mm
If the graphic card is too wide, then it can not install
12 cm fans at bottom
13

How to install power supply with PSU bracket
14

How to install power supply in case
Suggest to install in this way when graphics card over 275 mm length
15

Install 12cm fans at bottom
Install 12cm fan at rear
16

Install 12cm fans at top
Install 12cm fans at front
17

Install 6cm fans at front - 1
Install 6cm fans at front - 2
18

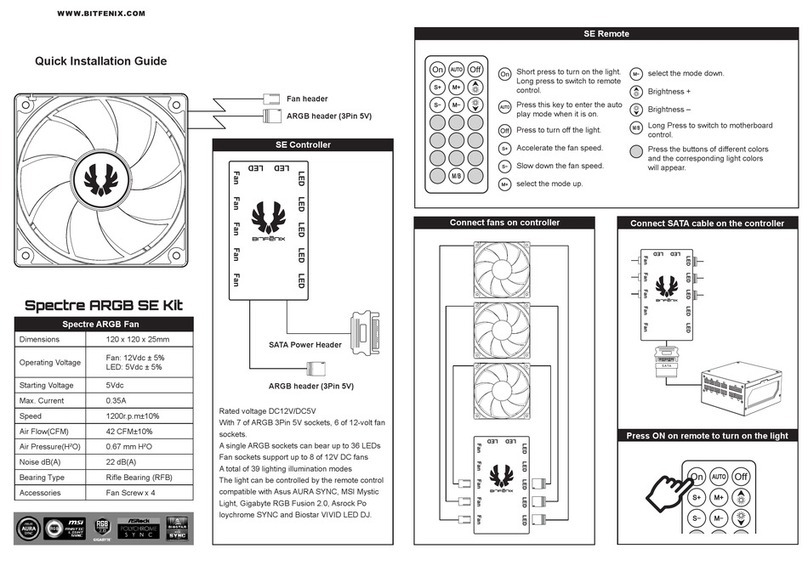

SE Controller
Spectre ARGB Fans x 3
Spectre ARGB LED strips 30cm x 2
SE controller & SE remote
Prodigy M 2022 ARGB version include
19
