BKT Elektronik EMS Manual

BKT Elektronik - Headquarter
Poland, Lochowska 69 Str.
86-005 Biale Blota
Phone: [phone]
e-mail: [e-mail]
© 2022 BKT Elektronik
www.bkte.pl

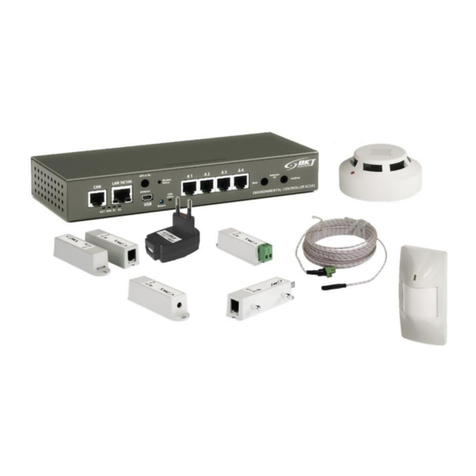

BKT EMS
Environmental Monitoring System
- the environmental parameters monitoring system
- installation and configuration manual
- version 7

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
2
Table of contents
1OVERVIEW ..................................................................................................................................................................................................5
2SYSTEM COMPONENTS................................................................................................................................................................................5
2.1 EC335i controller.............................................................................................................................................................................5
2.2 Analogue sensors.............................................................................................................................................................................5
2.3 CAN digital sensors..........................................................................................................................................................................7
2.4 Extension modules and accessories..................................................................................................................................................8
3SYSTEM STRUCTURE....................................................................................................................................................................................9
3.1 Number of sensors and wiring..........................................................................................................................................................9
3.2 Example 1. Extension modules EE321.............................................................................................................................................10
3.3 Example 2. Extension modules EE322.............................................................................................................................................10
3.4 Example 3. CAN devices................................................................................................................................................................. 11
3.5 Example 4. IT cabinet monitoring...................................................................................................................................................12
4INSTALLATION OF DEVICES ........................................................................................................................................................................13
4.1 EC335i controller installation .........................................................................................................................................................13
4.1.1 Package contents ............................................................................................................................................................13
4.1.2 Controller dimensions ..................................................................................................................................................... 13
4.1.3 1U 19’’ bracket installation.............................................................................................................................................. 13
4.1.4 Device connectors...........................................................................................................................................................14
4.2 Installation of EA319i –LTE modem ...............................................................................................................................................14
4.2.1 Package contents ............................................................................................................................................................14
4.2.2 Assembly procedure........................................................................................................................................................15
4.3 Installation of EE321 module –8 analogue inputs extension ........................................................................................................... 16
4.3.1 Package contents ............................................................................................................................................................16
4.3.2 EE321 dimensions ........................................................................................................................................................... 16
4.3.3 1U 19’’ bracket installation.............................................................................................................................................. 16
4.3.4 Device connectors...........................................................................................................................................................17
4.3.5 Connecting the EE321 module .........................................................................................................................................18
4.4 Installation of EE322 module–extension of 32 inputs for voltage-free contacts...............................................................................19
4.4.1 Package contents ............................................................................................................................................................19
4.4.2 EE322 dimensions ........................................................................................................................................................... 19
4.4.3 1U 19’’ bracket installation.............................................................................................................................................. 20
4.4.4 Device connectors...........................................................................................................................................................20
4.4.5 Connecting the EE322 module......................................................................................................................................... 21
4.5 Installation of ES340 sensor –smoke, humidity, temperature.........................................................................................................22
4.6 Installation of ES341 sensor –pressure, humidity, temperature......................................................................................................24
4.7 Installation of analogue sensors..................................................................................................................................................... 25
4.7.1 ES352 - 230VAC voltage sensor........................................................................................................................................25
4.7.2 ES353 –door sensor........................................................................................................................................................ 26
4.7.3 ES356 –smoke sensor .....................................................................................................................................................26
4.7.4 ES357 –PIR sensor ..........................................................................................................................................................27
4.7.5 ES359 –point leak sensor ................................................................................................................................................28
4.7.6 ES360 + ES368 - linear leak sensor....................................................................................................................................28
4.7.7 ES362 - 4-20mA current sensor........................................................................................................................................ 29
4.7.8 ES363 - 0-75VDC voltage sensor....................................................................................................................................... 29
4.8 Installation of accessories ..............................................................................................................................................................29
4.8.1 EA313 - 30V/5A relay.......................................................................................................................................................29
4.8.2 EA315 - light signal .......................................................................................................................................................... 31
4.9 An example of placing devices in the cabinet..................................................................................................................................32

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
3
5CONFIGURATION.......................................................................................................................................................................................33
5.1 Horizontal menu............................................................................................................................................................................ 33
5.2 Vertical menu................................................................................................................................................................................33
5.3 Saving settings into non-volatile memory.......................................................................................................................................34
5.4 Dashboard.....................................................................................................................................................................................34
5.5 General statistics...........................................................................................................................................................................34
5.6 System tree (system components) .................................................................................................................................................35
5.6.1 Setting the sensor parameters......................................................................................................................................... 37
5.6.2 Adding a new group.........................................................................................................................................................38
5.6.3 Adding an email notification............................................................................................................................................ 39
5.6.4 Adding a trap notification ................................................................................................................................................40
5.6.5 Adding an SMS notification..............................................................................................................................................41
5.6.6 Adding WEB SMS notification ..........................................................................................................................................42
5.6.7 Adding sms gate notification............................................................................................................................................43
5.6.8 Adding phone call............................................................................................................................................................ 43
5.6.9 Adding HTTP notification ................................................................................................................................................. 44
5.6.10 Adding a timer.................................................................................................................................................................45
5.6.11 Adding a trigger...............................................................................................................................................................45
5.6.12 Adding PING functions..................................................................................................................................................... 45
5.6.13 Adding an SNMP Get .......................................................................................................................................................46
5.6.14 Adding Modbus TCP element...........................................................................................................................................47
5.6.15 Adding virtual mathematical element ..............................................................................................................................48
5.6.16 Adding a camera..............................................................................................................................................................49
5.6.17 Adding a dew point .........................................................................................................................................................49
5.7 Dry contacts (binary inputs for potential-free contacts) ..................................................................................................................50
5.8 GSM modem settings..................................................................................................................................................................... 50
5.9 Event log.......................................................................................................................................................................................51
5.10 Logical schemes.............................................................................................................................................................................51
5.11 Cameras........................................................................................................................................................................................53
5.12 Map .............................................................................................................................................................................................. 53
5.13 Users.............................................................................................................................................................................................53
5.14 CAN configuration (extension module)...........................................................................................................................................55
5.15 Graphs ..........................................................................................................................................................................................56
5.16 Reset smoke detectors...................................................................................................................................................................56
5.17 Preferences (system settings) ........................................................................................................................................................ 56
5.17.1 Web interface settings..................................................................................................................................................... 56
5.17.2 Network settings.............................................................................................................................................................57
5.17.3 LTE modem settings ........................................................................................................................................................57
5.17.4 Time settings................................................................................................................................................................... 58
5.17.5 Saving of events and measured values on a USB disk or SD card ....................................................................................... 58
5.17.6 Sending logs and sensor values to FTP, MAIL....................................................................................................................59
5.17.7 Saving logs to SYSLOG......................................................................................................................................................59
5.17.8 DynDNS settings..............................................................................................................................................................59
5.17.9 SNMP settings................................................................................................................................................................. 60
5.17.10RADIUS settings............................................................................................................................................................... 63
5.17.11FTP backup settings.........................................................................................................................................................63
5.17.12VPN client settings........................................................................................................................................................... 63
5.17.13SMTP settings..................................................................................................................................................................64
5.18 System menu (system management).............................................................................................................................................. 64
5.18.1 Restoring default settings through a website....................................................................................................................64

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
4
5.18.2 Restarting the device.......................................................................................................................................................64
5.18.3 Firmware update.............................................................................................................................................................65
5.18.4 Export data to a file.........................................................................................................................................................66
5.18.5 Restoring settings from a file ...........................................................................................................................................66
6QUICK START GUIDE.................................................................................................................................................................................. 67
6.1 Connection....................................................................................................................................................................................67
6.2 Commissioning..............................................................................................................................................................................67
6.3 Restoring default settings ..............................................................................................................................................................67
6.4 Initial configuration .......................................................................................................................................................................68
6.5 Identification of the controller IP address.......................................................................................................................................69
6.6 User Logging out............................................................................................................................................................................69
6.7 Configuration of sensor status email notifications .......................................................................................................................... 69
7DOCUMENT REVISIONS .............................................................................................................................................................................72
Warning:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take
adequate measures.
The specification is owned and copyrighted by BKT Elektronik Sp. z o.o. Information contained herein may be changed at owner’s discretion
without any notice. BKT Elektronik may not be held liable for any possible inaccuracies and discrepancies in this document.

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
5
1OVERVIEW
The BKT EMS system is designed to monitor environmental parameters (temperature, humidity, etc.) in a telecommunications cabinet or small
rooms. Its purpose is to warn users about possible emergency situations and report any failures. The single system controller can support: up to
4 analogue sensors, 4 sensors with potential-free contacts and two signalling devices. With expansion modules there are up to 28 analogue
sensors, 68 sensors with potential-free contacts, 10 sensors with CAN bus interface. To keep a satisfactory system performance, it is not
recommended to connect more than 60 sensors to the controller.
2SYSTEM COMPONENTS
2.1 EC335i controller
Hardware
Analogue inputs
4 inputs (RJ12 sockets) for compatible analogue sensors. Any combination of 4 sensors can be connected
to the device. Some sensors can be connected in stacks. The type of a sensor is detected automatically.
Inputs for potential-free
contacts
4 inputs (removable 6-pin terminal strip) for any sensors with potential-free contacts
Outputs
2x 12V/250mA voltage outputs (removable 3-pin terminal strip)
CAN connector
Connector (RJ12 socket) for up to 10 CAN devices, e.g., extension modules for additional analogue inputs,
additional inputs for potential-free contacts or CAN sensors
Other connectors
10/100Mbps (RJ45 socket) Ethernet port, USB 2.0 port (Mini-B socket)
Other
Optional card of a GSM module, SDHC 512GB slot
Power supply
External 12V/1A plug adapter, power consumption ≤ 10W
Dimensions
190x90x33 (width x depth x height)
Operating conditions
Temperature: 0°C - 60°C, Humidity: 0% - 90% RH (no condensation)
Storage conditions
Temperature: -25°C - 85°C, Humidity: 0% - 95% RH (no condensation)
Weight
700g
Part number
122EC003353
Software
Operating system
Linux
Configuration
Through a web interface
Supported protocols
HTTP, HTTPS, VPN, PING, DHCP, RADIUS, SYSLOG, FTP, SNTP, SMTP, SNMP (v1,v2c,v3), MODBUS TCP
Alarm notification
E-mail, SNMP trap, internet SMS gateway, SMS (optionally with GSM modem)
2.2 Analogue sensors
Any sensors from the table below can be connected to 4 analogue inputs (A1-A4) of the controller or inputs (A1-A8) in additional EE321 extension
modules (extension module with additional 8 analogue inputs). One controller can support up to 28 analogue sensors. If longer than included
cable is needed, it is a UTP Cat5e cable suggested wit terminated RJ14 (6P4C) plugs. Warning: some analogue sensors e.g., ES363 require 6-wire
cable terminated with RJ12 (6P6C) cable.

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
6
Type
Description
Part number
Front Rear
ES350 –Temperature sensor
Measurement range: -10°C - +100°C
Measurement uncertainty: ±1°C
Measurement resolution: 0,1°C
Power consumption: 60mW
Connectors: 1x RJ12 socket
Cable: RJ14(6P4C)-RJ14(6P4C), included 2m, maximum allowed length of
a connection cable: 100m
Dimensions: 60x18x18
122ES003500
Front Rear
ES351 –Humidity sensor
Measurement range: 0% - 100% RH
Measurement uncertainty: ±5% RH for 10% - 95% RH
Measurement resolution: 0,01% RH
Power consumption: 60mW
Connectors: 1x RJ12 socket
Cable: RJ14(6P4C)-RJ14(6P4C) included 2m, maximum allowed length of
a connection cable: 50m
Dimensions: 60x18x18
122ES003510
ES352 –230V AC voltage sensor
Measurement range: 90VAC - 250VAC
Power consumption: 60mW
Connectors: 1x USB-A socket
Cable: USB-A-RJ14(6P4C) included 1,8m, maximum allowed length of
a connection cable: 100m
Dimensions: 63x66x30
122ES003520
Front Rear
ES353 –Door sensor (reed relay + magnet)
Stack connection of up to 10 sensors
Power consumption: 60mW
Connectors: 2x RJ12 socket
Cable: RJ14(6P4C)-RJ14(6P4C) included 2m, maximum allowed length of
a connection cable: 150m
Dimensions: 60x18x18
122ES003530
Front Rear
ES354 –Vibration sensor
Stack connection of up to 10 sensors
Power consumption: 60mW
Connectors: 2x RJ12 socket
Cable: RJ14(6P4C)-RJ14(6P4C) included 2m, maximum allowed length of
a connection cable: 150m
Dimensions: 60x18x18
122ES003540
ES356 –Optical smoke sensor
Stack connection of up to 10 sensors
Power consumption: 100mW
Connectors: 2x RJ12 socket
Cable: RJ14(6P4C)-RJ14(6P4C) included 2m, maximum allowed length of
a connection cable: 150m
Dimensions: 100x45
122ES003560
ES357 –Passive infrared sensor
Movement detection range: 100° x 12m
Power consumption: 100mW
Connectors: 2m long cable from the casing, terminated with a RJ14 (6P4C)
plug, maximum allowed length of a connection cable: 50m
Dimensions: 112x71x48
122ES003570
ES358 –External temperature sensor
Measurement range: -40°C - +100°C
Measurement uncertainty: ±1°C
Measurement resolution: 0,1°C
Power consumption: 60mW
Connectors: 15m long cable from the casing, terminated with a RJ14 (6P4C)
plug, maximum allowed length of a connection cable: 100m
Dimensions: 7x30 + 15 m cable
122ES003580

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
7
ES359 –Flood sensor
Detection delay: 1s, Power consumption: 60mW, Dimensions: 60x18x18
Connectors: 2m long cable from the casing, terminated with a RJ14 (6P4C)
plug, maximum allowed length of a connection cable: 100m
WARNING: The sensor should be mounted in such a way that the liquid
touches only to the metal contacts during flooding. Liquid entering the sensor
housing will damage it.
122ES003590
Front Rear
ES360 –Flood sensor for a water detection cable
Detection delay: 15s
Power consumption: 60mW
Connectors: 1x RJ12 socket, 1x 2pin terminal block for ES361 wire
Cable: RJ14(6P4C)-RJ14(6P4C) included 2m, maximum allowed length of
a connection cable: 100m
Dimensions: 60x18x18
122ES003600
ES368 –Sensor detecting water and other conductive liquids
An ES360 sensor is required for connection
Available lengths: 3m (122ES003680), 5m (122ES003681), 10m
(122ES003682), 15m (122ES003683), 25m (122ES003684)
122ES003680
122ES003681
122ES003682
122ES003683
122ES003684
Front Rear
ES362 - 4-20mA sensor
Any sensors with 4-20mA output can be connected to the controller. Galvanic
insulation 1kV between the input and the output.
Measurement uncertainty: 2% (0,4mA)
Measurement resolution: 0,1mA
Power consumption: 100mW
Input voltage: 5V
Maximal input current: 24mA
Connectors: 1x RJ12 socket, 1x 2pin terminal block for 4-20mA sensor
Cable: RJ14(6P4C)-RJ14(6P4C) included 2m, maximum allowed length of
a connection cable: 50m
Dimensions: 60x18x18
122ES003620
Front Rear
ES363 - 75V DC voltage sensor
Galvanic insulation 1kV between the input and the output.
Measurement range: 0VDC - 75VDC
Measurement uncertainty: ±1% (0,75V)
Measurement resolution: 0,1V
Power consumption: 100mW
Connectors: 1x RJ12 socket, 1x 2pin terminal block as DC voltage input
Cable: RJ12(6P6C)-RJ12(6P6C) included 2m, maximum allowed length of
a connection cable: 50m
Dimensions: 60x18x18
122ES003630
2.3 CAN digital sensors
These sensors are connected to the CAN interface of the EC335i controller. The CAN interface is a serial bus and allows connecting devices in a
daisy chain (from device to device). A maximum of 10 devices can be connected to the controller via the CAN interface. The length of the CAN
bus should not exceed 200m. It is a UTP Cat 5e suggested as a CAN bus cable.
Type
Description
Part number
ES340 - Integrated smoke, humidity, temperature sensors; CAN bus
Temperature measurement range: -10 - +85°С
Measurement uncertainty: ±0,5°C
Measurement resolution: 0,1°C
Humidity measurement range: 0% - 100% RH
Measurement uncertainty: ±3% RH for 10-95% RH
Measurement resolution: 1% RH
Possibility to connect up to 10 devices in a daisy chain (sensor has 2 CAN
ports); Power consumption: 1000mW
Connectors: 2x RJ12 socket of CAN bus
Cable: RJ12(6P4C)-RJ12(6P4C), included 2m, maximum allowed length of CAN
bus: 200m; Dimensions: 100x45
122ES003400

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
8
ES341 - Integrated pressure 300-1100hPa, humidity 0% -100% RH (±3%
uncertainty for RH 10% - 95% RH), temperature –40...+85°С sensors; CAN bus.
Possibility to connect up to 10 devices in a daisy chain. The sensor has 2 CAN
ports for daisy chain connection.
Measurement uncertainty: ±1,5°C
Measurement resolution: 0,1°C
Measurement uncertainty: ±3% RH
Measurement resolution: 1% RH
Measurement uncertainty: ±1,7hPa
Measurement resolution: 1hPa
Connectors: 2x RJ12 socket of CAN bus
Cable: RJ12(6P4C)-RJ12(6P4C), included 2m, maximum allowed length of CAN
bus: 200m
Dimensions: 78x66x27 mm.
122ES003410
2.4 Extension modules and accessories
Expansion modules increase the number of available ports for sensors connected to one controller. The EE321 and EE322 modules must be
connected to the CAN interface of the EC335i controller. The CAN interface is a serial bus and allows connecting in a daisy chain (from device to
device). A maximum of 10 devices can be connected to the controller via the CAN interface. The length of the CAN bus should not exceed 200m.
It is a UTP Cat5e suggested as a CAN bus cable.
Type
Description
Part number
Front Rear
EE321 –Extension module with additional 8 analogue inputs.
The module is connected to a CAN controller connector. The controller supports
up to 3 EE321 devices. The module has no 19” brackets.
Connectors: 2x RJ12 socket of CAN bus, 8xRJ12(6P6C) for analogue sensors,
power socket 12V@1A
Dimensions: 110x68x40
122EE003210
Front
Rear
EE322 –Extension module with additional 32 inputs for potential-free contacts.
The module is connected to a CAN controller connector. The controller supports
up to 32 inputs of potential-free contacts. 19” brackets included.
Connectors: 2x RJ12 socket of CAN bus, 32 terminal blocks for potential-free
contacts
Dimensions: 215x40x40
122EE003220
Front Rear
EA313 - Relay 30VDC/5A
Maximal contact voltage: 30VDC
Maximal contact load: 5A
Coil voltage: 12VDC
Dimensions: 60x18x18
122EA003130
EA314i –1U 19" bracket for EC335i (part number 122EC003353)
Dimensions: 482x44x80
122EA003143
EA315 –Light signal
Flashing frequency: 1Hz
Power supply 12V, 80mA
Connectors: 1x 2pin terminal block
Cable: 1.5m 2-wire cable included
Dimensions: 73x45
122EA003150
EA316 –1U 19’’ bracket for 3xEE321
Dimensions: 482x44x80
122EA003160

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
9
EA319i - LTE modem for EC335i (part number 122EC003353)
The modem is mounted in a dedicated controller slot. The modem has SMA
connectors for antennas. 2 bayonet antennas are included.
122EA003193
EA320 (CL-18650-29E/3S1P) –Accumulator Li-ion 10,95V 2,67Ah, wire length
155mm
Dimensions: 56x19x70
122EA003200
3SYSTEM STRUCTURE
3.1 Number of sensors and wiring
In order to maintain optimal system performance, the number of sensors supported by the controller should be limited to 60.
NOTE: Use only the original cables supplied with the sensor or the UTP cat.5e cable when a longer cable is required.
Device connected to
the EC335i controller
Restrictions
Type of connection cable
Maximum cable length
All sensors
Maximum 60 sensor of any
type
Analogue sensors
Up to 28 analogue sensors of
any type connected directly to
the controller and via extension
modules EE321.
UTP kat5e with RJ14 (6P4C) -RJ14 (6P4C)
connectors
1
NC
2
12V
3
Sensor detection
4
Signal output
5
GND
6
NC
For the ES363 sensor, use UTP kat5e cable
with RJ12 (6P6C) -RJ12 (6P6C) connectors
A minimum of 50m. See the
description of individual sensors
2.2 Analogue sensors
CAN devices
Up to 10 CAN devices (up to 3x
EE321 and up to 2x EE322 and
up to 10x ES340/ES341).
UTP kat5e with RJ14 (6P4C) -RJ14 (6P4C)
connectors
The entire bus is up to 200m.
Sensors with
potential-free
contacts
Up to 68 sensors with
potential-free contacts
connected directly to the
controller and via the EE322
extension modules. It should be
assumed that each sensor with
a potential-free output loads
the controller as much as 0.5
analogue sensor.
UTP Cat 5e or other with 0.5mm wire
diameter
50m for each sensor.

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
10
3.2 Example 1. Extension modules EE321
Up to three EE321 modules (extension module with an additional 8 analogue inputs) can be connected to one controller.
The CAN bus connection, the length of the entire bus
is up to 200m
The connection of an analogue sensor, the length for
each sensor: minimum 50m
Sensor type
Number of sensors as
a load for the controller
Analogue sensors connected directly to the controller
4
Analogue sensors connected via EE321 extension modules
24
Total
28
3.3 Example 2. Extension modules EE322
A maximum of two EE322 modules (extension module with an additional 32 inputs for potential-free contacts) can be connected to one
controller. It should be assumed that each sensor with a potential-free output loads the controller as much as 0.5 analogue sensors.
The CAN bus connection, the length of the entire bus
is up to 200m
The connection of sensors with potential-free contacts.
Cable length for each connection up to 50m.
Sensor type
Number of sensors as
a load for the controller
Sensors with potential-free contacts connected directly to the controller
2 (in real 4)
Sensors with potential-free contacts connected via EE322 extension modules
32 (in real 64)
Total
34
CAN bus terminator
must be enabled
CAN bus terminator
must be enabled

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
11
3.4 Example 3. CAN devices
Up to 10 CAN devices can be connected to one controller, but maximum 3 units EE321, 2 units EE322 or 10 units ES340.
The CAN bus connection, the length of the entire bus
is up to 200m
The connection of an analogue sensor, the length for
each sensor: minimum 50m
Sensor type
Number of sensors as
a load for the controller
Analogue sensors connected to EC335i controller
4
Analogue sensors connected via EE321 extension modules
24
ES340 CAN sensors (temperature, humidity, smoke)
18 (6x3)
Sensors with potential-free contacts connected via EE322 extension modules
16 (in real 32)
Total
62
(over suggested 60)
CAN bus
terminator must
be enabled

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
12
3.5 Example 4. IT cabinet monitoring
An example of an environmental conditions monitoring system in cold aisle containment built of 6 cabinets: temperature (ES350) and humidity
(ES351) in the aisle, temperature at the top of the cabinet, humidity and presence of smoke (ES340). A flood detection sensor was placed under
the floor (ES360 + ES368).
The CAN bus connection, the length of the entire bus
is up to 200m
The connection of an analogue sensor, the length for
each sensor: minimum 50m
Sensor type
Number of sensors as
a load for the controller
Analogue sensors connected directly to the controller
3
ES340 CAN sensors (temperature, humidity, smoke)
18 (6x3)
Total
21

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
13
4INSTALLATION OF DEVICES
4.1 EC335i controller installation
4.1.1 Package contents
EC335i box contains:
EC335i controller
–1pc.
Power supply
230V AC, 12V DC
1A –1pc.
RJ45-RJ45
patchcord –1pc.
USB cable: mini B
USB plug –USB A
socket –1pc.
Self-adhesive foot
–4pcs.
2-pin terminal
block –1pc.
3-pin terminal
block –1pc.
6-pin terminal
block –1pc.
4.1.2 Controller dimensions
4.1.3 1U 19’’ bracket installation
+
=
or

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
14
4.1.4 Device connectors
1. Analogue sensor inputs
6. Mini-B USB for pendrive or camera
14. Restore factory settings button. Press
and hold for 5s
2. CAN bus connector for extension units
7. SD card socket for measurements storage
3. RJ45 Ethernet connection
8. Working mode switch: N-normal mode, R-
factory programming (do not use)
15. Unimplemented button (do not use)
4. Local temperature sensor
16. EA319i LTE modem slot
5. Status LEDs
ACT- device status LED
ALARM –programmable LED,
ERR –error LED,
CAN –CAN bus status LED
9. Voltage output status LEDs
17. Inputs for external voltage-free contacts
10. Enclosure earthing (M4 thread)
18. Power backup input for dedicated
2.67Ah 10.95V battery
11. Optional antenna cutout
12. Voltage outputs 12VDC 0.25A
19. Main power supply 12V 1A
13. Controller reboot button
4.2 Installation of EA319i –LTE modem
4.2.1 Package contents
Module pcb board
–1pc.
Antenna –2pcs.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
15
4.2.2 Assembly procedure
The method of assembling the modem is shown below.
Cut the cover on the back of the controller using, for example, side cutters.
Carefully slide the modem pcb into the controller.
Install the bayonet antennas on the modem.
Place the microSIM card in the module with the contacts facing down and the cutout
facing the inside of the controller. Push the card until it clicks.
To remove the card, push it in again until it clicks.
1. 1. SMA socket for GSM antenna
2. 2. LED, blinks when modem is powered
3. 3. microSIM card slot
4. 4. SMA socket for GSM antenna

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
16
4.3 Installation of EE321 module –8 analogue inputs extension
You can connect 3 EE321 devices that extend the number of analogue ports to the controller.
4.3.1 Package contents
The packaging of the EE321 module includes:
EE321 module –
1szt.
Power supply
230VAC, 12VDC 1A
–1pc.
Cable RJ14(6P4C)-
RJ14(6P4C), 2m
–1pc.
Self-adhesive foot –
4pcs.
4.3.2 EE321 dimensions
4.3.3 1U 19’’ bracket installation
+
=

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
17
4.3.4 Device connectors
1. 8 inputs for analogue sensors
2. Power connector 12VDC/1A
3. Switches: FR - firmware update and TR –bus terminator (see in the table 4.3.5 Connecting the EE321)
4. CAN bus connectors
5. Signal LEDs (see in table 4.3.5 Connecting the EE321)

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
18
4.3.5 Connecting the EE321 module
The devices should be connected in a cascade (from one device to
another). The CAN socket number is irrelevant, either CAN1 or
CAN2 can be used. The maximum CAN bus length is 200 m.
1. Connection of sensors to a device extending the
number of analogue inputs.
2. Connection of 12VDC/1A power supply.
3. Connection of a CAN bus to the EC335i controller.
4. Cascade connection of the CAN bus (from one device to
another).
For CAN bus connections, UTP cat5e cable terminated with
RJ14(6P4C) - RJ14(6P4C) plugs.
FR-off, TR-on FR-off, TR-off
The bus terminator in the last device (from the controller) must
be enabled. The bus terminator in the other devices must be
disabled. The TR switch (activating the terminator) in ON and OFF
position is shown in the drawing on the left.
The FR switch is for servicing and must be in OFF position during
normal operation.
EE321 –extension module
(8 analogue inputs)
EC335i - controller
EE321 –extension module
(8 analogue inputs)
Up to 10 devices on the CAN
bus, but only 3 EE321
CAN bus
CAN bus

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
19
The EE321 module has two LEDs that signal the states:
ERR is on, RUN flashes - the EE321 module is not connected to the
controller
ERR is on, RUN is off - the EE321 module is connected to the
EC335i controller but is not configured correctly in the controller
ERR is off, RUN is on - the EE321 module is connected to the
EC335i controller and is correctly configured in the controller
4.4 Installation of EE322 module–extension of 32 inputs for voltage-free contacts
Up to two EE322 devices, that extend the number of inputs for potential-free contacts, can be connected to the controller.
4.4.1 Package contents
The packaging of the EE322 module includes:
EE322 module –1pc.
Cable
RJ14(6P4C)-
RJ14(6P4C), 2m
–1pc.
Self-adhesive foot
–4pcs.
6-pin terminal
block–1pc.
M3x8 bolts –6pcs.
1U 19’’ bracket -
2pcs.
4.4.2 EE322 dimensions

www.bkte.pl
BKT EMS - installation and configuration instructions for the environmental parameters monitoring system
20
4.4.3 1U 19’’ bracket installation
4.4.4 Device connectors
1. 1. Inputs for 32 sensors with potential-free contacts
2. 2. Optional additional inputs
3. 3.LED indicating connection error with the EC335i controller
4. 4. CAN bus inputs
5. 5. FR switches - firmware update and TR - bus terminator (see in the table 4.4.5 Connecting the EE322 module)
+
or
