WARNING: Read and understand all instructions. Failure to follow all instructions
listed below, may result in electric shock, fire and/or serious personal injury. The
symbols below are used to help you recognize this information.
indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
used without the safety alert symbol indicates potentially
hazardous situation which, if not avoided, may result in property
damage.
Read and understand all warnings and operating instructions before
using any tool or equipment. When using tools or equipment, basic safety precautions
should always be followed to reduce the risk of personal injury. Improper operation,
maintenance or modification of tools or equipment could result in serious injury and
property damage. There are certain applications for which tools and equipment are
designed. Black & Decker strongly recommends that this product NOT be modified
and/or used for any application other than for which it was designed.
SAFETY GUIDELINES / DEFINITIONS
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products,
• arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks that are specially designed to
filter out microscopic particles.
•Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,
and other construction activities. Wear protective clothing and wash exposed
areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the
skin may promote absorption of harmful chemicals.
Use of this tool can generate and/or disburse dust, which may cause
serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved
respiratory protection appropriate for the dust exposure. Direct particles away from face
and body.
Wear appropriate hearing protection during use. Under some
conditions and duration of use, noise from this product may contribute to
hearing loss.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 2

3
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Improper operation or maintenance of this product could result in serious injury and property
damage. Read and understand all warnings and operation instructions before using this
equipment.
Risk of explosion or fire
How To Prevent It
What Could Happen
It is normal for electrical contacts within the
motor and pressure switch to spark.
If electrical sparks from compressor come
into contact with flammable vapors, they
may ignite, causing fire or explosion.
Restricting any of the compressor
ventilation openings will cause serious
overheating and could cause fire.
Unattended operation of this product could
result in personal injury or property
damage. To reduce the risk of fire, do not
allow the compressor to operate
unattended.
Always operate the compressor in a well
ventilated area free of combustible
materials, gasoline, or solvent vapors.
If spraying flammable materials, locate
compressor at least 20 feet away from
spray area. An additional length of hose may
be required.
Store flammable materials in a secure
location away from compressor.
Never place objects against or on top of
compressor. Operate compressor in an
open area at least 12 inches away from any
wall or obstruction that would restrict the
flow of fresh air to the ventilation openings.
Operate compressor in a clean, dry well
ventilated area. Do not operate unit indoors
or in any confined area.
Always remain in attendance with the
product when it is operating.
Always disconnect electrical power by
moving pressure switch lever to the off
position and drain tank daily or after each
use.
HAZARD
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 3

4
Risk of Bursting
Air Tank: The following conditions could lead to a weakening of the tank, and result in a
violent tank explosion and could cause property damage or serious injury.
How To Prevent It
What Could Happen
Risk from Flying Objects
HOW TO PREVENT IT
WHAT CAN HAPPEN
The compressed air stream can cause soft
tissue damage to exposed skin and can
propel dirt, chips, loose particles, and small
objects at high speed, resulting in property
damage or personal injury.
Always wear ANSI Z87.1 approved safety
glasses with side shields when using the
compressor.
Never point any nozzle or sprayer toward
any part of the body or at other people or
animals.
Always turn the compressor off and bleed
pressure from the air hose and tank before
attempting maintenance, attaching tools or
accessories.
Drain tank daily or after each use. If tank
develops a leak, replace it immediately with a
new tank or replace the entire compressor.
1. Failure to properly drain condensed
water from tank, causing rust and
thinning of the steel tank.
2. Modifications or attempted repairs to
the tank.
3. Unauthorized modifications to the
unloader valve, safety valve, or any
other components which control tank
pressure.
Never drill into, weld, or make any
modifications to the tank or its attachments.
4. Excessive vibration can weaken the
air tank and cause rupture or
explosion
The tank is designed to withstand specific
operating pressures. Never make
adjustments or parts substitutions to alter
the factory set operating pressures.
For essential control of air pressure, you must
install a pressure regulator and pressure
gauge to the air outlet (if not equipped) of
your compressor. Follow the equipment
manufacturers recommendation and never
exceed the maximum allowable pressure
rating of attachments.
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of air tools,
spray guns, air operated accessories, tires,
and other inflatables can cause them to
explode or fly apart, and could result in
serious injury.
HAZARD
HAZARD
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 4

5
HAZARD
HAZARD
Risk of Electrical Shock
HOW TO PREVENT IT
WHAT CAN HAPPEN
Your air compressor is powered by
electricity. Like any other electrically powered
device, If it is not used properly it may
cause electric shock.
Repairs attempted by unqualified personnel
can result in serious injury or death by
electrocution.
Electrical Grounding: Failure to provide
adequate grounding to this product could
result in serious injury or death from
electrocution.
See grounding instructions.
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with protective
covers removed or damaged.
Any electrical wiring or repairs required on
this product should be performed by
authorized service center personnel in
accordance with national and local electrical
codes.
Make certain that the electrical circuit to
which the compressor is connected provides
proper electrical grounding, correct
voltage and adequate fuse protection.
HOW TO PREVENT IT
WHAT CAN HAPPEN
Risk to Breathing
The compressed air directly from your
compressor is not safe for breathing. The
air stream may contain carbon monoxide,
toxic vapors, or solid particles from the
tank. Breathing these contaminants can
cause serious injury or death.
Sprayed materials such as paint, paint
solvents, paint remover, insecticides, weed
killers, may contain harmful vapors and
poisons.
Air obtained directly from the compressor
should never be used to supply air for
human consumption. In order to use air
produced by this compressor for breathing,
suitable filters and in-line safety equipment
must be properly installed. In-line filters
and safety equipment used in conjunction
with the compressor must be capable of
treating air to all applicable local and
federal codes prior to human consumption.
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or safety
data sheets for the materials you are
spraying. Use a NIOSH/ MSHA approved
respirator designed for use with your specific
application.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 5

6
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK OF BURNS
Touching exposed metal such as the
compressor head or outlet tubes, can result
in serious burns.
Never touch any exposed metal parts on
compressor during or immediately after
operation. Compressor will remain hot for
several minutes after operation.
Do not reach around protective shrouds or
attempt maintenance until unit has been
allowed to cool.
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK FROM MOVING PARTS
Never operate the compressor with guards
or covers which are damaged or removed.
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if they com
into contact with you or your clothing.
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK OF FALLING
A portable compressor can fall from a table,
workbench, or roof causing damage to the
compressor and could result in serious
injury or death to the operator.
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additional air hose to reach
high locations.
Any repairs required on this product should
be performed by authorized service center
personnel.
Attempting to operate compressor with
damaged or missing parts or attempting to
repair compressor with protective shrouds
removed can expose you to moving parts and
can result in serious injury.
HAZARD
HAZARD
HAZARD
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 6

7
Review and understand all instructions and
warnings in this manual.
Become familiar with the operation and
controls of the air compressor.
Keep operating area clear of all persons,
pets, and obstacles.
Keep children away from the air compressor
at all times.
Do not operate the product when fatigued or
under the influence of alcohol or drugs.
Stay alert at all times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
HOW TO PREVENT IT
WHAT CAN HAPPEN
RISK OF UNSAFE OPERATION
Unsafe operation of your air compressor
could lead to serious injury or death to you
or others.
HAZARD
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 7

8
GLOSSARY
Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
Code Certification: Products that bear one or more of the following marks: UL, CUL,
ETL, CETL,
CSA/US have been evaluated by OSHA certified independent safety
laboratories and meet the applicable Underwriters Laboratories Standards for Safety.
CSA: Electrical products sold in Canada are required to be certified to the applicable
CSA standard (s). Canadian Standards Association (CSA) is a standards writing and
safety testing organization. Products that are CSA certified have been evaluated and
tested and found to meet or exceed the applicable CSA standard (s) for safety and
electrical performance.
Cut-In Pressure: While the motor is off, air tank pressure drops as you continue to
use your accessory. When the tank pressure drops to a certain low level the motor will
restart automatically. The low pressure at which the motor automatically restarts is
called “cut-in” pressure.
Cut-Out Pressure: When an air compressor is turned on and begins to run, air
pressure in the air tank begins to build. It builds to a certain high pressure before the
motor automatically shuts off - protecting your air tank from pressure higher than its
capacity. The high pressure at which the motor shuts off is called “cut-out” pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
Model No. BDCP200
Voltage/Hertz/ Phase 120V/60/1
Minimum Branch Circuit Requirement 15 amps
*Fuse Type Time Delay
Air Tank Capacity 2 Gallons
Approximate Cut-in Pressure 90 PSI
Approximate Cut-out Pressure 125 PSI
SPECIFICATIONS
* A circuit breaker is preferred. Use only a fuse or circuit breaker that is the same rating
as the branch circuit on which the air compressor is operated. If compressor is connected
to a circuit protected by fuses, use only time delay fuses. Time delay fuses should be
marked “D” in Canada and “T” in the US.
INSTALLATION
Location of the Air Compressor
Locate the air compressor in a clean, dry and well ventilated area. The air compressor
should be located at least 12" away from the wall or other obstructions that will
interfere with the flow of air. The air compressor pump and shroud are designed to
allow for proper cooling. The ventilation openings on the compressor are necessary to
maintain proper operating temperature. Do not place rags or other containers on or
near these openings.
HOW TO SET UP YOUR UNIT
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 8

9
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL SHOCK. In the event of a short circuit,
grounding reduces the risk of shock by providing an escape wire
for the electric current. This air compressor must be properly grounded.
The portable air compressor is equipped with a cord
having a grounding wire with an appropriate
grounding plug (see illustrations). The plug must be
used with an outlet that has been installed and
grounded in accordance with all local codes and
ordinances.
1. The cord set and plug with this unit contains a
grounding pin. This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used must be
installed and grounded in accordance with all local codes and ordinances.
2. Make sure the outlet being used has the same configuration as the grounded
plug. DO NOT USE AN ADAPTER.
When used outside of the United States of America a conversion
kit may be required for local use.
3. Inspect the plug and cord before each use. Do not use if there are signs of
damage.
4. If these grounding instructions are not completely understood, or if in doubt as to
whether the compressor is properly grounded, have the installation checked by a
qualified electrician.
IMPROPER GROUNDING CAN RESULT IN ELECTRICAL SHOCK.
Do not modify the plug provided. If it does not fit the available
outlet, a correct outlet should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be made by a qualified electrician.
120 Volt U.S.A. Plug
Grounding Pin
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 9

10
Voltage and Circuit Protection
Refer to the Parts Manual for the voltage and minimum branch circuit requirements.
Certain air compressors can be operated on a 15 amp circuit if the following conditions
are met.
1. Voltage supply is 108V-132V AC at the outlet.
2. Circuit is not used to supply any other electrical needs (lights, appliances, etc.).
3. Circuit is equipped with a 15 amp circuit breaker minimum or 15 amp time delay
fuse. NOTE: If compressor is connected to a circuit protected by fuses, use only
time delay fuses marked “D” for Canada and "T" for US.
4. Extension cords comply with specifications.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it from a
20 amp circuit. It is not necessary to change the cord set.
Extension Cords
Using extension cords is not recommended. The use of extension cords will cause
voltage to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose by
attaching another length of hose to its end. Attach additional lengths of hose as
needed.
If an extension cord must be used, be sure it is:
• a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle
that will accept the plug on the product
• in good condition
• no longer than 50 feet
• 14 gauge (AWG) or larger. (Wire size increases as gauge number decreases. 12
AWG, 10 AWG, and 8 AWG may also be used. DO NOT USE 16 OR 18 AWG.)
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 10

11
OPERATION
Know Your Air Compressor
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
Description of Operation
Become familiar with these controls before operating the unit.
Auto/On/Off Switch: Set switch in
AUTO/ON position to provide automatic
power to the pressure switch and OFF
to remove power at the end of each
use.
Pressure Switch (not shown): The
pressure switch automatically starts the
motor when the air tank pressure drops
below the factory set "cut-in" pressure.
It stops the motor when the air tank
pressure reaches the factory set "cut-
out" pressure.
Safety Valve: If the pressure switch
does not shut off the air compressor at its "cut-out" pressure setting, the safety valve
will protect against high pressure by "popping out" at its factory set pressure (slightly
higher than the pressure switch "cut-out" setting).
Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure
available at the outlet side of the regulator. This pressure is controlled by the regulator
and is always less than or equal to the tank pressure.
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air pressure in
the tank.
Regulator: Controls the air pressure shown on the outlet pressure gauge. Turn the
knob clockwise to increase pressure and counterclockwise to decrease pressure.
Drain Valve: The drain valve is located at the base of the air
tank and is used to drain condensation at the end of each use.
Cooling System (not shown): This compressor contains an
advanced design cooling system. At the heart of this cooling
system is an engineered fan. It is perfectly normal for this fan
to blow air through the vent holes in large amounts. You know
that the cooling system is working when air is being expelled.
Air Compressor Pump (not shown): Compresses air into the air tank. Working air is
not available until the compressor has raised the air tank pressure above that required
at the air outlet.
Check Valve (not shown): When the air compressor is operating, the check valve is
"open", allowing compressed air to enter the air tank. When the air compressor
reaches "cut-out" pressure, the check valve "closes", allowing air pressure to remain
inside the air tank.
Motor Overload Protector (not shown): The motor has an automatic reset thermal
overload protector. If the motor overheats for any reason, the overload protector will
shut off the motor. The motor must be allowed to cool down before restarting. The
compressor will automatically restart after the motor cools.
The motor will automatically restart without warning if plugged
in electrical outlet and "Auto/On/Off" switch is in the
"AUTO/ON" position.
Tank
Pressure
Gauge
Outlet
Pressure
Gauge
Regulator
Safety
Valve
Drain
Valve
Auto/On/Off
Switch
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 11

12
Before Starting
Break-in Procedure
Serious damage may result if the following break-in instructions
are not closely followed.
This procedure is required before the air compressor is put into service and when the
check valve or a complete compressor pump has been replaced.
1. Make sure the Auto/On/Off switch is in the "OFF" position.
2.
Plug the power cord into the correct branch circuit receptacle. (Refer to Voltage and
Circuit Protection paragraph in the Installation section of this manual.)
3. Open the drain valve fully (counterclockwise) to permit air to escape and prevent
air pressure build up in the air tank during the break-in period.
4. Set the Auto/On/Off switch to "AUTO/ON" position. The compressor will start.
5. Run the compressor for 5 minutes. Make sure the drain valve is open and there is
minimal air pressure build-up in tank.
6. After 5 minutes, close the drain valve (clockwise). The air receiver will fill to "cut-
out" pressure and the motor will stop.
The compressor is now ready for use.

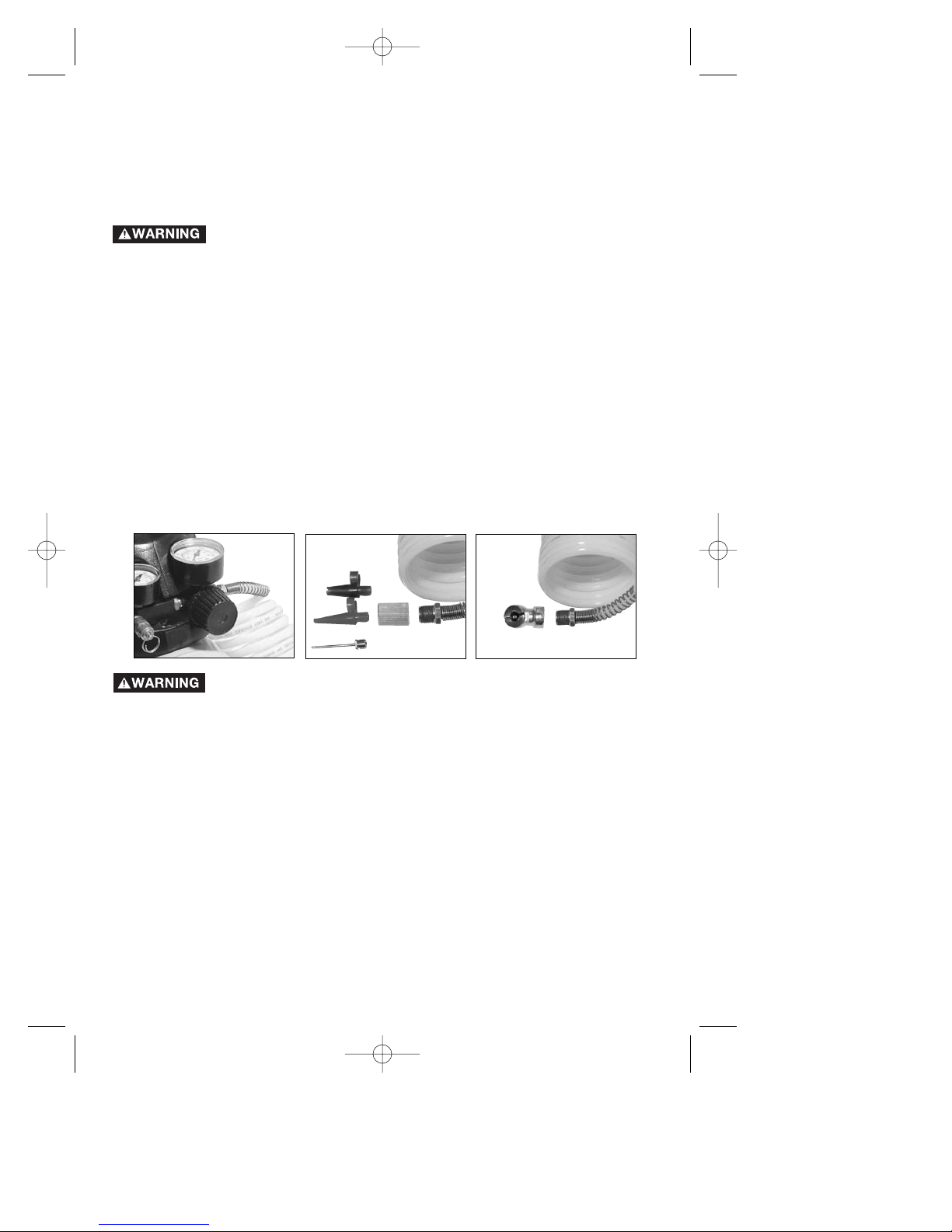

How to Use Your Unit
How to Stop:
1. Set the Auto/On/Off switch to "OFF".
Before Each Start-Up:
1. Set Auto/On/Off switch to "OFF".
2. Turn regulator knob counterclockwise until it stops.
3. Attach hose and accessories.
Too much air pressure causes a hazardous risk of bursting.
Check the manufacturer’s maximum pressure rating for air tools
and accessories. The regulator outlet pressure must never exceed the maximum
pressure rating.
How to Start:
1. Set the Auto/On/Off switch to "AUTO/ON" and allow tank pressure to build. Motor
will stop when tank pressure reaches "cut-out" pressure.
2. Turn regulator knob clockwise until desired pressure is reached.
The compressor is ready for use.
NOTE: Always operate the air compressor in well-ventilated areas free of gasoline or
other combustible vapors. If the compressor is being used to operate a sprayer DO
NOT place near the spray area.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 12

13
MAINTENANCE
Customer Responsibilities
Daily or after
each use
Before each use
Check Safety Valve l
Drain Tank l
To Check Safety Valve
If the safety valve does not work properly,
over-pressurization may occur, causing air tank rupture
or an explosion. Before starting compressor, pull the ring on the safety
valve to make sure that the safety valve operates freely. If the valve is
stuck or does not operate smoothly, it must be replaced with the same
type of valve.

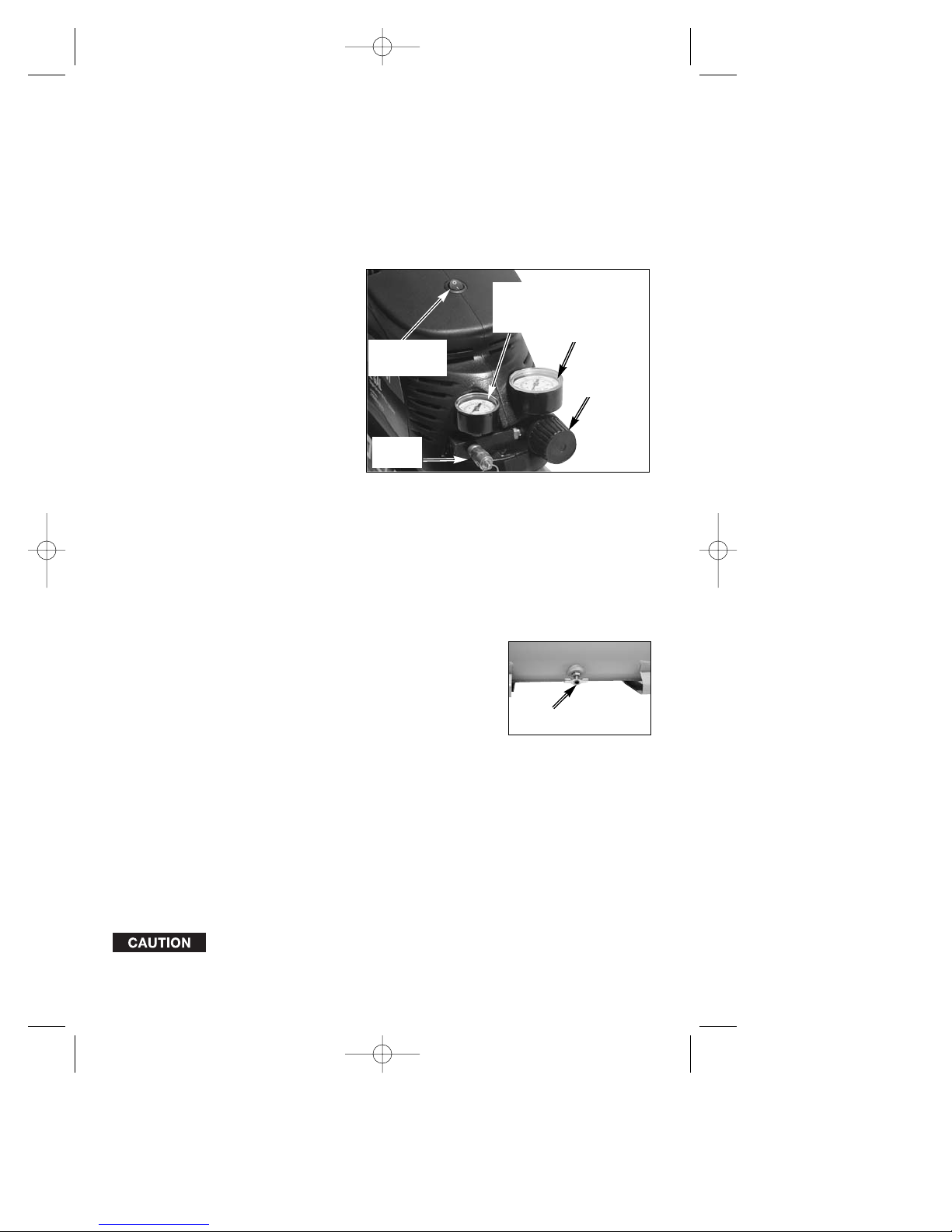

To Drain Tank
1. Set the Auto/On/Off switch to "OFF".
2. Turn regulator knob counterclockwise to set the outlet pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing air to bleed from the tank until tank pressure is
approximately 20 psi. Release safety valve ring.
5. Drain water from air tank by opening drain valve (counter-clockwise) on bottom of
tank. NOTE: Tilt tank forward to drain tank completely.
Water will condense in the air tank. If not drained, water
will corrode and weaken the air tank causing a risk of air
tank rupture.
6. After the water has been drained, close the drain valve (clockwise). The air
compressor can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 13

14
Before you store the air compressor, make sure you do the following:
1. Review the "Maintenance" section on the preceding pages and perform scheduled
maintenance as necessary.
2. Set the Auto/On/Off lever to "OFF".
3. Turn regulator knob counterclockwise and set the outlet pressure to zero.
4. Remove the air tool or accessory.
5. Pull ring on safety valve allowing air to bleed from the tank until tank pressure is
approximately 20 psi. Release safety valve ring.
6. Drain water from air tank by opening drain valve on bottom of tank.
Water will condense in the air tank. If not drained, water will
corrode and weaken the air tank causing a risk of air tank rupture.
7. After the water has been drained, close the drain valve.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
8. Protect the electrical cord and air hose from damage (such as being stepped on or
run over). Wind them loosely around the compressor handle. (If so equipped)
9. Store the air compressor in a clean and dry location.
STORAGE
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 14

15
Performing repairs may expose voltage sources, moving parts or
compressed air sources, personal injury may occur. Maintenance
other than that recommended in the “Troubleshooting” section of this manual is
not recommended and should be performed by trained service personnel.
PROBLEM CAUSE CORRECTION
Compressor does not turn
off when compressor
reaches "cut-out" pressure.
Pressure switch "cut-out"
too high.
Set Auto/On/Off switch to the "OFF"
position, if the unit does not shut
off contact a Trained Service
Technician.
Contact a Trained Service
Technician.
Excessive tank
pressure - safety
valve pops off.
Tube fittings are not tight
enough.
Using a soapy water solution check
all exposed fittings for leaks. If
needed reseal fittings with pipe
sealant tape and retighten securely.
Do Not Overtighten. If leaks
continue contact a Trained Service
Technician.
Air leaks at
fittings.
Air leaks in air
tank or at air
tank welds.
Defective air tank. Air tank must be replaced. Do not
repair the leak.
Do not drill into, weld or
otherwise modify air tank or it
will weaken. The tank can rupture
or explode.
TROUBLESHOOTING
Low voltage. Extension cord is wrong length or
gauge. Check extension cord.
Thermal
overload
protector cuts
out repeatedly. Improper ventilation/
temperature too high.
Operate compressor in a well
ventilated area.
Defective check valve. Contact a Trained Service
Technician.
Defective valves. Contact a Trained Service
Technician.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 15

16
PROBLEM CAUSE CORRECTION
It is normal for "some"
pressure drop to occur.
If there is an excessive
amount of pressure drop
when the accessory is used,
adjust the regulator following
the instructions in the
"Description of Operation"
paragraph in the "Operation
Section.
NOTE: Adjust the regulated
pressure under flow
conditions (while accessory is
being used).
Compressor is not
supplying enough
air to operate
accessories.
Prolonged excessive use of
air.
Compressor is not large
enough for air requirement.
Hole in hose.
Air leaks.
Decrease amount of air
usage.
Check the accessory air
requirement. If it is higher
than the SCFM or pressure
supplied by your air
compressor, you need a
larger compressor.
Check and replace if
required.
Tighten fittings.
Pressure reading
on the regulated
pressure gauge
drops when an
accessory is
used.
Condensation in tank Drain tankExcessive "auto"
starting and
stopping
Possible defect in safety
valve.
Operate safety valve
manually by pulling on ring.
If valve still leaks, it should
be replaced.
Air leak from
safety valve.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 16

17
PROBLEM CAUSE CORRECTION
Motor will not
run.
Check fuse box for blown
fuse and replace as
necessary. Reset circuit
breaker. Do not use a fuse or
circuit breaker with higher
rating than that specified for
your particular branch circuit.
Check for proper fuse. You
should use a time delay fuse.
Check for low voltage
problem.
Check the extension cord.
Disconnect the other
electrical appliances from
circuit or operate the
compressor on its own
branch circuit.
Have checked by a Trained
Service Technician.
Fuse blown, circuit breaker
tripped.
Extension cord is wrong
length or gauge.
Faulty motor.
Check the extension cord.
Allow compressor to cool for
approximately 30 minutes so
thermal overload switch will
reset. If unit still does not
start, empty air from tank and
refer to "Thermal overload
protector cuts out repeatedly"
information.
Motor overheated
Other Contact a B&D sevice facility.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 17

18
ACCESSORIES
Recommended accessories for use with your tool are available from your local
retailer.
The use of any accessory not recommended for use with this tool could
be hazardous.
SERVICE INFORMATION
Black & Decker offers a full network of company-owned and authorized service
locations throughout North America. All Black & Decker Service Centers are
staffed with trained personnel to provide customers with efficient and reliable
power tool service.
Whether you need technical advice, repair, or genuine factory replacement parts,
contact the Black & Decker location nearest you.
To find your local service location, refer to the yellow page directory under
“Tools—Electric” or call: 1-800-544-6986.
FULL TWO-YEAR HOME USE WARRANTY
Black & Decker (U.S.) Inc. warrants this product for two years against any defects
in material or workmanship. The defective product will be replaced or repaired at
no charge in either of two ways.
The first, which will result in exchanges only, is to return the product to the retailer
from whom it was purchased (provided that the store is a participating retailer).
Returns should be made within the time period of the retailer’s policy for
exchanges (usually 30 to 90 days after the sale). Proof of purchase may be
required. Please check with the retailer for their specific return policy regarding
returns that are beyond the time set for exchanges.
The second option is to take or send the product (prepaid) to a Black & Decker
owned or authorized Service Center for repair or replacement at our option. Proof
of purchase may be required. Black & Decker owned and authorized Service
Centers are listed under “Tools-Electric” in the yellow pages of the phone
directory.
This warranty does not apply to accessories. This warranty gives you specific
legal rights and you may have
other rights which vary from state to state and province to province. Should you
have any questions, contact the manager of your nearest Black & Decker Service
Center. This product is not intended for commercial use.
Free Warning Label Replacement: If your warning labels become illegible or are
missing, call 1-800-544-6986 for a free replacement.
See ‘Tools-Electric’
– Yellow Pages –
for Service & Sales
Black & Decker (U.S.) Inc.,
701 E. Joppa Rd.
Towson, MD 21286 U.S.A.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 18

19
AVANT DE RETOURNER CE PRODUIT POUR
QUELQUE RAISON QUI SOIT, VEUILLEZ
APPELER AU 1 800 544-6986
AVERTISSEMENT : Assurez-vous de lire et de comprendre toutes les
directives. Négliger de suivre les instructions énumérées ci-dessous pourrait être la
cause d'un choc électrique, d'un incendie ou d'une blessure corporelle grave. Les
symboles ci-dessous servent à vous aider à reconnaître cette information.
indique une situation dangereuse imminente qui, si elle n’est pas évitée,
causera la mort ou des graves blessures.
indique une situation potentiellement dangereuse qui, si elle
n’est pas évitée, pourrait causer la mort ou de graves blessures.
indique une situation potentiellement dangereuse qui, si elle n’est pas
évitée, pourrait causer des blessures mineures ou modérées.
utilisé sans le symbole d’alerte à la sécurité indique une situation
potentiellement dangereuse qui, si elle n’est pas évitée, peut résulter en des
dommages à la propriété.
Lisez et comprenez tous les avertissements et directives
d’utilisation avant d’utiliser un outil ou un équipement. Lorsque vous utilisez des outils
ou un équipement, des précautions de base en matière de sécurité doivent être suivies
afin de réduire le risque de blessure personnelle. Un fonctionnement, un entretien ou
une modification inappropriés des outils ou de l’équipement pourraient résulter en de
graves blessures ou en des dommages à la propriété. Certaines applications sont
conçues pour des outils et de l’équipement spécifiques. Black & Decker recommande
fortement NE PAS modifier ce produit ou de NE PAS l’utiliser pour une application
autre que celle pour laquelle il a été conçu.
Certaines poussières produites par les activités de ponçage,
sciage, meulage, perçage et autres activités de construction peuvent contenir des
produits chimiques pouvant causer le cancer, des anomalies congénitales ou d'autres
problèmes liés aux fonctions reproductrices. Voici quelques exemples de ces produits
chimiques :
• le plomb contenu dans les peintures à base de plomb;
• la silice cristalline de la brique, du ciment et d'autres produits de maçonnerie;
• l'arsenic de cuivre et de chrome provenant du bois traité chimiquement.
Les risques reliés à l'exposition à ces poussières varient selon la fréquence à laquelle
vous travaillez avec ce type de matériaux.
Afin de réduire votre exposition à ces produits chimiques : travaillez dans un endroit
bien ventilé et portez un équipement de sécurité approuvé comme un masque anti-
poussières conçu spécialement pour filtrer les particules microscopiques.
•Évitez le contact prolongé avec les poussières produites par les activités de
ponçage, sciage, meulage, perçage et autres activités de construction. Portez
des vêtements de protection et lavez les parties du corps exposées avec une
solution d'eau et de savon. Le fait de laisser la poussière pénétrer par la bouche et
les yeux, ou de la laisser reposer sur la peau, peut promouvoir l'absorption de produits
chimiques nocifs.
LIGNES DIRECTRICES EN MATIÈRE DE SÉCURITÉ / DÉFINITIONS
ATTENTION
ATTENTION
DIRECTIVES DE SÉCURITÉ IMPORTANTES
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 19

20
L'utilisation de cet outil peut produire et/ou propulser des
poussières qui pourraient causer des problèmes respiratoires graves et permanents, ou
d'autres problèmes médicaux. Portez toujours un appareil respiratoire approuvé par la
NIOSH/OSHA pour vous protéger de la poussière. Dirigez les particules à l'écart de
votre visage et de votre corps.
Portez un dispositif de protection anti-bruit pendant
l’utilisation. Dans certaines conditions et selon la durée d’utilisation, le bruit
causé par ce produit peut contribuer à une perte auditive.
DIRECTIVES DE SÉCURITÉ IMPORTANTES
CONSERVEZ CES DIRECTIVES
Un fonctionnement, un entretien ou une modification inappropriés de ce produit
pourraient résulter en de graves blessures ou en des dommages à la propriété. Lisez
et comprenez tous les avertissements et toutes les directives d’utilisation avant de vous
servir de cet équipement.
Risque d’explosion ou d’incendie
Ce qui peut se produire Comment l’éviter
DANGER
Il est normal que des contacts
électriques dans le moteur et le
manocontacteur fassent une étincelle.
Si une étincelle électrique provenant du
compresseur entre en contact avec des
vapeurs inflammables, elle peut
s’enflammer et causer un incendie ou
une explosion.
Le fait de limiter les ouvertures
d’aération de compresseur causera une
importante surchauffe et pourrait causer
un incendie.
Le fonctionnement sans surveillance
de ce produit pourrait résulter en des
blessures personnelles ou en des
dommages à la propriété. Afin de
réduire le risque d’incendie, ne laissez
pas le compresseur fonctionner sans
surveillance.
Faites toujours fonctionner le
compresseur dans une zone bien aérée
sans matière combustible, essence ou
vapeur de solvant.
Si vous aspergez des matériaux
inflammables, placez le compresseur à
au moins 20 pieds de la zone en
traitement. Il est possible que vous ayez
besoin d’une longueur de tuyau
additionnelle.
Entreposez les matières inflammables
dans un endroit sécuritaire, éloigné du
compresseur.
Ne placez jamais des objets contre le
compresseur ou sur celui-ci. Faites
fonctionner le compresseur dans un
endroit aéré à au moins 30 cm (12 po) du
mur ou de l’obstruction qui pourrait limiter
le débit d’air frais dans les ouvertures
d’aération. Faites fonctionner le compresseur
dans un endroit propre, sec et bien aéré.
Ne faites pas fonctionner l’appareil à
l’intérieur dans un endroit difficile d’accès.
Soyez toujours présent lorsque le produit
est en marche.
Débranchez toujours l’alimentation
électrique en mettant le levier du
manocontacteur à la position arrêt et
vidangez le réservoir chaque jour ou
après chaque utilisation.
495233-00, BDCP200 Compressor 8/1/06 10:14 AM Page 20
