Black & Decker 8501 User manual

Garden Shredder
Owner’s
MAIN FEEDER FUNNEL
Manual
Model 8501 Type 2
SIDE FEEDER FUNNEL
COVER
CONTENTS OF CARTON
This carton contains the following:
1 Garden Shredder
3 Support Legs
1 Parts Bag Containing;
1 Flat Wrench
1 Allen Wrench
3 Bolts
3 Washers
3 Nuts
1 Warranty Card
ALLEN WRENCH
DISCHARGE
CHUTE
CORD
INTERLOCK
ON/OFF SWITCH
BUCK&DEOKER
Purpose
of Product
Thank you for buying a Black &
Decker GARDEN SHREDDER, Your
GARDEN SHREDDER will make
helpful garden mulch out of twigs,
leaves, hedge and grass clippings,
bark, stalks, stems, vines or any other
garden wastes. Newspapers (black &
white) and organic kitchen scraps
such as fruit and vegetable peelings
can also become a rich source of
nutrients for your garden when
mulched.
Two sets of tough steel blades
driven by a 1 horsepower motor
quickly reduce waste to a traction of
its original size.
Lightweight and easy to use, the
GARDEN SHREDDER will help you to
produce a healthier and more beautiful
garden.
This Product is Listed by
UNDERWRITERS' LABORATORIES
and Bears the Mark:
Purpose
of Manual
A few minutes spent reading this
manual will assure satisfaction when
using the GARDEN SHREDDER.
The GARDEN SHREDDER will give
you many years of service as long as
it is properly maintained and cared for.
It is EXTREMELY IMPORTANT that all
SAFETY INSTRUCTIONS are read
and strictly followed.
SAVE THIS MANUAL FOR FUTURE
REFERENCE.
Important
To assure product Safety and
Reliability all repairs and adjustments
other than those described in this
manual must be performed by Black &
Decker Service Centers or Authorized
Service Stations.
Home Use
Warranty
(A Full One Year Warranty)
Black & Decker warrants this product
for one year. We will repair, without
charge, any defects due to faulty
material or workmanship or at our
option replace the product free.
Please return the complete unit,
transportation prepaid, to any Black &
Decker Service Center or Authorized
Service Station listed under “Tools
Electric” in the yellow pages. This
warranty does not apply to
accessories. This warranty gives you
specific legal rights and you may
have other rights which vary from
state to state. Should you have any
questions, contact your nearest Black
& Decker Service Center manager.
I

I. Important
Safety Instructions
WARNING: To guard against injury
all safety instructions should be
observed.
1. WEAR SAFETY SPECTACLES
OR GOGGLES at all times when
using your shredder. Do not look
directly into feeder funnels while
operating shredder.
2. DRESS PROPERLY:
• Do not operate shredder when
barefoot or wearing open
sandals. Wear only substantial
non-skid, rubber soled footwear.
• Do not operate the shredder
without sturdy gloves.
• Do not wear loose clothing or
jewelry since they can catch
onto the shredder. Wear long
pants to protect legs
and wear long sleeve shirt to
protect arms.
3. DANGER - CUT HAZARD -
KEEP HANDS AND FEET
AWAY FROM BLADES.
Do not place hands in the cutting
area while the cutters are rotating.
The blades will continue to rotate
up to a minute after shredder is
turned off.
If shredder blades become
jammed;
• Turn shredder off and disengage
cord interlock.
• loosen cover screw and remove
cover.
• Carefully clean out all materials
in the shredder. Avoid any hand
contact with the blades.
4. STAY ALERT: Watch what you are
doing - use common sense.
Do not operate shredder when
fatigued.
5. KEEP CHILDREN AWAY; All
bystanders should be kept a safe
distance away from work area.
6. AVOID DANGEROUS
ENVIRONMENTAL CONDITIONS:
• Do not use shredder in rain.
• Do not use shredder in damp or
wet location.
• Do not OPERATE the
shredder on concrete or paved
surfaces.
• Ensure that the shredder is
standing firmly when being
operated.
• Do not operate shredder in
gaseous or explosive
atmospheres.
7. USE OF AN EXTENSION CORD
WARNING: To reduce the risk of
electric shock, use only with a
U.L listed outdoor extension cord.
Always connect extension cords
to a fused line or one protected by
a circuit breaker.
• Never use a damaged cord -
always inspect your extension
cord for loose or exposed wires
or damaged insulation.
• Dg not abuse cord - keep cord
away from heat, oil and sharp
edges.
• Do not yank cord from
receptacle.
• We recommend using No. 16
AWG wire size for lengths up to
10O.ft., and No. 14 or larger
wire size for longer lengths.
• To prevent disconnection of
the shredder cord from
extension cord when operating,
make a knot as shown in
Figure 4A.
• Blowing a fuse or tripping a cir¬
cuit is an indication that too
many devices are drawing
power from the circuit. Deter¬
mine the cause and correct it.
Do not install a higher capacity
fuse.
8. DISCONNECT SHREDDER
FROM EXTENSION CORD:
• when being transported.
• prior to cleaning or making
adjustments.
• when not in use.
• when removing or replacing
parts.
9. DO NOT PULL ON CORD to
transport shredder.
10. CHECK SHREDDER FOR
LOOSE BOLTS, nuts, etc. before

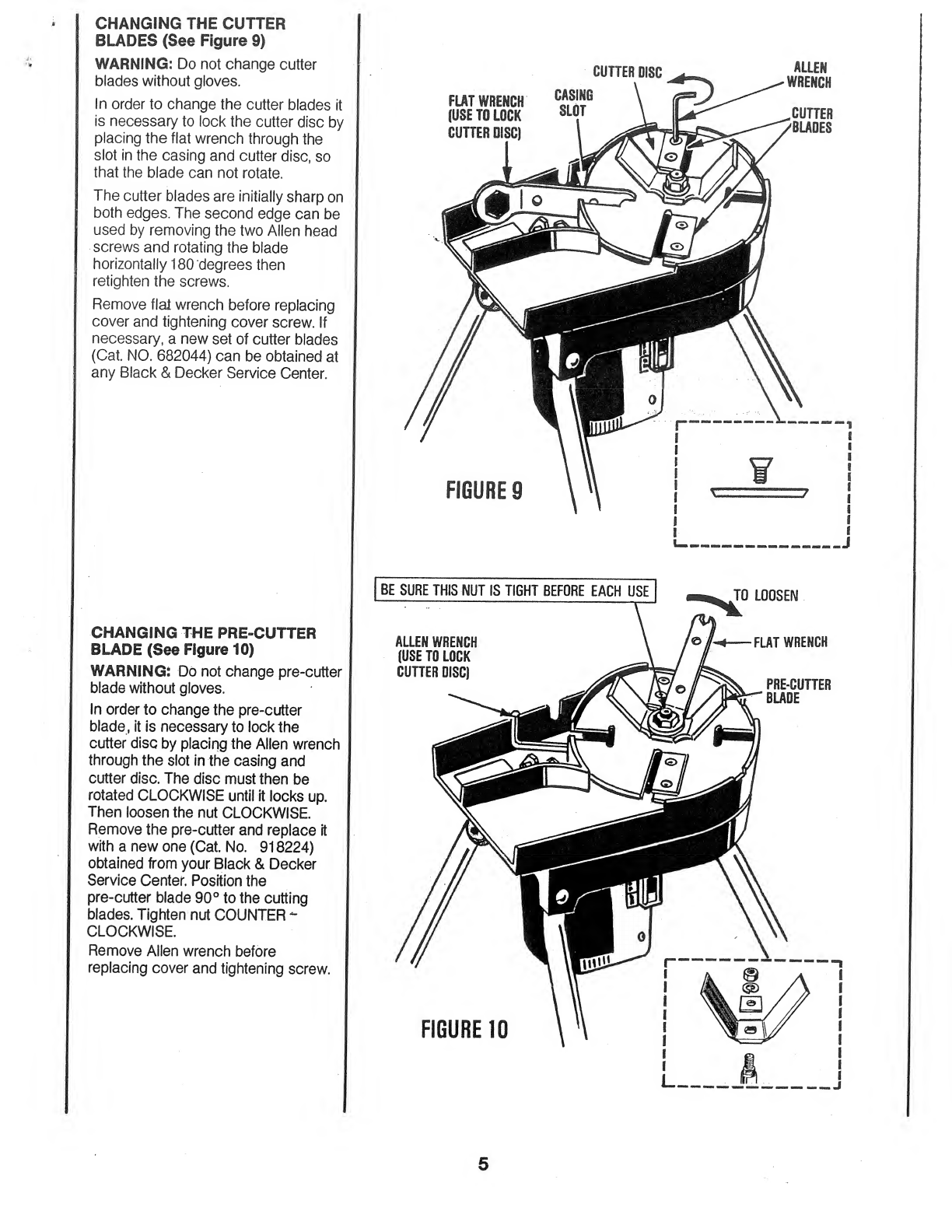

each operation. (See Figure 10)
11. AVOID ACCIDENTAL STARTING:
Make sure switch is always
turned off before reconnecting
cord interlock or plugging unit into
extension cord.
12. USE SHREDDER PROPERLY:
• Do not use the shredder for any
job except for which it is
intended.
• Do not attempt to shred hard
objects such as metal, glass,
stones, masonry materials,
ceramics, bones or plastics.
• Do not attempt to shred ropes
or rags. This will cause the unit
to bind up.
In the event that one or more of
the above materials is
mistakenly fed into the
shredder, follow the procedure
outlined in safety instruction
no. 3.
• Do not operate a damaged
shredder. Have it repaired
before further operation is
attempted.
• Do not force the tool - allow the
shredder to clear itself before
inserting additional materials,
13. DON’T OVERREACH - keep
proper footing and balance at all
times. Position yourself behind the
unit away from the discharge
chute when feeding material into
the feeder funnels.
14. DO NOT SWITCH MOTOR OFF -
until the shredder is completely
empty, as it may be difficult to
restart.
15. STORE SHREDDER INDOORS-
when not in use, shredder should
be stored indoors in a dry
location, out of reach of children.
16. MAINTAIN SHREDDER WITH
CARE - Do not operate a
damaged shredder. Follow all
product care and maintenance
instructions.
Double-Insulation
Your tool is DOUBLE-INSULATED to
give you added safety. This means
that it is constructed throughout with
TWO separate “layers" of electrical
insulation or one DOUBLE thickness
of insulation between you and the
tool’s electrical system.
Tools built with this insulation system
are not intended to be grounded. As a
result, the extension cord used with
your tool can be plugged into any
conventional 120 volt electrical outlet
without concern for maintaining a
ground connection.
NOTE: DOUBLE-INSULATION does
not take the place of normal safety
precautions when operating this tool.
The insulation system is for added
protection against injury resulting from
a possible electrical insulation failure
within the tool.
CAUTION: When servicing Double
Insulated Tools, USE ONLY
IDENTICAL REPLACEMENT
PARTS. Replace or repair damage
cords.
2

II. Assembly
NOTE: Assembly of shredder is
necessary before operation.
To assemble the legs you will use the
flat wrench provided:
1 . Place the shredder upside down
so that it is resting on the main
feeder funnel.
2. Taking the bolts, nuts and
washers provided, secure the legs
in the base of the unit, ensuring
the legs are pointing outward.
(See Fig. 2)
3. Place both wrenches in the
designated area located beneath
the shredder base.
III. Operating
Instructions
1. SAFETY - be sure to carefully
read and follow all safety
instructions shown in this manual.
2. Before connecting the shredder
to a power source make sure the
shredder Is switched off.
To switch the unit off press the
red (top) switch. The unit is
switched on by pressing the white
(bottom) switch. See Fig. 3.
3. Connect the shredder cord to the
extension cord as shown in
Figure 4A.
4. The shredder comes equipped
with a cord interlock, this must be
firmly pressed into the motor
housing inlet as shown in Figure
4B.
The shredder can be
disconnected by pulling
(disengaging) the cord interlock
away from the motor housing
inlet.
I^offW
iKsWITCH
ON SWITCH
FIGURE 3
TOOL CORD /-EXTENSION
'w-m / CORO
FIGURE 4A
FIGURE 4B
5. When feeding material into the
shredder, position yourself behind
the unit and away from the
discharge chute as shown in
figure 5 & 6.
6. Use the main feeder to shred
bulk materials such as hedge and
grass clippings, leaves, vines,
peelings, cardboard and
newspapers. (Fig. 5)
Use the side feeder for twigs and
branches up to one inch in
diameter after they have been
prunned. (See Fig. 6)
7. Remove any soil or stones from
materials before shredding to
prevent damage or duliing of
blades.
8. The shredder Is equipped with
an integral overload switch to
protect the motor from
damage. If overload occurs, the
shredder will automatically be
switched off. It can then be
switched on again after a cool
down period of one or two
minutes.
If the motor continues to turn
itself off it Is an Indication that
the shredder is jammed. If this
occurs, follow this procedure:
a. Make sure the shredder is
switched OFF.
b. Disengage cord interlock.
c. Loosen cover screw and remove
the cover (See Fig. 7).
d. Carefully clean out all material left
in the shredder. WARNING:
Blades are sharp and may cause
injury even when not moving.
e. Replace cover and tighten cover
screw.
f. Make sure switch is OFF and
reconnect cord interlock.
9. T he shredder will slow down if
large amounts of material are
quickly fed into it. If this occurs
allow the shredder time to clear
itself before feeding any additional
materials.
10. D o not allow shredded material
to build up in the discharge
chute, this may prevent proper
discharge and can result in
kickback of material through the
feed opening.

SIDE FEEDER FUNNEL
FIGURE 7
11. Do not turn the shredder off until
all shredded material has been
cleared. Any material that is left
inside the feeders may jam the
unit and prevent it from operating
when switched on again. If this •
occurs, follow the procedure
outlined above in Item 8.
12. It is adviseable to shred damp
and dry materials alternatively as
this will prevent sticking and
clogging of the shredder.
Dry materials should be ground
last to absorb any moisture which
may be left in the shredder. This
will aid in clearing the unit.
13. When operating the shredder it
is important that the drive belt is
run at the correct tension.
DURING THE FIRST HOUR OF
USE, THE TENSION MAY
NEED TO BE ADJUSTED
SEVERAL TIMES. The
procedure for adjusting belt
tension is explained under
Product Care & Maintenance.
14. The two clips in the front of the
shredder are used to attach a
common plastic trash bag that
can be separately purchased
(See Fig. 8). In using these clips
be sure that the bottom of the
bag is touching the ground.
15. Store your shredder indoors in a
dry location out of the reach of
children and away from
chemicals and fertilizers which
can cause rapid corrosion.
IV. Product Care
& Maintenance
WARNING: Use only Black & Deckf
replacement parts. Use of any other
replacement part may increase risk o
injury.
CUTTING BLADES
At the end of the season the cutting
blades should be checked for
sharpness to assure good
performance and reliability.
This is done in the following manner:
a) Turn shredder off and
disengage cord interlock.
b) Loosen cover screw and
remove cover.
c) Check the condition of both
the cutter and pre-cutter
blades. Any blade found dull
will have to be changed.
4

CHANGING THE CUTTER
BLADES (See Figure 9)
WARNING: Do not change cutter
blades without gloves.
In order to change the cutter blades it
is necessary to lock the cutter disc by
placing the flat wrench through the
slot in the casing and cutter disc, so
that the blade can not rotate.
The cutter blades are initially sharp on
both edges. The second edge can be
used by removing the two Allen head
screws and rotating the blade
horizontally 180 degrees then
retighten the screws.
Remove flat wrench before replacing
cover and tightening cover screw. If
necessary, a new set of cutter blades
(Cat. NO. 682044) can be obtained at
any Black & Decker Service Center.
CHANGING THE PRE-CUTTER
BLADE (See Figure 10)
WARNING: Do not change pre-cutter
blade without gloves.
In order to change the pre-cutter
blade, it is necessary to iock the
cutter disc by placing the Alien wrench
through the siot in the casing and
cutter disc. The disc must then be
rotated CLOCKWISE until it locks up.
Then loosen the nut CLOCKWISE.
Remove the pre-cutter and replace it
with a new one (Cat. No. 918224)
obtained from your Black & Decker
Service Center. Position the
pre-cutter blade 90° to the cutting
blades. Tighten nut COUNTER
CLOCKWISE.
Remove Allen wrench before
replacing cover and tightening screw.

DRIVE BELT
ADJUSTING DRIVE BELT TENSION
In order to adjust drive belt tension:
(See Figure 11)
a) Turn shredder off and disengage
cord interlock.
b) Loosen cover screw and remove
cover.
c) Turn shredder upside down and
gently lay unit on a soft (preferably
grass) surface.
d) Loosen the four Allen head motor
mounting screws.
e) Turn the tension adjusting knob
clockwise until the bump on the
plastic knob hits the projection on
the metal base.
f) Retighten the four Allen head
motor mounting screws.
CHANGING THE DRIVE BELT
If the shredder motor is running
without driving the cutter disc it
indicates the drive belt-has worn and
will need replacing. A new drive belt
(Cat. No. 682045) can be ordered
from any Black & Decker Service
Center.
Follow above instructions a) to c)
g) Remove the back support leg with
the spanner.
h) Remove the black cover plate by
releasing the two screws.
j) Remove the belt tension adjuster
located at the front of the shredder.
k) Remove the motor by releasing
the 4 hexagonal screws.
l) Remove the old drive belt and
replace the new one over the belt
pulley. Make sure that the drive
spindle on the motor encases the
drive belt.
m) Replace the four hexagonal
screws and washers but do not yet
tighten.
n) Turn the pulley to check
that the drive belt is
wound on correctly.
o) Replace tension
adjuster and tighten
according to e).
p) The four hexagonal
screws can now
be tightened. N.
q) Replace cover plate
and back support leg.
r) Check belt tension after 1 hour of
use.
STORAGE
No not storage this tool next to fertili¬
zers or chemicals. Such storage can
cause rapid corrosion.
BLACK & DECKER (U.S
Form NO. 688177-01
Accessories &
Replacement Parts
CAUTION: The above accessories
& replacement parts are
recommended for use with your
shredder. The use of any other
accessory or attachment might be
hazardous.
The following accessories or
replacement parts can be purchased
separately from any Black & Decker
Service Center, or by writing to:
Customer Services
Black & Decker (U.S.) Inc.
Easton, Maryland 21601
Part/Descriptlon Cat. No.
Outdoor Extension cord 88-050
50 ft., 16 ga, 3 wire
Outdoor Extension cord 88-100
100 ft., 16 ga., 3 wire
Protective Goggles 72-000
Pre-Cutter Blade 918224
Cutter Blades 682044
(Set of Two)
Drive Belt 682045
Flat Wrench 874933
Allen Wrench 870103
THIS ELECTRIC TOOL IS RADIO AND
TV SUPRESSED IN COMPLIANCE WITI-
THE DIRECTIVE OF THE EUROPEAN
COMMUNITIES 76/889 + 82/499.
LOOSEN MOTOR
FIGURE 11
TENSION ADJUSTING
KNOB
INC. OUTDOOR DIVISION 515 GLEBE ROAD, EASTON, MD 21601
(MAY84) ®1984 Printed in W. Germany
Made in W. Germany by Black & Decker
8?S07'
