SOHO Network Boxes

1
FCC AND IC RFI STATEMENTS
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.

2
SOHO NETWORK BOXES
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

3
NOM STATEMENT
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

4
SOHO NETWORK BOXES
TRADEMARKS USED IN THIS MANUAL
Any trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.

5
CONTENTS
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 What the Package Includes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 What You Need to Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Site Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5 Sample Floorplan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Preparing the SOHO Network Box . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Installing the SOHO Network Box . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2.1 In-Wall Mounting (New Construction) . . . . . . . . . . . . . . . 10
3.2.2 Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.3 Terminal Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2.4 Outlet Boxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Cable Handling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Installing the Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Shipping and Packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6
SOHO NETWORK BOXES
1. Specifications
Size: JPM1110A: 14.25"H x 14"W x 4.25"D (36.2 x 35.6 x 10.8 cm);
JPM1111A: 14.25"H x 20"W x 4.25"D (36.2 x 50.8 x 10.8 cm);
JPM1112A: 14.25"H x 30"W x 4.25"D (36.2 x 76.2 x 10.8 cm)
Weight: JPM1110A: 13 lb. (5.9 kg); JPM1111A: 18.4 lb. (8.4 kg);
JPM1112A: 24.1 lb. (10.9 kg)

7
CHAPTER 2: Introduction
2. Introduction
2.1 Overview
Organize communications wiring for high-speed data, phone, and video
(including cable/satellite TV) and audio in one central distribution box. Three
different sizes of SOHO Network Boxes are available. Choose from 14"W, 20"W, or
30"W. Complete dimensions for each model are:
• 14.25"H x 14"W x 4.25"D (JPM1110A)
• 14.25"H x 20"W x 4.25"D (JPM1111A)
• 14.25"H x 30"W x 4.25"D (JPM1112A)
A variety of combinations of modules can be installed in each box, depending on
your application.
Choose between the modules listed below. Each module is 3"H x 6.3"W (7.6 x
16 cm) and comes with a users’ manual.
• SOHO 6-Port CAT5e 568B Data Module (JPM1101A)
• SOHO 6-Port CAT5e Data/Voice Module (JPM1102A)
• SOHO 6-Port CAT3 Telephone Module (JPM1103A)
• SOHO 12-Port CAT3 Telephone Module (JPM1104A)
• SOHO 12-Port Basic Telephone Module (JPM1105A)
• SOHO 4-Port Digital Broadcast Module (JPM1106A)
• SOHO 2–1 Video Combiner Module (JPM1107A)
• SOHO Outbound Video Module 8–1 (JPM1108A)
• SOHO Inbound Video Module (JPM1109A)
• SOHO Video Booster Module (JPM1120A)
• SOHO 7 Zone Audio Module (JPM1121A)

8
SOHO NETWORK BOXES
Three sizes of mounting panels are available, including:
• SOHO 1-Unit 1⁄2-Size Mounting Panel (JPM1122A); it is 3"H x 6.3"W (7.6 x
16 cm)
• SOHO 2-Unit 1⁄2-Size Mounting Panel (JPM1123A); it is 6"H x 6.3"W (15.2 x
16 cm)
• SOHO 2-Unit Full-Size Mounting Panel (JPM1124A); it is 6"H x 13.2"W (15.2 x
33.5 cm)
2.2 What the Package Includes
Each SOHO Network Box includes:
• (1) chassis
• (1) front door with decorative hinged ring
• This users’ manual
The package for each module ordered contains the module itself and installation
instructions for that module.
2.3 What You Need to Supply
• Mounting screws
• Electric drill
• Phillips screwdriver
• A level
2.4 Site Planning
Before you install the main chassis, you must determine the destination of all
connections. Below are a few questions you need to consider before you plan your
installation.
1. How many networked rooms are in my home or office?
2. What media types will I need in each room?
3. What is the location of each wallplate for each room?

9
CHAPTER 2: Introduction
4. What is the exact distance from each of those wall plates to the SOHO
Network Box?
5. Do I plan to use inbound video as well as outbound video?
Once you have answered these questions, you are ready to continue with the
installation. First, determine the ideal location for the main chassis. (For example,
you can have a main chassis in a garage or basement, and “sister” chassis boxes on
each floor.) Each media type (copper or RG6 coaxial) has a specified distance limit
beyond which the data will become distorted or lost. Your data connection (using a
copper connection) should not exceed 328 ft. (100 m). Your video connection
(using RG6 coaxial cable) should not exceed 100 ft. (30.5 m) total distance.
2.5 Sample Floorplan
To begin your installation, draw a sample floorplan like the one shown below.

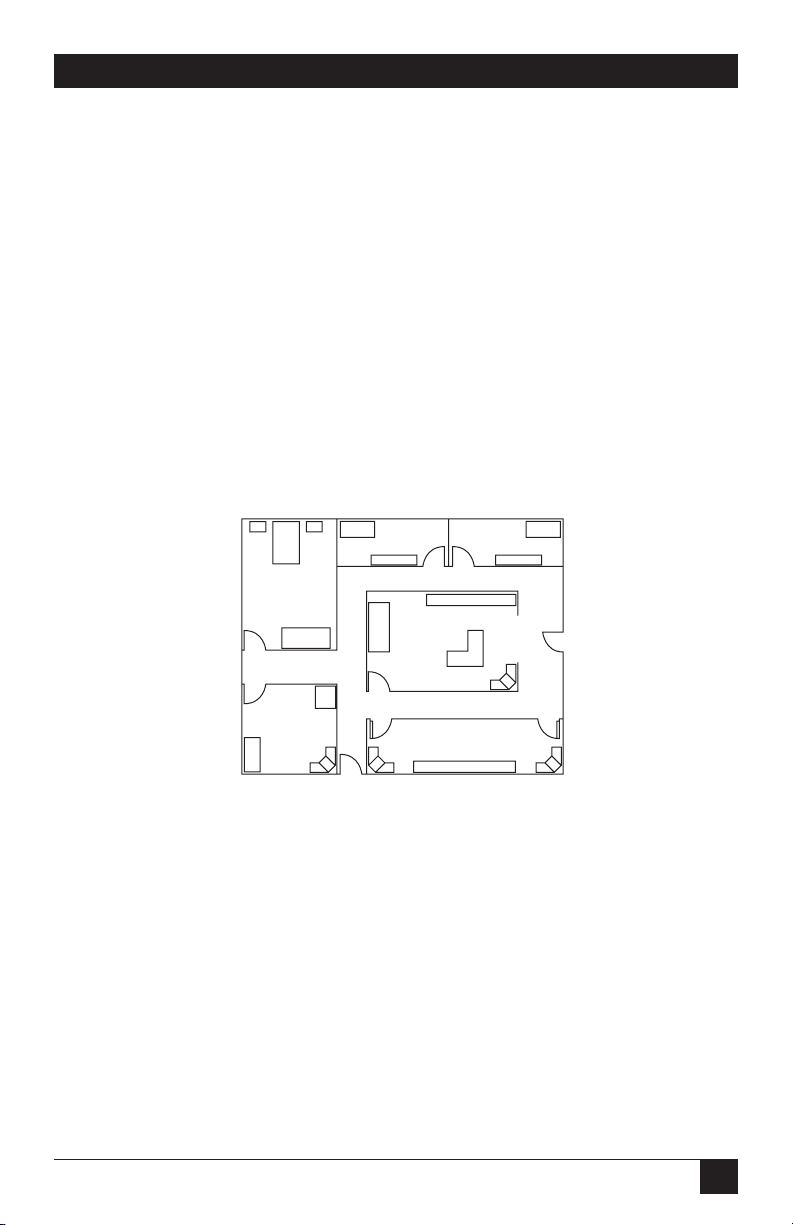

Figure 2-1. Sample floorplan.
Choose a central location for your SOHO Network Box and measure the exact
distance of each run. A run is defined as the distance from an input device to an
output device at the other end (for example, a DVD to a TV). Unless you are using
a video booster, limit the total length of your coaxial cable run to 100 ft. (30.5 m)
or less. To determine the total length, measure the distance of the input device
that’s farthest away from the main chassis. Then add that distance to the distance
of the output device that’s farthest away from the main chassis. The result will be
the total distance of your coaxial cable run. Remember, this should be 100 ft.
(30.5 m) or shorter.
Master
Bedroom
Living
Room
Office
TV
TV
CCTV
CCTV
CCTV
CCTV
CCTV
TV
TV
TV
Computer Computer
Bedroom
1
Bedroom
2
Bedroom
3

10
SOHO NETWORK BOXES
3. Installation
3.1 Preparing the SOHO Network Box
1. Determine the mounting location and type of mounting. Choose either in-
wall or surface-mount installation. For existing homes, we recommend
surface-mount installation. For new construction, we recommend in-wall
installation. Make sure that you allow enough space to install the necessary
cables to the network box. It should be mounted at least 12" (30.5 cm) from
any adjacent walls and at least 12" (30.5 cm) down from the ceiling and up
from the floor.
2. Identify the location of each communication port that you will use.
Determine the placement of each cable that you will attach to the network
box.
3.2 Installing the SOHO Network Box
3.2.1 I
N -W ALL M
OUNTING (N EW C ONSTRUCTION )
For an in-wall installation, use the adjustable mounting tabs on the sides of the
box. Attach each side of the box in the center of 2 x 4 wall studs located 16" apart.
1. Position the SOHO Network Box between the two mounting studs and align
the rear of the chassis flush with the back of the studs.
2. Mark and drill pilot holes for the mounting screws (see Figure 3-1).

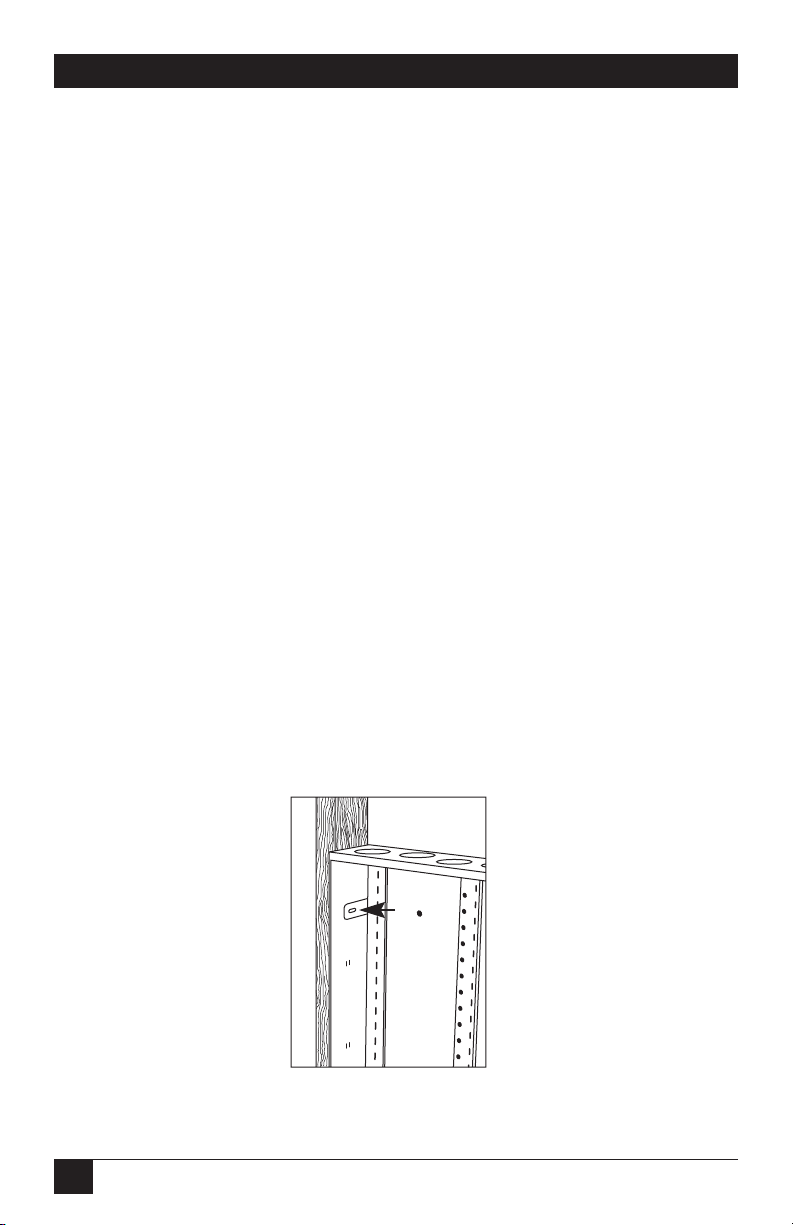

Figure 3-1. In-wall mounting screw locations.

11
CHAPTER 3: Installation
3. Make sure that the SOHO Network Box is right side up. Align the adjustable
mounting tabs with the pilot holes, and start tightening the mounting screws
into the pilot holes. The mounting tabs will flex in order to fit the opening
while keeping the box square. This is normal (see Figure 3-2).
Figure 3-2. Putting the mounting screws into the pilot holes.
4. Install the door. Do not overtighten. (See Figure 3-5.)
3.2.2 S URFACE M OUNTING
For surface mounting (used for existing construction), use the mounting holes
located in the back of the SOHO Network Box and mount the box directly to a
stud in the wall. We recommend mounting the box to a stud that’s securely
fastened to your house’s frame.
1. Using a level, position the chassis against the mounting board and mark the
four screw locations with a pen or pencil. (See Figure 3-3.)

12
SOHO NETWORK BOXES
Figure 3-3. Surface mounting screw locations.
2. Drill pilot holes for the mounting screws.
3. Make sure that the SOHO Network Box is right side up. Align the mounting
holes with the pilot holes, and start tightening the mounting screws into the
pilot holes. (See Figure 3-4.)
Figure 3-4. Tightening mounting screws after
aligning mounting holes with pilot holes.

13
CHAPTER 3: Installation
4. Install the door. Do not overtighten. (See Figure 3-5.)
Figure 3-5. Installing the door.
3.2.3 T ERMINAL A DAPTERS
The large, circular openings at the top and bottom of the SOHO Network Box are
designed to fit 2" PVC terminal adapters (available at any hardware store).
Insert the terminal adapters into the holes from the outside (top or bottom) of the
box. Fasten them with the large hex nuts that are included with the adapters. (See
Figure 3-6.)
Figure 3-6. Terminal adapter installation.

14
SOHO NETWORK BOXES
3.2.4 O UTLET B OXES
The two rectangular knockouts located on the bottom of the SOHO Network Box
are designed for power outlet boxes. Some equipment may require AC power;
these specially designed knockouts allow you to mount the outlet boxes (not
included) without wires running outside the box.

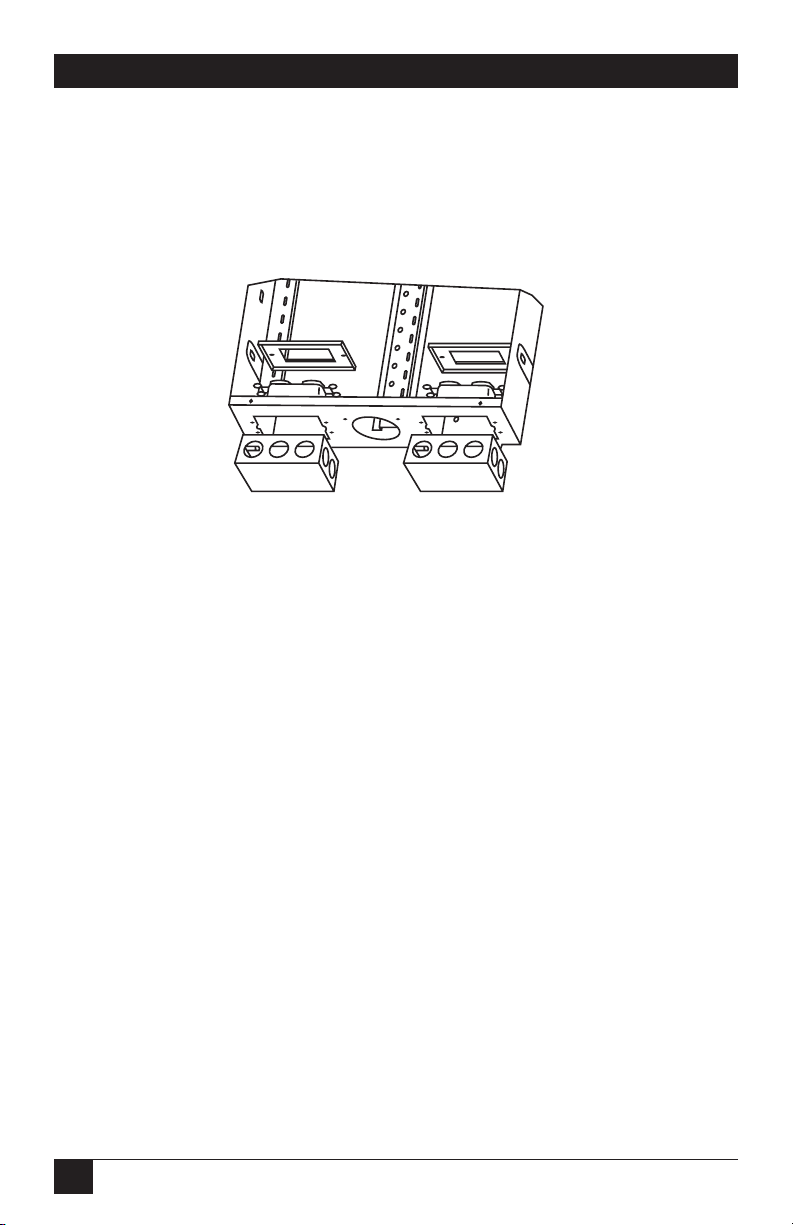

Figure 3-7. Power outlet mounting.
3.3 Cable Handling Guidelines
Follow the guidelines listed below when handling cable:
• Do not route cable through the same cable holes as the AC power cables.
• Separate all cables from parallel AC power lines by at least 6 inches (15.2 cm),
whenever possible, for safety reasons.
• Avoid kinking the cable.
• Do not attach cable tie-downs too tightly. The cable-fastening hardware should
not compress the cable sheath.
• Do not bend the cable sharply. Be especially careful to place the cables
properly in the cable management after passing them through a hole (the
edges of the hole can compress or even damage the cable sheath).
• When mounting the individual modules in the SOHO Network Box, be sure to
install it above or below the interfacing module, if possible. This will eliminate
excessive cable crossing.
• Follow all warnings on the products.

15
CHAPTER 3: Installation
• For your safety, do not use this or any electrical product near water (unless
specifically designed for wet areas).
• Do not install wiring during thunder and lightning storms.
• Use caution when handling or installing any computer, telephone, video, or
electrical devices.
3.4 Installing the Modules
Separate installation manuals are included with each module. Each manual
contains the following general installation and removal instructions, along with
specific instructions for each individual module. Follow those instructions when
installing the modules into the SOHO Network Box.
To install a module into a SOHO Network Box:
1. Determine the area for installation.
2. Insert the metal tabs on the module at a 45-degree angle into the rail holes on
the module.
3. Swing the module inward and place the pushbutton into the hole on the
module.
4. Press the pushbutton to fasten the module to the SOHO Network Box.
NOTE
When installing an individual module in the SOHO Network Box, be sure
to place it above or below the interfacing module, when possible. This
will eliminate excessive cable crossing.
Removing a module from the SOHO Network Box:
1. Pull the pushbutton to release the module from the SOHO Network Box.
2. Swing the module outward.
3. Position the module at a 45-degree angle and pull to remove it from the
SOHO Network Box.

16
SOHO NETWORK BOXES
4. Troubleshooting
4.1 Calling Black Box
If you determine that your SOHO Network Box is malfunctioning, do not attempt
to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box
at 724-746-5500.
Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or
make it worse.
4.2 Shipping and Packaging
If you need to transport or ship your SOHO Network Box:
• Package it carefully. We recommend that you use the original container.
• If you are shipping the SOHO Network Box for repair, make sure you include
everything that came in the original package. Before you ship, contact Black
Box to get a Return Authorization (RA) number.
