Black Box ACS2009A-R2-xx User manual

ACS2009A-R2-xx, ACS2028A-R2-xx
ACS2209A-R2-xx, ACS2228A-R2-xx
ACS4001A-R2-xx, ACS4022A-R2-xx
ACS4201A-R2-xx, ACS4222A-R2-xx
DVI-D-Fiber-KVM-Extender
Single and DualHead
Manual
http://www.blackbox.com

DVI-D FIBER KVM-EXTENDER
2
Welcome to the DVI-D Fiber KVM-Extender
Family!
Thank you for purchasing an DVI-D Fiber KVM-Extender! We appreciate your business, and
we think you’ll appreciate the many ways that your enhanced RGB Graphic system will save
you money, time, and effort.
That’s because our DVI-D Fiber KVM-Extender is all about breaking away from the
traditional model of attaching a new display to DVI graphic source. Using the DVI-D Fiber
KVM-Extender, you can remotely locate monitor, keyboard and mouse up to 140m away
from your CPU.
Wherever long distances are required, e.g. airports, industrial plants, call- centres or in
distributed computer centres, the DVI-D Fiber KVM-Extender is the best way, to solve all
problems in remotely locating your console. 4 different types are available: Singlehead and
Dualhead devices for PS2 keyboard/mouse and Singlehead and Dualhead devices for USB
keyboard/mouse.
This manual will tell you all about your new DVI-D Fiber KVM-Extender, including how to
install, operate, and troubleshoot it. For an introduction to the Converter, see Chapter 2. The
Converter product codes covered in this manual are:
The –xx- in the following P/N’s represents MM = Multimode and SM =
Singlemode
ACS2009A-R2-xx: KVM-Extender Singlehead DVI-D, PS2-Keyboard/Mouse
ACS2209A-R2-xx: KVM-Extender Dualhead DVI-D, PS2-Keyboard/Mouse
ACS4001A-R2-xx: KVM-Extender Singlehead DVI-D, USB-Keyboard/Mouse
ACS4201A-R2-xx: KVM-Extender Dualhead DVI-D, USB-Keyboard/Mouse
ACS2028A-R2-xx: KVM-Extender Singlehead DVI-D, PS2-Keyboard/Mouse +
serial/Audio
ACS2228A-R2-xx: KVM-Extender Dualhead DVI-D, PS2-Keyboard/Mouse +
serial/Audio Audio
ACS4022A-R2-xx: KVM-Extender Singlehead DVI-D, USB-Keyboard/Mouse +
serial/Audio Audio
ACS4222A-R2-xx: KVM-Extender Dualhead DVI-D, USB-Keyboard/Mouse +
serial/Audio Audio

DVI-D FIBER KVM-EXTENDER
3
Copyrights and Trademarks
©2008. All rights reserved. This information may not be reproduced in any manner without
the prior written consent of the manufacturer.
Information in this document is subject to change without notice and the manufacturer shall
not be liable for any direct, indirect, special, incidental or consequential damages in
connection with the use of this material.
All trademark and trade names mentioned in this document are acknowledged to be the
property of their respective owners.
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer
assumes no responsibility for errors or omissions. Neither does the manufacturer assume any
liability for damages resulting from the use of the information contained herein. The
manufacturer reserves the right to change the specifications, functions, or circuitry of the
product without notice.
The manufacturer cannot accept liability for damage due to misuse of the product or due to
any other circumstances outside the manufacturer’s control (whether environmental or
installation related). The manufacturer shall not be responsible for any loss, damage, or injury
arising directly, indirectly, or consequently from the use of this product.
Cautions and Notes
The following symbols are used in this guide:
CAUTION. This indicates an important operating instruction
that should be followed to avoid any potential damage to
hardware or property, loss of data, or personal injury.
NOTE. This indicates important information to help you make the best use of
this product.

DVI-D FIBER KVM-EXTENDER
4

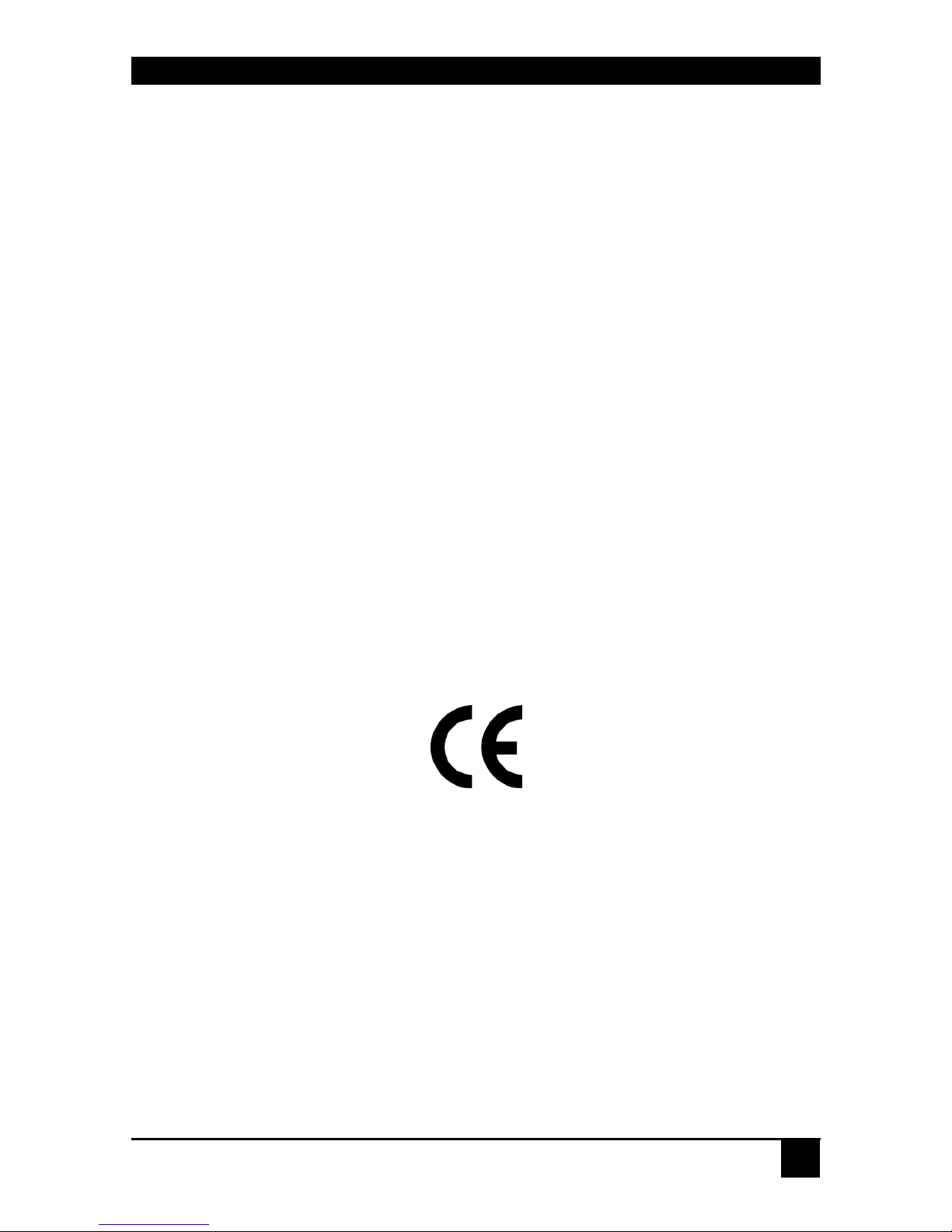

DECLARATION OF CONFORMITY
5
EUROPEAN UNION DECLARATION OF CONFORMITY
This is to certify that, when installed and used according to the instructions in this
manual, together with the specified cables and the maximum cable length <3m, the
Units:
ACS2009A-R2-MM, ACS2009A-R2-SM, ACS2209A-R2-MM, ACS2209A-R2-SM
ACS4001A-R2-MM, ACS4001A-R2-SM, ACS4201A-R2-MM, ACS4201A-R2-SM
ACS2028A-R2-MM, ACS2028A-R2-SM, ACS2228A-R2-MM, ACS2228A-R2-SM
ACS4022A-R2-MM, ACS4022A-R2-SM, ACS4222A-R2-MM, ACS4222A-R2-SM
are shielded against the generation of radio interferences in accordance with the
application of Council Directive 89/336/EEC as well as these standards:
EN 55022: 1999 Class A
EN 55024: 1999
IEC 61000-4-2: 2001
IEC 61000-4-3: 2001
IEC 61000-4-4: 2001
EN 61000-3-2 2001
EN 61000-3-3 2002
The device was tested in a typical configuration with PC.
This equipment has been found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

DVI-D FIBER KVM-EXTENDER
6
Safety Precautions and Installation Guidelines
To ensure reliable and safe long-term operation, please note the following installation
guidelines:
•Only use in dry, indoor environments.
•If the building has 3-phase AC power, try to ensure that equipment connected to the
Local and Remote units is on the same phase.
•The Remote unit, Local unit and any power supplies can get warm. Do not locate them
in an enclosed space without any airflow.
•Do not place a power supply directly on top of a unit.
•Do not obstruct a unit’s ventilation existing holes.
To safeguard against personal injury and avoid possible
damage to equipment or property, please observe the
following:
•Only use power supplies originally supplied with the
product or manufacturer-approved replacements. Do not
attempt to dismantle or repair any power supply. Do not
use a power supply if it appears to be defective or has a
damaged case.
•Connect all power supplies to grounded outlets. In each
case, ensure that the ground connection is maintained
from the outlet socket through to the power supply’s AC
power input.
•Do not attempt to modify or repair this product, or make
a connection from the Fiber link interface (RJ45) to any
other products, especially telecommunications or
network equipment.

CONTENTS
7
Contents
1. Quick Setup 8
2. Overview 9
2.1 Introduction 9
2.2 Glossary 9
2.3 Features 11
2.4 Product Range 12
2.5 Compatibility 13
2.6 How to Use This Guide 14
3. Installation 15
3.1 Package Contents 15
3.2 Interconnection Cable Requirements 17
3.3 System Setup 18
3.4 Diagnostic LEDs 29
4. Service Setup 31
4.1 Setup at the Local Unit 32
4.2 Setup at the Remote Unit 34
5. Troubleshooting 35
Appendix A: Example Applications 39
Appendix B: Rack Mount Options 41
Appendix C: Audio/Serial Support 45
Appendix D: Calling Technical Support 47
Appendix E: Specifications 49
Appendix F: Connectors 51

DVI-D FIBER KVM-EXTENDER
8
1. Quick Setup
This section briefly describes how to install your KVM extender system. Unless you are an
experienced user, we recommend that you follow the full procedures described in the rest of
this manual.
Install system
1. Connect Remote unit to KVM.
2. Connect Local unit to CPU or switch.
3. Connect Local and Remote units with matching interconnection cable
(Fiber).
4. Power up the system.
Done
YES
NO
Link LED
illuminated ?
NO
NO
YES
Check p.s.u.’s and connection
to power outlet
Power LED
illuminated?
Check the Fiber cable, and
Fiber connectors
Check settings of graphic card
or boot CPU
Video OK
LED ?
illuminated ?
YES

OVERVIEW
9
2. Overview
2.1 Introduction
A Fiber KVM Extender is mainly used, to extend the maximum distance between a CPU
and his Keyboard / Monitor / Mouse considerably. In addition they are beneficial in
installations in electromagnetic hazardous environments (EMI). Normal Keyboard-/
Monitor-/ Mouse extender cables (and Extender using traditional cables) cannot go so far
and EMI interferences may reduce the maximum distance and/or reliability. Using a
DVI-D Fiber Extender system, these limitations are past. Retain your CPU in a secure
rack cabinet or data center while accessing from a 140m remotely located place.
A basic KVM extension system comprises a Local unit (transmitter) and a Remote unit
(receiver). The Local unit connects directly to the computer (or a KVM switch system) using
the supplied cable(s). The user console (keyboard, mouse and monitor) attaches to the
Remote unit. The Remote and Local units communicate video and data information along the
interconnecting cable. Local units offer dual access, allowing the connection of a second user
console close to the computer.
2.2 Glossary
The following terms are used in this guide:
Fiber Singlemode or Multimode fiber cable.
Singlemode 9µ Singlemode-fiber cable
Mulitmode 62,5µ Multimode- or
50µ Multimode-fiber cable
KVM Keyboard, Video and Mouse.
Console Keyboard, Mouse and Monitor
Dual Access A system allowing connection of Local and Remote user consoles.
Singlehead An extender system that supports one monitor + Keyboard/Mouse
Dualhead An extender system that supports two monitors + Keyboard/Mouse
DVI Digital Video standard, installed by Digital Display Working Group
(www.ddwg.org) R, G, B, CLOCK in a data stream with up to
3x 1,6 Gbit/sec. Signals are TMDS Level.
PSU The desktop power supply connected to the Local/Remote unit.
HID Human Interface Devices are units, which are used for human access
to the CPU. They are a USB-device class of its own (e.g. Memory
Devices etc.). Besides of keyboard and mouse also touchscreen, light
pen, fingerprint sensor, graphic tablets etc. are HID devices

DVI-D FIBER KVM-EXTENDER
10

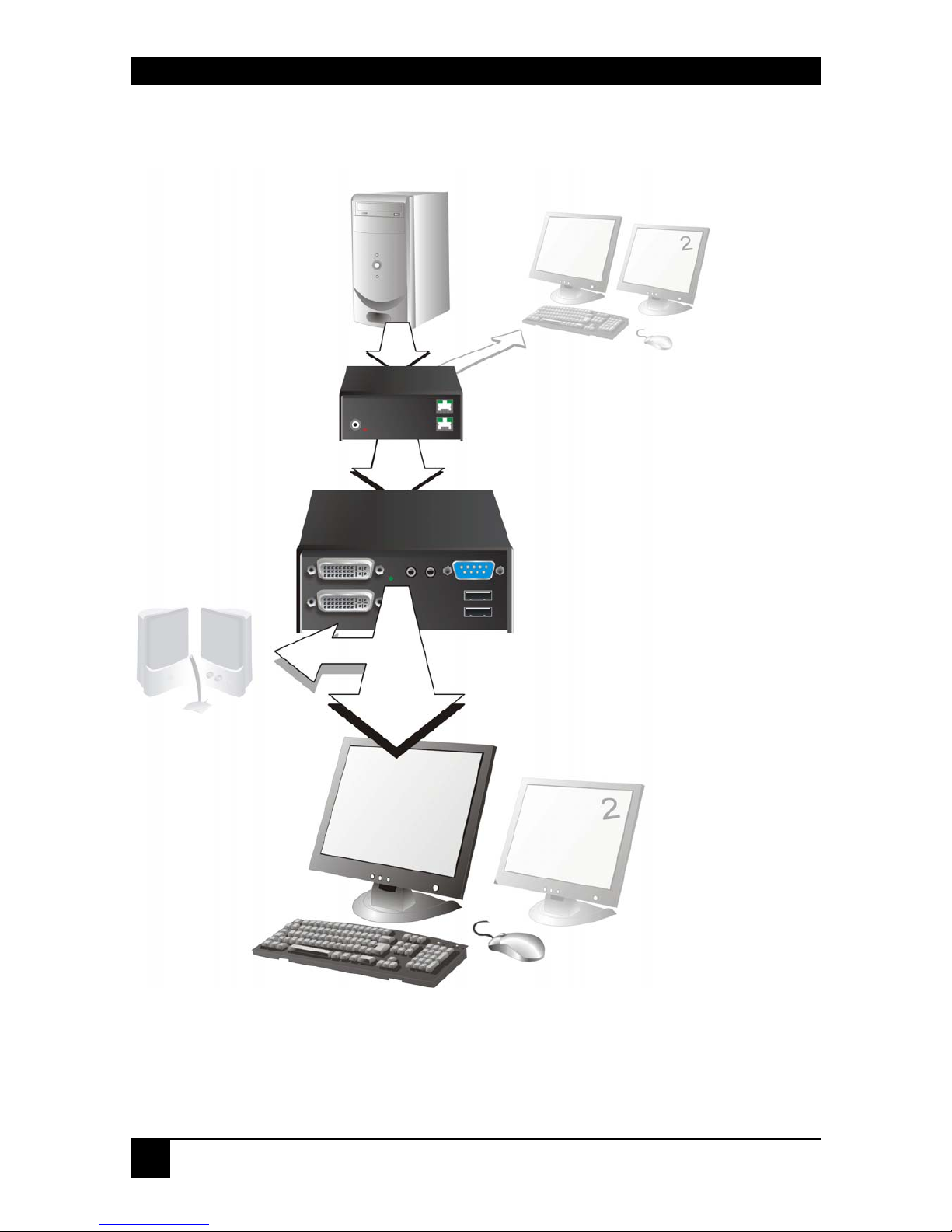

DVI-D Fiber – KVM Extender system (example)
CPU with DVI-D
Graphic card
DVI-D Fiber KVM-
Extender system
Local Console
Remote Console
Optional
2nd Monitor
Optional
2nd Monitor
Serial /
Audio

OVERVIEW
11
2.3 Features
All members of the DVI-D Fiber - DVI KVM Extender Series offer the following features:
•Support for DVI-D Graphic cards (all devices)
•Support for PS2-Keyboard and PS2-Mouse (ACS2028A-R2-xx and ACS2228A-xx)
•Support for USB-Keyboard and USB-Mouse (ACS4022A-R2-xx and ACS4222A-xx)
Devices with USB- connectors support ONLY Keyboard and Mouse. It’s
possible, that other HID devices (Human Interface Device) like touch-
screens, graphics tablets, barcode readers or similar are supported – but
there is no guarantee for this! The DVI-D Fiber KVM-Extender is NOT
suitable for use with other USB devices like Scanner, WEB- Cams, data
sticks etc.
The device never supports more than two devices – Keyboard and Mouse
or Keyboard and Touch screen, etc. but not e.g. Keyboard, Mouse and
Touch screen simultaneously. A Hub is allowed but does not raise the
number of supported devices
•Maximum resolution: DVI-D: 1920x1200@60Hz over all allowed distances
all resolutions below of 1600x1200 with refresh rates of at least 75Hz
•Supporting 16 Bit/24 Bit auto switching or fixed 24 Bit color depth (user selectable)
•Optional: On Single head devices, transparent serial port enables any serial device to be
extended (up to 19.2K Baud). The serial port may be used to extend one device
(requiring handshaking lines) or up to three simple serial devices (no handshaking).
Dualhead Units support Tx/Rx only (XON/XOFF)
•Bi-directional stereo audio (16-bit digitized) support enables high-quality, low-noise,
audio extension.
•Status indicator LEDs on each device.
•Small footprint chassis.
•Rack mount options available.
•CPU cables + Adapters included.

DVI-D FIBER KVM-EXTENDER
12
2.4 Product Range
There are sixteen products in the range and various upgrade kits:
DVI-D Fiber – Extender
Where: xx is MM is Multimode Device
xx is SM is Singlemode Device
ACS2009A-R2-xx KVM-Extender 1x DVI, PS2-Keyboard, PS2-Mouse
(Singlehead)
ACS2028A-R2-xx KVM-Extender 1x DVI, PS2-Keyboard, PS2-Mouse
(Singlehead) + serial/audio
ACS2209A-R2-xx KVM-Extender 2x DVI, PS2-Keyboard, PS2-Mouse
(Dualhead)
ACS2228A-R2-xx KVM-Extender 2x DVI, PS2-Keyboard, PS2-Mouse
(Dualhead) + serial/audio
ACS4001A-R2-xx KVM-Extender 1x DVI, USB-Keyboard, USB-Mouse
(Singlehead)
ACS4022A-R2-xx KVM-Extender 1x DVI, USB-Keyboard, USB-Mouse
(Singlehead) + serial/audio
ACS4201A-R2-xx KVM-Extender 2x DVI, USB-Keyboard, USB-Mouse
(Dualhead)
ACS4222A-R2-xx KVM-Extender 2x DVI, USB-Keyboard, USB-Mouse
(Dualhead) + serial/audio
Upgrade Kits
ACS1009A-RMK 19”/1U Rack mount- Kit to mount up to 4 devices (lower
profile = Singlehead w/o serial/audio)
ACS2209A-RMK 19”/1U Rack mount- Kit to mount up to 4 devices
ACS2209A-PS 19”/1U rack mountable P.S.U. Input: 100..240VAC/0.5A;
Output 5VDC/7A to source up to 3 units. Requires one unit
space in RMK (ACS2228A-RMK)

OVERVIEW
13
2.5 Compatibility
Interface Compatibility
•Digital Video (DVI-D): Digital Video standard, installed by Digital Display Working
Group (www.ddwg.org) R, G, B, CLOCK in a data stream with up to
3x 1,6 GBit/sec. Signals are TMDS Level.
•PS/2 Keyboard: Compatible with all standard keyboards. Certain keyboards with
enhanced features may also be supported with custom firmware.
•PS/2 Mouse: Compatible with all standard 2-button, 3-button and wheel mice.
•USB Keyboard: Compatible with all standard keyboards. Certain keyboards with
enhanced features may also be supported with custom firmware. Keyboards with built-in
hub are also supported – but there are never more than two HDI devices supported.
•USB Mouse: Compatible with all standard 2-button, 3-button and wheel mice.
Devices with USB- connectors support ONLY Keyboard and Mouse. It’s
possible, that other HID devices (Human Interface Device) like touch-
screens, graphics tablets, barcode readers or similar are supported – but
there is no guarantee for this! The DVI-D Fiber KVM-Extender is NOT
suitable for use with other USB devices like Scanner, WEB- Cams, data
sticks etc.
The device never supports more than two devices – Keyboard and Mouse
or Keyboard and Touch screen, etc. but not e.g. Keyboard, Mouse and
Touch screen simultaneously. A Hub is allowed but does not rais the
number of supported devices

DVI-D FIBER KVM-EXTENDER
14
2.6 How to Use This Guide
This guide describes the installation and configuration of the DVI-D Fiber – Extender Series.
Although the connection and operation of the system is relatively straightforward, you should
consider the following before getting started:
Connection & Compatibility
If you have purchased an Extender Kit, this will contain all the cables required to connect the
Local unit to your PC or KVM switch. Please see also: Package Contents (page 15)
For information about connection and installation, see Interconnection Cable
Requirements, page 17.
DDC Information
Normally it is not necessary to make any adjustments to the DVI-D Fiber KVM-Extender.
However, in some circumstances, it may be necessary to redefine the source of DDC
Information for the CPU. By default, the DVI-D Fiber KVM-Extender uses its own internal
DDC table. If this setting does not satisfy your requirements, the DDC table can either be
switched to the locally attached screen or could be downloaded from remotely located screen
and stored in the internal DDC table.
To modify the DDC-Setup, see Service Setup (page 31).
Selecting the moment of switching to the next frame
The transmission of screen data in not synchronous to the screen change of the graphic card.
Normally, the transmission is terminated during displaying a frame on the screen. If the
device switches to the new frame during the displaying period of the old frame (somewhere
on the screen), it’s possible, that you can see horizontal screen breaks in the moment of
switching (default). On the other hand the device must idle, until the actual frame is displayed
completely (until VSYNC) -> the number of frames per second transmitted sinks.
To modify the switching behaviour, see Service Setup (page 31).
Selection of Color reduction for transfer acceleration
You can select, whether always 24 Bit colors (=full color depth) are transmitted or whether
the compression algorithm automatically switches between 16 and 24 Bit colors to accelerate
the data transfer (default). Normally the difference between 24 Bit and 16 Bit is not
recognizable but under some special circumstances e.g. in photo processing installations.
However, the automatic color switching enhances the count of frames, transmitted per
second, fixed 24 Bit color depth gives smooth color grades under all circumstances. Please
select to you choice the better mode.
To modify the color depth, see Service Setup (page 31).
Compatibility
Devices with PS2 connectors are NOT compatible to devices with USB connectors.

INSTALLATION
15
3. Installation
For first-time users, we recommend that you carry out a test placement, confined to a single
room, before commencing full installation. This will allow you to identify and solve any
cabling problems, and experiment with the KVM extender system more conveniently.
3.1 Package Contents
You should receive the following items in your extender package (all types):
•DVI-D Fiber KVM-Extender- pair (Local Unit + Remote Unit)
•2x 5V DC universal power supply for the DVI-D Fiber - Extender
•2x US type power cord
•User manual (Quick Setup)
ACS2009A-R2-xx, ACS2028A-R2-xx, ACS2209A-R2-xx and ACS2228A-R2-xx
(additionally):
•KVM CPU cable set (1.8m) with one side: PS/2 (6-pin mini-DIN male) keyboard and
mouse connector and DVI-D video (DVI-D dual link male) connector – other side: DVI-
D video (DVI-D dual link male) connector
•PS2-Keyboard-/ Mouse adapter to connect K/M to the Local Unit (keyboard can be
plugged in directly, without using an adapter)

DVI-D FIBER KVM-EXTENDER
16

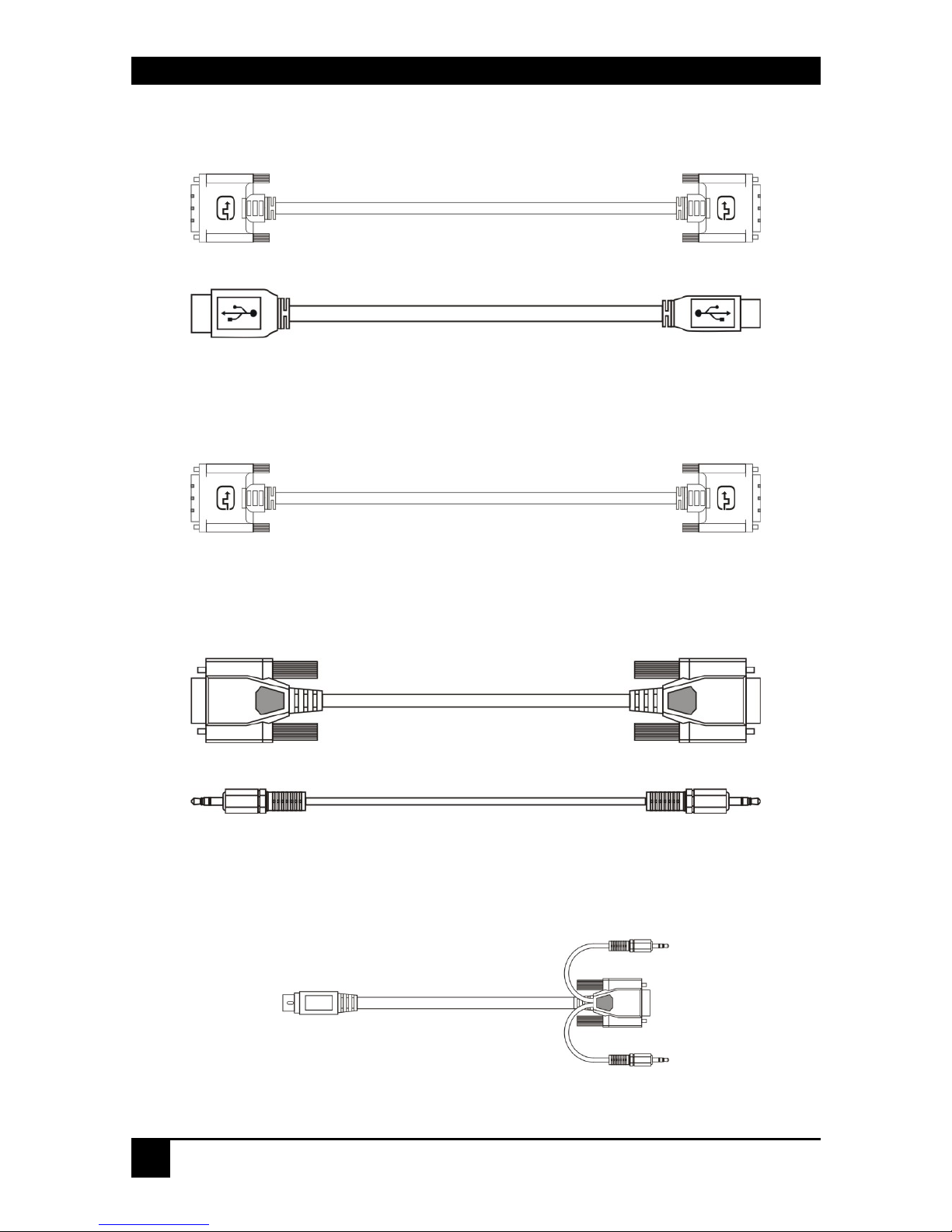

ACS4001A-R2-xx, ACS4022A-R2-xx, ACS4201A-R2-xx and ACS4222A-R2-xx
(additionally):
•DVI-D (1,8m) video cable (DVI-D dual link male-to-male)
•USB (1,8m) cable (USB type A to type B)
ACS2209A-R2-xx, ACS2228A-R2-xx, ACS4201A-R2-xx and ACS4222A-R2-xx
(additionally):
•DVI-D (1,8m) video cable (DVI-D dual link male-to-male)
ACS2028A-R2-xx, ACS4022A-R2-xx (additionally):
•Serial link cable (1.8m) with one side DSUB9pin male connector – other side
DSUB9pin female connector – 1:1
•2x audio cable (1.8m, 3.5mm stereo plugs)
ACS2228A-R2-xx and ACS4222A-R2-xx (additionally):
•1x Serial link/ audio ZIP-type cable (1.8m) with one side DSUB9pin female connector +
2x 3.5mm stereo plugs – other side miniDIN8pin male connector – 1:1
If anything is missing, please contact Technical Support (see Appendix D – Calling
Technical Support).

INSTALLATION
17
3.2 Interconnection Cable Requirements
To connect the Local and Remote units you will need:
•DVI, PS2-Keyboard, PS2-Mouse: Connect the supplied KVM CPU cable set to your
CPU (KVM.- Switch, etc.). Please ensure that the connection is tension-free! Devices
ACS2028A + ACS2228A
•DVI, USB-Keyboard, USB-Mouse: Connect the supplied KVM CPU cable set to your
CPU (KVM.- Switch, etc.). Please ensure that the connection is tension-free! Devices
ACS4022A + ACS4222A
•DVI: Connect the supplied DVI CPU cable set to your CPU (KVM.- Switch, etc.).
Please ensure that the connection is tension-free! Devices ACS2228A + ACS4222A
•Fiber Cable: Two strands of fiber are required for singlehead devices, four strands for
Dualhead devices.
Please note, that the allowed distance will depend on device type AND on
used fiber type.
•Recommended cables:
ACSxxxxA-MM: Multimode type 50/125µ allowed distance app. 400m (1,300ft)
ACSxxxxA-MM: Multimode type 62.5/125µ allowed distance app. 200m (650ft)
ACSxxxxA-SM: Singlemode type 9/125µ allowed distance app. 10km (32,750ft)
A point to point connection is required. Having one or more patch panels
in the line is possible and allowed. Not allowed is a connection from the
Fiber link interface (LC) to any other products, especially
telecommunications or network equipment.
Our experiences show, that Singlemode devices regularly work well on
Multimode Fibers where vice versa it will never do. In addition we found,
that Singlemode devices on Multimode fibers may extend the allowed
distance on Multimode fibers to twice the regular length. Anyway this
cannot be guaranteed and must be evaluated by the end-user at his own
expense.
•Power Supply
Connect the supplied 5V/DC power supplies to the Plug terminal on the rear of both
Local and Remote units.

DVI-D FIBER KVM-EXTENDER
18
3.3 System Setup
To install your DVI-D Fiber – Extender system:
1. Switch off all devices.
2. Connect your keyboard, monitor(s) and mouse to the Remote unit (depending on device
type). Please ensure, to not swap Mouse- and Keyboard connector. The Keyboard
connector is purple and the Mouse connector is green.
3. Using the supplied CPU KVM cable(s), connect the keyboard, monitor(s) and mouse
connectors on the computer (or KVM switch). Please ensure, to not swap Mouse- and
Keyboard connector. The Keyboard connector is purple and the Mouse connector is
green.
4. Connect the interconnect cable to the INTERCONNECT socket(s)
5. Connect the 5V power supply to power the unit.
Only use the power supply originally supplied with this
equipment or a manufacturer-approved replacement.
6. For a dual access system, connect the monitor for the Local console to the appropriate
port on the Local unit. The port may also be used to feed into a KVM switch.
To the local (PS2-) Keyboard-/ Mouse port you can attach a Keyboard directly or
Mouse/ Keyboard together, using the delivered adapter.
To attach a local (USB-) Keyboard/Mouse, please use additional USB port(s) at your
CPU or use a USB Hub in-between CPU and local unit’s USB connector.
7. Power up the system.

INSTALLATION
19
DVI-D Fiber KVM-Extender Type ACS2009A-R2-xx Local Unit
DVI-D Fiber KVM-Extender Type ACS2009A-R2-xx Remote Unit
DVI-D Fiber KVM-Extender Type ACS2009A-R2-xx Local/ Remote Unit
remote DVI-Monitor
port– connect to
Remote console
monitor Remote mouse port Remote keyboard port
Connect to 5V Power
supply
INTERCONNECT – carries video and
data signals – connect to Local/
remote unit with Fiber cable
Connect to CPU:
DVI, keyboard, mouse local DVI-Monitor port
Connect to Local
console monitor
Local keyboard/ mouse port
Solely Keyboard may be
plugged in directly,
keyboard/mouse through
equipped adapte
r

DVI-D FIBER KVM-EXTENDER
20
DVI-D Fiber KVM-Extender Type ACS2209A-R2-xx Local Unit
DVI-D Fiber KVM-Extender Type ACS2209A-R2-xx Remote Unit
Connect to CPU:
2nd DVI-Graphic card 2n
d
local DVI-Monitor
port Connect to Local
console 2nd monitor
2n
d
remote DVI-Monitor
port Connect to Remote
console 2nd monitor
Connect to CPU:
1st DVI-Graphic card,
keyboard, mouse
local DVI-Monitor port
Connect to Local
console monitor
Local keyboard/ mouse port
Solely Keyboard may be
plugged in directly,
keyboard/mouse through
equipped adapte
r
1s
t
remote DVI-
Monitor port– connect
to Remote console 1st
monitor Remote mouse port Remote keyboard port
