Hardened PoL PoE Ethernet Extenders
Extends Power over Ethernet up to 1.2 km over ordinary
voice-grade copper wire.
Features Ethernet extension up to 2.2 km.
Hardened PoL PoE Ethernet Extenders
LBPS310A-KIT
LBPS311A
LBPS312A

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
1
Quick Start Guide
This quick start guide describes how to install and use the Hardened
Ethernet Extender. This is the Hardened Ethernet Extender of choice for
harsh environments constrained by space.
Installation
Transmitter: This is a PoL (Power over Link) transmitter. Data and power can be
delivered at the same time through one pair copper wire to turn on and communicate with
a Receiver via an RJ-11 phone jack or a 2-pin Terminal Block interface.
Receiver: This is a PoL (Power over Link) Receiver. The Receiver can be powered either
by a Transmitter through one pair copper wire or power supply. The Ethernet port
supports IEEE802.3at PoE/PSE for fulfilling PoE/PD application.
<Warning>
∞Remove the device power before installation.
∞Remove the device power before any I/O and DIP switch configuration.
∞Do not connect the Transmitter and the Receiver to the same power source.
Power loops back through the PoL linked via copper wire may damage devices.
PoL (Power over Link) Mode Enable Installation
∞Ensure all power sources are disconnected from Transmitter and Receiver.
∞Ensure that the Transmitter PoL (Power over Link) DIP switch is in On position (Up
position).
∞Set the Transmitter Type DIP switch to Per (Performance, Up position) for better Line
Speed (but poor noise immunity). Or set the Transmitter’s Type DIP switch to Std
(Standard, Down position) for standard Line Speed (but better noise immunity).
∞Check if Receiver Mode is set to Rmt on DIP switch (Remote, Up position).
∞Connect one end of the one pair copper wire to RJ-11 phone jack or 2-pin Terminal
Block interface of the Transmitter and the other end to RJ-11 phone jack or 2-pin
Terminal Block interface of the Receiver.
∞Connect a power source to Transmitter.
∞Data and power can be delivered from Transmitter, and at the same time through
one pair of copper wire to turn on and communicate with Receiver.
<Note> The equipment is designed for building installation and not intended to be
connected to exposed (outside plant) networks, including campus environment or
equivalent.
PoL (Power over Link) Mode Disable Installation
∞For longer distance (e.g. over 1.4km) extension applications, the Receiver may not
be able to receive power from the Transmitter. A separate power supply may be
used on the Receiver.
∞Ensure all power sources are disconnected from the Transmitter and the Receiver.
∞Ensure that the Transmitter PoL (Power over Link) DIP switch is in Off position
(Down position).
∞Set the Transmitter Type DIP switch to Per (Performance, Up position) for better Line
Speed (but poor noise immunity). Or set the Type DIP switch of Transmitter to Std
(Standard, Down position) for standard Line Speed (but better noise immunity).
∞Connect the power source to Transmitter.
∞Check if the Receiver Mode is set to Rmt on DIP switch (Remote, Up position).
∞Connect the power source to the Receiver.

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
2
∞Connect one end of the one pair copper wire to the RJ-11 phone jack or 2-pin
Terminal Block interface of the Transmitter and connect the other end to RJ-11
phone jack or 2-pin Terminal Block interface of the Receiver.
∞Data can be transmitted between the Transmitter and the Receiver via copper wire.
Physical Description

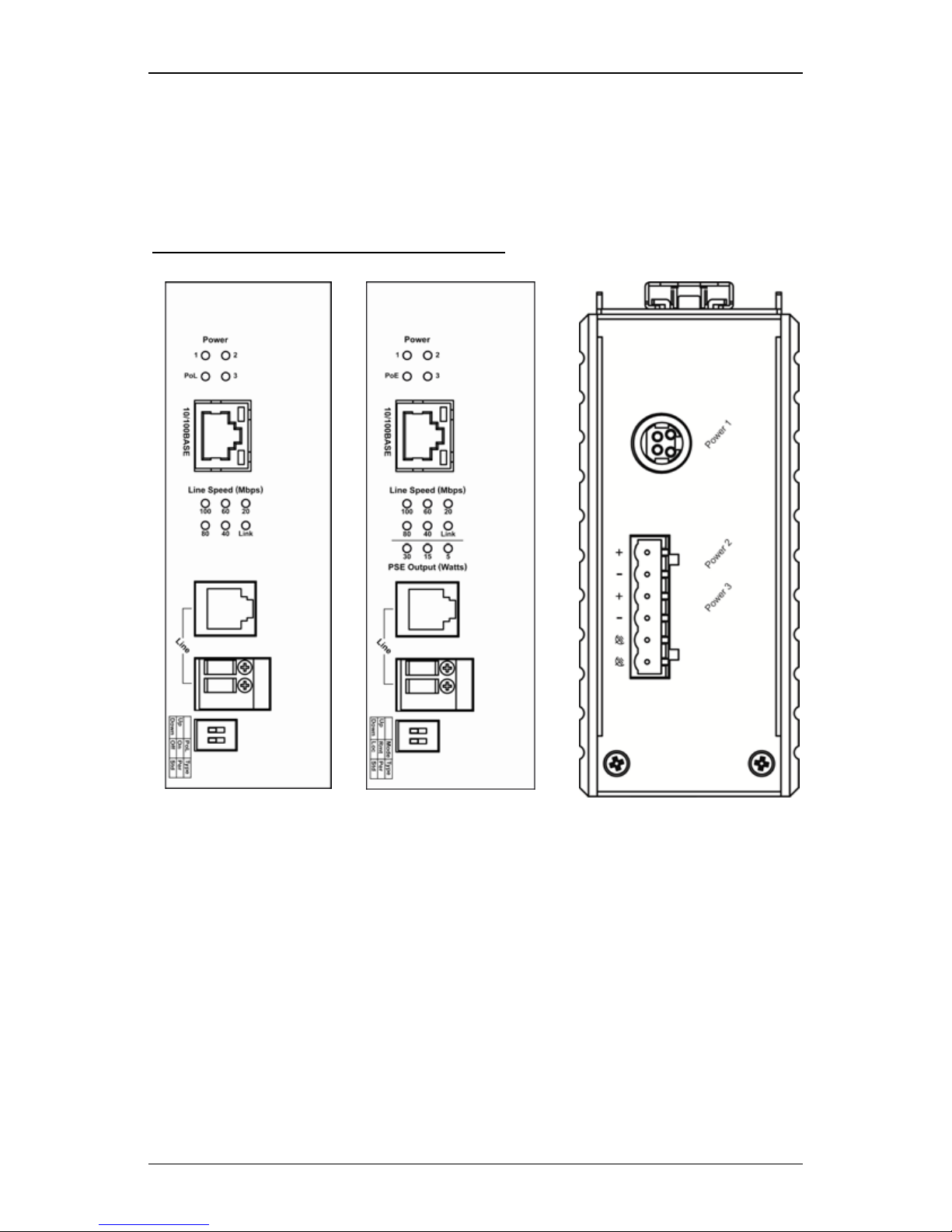

The Port Status LEDs and Power Inputs
Transmitter Receiver
∞DC Terminal Block Power Inputs: 2.5A @ 48VDC (Peak current 3.26A). Two pairs of
power inputs can be used to power up this Ethernet Extender. The redundant power
supplies function is supported. You only need to have one power input connected to
run the Ethernet Extender.
∞DC JACK Power input: 2.5A @ 48VDC (Peak current 3.26A).

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
3
Power Input Assignment
Power1 48VDC DC Jack
T:46-57V / R:46-57V DC
Power2 Power Ground
T:46-57V / R:46-57V DC
Power3 Power Ground
Earth Ground
Terminal
Block
DIP Switch Down Up
Transmitter
PoL Disable Power over Link Enable Power over Link
Type Std (Standard) Standard line speed
Better noise immunity
Per (Performance)
Better line speed
Poor noise immunity
Receiver
Mode Loc (Local)
Set Receiver to Local Mode Rmt (Remote) Set Receiver to Remote Mode
Type Std (Standard)
Standard line speed
Better noise immunity
Per (Performance)
Better line speed
Poor noise immunity
LEDs State Indication
Steady Power receivedPower
1/2/3 Off Power off
Steady Power Ethernet extension interface function is enabled
PoL Off No power is transmitted over Ethernet extension
interface
Steady Powered device (PD) is connected
PoE Off Powered device (PD) is disconnected
Steady A valid Extender connection is established
Fast
Flashing Data is being transmitted or received
Slow
Flashing Extender port under negotiation mode
Link
Off Extender interface connection is not established
Line
Speed Steady Displays the link speed in Mbps
Steady PoE power can be transmitted for PDPSE
Output All off No PoE power can be transmitted for PD
Steady A valid Ethernet connection established
Flashing Data transmitted or received
Green Off Non-Ethernet connection is established
Steady Link speed at 100Mbps
Yellow Off Link speed at 10Mbps

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
4
Power over Link (PoL) Enabled
Distance Data Rate Receiver PoE Output
300M 100Mbps 30.0W
400M 90Mbps 15.4W
600M 60Mbps 14.0W
800M 45Mbps 9.5W
1000M 35Mbps 7.0W
1200M 20Mbps 5.0W
Power over Link (PoL) Disabled
Power Supply Applied on Receiver
Distance Data Rate Receiver PoE Output
1400M 15Mbps 30.0W
1600M 10Mbps 30.0W
1800M 3Mbps 30.0W
Up to 2200M 1Mbps 30.0W
<Note> The Reference Performance is tested on 24AWG Telephone wire (0.5mm
diameter, 1-pair wire, Cable impedance: 100ohm).

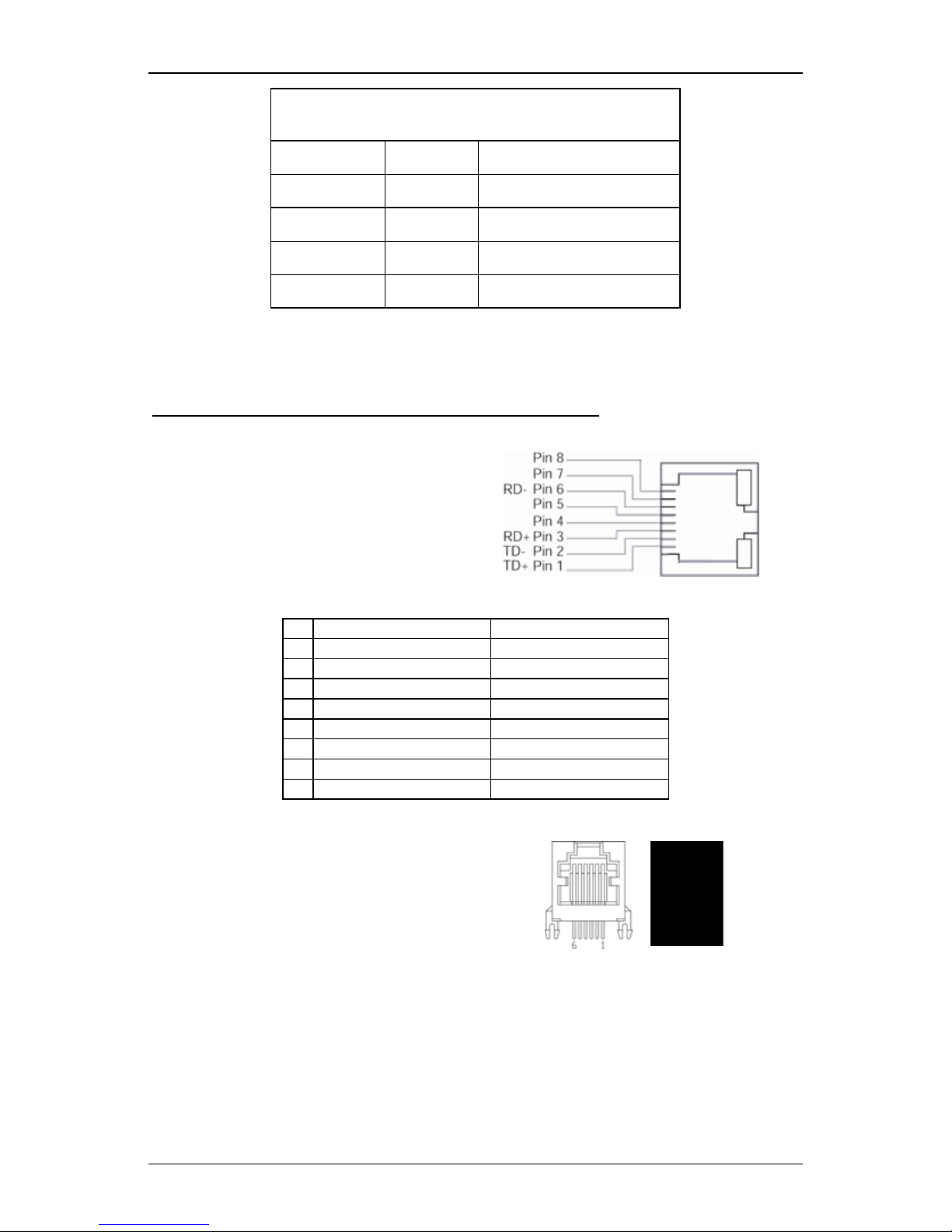

10/100Base-TX and Ethernet Extender Connectors
10/100Base-TX Connection
The following table lists the pinouts
of the 10/100Base-TX RJ-45 port.
Pin
Regular Port PoE Port
1 Output Transmit Data +
Output Transmit Data +
2 Output Transmit Data - Output Transmit Data -
3 Input Receive Data + Input Receive Data +
4 Positive (VCC+)
5 Positive (VCC+)
6 Input Receive Data - Input Receive Data -
7 Negative (VCC-)
8 Negative (VCC-)

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 5
Ethernet Extender Connection
The RJ-11 and Terminal Block port pinouts:
Pin 3: Tip, Pin 4: Ring.
Use a telephone line to connect two
RJ-11 or Terminal Block ports between
two Hardened Ethernet Extenders.
Functional Description
∞Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity
for industrial environment.
∞Ethernet port: Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, full/half-duplex; Auto MDI/MDIX.
∞Auto data rate negotiation for the Ethernet extension interface.
∞Supports six speeds with speed indicator LEDs on the front panel of the
unit, up to 100Mbps @ about 300 meters (984 ft.), down to 1Mbps @
about 2,200 meters (7,218 ft.).
∞Supports Power over Ethernet applications up to 1,200meters (3,937ft.)
for Max. 5 watts power consumed PoE powered devices.
∞Power consumption:
- Enable Power over Link (PoL) function: Max. 65 Watts
- Disable Power over Link (PoL) function: Transmitter: Max. 5 W.
Receiver: Max. 35 W with PoE output, Max. 5 W without PoE
output.
∞Power Supply: Redundant T:46-57V / R:46-57V DC Terminal Block
power inputs and 48 VDC Latched DC JACK interface.
∞Operating temperature range @ -40 to 75 (-40to 167). Tested
for functional operation @ -40 to 85 (-40to 185).
∞Supports Din-Rail or Panel Mounting installation.

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
6
Preface
This manual describes how to install and use the Hardened Ethernet
Extender. The Hardened Ethernet Extender introduced here provides one
channel for Ethernet over existing voice grade copper wire.
The Hardened Ethernet Extender fully complies with IEEE802.3 10Base-T
and IEEE802.3u 100Base-TX standards.
In this manual, you will find:
∞Product overview
∞Features on the Hardened Ethernet Extender
∞Illustrative LED functions
∞Installation instructions
∞Specifications

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 7
Table of Contents
Quick Start Guide............................................................................. 1
Installation........................................................................................ 1
Physical Description........................................................................ 2
The Port Status LEDs and Power Inputs ..................................... 2
10/100Base-TX and Ethernet Extender Connectors................... 4
Functional Description.................................................................... 5
Preface ................................................................................................ 6
Table of Contents.............................................................................. 7
Introduction....................................................................................... 8
Product Overview ............................................................................ 8
Product Features ............................................................................. 8
Packing List...................................................................................... 9
One-Channel Hardened Ethernet Extender............................... 10
Ports................................................................................................ 10
Ethernet Extender Mode Settings.................................................. 10
DIP Switch...................................................................................... 10
Front Panel & LEDs...................................................................... 11
LED Indicators ............................................................................ 11
10/100Base-TX and Ethernet Extender Connectors................. 12
Installation ....................................................................................... 13
Selecting a Site for the Equipment................................................ 13
DIN Rail Mounting ........................................................................ 13
Connecting to Power ..................................................................... 15
Redundant DC Terminal Block Power Inputs........................... 15
48VDC DC Jack.......................................................................... 15
Specifications ................................................................................... 17

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 8
Introduction
The Hardened Ethernet Extender provides one channel for Ethernet over
existing voice grade copper wire. This Hardened Ethernet Extender solution
works in industrial applications or rugged environments.
Product Overview
Transmitter Receiver
Product Features
∞Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity
for industrial environment.
∞Ethernet port: Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, full/half-duplex; Auto MDI/MDIX.
∞Auto data rate negotiation for Ethernet extension interface.
∞Support six speeds with speed indicator LEDs on front panel of unit, up
to 100Mbps @ about 300 meters (984 ft.), down to 1Mbps @ about
2,200 meters (7,218 ft.).

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
9
∞Supports Power over Ethernet applications up to 1,200 meters (3,937ft.)
for Max. 5 watts of power consumed by PoE powered devices.
∞Power consumption:
- Enable Power over Link (PoL) function: Max. 65Watts
- Disable Power over Link (PoL) function: Transmitter: Max. 5W.
Receiver: Max. 35W with PoE output, Max. 5W without PoE output.
∞Power Supply: Redundant T:46-57V / R:46-57V DC Terminal Block
power inputs and 48 VDC Latched DC JACK interface.
∞Operating temperature range @ -40 to 75 (-40to 167). Tested
for functional operation @ -40 to 85 (-40to 185).
∞Supports Din-Rail or Panel Mounting installation.
Packing List
Your package should contain the following items. IIf anything is missing or
damaged, contact Black Box Technical Support at 724-746-5500 or
[e-mail].
∞
The Hardened Ethernet Extender
∞
User’s Manual
∞
AC to DC Power Adapter and Power Cable (optional)

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
10
One-Channel Hardened Ethernet Extender
Ports
The Hardened Ethernet Extender provides TX ports and one Ethernet
Extender port.
For the TX ports, it uses RJ-45 connectors and auto senses the speed of
10/100 Mbps.
For the Ethernet Extender port, it uses RJ-11 and Terminal Block
connectors and auto senses the speed of Link (below
20)/20/40/60/80/100Mbps.
Ethernet Extender Mode Settings
Ethernet Extender mode settings are simple using a DIP (Dual Inline
Package) switch on the top panel of the Hardened Ethernet Extender.

DIP Switch
DIP
Switch Down Up
Transmitter
PoL Disable Power over Link Enable Power over Link
Type Std (Standard) Standard line speed
Better noise immunity
Per (Performance)
Better line speed
Poor noise immunity
Receiver
Mode Loc (Local)
Set Receiver to Local Mode Rmt (Remote) Set Receiver to Remote Mode
Type Std (Standard)
Standard line speed
Better noise immunity
Per (Performance)
Better line speed
Poor noise immunity


10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
11
Front Panel & LEDs
LED Indicators
The LED indicators give you instant feedback on the status of the Hardened
Ethernet Extender:
LEDs State Indication
Steady Power receivedPower
1/2/3 Off Power off
Steady Power Ethernet extension interface function is
enabled
PoL Off No power is transmitted over Ethernet
extension interface
Steady Powered device (PD) is connected
PoE Off Powered device (PD) is disconnected
Steady A valid Extender connection established
Fast
Flashing Data transmitted or received
Slow
Flashing Extender port under negotiation mode
Link
Off Extender interface connection is not established
Line
Speed Steady Displays the link speed in Mbps
Steady PoE power can be transmitted for PDPSE
Output All off No PoE power can be transmitted for PD
Steady A valid Ethernet connection
established
Flashing Data transmitted or received
Green
Off Non-Ethernet connection is
established
Steady Link speed at 100Mbps
Yellow Off Link speed at 10Mbps
Power over Link (PoL) Enabled
Distance Data Rate Receiver PoE Output
300M 100Mbps 30.0W
400M 90Mbps 15.4W
600M 60Mbps 14.0W
800M 45Mbps 9.5W
1000M 35Mbps 7.0W
1200M 20Mbps 5.0W

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
12
Power over Link (PoL) Disabled
Power Supply Applied on Receiver
Distance Data Rate Receiver PoE Output
1400M 15Mbps 30.0W
1600M 10Mbps 30.0W
1800M 3Mbps 30.0W
Up to 2200M 1Mbps 30.0W
<Note> The Reference Performance is tested on 24 AWG Telephone wire (0.5 mm
diameter, 1-pair wire, Cable impedance: 100 ohm).
10/100Base-TX and Ethernet Extender Connectors
10/100Base-TX Connection:
The following table lists the pinouts
of a 10/100Base-TX RJ-45 port.
Pin
Regular Port PoE Port
1 Output Transmit Data +
Output Transmit Data +
2 Output Transmit Data - Output Transmit Data -
3 Input Receive Data + Input Receive Data +
4 Positive (VCC+)
5 Positive (VCC+)
6 Input Receive Data - Input Receive Data -
7 Negative (VCC-)
8 Negative (VCC-)
Ethernet Extender Connection
The RJ-11 and Terminal Block port pinouts:
Pin 3: Tip, Pin 4: Ring.
Use a telephone line to connect two
RJ-11 or Terminal Block ports between
two Hardened Ethernet Extenders.

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
13
Installation
This chapter gives step-by-step installation instructions for the Hardened
Ethernet Extender.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not
be subjected to extreme temperatures, humidity, or electromagnetic
interference. Specifically, the site you select should meet the following
requirements:
∞The Surrounding Air temperature should be between -40 to +167 degrees Fahrenheit
(-40 to +75 degrees Celsius).
∞The relative humidity should be less than 95 percent, non-condensing.
∞Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards.
∞Make sure that the equipment receives adequate ventilation. Do not block the
ventilation holes of the equipment.
∞The power outlet should be within 6 feet (1.8 meters) of the product.
DIN Rail Mounting

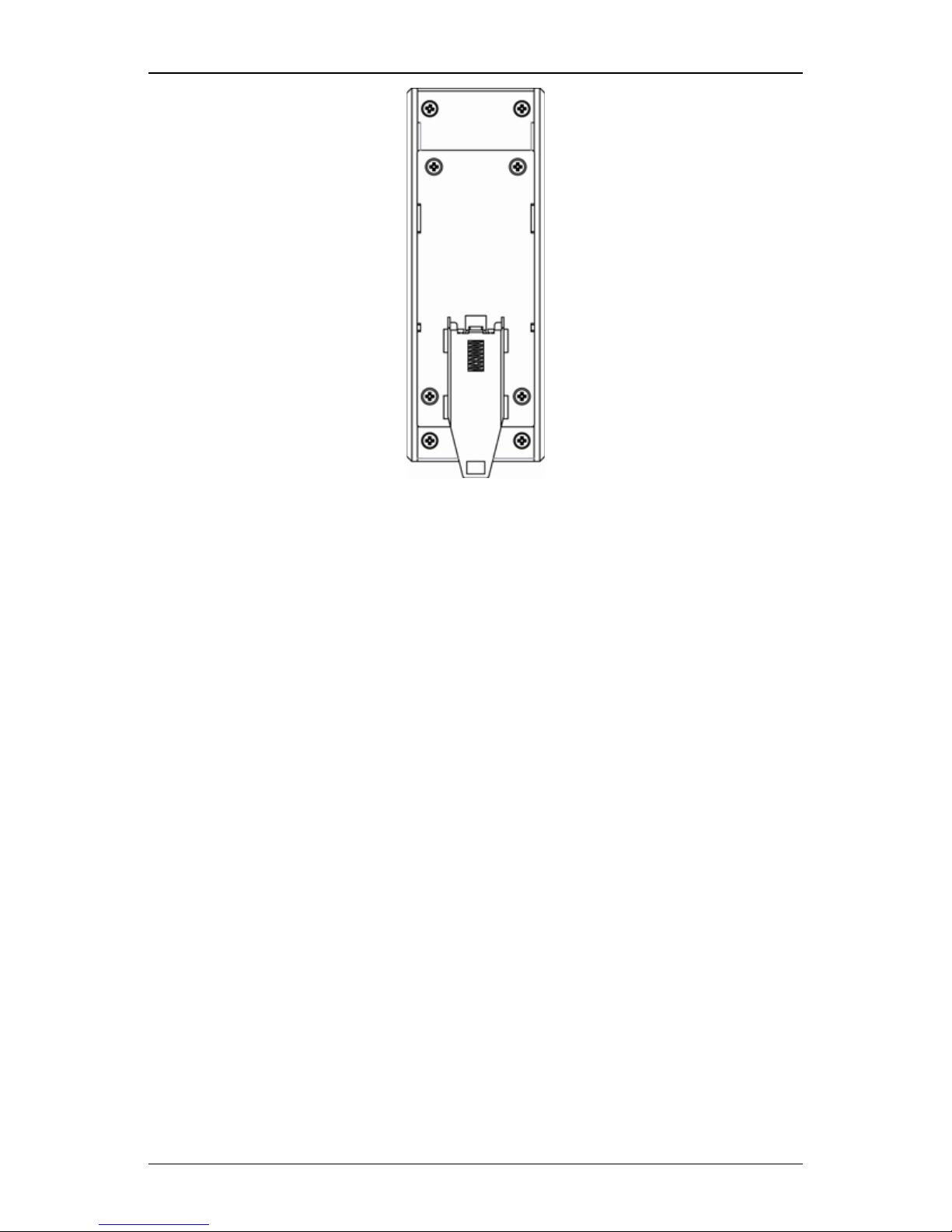

Fix the DIN rail attachment plate to the back panel of the Hardened Ethernet
Extender.
Installation: Place the Hardened Ethernet Extender on the DIN rail from
above using the slot. Push the front of the Hardened Ethernet Extender
toward the mounting surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the Hardened Ethernet
Extender from the DIN rail.

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 14

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s
Manual
15
Connecting to Power
Redundant DC Terminal Block Power Inputs or 48-VDC DC Jack:
Redundant DC Terminal Block Power Inputs
Two pairs of power inputs can be used to power up this device. You only
need to have one power input connected to run the Hardened Ethernet
Extender.
Step 1: Connect the DC power cord to the pluggable terminal block on the Hardened
Ethernet Extender, and then plug it into a standard DC outlet.
Step 2: Disconnect the power cord if you want to shut down the Hardened Ethernet
Extender.
48VDC DC Jack
Step 1: Connect the supplied AC to DC power adapter to the receptacle on the top side of
the Hardened Ethernet Extender.
Step 2: Connect the power cord to the AC to DC power adapter and attach the plug to a
standard AC outlet with the appropriate AC voltage.

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 16
Power Input Assignment
Power1 48VDC DC Jack
T:46-57V / R:46-57V DC
Power2 Power Ground
T:46-57V / R:46-57V DC
Power3 Power Ground
Earth Ground
Terminal
Block

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 17
Specifications
Applicable Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Fixed Ports 10/100Mbps Ethernet ports with RJ-45 connectors
1 x Ethernet Extender port with RJ-11 and Terminal
Block connectors
Speed
10Base-T
100Base-TX
Ethernet Extender
10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
Link (Below 20), 20, 40, 60, 80, 100Mbps
Switching Method Store-and-Forward
Forwarding rate 14,880/148,810pps for 10/100Mbps
Cable
10Base-T
100Base-TX
Ethernet Extender
4-pair UTP/STP Cat. 3, 4, 5 up to 100m
4-pair UTP/STP Cat. 5 up to 100m
Telephone wires
Per Unit (3 LEDs)- Power1, Power2, Power3LED Indicators
Transmitter-
PoL; Line Speed (Mbps): Link, 20, 40, 60, 80, 100
Receiver-
PoE; Line Speed (Mbps): Link, 20, 40, 60, 80, 100; PSE
Output (Watts): 5, 15, 30
Dimensions 50mm (W) 110mm (D) x 135mm (H)
(1.97” (W) x 4.33” (D) x 5.31” (H))
Weight 0.77Kg (1.7lbs.)
Power
Terminal Block: T:46-57V / R:46-57V DC
DC Jack: 48VDC, External AC/DC required
Terminal Block & DC Jack Power Inputs: 2.5A @
48VDC (Peak current 3.26A)
Power Consumption Enable PoL: Max. 65Watts
Disable PoL:
Transmitter: Max. 5W
Receiver: Max. 35W with PoE output
Max. 5W without PoE output

10/100Base-TX Hardened PoL/PoE Ethernet Extender
User’s Manual 18
Operating Temperature -40~ 75(-40~ 167)
Tested for functional operation @
-40~ 85(-40~ 185)
Storage Temperature -40~ 85(-40~ 185)
Humidity 5 ~ 95%, non-condensing
EMI FCC Part 15, Class A
EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3
EMS EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
Environmental Test
Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)

Great tech support is just 30 seconds away at 724-746-5500
or blackbox.com.
About Black Box
Black Box provides an extensive range of networking and infrastructure products.
You’ll find everything from cabinets and racks and power and surge protection
products to media converters and Ethernet switches all supported by free, live
24/7 Tech support available in 30 seconds or less.
© Copyright 2013. Black Box Corporation. All rights reserved. Black Box®and the Double Diamond
logo are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in
this white paper are acknowledged to be the property of their respective owners.
BL A C K B OX®
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
LBPS310A-KIT, version 1
