Black Box AC217A User manual

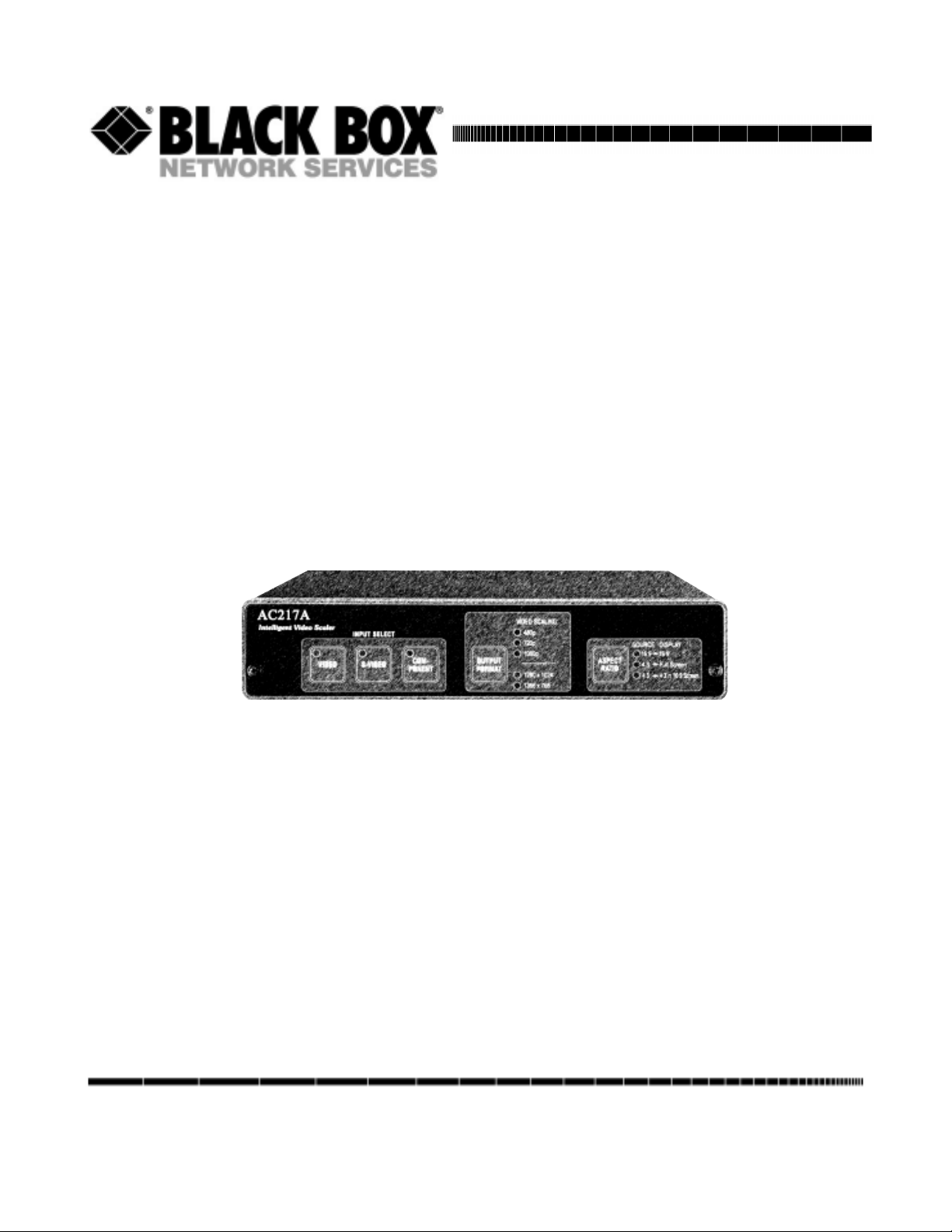

AC217A - Intelligent Video Scaler
P/N122643
AUGUST 2003
AC217A
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]

TRADEMARKS
TRADEMARKS USED IN THIS MANUAL
UL is a registered trademark of Underwriters Laboratories Incorporated.
Any other trademarks used in this manual are acknowledged to be the property of the trademark owners.
FCC STATEMENT
FEDERAL COMMUNICATIONS COMMISSION
AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that
is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It
has been tested and found to comply with the limits for a Class A computing device in accordance with the
specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against
such interference when the equipment is operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own expense will be required to take
whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in
the Radio Interference Regulation of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par le
ministère des Communications du Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea
operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
NOM STATEMENT
1
AC217A - Intelligent Video Scaler

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo,
sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el
fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las
instrucciones de operación. Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del
aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de
calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de
operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por
objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde
salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de
tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u
orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
Standards to which conformity is declared: EN 55103-1:1996 EN 55103-2:1997
CE INFORMATION
2
NOM STATEMENT
AC217A - Intelligent Video Scaler

INSTALLATION STEPS:
1. Connect the provided AC power cord into the connector marked Power on the rear of AC217A and plug
the other end into an AC outlet. This is an auto-sensing universal input power supply and is compatible with
worldwide standards.
2. Connect a video source to either the COMPOSITE, S-VIDEO or COMPONENT input on the rear panel using
one of the input cables supplied.
3. Connect a computer monitor, projector or display to the VGA compatible connector on the rear panel.
AVAILABLE OUTPUTS:
There are three outputs configurations available on the output VGA connector: RGBHV, RGBS and Y-CB-CR. The
rear panel switch next to the output connector selects one of the three output types. The individual signals on the
HD-15 connector are defined on page 7. Rear connector pin-outs for the output configuration are selected by this
switch.
REMOTE CONTROL:
AC217A provides for a hard-wired RS-232 remote control connection using a 3-pin Phoenix-type connector on the
rear panel. The baud rate is 9600 baud, no parity, 1 start bit, 1 stop bit. The pin out is as follows:
1 - Ground 2 - Receive Data 3 - Transmit Data
lll
1 2 3
Thank you for purchasing AC217A, the Intelligent Video Scaler designed especially for use with HDTV and DTV
displays. With AC217A, you now have the ability to enjoy high-resolution, film-like images from any standard video
source, including broadcast or cable TV ,video tape, DVD and laser disc. AC217A offers a unique automatic motion
compensation feature that will adapt to the specific type of input source image.
When processing NTSC sources, AC217A's motion compensation feature automatically selects one of three different
motion compensation techniques: adaptive frame (inverse 3:2 pulldown) for original film material, vertical temporal
and static mesh. (When processing PAL sources, inverse 3:2 pulldown is not applicable.) Because each technique is
set specifically for the type of input image, the result is the clearest, crispest picture quality possible, making AC217A
ideal for Home Theater and Professional A/V applications. Packed with other great features such as three different
aspect ratio conversions, AC217A is one incredibly versatile scaler. Additional features include Composite, S-Video
and Y-CB-CRcomponent inputs and RGB or Y-CB-CRcomponent outputs, plus an RS-232 remote. An internal power
supply and simple, intuitive user-interface round out this sleek, compact unit.
INTRODUCTION
INSTALLATION
3
AC217A - Intelligent Video Scaler

AC217A is designed to operate properly with any projector or display while requiring minimal set-up and adjustments.
SELECTING AN INPUT:
There are three buttons on the front panel for directly selecting one of the three inputs. The LED that is lit indicates
the active selection. The three input options are:
Video (composite)
S-Video (Y/C)
Y-CB-CR (component)
SELECTING AN OUTPUT FORMAT:
AC217A provides the five output formats listed below. Pressing the output format button on the front panel will cycle
through the choices. The LED that is on indicates the current output format.
480p
720p
1080p
1280 x 1024
1366 x 768
SELECTING AN ASPECT RATIO:
AC217A's unique preset aspect ratio conversion offers the user three choices for changing the input aspect ratio to
the desired output image aspect ratio. It is important to select the appropriate conversion setting in order for the output
image to appear geometrically correct.
16:9 to 16:9

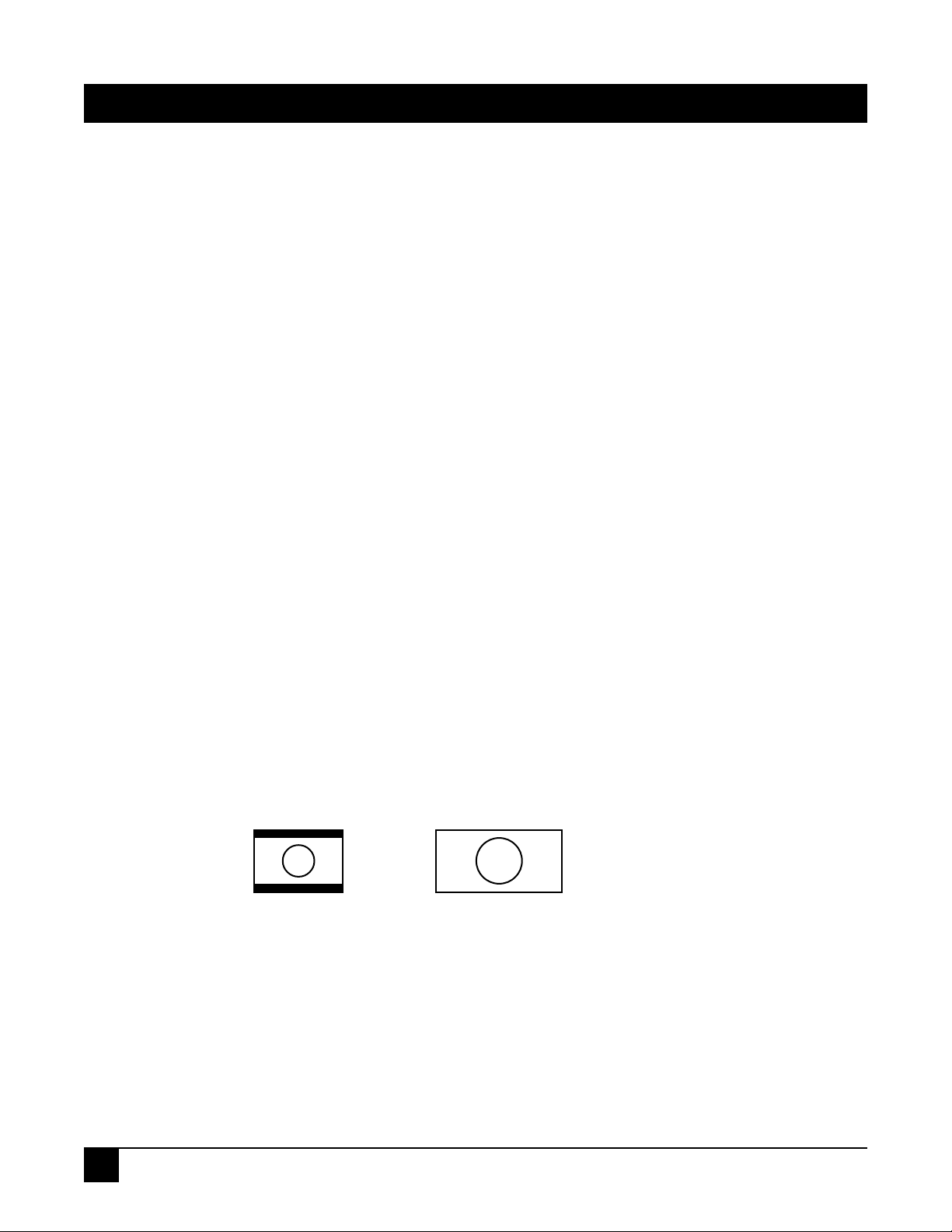

This conversion scales a 16:9 crop of the input video raster and maps it to the output as a full screen image. It is intended
for displaying original letterbox images as a full screen image on 16:9 displays.

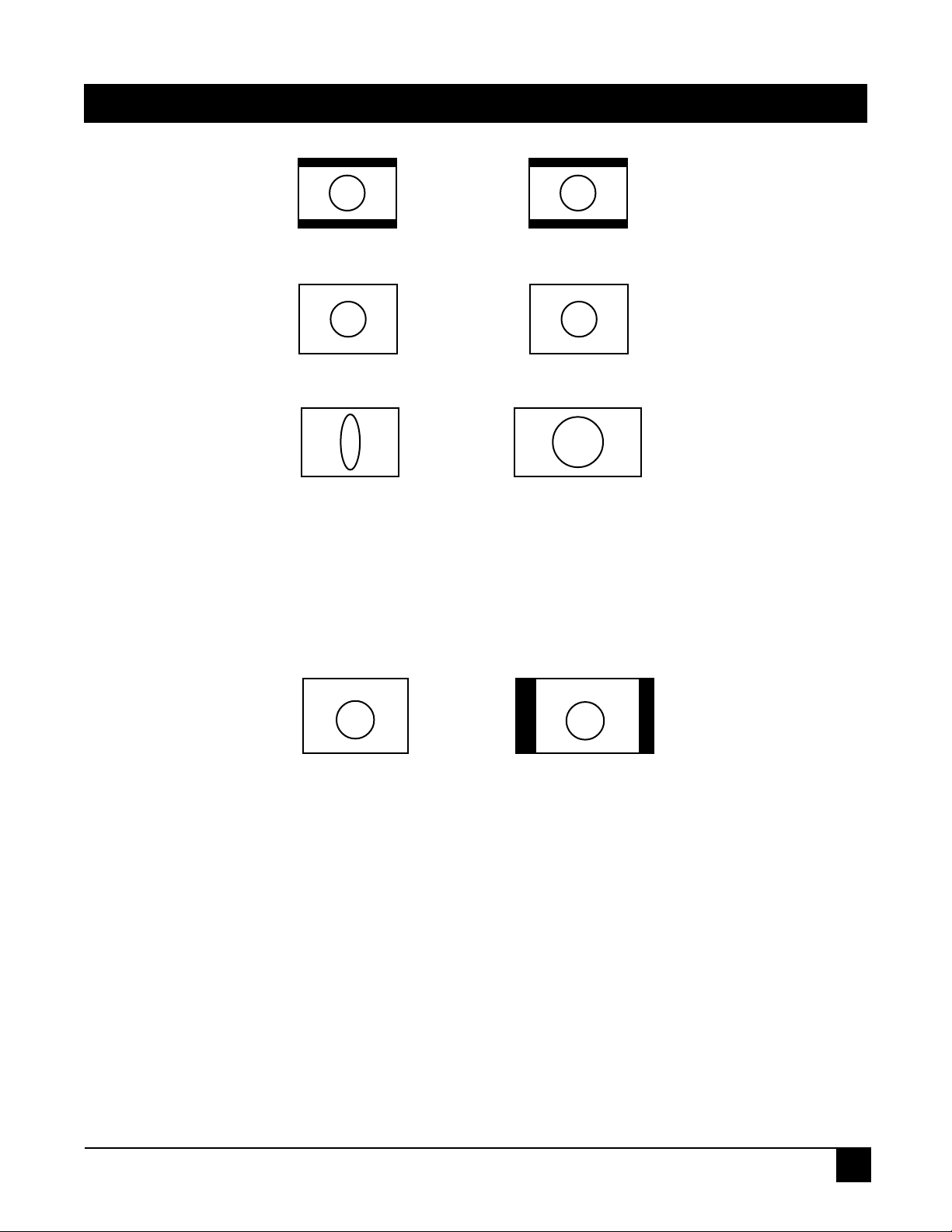

Input:
Letterbox in
4:3 frame
Output:
Full 16:9
frame
4:3 to Full Screen
This conversion takes the entire input video raster and maps it to the entire output raster. If the output display aspect
ratio is 4:3, the image will appear with the same geometry as shown on the input. If the output display aspect ratio is
16:9, the image will appear to be "stretched" in the horizontal direction. This is useful if the input video source was
an anamorphically compressed DVD, as it will now appear to be geometrically correct on the 16:9 display. Refer to
diagrams on top of page 5.
Note: This mode is not available with PAL input to 480p output.
4
OPERATION
AC217A - Intelligent Video Scaler

4:3 to 4:3 in 16:9 Screen
This conversion is intended to display a standard, full screen 4:3 input on a 16:9 display with the correct geometry.
AC217A will place the 4:3 image centered in the 16:9 display with black on either side of the active image.
Note: This mode is not available with PAL input to 480p output.
SPECIAL KEY FUNCTIONS:
There are several functions that can be activated by pressing a combination of keys simultaneously:
Key Panel Lockout: Press the VIDEO and S-VIDEO buttons at the same time to lock out the key panel.
Key Panel Unlock: Press the S-VIDEO and COMPONENT buttons at the same time to unlock the key panel and allow
normal operation.
System Reset: Press the COMPONENT and the OUTPUT FORMAT buttons at the same time to reset the unit and
return all settings to their factory defaults.
MOTION COMPENSATION:
The automatic motion compensation feature will analyze the input source and choose the appropriate compensation.
AC217A will automatically select between inverse 3:2 pulldown (adaptive frame), vertical temporal and static mesh
modes. With a PAL input, inverse 3:2 pulldown is not used.
Input:
Letterbox in 4:3 frame
Output:
Letterbox in 4:3 frame
Output:
Image fills 4:3 screen
Input:
4:3 video source
Input:
Anamorphically com-
pressed DVD
Output:
Image is stretched horizontally
to fill a 16:9 screen
Input:
4:3 video source
Output:
4:3 image is centered in 16:9
screen
OPERATION
5
AC217A - Intelligent Video Scaler

IF THIS IS YOUR PROBLEM: THEN CHECK TO SEE:
Nothing works/no video output: Are any of the LEDs lit? Is the AC217A plugged into the AC wall outlet?
Is video source connected to the unit and is it putting out a video signal
as viewed on a video monitor?
Is the VCR or video source in the proper mode to output video as
required?
Have you selected the proper input on the unit (COMPOSITE, S-VIDEO
or COMPONENT) for the source selected as the active input?
Is the source of the video ON?
There is video on the output If you are using 5 BNC or RCA connectors to the output display, try
display but it appears out of sync: reversing the H and V sync connectors.
Make sure the display is capable of supporting the resolution you selected
on the front of the unit. Try a lower resolution.
OUTPUT FORMAT
INPUT
TYPE H (kHz) V (Hz)
480p
NTSC
PAL
31.5
32.5
59.94
50
720p
NTSC
PAL
44.9
37.5
59.94
50
1080p
NTSC
PAL
67.5
56.3
59.94
50
1280x1024
NTSC
PAL
63.9
53.3
59.94
50
1366x768
NTSC
PAL
47.8
39.9
59.94
50
OUTPUT SPECIFICATIONS
TROUBLESHOOTING
6
AC217A - Intelligent Video Scaler

VGA COMPATIBLE OUTPUT:
(HD-15 CONNECTOR)
S-VIDEO INPUT:
1 Ground
2 Ground
3 Luminance
4 Chrominance
COMPONENT INPUT:
(3 FEMALE RCA CONNECTORS)
Y center Y in
Y outer Ground
CB center CB in
CB outer Ground
CR center CR in
CR outer Ground
VIDEO INPUT:
(FEMALE RCA CONNECTOR)
center Composite Video IN
outer ground
RS-232 REMOTE:
1 (left) ground
2 (middle) receive data
3 (right) transmit data
REAR CONNECTOR PIN-OUTS
7
AC217A - Intelligent Video Scaler
RGBHV RGBSY-CB-CR
1 Red Red CR
2 Green Green Y
3 Blue Blue CB
4 n/c n/c n/c
5 Ground Ground Ground
6 Ground Ground Ground
7 Ground Ground Ground
8 Ground Ground Ground
9 n/c n/c n/c
10 Ground Ground Ground
11 n/c n/c n/c
12 n/c n/c n/c
13 H-Sync out Composite sync n/c
14 V-Sync out n/c n/c
15 n/c n/c n/c

CAUTION: TO REDUCE THE RISK OF ELECTRONIC
SHOCK, DO NOT REMOVE COVER. NO USER SER-
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol alerts the user that there are important
operating and maintenance instructions in the litera-
ture accompanying this unit.
This symbol warns the user of uninsulated
voltage within the unit that can cause
dangerous electronic shocks.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING
8
AC217A - Intelligent Video Scaler

© Copyright 2003. Black Box Corporation. All rights reserved.
1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax: [phone]
