Black Box AC328A-R4 User manual

BL A C K B O X®
Turns a VGA monitor into a video monitor with
remote switching capability.
Video to VGA Portable
AC328A-R4
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days a
week: Call 724-746-5500 or fax [phone] • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION
AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE
STATEMENTS
Class B Digital Device. This equipment has been tested and found to comply with
the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a residential installation. However, there is no guarantee that interference will not
occur in a particular installation. This equipment generates, uses, and can radiate
radio frequency energy, and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. If this
equipment does cause harmful interference to radio or telephone reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
To meet FCC requirements, shielded cables and power cords are required to connect
this device to a personal computer or other Class B certified device.
This digital apparatus does not exceed the Class B limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de classe B prescrites dans le Règlement
sur le brouillage radioélectrique publié par Industrie Canada.

724-746-5500 | blackbox.com Page 3
NOM Statement
Normas Oficiales Mexicanas (NOM) Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

724-746-5500 | blackbox.com
Page 4
NOM Statement
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com Page 5
Trademarks Used in this Manual
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
IBM is a registered trademark of International Business Machines Corporation.
Xbox is a registered trademark of Microsoft Corporation.
Any other trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.

724-746-5500 | blackbox.com
Table of Contents
Page 6
Contents
Chapter Page
1. Specifications ......................................................................................................7
2. Introduction ........................................................................................................8
2.1 Description...................................................................................................8
2.2 Package Contents........................................................................................9
3. Installation.........................................................................................................10
3.1 VGA to Video Portable’s (Main Unit’s) Components .................................10
3.2 Installation Instructions ..............................................................................12
4. Operation..........................................................................................................13
4.1 Using the Remote Control.........................................................................13
4.2 Menu Options ...........................................................................................14

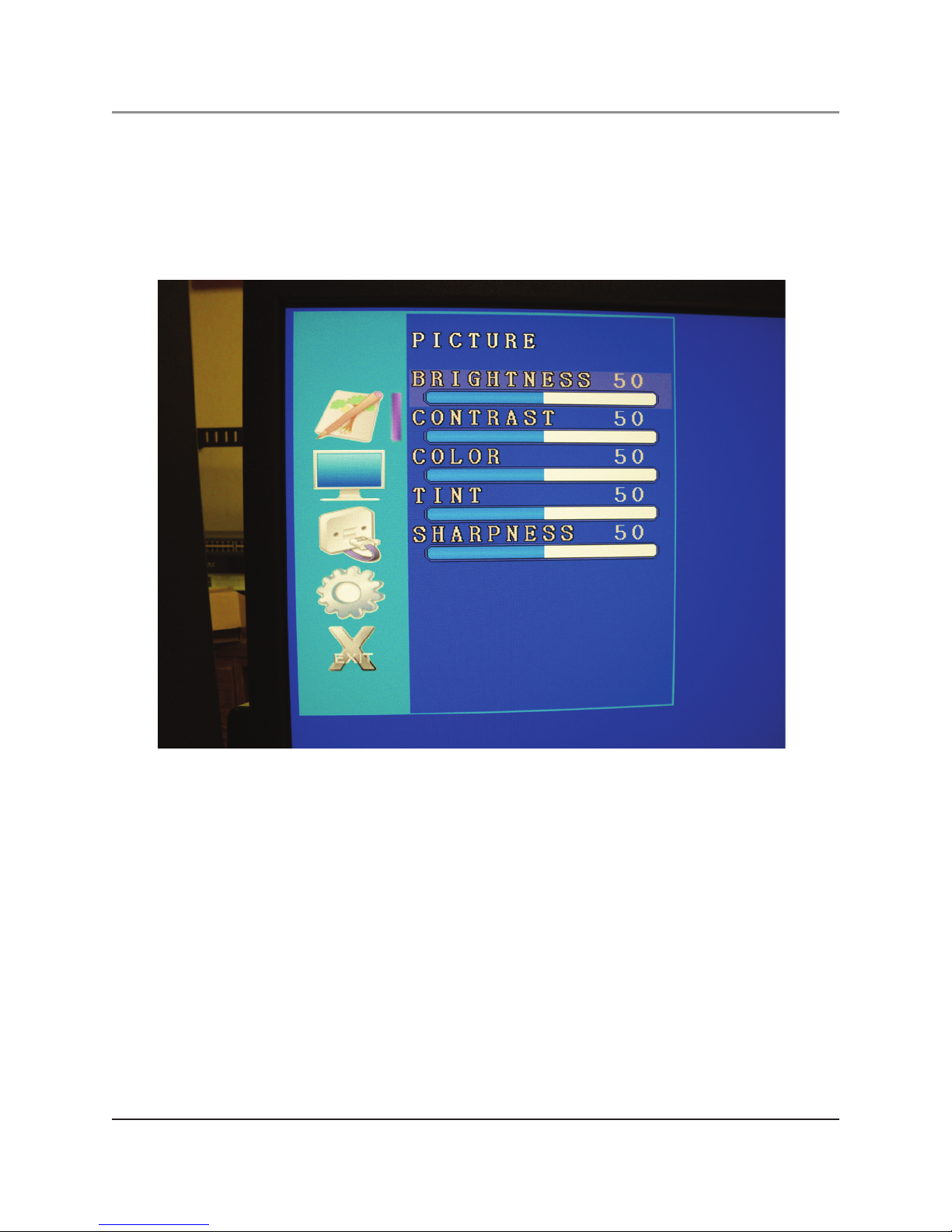

4.2.1 Picture Menu ...................................................................................15

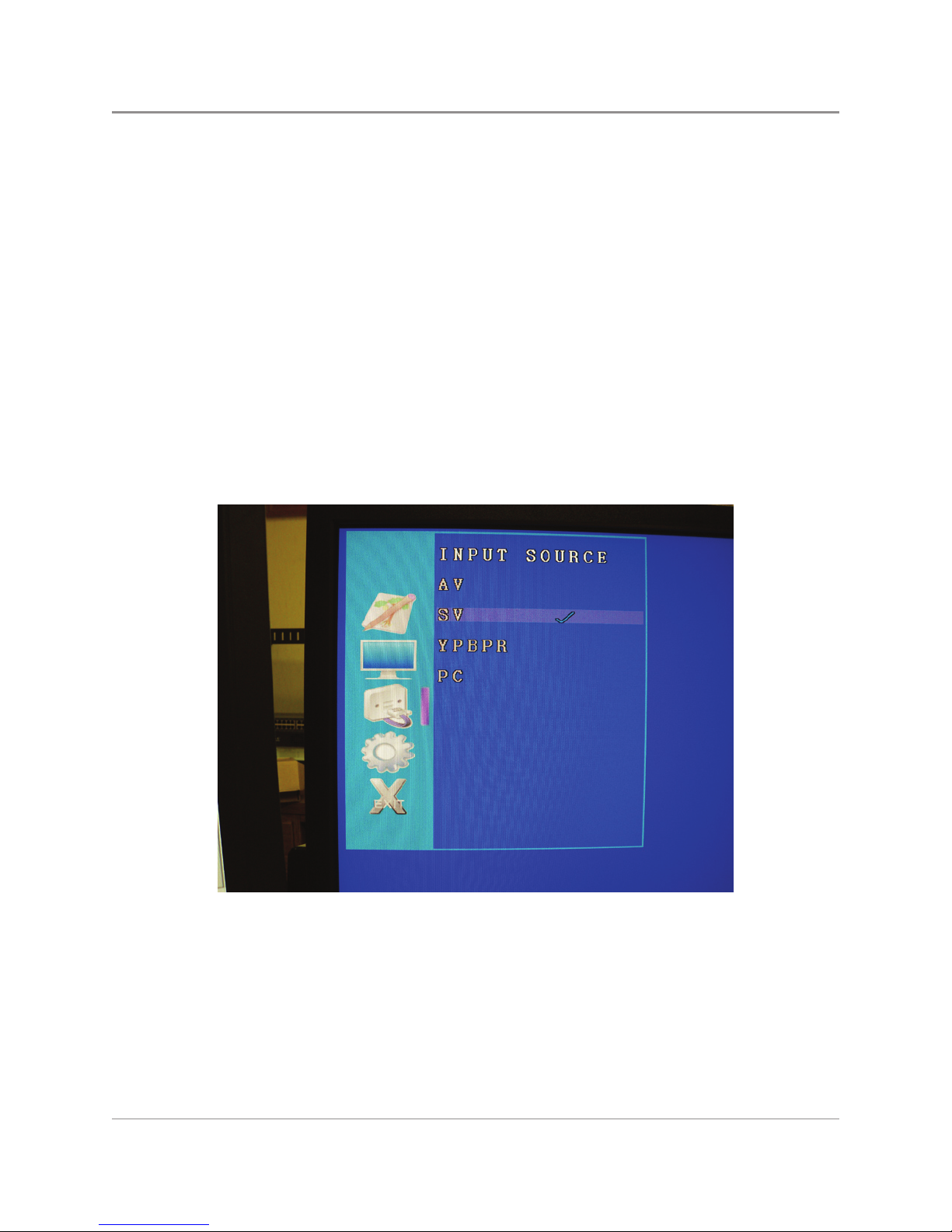

4.2.2 Input Source Menu..........................................................................16
4.2.3 OSD Settiings Menu ........................................................................17

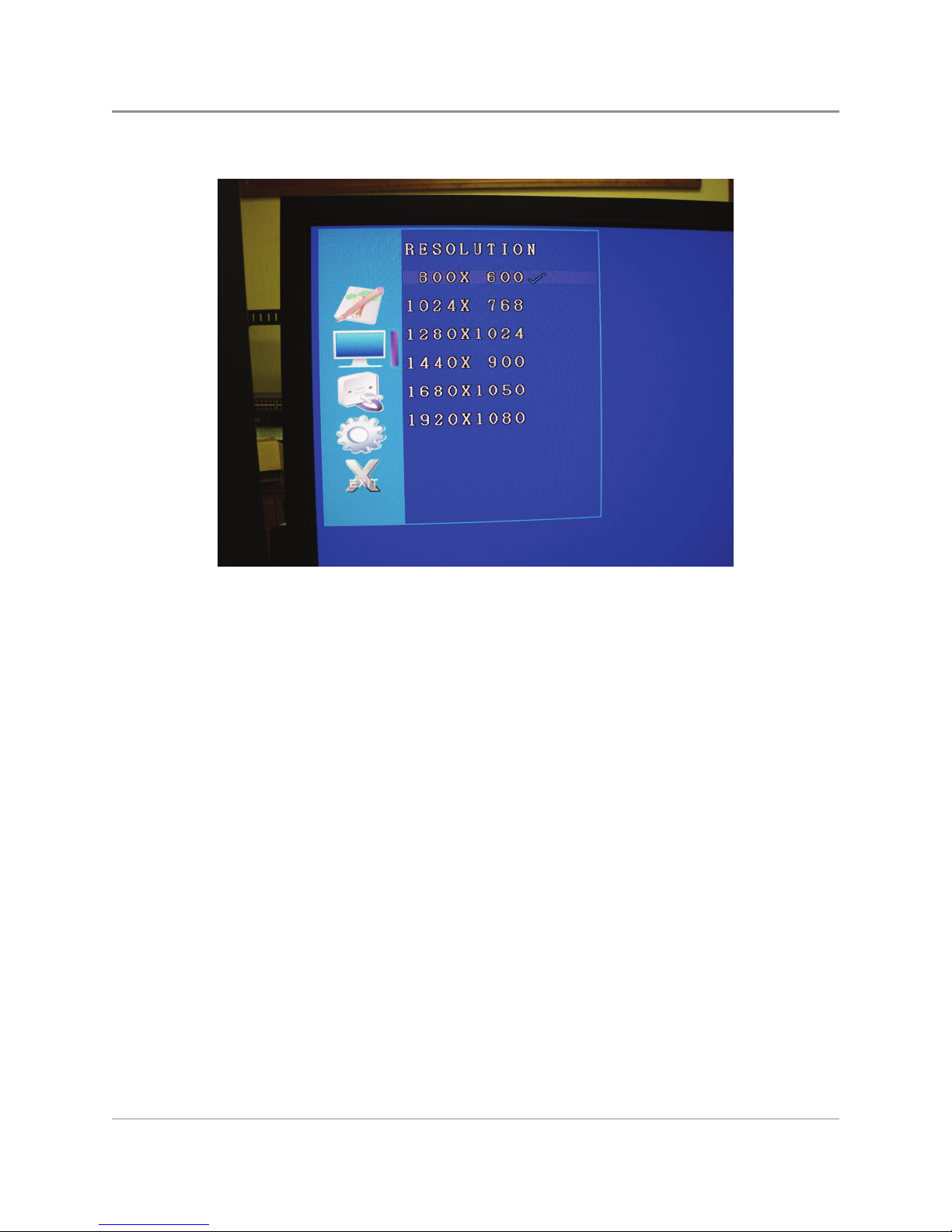

4.2.4 Resolution Menu .............................................................................18
5. Troubleshooting ................................................................................................19
5.1 Calling Black Box........................................................................................19
5.2 Shipping and Packaging............................................................................19

724-746-5500 | blackbox.com
Chapter 1: Specifications
Page 7
1. Specifications
Compliance: FCC Part 15 Class B
Frequency: 60 or 75 Hz
Resolutions: 800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900, 1680 x 1050,
1920 x 1080
System Requirements (Minimum): VESA-compatible monitor, speaker with
4 ohms impedance, video input device (such as a VCR, camcorder, laser disc
player, DVD, etc.); no specific PC system required
User Controls: Video to VGA Portable (main unit):
(6) buttons: Power, Enter, Source, Menu, Up, Down;
Remote control: (19) buttons: (1) Resolution, (1) Reset, (1) PC select, (1) Y.Pb.Pr,
(1) video (Composite), (1) S-Video, (1) Menu, (1) Exit, (4) Arrow, (2) Volume
up/down, (1) Enter, (1) Mode (PiP), (1) Move (PiP), (1) Source (PiP),
(1) Audio (PiP)
Connectors: (1) red HD15 VGA video input female, (1) blue HD15 VGA video
output female, (1) S-Video input, (1) RCA Composite video input, (3) RCA
Component input, (1) 3.5-mm PC audio input, (1) 3.5-mm PC audio output,
(2) RCA L/R audio input, (1) IR port, (1) 2.5-mm barrel for power
Indicators: (1) Power LED
Power: Input: 120 VAC, 60 Hz, 200 mA;
Output: 6 VDC, 1 A
Size: 1.37"H x 3.25"W x 5.25"D (3.48 x 8.26 x 13.34 cm)
Weight: 0.25 lb. (0.1 kg)

724-746-5500 | blackbox.com
Page 8
2. Introduction
2.1 Description
The Video to VGA Portable can turn any VGA monitor into a video monitor with
remote switching capability. It provides a sharp, stable image output to VGA for a
high-quality picture. Output resolutions reach 1920 x 1080.
The Video to VGA Portable converts any video signal into a non-interlaced VGA
signal for CRT or LCD monitors. Just plug a VCR, DVD, camcorder, laser disc player,
TV game, or any other video device into the Video to VGA Portable and connect to
a VGA monitor. A credit-card-sized remote control provides switching between the
Composite source, Component source, the S-Video source, and the adapter (via
VGA input). No software installation is necessary.
Minimum system requirements are a VESA VGA compatible monitor, a speaker with
4 ohms impedance, and a video input device (such as a VCR, camcorder, laser disc
player, DVD, etc.). No specific PC system is required.
Additional features include:
• Superior video quality.
• Supports Composite video, Component video, S-Video, and VGA input.
• On-screen display (OSD) function.
• Outputs to VGA monitor.
• Supports all video standards: PAL BGHI/NTSC M, NTSC4.43 (50 Hz)/PAL4.43
(60 Hz), PAL N/NTSC4.43 (60 Hz), NTSC N/PAL M, and SECAM video systems.
• Brightness, contrast, color, hue, sharpness, picture mode, resolution, frequency,
and reset control.
• 0.6 W (8-ohm) stereo power amplifier for LINE IN.
• Small, portable size.
• Supports six languages: English, French, German, Spanish, Italian, and Dutch.
Chapter 2: Introduction

724-746-5500 | blackbox.com
Chapter 2: Introduction
Page 9
2.2 Package Contents
Listed below is everything you should have received when you ordered the Video to
VGA Portable. If any of these items are missing, please call us at 724-746-5500.
• (1) Video to VGA Portable
• (1) Remote control
• (1) 3-foot (0.9-m) VGA cable, male/male
• (1) AC adapter
• This users’ manual

724-746-5500 | blackbox.com
Page 10
3. Installation
3.1 VGA to Video Portable’s (Main Unit’s) Components
Refer to the illustration below before installing the Video to VGA Portable. Following
the illustration is a description of each of the main unit’s components.
Figure 3-1. Video to VGA Portable main unit, top view.
AUDIO OUT: Stereo audio signal output. Connect to speakers.
IR SENSOR: The remote controller’s infrared input.
AUDIO IN-L, Connect to a sound device or the VCR/DVD’s audio output.
AUDIO IN-R: Connect to a sound device or the VCR/DVD’s audio output.
DC IN: Connect to the supplied AC adapter.
PC AUDIO IN: Connect to the PC’s sound card output.
S-VIDEO IN: Connect to the video source’s S-Video Out.
VIDEO IN: Connect to the video source’s video out (VCR, laser disc, DVD, or TV
game, for example).
Chapter 3: Installation

724-746-5500 | blackbox.com
Chapter 3: Installation
Page 11
VGA IN: Connect to a VGA card with the supplied VGA cable.
VGA OUT: Connect to your original VGA monitor.
COMPONENT Connect to your Component OUT on source
IN:
UP/DOWN Use the UP/DOWN buttons to scroll through the menu options.
buttons:
MENU button: Press the MENU button then use the UP/DOWN buttons to scroll
through the menu options (Brightness, Contrast, Color, Tint,
Sharpness, Language, Visibility, Information, or Resolution) until you
find the option you want to select. Then press the ENTER button to
select the option.
NOTE: For details on how to use the menu options, go to Section 4.2.
ENTER Press this button to confirm a selection.
button:
SOURCE Choose VGA-IN, VIDEO IN, Component IN, or S-VIDEO IN as the
button: input port.
POWER Toggles the power on and off. Automatically saves the configuration
button: setting when you turn off the power.

724-746-5500 | blackbox.com
Chapter 3: Installation
Page 12
3.2 Installation Instructions
Refer to Figure 3-2 and follow the steps on the next page.
Figure 3-2. Typical installation, main unit.
1. Make sure the power is turned off on all devices.
2. Connect the input (VGA, Composite, Component, and S-Video) and output
(VGA) cables.
3. Power on the PC.
4. Turn on the video devices (TV, DVD, etc.).
5. Power on the Video to VGA Portable.
6. Use the SOURCE button on the Video to VGA Portable (main unit) or the VGA,
video, Y.Pb.Pr or S-Video buttons on the remote control to select the input.

724-746-5500 | blackbox.com
Chapter 4: Operation
Page 13
4. Operation
NOTE: In this chapter, the Video to VGA Portable is referred to as the main unit, and
the remote control unit is called the remote control.
Once you’ve installed the Video to VGA Portable (see Section 3-2), you can control
it either via buttons on the main unit itself or by using buttons on the remote
control to switch input sources and adjust picture quality. The main unit and the
remote control have some user-control buttons in common: Power, Menu, Enter,
Up/Down (for the Video to VGA Portable unit itself), or p, q, t, u (for the
remote control).
The main unit also has buttons for Source, and the remote control also has buttons
for Reset, Exit, Resolution, PC, Y.PbPr, Video, S-Video, Menu, Enter, Volume, Mode,
Move, Source, and Audio. Main unit buttons (shown in Figure 3-1) are described in
Section 3.1. Remote control buttons (shown in Figure 4-1) are described in Section
4.1. Menu options for both main and remote units are explained in Section 4.2.
4.1 Using the Remote Control
Figure 4-1. The remote control.

724-746-5500 | blackbox.com
Page 14
General buttons on the remote control:
Resolution: Press this button to toggle through the supported output resolutions to
get the best quality picture.
Reset: Press this button to reset to the default settings (Composite video, 800 x 600,
etc.), no confirmation.
PC: Press this button to select PC (VGA) input.
YPbPr: Press this button to select the Component input.
Video: Press this button to select video (Composite) input.
S-Video: Press this button to select S-Video input.
Menu: This will only activate if you have YPbPr, video, or S-Video active as a main
input.
Exit: Press this button to exit without saving a configuration setting.
Enter: Press this button to confirm a selection.
p, q, t, u: Use these buttons to navigate the menu system. If the menu is
not active, the LEFT and RIGHT buttons allow remote control.
Volume + and -: Use these buttons to toggle the audio level.
PiP Control buttons on the remote control:
Mode: Toggles between PiP size or disables it. Select from three different sizes. The
fourth option will disable the PiP window.
Move: Press this button to move the PiP window around the screen. This is a coarse
adjustment move and cannot be moved in smaller increments.
Source: Press this button to select the PiP source. You can choose between S-Video
and Composite.
Audio: Press this button to adjust the PiP audio feed.
NOTE: In PiP mode, the VGA input acts as a main input only, and the PiP window
will only support Composite or S-Video input.
4.2 Menu Options
The menu options listed in this section are accessible from both the button on the
unit and remote control. You can control the menu functions activated by the
MENU button via either the remote control or buttons on top of the unit. To access
the menu, press the MENU button.
Chapter 4: Operation

724-746-5500 | blackbox.com
Chapter 4: Operation
Page 15
NOTE: On the main unit, you will use the UP/DOWN buttons to scroll through menu
options. On the remote control, you’ll use the p, q, t, u buttons for
scrolling.
4.2.1 Picture Menu
Figure 4-2. Picture menu.
BRIGHTNESS: Brightness adjustment. Using the p, q or t, u buttons, scroll
through the menu to select this option. Press ENTER, then press the
p, q or t, u button to increase or decrease the
brightness level.
CONTRAST: Contrast adjustment. Using the p, q or t, u buttons, scroll
through the menu to select this option. Press ENTER, then press the
p, q or t, u button to increase or decrease the contrast level.
Choose from 0 to 100. (The default value is 50.)

724-746-5500 | blackbox.com
Page 16
COLOR: Color adjustment. Using the p, q or t, u buttons, scroll
through the menu to select this option. Press ENTER, then press the
p, q or tand ubutton to adjust the color. Choose from 0 to
100. (The default value is 50.)
TINT: Tint adjustment. Using the p, q or t, u buttons, scroll through
the menu to select this option. Press ENTER, then press the p, q
or tand ubutton to adjust the hue. Choose from 0 to 100. (The
default value is 50.)
SHARPNESS: Sharpness adjustment. Using the p, q or t, u buttons, scroll
through the menu to select this option. Press ENTER, then press the
p, q or “+” and “-” button to increase or decrease the sharp-
ness. Choose from 0 to 15. (The default value is 8.)\
4.2.2 Input Source Menu
Figure 4-3. Input source menu.
AV: Selects Composite video input
SV: Selects S-Video output
YPbPr: Selects Component video input
PC: Selects VGA input
Chapter 4: Operation

724-746-5500 | blackbox.com
Chapter 4: Operation
Page 17
4.2.3 OSD Settings Menu
Figure 4-4. OSD settings menu.
LANGUAGE: Using the p q buttons, scroll through the menu to select this
option. Press ENTER, then press the por q button to select a
language. Choose from six languages: English, French, German,
Spanish, Italian, and Dutch.
VISBILITY: Select the alpha-transparency setting for the OSD and overlay.
INFORMATION: Displays version number.
RESET: Press this button on the remote control to select this option. Or, to
select this option via menu keys on the remote control or main unit,
use the tand uor pqbutton to scroll to this option on the menu.
Press ENTER to reset to the default setting.

724-746-5500 | blackbox.com
Chapter 4: Operation
Page 18
4.2.4 Resolution Menu
Figure 4-5. Resolution menu.
RESOLUTION: Press the Resolution button on the remote control or select 800 x
600, 1024 x 768, 1280 x 1024, 1440 x 900, 1680 x 1050, or 1920 x
1080 to select the resolution. Or, to select this option via menu keys
on the remote control or main unit, use the tand uor p, q
buttons to scroll to this option on the menu. Press ENTER, then press
the tand uor p, q button to select 640 x 480, 800 x 600, or
1024 x 768. (The default value is 640 x 480.)

724-746-5500 | blackbox.com
Chapter 5: Troubleshooting
Page 19
5. Troubleshooting
5.1 Calling Black Box
If you determine that your Video to VGA Portable is malfunctioning, do not attempt
to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box at
724-746-5500.
Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or make
it worse.
5.2 Shipping and Packaging
If you need to transport or ship your Video to VGA Portable:
• Package it carefully. We recommend that you use the original container.
• If you are shipping the Video to VGA Portable for repair, make sure you include
everything that came in the original package. Before you ship, contact Black Box
to get a Return Authorization (RA) number.

About Black Box
Black Box Network Services is your source for an extensive range of networking
and infrastructure products. You’ll find everything from cabinets and racks and
power and surge protection products to media converters and Ethernet switches
all supported by free, live 24/7 Tech support available in 30 seconds or less.
©Copyright 2011. All rights reserved.
BL A C K B O X®
Great tech support is just 30 seconds away
at 724-746-5500 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
AC328A-R4, version 1
