Black Box LGC1713A-SX User manual

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]
© Copyright 2005. Black Box Corporation. All rights reserved.

CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
FEBRUARY 2005

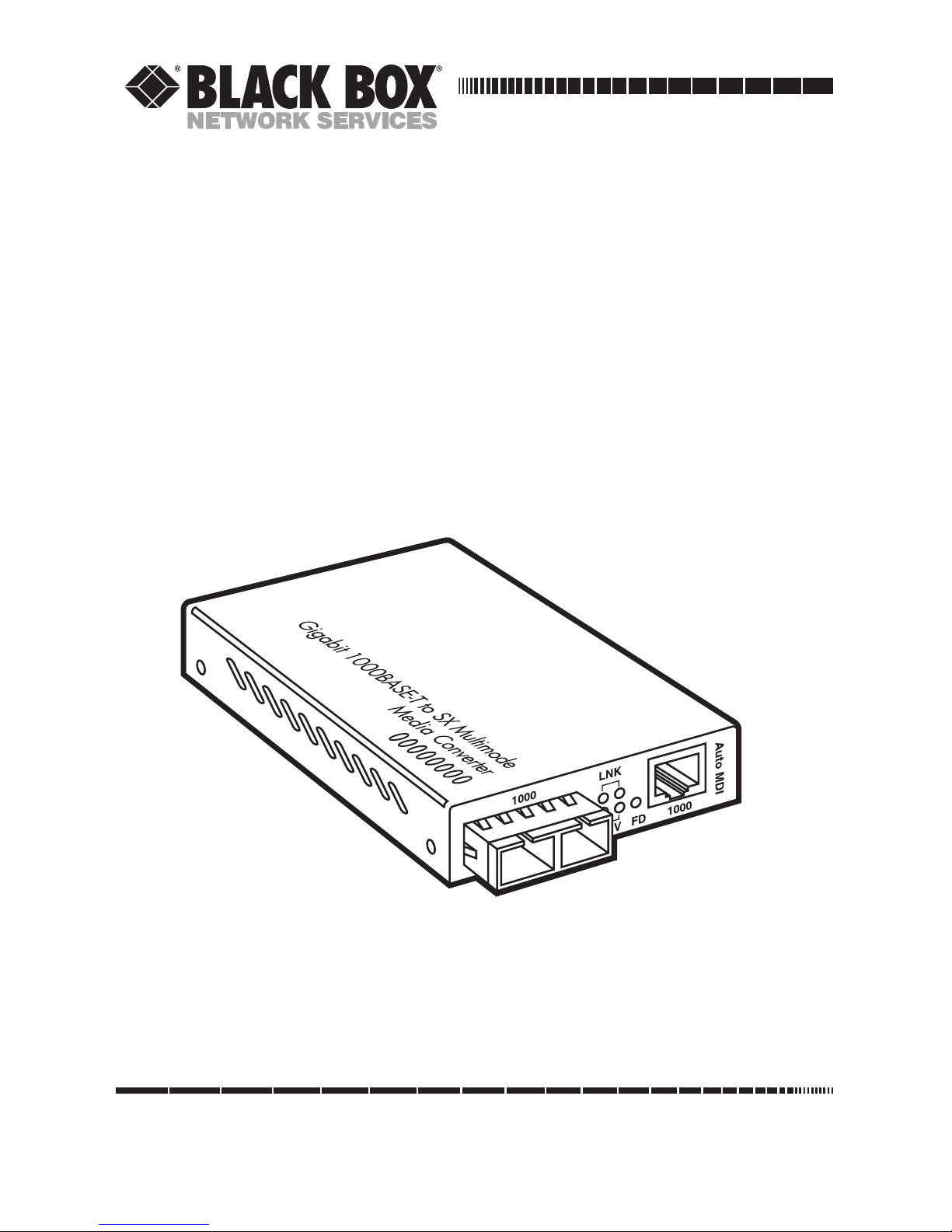

LGC1713A-SX
LGC1713A-LX
1000BASE-T to MM SX Media Converter
1000BASE-T to SM LX Media Converter

1
FCC AND IC RFI STATEMENTS/CE NOTICE
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
EUROPEAN UNION DECLARATION OF CONFORMITY
This equipment complies with the requirements of the European EMC Directive
89/336/EEC.

2
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

3
NOM STATEMENT
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

4
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
TRADEMARKS USED IN THIS MANUAL
Any trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.

5
CONTENTS
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Front-Panel Connectors and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.1 1000BASE-T Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.2 1000BASE-SX/LX Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Rear-Panel DIP Switch, Connector, and LED . . . . . . . . . . . . . . . . . . . . . . 11
4. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Auto-MDI/MDI-X Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3 DIP-Switch Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4 Installing the Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.5 Desktop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.6 Powering On the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.7 Connecting Fiber Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.8 Connecting Copper Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2 Shipping and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
1. Specifications
Standards: IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z 1000BASE-SX/LX
Gigabit Ethernet, IEEE 802.3x Full Duplex Flow Control
Data Transfer Rate: Gigabit Ethernet: 2000 Mbps (full duplex)
Maximum Distance: Using 1000BASE-T cable: 4-pair UTP Category 5, up to 328 ft.
(100 m);
Using multimode fiberoptic cable: 726 ft. (221.3 m);
Using single-mode fiberoptic cable: 33,000 ft. (10 km)
User Controls: (1) 4-position DIP switch
Connectors: LGC1713A-SX: (2) MM SX, (1) RJ-45;
LGC1713A-LX: (2) SM LX, (1) RJ-45
Indicators: (6) LEDs: (1) Power, (1) FD, (2) LNK, (2) RCV
Temperature Tolerance: Operating: 32 to 122°F (0 to 50°C);
Storage: -4 to +158°F (-20 to +70°C)
Humidity: Operating: 10 to 80%; Storage: 5 to 90%
Power: External power supply: 12 VDC @ 0.8 amps, 50–60 Hz
Size: 2.3"H x 7.4"W x 10.9"D (5.8 x 18.8 x 27.7 cm)
Weight: 0.3 lb. (0.1 kg)

7
2. Overview
2.1 Introduction
The 1000BASE-T to MM SX (LGC1713A-SX) or SM LX (LGC1713A-LX) Media
Converters connect copper and fiber Gigabit Ethernet segments together. These
switching media converters are designed primarily for larger workgroups,
demanding higher speed and broader bandwidth, and requiring migration and
expansion from a copper-based Gigabit to a fiber-based Gigabit network.
The converters comply with IEEE 802.ab 1000BASE-T and 802.3z 1000BASE-SX/
LX Gigabit Ethernet standards. Via auto-MDI/MDI-X selection, the converters
automatically identify and adjust to whether the RJ-45 cable you connect is either
crossover or straight-through cable. The RJ-45 port also corrects automatically for
polarity.
Both converter models have an SC fiber connector for either multimode or single-
mode operation and an RJ-45 connector for twisted-pair. The converters support
full duplex and half-duplex modes for 1000BASE-SX/LX fiber.
Over multimode cable, the MM SX converter extends the distance up to 726 feet
(221.3 m). Over single-mode cable, the SM LX converter increases the distance up
to 33,000 ft. (10 km).
Choose either NWay or duplex settings, or run local and remote loopback tests via
a 4-position DIP switch. LEDs provide quick and easy device status.
The converter can function as a high-speed bridge between switches, as a server
aggregation for an enterprise or LAN, or as a high-speed dedicated link within a
campus network. Examples 1 to 3 describe these typical applications. Other
applications are possible. If your application is different, call Tech Support for
help with setting it up.
CHAPTER 2: Overview

1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
8

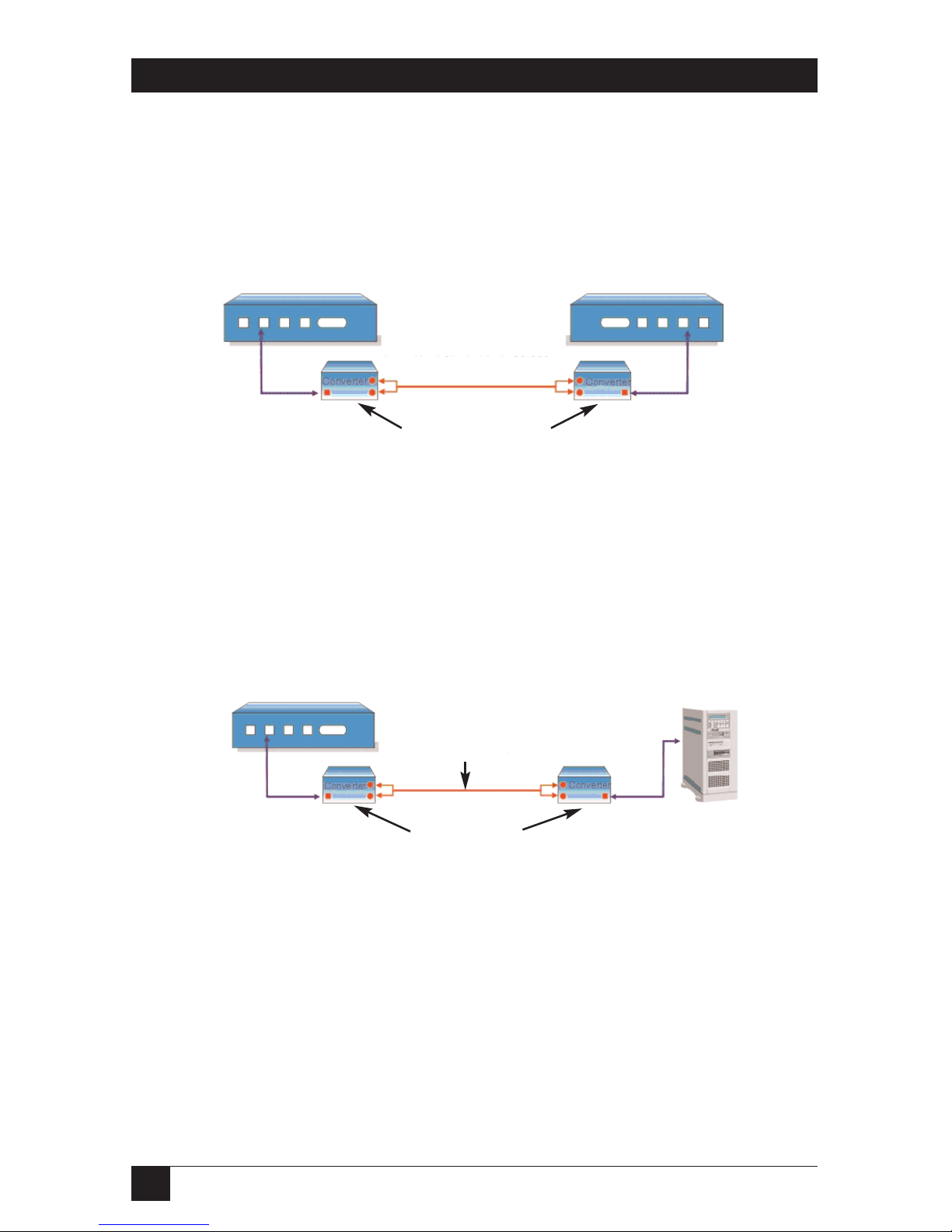

Example 1
The converter functions as a high-speed bridge between switches, creating
increased capacity for each user (node) on the LAN. It provides a 1000-Mbps full
duplex link to a variety of Gigabit network devices within a LAN. See Figure 2-1.
Figure 2-1. Bridge application.
Example 2
The converter works as a server aggregation for an enterprise or LAN
configuration. It provides a 1000-Mbps full duplex link to 10/100 switch
workgroups located on separate floors within a single building. See Figure 2-2.
Figure 2-2. Server aggregation application.
328 ft.
(100 m) 328 ft.
(100 m)
Up to 726 ft. (221.3 m) of
multimode fiber optic
cable or up to 33,000 ft.
(10 km) of single-mode
fiber optic cable
Gigabit switch Gigabit switch
1000BASE-T to MM SX Media Converter (LGC1713A-SX) or
1000BASE-T to SM LX Media Converter (LGC1713A-LX)
UTP UTP
328 ft.
(100 m)
UTP UTP
328 ft.
(100 m)
Up to 726 ft. (221.3 m) of
multimode fiber optic
cable or up to 33,000 ft.
(10 km) of single-mode
fiber optic cable
Gigabit switch Server
1000BASE-T to MM SX Media Converter (LGC1713A-SX) or
1000BASE-T to SM LX Media Converter (LGC1713A-LX)

9
CHAPTER 2: Overview
Example 3

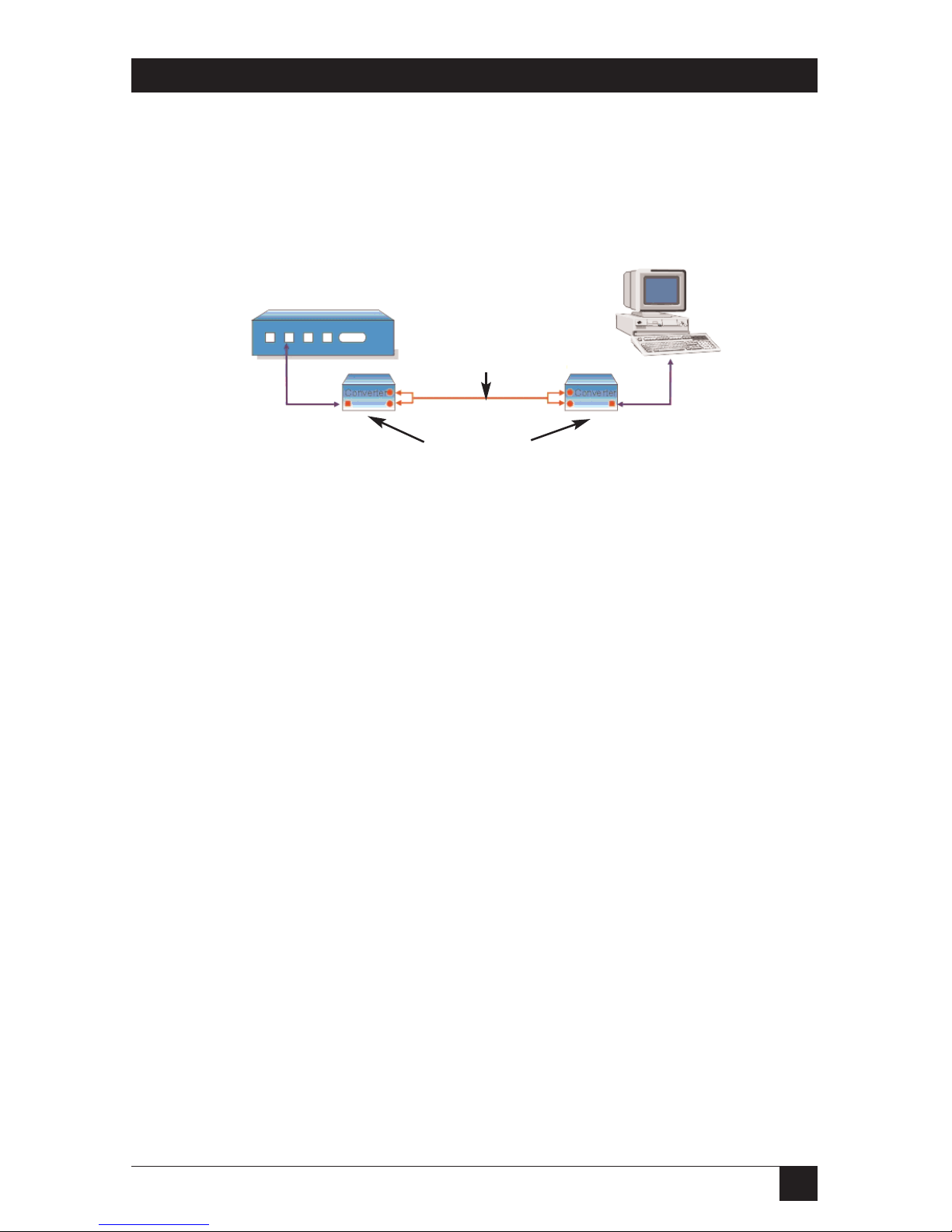

Use the converter as a high-speed dedicated link within a campus network
configuration. It provides a 1000-Mbps full duplex link to a remote networking
node. See Figure 2-3.
Figure 2-3. Dedicated link application.
2.2 What’s Included
Your package should contain the following items. If anything is missing or
damaged, please contact Black Box at 724-746-5500.
• (1) 1000BASE-T to MM SX Media Converter or
(1) 1000BASE-T to SM LX Media Converter
• (1) AC power adapter for an external power supply
• (1) power cable
• (4) self-adhesive rubber feet for desktop installation
• (1) CD-ROM containing this user’s manual in PDF format
328 ft.
(100 m)
UTP UTP
328 ft.
(100 m)
Up to 726 ft. (221.3 m) of
multimode fiber optic
cable or up to 33,000 ft.
(10 km) of single-mode
fiber optic cable
Gigabit switch Workstation
1000BASE-T to MM SX Media Converter (LGC1713A-SX) or
1000BASE-T to SM LX Media Converter (LGC1713A-LX)

10
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
3. Hardware Description
3.1 Front-Panel Connectors and LEDs

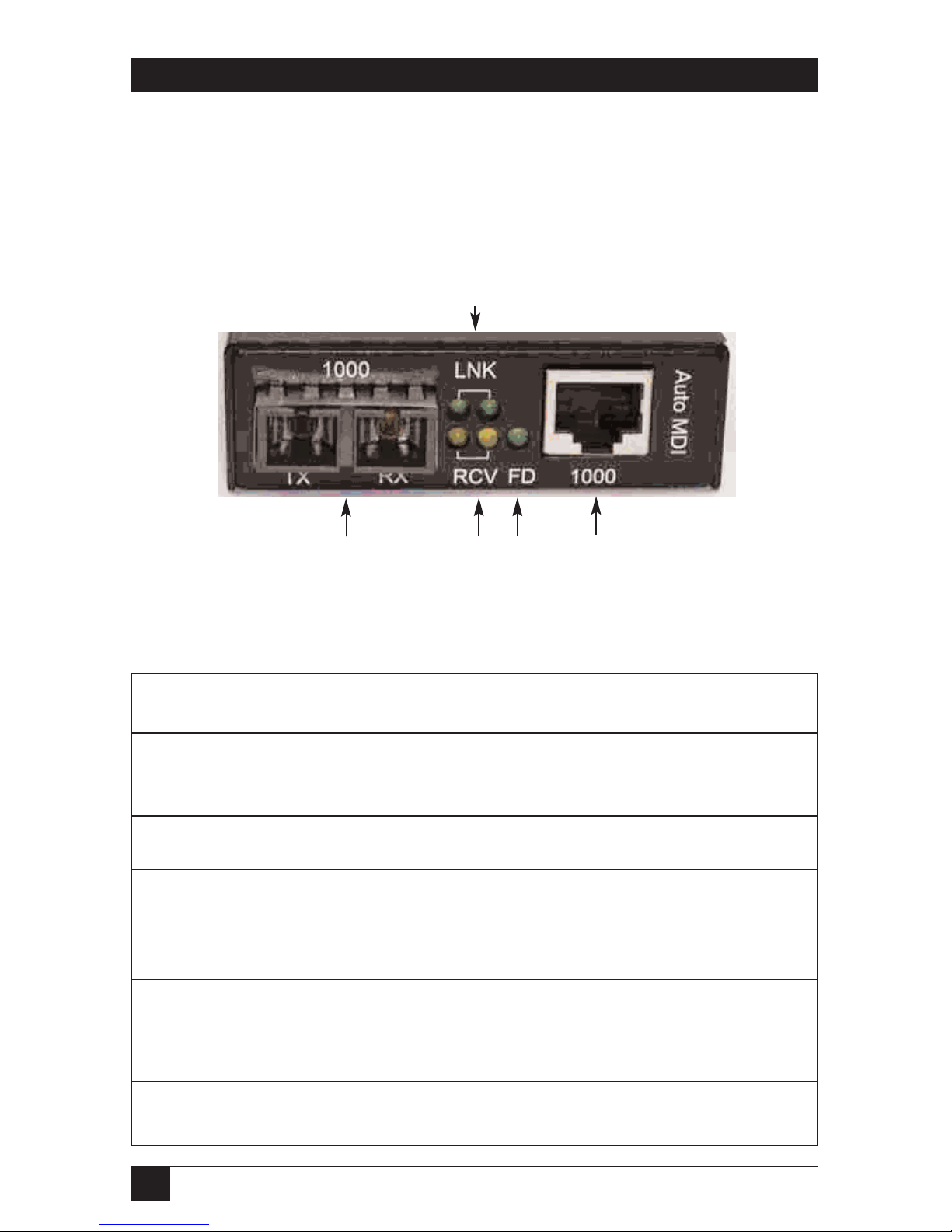

Figure 3-1 shows the converter’s front panel connectors and LEDs. Table 3-1
describes these components.
Figure 3-1. Front panel.
Table 3-1. Front-panel connectors and indicators.
Connector or Indicator Description
SC connectors Connect single-mode or multimode fiber to this
port. One connector is for TX; the other is for RX.
RJ-45 connector Connect twisted-pair cable to this port.
LNK LEDs These indicators light when a link on the
connected port (fiberoptic [SC] or twisted-pair
[RJ-45]) is detected.
RCV LEDs These indicators flash when data on the
connected port (fiberoptic [SC] or twisted-pair
[RJ-45]) is being received.
FD LED This indicator lights when the converter is
operating in full duplex mode.
❶
❶❷❹❺
❸
❷
❸
❹
❺

11
CHAPTER 3: Hardware Description
3.1.1 1000BASE-T P
ORT
The 1000BASE-T port (❷in Figure 3-1)is an RJ-45 connector. It supports
1000-Mbps network speeds and operates in full duplex transfer mode. This port
also offers automatic MDI/MDI-X crossover detection that gives true plug-and-play
capability—just plug in the network cable and the port will adjust according to the
end node device. The RJ-45 connector is suitable for Category 5 unshielded
twisted-pair (UTP) cable.
3.1.2 1000BASE-SX/LX P ORT
The 1000BASE-SX/LX port (❶in Figure 3-1) is a pair of SX or LX connectors. It
adds a fiber Gigabit Ethernet link to your network device. Compliant with IEEE
802.3z, this port transmits data at 1000 Mbps in full duplex mode across distances
of up to 726 feet (221.3 m) over multimode fiberoptic cable (LG1713A-SX) or up
to 33,000 feet (10 km) over single-mode fiberoptic cable (LG1713A-LX). The fiber
port has NWay support and a pair of SC connectors.
3.2 Rear-Panel DIP Switch, Connector, and LED
Figure 3-2 shows the converter’s rear-panel switch, connector, and LED. Table 3-2
describes these components.
Figure 3-2. Rear panel.
❻❼
❽

12
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
Table 3-2. Rear-panel connectors and indicators.
Switch, Connector, or LED Description
DIP switch This 4-position switch sets NWay, local
loopback, and remote loopback.
Pwr LED Lights when the unit is powered on.
12-VDC, 800-mA barrel Plug the included power cable into this
connector connector.
❼
❽
❻

13
CHAPTER 4: Installation
4. Installation
Before you install the converter, refer to Section 2.2 and make sure your package
includes everything listed. Then, start with Section 4.1 and read all of Chapter 4.
4.1 Location
The site where you install the converter may greatly affect its performance. When
installing, consider the following:
• Install the converter in a fairly cool and dry place. See Chapter 1 for the
acceptable temperature and humidity operating ranges.
• Install the converter in a site free from strong electromagnetic field generators
(such as motors), vibration, dust, and direct exposure to sunlight.
• Leave at least 3.9" (9.9 cm) of space at the converter’s front and rear for
ventilation.
4.2 Auto-MDI/MDI-X Connection
The RJ-45 port is auto-MDI. The converter can auto transform to MDI-II or MDI-X,
so you can make an easy connection without worrying if you are using a standard
or crossover RJ-45 cable.
4.3 DIP-Switch Settings
Use the DIP switch to activate the operations described in Table 4-1.
Table 4-1. DIP-switch settings.
DIP-Switch Setting Description
Position
1 ON* NWay is on, so the converter will automatically
set half- or full duplex mode on the fiber segment
with a 1000-Mbps transmission speed.
OFF NWay is off, so the converter will operate using
the default full duplex, 1000-Mbps setting.

14
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
Table 4-1 (continued). DIP-switch settings.
DIP-Switch Setting Description
Position
2 ON No function. This switch is reserved for future
use.
OFF No function. This switch is reserved for future
use, but keep the switch in the OFF position.
3 ON** When this switch is on, LLB (Local Loopback) is
enabled. The local loopback function is used to
check if the copper segment is functioning
properly. Put the switch in the ON position to
perform the local loopback function test.
OFF When this switch is off, LLB is disabled. This is
the default setting.
4 ON** When this switch is on, RLB (Remote Loopback)
is enabled. The remote loopback function is
used to check if the fiber segment is functioning
properly at the remote site. To perform the
remote loopback function test, put this switch in
the ON position, but disable the LLB and RLB at
the locally attached converter.
OFF When this switch is off, RLB is disabled. This is
the default setting.

15
CHAPTER 4: Installation
NOTES
* Setting the NWay mode is feasible while the media converter is online.
If you experience the following problems, make sure that the NWay
switch is properly set.
1. The LNK LED is not lit and the connection cannot be established.
2. The LNK LED is lit and the connection is fine, but the converter can’t
transmit or receive data.
3. The converter functions properly for a while, then it does not work.
When you power off the converter, then power it on again, it returns
to functioning properly.
** Enabling the LLB or RLB function means that the converter’s normal
function will stop.
While performing the local or remote loopback test, make sure the
network has more than 50% of fully loaded traffic. Less traffic will dim
the indicator.
4.4 Installing the Converter
NOTE
The devices attached to each port can be connected and operating in
any sequence, but the factory-recommended procedure is as follows.
1. Power OFF the converter.
2. Set the DIP switches (ON or OFF).
3. Power ON the converter.
4. Connect the fiber links.
5. Connect the copper links.
4.5 Desktop Installation
Follow the instructions below to install the converter on a desktop.
1. Place the converter in a clean, flat, and safe position that has easy access to AC
power.
2. Affix the four self-adhesive rubber feet to the converter’s underside.
3. Apply AC power to the converter. (The rear-panel PWR LED should light.)

16
1000BASE-T TO MM SX OR SM LX MEDIA CONVERTERS
4. Connect cables from the network partner devices to the converter’s front-
panel ports. (The front-panel LNK LED associated with the port should
light.)
You can also mount the converter on a vertical surface, such as a wall. Simply use
the converter’s underside as a template to measure and mark the holes’ position
onto the surface where you will install the converter. Then use two screws (not
included) to mount the converter firmly in place.
WARNING
Install the converter away from damp or wet locations, and away from
very hot surfaces. These environments can have a detrimental effect on
both the converter and the cables. An ideal location is a cool, dry
environment such as a typical equipment room.
4.6 Powering On the Unit
The converter uses a 12-VDC, 0.8-amp, 50–60-Hz external power supply.
1. Insert the power cable plug directly into the receptacle located on the
converter’s back panel.
2. Plug the power adapter into an available socket.
3. As the converter is powered on, verify that the rear-panel PWR LED is lit. If
not, check that the power cable. Is it correctly and securely plugged in?
NOTE
For international use, you may need to change the AC power adapter
cord. You must use a power cord that has been approved for the
receptacle type and electrical current in your country.
4.7 Connecting Fiber Cables
Recommendations for what you should and should not do when installing fiber
cables are listed below. Remember—cables are the defining factor in network
performance.
1. Try to maintain a minimum bend radius of four times the UTP cable’s
diameter and 100 times the fiberoptic cable’s diameter.
2. Try not to allow the cable to twist too much; this creates a strain on the
internal cables.

17
CHAPTER 4: Installation
3. Place cable ties at regular intervals, and do not overtighten them. For best
results, try to avoid using cable ties with fiber.
4. Do not stretch the cable—especially in corners, in vertical cable trays, and
when spanning long distances.
When connecting fiber cable to the converter’s 100BASE-SX/LX port, be sure that
you use the correct type (SC) connector. Follow the steps below to properly
connect fiber cable.
1. Remove, but do not discard the SC port’s protective rubber cover. When the
converter’s not connected to a fiber cable, replace the protective rubber
cover to protect the optical transceivers from dust and debris.
2. Make sure that the fiber terminators are clean. You can clean the cable plugs
by wiping them gently with a clean tissue or cotton ball moistened with a little
rubbing alcohol. Dirty fiber terminators on fiberoptic cables will impair the
quality of the light transmitted through the cable and lead to degraded
performance on the port.
3. Connect one end of the cable to the converter’s SC port and the other end to
the other device’s SC port.
NOTE
When inserting the cable, be sure the tab on the plug clicks into position
so that it is properly seated.
4. Check the converter’s corresponding LNK LED to make sure that the
connection is detected.
WARNING
Laser radiation can be harmful to your eyes! Because invisible laser
radiation may be emitted from the fiber port’s aperture when no cable is
connected, do not stare into the open apertures.
