1. Specifications
Transmission Format—Asynchronous
Data Rate—0 to 230 kbps
Interface—Serial TTL (DTE) or serial RS-232
(DCE)
Connectors—(1) DB25 female for RS-232 interface,
(1) DB25 male for TTL interface
Control Signals Supported—CD, DTR, DSR, CTS,
and RTS, passed directly through
Signal Inversion—Data signals and control signals
can be independently configured for “inverting”
or “non-inverting” using internal jumpering
Power Supply—None required; draws all necessary
operating power from RS-232 and TTL data and
control signals
Temperature—32 to 122 °F (0 to 50 °C)
Size—2.2"H x 2.1"W x 0.7"D (5.6 x 5.3 x 1.8 cm)
Weight—2 oz. (0.1 kg)

7
TTL CONVERTER
2. Introduction
2.1 Description
The TTL Converter lets an asynchronous RS-232 device
communicate bi-directionally with an asynchronous TTL
device. Supporting data rates up to 230 kbps, the
Converter passes data (TD, RD) plus five control signals
(CD, DTR, DSR, CTS, and RTS). In addition, the
Converter allows data and control signals to be
independently jumper-selected as “inverting” or “non-
inverting.”
The TTL Converter has a serial RS-232 interface
(DCE) and a serial TTL interface (DTE). The RS-232
interface is presented on a DB25 female connector,
while the TTL interface is presented on a DB25 male
connector. Since it derives power from the data and
control signals, the Converter requires no AC power or
batteries for operation.
2.2 Features
• Bi-directional, asynchronous data conversion
between RS-232 and TTL

8
TTL CONVERTER
• Supports data rates to 230 kbps
• Connects an RS-232 DTE to a TTL DCE
• Passes TD & RD plus five control signals: CD,
DTR, DSR, CTS & RTS
• Data and control signals independently selectable
for inverting/non-inverting
• Interface powered—no AC required
• RS-232 interface is a DB25 female, TTL interface is
a DB25 male

9
TTL CONVERTER
3. Configuration
The TTL Converter is very easy to use. Most
applications require no configuration. Just plug it in
and go! However, some TTL circuitry requires data
and/or control signals to be inverted (opposite) from
their normal conditions. Please read the section below
to determine if the default settings will work for you.
3.1 Default TTL Logic Levels
Systems represents data signals by alternating between
“mark” (binary “1”) and space (binary “0”) conditions.
TTL (Transistor-Transistor Logic) circuitry normally a
represents a “mark” as a voltage between 2.4 and 5.0
Volts, and a “space” as a voltage between 0.0 and 0.4
Volts. By contrast, TTL control signals (RTS, CTS, DSR,
DCD and DTR) are either “active” (between 0.0 and 0.4
Volts), or “inactive” (between 2.4 and 5.0 Volts).
Table 3-1 summarizes the above information.
Table 3-1. Default TTL Signal Levels.
Signal Level Data Signals Control Signals
0 to 0.4 volts space active
2.4 to 5.0 volts mark inactive

10
TTL CONVERTER
Table 3-1, shows the default configuration of the
Converter. In most cases no modification is required.
However, if your TTL circuitry requires inverted signals
for either the data or control signals, you must change
the settings of one or two jumper switches. To change
the jumper settings, you must open the case. Please
follow the instructions below.
3.2 Opening the Case
Remember that, for most applications, you will not have
to change the jumper settings. Unless the default
settings won’t work for your application, skip the rest of
this chapter and go on to Chapter 4.
The JP1 and JP2 jumpers on the TTL Converter are
located on the PC board. To open the case, insert a
small flathead screw driver or similar tool between the
DB25 female connector and the lip of the case as shown
in Figure 3-1.

11
TTL CONVERTER

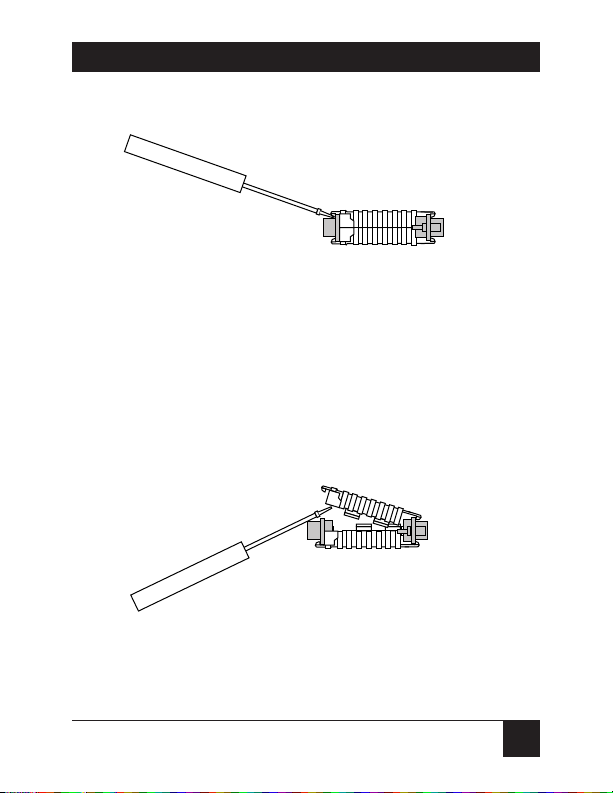

Figure 3-1. Using a small screwdriver to open the TTL Converter case.
Then gently twist the screwdriver to pop the case open
as shown in Figure 3-2. Be careful not to damage the
case or connector as you twist the screwdriver.
Figure 3-2. Using a small screwdriver to open the TTL Converter case.

12
TTL CONVERTER
3.3 Changing the Jumper Straps
Once you have opened the case of the TTL Converter,
you will see two jumper straps located on the top side of
the PC board (see Figure 3-3).

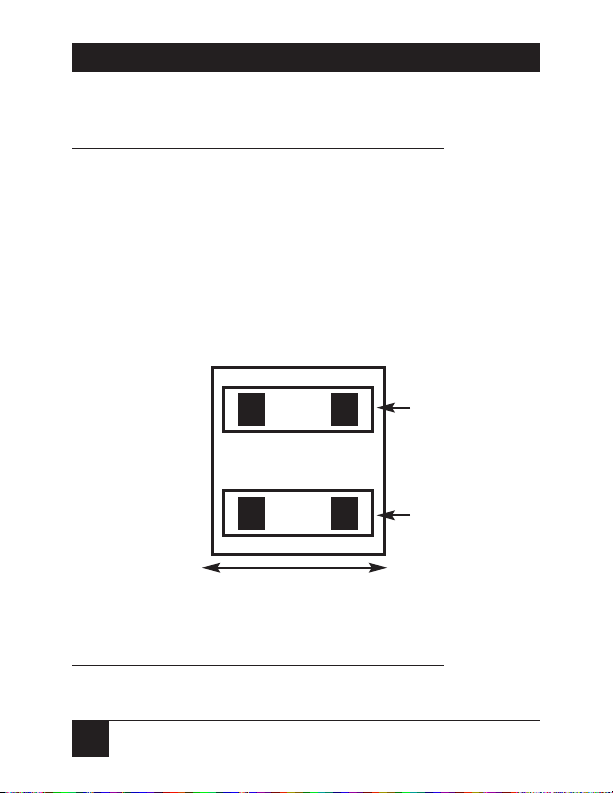

Figure 3-3. Location of the TTL Converter’s Jumper Straps.
To change the jumper-strap settings, simply remove
the jumpers and replace them on the jumper posts as
described below.
TTL Side (Male) RS-232 Side (Female)
JP1 JP2

13
TTL CONVERTER
J UMPER
S WITCHES JP1 AND JP2
Use jumper switches JP1 and JP2 to control the logic
state of the data and/or control signals. In most cases, you
will NOT have to modify these settings. Consult the user
manual of the TTL device or the device’s manufacturer
before changing the settings on JP1 and JP2.
Non-Inverted Data and Control Signals (Default Setting)
Position JP1 and JP2 vertically on the jumper posts to
select non-inverted data and control signals (default
setting). Figure 3-4 shows the relative signal levels.
Figure 3-4. Non-Inverted Data and Control Signal Jumpers.
JP1
TTL Side RS-232 Side
JP2

14
TTL CONVERTER
Table 3-2. Non-Inverted Data and Control.
Signal Level Data Signals Control Signals
0 to 0.4 volts space active
2.4 to 5.0 volts mark inactive
Inverted Data and Control Signals
Position JP1 and JP2 horizontally on the jumper posts to
select inverted data and control signals. Figure 3-5 shows
the position of the jumpers on the PC board. Table 3-3
shows the relative signal levels.
Figure 3-5. Inverted Data and Control-Signal Jumpers.
Table 3-3. Inverted Data and Control-Signal Jumpers.
Signal Level Data Signals Control Signals
0 to 0.4 volts mark inactive
2.4 to 5.0 volts space active
JP1
TTL Side RS-232 Side
JP2

15
TTL CONVERTER
Inverted Data and Non-Inverted Control Signals
Position JP1 horizontally on the jumper posts and
remove JP2 to select inverted data and non-inverted
control signals. Figure 3-6 shows the position of the
jumpers on the PC board. Table 3-4 shows the relative
signal levels.
Figure 3-6. Inverted Data and Non-Inverted Control-Signal Jumpers.
Table 3-4. Inverted Data and Non-Inverted Control-Signal Jumpers.
Signal Level Data Signals Control Signals
0 to 0.4 volts mark active
2.4 to 5.0 volts space inactive
JP1
TTL Side RS-232 Side
JP2

16
TTL CONVERTER
Inverted Control and Non-Inverted Data Signals
Position JP2 horizontally on the bottom jumper posts to
select inverted control and non-invert data signals.
Figure 3-7 shows the position of the jumpers on the PC
board. Table 3-5 shows the relative signal levels.
Figure 3-7. Inverted Control and Non-Inverted Data Signal Jumpers.
Table 3-5. Inverted Control and Non-Inverted Data Signal Jumpers.
Signal Level Data Signals Control Signals
0 to 0.4 volts space inactive
2.4 to 5.0 volts mark active
JP1
TTL Side RS-232 Side
JP2

17
TTL CONVERTER
4. Installation
The TTL Converter is very simple to install. Just plug it
in like a normal cable and you’re ready to go.
NOTE
The TTL Converter uses a DB25 female connector on the
RS-232 interface and a DB25 male connector on the TTL
Interface.
C ONNECTING THE TTL C ONVERTER
Connect the 25-pin male port (TTL side) directly to a
TTL DCE device. Connect the 25-pin female port
(RS-232 side) of the TTL Converter to an RS-232 DTE
device using a straight-through cable of the shortest
possible length (less than 50 feet). Figure 4-1 shows the
typical application of the TTL Converter.
Figure 4-1. Connecting the TTL Converter.
RS-232 DTE
TTL DCE
TTL Converter

18
TTL CONVERTER
Appendix A: Interface Pin
Assignments
Figure A-1. RS-232 Interface.
Figure A-2. TTL Interface.
1-(FG) Frame Ground
2-(TD) Transmit Data
3-(RD) Receive Data
4-(RTS) Request to Send
5-(CTS) Clear to Send
6-(DSR) Data Set Ready
7-(SG) Signal Ground
8-(DCD) Data Carrier Detect
9-(DCV+) Aux Power
Data Terminal Ready (DTR)-20
Data Terminal Ready (DTR)-20
1-(FG) Frame Ground
2-(TD) Transmit Data
3-(RD) Receive Data
4-(RTS) Request to Send
5-(CTS) Clear to Send
6-(DSR) Data Set Ready
7-(SG) Signal Ground
8-(DCD) Data Carrier Detect
9-(DCV+) Aux Power

19
TTL CONVERTER
Appendix B: Block Diagram
SIGNAL GROUND
CD
DTR
DSR
CTS RTS
RD
TD
FRAME GROUND
SIGNAL GROUND
CD
DTR
DSR
CTS
RTS
RD
TD
FRAME GROUND
>
> > >
> > >
1 2 3 4 5 6 7 20 8
1 2 3 4 5 6 7 20 8
DCE
TTL
DEVICE
DTE
RS-232
DEVICE
RS-232 to TTL CONVERTER
V+ >
DTR >
CTS >
RD >
CD >
DSR >
RTS >
TD >
2 4 6 8
3 5 20 9
INVERTING/ NON-INVERTING SWITCH
POWER
SUPPLY
+V
GROUND
