Black Box JPM804A-R2 User manual

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]
© Copyright 2003. Black Box Corporation. All rights reserved.

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
CUSTOMER
SUPPORT
INFORMATION
MAY 2003
JPM804A-R2
JPM806A-R2
JPM808A-R2
JPM810A-R2

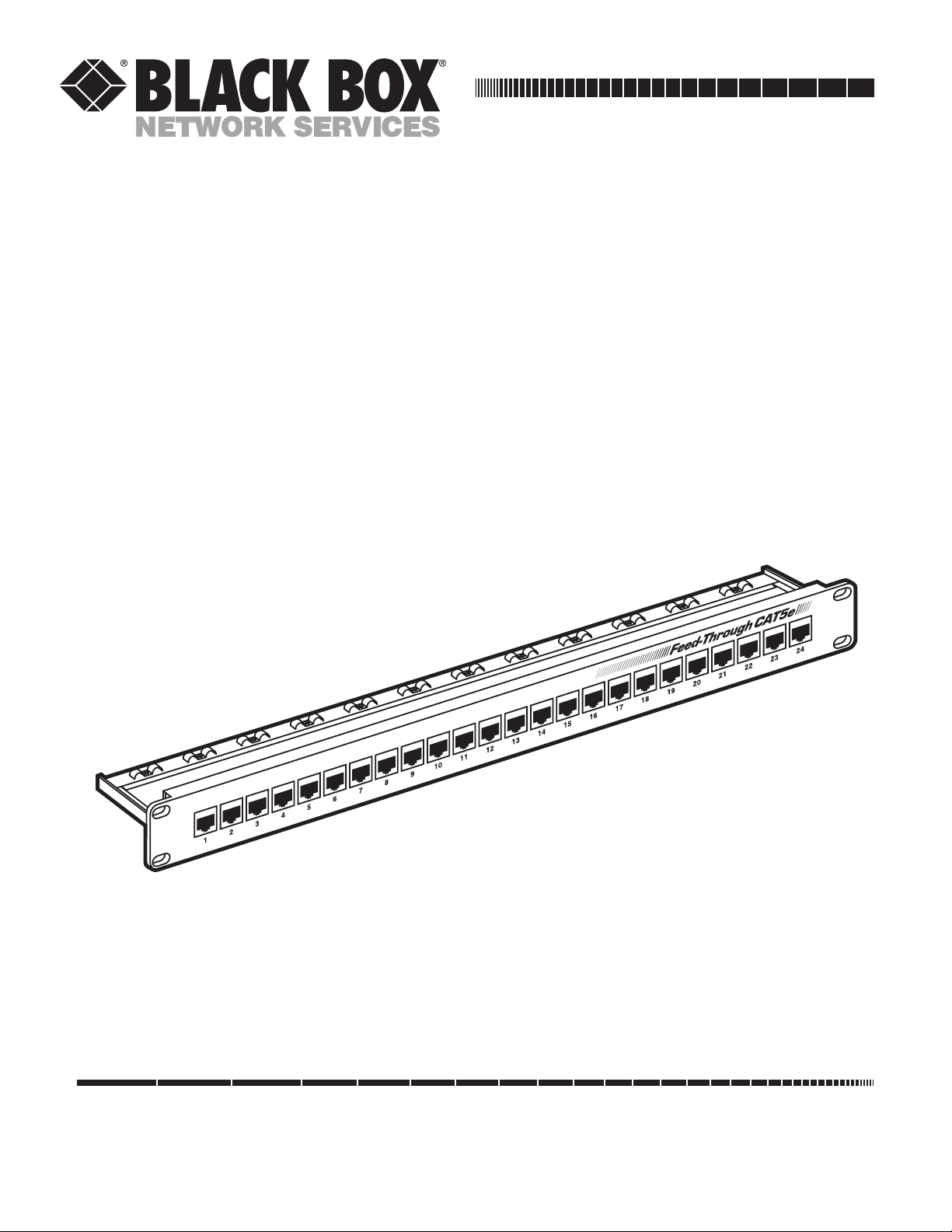

Feed-Through CAT5e Patch Panels

FEED-THROUGH CAT5E PATCH PANELS
2
Specifications
Standards: Category 5e
Connectors: JPM804A-R2: (24) shielded RJ-45 on front, (24) shielded RJ-45 on back;
JPM806A-R2: (48) shielded RJ-45 on front, (48) shielded RJ-45 on back;
JPM808A-R2: (24) unshielded RJ-45 on front, (24) unshielded RJ-45 on back;
JPM810A-R2: (48) unshielded RJ-45 on front, (48) unshielded RJ-45 on back
Size: JPM804A-R2, JPM808A-R2: 1.75"H (1U) x 19"W x 4.5"D (4.4 x 48.3 x 11.4 cm);
JPM806A-R2, JPM810A-R2: 3.5"H (2U) x 19"W x 4.5"D (8.9 x 48.3 x 11.4 cm)
Weight: JPM804A-R2: 1.6 lb. (0.7 kg); JPM806A-R2: 2.9 lb. (1.3 kg); JPM808A-R2: 1.3 lb. (0.6 kg);
JPM810A-R2: 2.3 lb. (1 kg)
Introduction
The Feed-Through CAT5e Patch Panels meet Category 5e performance requirements and provide patching
without punching down the wires to the ports. These sturdy panels install in relay racks or communications
cabinets.
After ordering a CAT5e Patch Panel, you should have received the following items:
• (1) CAT5e Patch Panel
• (1) Cable management bar for JPM804A-R2 and JPM808A-R2, or
(2) Cable management bars for JPM806A-R2 and JPM810A-R2
• (4) 10-32 cuphead screws
• (4) 12-24 cuphead screws
• This users’ manual
If anything is missing or damaged, please contact Black Box at 724-746-5500.

FEED-THROUGH CAT5E PATCH PANELS
3
Installation
Use the Feed-Through CAT5e Patch Panels with or without the cable-management bar. It neatly organizes and
supports the cables that are installed in rear of the patch panel.
Without using the cable-management bar:
1. Find an empty rack space on a relay rack or communications cabinet.
2. Install the panel with the supplied 10-32 or 12-24 cup-head screws.
3. Install the RJ-45 patch cables on the front and rear connectors to make the connections.
Using the cable-management bar:
1. Remove the two pan-head screws from each side of the patch panel.
2. Position the cable-management bar on the patch panel, and reinstall the two pan-head screws.
3. Install a patch cable in one of the panel’s rear ports. Unscrew the corresponding silver clip behind the
installed port, and position the patch cable under the silver bracket. Tighten the screw.
4. For a 48-port patch panel (JPM806A-R2 or JPM810A-R2), repeat steps 1 through 3 to install the second
cable-management bar.
Installation is complete.
Any trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
