16-PORT TYPE 3 MAU
TRADEMARKS
IBM®and AS/400®are registered trademarks of IBM Corporation.
All applied-for and registered trademarks are the property of their respective owners.

7
16-PORT TYPE 3 MAU
CONTENTS
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.1 Lobe Port Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.2 RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
1.2.1 Automatic Wrap of Ring In and Ring Out . . . . . . . .11
1.2.2 Lobe Port Initialization . . . . . . . . . . . . . . . . . . . . . . .11
1.3 Cable Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.3.1 Category 5 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.3.2 Type 3 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2.1 Token Ring Background . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2.2 MAUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3.1 Installation Background . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3.1.1 Main Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3.1.2 Backup Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
3.1.3 Adjusted Ring Length . . . . . . . . . . . . . . . . . . . . . . . . .23
3.1.4 Lobe Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3.1.5 Cable Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3.1.6 Repeaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3.1.7 Bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3.1.8 16-Mbps Token Rings . . . . . . . . . . . . . . . . . . . . . . . . .24
3.2 Calculating Distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.3 Distance Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
3.4 Completing the Installation . . . . . . . . . . . . . . . . . . . . . . . . .32
3.4.1 Station Port Initialization . . . . . . . . . . . . . . . . . . . . . .33
3.4.2 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . .34
4. Problem Determination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
5. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

8
16-PORT TYPE 3 MAU
1. Specifications
Power — No external power source is required.
Data Rate — 4 and 16 Mbps. Type 3 cable may be used at 16 Mbps when
media filters are used at the workstation or other attaching device.
Cable — See Section 1.3, Cable Specifications.
Standard — All models meet the IEEE 802.5 Standard.
Connectors — Female RJ-45. These connectors will accept either RJ-45
or RJ-11 male connectors.
Battery (for operation of port-reset feature) — 3V lithium, Duracell 1/2 AA
SE or equivalent. Field-replaceable.
Operating Temperature — 32 to 131°F (0 to 55°C)
Humidity — Up to 95% non-condensing
Size—1.72”H x 17.25”W x 6”D (4.37 x 43.82 x 15.24 cm)
Weight — 23.25 lb. (1.46 kg)
This MAU has female RJ-45 shielded lobe connectors. The connectors
labeled Ring In and Ring Out are for attachment to the token ring. The
MAU has sixteen station connectors.
The MAU also has one LED for each terminal port. When a terminal-port
LED is lit, it indicates that the device attached to that port is connected to the
token ring.

9
16-PORT TYPE 3 MAU
1.1 Lobe-Port Initialization
The station ports can be in an incorrect state for station attachment, and if
they are, the MAU will be inoperable until the ports are reset. Use the Reset
button to reset them.
The Reset button on the front panel is used to align the relays in the station
ports so they are ready for operation. This feature is powered by a replaceable
battery.
To operate the port-reset feature, press the Reset button. When the LED
above the Reset button lights, it indicates that the battery is operable and that
all inactive station ports will be aligned. Ports with active stations on them will
not be disturbed.
1.2 RJ-45 Connectors
The diagram below shows the transmit and receive pins in the female RJ-45
connectors.
RJ-45 Ring Out & Lobe
(ie. Station) Connectors
Transmit
Pins 4 & 5
Pin 1
Receive
Pins 3 & 6
Pin 1
RJ-45 Ring In
Connector
Transmit
Pins 3 & 6 Receive Pins 4 & 5
Figure 1-1. RJ-45 connector transmit & receive pins
RJ-45 Ring Out & Lobe
(Station) Connectors

10
16-PORT TYPE 3 MAU
RJ-11 male connectors may be used instead of RJ-45 male connectors on the
twisted-pair cables used in the network. Both types will work in the female
connectors on the MAUs. Whether RJ-45 or RJ-11 male connectors are used,
the transmit and receive pins are always the four center pins in the connector,
as shown in Figure 1-1.
IMPORTANT NOTE:
The cable used with your MAUs must have at least two twisted pairs of
wire for data, no matter what cable type is used. This means a minimum
of four separate wires, whether or not you will use all four. The cable
must be wired straight-through, as shown in Figure 1-2. Do not connect
transmit and receive wires in the same twisted pair of wires.
ABCD
A
B
C
DD
A
C
B
A, B, C, and D represent the four center pins of the RJ45 connector.
A & D in the same pair
B & C in the same pair
Pin 6
Pin 3
Figure 1-2. Correct RJ-45 connector and cable wiring.

11
16-PORT TYPE 3 MAU
1.2.1 A UTOMATIC W RAP OF R ING I N AND R ING O UT
When no connector is inserted into Ring In or Ring Out ports, the port will
automatically wrap, or loop back, to utilize the backup path. The backup path
is described in Section 4.1, Installation Background.
1.2.2 L OBE -P ORT I NITIALIZATION
The station ports can be in an incorrect state for station attachment, and if
they are, the MAU will be inoperable until the ports are reset. Use the reset
button to reset them.
The Reset button on the front panel is used to align the relays in all inactive
station ports so they are ready for operation. This feature is powered by a
replaceable battery.
To operate the port-reset feature, press the Reset button. When the LED
above the Reset button lights, it indicates that the battery is operable and that
all inactive station ports will be aligned. Ports with active stations on them will
not be disturbed.
1.3 Cable Specifications
1.3.1 C ATEGORY 5 C ABLE
This cable has been defined by the EIA/TIA as the cable of choice for data
applications up to 100 Mbps. See EIA/TIA specification #568 A/B for
building wiring recommendations.
• UTP and STP available
• 22 and 24 gauge generally available
• Impedance 100 ohms (15% from 512 kHz to 100 MHz)
• Maximum attenuation is 67.0 dB per 1,000 at 100 MHz.

12
16-PORT TYPE 3 MAU
1.3.2 T YPE 3 C ABLE
The Type 3 cable used with the MAU should be standard twisted-pair
telephone building wire. Recommended wire gauge is 24 or 22 AWG, Belden
9562 or equivalent. The following requirements should be met:
• Solid copper twisted pairs, with at least two twists per foot
• A maximum DC resistance of 28.6 ohms per 1000 feet
• Characteristic impedance:
- 90 to 120 ohms at 256 kHz
- 87 to 117.5 ohms at 512 kHz
- 85 to 114 ohms at 772 kHz
- 84 to 113 ohms at 1000 kHz
• Maximum attenuation per 1000 feet:
- 4.00 dB at 256 kHz
- 5.66 dB at 512 kHz
- 6.73 dB at 772 kHz
- 8.00 dB at 1000 kHz
NOTE
Commonly available consumer telephone cable, sometimes called “flat
cable” or “silver satin,” should not be used. This type of cable can
drastically reduce the cable lengths possible in your network. Exceptions
to this are the patch cables used to connect MAUs in the same wiring
closet in 4 Mbps networks; they may be made of this type of cable, but
they should be no more than three feet in length. In 16-Mbps networks,
however, silver satin of any length should not be used.

13
16-PORT TYPE 3 MAU
Electrical Interference
Because Type 3 cable is unshielded, care must be taken to avoid areas of
electrical disturbance. Some examples of sources of electrical disturbance are:
• Fluorescent lights
• Power cables
• Electric motors
• Radio transmitters

14
16-PORT TYPE 3 MAU
2. Introduction
This user’s guide covers the 16-Port Type 3 MAU, which has 16 RJ-45
connectors.
2.1 Token Ring Background
Computer users have become less and less dependent on large centralized
computing systems because of continuing increases in the processing power
of microcomputers and minicomputers. Interconnecting micros, minis and
mainframes into Local Area Networks (LANs) for the purpose of resource
sharing and peer-to-peer communications can improve user productivity
within office environments.
The IBM®Token-Ring Network is a network system that allows
interconnection of PCs and their associated devices, in addition to allowing
interconnection of PCs to minicomputers and mainframes.
The IBM Token-Ring Network conforms to the IEEE 802.5 Token Ring
Access Method standard. Other token ring networks conform to this standard
as well.
The topology of the IBM Token-Ring Network is known as a “star-wired
ring.” The devices on the ring are attached to a single, unidirectional loop,
and the loop is wired in a physical star. See Figure 2-1.

15
16-PORT TYPE 3 MAU

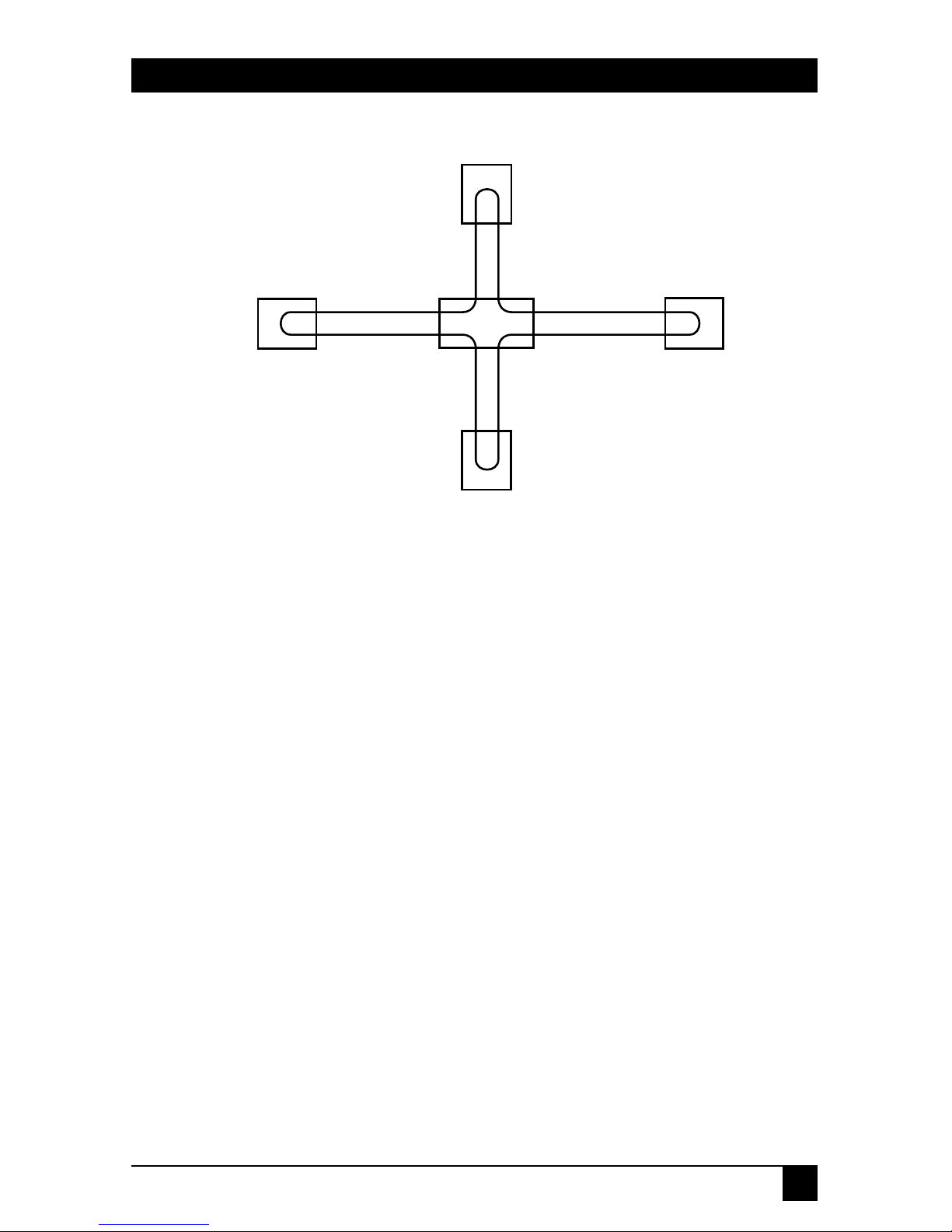

Figure 2-1. Star-wired topology
Each device on the ring is known as an attaching device. Each attaching
device is connected to a wiring concentrator, or multistation access unit
(MAU). The cable between the MAU and the attaching device is known as a
lobe.
The purpose of a MAU is to isolate its attaching devices from the main data
path of the ring. In this way, a problem occurring on the device side of the
MAU will not usually affect the operation of the entire ring. Also,
concentrating station connections in a small area aids troubleshooting. A PC
interfaces the network through the use of a token-ring adapter, which is a
card installed in the PC. When the adapter receives the token and has no data
to transmit, it electrically regenerates the token and sends it to the next
device on the line.
Attaching
Device MAU Attaching Device
Attaching
Device
Attaching
Device

16
16-PORT TYPE 3 MAU
The term “token” comes from the access scheme of the network. A unique
bit sequence, or token, is continuously passed from device to device in
sequence. Only one token is on a ring at one time. When a device needs
access to the network, it must wait until it receives the token. The device will
then append to the token the data it wishes to transmit, and the token
becomes a frame. After the frame is transmitted to its destination, it returns to
the original sender, which confirms that it was received. The sending station
then releases a free token. (In a 16-Mbps ring, the sequence can be slightly
different from what is given here, but the basic concepts are the same.) The
first token is made by the first device turned on in the network.
To gain access to the network, the adapter in an attaching device presents a
small current to the MAU. When the MAU senses this current, a relay is
opened and the attaching device is connected to the ring.
The network consists of the adapters, the MAUs and the cabling that
connects them.
One or more of the devices (for example, a powerful PC or an AS/400®) are
typically designated as file servers; other workstations can then access or
download files from the servers. The token ring can use communications
software such as E-mail to facilitate communications among workstations on
the ring.
Using IBM Cabling System Type 3 cable (unshielded twisted pair), up to 72
attaching devices (printers, processors, controllers) may be attached to a
single ring.
Using Type 1 or Type 2 cable, up to 260 attaching devices may be attached
to a single ring.
With Type 3 cabling, up to eight MAUs may be used in a single ring. With
Types 1 or 2 cable, up to 33 MAUs may be used.
Many more devices may be interconnected using source-routing token-ring
bridges (between rings) and gateways (between token-ring and non-token-
ring communications environments, such as the IBM 5250 system).

17
16-PORT TYPE 3 MAU
2.2 MAUs
Features
• Full compatibility with the IBM Token-Ring Network.
• Inexpensive Type 3 cable may be used in addition to Types 1 and 2 cable.
You may also use UTP or STP 100-ohm Category 5 cable.
• RJ-45 connectors.
• Diagnostic LEDs.
• Terminal (lobe) ports on MAU are initialized with a front-panel
pushbutton, eliminating the need for a separate port setup tool.

18
16-PORT TYPE 3 MAU
3. Installation
3.1 Installation Background
This section gives general information on planning the network using MAUs,
and later sections will cover the installation of the MAU.
Before installing your MAUs and attaching devices, it is very important that
the network be carefully planned. The most important factors for the physical
part of the network are:
• Main ring length and distance between MAUs
• Length of the lobes attaching MAUs to devices
• Number of wiring closets
• Verifying that the proper type of cable is used (see Section 1.3, Cable
Specifications)
• Safeguarding against electrical interference, especially when Type 3 cable
is used.
A copy of the floor plans of the buildings that will use the token-ring
network will help greatly in planning the installation.
NOTE
When using Type 3 cable with 4-Mbps token rings, Black Box®Media
Filters (part number LT057) must be used to take full advantage of the
lobe lengths stated in this chapter. When using Type 3 cable at 16Mb,
Media Filters must be used. Using another brand of media filter may
result in decreased lobe length.

19
16-PORT TYPE 3 MAU
3.1.1 M AIN R
ING
When multiple MAUs are used in a token-ring network, the main ring consists
of the cable between the MAUs. The length of the main ring is critical to
proper network operation. The main ring does not include the cable from
MAUs to their attaching devices (these cables are called lobes).

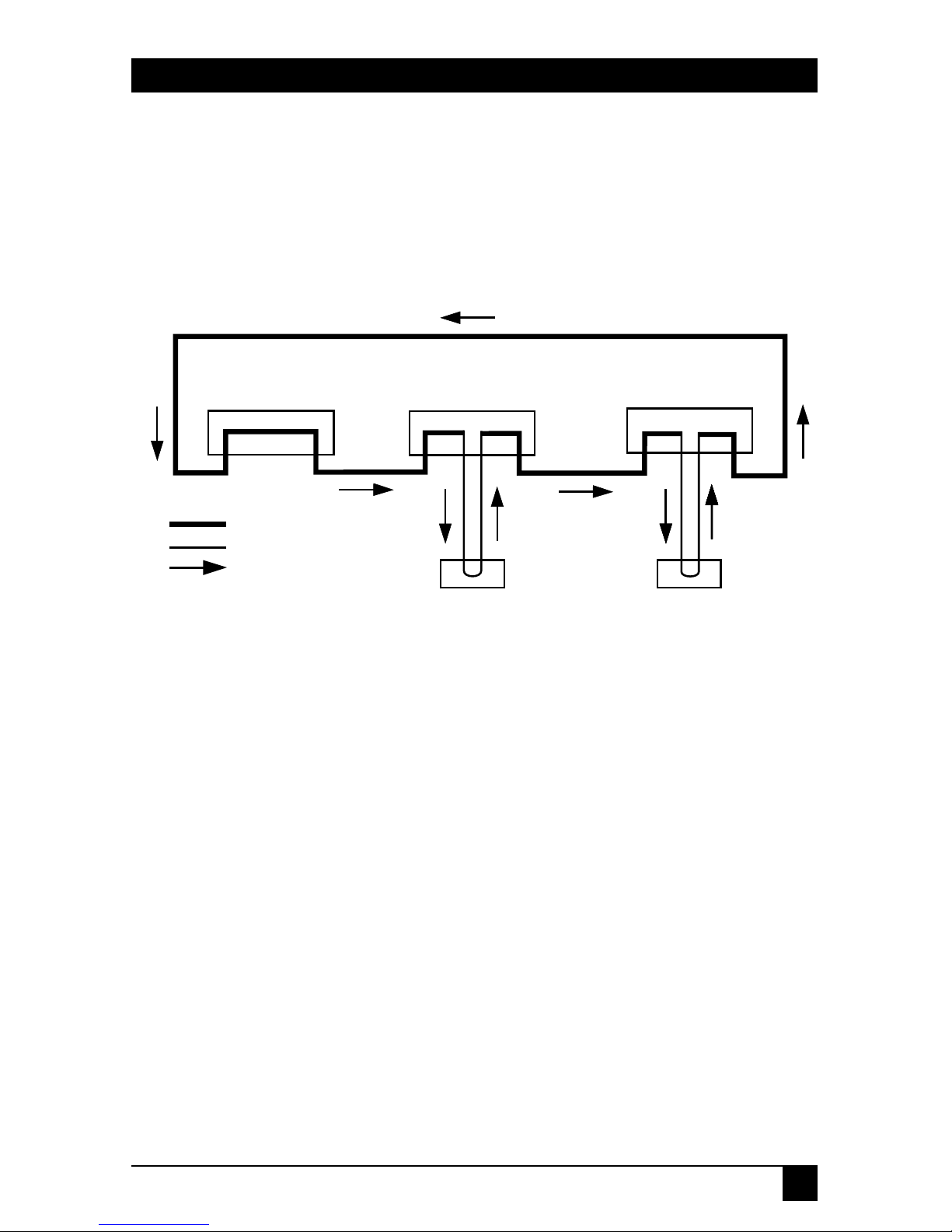

Figure 3-1. Main Ring.
If there is only one MAU for the entire ring, the main ring can be
considered to have no length for installation purposes.
Main Ring
Lobe
Signal Direction
MAU 3
Attaching
Devices
MAU 1 MAU 2

20
16-PORT TYPE 3 MAU
3.1.2 B ACKUP P ATH
In a normal configuration, there is an unused pair of wires in the twisted-pair
cable used in the network. This extra pair of wires, used with a backup circuit
inside the MAUs, is called the backup path.
Main Path
Backup Path
MAU 3
Attaching
Devices
Ring Out
Looped
Back
Ring In
Looped
Back
MAU 1 MAU 2
Figure 3-2. Backup path.
The backup path is designed to enable the network to continue to operate
while a problem such as a faulty cable or MAU is being repaired.
For example, if a breakdown occurs in the cable between MAU 1 and MAU
2 as in Figure 9, the rest of the ring will remain in operation if the backup
path is used. Note that when the backup path is used, it becomes part of the
main ring and its length must be included in the main ring length. In most
situations, the network should be designed to allow the backup path to be
used. The backup path is automatically used by the MAU when no connector
is inserted in Ring In or Ring Out ports.

21
16-PORT TYPE 3 MAU
The length of the main ring is critical to the proper operation of the token-
ring network. If the network is designed without taking the length of the
backup path into consideration, the backup path may not be usable if it is
needed. It may force the signal to be transmitted so far that attenuation
makes it unreadable.
When the network is first activated at the start of a business day, it may
consist of only one active attaching device connected to the main ring. For
this example, assume that the attaching device is on the longest lobe.
MAU
100 feet 50 feet
150 feet
50 feet
x 2
Longest
Lobe
Attaching
Device
Actual transmission path distance:
(50 x 2) + 150 + 50 + 100 = 400 feet
MAU
MAU

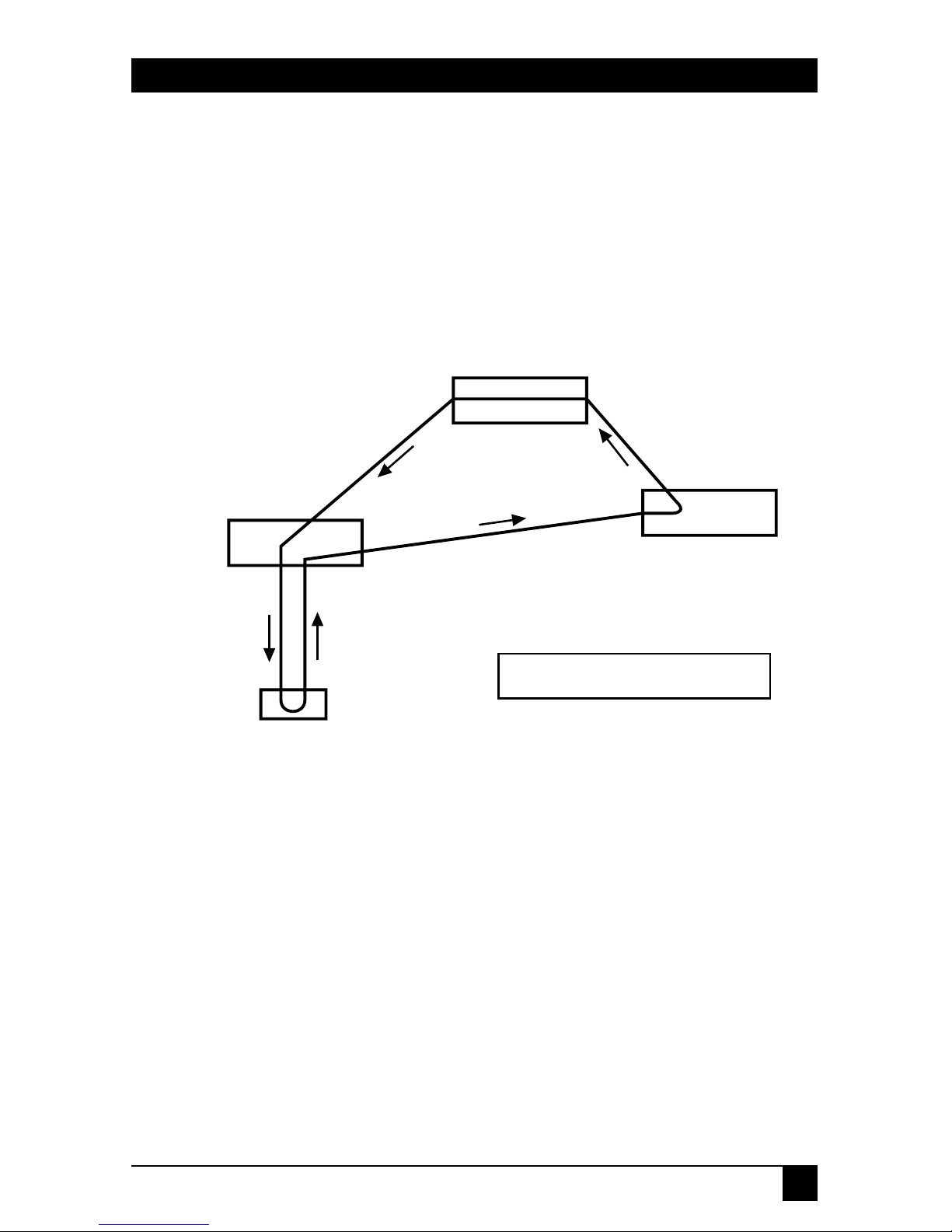

Figure 3-3. Main ring and first device. The backup path is not in use.
