FX156C
FX157A
Lineshare Master — 4
Lineshare Rack
48
47
46
45
44
40
36
32
28
24
20
16
12
8
4
43
39
35
31
27
23
19
15
11
7
3
42
38
34
30
26
22
18
14
10
6
2
41
37
33
29
25
21
17
13
9
5
1
LineShare Master-4

3
FCC STATEMENT
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
Class B Digital Device. This equipment has been tested and found to comply with the
limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a
residential installation. However, there is no guarantee that interference will not occur
in a particular installation. This equipment generates, uses, and can radiate radio
frequency energy, and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. If this equipment does
cause harmful interference to radio or telephone reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult an experienced radio/TV technician for help.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
To meet FCC requirements, shielded cables and power cords are required to connect
this device to a personal computer or other Class B certified device.

4
LINESHARE MASTER-4, LINESHARE RACK
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como
sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por los
orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de
calor como radiadores, registros de calor, estufas u otros aparatos
(incluyendo amplificadores) que producen calor.

5
NOM STATEMENT
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del
aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en
su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

6
LINESHARE MASTER-4, LINESHARE RACK
TRADEMARKS
All applied-for and registered trademarks are the property of their respective
owners.

7
TABLE OF CONTENTS
CONTENTS
1. Specifications................................................................................8
2. Introduction .................................................................................9
2.1 Before You Begin.................................................................9
2.2 About the Lineshare Master-4.............................................9
3. Installation....................................................................................11
3.1 Lineshare Master-4 Rack Rear Panel..................................11
3.2 Installing the Lineshare Master-4 on Dedicated
Data Lines ............................................................................14
3.3 Installing Circuit Boards in the Lineshare Master-4..........16
3.4 Powering On the Unit .........................................................16
4. Using the Lineshare Master-4......................................................18
4.1 Setting the Calling Tones....................................................18
4.2 Using the Reverse Modem Tone ........................................19
5. Using the Lineshare Master-4 Custom Functions ......................21
5.1 Using the Programming Mode ...........................................21
Changing Functions............................................................24
[1] Tone Time.....................................................................24
[2] Silence Time.................................................................24
[3] Time Before First Tone ...............................................25
[4] Number of Tones.........................................................25
[6] Call Hold Function ......................................................26
[9][9][9] Reset to Factory Settings...................................27
5.2 Calculating the Timing Parameters....................................27

8
LINESHARE MASTER-4, LINESHARE RACK
1. Specifications
Leads Supported — 4 sets of
Tip/Ring
Power — 120 VAC for FX157A
Size — FX157A: 7"H x 19"W x 15"D
(17.8 x 48.2 x 38.1 cm)
Weight — FX156C: 2 lb. (0.9 kg),
FX157A: 28 lb. (12.7 kg)
Number of Ports — 4 dispatchers in
one card
Indicators — 4 power/device port
Programming — From DTMF tones
of phone
Ringer Equivalency — 1.0 B, DOC
load=30
Interface Type — 2-wire (tip/ring)

9
LINESHARE MASTER-4, LINESHARE RACK
2. Introduction
2.2 About the Lineshare Master-4
The Lineshare Master-4 is a state-of-
the-art device that produces a variety
of routing tones on outbound phone
calls. It is designed to work in
conjunction with a modem, fax, or
any type of automatic- or manual-
dial telephone device. The
Lineshare Master-4 allows any fax
or modem device to automatically
route calls through line-sharing
devices that detect fax CalliNG
(CNG) tones, reverse modem tones,
or various single-frequency tones.
The Lineshare Master-4 works best
when installed between the
telephone company’s line and a fax
or modem device. The Lineshare
Master-4 allows connection of up to
48 individual telephone lines, and
up to 48 individual modems (or
other telephone devices). When a
device accesses the telephone line
through the Lineshare Master-4, the
unit pauses until dialing is complete.
It then places the calling device on
hold and transmits a series of user-
selectable calling tones.
When used in conjunction with a
Lineshare Pro (part number FX150A
or FX150A-D48), the Lineshare
Master-4 can access multiple
modem-type devices on a single
phone line.
2.1 Before You Begin
This guide introduces you to the
various installation and operational
procedures for using the Lineshare
Master-4.
Read through this guide and select
the installation procedures
appropriate for your specific
application before attempting to
connect or operate the Lineshare
Master-4.
NOTE
We recommend surge
protection for all telecom-
munications devices. Use
surge suppressors and/or
line-conditioning devices on
the input power supply, as
well as the connected
telephone line.

10
LINESHARE MASTER-4, LINESHARE RACK
NOTE
The Lineshare Pro is a four-
port line-sharing device
designed to identify and
route any specified tone
produced by the Lineshare
Master-4.
Read through the rest of this
guide to learn how to properly
operate the Lineshare Master-4.

11
LINESHARE MASTER-4, LINESHARE RACK
3. Installation
• additional telephone cables—
typically supplied with
equipment by the manufacturer.
You need additional telephone
cables (part number EL04M-00)
for as many pieces of equipment
as you intend to connect to the
Lineshare Master-4.
• extension cables—required if the
connecting equipment is not
located near the Lineshare
Master-4.
3.1 Lineshare Master-4 Rack Rear
Panel
The rear panel of the Lineshare
Master-4 Rack has four 24-pair telco
connectors, a one-amp fuse, a power
input port, and a system ground, as
shown in Figure 3-1.
Before you install the Lineshare
Master-4, connect all phone lines
and modems (or other telephone
devices) to the patch panels and
amphenol connectors in their
proper configuration. Although your
configuration may vary, all phone
lines and telephone devices connect
to the Lineshare Master-4 the same
way.
CAUTION
Do not connect all
telephones in an office
environment through the
Lineshare Master-4. During
power failure, the unit will
not pass the telephone line
through to the phones.
To perform the installation
procedures in the following sections,
you may need the following
equipment:
• up to four 24-pair telco cables
(part number ELN25T-0000-MF)
• up to two 48-pair patch panels
(part number JPM002)

12
LINESHARE MASTER-4, LINESHARE RACK

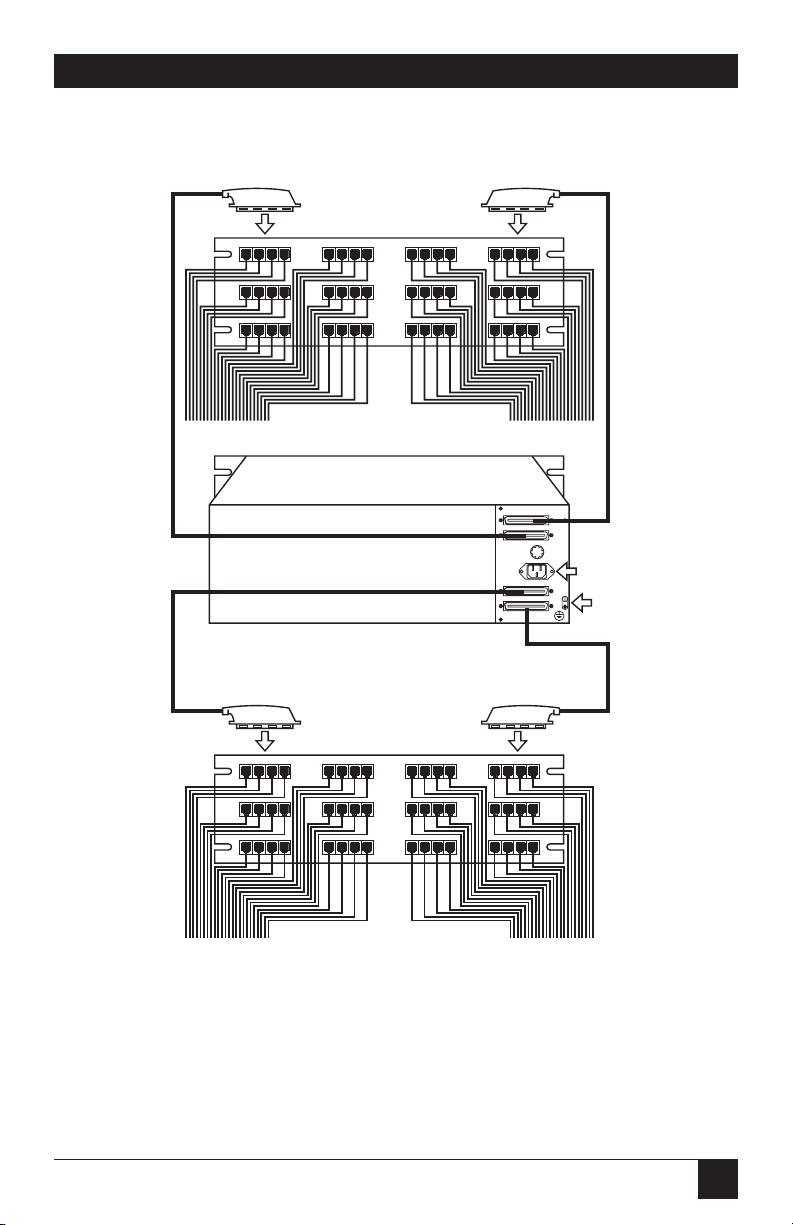

Figure 3-1. Rear Panel of the Lineshare Master-4 Rack.
F
U
S
E
•
F
U
S
E
•
F
U
S
E
•
1 AMP
120 VAC
MODEM PAIR 1-24
MODEM PAIR 25-48
TELCO PAIR 1-24
TELCO PAIR 25-48

13
LINESHARE MASTER-4, LINESHARE RACK
Connect the telephone equipment
to the Lineshare Master-4 Rack as
follows:
Connect up to 48 modems using 24-
pair telco cables between a patch
panel and these connectors.
Replace (when necessary) with a one
amp fuse.
Connect the external 120-VAC
power supply to this power input.
Connect up to 48 telephone lines
using 24-pair telco cables between a
patch panel and these connectors.
Connect the system ground at this
point.
F
U
S
E
•
F
U
S
E
•
F
U
S
E
•
Figure 3-2. Connecting the Telephone Equipment to the Lineshare
Master-4.

14
LINESHARE MASTER-4, LINESHARE RACK
3.2 Installing the Lineshare Master-
4 on Dedicated Data Lines
Figure 3-3 shows the Lineshare
Master-4 installed on dedicated data
lines.
To install the Lineshare Master-4
in this application, perform the
following steps:
1. Connect your phone lines to the
RJ-11 side of a patch panel.
2. Plug one end of the 24-pair telco
cable into the top right telco
connector on the back of the
patch panel.
3. Plug the other end of the 24-pair
telco cable into the telco
connector on the back of the
Lineshare Master-4 labeled
“TELCO PAIR 1-24.”
If you are using more than 24
phone lines, repeat steps 1
through 3 for the phone lines
and appropriate connectors
numbered 25-48.
4. Connect your modems to the
RJ-11 side of the patch panel.
5. Plug one end of the 24-pair telco
cable provided into the top right
telco connector on the back of
the patch panel.
6. Plug the other end of the 24-pair
telco cable into the telco
connector on the back of the
Lineshare Master-4 labeled
“MODEM PAIR 1-24.”
If you are using more than 24
phone lines, repeat steps 4
through 6 for the modems and
appropriate connectors
numbered 25-48.

15
LINESHARE MASTER-4, LINESHARE RACK
Figure 3-3. Connecting the Lineshare Master-4 to Dedicated Lines.
F
U
S
E
•
F
U
S
E
•
F
U
S
E
•
To Modem Set 1-24 To Modem Set 25-48
To Phones 1-24 To Phones 25-48
Connect this end of the Amphenol
cable to the upper connector on
the back of the patch panel.
Connect this end of the Amphenol
cable to the lower connector on
the back of the patch panel.
Connect this end of the Amphenol
cable to the upper connector on
the back of the patch panel.
Connect this end of the Amphenol
cable to the lower connector on
the back of the patch panel.
To Power
Supply
To System
Ground

16
LINESHARE MASTER-4, LINESHARE RACK
3.3 Installing Circuit Boards in the
Lineshare Master-4
The Lineshare Master-4 is capable of
handling up to 12 circuit boards.
Each circuit board contains four
individual Lineshare Master units.
Each unit is capable of connecting a
single phone line and a modem-type
device. Figure 3-4 shows a Lineshare
Master-4 circuit board.

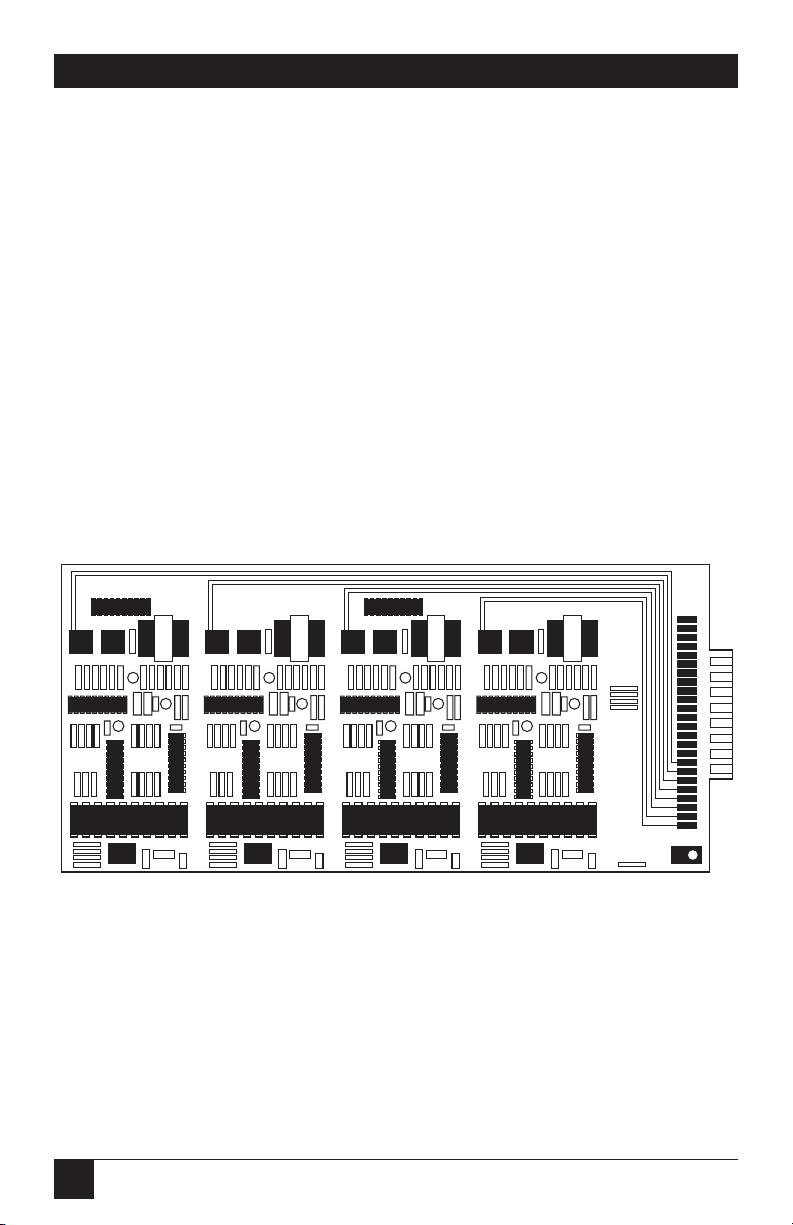

Figure 3-4. The Lineshare Master-4 Circuit Board.
#4 #3 #2 #1
3.4 Powering On the Unit
Plug the appropriate end of an AC
power cord into the power input
port labeled 120 VAC on the back of
the unit. Plug the other end into its
proper power source.
The Lineshare Master-4 begins a
self-test soon after power is applied.
When the Lineshare completes its
self-check, the PORT LEDs remain
ON.
NOTE
The LINE must be installed
for the unit to pass the self-
test and show proper
indication of LED ON.

17
LINESHARE MASTER-4, LINESHARE RACK
You can remove a circuit board
after removing the back panel by
gently pulling the board straight out
the back. You can replace a board by
inserting the new board into the
proper slots and gently pushing it to
the front of the unit. Figure 3-5
shows circuit boards installed in the
Lineshare Master-4.
Figure 3-5. The Lineshare Master-4’s Removable Circuit Boards.
NOTE
The circuit board closest to
the rear panel (far right) is
the number 1 circuit board.

18
LINESHARE MASTER-4, LINESHARE RACK
4. Using the Lineshare Master-4
4.1 Setting the Calling Tones
By dialing the * key and one of the
eight allowable digits at the end of a
phone number, you can set the
Lineshare Master-4 to produce the
following tones:
0 = 1000hz tone
1 = 1100hz tone (typically fax
CNG tone)
2 = 1200hz tone
3 = 1300hz tone
4 = 1400hz tone
5 = 1500hz tone
6 = 1600hz tone
9 = 2225hz tone (typically reverse
modem tone)
The factory setting is 2225hz with
the unit turned on.
If all calls from this system are to
transmit the same calling tone, it is
not necessary to enter the * after
each telephone number. The
Lineshare Master-4 retains the
previous command in memory and
will send the same tone on every call.
If power fails, the Lineshare Master-4
will maintain the previous settings
once power is restored.
When a device dials a tone phone
number through the Lineshare
Master-4, the unit starts a two-second
timer each time it detects a tone.
This continues until the two-second
timer expires without detecting a
tone. The Lineshare Master-4 then
places the calling device connected
to the unit on hold. It then begins to
transmit a series of calling tones (the
frequency of the tone depends on
user settings). If the Lineshare
Master-4 detects an answer carrier
from a fax or modem, it immediately
stops transmitting the calling tones
and releases the line to the calling
device.
You can turn the Lineshare
Master-4 on or off using tone
commands. To turn the Lineshare
Master-4 on, press # *. Once you
enter the # * command, the
Lineshare Master-4’s timing registers
are activated. To turn the Lineshare
Master-4 off, press # #.
You can also use tone commands
in the following ways:
• to enter the programming mode
• to set calling tones
• to set timing registers
• to use the Call Hold Function
• to reset factory settings

19
LINESHARE MASTER-4, LINESHARE RACK
NOTE
All of the tones produced by
the Lineshare Master-4 can
be used on an outbound call
for routing purposes.
However, they work best
when used in conjunction
with the Lineshare Pro.
To set the tone frequency for the
Lineshare Master-4 transmissions,
enter the * and a single digit 0
through 6 or 9 at the end of a phone
number. The digit you enter sets the
tone frequency.
For example, pressing * 1 at the
end of a phone number (555-
1234*1) will send a fax (CNG) tone.
This allows the Lineshare Master-4 to
produce CNG tones for a fax
machine that cannot produce the
tone. With the help of the Lineshare
Master-4, your fax machine can
automatically access other fax
machines that use a line-sharing
device to detect and route according
to the CNG tone.
In the same way, pressing * 9 at
the end of a phone number will send
a series of 2225hz reverse modem
tones. This allows the Lineshare
Master-4 to produce reverse modem
tones for modems that cannot
produce the tones. With the help of
the Lineshare Master-4, your modem
can automatically access other
modems that use a line-sharing
device to detect and route according
to the reverse modem tone.
4.2 Using the Reverse Modem Tone
To route through a line-sharing
device using the reverse modem
tone, perform the following steps:
1. Set each modem to normally
send and receive calls. Do not set
either of the modems in the
Reverse Modem mode.
2. Turn on the reverse modem
detection feature in the line-
sharing device that is receiving
the call from the modem/
Lineshare Master-4 combination.
3. At the end of the phone number
in the modem’s communication
software, enter the * 9
command.
4. Place the call using the modem’s
communication software.
The calling modem then accesses
the phone line through the
Lineshare Master-4 and dials the
number of the receiving modem.
The Lineshare Master-4 detects the
* 9 and sets the tone emulation
register to transmit the 2225hz tone.
Three seconds after the last digit (9)
is dialed, the Lineshare Master-4
begins transmitting a series of
2225hz tones.

20
LINESHARE MASTER-4, LINESHARE RACK
When the line-sharing device
answers the call, it detects the
reverse modem tone from the
Lineshare Master-4 and routes the
call to the receiving modem. When
the receiving modem answers the
call, the Lineshare Master-4 detects
its carrier signal and releases the line
to the calling modem. The two
systems then establish their
communications link.

21
LINESHARE MASTER-4, LINESHARE RACK
5. Using the Lineshare Master-4’s
Custom Functions
To change the Lineshare Master-
4’s functions, we recommend using
the following steps:
1. Using Table 5-1, write down the
sequence of changes.
2. Enter the programming mode.
3. Change the functions.
The following sections explain
how to enter the programming
mode and change the functions.
5.1 Using the Programming Mode
To enter the programming mode,
perform the following steps:
1. Make sure that the telephone
line from the phone company is
connected to the patch panel,
and then to the Lineshare
Master-4.
2. Plug a tone phone into the
appropriate RJ-11 jack on the
modem patch panel in place of
the modem.
3. Pick up the phone receiver and
make sure you hear dial tone.
4. Within five seconds, press and
release the * key and then the #
key on the telephone keypad.
The Lineshare Master-4 includes
many options that enable you to
customize its operation to meet
specific application needs. The
programmable functions offered by
the Lineshare Master-4 allow you to
change the length of its tones, time
between tones, time before the first
tone, number of tones to transmit,
and the call-hold feature.
The Lineshare Master-4’s
functions are factory-preset, and it is
unlikely that you will need to make
many changes. However, if you
desire, you can alter any program by
using a tone phone connected to the
appropriate RJ-11 jack on the patch
panel. The Lineshare Master-4
cannot be programmed with a
rotary/pulse dialing phone.
NOTE
Before attempting to
program any function, we
recommend that you first
thoroughly read the
programming procedures.
Then read “Changing
functions” in Section 5.1 and
decide if you want to make
changes.
