Black Box AVSW-HDMI2X1A User manual

BL A C K B O X®
Share one HDMI display output (monitor,
projector, or TV) between multiple HDMI inputs.
Models available with or without serial and 3.5-mm audio.
2 x 1 and 4 x 1 HDMI Video Switches
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
PA 15055-1018 • Web site: www.blackbox.com • E-mail: [e-mail]
Customer
Support
Information
AVSW-HDMI2X1A
AVSW-HDMI4X1A
AVSW-HDMI2X1
AVSW-HDMI4X1

Page 2 724-746-5500 | blackbox.com AVSW-HDMI2X1A
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

Page 3
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.

Page 4 724-746-5500 | blackbox.com AVSW-HDMI2X1A
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Blu-ray is a trademark of the Blu-ray Disc Association.
Xbox is a trademark of Microsoft Corporation.
Wii is a trademark of Nintendo.
PS3 is a trademark of Sony Computer Entertainment, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Table of Contents
Contents
Chapter Page
1. Specifications............................................................................................ 7
2. Overview ..................................................................................................8
2.1 Introduction ..................................................................................8
2.2 Features......................................................................................... 8
2.3 What’s Included ............................................................................ 8
2.4 Hardware Description.................................................................. 10
2.4.1 ..... AVSW-HDMI2X1A......................................................... 10
2.4.2 .... AVSW-HDMI4X1A......................................................... 11
2.4.3 .... AVSW-HDMI2X1 ........................................................... 12
2.4.4 .... AVSW-HDMI4X1 ........................................................... 13
3. Installation .............................................................................................. 14
3.1 Connection Pattern ..................................................................... 14
3.2 Installation Steps ......................................................................... 15
4. Operation ............................................................................................... 16
4.1 Front-Panel Indicators.................................................................. 16
4.2 Remote Control (Optional) .......................................................... 17
4.3 Serial Control (Optional).............................................................. 18
4.4 Function Button (Optional).......................................................... 19

Page 7
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 1: Specifications
1. Specifications
Maximum Video Resolution — AVSW-HDMI2X1A, AVSW-HDMI4X1A: Full HD
(1920 x 1080), WUXGA (1920 x 1200);
AVSW-HDMI2X1, AVSW-HDMI4X1: 1920 x 1080
Remote Control Support — AVSW-HDMI2X1A, AVSW-HDMI4X1A: Yes;
AVSW-HDMI2X1, AVSW-HDMI4X1: No
Serial Control Support — AVSW-HDMI2X1A, AVSW-HDMI4X1A: Yes;
AVSW-HDMI2X1, AVSW-HDMI4X1: No
Enclosure — Metal
User Controls — AVSW-HDMI2X1A: (2) Input push buttons;
AVSW-HDMI4X1A: (4) Input push buttons, (1) Function button;
AVSW-HDMI2X1, AVSW-HDMI4X1: (1) Input push button with integral LED
Connectors — AVSW-HDMI2X1A: Input: (2) HDMI female, (2) audio jacks,
Output: (1) HDMI female, (1) audio jack;
AVSW-HDMI4X1A: Input: (4) HDMI female, (4) audio jacks,
Output: (1) HDMI female, (1) audio jack;
AVSW-HDMI2X1: Input: (2) HDMI female,
Output: (1) HDMI female;
AVSW-HDMI4X1: Input: (4) HDMI female,
Output: (1) HDMI female
Indicators — AVSW-HDMI2X1A: (3) LEDs: (1) Power (green), (2) Video Output
(Yellow);
AVSW-HDMI4X1A: (5) LEDs: (1) Power (green), (4) Video Output (Yellow);
AVSW-HDMI2X1: (2) Active Input Port LEDs;
AVSW-HDMI4X1: (4) Active Input Port LEDs
Power — Power consumption (maximum): AVSW-HDMI2X1A: 3.0 W;
AVSW-HDMI4X1A: 4.5 W;
AVSW-HDMI2X1, AVSW-HDMI4X1: 5-VDC, 400 mA
Size — AVSW-HDMI2X1A, AVSW-HDMI4X1A: 1.4"H x 8.7"W x 3.9"D
(3.4 x 22 x 10 cm);
AVSW-HDMI2X1, AVSW-HDMI4X1: 0.8"H x 6.2"W x 2.6"D (2 x 15.7 x 6.5 cm)
Weight — AVSW-HDMI2X1A: 1.4 lb. (0.6 kg);
AVSW-HDMI4X1A: 1.6 lb. (0.7 kg);
AVSW-HDMI2X1, AVSW-HDMI4X1: 0.6 lb. (0.3 kg)

Page 8 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Chapter 2: Overview
2. Overview
2.1 Introduction
Use the HDMI Video Switch to quickly and easily share a single HDMI display with
a Blu-ray™player, HD-DVD, Xbox™, Wii™, PS3™, Satellite receiver, etc., from
multiple device inputs to one HDMI output device (monitor, projector, or TV).
You can select the desired input source via the remote control (audio models only)
within the range of 15 feet (5 meters) (depends on model) or push button located
on the switch. You never need to plug and unplug video sources, making your
A/V equipment more convenient, more affordable, and more efficient.
The built-in serial interface allows you to control the Video Switch through a PC,
serial controller device, or home theater system, integrating the whole A/V
environment (depends on model).
2.2 Features
• Allows two or four HDMI sources to be connected to one HDMI display.
• Front-panel buttons enable easy switching.
• Supports IR remote control (depends on model).
• Supports serial remote control (depends on model).
• LEDs show the active status of input Video (+ Audio) sources.
• Supports video resolution up to UXGA (1600 x 1200) / Full HD (1920 x 1080)/
WUXGA (1920 x 1200).
• Compatible with most of the popular screen resolutions to XGA, SXGA, UXGA,
WSXGA, WUXGA system.
• Supports HDCP for content protection.
NOTE: When using HDCP, do not swich ports. If you do, the HDCP will perform
content protection.
• Plug-and-play, no software required.
• HDMI 1.3 compatible.
2.3 What’s Included
Your package should include the following items. If anything is missing
or damaged, contact Black Box Technical Support at 724-746-5500
or [e-mail].

Page 9
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 2: Overview
AVSW-HDMI2X1A:
• 2 x 1 HDMI Video Switch with Audio
• Power adapter with required AC cord
• IR remote control
• This user’s manual
• Serial cable
• (1) set of foot pads
AVSW-HDMI4X1A:
• 4 x 1 HDMI Video Switch with Audio
• Power adapter with required AC cord
• IR remote control
• Serial cable
• This user’s manual
• (1) set of foot pads
AVSW-HDMI2X1:
• 2 x 1 HDMI Video Switch
• Power adapter with required AC cord
• This user’s manual
• (1) set of foot pads
AVSW-HDMI4X1:
• 4 x 1 HDMI Video Switch
• Power adapter with required AC cord
• This user’s manual
• (1) set of foot pads
You might also need (for AVSW-HDMI2X1A or AVSW-HDMI4X1A only):
• Audio cable (EJ110)
• 6-ft. (1.8-m) HDMI cable (M/M) for HDMI A/V source connection
(EVHDMI01T-XXXX)

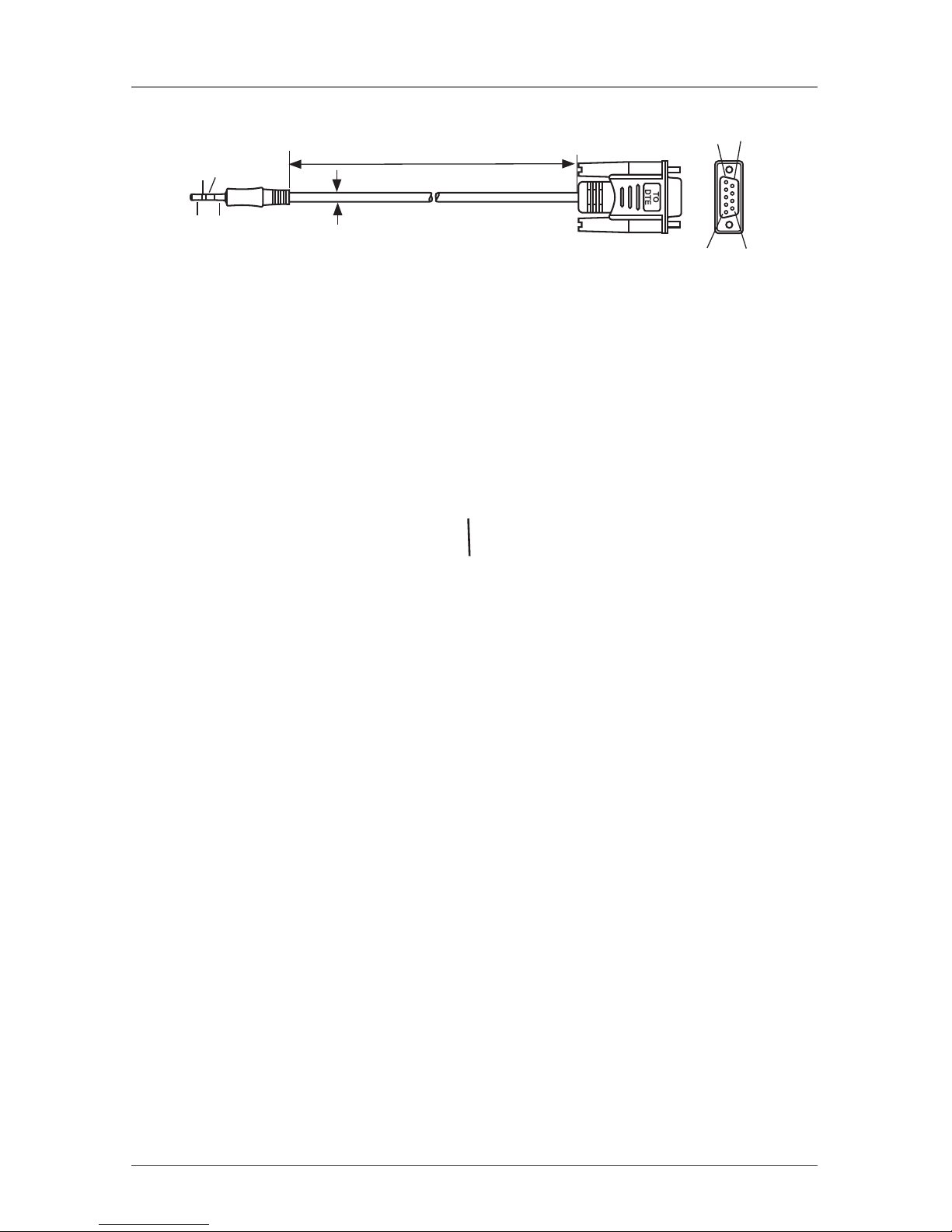

• Serial Cable (see page 19)

Page 10 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Chapter 2: Overview
2.4 Hardware Description
2.4.1 AVSW-HDMI2X1A

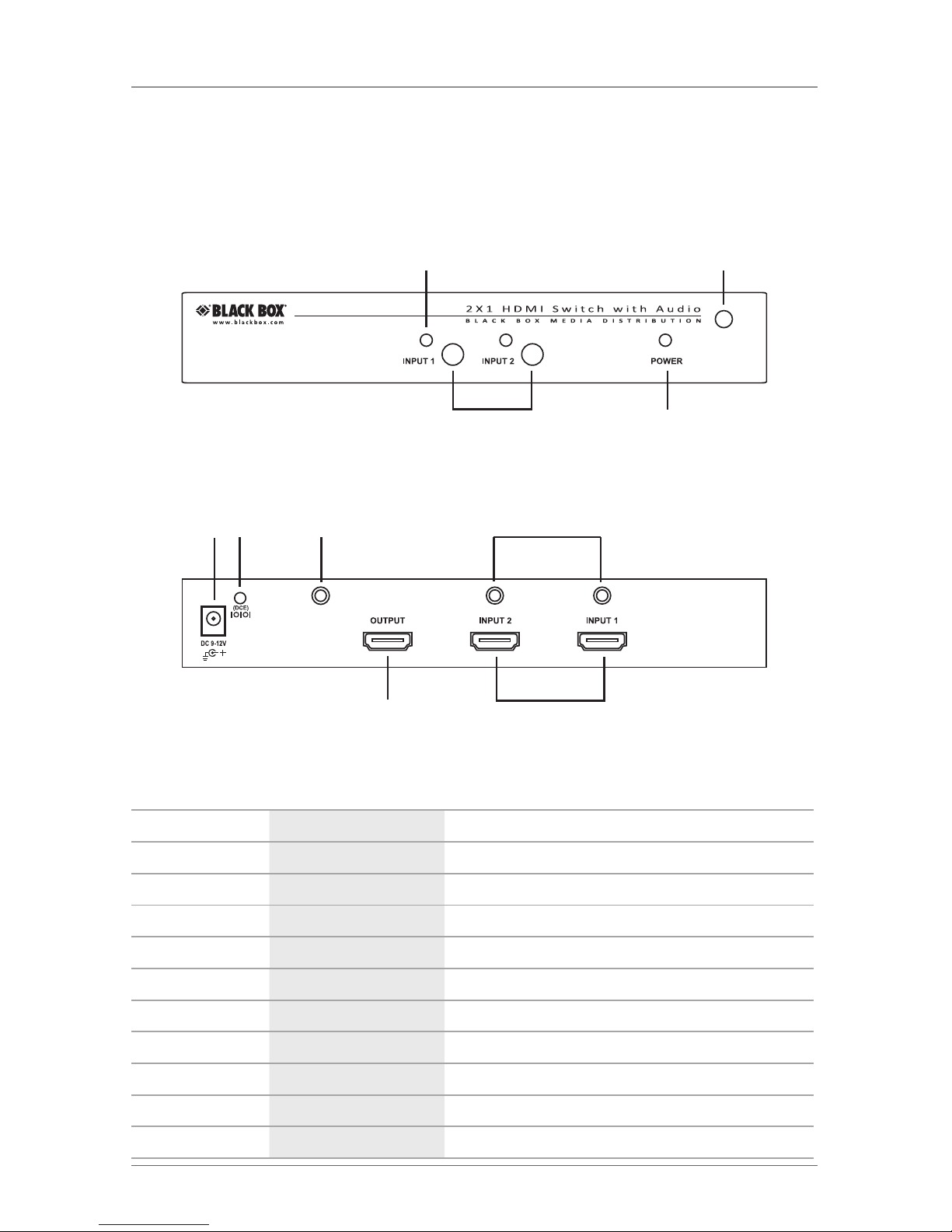

Figures 2-1 and 2-2 show the 2 x 1 Video Switch with Audio’s front and back
panels. Table 2-1 describes its components.
1
23
4
Figure 2-1. AVSW-HDMI2X1A front panel.
5 6 7 8
9 10
Figure 2-2. AVSW-HDMI2X1A back panel.
Table 2-1. Transmitter front- and back-panel components.
Number Component Description
1LED Lights when Input 1 is connected.
2Push buttons Press to select Input 1 or Input 2.
3LED Lights when power is on.
4Sensor IR sensor.
5Barrel connector Connects to power.
6DCE Serial control port.
73.5-mm connector Links to audio out.
83.5-mm connectors Link to audio inputs 1 and 2.
9HDMI connector Connects to HDMI output.
10 HDMI connectors Connects to HDMI inputs 1 and 2

Page 11
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 2: Overview
2.4.2 AVSW-HDMI4X1A

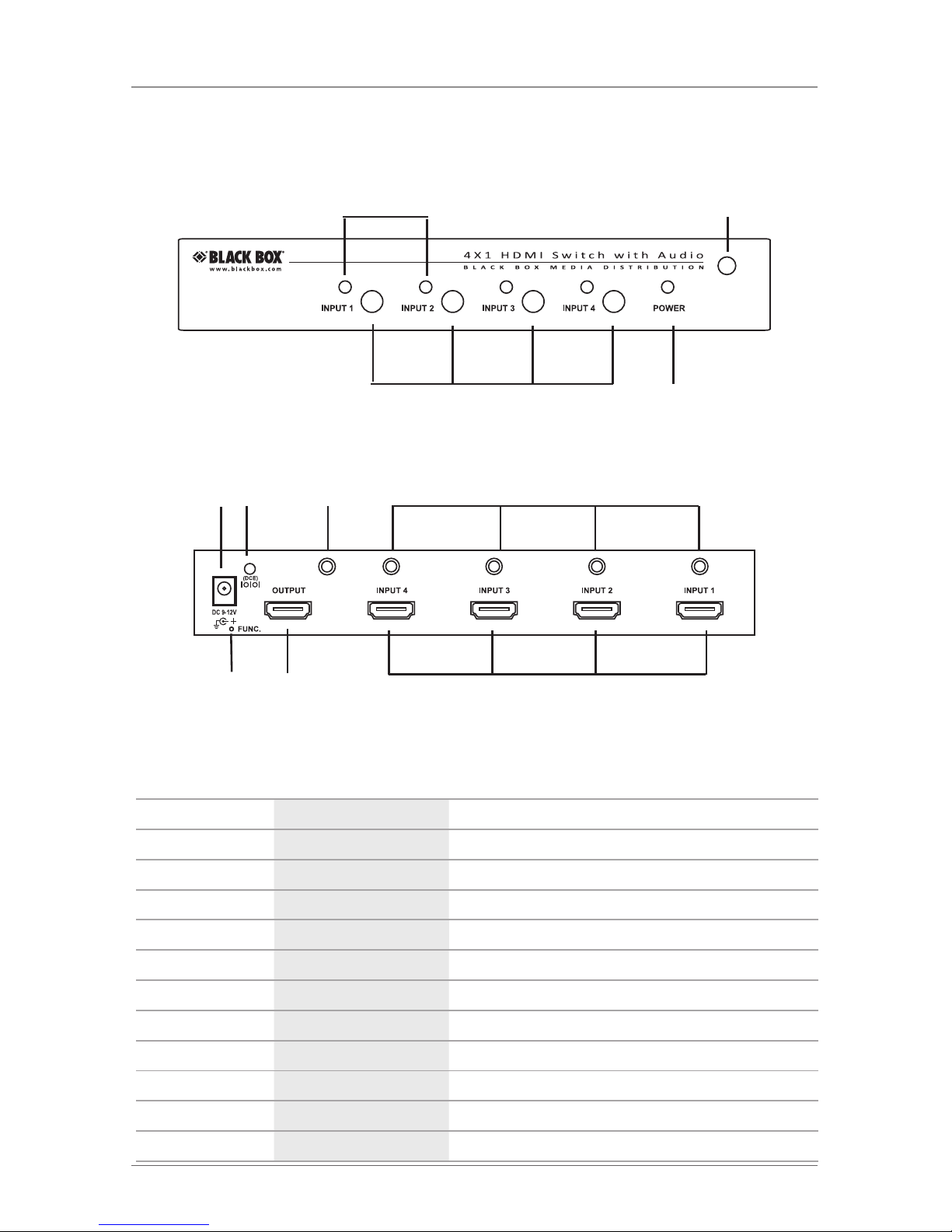

Figures 2-3 and 2-4 show the 4-Port Video Switch with Audio’s front and back
panels. Table 2-2 describes its components.
1
23
4
Figure 2-3. AVSW-HDMI4X1A front panel.
5 6 7 8
11 9 10
Figure 2-4. AVSW-HDMI4X1A back panel.
Table 2-2. Receiver front- and back-panel components.
Number Component Description
1LEDs Light when inputs are connected.
2Push buttons Press to select input 1, 2, 3, or 4.
3LED Lights when power is on.
4Sensor IR sensor
5Barrel connector Connect to power.
6DCE Serial control port.
73.5-mm connector Links to audio out.
83.5-mm connectors Link to audio inputs 1, 2, 3, and 4.
9HDMI connector Connects to HDMI output.
10 HDMI connectors Connect to HDMI inputs 1, 2, 3, and 4.
11 Function button Adjusts video signal strength.

Page 12 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Chapter 2: Overview
2.4.3 AVSW-HDMI2X1

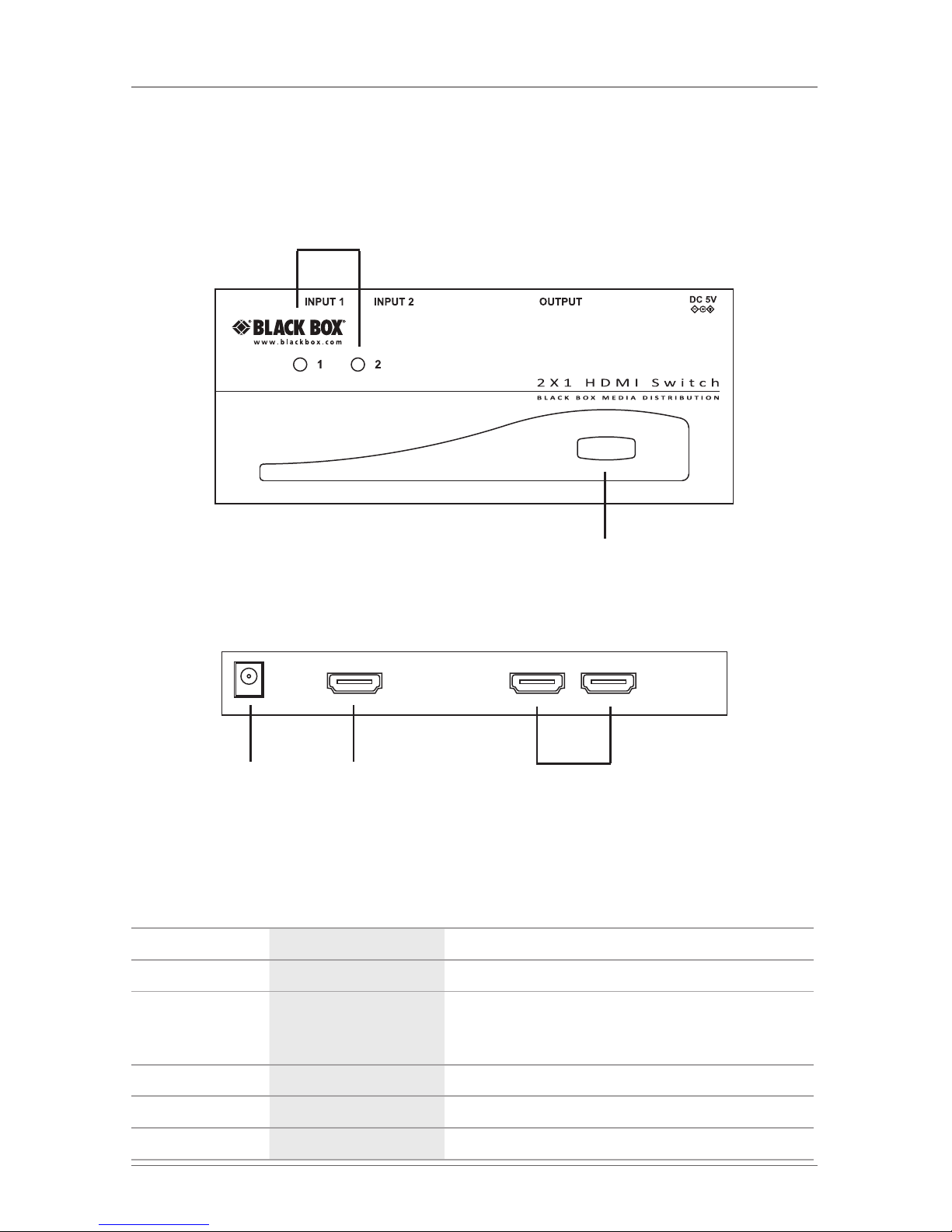

Figures 2-5 and 2-6 show the 2 x 1 Video Switch’s front and back panels. Table
2-3 describes its components.
2
1
Figure 2-5. AVSW-HDMI2X1 front panel.
3 4 5
Figure 2-6. AVSW-HDMI2X1 back panel.
Table 2-3. Transmitter front- and back-panel components.
Number Component Description
1LEDs Light when input 1 or input 2 is connected.
2Push button/LED Press this button to toggle the video source. The
corresponding LED lights to indicate that a port is selected.
3Barrel connector Links to power source.
4HDMI connector Connects to HDMI output.
5HDMI connectors Connect to inputs 1 and 2.

Page 13
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 2: Overview
2.4.4 AVSW-HDMI4X1

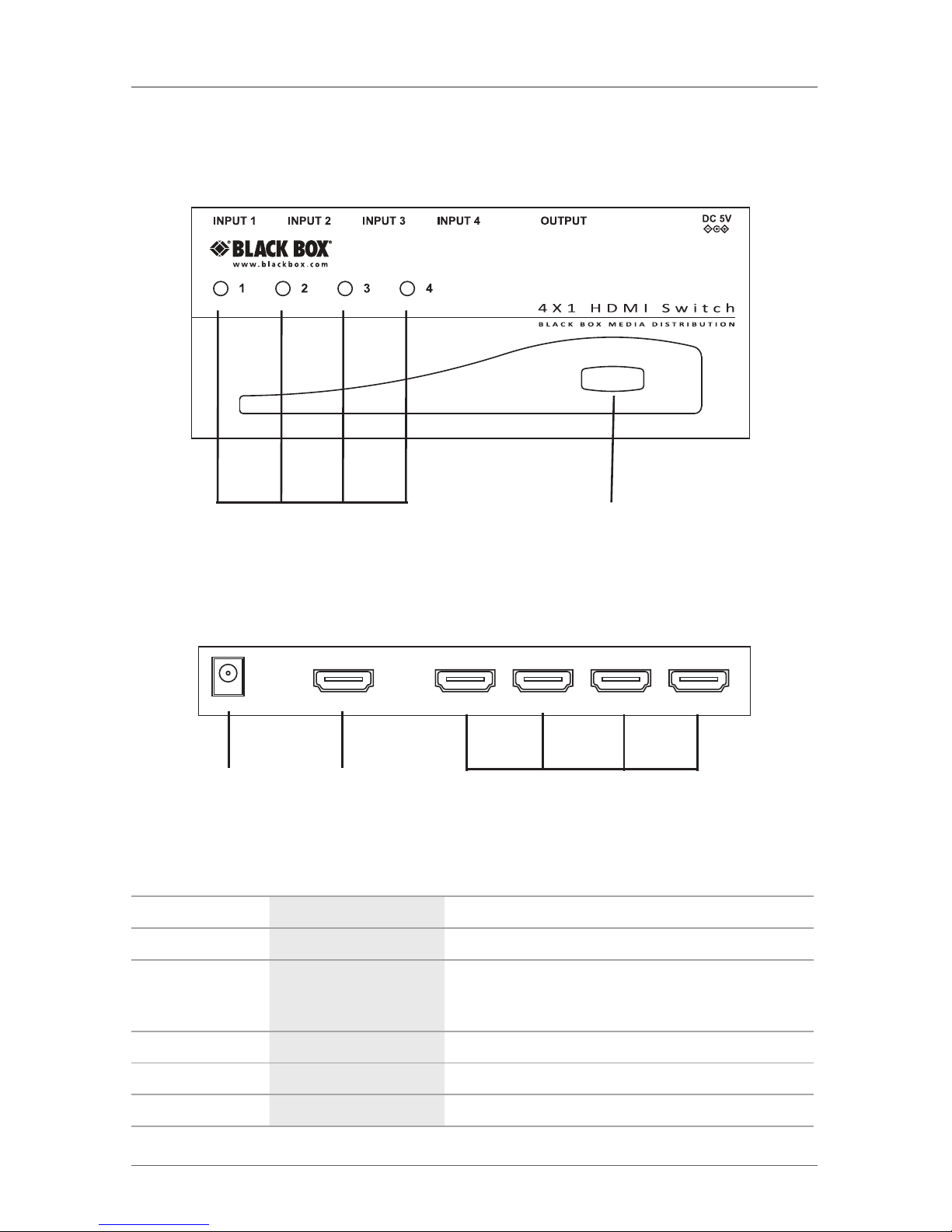

Figures 2-7 and 2-8 show the 4 x 1 Video Switch’s front and back panels. Table
2-4 describes its components.
12
Figure 2-7. AVSW-HDMI4X1 front panel.
3 4 5
Figure 2-8. AVSW-HDMI4X1 back panel.
Table 2-4. Transmitter front- and back-panel components.
Number Component Description
1LEDs Light when input 1, 2, 3, or 4 is connected.
2Push button/LED
Press this button in sequence to select the video source.
The corresponding LED lights to indicate that a port is
selected.
3Barrel connector Links to power source.
4HDMI connector Connects to HDMI output.
5HDMI connectors Connect to inputs 1, 2, 3, and 4.

Page 14 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Chapter 3: Installation
3. Installation
• Before installation, power off all devices that will be connected to this system.
• Make sure that all devices you will connect are properly grounded.
• Place cables away from fluorescent lights, air conditioners, and machines that
are likely to generate electrical noise.
NOTE: If you encounter no screen display after connecting a device:
1. Make sure the device cables are correctly and firmly attached.
2. Set your display device’s input source as HDMI.
3. Check the PC BIOS configuration for the video output settings.
4. Connect your computer to the display DIRECTLY to check if the video signal can
get through.
3.1 Connection Pattern
Figure 3-1 shows a typical connection of the 4-Port Video Switch with audio
(AVSW-HDMI4X1A).
Serial
cable
Figure 3-1. 4-Port Video Switch (AVSW-HDMI4X1A).
Figure 3-2 shows a typical connection of the 4-Port Video Switch
(AVSW-HDMI4X1).

Page 15
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 3: Installation
Figure 3-2. 4-Port Video Switch (AVSW-HDMI4X1).
3.2 Installation Steps
1. Use an HDMI cable to connect the display to the video output port on the
back of the switch. For models that support the standard audio feature
(AVSW-HDMI4X1A or AVSW-HDMI2X1A), plug a set of audio jacks from the
speaker to the switch’s speaker port.
2. Use an HDMI cable to connect the source device to the video input port on the
switch. For the models that support the audio feature (AVSW-HDMI4X1A or
AVSW-HDMI2X1A), use an audio cable to connect the speaker port between
the input side of the unit and the corresponding output port on the source
device.
3. Plug the power supply into the switch and power on the switch.
4. Turn on the display (monitor, projector, or TV) and then power on the source
device(s).
NOTE: When each video source is powered on, make sure it has a display pointing
to it for EDID communication. If a source does not have a display pointing
to it, a video image might not display.

Page 16 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Chapter 4: Operation
4. Operation
4.1 Front-Panel Indicators
Figure 4-1 shows the 4-Port Video Switch with Audio (AVSW-HDMI4X1A). The
AVSW-HDMI2X1A switch is similar, but has two HDMI ports instead of four.
Figure 4-2 shows the 4-Port Video Switch (AVSW-HDMI4X1). The AVSW-
HDMI2X1 switch is similar, but has two HDMI ports instead of four. These models
do not support audio.
Figure 4-1. AVSW-HDMI4X1A.
Figure 4-2. AVSW-HDMI4X1.
Table 4-1. Front-panel indicators.
Product Code Indicator Description
AVSW-HDMI2X1A
Power LED Lights green when the video switch is powered on.
Video Port LEDs 1–2 Lights yellow when the corresponding video port is selected.
AVSW-HDMI4X1A
Power LED Lights green when the video switch is powered on.
Video Port LEDs 1–4 Lights yellow when the corresponding video port is selected.
AVSW-HDMI2X1
Port 1 LED Lights yellow when the switch is powered on.
Video Port LEDs 1–2 Lights yellow when the corresponding video port is selected.
AVSW-HDMI4X1
Port 1 LED Lights yellow when the switch is powered on.
Video Port LEDs 1–4 Lights yellow when the corresponding video port is selected.

Page 17
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 4: Operation
Table 4-2. Front-panel push buttons.
Product Code Push Buttons Description
AVSW-HDMI2X1A (2) Video source Press the corresponding button to select Port 1 or Port 2.
AVSW-HDMI4X1A (4) Video source Press the corresponding button to select Port 1–4.
AVSW-HDMI2X1 (2) Video source Toggles between Port 1 and Port 2.
AVSW-HDMI4X1 (4) Video source Toggles between Ports 1–4.
4.2 Remote Control (AVSW-HDMI2X1A and AVSW-HDMI4X1A Only)
To select a source device with a remote control, press the number button (1–4) to
directly switch to the corresponding port.
NOTE: Remove the battery protector on the remote controller before operation.
NOTE: On the remote control, only buttons 1, 2, 3, and 4 are activated. The rest
of the buttons are not used. See Figure 4-3.
Figure 4-3. Remote control.

Page 18 724-746-5500 | blackbox.com AVSW-HDMI2X1A
Chapter 4: Operation
4.3 Serial Control (AVSW-HDMI2X1A and AVSW-HDMI4X1A Only)
The video switch’s built-in serial interface allows users to control the switch
through a PC, serial controller devices, or home theater system.
The controller’s serial port should be configured as shown below.
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
To select a source device via serial interface, select the number that corresponds to
the port it is connected to as shown in Figure 4-4.
Figure 4-4. Select video port screen.
NOTE: Use a DB9 to 2.5-mm cable (see Figure 4-5) for serial connection.

Page 19
724-746-5500 | blackbox.com
AVSW-HDMI2X1A
Chapter 4: Operation
1
23
4
5
1
9
6
200 ±20 mm
3.5
DC 2.5
DB9 F
Pinout
DC 2.5 DB9 F
1 ————————— 3
2————————— 2
3————————— 8
4————————— 5
———— S
Figure 4-5. DB9 to 2.5-mm cable pinout.
4.4 Function Button (AVSW-HDMI4X1A Only)
The Function button adjusts the optimal video signal strength corresponding to
the length or quality of DVI cable.
To adjust the video signal strength, follow these steps:
1. Press the Function button three times.
2. Press push button #1 one or two times to adjust the selected port’s input video
strength. One beep = normal or two beeps = enhance.
or
Press push button #3 one or two times to adjust the selected port’s output
current. One beep = normal or two beeps = enhance.
or
Press push button #4 one, two, three, or four times to adjust the selected
port’s output emphasis. One beep = no pre-emphasis, two beeps = low pre-
emphasis, three beeps = medium pre-emphasis, or four beeps = high pre-
emphasis.
3. Once the setting is finished, press the Function button one time to exit the
setting.

BL A C K B OX®
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
Great tech support is just 30 seconds away at
724-746-5500 or blackbox.com.
724-746-5500 | blackbox.com
AVSW-HDMI2X1A, version 1
About Black Box
Black Box provides an extensive range of networking and infrastructure products.
You’ll find everything from cabinets and racks and power and surge protection
products to media converters and Ethernet switches all supported by free, live 24/7
Tech support available in 30 seconds or less.
© Copyright 2011. Black Box Corporation. All rights reserved. Black Box®and the Double Diamond logo
are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in this manual
are acknowledged to be the property of their respective owners.
