Black Box VSW-HDMI2X1-4K User manual

BLACK BOX®
Switch between two or four different HDMI sources
to a single display.
Supports up to 4 K (UHD) resolutions (3840 x 2160).
Automatically switches to a source when it becomes available.
2 x 1 or 4 x 1 HDMI Switch 4K
VSW-HDMI2X1-4K
VSW-HDMI4X1-4K
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone] • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

724-746-5500 | blackbox.com Page 3
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

724-746-5500 | blackbox.com
Page 4
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.

724-746-5500 | blackbox.com Page 5
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com
Page 6
Table of Contents
Table of Contents
1. Specifications................................................................................................. 7
2. Overview........................................................................................................ 9
2.1 Introduction.......................................................................................... 9
2.2 Features ................................................................................................ 9
2.3 What's Included ................................................................................. 10
2.4 Hardware Description..........................................................................11
2.4.1 4 x 1 HDMI Switch 4K (VSW-HDMI2X1-4K) ............................11
2.4.2 2 x 1 HDMI Switch 4K (VSW-HDMI4X1-4K) ............................11
3. Installation ................................................................................................... 14
3.1 Device Connection ............................................................................. 14
3.2 Connection Pattern ............................................................................ 15
4. Operation..................................................................................................... 16
4.1 LED Indicators..................................................................................... 16
4.2 Push Button Control........................................................................... 17
4.2.1 A/V Source Selection ............................................................... 17
4.2.2 EDID Setting............................................................................. 17
4.2.3 EDID Emulation........................................................................ 18
4.2.4 EQ Adjustment......................................................................... 18
4.2.5 Factory Default Settings........................................................... 19
4.3 IR Remote Control.............................................................................. 19
5. Serial Control ............................................................................................... 20

724-746-5500 | blackbox.com Page 7
Chapter 1: Specifications
1. Specifications
Approvals Unit and power supply: FCC Part 15, CE, UL, RoHS,
Power supply: Also has CSA, TUV
Color Black
Frequency Range 25–297 MHz
Material Steel
Mode Configuration Switch/Autosensing/Priority/Matrix
MTBF 50,000 hours
Serial Control VSW-HDMI2X1-4K: Not applicable,
VSW-HDMI4X1-4K: Yes, RJ-11
Signal Configuration Video: Auto/inventory,
Audio: Auto/inventory
User Controls (1) port selection switch button,
(1) EDID Copy button,
(1) EDID switch for EDID selection,
(1) EGO setting switch for auto functions
Video Mode 4K x 2K @ 30 Hz
Connectors VSW-HDMI2X1-4K:
Input: (2) HDMI female,
Output: (1) HDMI female,
Power: (1) 2.5-mm barrel jack,
VSW-HDMI4X1-4K:
Input: (4) HDMI female,
Output: (1) HDMI female,
Power: (1) 2.5-mm barrel jack,
Control port: (1) RJ-11 RS-232

724-746-5500 | blackbox.com
Page 8
Chapter 1: Specifications
Specifications (continued)
Indicators VSW-HDMI2X1-4K:
(2) LEDS for input status;
VSW-HDMI4X1-4K:
(4) LEDs for input status
NOTE: Only one input LED is lit at a time.
Environmental Temperature Tolerance:
Operating:
32 to 104° F (0 to 40° C);
Storage:
-4 to +140° F (-20 to +60° C);
Relative Humidity: 80%
Altitude: 10,000 ft.
Power Input voltage:
100 to 240 VAC, 50 to 60 Hz, 45 watts,
Input connector: IEC320 C14.
Output voltage: 9 VDC, 1.5 A via a 2.5-mm barrel
plug center-positive desktop power supply
Dimensions 0.8"H x 6.1"W x 2.6"D (2 x 15.6 x 6.5 cm)
Weight Product: 1.55 lb. (0.7 kg),
Shipping: 2.09 lb. (0.8 kg)

724-746-5500 | blackbox.com Page 9
Chapter 2: Overview
2. Overview
2.1 Introduction
The 2 x 1 or 4 x 1 HDMI Switch 4K enables users to quickly and easily share display
devices (HDTV, Blu-ray player, HD-DVD, Xbox, Wii, PS3, satellite receiver, etc.) from
your device inputs to one output device (monitor, projector, or TV). You can select
the desired input source within the range of 16.4 feet (5 meters) via the remote
control or push button located on the switch. You don’t need to plug and unplug
video sources, so A/V equipment is more convenient, more affordable, and more
efficient.
The HDMI Switch with Advanced Auto-Sensing includes Auto mode and Priority
mode functions. The system can either automatically select the latest video source
for display in Auto mode, or automatically select a video source following priority
order in Priority mode. And it also offers EDID Copy function to ensure the optimal
resolution for your application.
The built-in serial interface allows users to control the HDMI Switch through a PC,
serial controller device, or home theater system, integrating the whole A/V
environment.
2.2 Features
• Select one output device from 2 or 4 different sources.
• Autosensing function automatically selects active input source or prioritized
source.
• Control the switch via the front-panel push button, IR remote controller, or, for the
4-port model, via the serial connection.
• Individually turn ON/OFF the output port.
• Locking HDMI cables keep your connections secure.
• 3D-video, HDCP compliant, and Blu-ray ready
• Non-volatile memory stores all settings in case of blackout.
• Innovative technology designed to avoid unnecessary flicker when adding system
instruments.
• Signal optimization chooses the best output setting from the available alternatives.
• HDTV, 3D HDTV compatible.
• Supports resolutions up to Full HD 1080p/4K (3840 x 2160).

724-746-5500 | blackbox.com
Page 10
Chapter 2: Overview
Advanced Autosensing
• Select ports in Priority, Auto-sensing, and Switch modes.
- In Priority mode, the system automatically selects highest priority source to display
(Priority order: Source-1 > Source-2 > ……).
- In Auto-sensing mode, the system automatically selects the latest video source to
display.
- In Switch mode, the system selects the outputs to switch.
• Switch outputs by pressing a button or setting priority.
EDID Function
• EDID Copy and EDID Pre-setting ensure accurate output display.
• Set to separately learn audio and video EDID for multimedia/home theater system
integration.
• Emulating EDID information ensures optimum video performance.
• Read and store the EDID from the connecting display to the video extension.
2.3 What’s Included
Both switches include:
• 2 x 1 HDMI Switch 4K (VSW-HDMI2X1-4K) or 4 x 1 HDMI Switch 4K
(VSW-HDMI4X1-4K)
• Power adapter
• IR remote controller
• Set of foot pads
• This user manual
4 x 1 HDMI Switch 4K (VSW-HDMI4X1-4K) also has:
• RJ-11 cable for serial (RS-232) control
• RJ-11 to RS-232 converter for serial (RS-232) control

724-746-5500 | blackbox.com Page 11
Chapter 2: Overview

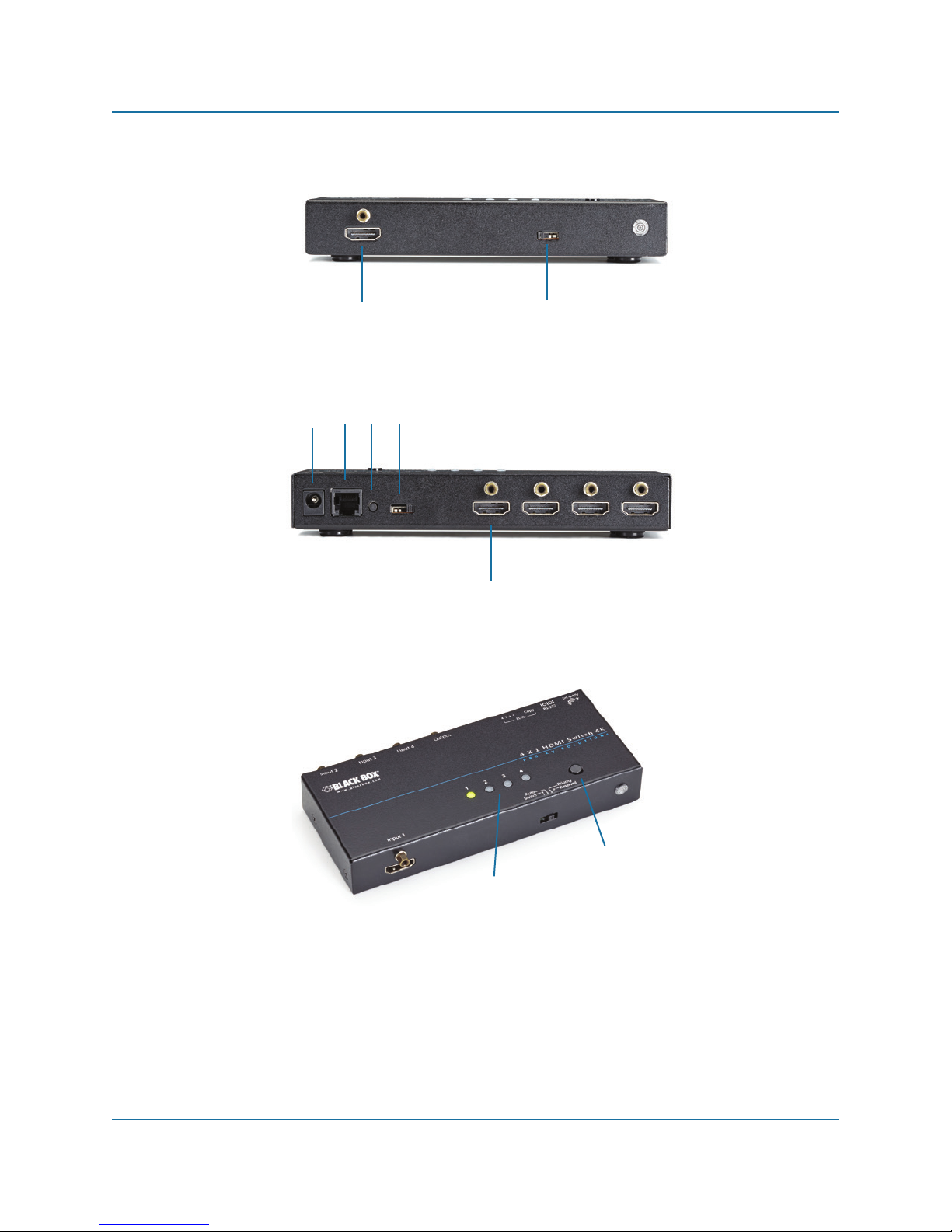

2.4 Hardware Description
12
Figure 2-1. 4 x 1 switch front panel.
3 654
7
Figure 2-2. 4 x 1 switch back panel.
8
9
Figure 2-3. 4 x 1 switch top panel.

724-746-5500 | blackbox.com
Page 12
Chapter 2: Overview
Table 2-1. 2 x 1 and 4 x 1 switch components.
Label in
Fig. 2-1 and
2-2
Component Description
1(1) Video Output connector Connect to an HDMI display
2Advanced Autosensing
Setting Switch
Switch/Auto-sensing/Priority
mode setting
3Power Supply Apply power to the unit
4Serial Port Connect to a computer for serial
control
5EDID Copy Button Copy the monitor’s EDID
6Audio/Video EDID Setting
Switch
Configure Audio/Video EDID set-
ting
7(4) Video Input connectors Connect to video sources
8LED Indicator See LED Indicator section.
9Push Button Port selection
For other functions, see Chapter
4, Operation.

724-746-5500 | blackbox.com Page 13
Chapter 2: Overview
Audio/Video EDID Setting Switch
See #7 in Figure 2-2 and Table 2-1.
Table 2-2. Audio/video EDID setting switch functions.
Mode Video Audio
1Auto Auto
2Auto Inventory
3Inventory Auto
4Inventory Inventory
NOTE: For more operation details, refer to Chapter 4, Operation.
Advanced Autosensing Setting Switch
See #3 in Figure 2-1 and Table 2-1.
Table 2-3. Advanced autosensing setting switch.
Position Name Description
1Switch Press the pushbutton (#11 in Figure 2-3) on the
top panel to select a source in sequence.
2Auto System will automatically select the latest video
source for display.
*Functions in Manual Switch are all applicable
to this mode.
3Priority System will automatically select the high
priority video source for display
(Priority: Source-1> Source-2> Source-3>
Source-4)
*Functions in Manual Switch are all applicable
to this mode.
4Reserved Not used.
NOTE: Functions in Switch mode are all applicable to Autosensing and Priority mode.

724-746-5500 | blackbox.com
Page 14
Chapter 3: Installation
3. Installation
WARNING:
Before installation, power off all devices that will be connected to this system.
Make sure that all devices you will connect are properly grounded.
Place cables away from fluorescent lights, air conditioners, and machines that are
likely to generate electrical noise.
3.1 Device Connection
1. Use a video cable (HDMI) to connect the display to the video output port on the
unit.
2. Use a video cable (HDMI) to connect the source device to the video input port on
the unit.
3. Apply power to the unit.
4. Turn on the display (monitor, projector, or TV) and then power on the source
device(s).
5. If necessary, apply the EDID Copy process (see Section 4.2.2, EDID Setting).
NOTES:
When each video source is powered on, make sure it has a display pointing to it for
EDID communication. If a source does not have a display pointing to it, a video
image might not display.
If no screen displays, follow these steps:
1. Make sure the device cables are correctly and firmly attached.
2. Set your display device’s input source as HDMI.
3. Check the PC BIOS configuration for the video output settings.
4. Connect your video source to the display DIRECTLY to check if the video signal
gets through.
5. Apply EDID Copy to your display (see Section 4.2.2, EDID Setting).

724-746-5500 | blackbox.com Page 15
Chapter 3: Installation

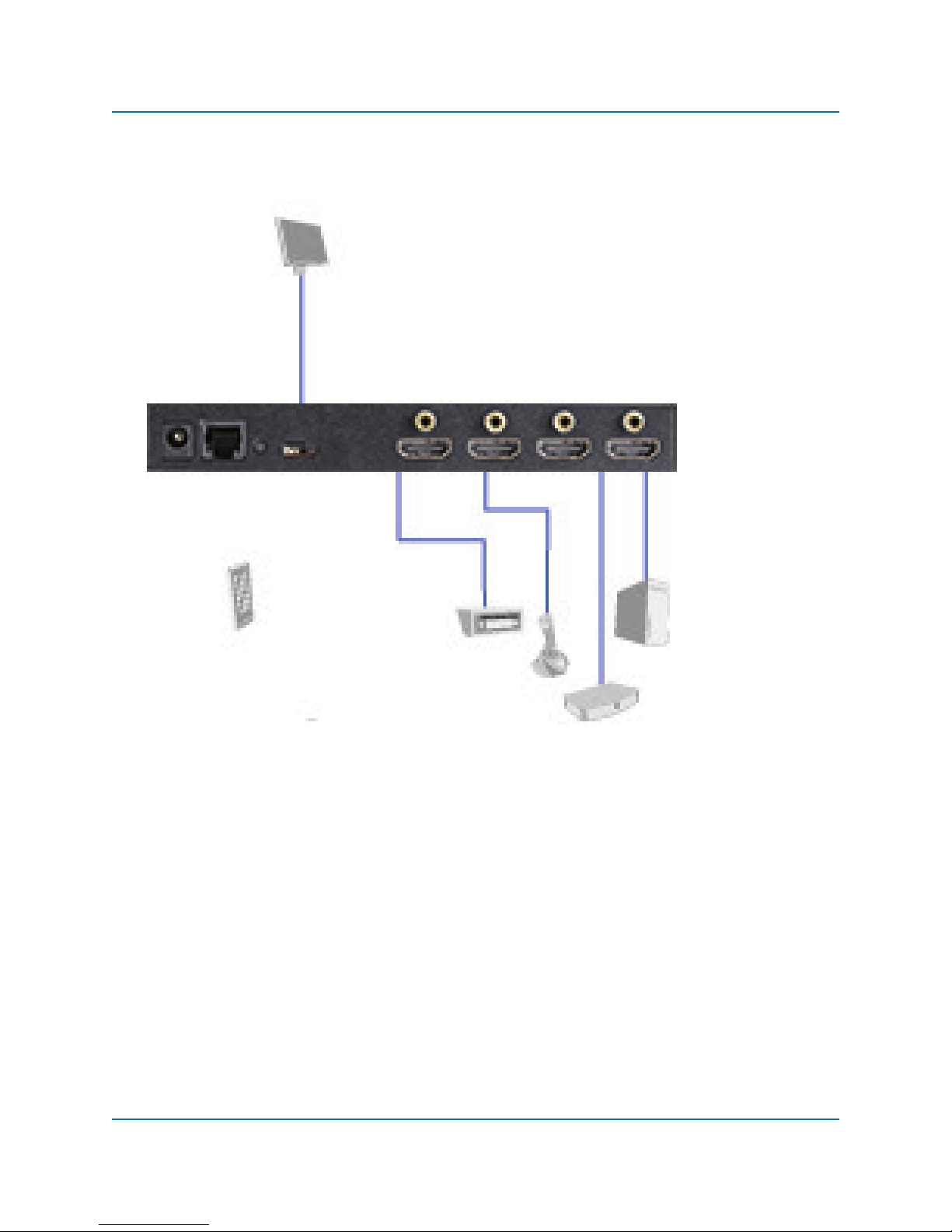

3.2 Connection Pattern
Remote
PC tower
TV
Controller
Media play
Stereo
Figure 3-1. Connecting the 4 x 1 HDMI Switch 4K.

724-746-5500 | blackbox.com
Page 16
Chapter 4: Operation
4. Operation
4.1 LED Indicators
LEDs 1–4
Figure 4-1. Top and front panel of the switch.
Table 4-1. LED Indicators
LEDs 1–4 Switch/Auto/Priority/Modes Status
The selected LED emits green and
goes off 3 times per 2 seconds. The
non-selected LED goes off.
The input video signal isn't ready.
The selected LED emits green and
goes off once per 2 seconds.
The input video signal is ready but cannot
detect the monitor.
The selected LED emits steady
green.
The input video signal is ready and can
detect the monitor.
The selected LED emits green with
red flashing 3 times.
The input video signal and monitor HDCP
do not match.
Off Not selected: The LED turns off when it’s
not selected, no matter what the source
condition is (with or without source input,
H D CP…e tc. ) .

724-746-5500 | blackbox.com Page 17
Chapter 4: Operation
4.2 Push Button Control
4.2.1 A/V Source Selection
Press the pushbutton (#11 in Figure 2-3) once to select the source in sequence
(S1—>S2—>S3—>S4—>S1…). The monitor immediately shows the video source
once selected. The corresponding LED lights when the source is selected.
4.2.2 EDID Setting
NOTE: Before starting, slide Audio/Video EDID Setting Switch (#7 in Figure 2-2) to
position 2/3/4.
Copy Monitor EDID (2 methods)
Method 1
Step 1. Apply power to the unit.
Step 2. Connect the (EDID compliant) monitor to the output port of the unit and
power on the monitor.
Step 3. Press and hold the button “EDID COPY” for 3~5 seconds, and release the
button RIGHT AFTER the LED L1–L4 (4x1 Switch) / LED L1 and L2 (2x1
Switch) flash GREEN & RED.
Result. If the LED S1–S4 (4x1 Switch) / LED S1 & S2 (2x1 Switch) return to normal
status, indicating that the EDID Copy is completed.
Method 2
NOTE: Before starting, power off the unit and connect monitor to the output port
of the unit.
Step 1. Press and hold the button “EDID COPY.”
Step 2. Apply power to the unit.
Step 3. Release right after the LED L1–L4 (4x1 Switch) / LED L1 & L2 (2x1 Switch)
flash GREEN & RED. (3–4 sec.)
Result. If the LED L1–L4 (4x1 Switch) / LED L1 & L2 (2x1 Switch) return to normal
status, it indicates that the EDID Copy is completed.
Otherwise, the LED flashes RED indicating that:
a. The monitor is not properly connected.
b. The monitor is not powered on.
c. EDID data of the monitor is not applicable.

724-746-5500 | blackbox.com
Page 18
Chapter 4: Operation
4.2.3 EDID Emulation
Slide the switch (#7 in Figure 2-2) to the desired position.
Table 4-1. EDID emulation switch functions.
Mode Video Audio
1Auto (Va) Auto (Va)
2Auto (Va) Inventory (Ai)
3Inventory (Vi) Auto (Aa)
4Inventory (Vi) Inventory (Ai)
Va) Video Auto: Automatically use the EDID of the attached display (video
algorithm).
Aa) Audio Auto: Automatically use the EDID of the attached display (audio
algorithm).
Vi) Video Inventory: After copying Video EDID, use the copied Video EDID to the
connected display.
Ai) Audio Inventory: After copying Audio EDID, use the copied Audio EDID to the
connected display.
4.2.4 EQ Adjustment
To optimize video quality, users can adjust the video equalization (sharpness) for all
video output ports through push button configuration. Press the pushbutton (#11 in
Figure 2-3) and the EDID Copy button (#6 in Figure 2-2) for 3 seconds and release
right after 4 LEDs (L1–L4) flash red, then the LED flashes indicating which level is on.
Then press BTN sequentially to adjust EQ level. (8 levels; GREEN: level 1–4, RED:
level 5–8). Finally, press the EDID Copy button once to exit the setting.
pushbutton + EDID Copy (3 seconds) —>4 LEDs (L1–L4) flash red—>release—>
EQ Setting mode—>BTN press once to the next level—>EQ Setting mode (repeat as
needed)—>EDID Copy—>Exit EQ Setting mode

724-746-5500 | blackbox.com Page 19
Chapter 4: Operation
4.2.5 Factory Default Setting
To return all settings to factory state, press the BTN & EDID Copy button for
9 seconds and release right after 4 LEDs (L1–L4) flash green twice.
BTN + EDID Copy (9 seconds)—>4 LEDs (L1–L4) flash green twice—>release
4.3 IR Remote Control
A/V Source selection:
Press 1/2/3/4: Select Source1/Source 2/Source/Source 4

724-746-5500 | blackbox.com
Page 20
Chapter 5: Serial Control (4-Port model only)
5. Serial Control (4-Port model only)
The Video Switch’s built-in serial interface allows users to control the Switch through
a PC, serial controller devices, or home theater system.
The controller’s serial port should be configured as shown below.
Baud Rate: 38400 bps
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
Figure 5-1. Hyperterminal screen.
