Black Box IC165A User manual

MARCH 2001
IC165A
IC165AE
USB Director/4-Port Hub
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]

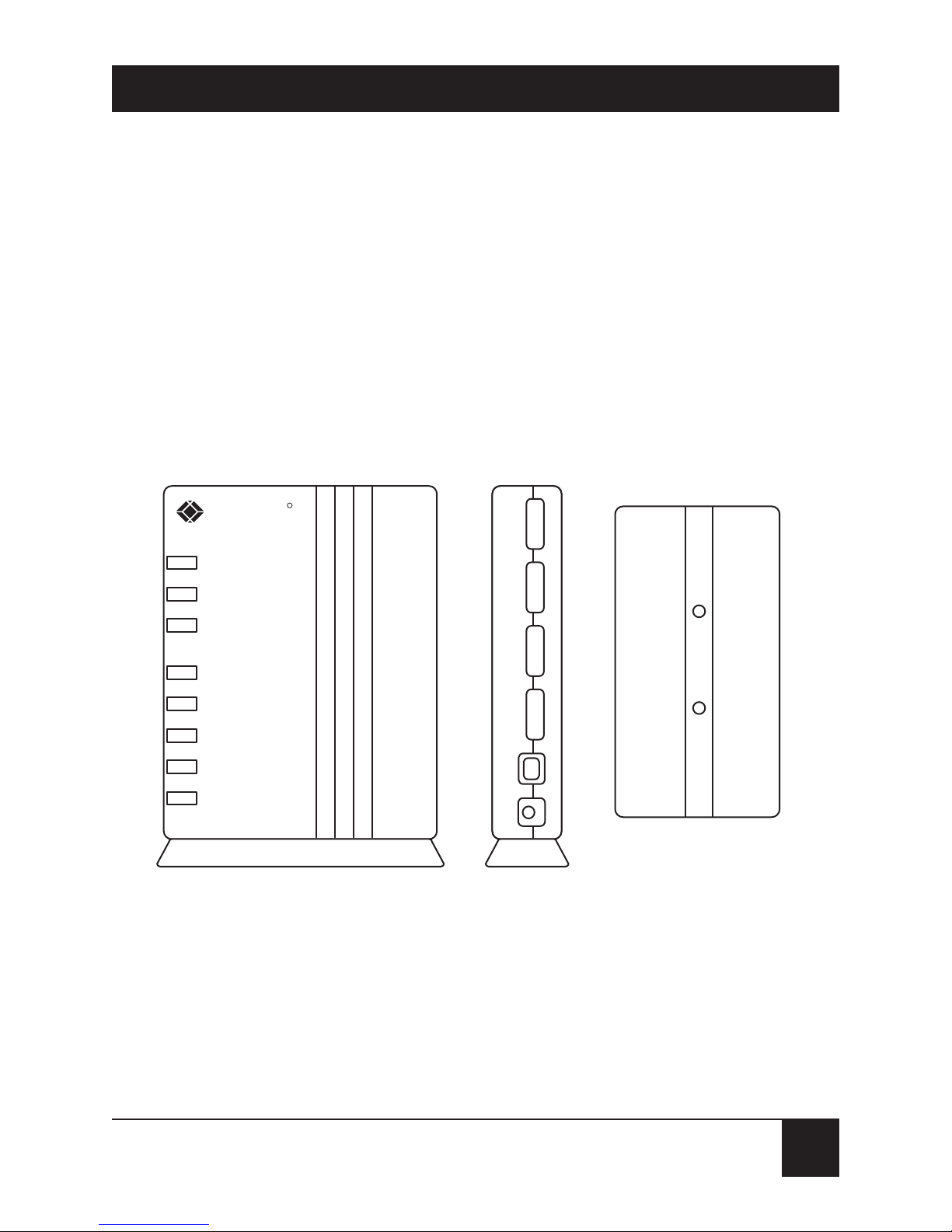

Power
Bus / Local
Reset
Port 4
Port 3
Port 2
Port 1
Uplink
USB Director
BLACK BOX
724-746-5500
®
R

1
FCC AND IC STATEMENTS
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
Class B Digital Device. This equipment has been tested
and found to comply with the limits for a Class B
computing device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable pro-
tection against harmful interference in a residential
installation. However, there is no guarantee that
interference will not occur in a particular installation.
This equipment generates, uses, and can radiate radio
frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. If this equip-
ment does cause harmful interference to radio
or telephone reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.

2
USB DIRECTOR/4-PORT HUB
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult an experienced radio/TV technician
for help.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This digital apparatus does not exceed the Class B limits for
radio noise emission from digital apparatus set out in the
Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radio
électriques dépassant les limites applicables aux appareils
numériques de classe B prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
UL Listing
This product is UL® listed.

3
CE AND UL INFORMATION
European Union Declaration of Conformity
This is to certify that this device is shielded against the
generation of radio interference in accordance with the
application of Council Directive 89/336/EEC, Article
4a. Conformity is declared by the application of
EN55022: 1987 Class B (CISPR 22:1985/BS6527:1988).
This product also complies with ISO/IEC Guide 22
and EN45014. It conforms to the following EMC
specifications:
• EN55022(1988)/CISPR-22(1985) class B
• IEC 1000-4-2(1995) 4kV CD, 8kV AD
• IEC 1000-4-3(1995) 3 V/m
• IEC 1000-4-4(1995) 1kV (power line), 0.5 kV
(signal line)
• IEC 100-4-6(1995) 3 Vrms
This product complies with the requirements of the Low
Voltage Directive 73/23/EEC and the EMC Directive
89/336/EEC.

4
USB DIRECTOR/4-PORT HUB
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por
los orificios de ventilación.

5
NOM STATEMENT
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que
no sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos
de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo
no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del
aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio
en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

6
USB DIRECTOR/4-PORT HUB
TRADEMARKS
Microsoft®, Windows®, and Windows NT®are
registered trademarks of Microsoft Corporation.
UL®is a registered trademark of Underwriters
Laboratories Incorporated.
Velcro® is a registered trademark of Velcro USA Inc.
Any other trademarks mentioned in this manual are
acknowledged to be the property of the trademark owners.

7
CONTENTS
CONTENTS
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 System Requirements . . . . . . . . . . . . . . . . . . . 11
2.3 What the Package Includes . . . . . . . . . . . . . . 12
2.4 Hardware Description. . . . . . . . . . . . . . . . . . . 12

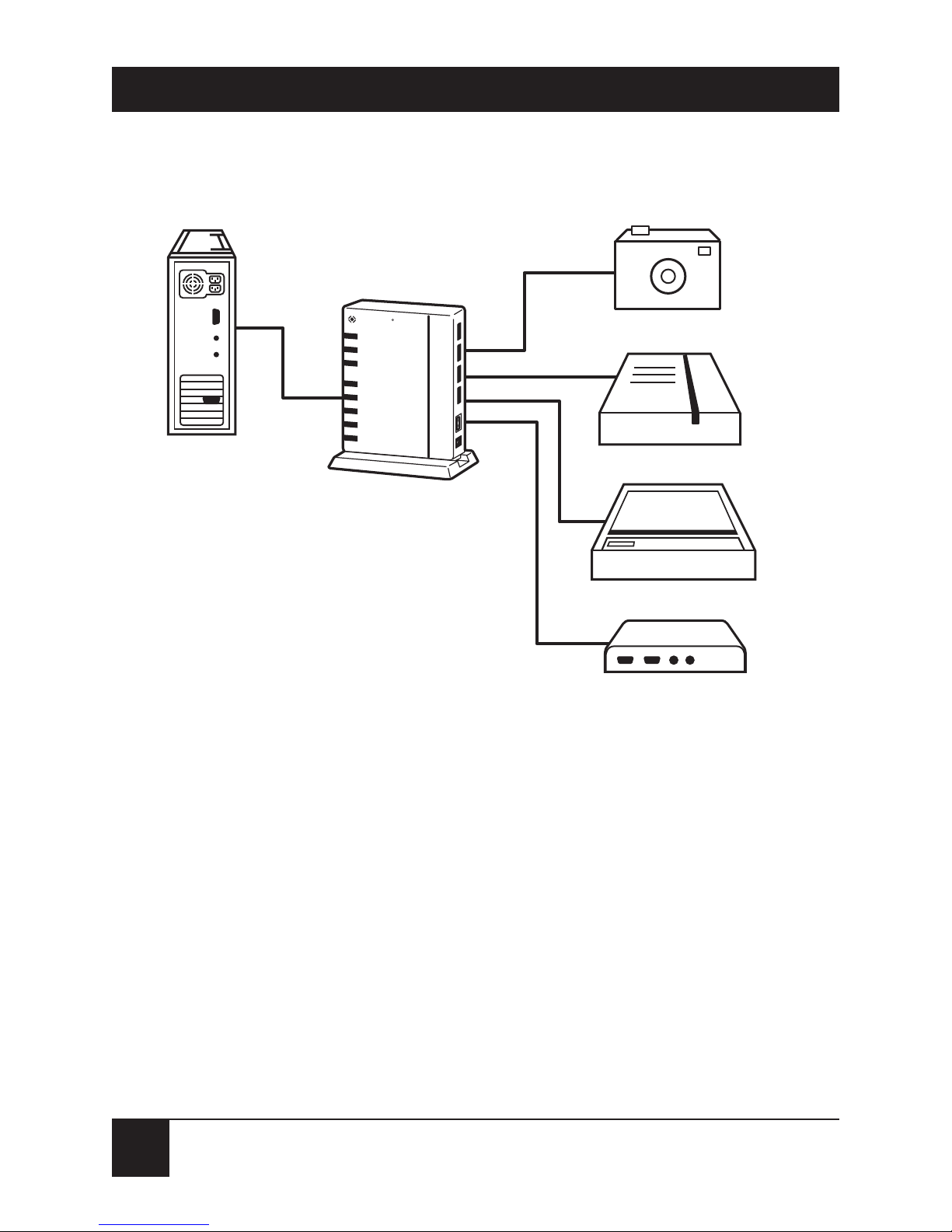

2.5 Typical Application . . . . . . . . . . . . . . . . . . . . . 14
3. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1 Initial Checkout. . . . . . . . . . . . . . . . . . . . . . . . 15
3.1.1 Bus-Powered Checkout . . . . . . . . . . . . . . 15
3.1.2 Optional Self-Powered Checkout . . . . . . 15
3.2 Hub Mounting . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3 Cable Connections . . . . . . . . . . . . . . . . . . . . . 16
3.4 Power Controls . . . . . . . . . . . . . . . . . . . . . . . . 19
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.1 Power Problems. . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Other Problems. . . . . . . . . . . . . . . . . . . . . . . . 25
5.3 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . 29
5.4 Shipping and Packaging. . . . . . . . . . . . . . . . . 30

8
USB DIRECTOR/4-PORT HUB
1. Specifications
Software Requirements — USB-enabled opera-ting
system such as Windows®95 OSR2.1 or later,
Windows 98, or Windows NT®5.0, Windows 2000,
any Macintosh operating system with USB support
Cable Wiring — 90 Ω±15% unshielded or shielded for
low-speed devices; 90 Ω±15% shielded for full-
speed devices
Maximum Individual Cable Length — Full-speed device:
5 meters (16.4 ft.) shielded cable;
Low-speed device: 3 meters (9.8 ft.)
unshielded/shielded cable
Wiring Topology — Tiered star, point-to-point
connection
Access Method — Differential and bi-directional per
USB spec 1.0; 12 Mbps full speed and 1.5 Mbps
low speed; The hub supports both full
and low speeds. The hub is considered a
full-speed device.
Maximum Hubs in Daisychain — Five (six cables, end-to-
end maximum)
Maximum Devices — 127
Standards Conformance — USB specification 1.0

9
CHAPTER 1: Specifications
Certifications — CE, FCC Class B, VCCI Class B,
EN 55022 Class B (CISPR 22)
Safety — UL, cUL, TUV/GS
Temperature Tolerance — Operating: 32 to 104°F
(0 to 40°C); Storage: -4 to +167°F (-20 to +75°C)
Humidity Tolerance — 5 to 95% noncondensing
Hub Power Requirements — IC165A: 110 VAC, 60 Hz;
IC165AE: 220 VAC, 50 Hz; Both models: Bus-
powered: 2.5 watts, 5 V @ 1⁄2amp via USB cable;
Self-powered: 11 watts, 5.25 V @ 2.1 amps via
optional power supply; Hub power usage:
0.5 watt, 5 V @ 1⁄10 amp
Optional External 14-Watt Power Supply — +5.25 VDC @
2.5 amp, 90- to 140-VAC or 90- to 240-VAC, 60/50 Hz
Indicators — LEDs: (1) Power, (1) Bus/Local Power,
(1) Reset, (1) each Ports 1 through 4,
(1) Up Link
Connectors — (4) USB Type A connectors for device
ports; (1) USB Type B connector for
uplink port
Size — 4.7"H x 3.8"W x 1.1"D (11.9 x 9.7 x 2.8 cm)
Weight — 0.5 lb. (0.2 kg)

10
USB DIRECTOR/4-PORT HUB
2. Introduction
2.1 Overview
The USB Director/4-Port Hub is a medium-speed and
standalone universal serial bus (USB) hub. The USB
Director/4-Port Hub supplies four additional USB ports
to attach devices and/or additional hubs. The hubs can
easily be daisychained, up to five hubs deep in series,
in any combination that does not exceed 127 devices,
including the hubs. No additional software is required
to support the Hub.
Two models are available: the IC165A includes a
110-VAC power supply and the IC165AE comes with
a 220-VAC power supply.
The Hub is compatible with the USB Version 1.0
specification and supports the power-saving Suspend,
Resume, and Remote wake-up operations.
NOTE
The USB specification does not allow for a bus-
powered hub to drive another bus-powered hub. That
is, two bus-powered hubs must be separated with a
self-powered hub.

11
CHAPTER 2: Introduction
The USB Director/4-Port Hub is a dual-powered
device that can be powered via the uplink connection
(bus-powered) or via an optional power supply (self-
powered). When bus-powered, the four downstream
ports support “low-power” devices rated at less than
1⁄2watt (1⁄10 amp @ 5 VDC) each, such as a camera,
printer, scanner, or another hub. “Low-power” devices
can also plug into these ports. The power switchover is
automatic when the optional power supply is plugged
into the hub.
Each downstream port supports either full-speed
(12 Mbps) and/or low-speed (1.5 Mbps) signaling
automatically.
The hub and each downstream port are overcurrent
and short-circuit protected.
2.2 System Requirements
To use the hub, you’ll need:
• A PC or Macintosh computer that supports the
Universal Serial Bus (USB).
• Operating system with a generic USB hub driver.

12
USB DIRECTOR/4-PORT HUB
(A generic hub driver is supplied with the latest
version of Microsoft Windows 95 also known as
OSR2.1 or later, Windows 98, Windows NT, or
Windows 2000. Call Technical Support at
724-746-5500 if you’re using Windows 2000.
2.3 What the Package Includes
Your package should include the following items. If
anything is missing or damaged, please call Black Box
at 724-746-5500.
• USB Director—4-Port Hub
• Hub Stand
• External power adapter
• 2-m USB cable (Type A connector
to Type B connector)
• This users’ guide

13
CHAPTER 2: Introduction
2.4 Hardware Description
The USB Director/4-Port Hub has one connector
for upstream connection to a host, and four port
connectors for downstream connections to the devices.
It also has a power connector for the optional power
supply, eight LED indicators for status information,
and a stand for mounting (see Figure 2-1).
Figure 2-1. Hub, Front and Side View, and Stand.
4
3
2
1
Power
Bus / Local
Reset
Port 4
Port 3
Port 2
Port 1
Uplink
USB Director
®BLACK BOX
724-746-5500
R
Uplink
5.25V
2.1A

14
USB DIRECTOR/4-PORT HUB
2.5 Typical Application
Figure 2-2. Typical Application.
BLACK BOX
724-746-5500
®
R
PC/Server
Digital Camera
Card Reader
Scanner
USB Modem
USB Director/
4-Port Hub

15
CHAPTER 3: Installation
3. Installation
3.1 Initial Checkout
3.1.1 BUS-POWERED CHECKOUT
While the host PC is powered on, connect a USB cable
between the host’s USB type A receptacle and the Hub’s
type B receptacle (uplink connection). The Hub’s
power indicator, bus-powered, and the uplink port LED
will turn on. Then the host PC will locate and run the
generic hub driver supplied with its operating system.
The hub driver will identify the USB Director—4-Port
Hub and enable each of its four ports. The individual
port’s LED will turn on, indicating that power is applied
to its connector.
When the initial checkout is complete, USB low-power
devices can be attached to the hub. Refer to the
instructions supplied with each USB device for
their individual operation.
3.1.2 OPTIONAL SELF-POWERED CHECKOUT
Perform the initial bus-powered checkout described
in Section 3.1.1. Then connect the optional power adapter
into an AC outlet and plug the adapter’s DC power

16
USB DIRECTOR/4-PORT HUB
cable into the Hub’s power connector. The hub will go
through a reset and operate in the bus-powered mode;
however, the bus-powered LED will be off. When the
optional power adapter is connected, USB high-power
devices can be attached to the Hub. Refer to the
instructions supplied with each USB device for
their individual operation.
3.2 Hub Mounting
To stand the hub upright on a desk or shelf, slide the
stand onto the base of the hub. To lay the hub flat, slide
the stand onto the back of the hub. To mount the hub
directly onto a wall, the side of or under a desk (any
vertical or horizontal surface), first secure the stand to
the desired location with two small screws (or any other
technique such as Velcro®strips) and slide the hub on
to the bracket.
3.3 Cable Connections
The standard USB cables are designed to ensure that
they plug into the correct receptacle. Each cable has
a connector that goes upstream toward the host end
(Type A) and a connector that goes toward the down-
stream device end (Type B). The maximum length of

17
CHAPTER 3: Installation
the cable is 16.4 ft. (5 m) for full-speed connections and
9.8 ft. (3 m) for low-speed connections. Figure 3-1 shows
the cable connections.
Figure 3-1. Cable Connections.
NOTE
Low-speed connections can use unshielded or shielded
cable, but full-speed connections must use shielded
cable.
4
3
2
1
Uplink
5.25V
2.1A
4
3
2
1
Uplink
5.25V
2.1A
Port 4
Port 3
Port 2
Port 1
Uplink
Power receptacle
To USB devise
USB Type “A” Connection
To USB Host or
Upstream Hub
USB Type “B” Connection
5 Meters Max
5 Meters Max
USB Quad Hub

18
USB DIRECTOR/4-PORT HUB
C ONNECTOR P INOUTS
Figures 3-2 and 3-3 and Table 3-1 illustrate the pinouts of
the USB type A receptacle and USB type B receptacle.
Figure 3-2. USB Type “A” Receptacle.
Figure 3-3. USB Type “B” Receptacle.
Table 3-1. Connector Pinouts
Pin Number Signal
1 +5 VDC
2 - Data
3 + Data
4 Ground
USB type “B”
receptacle
3 4
2 1
USB type “A”
receptacle
1 2 3 4

19
CHAPTER 3: Installation
3.4 Power Controls
When the hub is connected to the USB connection,
it initially draws less than 1⁄10 of an amp from the host
connection. Each port is enabled one at a time. Initially,
all attached devices are only allowed to draw 1⁄10 amp or
less each.
When the hub is identified, it tells the host whether it is
bus-powered or self-powered. If the hub is bus-powered,
the device driver should only allow low-power devices to
be enabled. If the hub is self-powered, the device driver
can allow low-power and/or high-power devices to be
attached.
NOTE
Early device drivers may not enforce these power
limits. However, the USB Director/4-Port Hub is
designed to automatically protect the host connection
and the hub itself from overcurrent conditions if they
exist.
