Black Box CATX DVI-D Series User manual

DVI-D CATX SWITCH/SPLITTER
1
Welcome to the CATX DVI-D Family!
Thank you for purchasing a CATX DVI-D Switch! We appreciate your business, and we
think you’ll appreciate the many ways that your CATX DVI-D system will save you money,
time, and effort.
The CATX DVI-D Switch offers three fundamental uses:

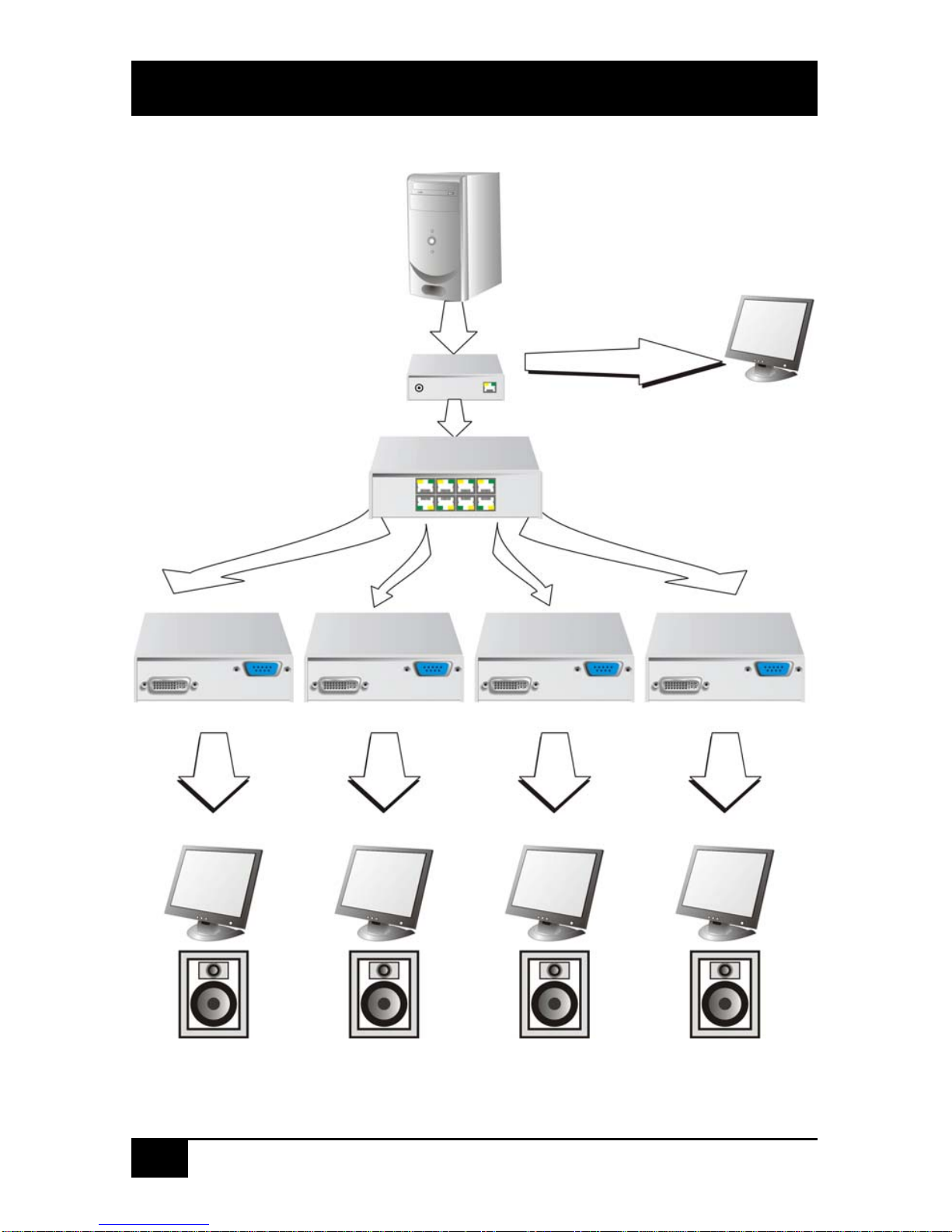

• As a Multiplex Repeater: the DVI signals (+optional audio) coming from a signal
source are equalized and distributed on up to 7 equivalent outputs. A control is not
necessary. Distributed display systems can be realized (Digital Signage).
• As an 8-port Crosspoint Switch: each port can be switched optionally as an input or
output. You can, for example, switch and distribute the signals from 3 signal
sources on up to 5 displays (allowing simultaneous presentations on several
displays). Alternatively, signals coming from 7 signal sources can be switched in
turn to a single display. The changeover can be triggered remotely using the serial
interface (RS232) and/or by a push-button at the device.
• As a 7-port KVM Switch: up to 7 Singlehead ports (a “Singlehead” extender system
supports 1x monitor, 1x keyboard, 1x mouse) or up to 3 Dualhead ports (a
Dualhead extender system supports 2x monitor, 1x keyboard, 1x mouse). The
changeover can be triggered remotely using the serial interface (RS232) and/or by a
push-button at the device.
Cascade multiple devices in two stages for all applications to give up to 49/1 connections.
The CATX DVI-D Switch has the advantage that it can be positioned up to 140m away from
both your signal source and display device. This becomes possible by using the proven
CATX DVI-D- Extender technology for the transmission of DVI- Monitor and USB-
Keyboard and Mouse signals over CATx- cable.
The operation of a CATX DVI-D Switch always requires at least one Local Unit and up to
seven Remote Units from the CATX DVI-D-Extenders range.

DVI-D CATX SWITCH/SPLITTER
2
Wherever long distances cause problems for remotely locating and switching a monitor
(keyboard/mouse) signal, e.g. airports, industrial plants, call centres or in distributed
computer centres, the CATX DVI-D Switch is the best solution. Its flexibility allows it to
tackle many tasks.
In addition, there are 4 Media Extenders (DVI + optional audio) and 8 KVM- Extenders
(DVI+USB keyboard mouse + optional audio) available. The transmission of the signals
requires connecting CATx cable.
This manual will tell you all about your new CATX DVI-D Switch, including how to install,
operate and troubleshoot it. For an introduction to the Converter, see Chapter 2.
The Converter product codes covered in this manual are:
ACX4000: 7-port CATX DVI-D Switch
ACS4001A-T: CATX DVI-D- KVM Local Unit, Singlehead
ACS4201A-T: CATX DVI-D- KVM Local Unit, Dualhead
ACS4022A-T: CATX DVI-D- KVM Local Unit, +Audio, Singlehead
ACS4222A-T: CATX DVI-D- KVM Local Unit, +Audio, Dualhead
ACS4001A-R: CATX DVI-D- KVM Remote Unit, Singlehead
ACS4201A-R: CATX DVI-D- KVM Remote Unit, Dualhead
ACS4022A-R: CATX DVI-D- KVM Remote Unit, +Audio, Singlehead
ACS4222A-R: CATX DVI-D- KVM Remote Unit, +Audio, Dualhead

DVI-D CATX SWITCH/SPLITTER
3
Copyrights and Trademarks
©2007. All rights reserved. This information may not be reproduced in any manner without
the prior written consent of the manufacturer.
Information in this document is subject to change without notice and the manufacturer shall
not be liable for any direct, indirect, special, incidental or consequential damages in
connection with the use of this material.
All trademark and trade names mentioned in this document are acknowledged to be the
property of their respective owners.
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer
assumes no responsibility for errors or omissions. Neither does the manufacturer assume any
liability for damages resulting from the use of the information contained herein. The
manufacturer reserves the right to change the specifications, functions, or circuitry of the
product without notice.
The manufacturer cannot accept liability for damage due to misuse of the product or due to
any other circumstances outside the manufacturer’s control (whether environmental or
installation related). The manufacturer shall not be responsible for any loss, damage, or injury
arising directly, indirectly, or consequently from the use of this product.
Cautions and Notes
The following symbols are used in this guide:
CAUTION: This indicates an important operating instruction
that should be followed to avoid any potential damage to
hardware or property, loss of data, or personal injury.
NOTE. This indicates important information to help you make the best use of
this product.

DVI-D CATX SWITCH/SPLITTER
4

SAFETY-PRECAUTIONS AND
INSTALLATION GUIDLINES
5
EUROPEAN UNION DECLARATION OF CONFORMITY
This is to certify that, when installed and used according to the instructions in this
manual, together with the specified cables and the maximum CPU- cable length <3m,
the Units:
List on page 2
are shielded against the generation of radio interferences in accordance with the
application of Council Directive 89/336/EEC as well as these standards:
EN 55022: 1999 Class A
EN 55024: 1999
IEC 61000-4-2: 2001
IEC 61000-4-3: 2001
IEC 61000-4-4: 2001
EN 61000-3-2 2001
EN 61000-3-3 2002
The device was tested in a typical configuration with CPU.
Thursday, September 15th, 2007
The management
This equipment has been found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

DVI-D CATX SWITCH/SPLITTER
6
Safety Precautions and Installation Guidelines
To ensure reliable and safe long-term operation, please note the following installation
guidelines:
• Do not use CATx- devices to link between buildings – please use fibre devices.
• Only use in dry, indoor environments.
• If the building has 3-phase AC power, try to ensure that equipment connected to the
Local and Remote Units is on the same phase.
• Try not to route a CATx- link cable alongside power cables.
• The Remote Unit, Local Unit and any power supplies can get warm. Do not locate them
in an enclosed space without any airflow.
• Do not place a power supply directly on top of a unit.
• Do not obscure a unit’s ventilation holes.
To safeguard against personal injury and avoid possible
damage to equipment or property, please observe the
following:
• Only use power supplies originally supplied with the
product or manufacturer-approved replacements. Do not
attempt to dismantle or repair any power supply. Do not
use a power supply if it appears to be defective or has a
damaged case.
• Connect all power supplies to grounded outlets. In each
case, ensure that the ground connection is maintained
from the outlet socket through to the power supply’s AC
power input.
• Do not attempt to modify or repair this product, or make
a connection from the CATx- link interface (RJ45) to any
other products, especially telecommunications or
network equipment.

CONTENTS
7
Contents
1. Quick Setup 11
2. Overview 12
2.1 Introduction 12
2.2 Glossary 13
2.3 Example of a CATX DVI-D-Switch System 14
2.4 Features 15
2.5 Product Range 16
2.6 Compatibility 17
Interface Compatibility 17
2.7 How to Use This Guide 18
Connection & Compatibility 18
DDC Information 18
Selecting the moment of switching to the next frame 18
3. Installation 19
3.1 Package Contents 19
3.2 Interconnection Cable Requirements 21
3.3 System Setup 22
3.4 Installation Instructions 25
4. Device Views 26
4.1 CATX DVI-D-Switch for CATx 26
Configuration ‘Multiplex-Repeater’ – 1 Source up to 7 Displays 26
Configuration ‘Multiplex-Repeater’ – 2 Sources / each up to 3 Displays 26
Configuration ‘Multiplex-Repeater’ – 4 Sources on 4 Displays 27
Configuration ‘Crosspoint-Switch’ 1 Input / 7 Outputs 27
Configuration ‘Crosspoint-Switch’ 2 Inputs / 6 Outputs 28
Configuration ‘Crosspoint-Switch’ 3 Inputs / 5 Outputs 28
Configuration ‘Crosspoint-Switch’ 4 Inputs / 4 Outputs 29
Configuration ‘Crosspoint-Switch’ 5 Inputs / 3 Outputs 29
Configuration ‘Crosspoint-Switch’ 6 Inputs / 2 Outputs 30
Configuration ‘Crosspoint-Switch’ 7 Inputs / 1 Output 30
Configuration ‘Singlehead KVM-Switch’ 31
Configuration ‘Dualhead KVM-Switch’ 31
4.2 CATX DVI-D- KVM Extender 33
5. Diagnostic 38
5.1 CATX DVI-D-Switch for CATx 38
5.2 CATX DVI-D- KVM Extender 40

DVI-D CATX SWITCH/SPLITTER
8
6. Service Setup 41
6.1 CATX DVI-D-Switch for CATx 41
Operating Mode Selection 42
6.2 CATX DVI-D-KVM Extender 44
6.3 Setup at the Local Unit 45
DDC / colour depth 45
Reset of the internal DDC table to default-values 46
Loading the DDC information from the remote monitor 47
Selection of Colour depth 47
6.4 Setup at the Remote Unit 48
Selecting the moment of switching to the next frame 48
7. Operating Modes 49
7.1 Multiplex- Repeater 49
Configuration ‘Multiplex-Repeater’ – 1 Source up to 7 Displays 49
Configuration ‘Multiplex-Repeater’ – 2 Sources, each up to 3 displays 50
Configuration ‘Multiplex-Repeater’ – 4 Sources on 4 Displays 50
Example Applications: 51
Indicator LEDs 53
Meaning of the diagnostic LEDs: 53
Setup 54
Operation 54
By serial interface 54
Control commands 54
7.2 Crosspoint- Switch 55
Configuration ‘Crosspoint-Switch’ 1 Input / 7 Outputs 56
Configuration ‘Crosspoint-Switch’ 2 Inputs / 6 Outputs 56
Configuration ‘Crosspoint-Switch’ 3 Inputs / 5 Outputs 57
Configuration ‘Crosspoint-Switch’ 4 Inputs / 4 Outputs 57
Configuration ‘Crosspoint-Switch’ 5 Inputs / 3 Outputs 58
Configuration ‘Crosspoint-Switch’ 6 Inputs / 2 Outputs 58
Configuration ‘Crosspoint-Switch’ 7 Inputs /1 Output 59
Example Application: 60
Setup 61
Indicator LEDs 62
Meaning of the diagnostic LEDs: 62
Operation 63
a) By push button: 63
b) By serial interface 63
Control commands 64
Examples: 64
7.3 Singlehead KVM- Switch 65
Configuration ‚Singlehead KVM- Switch’ 65
Example Application: 66
Setup 67
Master/Slave function 67
Operating mode after Reset/Power ON 67
Indicator LEDs 68
Meaning of the diagnostic LEDs: 68
Operation 69
a) By push-button: 69

CONTENTS
9
b) By serial interface 69
Control commands 70
Examples: 70
c) By the attached keyboard 71
User commands 71
Call of the command mode 72
Instructions within the command mode 73
Examples: 74
7.4 Dualhead KVM- Switch 75
Configuration of ‘Dualhead KVM- Switch’ 75
Example Application: 76
Setup 77
Master/Slave function 77
Operating mode after Reset/Power ON 77
Indicator LEDs 78
Meaning of the diagnostic LEDs: 78
Operation 79
a) By push-button: 79
b) By serial interface 79
Control commands 80
Examples: 80
c) By the attached keyboard 81
User commands 81
Call of the command mode 82
Instructions within the command mode 83
Examples: 84
7.5 Systeminfo 85
Control command 85
Available Information 85
7.6 Restore Factory Defaults 86
8. Troubleshooting 87
Monitor 87
Keyboard 88
Appendix A: Example Applications 90
Appendix B: Rack Mount Options 96
Appendix C: Devices with serial/audio option 100
Serial link: 100
Audio link: 100
Serial Interface - Setup and Operation 100
Serial Interface – Handling Multiple Serial Devices 101
Audio Interface - Setup and Operation 101
Audio Interface – Using a Microphone 101
Appendix D: Protocol for command mode 102
Sequence of data communication 103
Telegrams, global functions 103
Switching functions 104
Glossary: 104
Telegrams, switching functions 104

DVI-D CATX SWITCH/SPLITTER
10
Appendix E: Calling Technical Support 105
Appendix F: List of supported USB devices 106
Appendix G: Specifications 107
ACATX DVI-D-Media/KVM Local/ Remote Unit 107
Power Supply 107
Interface (depending on type of device) 107
Maximum Length of Interconnection Cable 107
Type of Interconnection Cable 107
Size and Shipping Weight 108
Environmental 108
BCATX DVI-D- Switch Unit 109
Power Supply 109
Interface 109
Maximum Length of Interconnection Cable 109
Type of Interconnection Cable 109
Size and Shipping Weight 109
Environmental 109
Appendix H: Connectors 110
ACATX DVI-D- Local/ Remote Unit 110
DVI-I connector 110
Special connector, DVI-I alike 111
Serial Interface 113
BCATX DVI-D- Switch Unit 114
Serial Interface 114
CAll CATX DVI-D- Devices 115
Power Supply 115
CATx- Interfaces 115
Appendix I: Connection Cable 116
Serial cable to connect the CATX DVI-D- Switch to CPU 116
Cross- Cable 117

QUICK SETUP
11
1. Quick Setup
This section briefly describes how to install your CATX DVI-D Switch system. Unless you
are an experienced user, we recommend that you follow the full procedures described in the
rest of this manual.
Installation of the system
1. Mark the CATx DVI-D KVM SWITCH with the help of the provided
stickers according to your application
2. Set the DIP-switch according to your application
3. Connect CATx DVI-D KVM Switch to Local unit with CATx- cable(s).
4. Connect CATx DVI-D KVM Switch to Remote unit with CATx- cable(s).
5. Connect the devices to the power supplies.
6. Power up the system.
Done
YES
NO
Link LED
illuminated?
NO
YES
Check p.s.u.’s and connection to
power outlet
Power LED
illuminated?
Check the CATx- cable, and
CATx- connectors

DVI-D CATX SWITCH/SPLITTER
12
2. Overview
2.1 Introduction
The CATX DVI-D Switch can be set up in three configurations:
• As a Multiplex Repeater: - the DVI signals (+optional audio) coming from a
signal source are equalized and distributed on up to 7 equivalent outputs. A control
is not necessary. Distributed display systems can be realized (digital signage).
There are three operating modes: 1 link (1 source to 7 screens), 2 links (1 source to
3 screens each) and 4 links (1 source to 1 screen each): a pure length booster.
• As an 8-port Crosspoint Switch: each port can be switched optionally as an input
or output so you can, for example, switch and distribute the signals from 3 signal
sources on up to 5 displays (allowing simultaneous presentations on several
displays). Alternatively, signals coming from 7 signal sources can be switched in
turn to a display. The changeover can be triggered remotely using the serial
interface (RS232) and/or by a push-button at the device.
• As a 7-port KVM Switch: up to 7 Singlehead switches (a “Singlehead” extender
system supports 1x monitor, 1x keyboard, 1x mouse) or up to 3 Dualhead switches
(a Dualhead extender system supports 2x monitor, 1x keyboard, 1x mouse). The
changeover can be triggered remotely using the serial interface (RS232) and/or by a
push-button at the device.
A Multiplex Repeater system comprises a CATX DVI-D Switch and one or more
Local/Remote Units. Optionally, several CATX DVI-D Switches can be cascaded in
maximally two stages (master/slave). The CATX DVI-D Switch and the Local/ Remote Units
are attached by CATx interconnection cables.
The operation of a CATX DVI-D Switch always requires (at least) one Local Unit of a CATX
DVI-D-Extender and up to seven Remote Units of CATX DVI-D-Extenders.

OVERVIEW
13
2.2 Glossary
The following terms are used in this guide:
CATx Any Category 5, 5e, 6 or higher cable, solid wires type AWG24.
KVM Keyboard, Video and Mouse.
Console Keyboard, Mouse and Monitor
Dual Access A system allowing connection of Local and Remote User Consoles.
Singlehead An extender system that supports one Monitor + Keyboard/ Mouse
Dualhead An extender system that supports two Monitors + Keyboard/ Mouse
DVI Digital Video standard, installed by Digital Display Working Group
(www.ddwg.org) R, G, B, CLOCK in a data stream with up to
3x1,6 Gbit/sec. Signals are TMDS Level.
PSU The desktop power supply connected to the CATX DVI-D-Switch or
to the Local/ Remote Unit.
HID Human Interface Devices are units, which are used for human access
to the CPU: keyboard and mouse, touch-screen, light pen, fingerprint
sensor, graphic tablets etc.

DVI-D CATX SWITCH/SPLITTER
14
2.3 Example of a CATX DVI-D-Switch System
Example application for a CATX DVI-D Switch System
(Multiplex-Repeater or Crosspoint-Switch)
Up to 7 remote monitors and audio outputs
CPU with DVI graphic card
and audio output
CATx DVI-D-KVM-Extende
r
(Local Unit)
Local monitor
CATx DVI-D KVM - Switch
CATx DVI-D-KVM - Extender- (Remote Units)

OVERVIEW
15
2.4 Features
All members of the CATX DVI-D Switch Series offer the following features:
• Support for DVI-D Graphic cards (all devices)
• Support for USB-Keyboard and USB-Mouse (KVM-Extender)
CATX DVI-D- KVM devices with USB- connectors support the extension of
keyboard and mouse ONLY; use with other HID devices (Human Interface
Device) such as touch screens, graphics tablets, barcode readers or similar
may be successful – but there is no guarantee for this! The CATX DVI-D-
KVM is NOT suitable for use with other USB- devices such as scanners,
web- cams, data sticks etc.
CATX DVI-D- KVM devices support only two devices simultaneously –
keyboard and mouse or keyboard and touch-screen, etc. but not e.g.
keyboard, mouse and touch-screen simultaneously. You can extend a USB
hub but this does not raise the number of supported devices.
• Maximum length of interconnection cable from a Local Unit to a CATX DVI-D-Switch,
between two CATX DVI-D-Switches or from a CATX DVI-D-Switch to a Remote
Unit).
• 140m (400ft) with CATx- cable
• Maximum Resolution (DVI):
• 1920x1200@60Hz
• Supports:
• 18 Bit- (= 256K colours) or 21 Bit- (=16M colours)
• Status indicator LEDs for Power and Link on each device.
• Small footprint chassis.
• Rack mount options available.
• International power supplies included.
• Optional support for audio (+serial/RS232).

DVI-D CATX SWITCH/SPLITTER
16
2.5 Product Range
There are 13 products in the range and various upgrade kits:
CATX DVI-D-Switch
ACX4000 (CATx) CATX DVI-D Switch for CATx
KVM- Extender Local Units
ACS4001A-T CATX DVI-D-KVM Local Unit, Singlehead
ACS4201A-T CATX DVI-D-KVM Local Unit, Dualhead
ACS4022A-T CATX DVI-D-KVM Local Unit, +Audio, Singlehead
ACS4222A-T CATX DVI-D-KVM Local Unit, +Audio, Dualhead
KVM- Extender Remote Units
ACS4001A-R CATX DVI-D-KVM Remote Unit, Singlehead
ACS4201A-R CATX DVI-D-KVM Remote Unit, Dualhead
ACS4022A-R CATX DVI-D-KVM Remote Unit, +Audio, Singlehead
ACS4222A-R CATX DVI-D-KVM Remote Unit, +Audio, Dualhead
Upgrade Kits
ACS1009A-RMK 19”/1HE rack mount kit to mount up to 4 Singlehead
devices
ACS2209A-RMK 19”/1HE rack mount kit to mount up to 4 Dualhead
devices/ CATX DVI-D switch devices
ACS2209A-PS 19“mountable power supply for up to three CATX DVI-D-
devices.

OVERVIEW
17
2.6 Compatibility
Interface Compatibility
• Digital Video (DVI-D): Digital Video standard, installed by Digital Display Working
Group (www.ddwg.org) R, G, B, CLOCK in a data stream with up to 3x 1,6 Gbit/sec.
Signals are TMDS Level.
• USB Keyboard: Compatible with all standard keyboards. Certain keyboards with
enhanced features may also be supported with custom firmware. Keyboards with built-in
hub are also supported – but there are never more than two HID devices supported.
• USB Mouse: Compatible with all standard 2-button, 3-button and wheel mice.
The CATX DVI-D- KVM devices with USB-connectors support the
extension of keyboard and mouse ONLY; use with other HID devices
(Human Interface Device) such as touch screens, graphics tablets, barcode
readers or similar may be successful – but there is no guarantee for this!
The CATX DVI-D- KVM is NOT suitable for use with other USB- devices
such as scanners, web- cams, data sticks etc.
The CATX DVI-D- KVM support only two devices simultaneously –
keyboard and mouse or keyboard and touch-screen, etc. but not e.g.
keyboard, mouse and touch-screen simultaneously. You can extend a USB
hub but this does not raise the number of supported devices.

DVI-D CATX SWITCH/SPLITTER
18
2.7 How to Use This Guide
This guide describes the installation and configuration of the CATX DVI-D Switch. Although
the connection and operation of the system is relatively straightforward, you should consider
the following before getting started:
Connection & Compatibility
The individual CATX DVI-D Switch components consist of:
• CATX DVI-D Switch for CATx: includes the device and power supply.
• CATX DVI-D- KVM Local Unit: includes the device, power supply and all the cable
required to connect the CATX DVI-D- KVM/ Media Local Unit to your CPU/ Signal
source.
• CATX DVI-D- KVM Remote Unit: includes the device and power supply
Please see also Package Contents (Page 19).
For information about connection and installation, see page 21.
DDC Information
Normally it is not necessary to make any adjustments to the CATX DVI-D- KVM/ Media
device. However, in some circumstances, it may be necessary to redefine the source of DDC
information for the CPU. By default, the CATX DVI-D- KVM/ Media uses its own internal
DDC table. If this setting does not satisfy your requirements, the DDC table can either be
switched to the locally attached screen or can be downloaded from the remotely located
screen and stored in the internal DDC table.
To modify the DDC-Setup, see Setup at the Local Unit (Page 45).
Selecting the moment of switching to the next frame
The transmission of screen data is not synchronous to the screen changes of the graphic card.
Normally, the transmission is terminated during the display of a frame on the screen (at the
remote unit). If the device switches to the new frame during the displaying period of the old
frame (somewhere on the screen), it is possible that you will see horizontal screen breaks at
the moment of switching (default). On the other hand, if the device idles until the actual
frame is displayed completely (until VSYNC) then the number of frames per second
transmitted reduces.
To modify the switching behaviour, see Setup at the Remote Unit (Page 48).

INSTALLATION
19
3. Installation
For first-time users, we recommend that you carry out a test placement, confined to a single
room, before commencing full installation. This will allow you to identify and solve any
cabling problems and experiment with the CATX DVI-D System more conveniently.
3.1 Package Contents
You should receive the following items in your CATX DVI-D Switch for CATx package:
• CATX DVI-D Switch
• 1x 5V DC universal power supply for the CATX DVI-D Switch
• 1x serial cable RJ45 / DB9 Female (for switching purpose)
• 1x German type power cord
• 1x sheet of product stickers
• User manual (Quick Setup)
The following parts should be in your CATX DVI-D- KVM Local Unit package:
• CATX DVI-D- KVM Local Unit
• 1x 5V DC universal power supply for the CATX DVI-D-KVM Local Unit
• 1x German type power cord
• DVI-I (1.8m) video cable (DVI-I dual link male-to-male)
• CATx- cross cable (1m)
• CATx- coupler – shielded
• User manual (Quick Setup)
Additionally with the Dualhead devices:
• DVI-I (1.8m) video cable (DVI-I dual link male-to-male)
• CATx- cross cable (1m)
• CATx- coupler - shielded

DVI-D CATX SWITCH/SPLITTER
20
Additionally with the CATX DVI-D-KVM devices:
• USB (1.8m) cable (USB type A to type B)
Additionally with the CATX DVI-D-KVM devices +audio:
• Serial cable 1.8m (Serial DB9-male/female)
• 2 audio cables 1.8m
The following parts should be in your CATX DVI-D- KVM Remote Unit package:
• CATX DVI-D- KVM Remote Unit
• 1x 5V DC universal power supply for the CATX DVI-D- KVM Remote Unit
• 1x German type power cord
• CATx- Cross cable (1m)
• CATx- coupler - shielded
• User manual (Quick Setup)
Additionally with the Dualhead devices:
• CATx- Cross cable (1m)
• CATx- coupler - shielded
If anything is missing, please contact Technical Support (see Appendix E: Calling
Technical Support
.
