Black Box LB9217A-R2 User manual

Max Express Ethernet Switch
17 Ports 10/100Base-TX/FX
Base Unit: LB9217A-R2
Modules:
LB9213A, LB9214A, LB9215A
LB9216A, LB9218A, LB9219A
LB9220C-ST, LB9220C-SC
Order toll-free in the U.S. 24 hours, 7AM Monday to Midnight Friday: 877-877-BBOX FREE
technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: http://www.blackbox.com· E-mail: [e-mail]
CUSTOMER
SUPPORT
INFORMATION
October 2003
All manuals and user guides at all-guides.com
all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
2

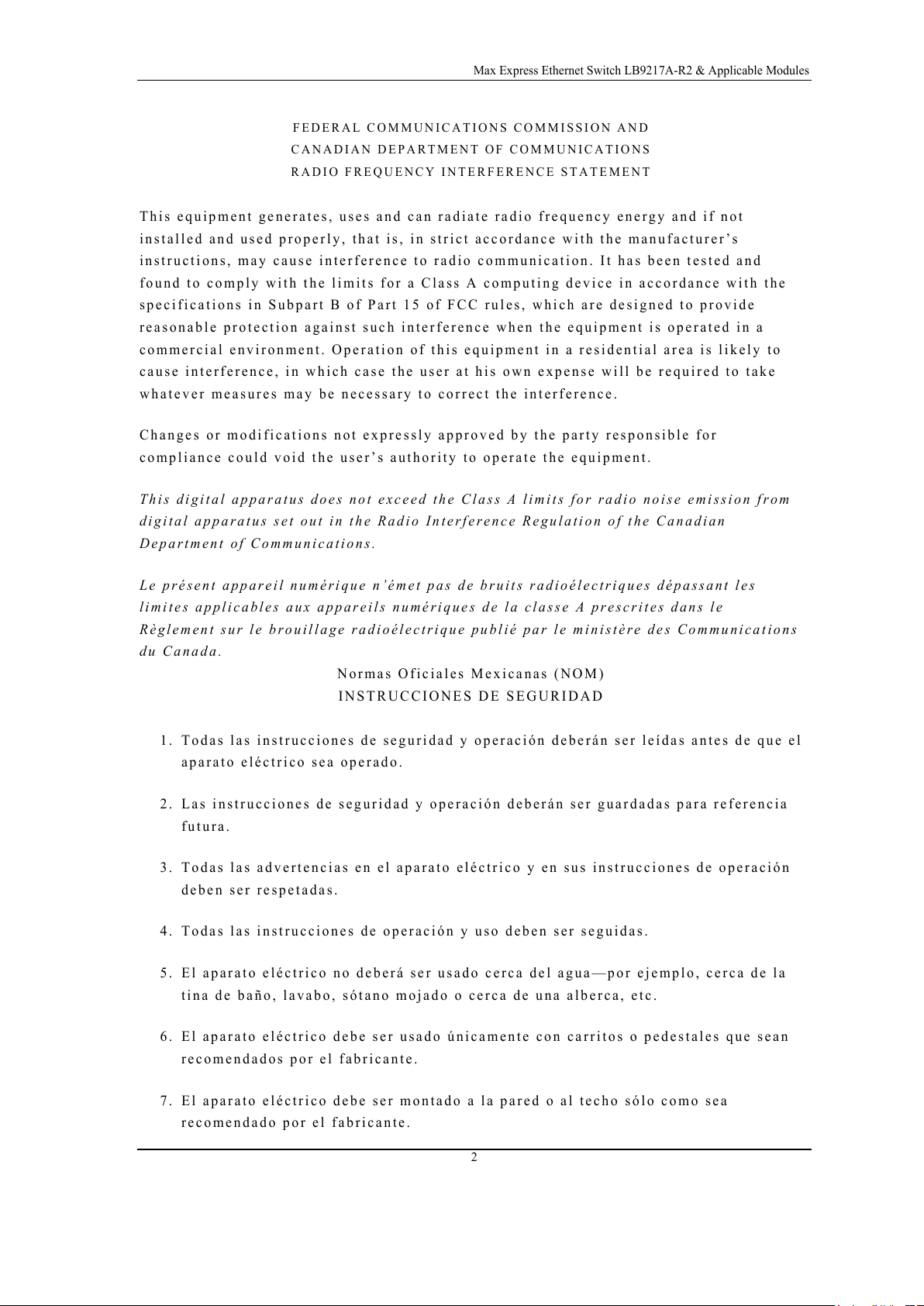

FEDERAL COMMUNICATIONS COMMISSION AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested and
found to comply with the limits for a Class A computing device in accordance with the
specifications in Subpart B of Part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when the equipment is operated in a
commercial environment. Operation of this equipment in a residential area is likely to
cause interference, in which case the user at his own expense will be required to take
whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par le ministère des Communications
du Canada.
Normas Oficiales Mexicanas (NOM)
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el
aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia
futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación
deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la
tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean
recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
3
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo
descrito en las instrucciones de operación. Todo otro servicio deberá ser referido a
personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su
uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra o
superficie similar puede bloquea la ventilación, no se debe colocar en libreros o
gabinetes que impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como
radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores)
que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo
descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del
equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean
pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo
particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de
energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado
por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados
sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño;
o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
4

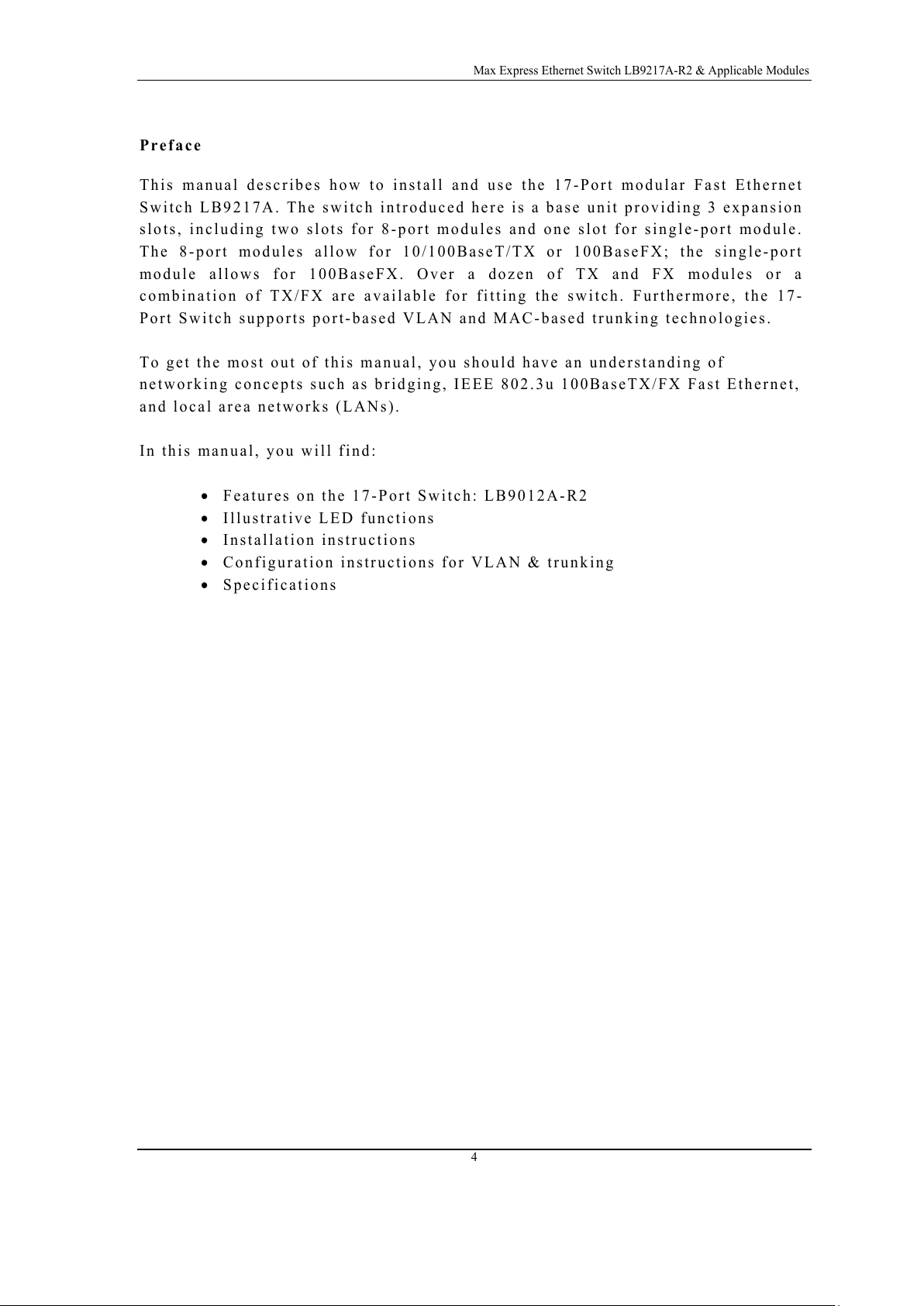

Preface
This manual describes how to install and use the 17-Port modular Fast Ethernet
Switch LB9217A. The switch introduced here is a base unit providing 3 expansion
slots, including two slots for 8-port modules and one slot for single-port module.
The 8-port modules allow for 10/100BaseT/TX or 100BaseFX; the single-port
module allows for 100BaseFX. Over a dozen of TX and FX modules or a
combination of TX/FX are available for fitting the switch. Furthermore, the 17-
Port Switch supports port-based VLAN and MAC-based trunking technologies.
To get the most out of this manual, you should have an understanding of
networking concepts such as bridging, IEEE 802.3u 100BaseTX/FX Fast Ethernet,
and local area networks (LANs).
In this manual, you will find:
•Features on the 17-Port Switch: LB9012A-R2
•Illustrative LED functions
•Installation instructions
•Configuration instructions for VLAN & trunking
•Specifications
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
5

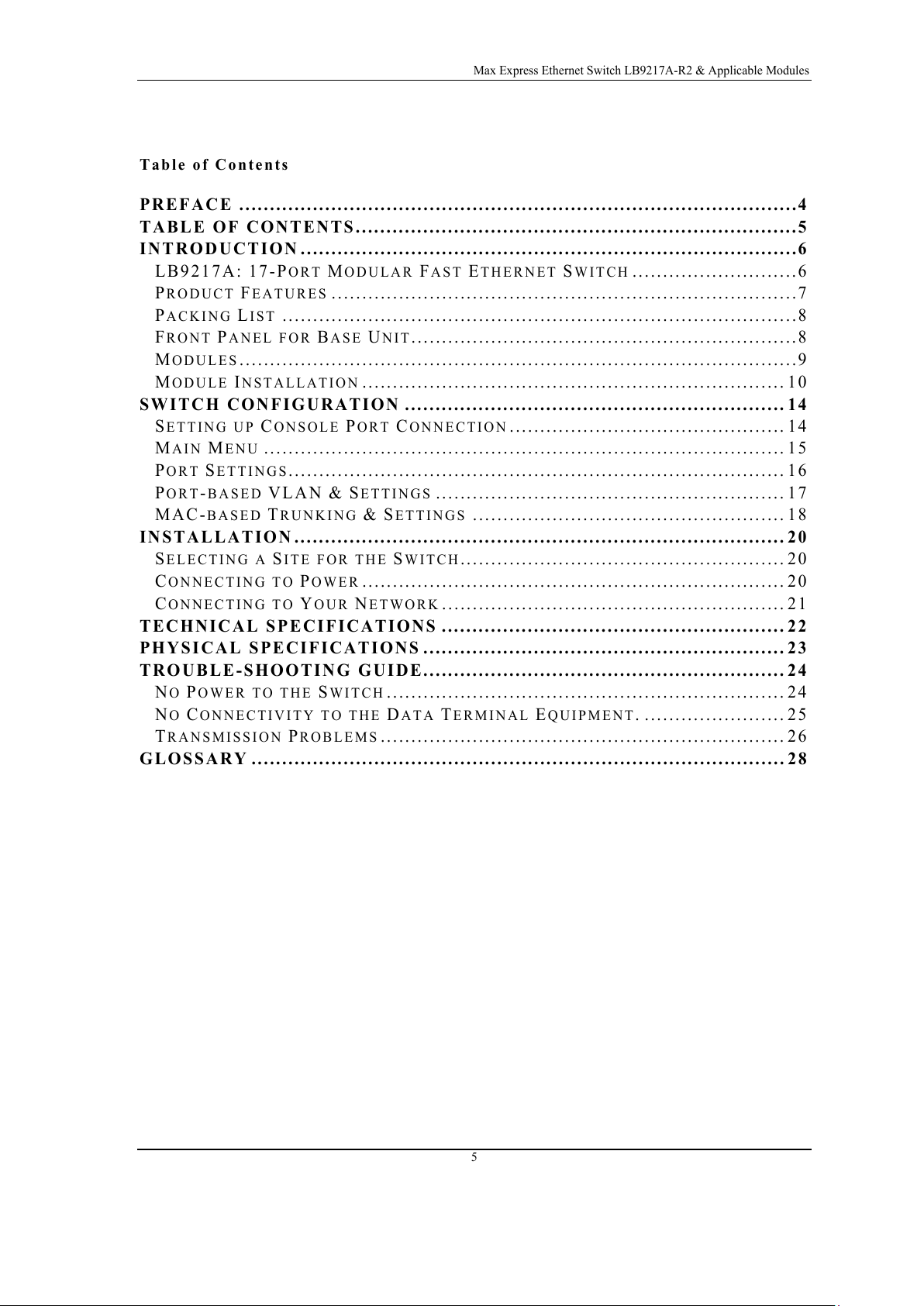

Table of Contents
PREFACE ...........................................................................................4
TABLE OF CONTENTS........................................................................5
INTRODUCTION .................................................................................6
LB9217A: 17-PORT MODULAR FAST ETHERNET SWITCH ...........................6
PRODUCT FEATURES ............................................................................7
PACKING LIST ....................................................................................8
FRONT PANEL FOR BASE UNIT...............................................................8
MODULES...........................................................................................9
MODULE INSTALLATION .....................................................................10
SWITCH CONFIGURATION .............................................................. 14
SETTING UP CONSOLE PORT CONNECTION ............................................. 14
MAIN MENU .....................................................................................15
PORT SETTINGS................................................................................. 16
PORT-BASED VLAN &SETTINGS ......................................................... 17
MAC-BASED TRUNKING &SETTINGS ...................................................18
INSTALLATION................................................................................20
SELECTING A SITE FOR THE SWITCH..................................................... 20
CONNECTING TO POWER ..................................................................... 20
CONNECTING TO YOUR NETWORK ........................................................21
TECHNICAL SPECIFICATIONS ........................................................ 22
PHYSICAL SPECIFICATIONS ........................................................... 23
TROUBLE-SHOOTING GUIDE...........................................................24
NO POWER TO THE SWITCH .................................................................24
NO CONNECTIVITY TO THE DATA TERMINAL EQUIPMENT. .......................25
TRANSMISSION PROBLEMS ..................................................................26
GLOSSARY ....................................................................................... 28
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
6
Introduction
LB9217A: 17-Port Modular Fast Ethernet Switch
The 17-Port Switch is a modular switch consisting of three expansion slots: two
for 8-port 10/100BaseTX/FX module, and one for 1-port 100BaseFX module. This
allows the switch to provide up to 17 ports when all the three slots are fit with
modules.
Cost-Effective Migration
The 17-Port Switch is capable of integrating legacy 10Mbps networks with
100Mbps Fast Ethernet networks. In addition, the 17-Port Switch provides an
easy and affordable solution for migrating from copper cabling to fiber
connection when it is equipped with suitable modules to provide both TX and FX
ports.
Flexibility through Modules
Seeing fiber connection become popular while the fiber cabling in small business
environment is still not widespread, the 17-Port Switch is designed to deliver
flexibility through a wide variety of TX and FX modules. Most of the modules
combine TX and FX ports to provide more customization options.
<NOTE> Desired module shall be ordered separately.
Fiber-Connectivity
As a Fast Ethernet switch, the 17-Port Switch is specifically designed to meet the
demanding need for fiber. The switch provides up to 17 ports for 100BaseFX,
multi-mode or single-mode fiber. For multi-mode fiber port, it allows SC, ST,
MT-RJ, VF-45 or LC connector. For single-mode fiber port, it allows SC
connector only. The fiber ports allow maximum segment distance of 75 km when
using single-mode fiber, and therefore, the 17-Port Fiber Switch is an optimum
solution for long distance connection.
Basic Configuration Features
The 17-Port Switch supports port-based Virtual Local Area Networking (VLAN)
and MAC-based trunking technologies. Such advanced features bring network
administrators a powerful yet easy-to-use tool to reduce unnecessary traffic,
efficiently segment the network, and enhance network security.
Standards Compliant
The 17-Port Switch fully complies with IEEE802.3 10BaseT as well as
IEEE802.3u 100BaseTX/FX standards.
All manuals and user guides at all-guides.com
all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
7

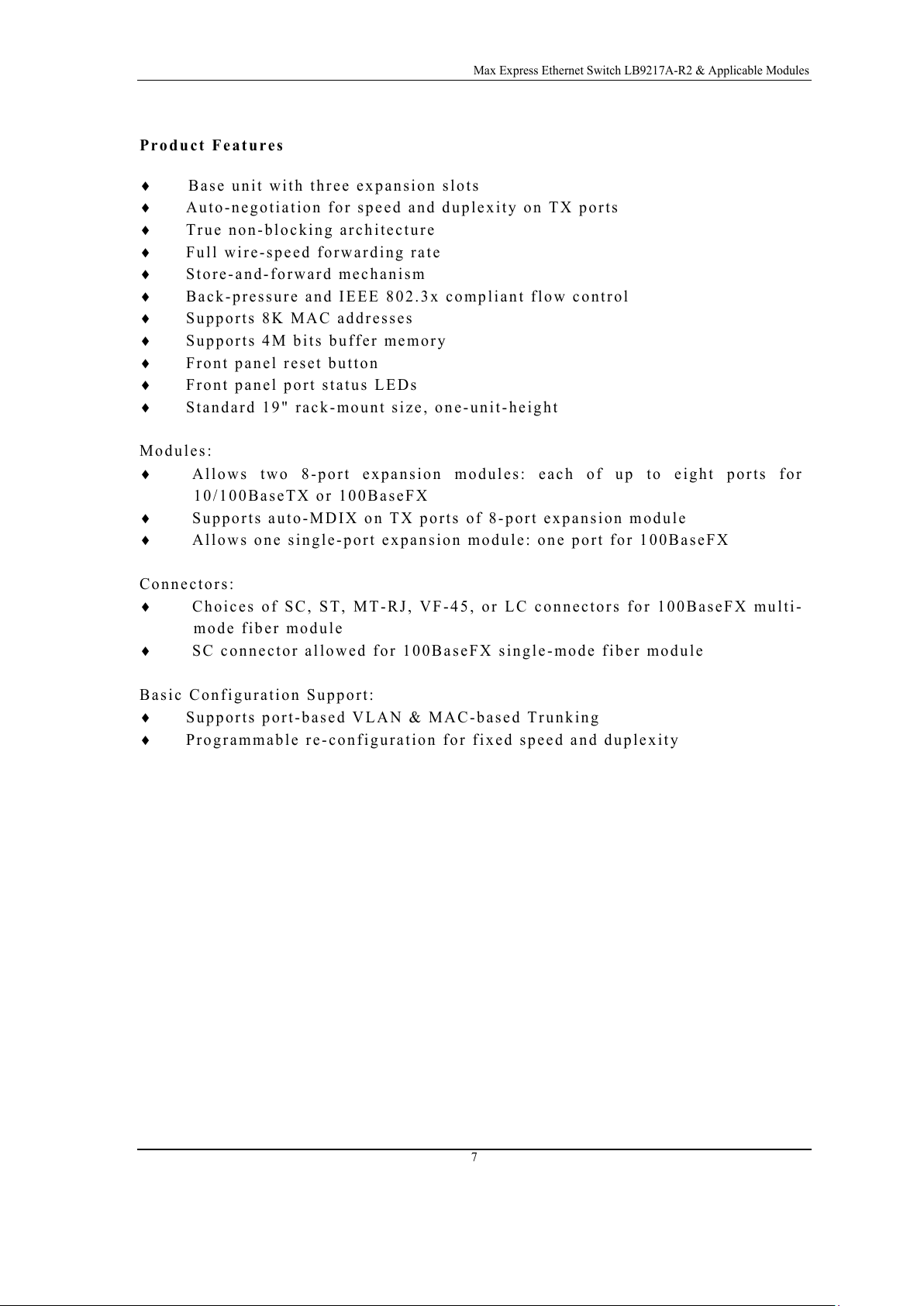

Product Features
♦Base unit with three expansion slots
♦Auto-negotiation for speed and duplexity on TX ports
♦True non-blocking architecture
♦Full wire-speed forwarding rate
♦Store-and-forward mechanism
♦Back-pressure and IEEE 802.3x compliant flow control
♦Supports 8K MAC addresses
♦Supports 4M bits buffer memory
♦Front panel reset button
♦Front panel port status LEDs
♦Standard 19" rack-mount size, one-unit-height
Modules:
♦Allows two 8-port expansion modules: each of up to eight ports for
10/100BaseTX or 100BaseFX
♦Supports auto-MDIX on TX ports of 8-port expansion module
♦Allows one single-port expansion module: one port for 100BaseFX
Connectors:
♦Choices of SC, ST, MT-RJ, VF-45, or LC connectors for 100BaseFX multi-
mode fiber module
♦SC connector allowed for 100BaseFX single-mode fiber module
Basic Configuration Support:
♦Supports port-based VLAN & MAC-based Trunking
♦Programmable re-configuration for fixed speed and duplexity
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
8
Packing List
When you unpack this product package, you will find the items listed below.
Please inspect the contents, and report any apparent damage or missing items
immediately to our authorized reseller.
yThe 17-Port Switch
yUser’s Manual
yAC power cord
yRS232 cable
yRack Mount Ears with screws
Front Panel for Base Unit
The front panel of the 17-port Switch consists of three expansion slots to house
two 8-port modules and one single-port module.
An array of LED indicators on each module provides you with instant feedback on
the status of the switch.
Figure 1: Front View of 17-Port Modular Switch
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
9
Modules
There are total 8 different modules available to choose that fit best with your
network environment needs. Please see the table below for detailed information.
Module Name 10/100RJ45 copper multi-mode fiber
LB9213A 8 0
LB9214A 0 8 (ST)
LB9215A 0 8 (SC)
LB9216A 6 2 (ST)
LB9218A 6 2 (SC)
LB9219A 4 4 (SC)
LB9220C-ST 0 1(ST)
LB9220C-SC 0 1 (SC)
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
10
Module Installation
There are two sets of different modules available for LB9217A-R2, the base unit
for Max Express Ethernet Switch. Modules LB9213A~LB9219A are equipped
with 8 ports TX/FX while LB9220C-ST & LB9220C-SC are designed with one
fiber port to meet different needs in your network environment. Please see page
9for detailed information.
A B C

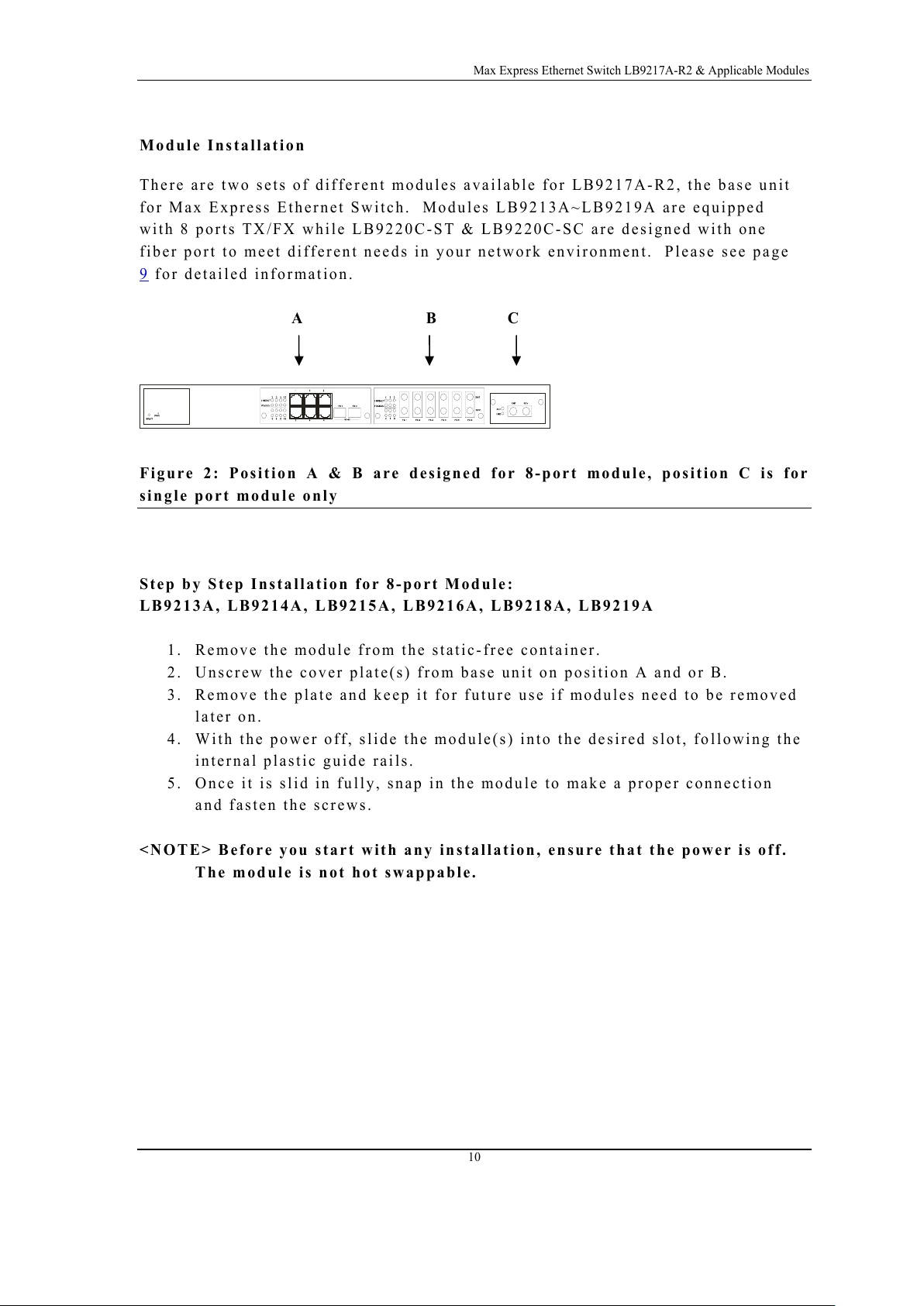

Figure 2: Position A & B are designed for 8-port module, position C is for
single port module only
Step by Step Installation for 8-port Module:
LB9213A, LB9214A, LB9215A, LB9216A, LB9218A, LB9219A
1. Remove the module from the static-free container.
2. Unscrew the cover plate(s) from base unit on position A and or B.
3. Remove the plate and keep it for future use if modules need to be removed
later on.
4. With the power off, slide the module(s) into the desired slot, following the
internal plastic guide rails.
5. Once it is slid in fully, snap in the module to make a proper connection
and fasten the screws.
<NOTE> Before you start with any installation, ensure that the power is off.
The module is not hot swappable.
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
11
Step by Step Installation for Single Port Module:
LB9220C-ST & LB9220C-SC
1. Remove the module from the static-free container.
2. Unscrew the cover plate(s) from base unit on position C.
3. Remove the plate and keep it for future use if the module needs to be
detached later on. Keep the screws for the installation. Unlike 8-port
module, screws are not attached on single port module.
4. With the power off, slide the module(s) into the desired slot, following the
internal plastic guide rails.
5. Once it is slid in fully, snap in the module to make a proper connection
and fasten the screws that obtained from removing the original plate.
<NOTE> Before you start with any installation, ensure that the power is off.
The module is not hot swappable.
Figure 3: Removal of cover plate Fiber module being installed
All manuals and user guides at all-guides.com
all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
12
oReset qPort
S
tatus on
S
in
g
le-Port Module
LEDs & Reset Button
The array of LED indicators on the front panel conveys status and configuration
information to help you monitor and troubleshoot the switch.

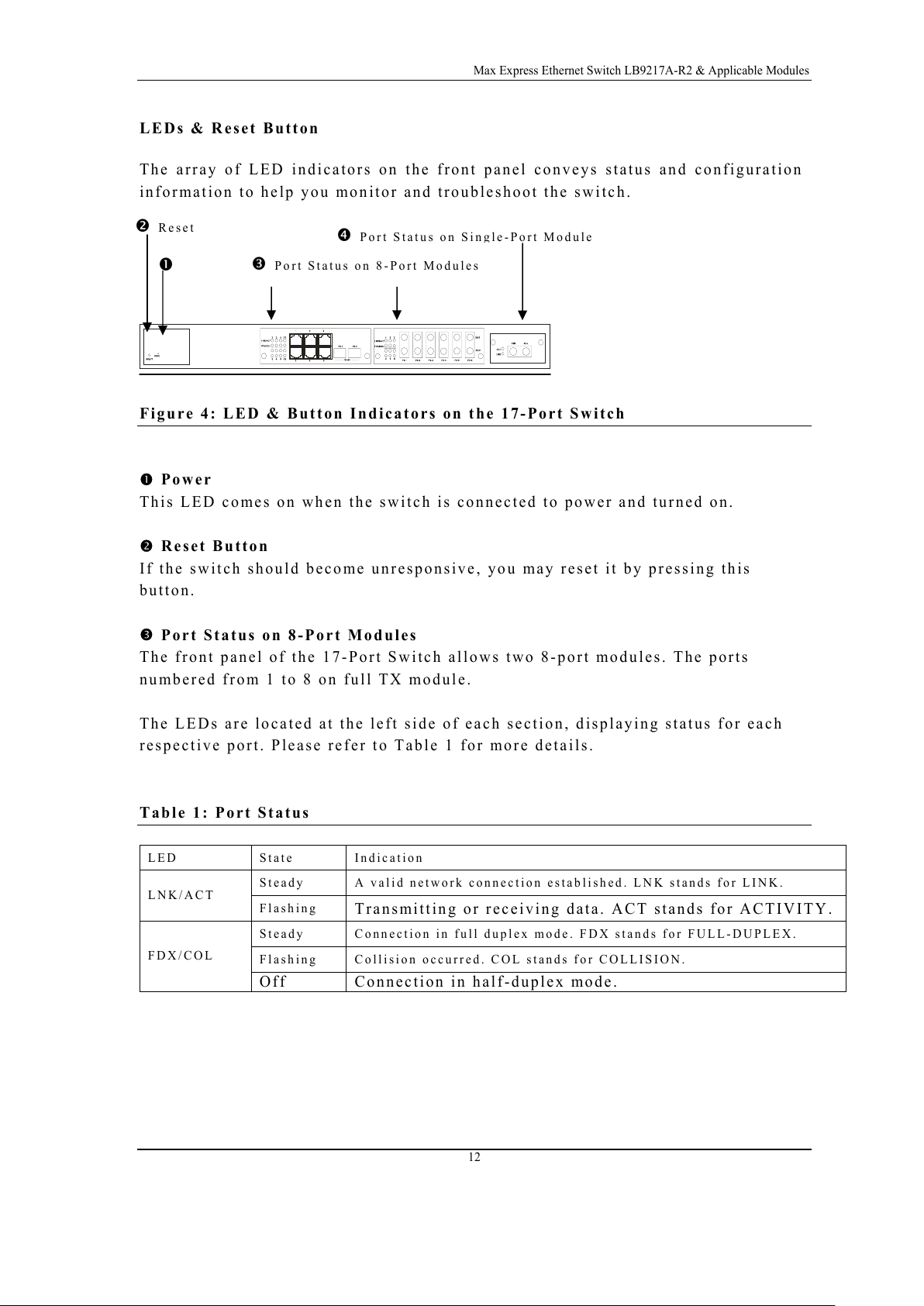

Figure 4: LED & Button Indicators on the 17-Port Switch
nPower
This LED comes on when the switch is connected to power and turned on.
oReset Button
If the switch should become unresponsive, you may reset it by pressing this
button.
pPort Status on 8-Port Modules
The front panel of the 17-Port Switch allows two 8-port modules. The ports
numbered from 1 to 8 on full TX module.
The LEDs are located at the left side of each section, displaying status for each
respective port. Please refer to Table 1 for more details.
Table 1: Port Status
LED State Indication
Steady A valid network connection established. LNK stands for LINK.
LNK/ACT
Flashing Transmitting or receiving data. ACT stands for ACTIVITY.
Steady Connection in full duplex mode. FDX stands for FULL-DUPLEX.
Flashing Collision occurred. COL stands for COLLISION.
FDX/COL
Off Connection in half-duplex mode.
nZPort Status on 8-Port Modules
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
13
qPort Status on Single-Port Module
A set of three LEDs conveys the port status on the single-port module. Consult
Table 2 for details.
Table 2: Port status on single-port Module
LED State Indication
Steady A valid 100Mbps network connection established.
100 stands for 100Mbps.
100/TX
Flashing Transmitting data.
TX stands for TRANSMIT.
Steady A valid 10Mbps network connection established.
10 stands for 10Mbps.
10/RX
Flashing Receiving data.
RX stands for RECEIVE.
Steady Connection in full duplex mode.
FDX stands for FULL-DUPLEX.
FDX/COL
Flashing Collision occurred.
COL stands for COLLISION.
Ports
Up to 17 Ports
The 17-Port Switch provides up to 17 ports for 10/100BaseTX or 100BaseFX, etc.
Multi-Connectivity
The 8-port modules allow for 10/100BaseTX or 100BaseFX, and the single-port
modules allow for 100BaseFX.
For 100BaseFX modules, the multi-mode fiber ports accommodate ST, SC, MT-
RJ, VF-45, or LC connector, and the single-mode fiber ports accommodate SC
connector only.
Longer Segment Distance
The maximum connection distance between a node and a switch port is up to 75
km over single-mode fiber for 100BaseFX networks. For information on the
cables for fiber module installation, please refer to Table 3.
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
14
Switch Configuration
This section explains the configuration of VLAN and trunking settings.

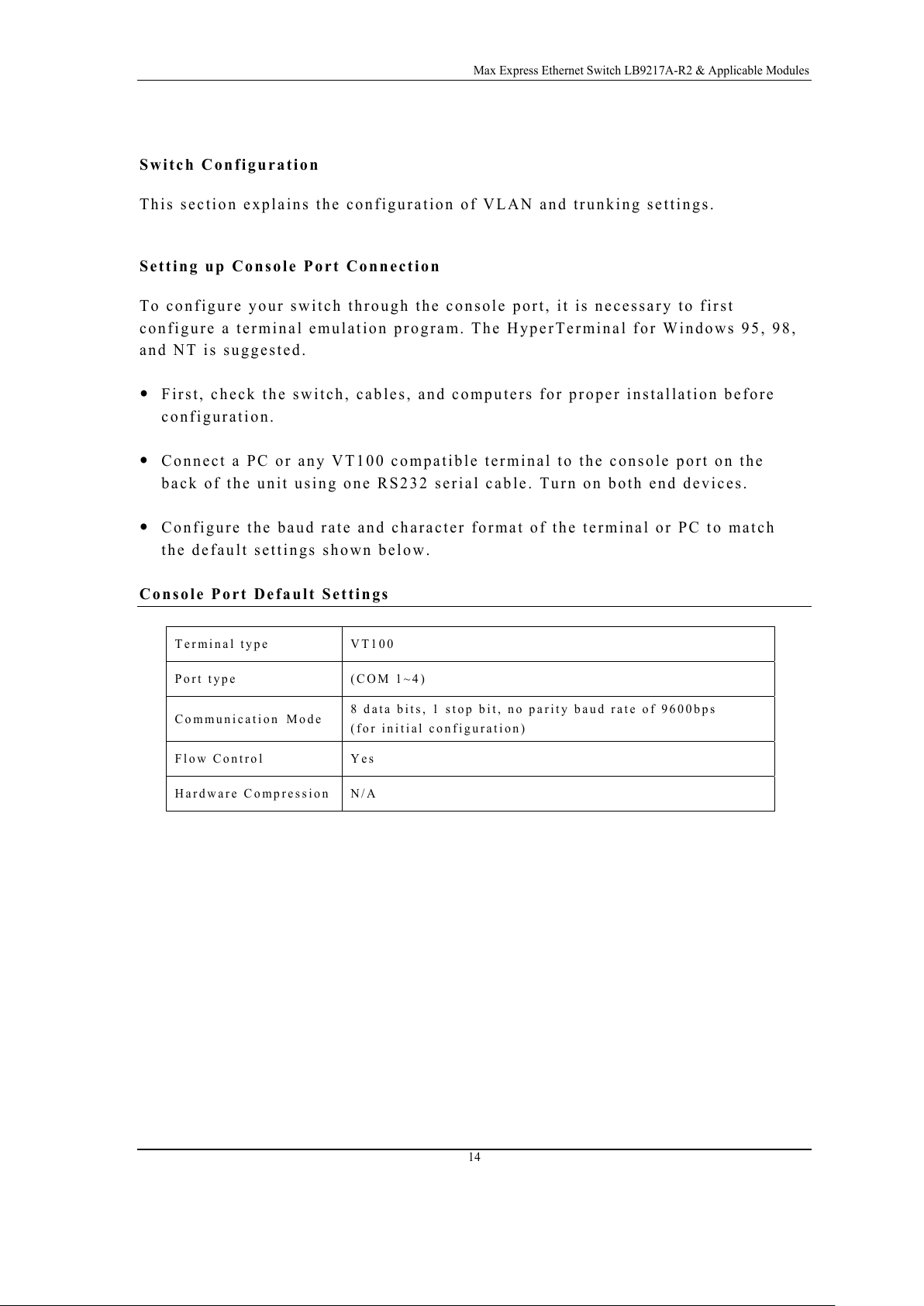

Setting up Console Port Connection
To configure your switch through the console port, it is necessary to first
configure a terminal emulation program. The HyperTerminal for Windows 95, 98,
and NT is suggested.
yFirst, check the switch, cables, and computers for proper installation before
configuration.
yConnect a PC or any VT100 compatible terminal to the console port on the
back of the unit using one RS232 serial cable. Turn on both end devices.
yConfigure the baud rate and character format of the terminal or PC to match
the default settings shown below.
Console Port Default Settings
Terminal type VT100
Port type (COM 1~4)
Communication Mode 8 data bits, 1 stop bit, no parity baud rate of 9600bps
(for initial configuration)
Flow Control Yes
Hardware Compression N/A
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
15
Main Menu
This main menu shows you the default configuration of the switch.
By default, all TX ports are set at auto-negotiation and flow control on, all FX
ports are set at 100Mbps with full duplex and flow control off, and all ports are
grouped into V1 (VLAN group 1).
These are the valid commands; capitalization is not required:
[W] Move the cursor up
[S] Move the cursor down
[A] Move the cursor to the left
[D] Move the cursor to the right
[R] Default
[V] Routing
[SPACE] Option
[ENTER] Apply and save the setting
[ESC] Abort
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
16
Port Settings
The duplex mode and speed can be altered and the flow control can be turned
on/off to accommodate special needs.
Follow these steps to change the speed/duplex mode setting or to toggle flow
control ON/OFF:
yMove the cursor to MODE column to change the speed/duplex mode setting, or
move the cursor to FLW column to change the flow control setting
yMove the cursor and select a port
yPress [SPACE] and select a desired setting from the list that appears on the
screen
yPress [ENTER] to apply and save the setting
FX Ports
The port setting for the fiber module is slightly different from the TX port.
Consult the following table for a brief description on FX ports:
Table 4: Mode Setting on FX Ports
Communication Mode Description
Flow control Always N (off) and can not be changed
100FD 100Mbps at full duplex mode
100HD 100Mbps at half duplex mode
TX Ports
Consult the following table for a brief description on TX ports:
Table 5: Mode Setting on TX Ports
Communication Mode Description
Flow control on / off Y (on) / N (off)
Auto Auto-Negotiation
100FD 100Mbps at full duplex mode
100HD 100Mbps at half duplex mode
10FD 10Mbps at full duplex mode
10HD 10Mbps at half duplex mode
All manuals and user guides at all-guides.com
all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
17
Port-based VLAN & Settings
The 17-Port Switch allows up to sixteen port-based VLAN domains. Assign each
port to a VLAN group or a couple of VLAN groups according to accessibility
needs.
The VLAN setting: follow these steps to assign VLAN groups.
yMove the cursor to VLAN1 ~ 16 column
yMove the cursor and select a port
yPress [SPACE] and show Vto the desired port
yPress [ENTER] to apply and save the setting
For example, here we have the port 17 assigned as routing (uplink) port. The port
1 ~ port 16 are divided into five different VLAN groups (VLAN 1, 2, 3, 4, and 5).
VLAN 1: port 1, 2, 3
VLAN 2: port 4, 5, 6
VLAN 3: port 7, 8, 9
VLAN 4: port 10, 11, 12
VLAN 5: port 13, 14, 15, 16, 17
For example, the port 1, 2, and 3 (VLAN 1) can not communicate with the port 4,
5, and 6 (VLAN 2).
The routing (uplink) port setting: follow these steps to have an assigned
routing (uplink) port. Then separate the rest each port to a different VLAN group.
The rest each port can only uplink through the assigned routing (uplink) port and
can’t communicate with each other.
yEnter [V] from the Main Menu
yMove the cursor to a desired routing (uplink) port
yPress [SPACE] and show Vto the desired routing (uplink) port
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
18
yPress [ENTER] to apply and save the setting, then all the other ports will be
assigned to each different VLAN group and use the desired port as the routing
(uplink) port
For example, here we have the port 17 assigned as routing (uplink) port. The port
1 ~ port 16 are divided into each different VLAN groups. And the user on the
port 1 ~ port 16 can uplink through the port 17 only and can not communicate
with each other.
MAC-based Trunking & Settings
Trunking is also called link aggregation, which serves as a shortcut to increase
the bandwidth on your network. Trunking is a method of physically linking
together several ports to act as a single port with higher bandwidth. This
functionality allows scaling of bandwidth.
The 17-Port Switch supports trunking of up to 4 ports, either 2-port or 4-port.
For a 100BaseTX/FX network, you will gain 400Mbps bandwidth when you trunk
two ports, each of 200Mbps. The more ports you trunk, the more bandwidth you
gain.
Follow these steps to configure the 2-port trunking.
yMove the cursor to TRUNK column
yMove the cursor and select port 1
yPress [SPACE] and show Tto port1 and port2
yPress [ENTER] to apply and save the setting
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
19

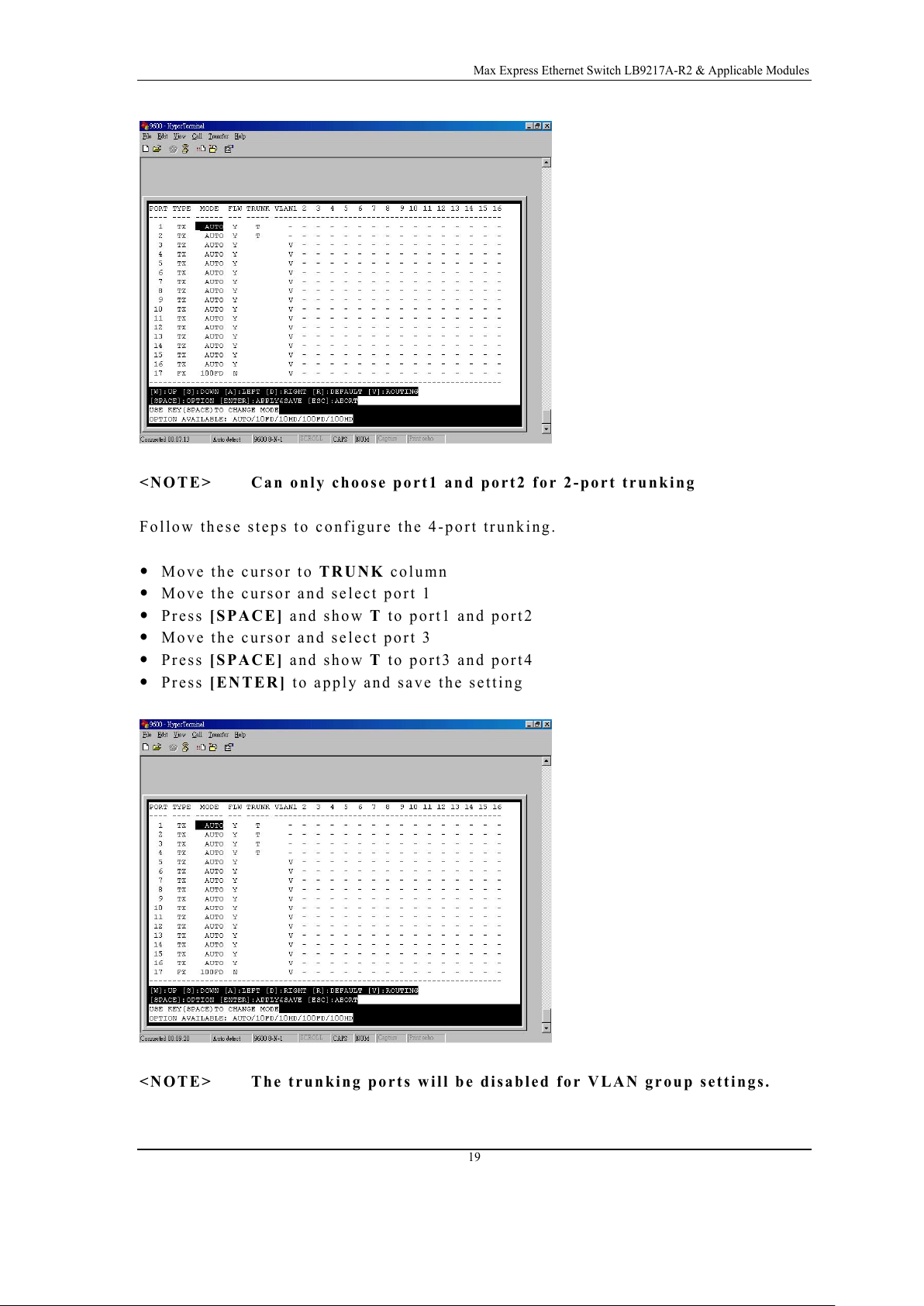

<NOTE> Can only choose port1 and port2 for 2-port trunking
Follow these steps to configure the 4-port trunking.
yMove the cursor to TRUNK column
yMove the cursor and select port 1
yPress [SPACE] and show Tto port1 and port2
yMove the cursor and select port 3
yPress [SPACE] and show Tto port3 and port4
yPress [ENTER] to apply and save the setting
<NOTE> The trunking ports will be disabled for VLAN group settings.
All manuals and user guides at all-guides.com

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules
20
Installation
This chapter gives step-by-step installation instructions for the 17-Port Switch.
Selecting a Site for the Switch
As with any electric device, you should place the switch where it will not be
subjected to extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following requirements:
- The ambient temperature should be between 32 and 104 degrees Fahrenheit (0
to 40 degrees Celsius).
- The relative humidity should be less than 90 percent, non-condensing.
- Surrounding electrical devices should not exceed the electromagnetic field
(RFC) standards for IEC 801-3, Level 2 (3V/M) field strength.
- Make sure that the switch receives adequate ventilation. Do not block the
ventilation holes on each side of the switch or the fan exhaust port on the
rear of the switch.
- The power outlet should be within 1.8 meters of the switch.
Connecting to Power
yConnect the supplied AC power cord to the receptacle on the back of the
switch, and then plug it into a standard AC outlet with a voltage range from
100 to 240 Vac.
Figure 5: Rear view of the switch
All manuals and user guides at all-guides.com
