Black Box LE1603A User manual

Link legacy Standard Ethernet devices
to ThinNet or fiberoptic networks.
Link legacy Standard Ethernet devices
to ThinNet or fiberoptic networks.
AUI to BNC Transceiver • AUI to 10BASE-FL Transceiver
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com

2 of 3
4/25/07
#10418
724-746-5500 blackbox.com
FEATURES
• Install the transceiver either directly
on an Ethernet device via the AUI
port or using an AUI cable.
• Models available for ThinNet or
fiberoptic connections.
• SQE (Signal Quality Error) switch
enables or disables SQE (heartbeat) test.
• Link integrity test on the fiber model
checks fiber cables.
• Compact design.
Attaching an AUI to 10BASE-FL Transceiver
to an Ethernet card or repeater.
OVERVIEW
AUI Transceivers provide a way to connect legacy Ethernet
devices to ThinNet (10BASE2) or 10BASE-FL cabling.

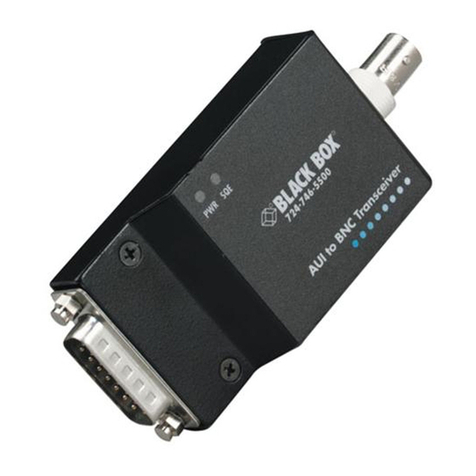

The AUI to BNC Transceiver (LE1601A) enables you to
connect a legacy Ethernet device with an AUI connector to
Thin Ethernet coaxial cable. It extends coaxial cable segments
up to 606.8 feet (185 m) without a repeater. This transceiver
complies with the 10BASE2 specification for Thin Ethernet
networks.
Or connect your legacy Ethernet device to a multimode
10BASE-FL fiberoptic network or device using the AUI to
10BASE-FL Transceiver (LE1603A). The 10BASE-FL segments
can be up to 1.2 miles (1.9 km) long. The LE1603A fits the
requirements of the 10BASE-FL Ethernet standard.
On the AUI side of the transceivers, you can use a standard
AUI cable (50 feet [15.2 m] long) to connect to the Ethernet
device, or you can directly mount the transceiver to the DTE.
Both models feature an SQE (Signal Quality Error) switch
that enables or disables Signal Quality Error (heartbeat). SQE
must be enabled when connecting the transceiver to a LAN
card, bridge, or router. This test must be disabled when
connecting to a hub or repeater. The BNC model has a 2-
position slide switch that sets SQE. On the fiber model, SQE
is set via a 4-position DIP switch.
LEDs tell you network status at a glance. The AUI to
10BASE-FL Transceiver also features a link integrity test
that automatically checks fiberoptic cables.
AUI to 10BASE-FL Transceiver
(SQE switch enabled)
AUI to 10BASE-FL Transceiver
(SQE switch disabled)
Fiberoptic segment
connects here
Ethernet LAN card
Ethernet repeater
AUI port
Fiberoptic segment
connects here
AUI port

3 of 3
4/25/07
#10418
724-746-5500 blackbox.com
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive falls
far short of their expectations—and certainly isn’t worth
what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money—call Black Box today.
Why Buy From Black Box? Exceptional Value.
Exceptional Tech Support. Period.
LE1603A
✦ (1) AUI to BNC or 10BASE-FL Transceiver
✦ (1) BNC “T” connector (included with LE1601A only)
✦ (1) Users’ manual
WHAT‘S INCLUDED
TECH SPECS
Maximum Cable Segment Distance —
Both models: AUI port: Up to 50 ft. (15.2 m);
LE1601A: Coaxial: Up to 606.8 ft. (185 m);
LE1603A: Fiber: Up to 1.2 mi. (1.9 km)
Speed — 10 Mbps
Standards —
LE1601A: IEEE 802.3 10BASE2;
LE1603A: IEEE 802.3 10BASE-FL
User Controls — LE1601A: (1) SQE slide switch;
LE1603A: (1) 4-position DIP switch (SQE, Link Alert, Link, and Full Duplex)
Connectors — LE1601A: (1) DB15 AUI M, (1) BNC F;
LE1603A: (1) DB15 AUI M, (2) ST®
Indicators — LE1601A: (2) LEDs: (1) Power, (1) SQE;
LE1603A: (6) LEDs: (1) Power, (1) Link, (1) Transmit, (1) Receive,
(1) Collision, (1) Full Duplex
Temperature Tolerance —
Operating: 32 to 122°F (0 to 50°C);
Storage: -40 to +212°F (-40 to +100°C)
Relative Humidity — Operating: 8 to 80%, noncondensing;
Storage: 5 to 98%, noncondensing
Power — From the AUI interface
Size — LE1601A: 0.8"H x 1.6"W x 3.8"D (2 x 4.1 x 9.7 cm);
LE1603A: 0.8"H x 1.6"W x 3.4"D (2 x 4.1 x 8.6 cm)
Weight — 0.2 lb. (<0.1 kg)
Item Code
AUI to BNC Transceiver LE1601A
AUI to 10BASE-FL Transceiver LE1603A
