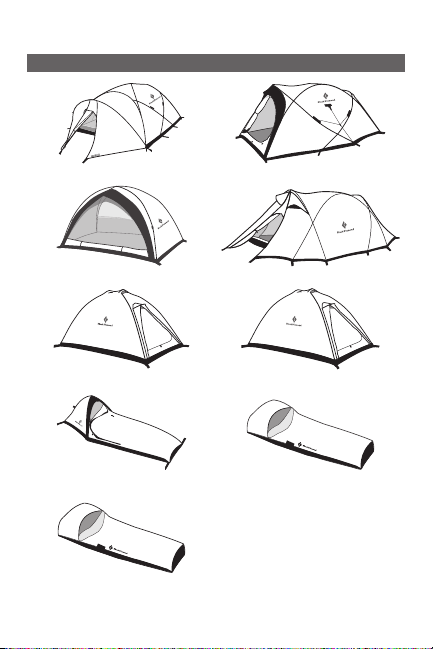

BIBLER SERIES

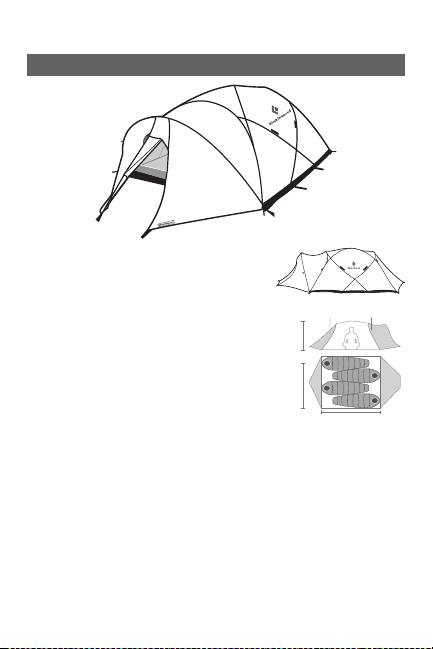

1. 4-person, 2-door, 2-vestibule design
2. Expedition-tested and exceptionally stable
in windy conditions
3. 4 interior poles intersect 7 times for
maximum strength
4. 4 interior mesh pockets
5. ToddTex single-wall fabric; 100% seam taped
6. Optional ground cloth available
: 4 : 4
: L 229 cm, W 203 cm, H 112 cm
(L 90 in, W 80 in, H 44 in)
  : L 371 cm, W 203 cm, H 112 cm
(L 146 in, W 80 in, H 44 in)
: 3.99 kg (8 lb 13 oz) tent and poles only
 : 4.42 kg (9 lb 12 oz)
 : FR adds 283 g (10 oz)
 : 4.6 m2(50 sq ft)
 : 1.85 m2(20 sq ft)
 : 20 x 51 cm (8 in x 20 in)
: Yellow
: Fitted Ground Cloth, Attic Storage Loft, Pocket Pal Organizer
BOMBSHELTER
3
english
203 cm
(80 in)
112 cm
(44 in)
229 cm (90 in)
attached vestibules
1.8 m2(20 sq ft) total

1. 2-person, 4-pole, steep-sided design with
optional vestibule
2. Double doors with internal mesh panels
3. Pole-supported door awnings over zippered vents
4. 4 interior mesh pockets
5. ToddTex single-wall fabric; 100% seam taped
6. Optional ground cloth available
: 2 : 4
: L 236 cm, W 152 cm, H 102 cm
(L 93 in, W 60 in, H 40 in)
: 2.85 kg (6 lb 4 oz) tents and poles only
 : 3.2 kg (7 lb 1 oz)
 : 3.34 m2(36 sq ft)
 : 23 x 48 cm (9 x 19 in)
: Yellow
: Vestibule, Fitted Ground Cloth, Attic Storage Loft,
Pocket Pal Organizer
FITZROY
4
english
236 cm (93 in)
152 cm
(60 in)
102 cm
(40 in)
optional vestibule
0.8 m2(9 sq ft)

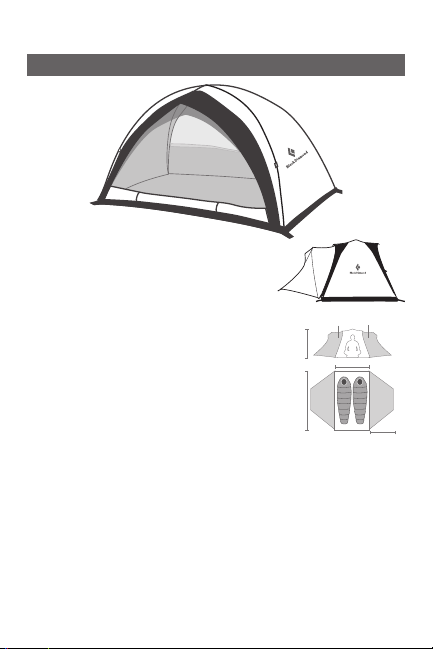

AHWAHNEE
1. 2 full side doors and internal mesh doors with
wide awnings for rain protection while venting
2. 3 internal aluminum poles for easy setup
3. 2 interior mesh pockets
4. ToddTex single-wall fabric; 100% seam taped
5. 2 optional vestibules available
6. Optional ground cloth available
: 2 : 4
: L 229 cm, W 135 cm, H 114 cm
(L 90 in, W 53 in, H 45 in)
: 2.73 kg (6 lb) tents and poles only
 : 3.05 kg (6 lb 11 oz)
 : FR adds 290 g (10 oz)
 : 3.08 m2(33.1 sq ft)
 : 20 x 48 cm (8 x 19 in)
: Green
: Vestibule, Fitted Ground Cloth, Attic Storage Loft,
Pocket Pal Organizer
5
english
114 cm
(45 in)
97 cm (38 in)
135 cm (53 in)
229 cm
(90 in)
1.2 m2(13 sq ft) each
optional vestibules

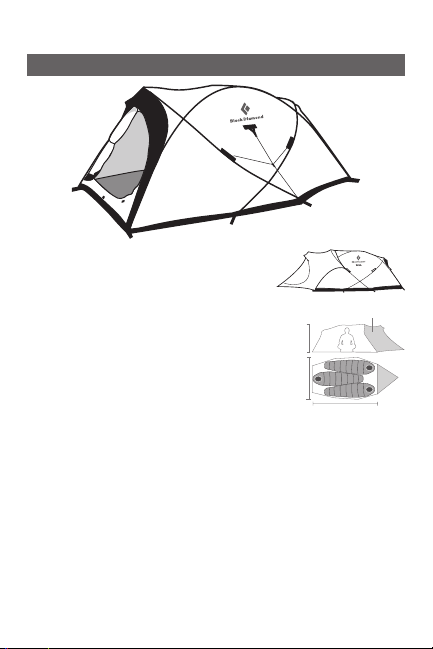

TEMPEST
1. 2-person, 2 door design with 2 built-in vestibules
2. Weatherproof vents at the top of each vestibule
3. 4 internal aluminum poles for maximum strength
4. 4 interior mesh pockets
5. ToddTex single-wall fabric
6. Optional ground cloth available
: 2 : 4
: L 221 cm, W 147 cm, H 113 cm
(L 87 in, W 58 in, H 44.5 in)
  : 353 cm (139 in)
: 2.84 kg (6 lb 4 oz) tent and poles only
 : 3.26 kg (7 lb 3 oz)
 : 3 m2(32.25 sq ft)
 : 1.2 m2(13 sq ft)
 : 18 x 48 cm (7 x 19 in)
: Green
: Fitted Ground Cloth, Attic Storage Loft, Pocket Pal Organizer
6
english
221 cm (87 in)
147 cm
(58 in)
113 cm
(44.5 in)
attached vestibules
1.1 m2(12 sq ft).19 m2(2 sq ft)

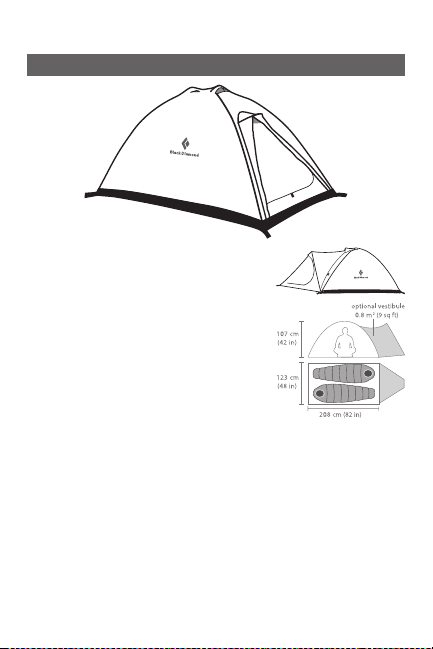

ITENT
1. Ultra-strong, lightweight 2-person design
with efficient footprint
2. Single-door entry and optional vestibule
for gear storage
3. 2 internal aluminum poles for easy setup
4. Zippered vents at the peak, a hooded vent
over the door and one at the bottom
5. ToddTex single-wall fabric; 100% seam taped
6. Optional ground cloth available
: 2 : 4
: L 208 cm, W 123 cm, H 107 cm
(L 82 in, W 48 in, H 42 in)
: 1.95 kg (4 lb 5 oz) tent and poles only
 : 2.2 kg (4 lb 14 oz)
 : 2.5 m2(27.3 sq ft)
 : 15 x 48 cm (6 x 19 in)
: Yellow
: Vestibule, Fitted Ground Cloth, Attic Storage Loft,
Pocket Pal Organizer
7
english

ELDORADO
1. Ultra-strong, lightweight 2-person design
with efficient footprint
2. Single-door entry and optional vestibule
for gear storage
3. 2 internal aluminum poles for easy setup
4. Zippered vents at the peak, a hooded vent
over the door and one at the bottom
5. ToddTex single-wall fabric; 100% seam taped
6. Optional ground cloth available
: 2 : 4
: L 221 cm, W 130 cm, H 109 cm
(L 87 in, W 51 in, H 43 in)
: 2.04 kg (4 lb 8 oz) tent and poles only
 : 2.3 kg (5 lb 1 oz)
 : FR adds 200 g (7 oz)
 : 2.8 m2(30 sq ft)
 : 18 x 48 cm (7 x 19 in)
: Yellow
: Vestibule, Fitted Ground Cloth, Attic Storage Loft,
Pocket Pal Organizer
8
english

BIPOD BIVY
1. Shock-corded aluminum pole over the head and shoulders
2. Large zippered entry
3. Large mesh panel for bugs and ventilation
4. ToddTex single-wall fabric
5. Taped seams
* Keep the zipper door open enough to maintain adequate ventilation at all times.
Four stakes (not provided) may be used to anchor your bivy to the ground.
: 1 : 4
: L 234 cm, W 76 cm, H 51 cm
(L 92 in, W 30 in, H 20 in)
: 776 g (1 lb 11 oz) bivy and pole only
 : 892 g (1 lb 15 oz)
 : 15 x 33 cm (6 x 13 in)
: Green
9
english

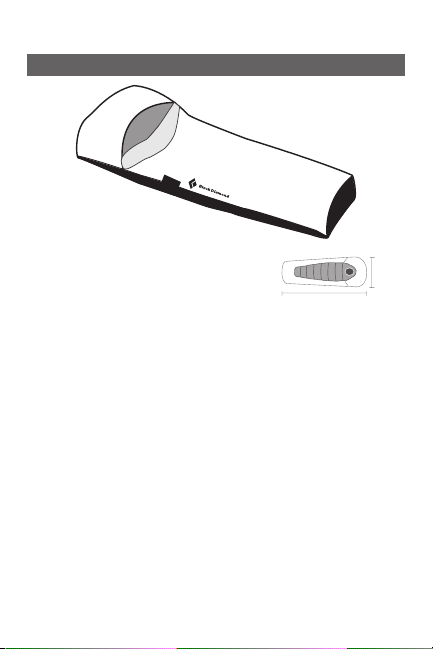

BIG WALL BIVY
1. Sewn-in flexible wire creates air space
2. Dual-sided zipper and mesh covered opening
3. RF welded tie-in point for secure anchoring
4. ToddTex single-wall fabric
5. Taped seams
* Keep the zipper open enough to provide adequate ventilation at all times.
Do not remove the hoop for packing. Coil the hoop, while placing it in the
stuff sack and then stuffing the rest of the Bivy Sack, or roll the bivy from
the toe end, coiling the hoop around the roll. Avoid making sharp bends
in the wire.
: 1 : 4
: L 251 cm, W 89 cm
(L 99 in, W 35 in)
: 740 g (1 lb 1 oz) bivy only
 : 870 g (1 lb 14 oz)
 : 15 x 33 cm (6 x 13 in)
: Yellow
10
english
251 cm (99 in)
89 cm
(35 in)

HOOPED BIVY
1. Sewn-in flexible wire creates air space
2. Dual-sided zipper and mesh covered opening
3. ToddTex single-wall fabric
4. Taped seams
* Keep the zipper open enough to provide adequate ventilation at all times.
Do not remove the hoop for packing. Coil the hoop, while placing it in the
stuff sack and then stuffing the rest of the Bivy Sack, or roll the bivy from
the toe end, coiling the hoop around the roll. Avoid making sharp bends
in the wire.
: 1 : 4
: L 229 cm, W 89 cm
(L 90 in, W 35 in)
: 650 g (1 lb 7 oz) bivy only
 : 776 g (1 lb 11 oz)
 : 15 x 33 cm (6 x 13 in)
: Green
11
english
229 cm (90 in)
89 cm
(35 in)

USE, CARE AND MAINTENANCE
STAKING
Always stake out your tent using all points provided. Staking out your tent must
not be considered optional! Yes, your tent can easily be dragged by modest
winds. Tent stakes and guylines are included with your tent. The webbing loops
stitched into the seams above ground level stakeout points must be utilized to
ensure strength and stability of the tent (especially in broadside winds).
SNOW CONDITIONS
Be extremely careful when shoveling snow from around your tent, because the
shovel can easily tear the fabric. Never brush snow off your tent with any hard
objects, such as sticks, shovels, ice axes, etc.
ATTACHING OPTIONAL GROUND CLOTH
Fitted ground cloths are available for all Bibler Tents. Along the edges of the
ground cloths are reinforced loops. These can be used to attach the ground
cloth to the tent stakeouts so that it is secured under the tent. Tie a short loop
of cord through each of the ground cloth's corner loops. Slip this loop over the
corner tent stakeout when staking out the tent. The ground cloth can also be
used as a tarp—use the loops along the edges to suspend or anchor it.
CARE AND CLEANING
Tents and bivies must be stored dry. Storing your tent wet or damp will result in
the growth of mildew, which will cause your tent to smell, delaminate, and leak.
Mildew also attacks both the urethane coating of parts of the tent and the nylon
fabric, causing loss of strength and eventual breakdown. If you suspect mildew,
act right away. Washing with McNett MiraZyme™ cleaner will usually stop and
remove mild cases of mildew. Advanced mildew will not wash out. Mildew
damage is not covered under warranty.
Those living in wet climates should wash their tents and bivies in MiraZyme
once every two years, whether mildew is showing or not.
Do not dry clean or machine wash your tent. If lightly soiled, the floor and exterior
walls can be sponged clean with warm water. Never use detergents or liquid soaps
of any kind as they may cause the fabric to lose waterproofness.
ToddTex is a three-layer PTFE laminate. Like similar fabrics, it is important to
avoid contamination of the PTFE film. Take care to keep your tent clean and
12
english

away from oils, grease, and solvents, including sunscreens and mosquito
repellent, and you will be rewarded with years of good service. In order to
protect the fabric, remove all dirt and debris from inside the tent before storing.
To Wash: If it becomes necessary to wash the entire tent, avoid hot water,
bleach, dishwashing liquid or any type of liquid soap or detergent. Hand wash in
a bathtub using only cool water and MiraZyme, made by McNett™ Corporation.
This wash-in product cleans, eliminates odor, and helps to remove mildew. It
is available through Black Diamond Mail Order. Be sure your tent is totally dry
before putting it away. This may take 24 hours or more. DO NOT SPRAY OR
WASH YOUR TENT WITH ANY WATER REPELLENTS OR CLEANING AGENTS
OTHER THAN THOSE RECOMMENDED BY BLACK DIAMOND. Use of any
other agents may void your warranty.
ZIPPERS
Zippers require maintenance, especially if camping in sandy or dirty
environments. Sand and dirt in the zippers is the leading cause of failure. When
dirty, rinse your tent off with a hose, applying water pressure to the zippers to
wash off dirt. Application of a zipper lubricant such as McNett Zip Care™ will
aid in extending the life of your zippers. Even with this, if your zipper becomes
difficult to slide, it is important to repair it right away. Often just the sliders can
be changed out, restoring the zipper to near-new condition for a very small fee.
If you force worn-out sliders along the zipper chain, it will damage the chain,
requiring a much more expensive repair.
POLES
Our lightweight, fully shock-corded aluminum poles are incredibly strong, but
they are not indestructible. When used as recommended, they will not break.
The anodized finish helps protect against corrosion, but the poles should still
be carefully dried along with the tent before storage.
When setting up the tent, it is very important that the poles click together
properly. Ferrules that are not fully closed will result in the pole breaking when it
is flexed. The shockcord should be strong, aggressively pulling the pole together
into the proper position. Shockcords loose some elasticity when cold or wet.
Shockcords also become stretched out over time, and should be adjusted when
they become weak. Here’s how: The shockcord in the poles is adjustable—this is
one reason we do not put end tips on most of our poles. (For poles with end-tips,
use pliers to grasp the tip, and pull it out of the pole. The end tips are a force-fit.)
13
english

To tighten the shockcord, you will need a pair of needle-nose pliers, a pair of
scissors and a pair of forceps or an alligator clip (or another person). Snap the
pole out to its full length. Look in the end of the pole—you should be able to see
the cut end of the shockcord, maybe 1 cm (1/2 in) recessed into the pole. Grab
the end with the pliers. You might need to snag it and pull it out with needle nose
pliers, a sharp pencil or cut-off coat hanger. (If the end is not within reach on
either end, pull off the end segment at one end. From the body of the pole, pull
the shockcord as tight as possible, which should give you a foot or more of slack.
Push the slack into the bottom of the end segment until the end of the shockcord
appears at the top end.)
Don’t let go of the elastic. The shockcord is held in place by a knot jamming
against the ferrule inside the pole. Pull the shockcord out until the knot appears.
Pull it further, until a little more than the desired tightness is achieved. Tie the
same kind of overhand-knot, and work it back into the pole.
Fold up the pole. Does this length work? If it is too tight, the poles will be
difficult to fold up. If it is too loose, the pole will not snap together crisply.
Readjust the location of the knot if needed. When satisfied, snip the cord off
flush with the end of the pole.
POLE MAINTENANCE
Poles should be periodically inspected. While pole segments will take a bit of a
“set,” sharper bends or deflection of more than one pole diameter are reason
for concern. Look especially for bends at the ends of ferrules. Segments with
bends should be replaced.
To replace pole segments, measure the anodized (black) length of the pole and
determine whether your pole is one with or without a ferrule in one end. Order
replacement segments from Black Diamond Mail Order. Release the shockcord
and replace the segments. Be sure to keep the segments in the correct order
and orientation.
WARNING
Black Diamond Equipment is not responsible for the consequences, whether
direct, indirect, or accidental, or for any other type of damage arising or resulting
from the use of its products. You are responsible for your actions and activities
and for any consequences that may result from them.
14
english

LIMITED WARRANTY
We warrant for one year from purchase date and only to the original retail
buyer (Buyer) that our products (Products) are free from defects in material
and workmanship. If Buyer discovers a covered defect, Buyer should deliver
the Product to us at the address provided. We will replace such Product free
of charge. That is the extent of our liability under this Warranty and, upon the
expiration of the applicable warranty period, all such liability shall terminate.
Warranty Exclusions
We do not warrant Products against normal wear and tear, unauthorized
modifications or alterations, improper use, improper maintenance, accident,
misuse, negligence, damage, or if the Product is used for a purpose for which
it was not designed. This Warranty gives you specific legal rights, and you may
also have other rights which vary from state to state. Except as expressly stated
in this Warranty, we shall not be liable for direct, indirect, incidental, or other
types of damages arising out of, or resulting from the use of the Product. This
Warranty is in lieu of all other warranties, express or implied, including, but
not limited to, implied warranties of merchantability or fitness for a particular
purpose (some states do not allow the exclusion or limitation of incidental
or consequential damages or allow limitations on the duration of an implied
warranty, so the above exclusions may not apply to you).
15
english

1. Design 4 places, 2 portes, 2 absides
2. Testée en expédition, stabilité exceptionnelle
contre le vent
3. 4 arceaux intérieurs qui s’entrecroisent 7 fois
pour une résistance maximale
4. 4 poches internes en maille filet
5. Toile simple paroi en ToddTex; coutures 100 %
étanchées
6. Tapis de sol disponible en option
 : 4   : 4
 : L 229 cm, l 203 cm, H 112 cm
 +  : L 371 cm, l 203 cm, H 112 cm
 : 3,99 kg tente et arceaux uniquement
  : 4,42 kg
  (  ) : la version FR rajoute 283 g au poids de la tente
 : 4,6 m2
  : 1,85 m2
  : 20 x 51 cm
 : Yellow
 : Tapis de sol Fitted Ground Cloth, filet de plafond Attic
Storage Loft, rangement Pocket Pal Organizer
BOMBSHELTER
16
franÇais
203 cm
(80 in)
112 cm
(44 in)
229 cm (90 in)
attached vestibules
1.8 m2(20 sq ft) total

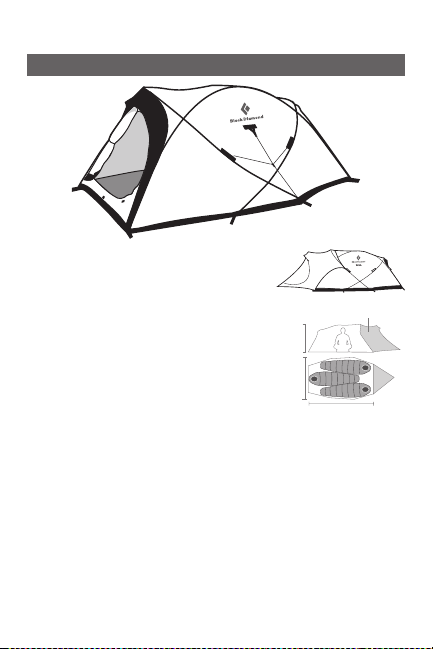

1. Design 2 places, 4 arceaux et pans verticaux avec
abside en option
2. Deux portes avec panneaux intérieurs en maille
filet
3. Avancées de porte soutenues par un arceau
au-dessus des aérations zippées
4. 4 poches internes en maille filet
5. Toile simple paroi ToddTex; coutures 100 %
étanchées
6. Tapis de sol disponible en option
 : 2   : 4
 : L 236 cm, l 152 cm, H 102 cm
 : 2.85 kg tente et arceaux uniquement
  : 3,2 kg
 : 3,34 m2
  : 23 x 48 cm
 : Yellow
 : Abside, tapis de sol Fitted Ground Cloth, filet de plafond
Attic Storage Loft, rangement Pocket Pal Organizer
17
franÇais
FITZROY
236 cm (93 in)
152 cm
(60 in)
102 cm
(40 in)
optional vestibule
0.8 m2(9 sq ft)

AHWAHNEE
1. 2 grandes portes latérales avec portes
intérieures en maille filet et larges avancées
pour se protéger de la pluie tout en aérant
2. 3 arceaux intérieurs en aluminium pour un
montage facilité
3. 2 poches internes en maille filet
4. Toile simple paroi en ToddTex, coutures
100 % étanchées
5. 2 absides en option disponibles séparément
6. Tapis de sol disponible en option
 : 2   : 4
 : L 229 cm, l 135 cm, H 114 cm
 : 2,73 kg tentes et arceaux uniquement
  : 3,05 kg
  (  ) : la version FR rajoute 290 g au poids de la tente
 : 3,08 m2
  : 20 x 48 cm
 : Green
 : Abside, tapis de sol Fitted Ground Cloth, filet de plafond
Attic Storage Loft, rangement Pocket Pal Organizer
18
franÇais
114 cm
(45 in)
97 cm (38 in)
135 cm (53 in)
229 cm
(90 in)
1.2 m2(13 sq ft) each
optional vestibules

TEMPEST
1. Design à 2 places et 2 portes avec 2 absides
intégrées
2. Aérations résistantes aux intempéries au
sommet de chaque abside
3. 4 arceaux intérieurs en aluminium pour une
résistance maximale
4. 4 poches internes en maille filet
5. Toile simple paroi en ToddTex
6. Tapis de sol disponible en option
 : 2   : 4
 : L 221 cm, l 147 cm, H 113 cm
   : 353 cm
 : 2,84 kg tente et arceaux uniquement
  : 3,26 kg
 : 3 m2
 absides : 1,2 m2
  : 18 x 48 cm
 : Green
 : Tapis de sol Fitted Ground Cloth, filet de plafond Attic
Storage Loft, rangement Pocket Pal Organizer
19
franÇais
221 cm (87 in)
147 cm
(58 in)
113 cm
(44.5 in)
attached vestibules
1.1 m2(12 sq ft).19 m2(2 sq ft)

ITENT
1. Design 2 places léger et ultra robuste offrant
une empreinte réduite
2. Entrée à une porte et abside en option pour
le stockage du matériel
3. 2 arceaux intérieurs en aluminium pour un
montage facile
4. Aérations zippées au sommet, une
pigeonnière d’aération au-dessus de la porte
et une autre à l’arrière
5. Toile simple paroi en ToddTex ; coutures
100 % étanchées
6. Tapis de sol disponible en option
 : 2   : 4
 : L 208 cm, l 123 cm, H 107 cm
 : 1,95 kg tente et arceaux uniquement
  : 2,2 kg
 : 2,5 m2
  : 15 x 48 cm
 : Yellow
 : Abside, tapis de sol Fitted Ground Cloth, filet de plafond
Attic Storage Loft, rangement Pocket Pal Organizer
20
franÇais
