Blackbe;rry Radar R2 User manual

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!
BLACKBERRY RADAR R2
ITE100 – 1
October 2022
!
!
!
!
!
!
!
!
!
Installation Guide
Dry Van, Insulated Trailers (Barn Doors)
Cargo Percentage

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
2
!
Table of contents
1 Overview ............................................................................................................... 3
2 Get ready for installation ....................................................................................... 4
3 Installing BlackBerry Radar R2 modules ................................................................. 5
3.1 Prepare to install ........................................................................................................ 5
3.2 Installation tools ........................................................................................................ 7
3.3 Matching a module identifier to an asset identifier ................................................... 8
3.4 Module installation .................................................................................................. 10
3.4.1 Prepare module for installation--Battery connection ...................................... 11
3.4.2 Installing module on an asset .......................................................................... 16
3.4.3 Dry van installation procedure ........................................................................ 17
3.4.3.1 Upper-mount installation procedure ............................................................ 21
3.4.3.2 Side-mount installation procedure ............................................................... 47
4 Removing BlackBerry Radar R2 modules .............................................................. 54
4.1 Removal tools .......................................................................................................... 54
4.2 Module removal ....................................................................................................... 55
4.3 Battery removal and replacement ............................................................................ 57
4.4 Surface Repair .......................................................................................................... 60
5 Support ................................................................................................................ 63
Legal notice ............................................................................................................... 64
!
!
!
!
!
!
!
!
!
!
! !

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
3
!
1 Overview
This guide provides detailed instructions for installing and activating new BlackBerry Radar R2
modules. It includes three main tasks:
Task 1: Get ready for installation (see Section 2)
Task 2: Install a BlackBerry Radar R2 module (see Section 3)
• Match the module identifier with the asset identifier on the installation worksheet.
• Install the module onto the asset.
Task 3: Uninstall a module (see Section 4)
• Remove the module from the asset.
• Remove/replace the battery and prepare the device for shipping.
• Post-removal surface repair.
Complete BlackBerry Radar documentation is available online when you log in to BlackBerry
Radar Dashboard. For instructions on how to configure the BlackBerry Radar Dashboard or how
to activate newly installed devices, see the online documentation.

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
4
!
2 Get ready for installation
To get ready for installation, you need to obtain a worksheet where you can record the pairing
of each BlackBerry R2 module to its companion BlackBerry Radar H2 module and its asset (that
is, the trailer/container that the modules will be installed on).
For detailed instructions, log in to the BlackBerry Radar Dashboard and access documentation
from the main menu.

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
5
!
3 Installing BlackBerry Radar R2 modules
You may have a large number of BlackBerry Radar R2 modules to install. Follow the instructions
in this section to:
• Match each module identifier to its asset identifier
• Install the module to the asset you wish to track.
3.1 Prepare to install
To complete the installation of the module to your assets, you will need the following
components. The following components are contained in the module packaging.

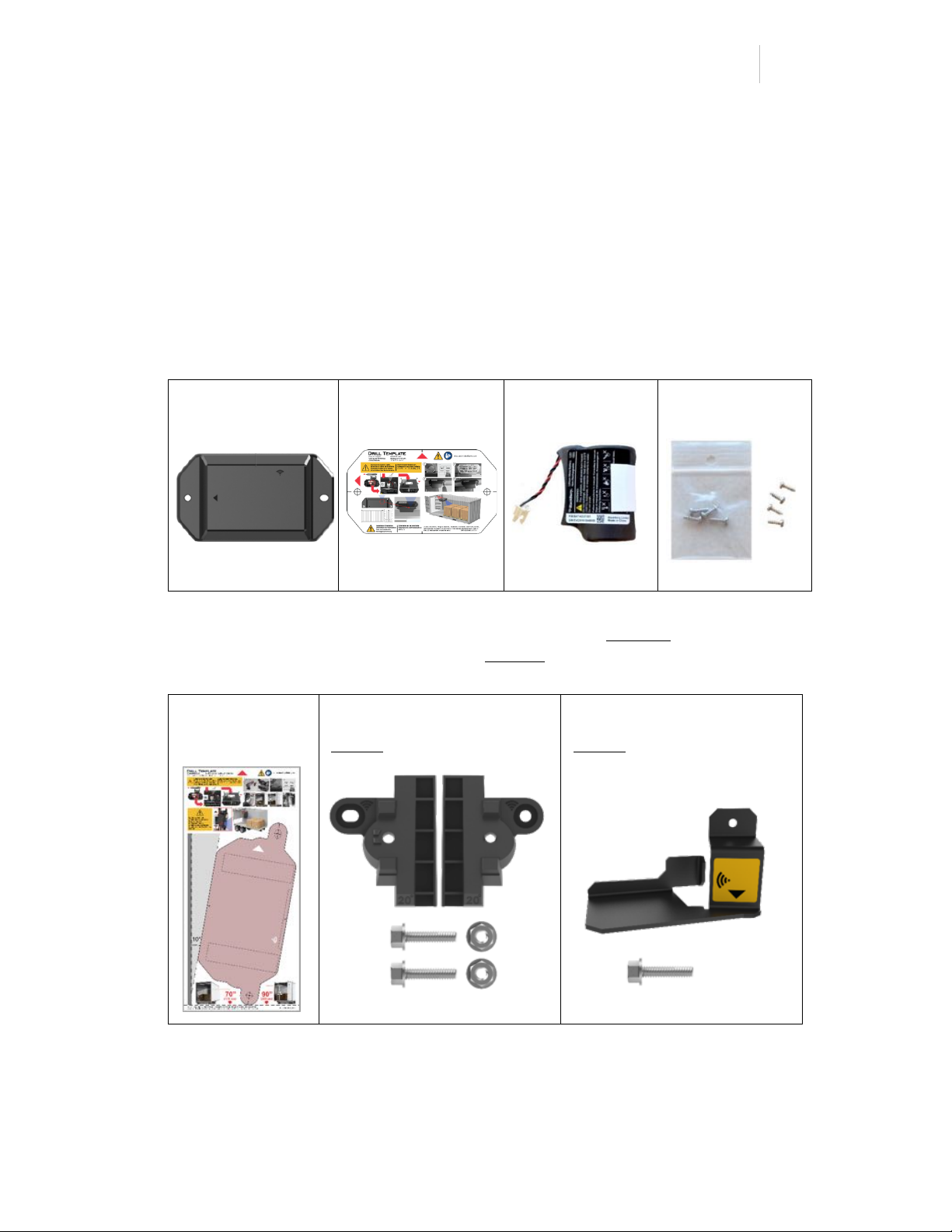

Radar R2 Module Package Contents
Radar R2 Module
Drill Template
(Upper-mount installs
only)
Lithium Metal
Battery
Fastener Bag
(4 screws / device)
Radar R2 20° Side-Mount Tilt Bracket + Visor Accessory Kit Package Contents
NOTE: The Radar R2 20° Side Mount Tilt Bracket Accessory Kit is required for side-mount
barn door installations. The Visor Accessory is required for side-mount installations at 90”
(229 cm). These accessories are available from your BlackBerry Representative.
Side Mount
Drill Template
Radar R2 20° Tilt Brackets
and Fasteners
(Required for side-mount installations
2 brackets and 4 fasteners per device)
Radar R2 Visor Accessory
and Fastener
(Required for side-mount installations
at 90” (229 cm). 1 visor and fastener
per device)
If you are missing any of the above components in your package, contact your BlackBerry Sales
Representative.

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
6
!
Fastener Considerations—User-Supplied Fasteners
To attach the module to the asset you wish to track, you must supply your own fasteners.
Depending on the construction of your mounting location, you may wish to use the following
types of fasteners. Please Note: Your choice of fastener will influence the size of the tools
required to create the mounting holes (i.e., drill bits) and install or remove the fasteners (i.e.,
wrenches/sockets/drivers). An example of this is provided below. The actual length of the
fasteners will be determined by the thickness of your mounting surface.
IMPORTANT: The maximum fastener thread diameter
supported by this product is ¼” or M6 (6 mm).
For most secure fastening, we do not recommend using fasteners
with a diameter less than that of a ¼” or M6 fastener.
Box Section
(+3mm wall thickness)
A) 2 thread rolling or B) 2 self-tapping screws
screws and washers
(3/8” head, 1/4”-20 thread, (3/8” head, 1/4”-14 thread,
1” length) 1-1/4" length)
*For installation in narrow clearance areas,
blunt-ended screws--like thread rolling screws--are recommended.
Drill Bit
A) 7/32” (6mm)
B) 3/16” (5mm)
Nut Driver/Socket/Wrench
Panel Section
(with rear access)
A) 2 thread cutting screws or B) 2 hex screws, Nylock Nuts,
Nylock Nuts, washers, sealing washers, and washers
and sealing washers.
(3/8” head, 1/4”-20 thread, (7/16” head, 1/4”-20 thread,
1-1/4" length. 1/4”-20 nut) 1-1/4" length. 1/4”-20 nut)
*For exterior door frame
installations, the use of Sealing Washers or Polyurethane Sealant is
recommended.
Drill Bit
A) 7/32” (6mm)
B) 1/4” (6 mm)
Nut Driver/Socket/Wrench
Panel Walls
(wood/composite core)
2 wood screws and washers
(#10 wood screw, Phillips PH2 Head, 1” length)
(5.0mm wood screw, Phillips PH2 Head, 25 mm length)
Drill Bit
1/8” (3mm)
Screwdriver
Insulated Trailer Wall
2 hex bolts, washers, and well nuts
Bolt: 7/16” head, 1/4”-20 thread, 1-1/2” length
Well Nut Insert: 1/4”-20 thread
Drill Bit
1/2” (13mm)
Nut Driver/Socket/Wrench
Accessory Adhesive Kits
For installations where drilling is not desired.
Available from your BlackBerry Representative.
NOTE: Not for use on bare wood surfaces.
Not for use with the Radar R2 Visor Accessory.
A) 7/32” (6mm)
B) 3/16” (5mm)

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
7
!
3.2 Installation tools
Required tools to complete the installation:
Phillips (PH2) Screwdriver or Bit
Drill and Drill Bits
Tape
Pencil or
Non-Permanent Marker
Nut Driver or
Socket Wrench with Socket*
*Nut Driver + Drill offers fastest installation.
If no Nut Driver is available, a socket wrench
and socket may be used as a substitute.
Safety Glasses
Tape Measure
Wrench
*Required only if nuts and bolts are
used.
Recommended tools to complete the installation:
T-Square or
Pocket Level
Polyurethane
Sealant
Towel
Hammer and
Punch
Ladders*
*Tall ladder for installation on taller vehicles
and containers. Small ladder for installation
inside of containers or the exterior of smaller
vehicles.
Torque Screwdriver/Adapter
with Socket and Bits*!!!!!!!!!!!!!!!!!!!!!!!!!
(scale range of 0.4 N-m to 4.5 N-m, 4 in-lb.
to 40 in-lb.) !
*To check compliance with torque
specifications for fasteners.
70% Rubbing
Alcohol
File
Cutting Lubricant*
(Recommended)
*Recommended for faster drilling speed on
thicker metals and longer drill bit life.

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
8
!
3.3 Matching a module identifier to an asset identifier
In order to track an asset, the BlackBerry Radar R2 module that is installed on the asset must be
associated with the asset in the BlackBerry Radar Dashboard. It is, therefore, very important to
keep a clear record of which BlackBerry Radar R2 module is installed on which asset.
The Dashboard application tracks modules and assets using ‘identifiers’. The asset identifier is
the name or number of the asset you wish to track. The asset identifiers are entered into the
application when you add the assets and will be listed on your installation worksheet. The
identifier for each Radar R2 module is printed on three labels—two labels attached to the front
surface of the outer housing and the other label inside the battery compartment. The module
identifier also serves as the serial number (S/N) for the module.
To match a module identifier with an asset identifier:
1. Locate the module identifier for your device. The module identifier is shown in two
places.
1. Externally—temporary S/N label and permanent exterior S/N label, attached to
the front of the outer housing,
2. Internally—permanent main product label, in the battery compartment.
!
!
!
!

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
9
!
2. Once you are ready to install the BlackBerry Radar R2 module to the asset, remove the
partially attached label from the front surface of the outer housing and place it on your
worksheet, on the row with asset the BlackBerry Radar R2 will track and the BlackBerry
Radar H2 module identifier the BlackBerry Radar R2 will be paired with.
! !
Radar H2 Column
Accessory
Radar R2 Column
Accessory

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
10
!
3.4 Module installation
To monitor cargo loading status with your BlackBerry Radar R2, there are two installation
methods that are supported.
Upper Mount: Install the module on the door frame or the ceiling of the trailer.
Side Mount: Install the module on the left wall of the trailer, just ahead of the door frame.
If you would also like to monitor door open and door closed events, you will need to install the
Radar H2 on the exterior of the trailer door.
When selecting a mounting location for either module, carefully consider how the asset will be
used during its normal, day-to-day operation.
Do not place the modules in a location where they are susceptible to damage from:
• Normal usage activities, such as loading or unloading cargo.
• Moving parts of the asset.
• Road debris.
This diagram illustrates the supported installation orientations for the Radar R2 module.
IMPORTANT: For accurate cargo detection, orientation matters.
1. For upper-mount installations, you must install the Radar R2 module horizontally.
For side-mount installations, you must install the Radar R2 module vertically.
2. For accurate cargo loading status detection, you must install the Radar R2 modules at the
end of the trailer where the cargo is loaded and unloaded.
3. When installing the Radar R2, always ensure the module is installed with the signal icon
pointing towards the cargo area that will be monitored.
4. Side-mount installations: Ensure no items are stored on the left wall ahead of the Radar
R2 module. Items in front of the module’s sensing area will affect cargo sensing.

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
11
!
3.4.1 Prepare module for installation—Battery connection
1. Remove the module from the package and from the plastic bag.
!
!!!! !!
2. Remove the battery door from the rear of the device. Remove the fastener bag from the
device and keep nearby. You will require these screws to secure the battery door to the
outer housing and complete the module assembly process.
!
!!
!
Tip: If you find it difficult to remove the battery door from the outer housing, you may
insert a tool--such as a screwdriver--near the arrows embossed into the door and lift to
separate the door from the housing.
!
IMPORTANT: Please do not perform the battery connection process until you are
ready to install and associate the BlackBerry Radar modules on your asset. Once
the battery is connected, please complete the module installation and association,
as soon as you can, to conserve battery life.
Arrow
Arrow
Fastener
Bag

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
12
!
3. Remove the battery from the housing to reveal the battery cable connector. Return the
battery to the housing and connect the battery cable to the battery connector. The LED
will blink to indicate the module is active. NOTE: It can take up to 5 seconds for the blink
sequence to begin. Please be patient. Once you see the LED blink, you may continue to
the next step.
!
4. Fully install the battery door. Locate the Fastener Bag and remove the four screws. Using
a Phillips (PH2) screwdriver, install the screws to secure the battery door. IMPORTANT:
Screw torque must be 7-8 in-lb. (0.8-0.9 N-m).
LED
Battery Connector
7-8 in-lb.
0.8-0.9 N-m!
Screw
Torque

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
13
!
Side-mount installations, only:
(NOTE: 20° tilt brackets are only required for side-mount installations. Visor is required for
side-mount installations at 90” (229 cm) installation height.)
5. Locate the Radar R2 20° tilt brackets, bracket fasteners, visor and visor fastener.
6. Remove the liner from the rear of the visor to expose the adhesive.
7. Align the orientation of the arrow and signal icon on the visor with the arrow and signal
icon on the Radar R2 module. Place the visor onto the device, ensuring the hole on the
visor, is aligned with the hole on the device. Press the center of the label to activate the
adhesive.
Visor Screw
FAS-63756-001
20° Bracket
Fasteners
Align
Holes
Press
Orientation
Alignment

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
14
!
8. Place the brackets on the rear of the Radar R2 module, ensuring the holes on the R2 20°
Tilt Bracket Accessory are aligned with the holes on the Radar R2 module and visor and
the bracket’s guide tabs are seated within the rear openings of the module.
9. Secure the brackets and visor to the module with the supplied fasteners.
IMPORTANT: The longer “visor” screw (FAS-63756-001) must be used on the end of the
module where the visor is installed. The shorter “bracket” screw will be used on the
opposite end. One extra screw (from the 20° Bracket) will remain, post-installation.
Bracket
Screw
35 in-lb.
4 N-m!
Torque
Limit
Visor
Visor
Screw

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
15
!
IMPORTANT: Ensure the signal icon on each Radar R2 20° Tilt Bracket and Visor is placed in
the same orientation as the signal icon on the Radar R2 module. Ensure the arrow icon on the
visor is placed in the same orientation as on the Radar R2 module.
!
The module is prepared for installation on the asset.

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
16
!
3.4.2 Installing the module on an asset
!
1. As indicated in Section 3.3 of this guide, record the module identifier and the asset
identifier the module will be paired with. For your convenience, you may quickly create a
record of the module and asset pairings by removing the partially attached label from the
front of the module and placing it on the installation worksheet, next to the asset that will
be tracked by the module.
!
!
Tip: For modules that have previously been transferred to new assets, the temporary S/N
label may no longer be in place. If this is the case, you will need to write the module
identifier (S/N) for each module on the installation worksheet.
The following sections of this guide will illustrate recommended installation methods for
various asset scenarios.
! !

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
17
!
3.4.3 Dry van installation procedure
If you wish to monitor cargo load status or with your BlackBerry Radar R2 module, there are two
installation positions to choose from, depending on your needs.
Position 1
Upper-mount installation: Install horizontally on the upper edge of the door frame or the
ceiling of the trailer.
!!
Position 2
Side-mount installation: Install vertically on left side wall of the trailer, just ahead of the door
frame. (NOTE: The 20° tilt brackets and visor are required for side-mount installation).
!!! !!

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
18
!
Fastener selection considerations
Ceiling or Side Wall Installations
• If your trailer is insulated (i.e., a reefer or heater) and you wish to avoid thermal losses
caused from drilling through the ceiling, completely, we recommend the following
options:
1) Limiting the depth of drilling and using Well Nuts, along with shorter bolts, to secure
the device to the asset.
2) Attach to the asset using the accessory Adhesive Kit. Accessory Adhesive Kits are
available from your BlackBerry representative. NOTE: Accessory Adhesive Kits are
not for use on bare wood surfaces or with the Side Mount Visor.
• If you will install your device on the ceiling of the trailer, and you wish to avoid drilling
through the ceiling, completely, we recommend the following options:
1) If the ceiling’s surface is metal, plastic fiberglass, etc.--attach to the asset’s ceiling
using the accessory Adhesive Kit. Accessory Adhesive Kits are available from your
BlackBerry representative. NOTE: Accessory Adhesive Kits are not for use on bare
wood surfaces or with the Side Mount Visor.
2) If the ceiling’s surface is wood, attach to the asset’s ceiling using wood screws.
NOTE: Ensure that the screws are short enough not to protrude beyond the
external surface of the mounting surface.
IMPORTANT: If you will use the adhesive kit for your installation, and the
surface you will mount to uses laminated construction, please ensure the
mounting surface (A) is firmly laminated to the substrate (B).
If the mounting surface is not firmly laminated to the substrate, you may
receive inaccurate cargo status readings.
4
Adhesive Kit
Wood Screws
Adhesive Kit
A
B

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
19
!
Door Frame Installations—U Shaped Door Frames, Only
• If you will install on the door frame of your trailer, plan to use fasteners in your
installation, and must drill completely through to the exterior of the door frame, you
must use a sealant or sealing washers to protect against possible leaks.
1) Polyurethane Sealant Application. We recommend installing the fasteners from
the outside of the trailer. This provides better sealing and protects the fastener’s
threads from continuous exposure to the weather.
If thread cutting screws are used, the door frame will hold the screws in place and
prevent the screws from turning when the locknuts are applied. Preventing the
screw from turning will allow lock nuts to be installed/removed from the inside of
the trailer—simplifying future maintenance. Apply the Polyurethane Sealant to the
rear of the fastener, prior to installation.
Polyurethane Sealant
“U Shaped”
Door Frame
Exterior View
Polyurethane Sealant Application
35 in-lb.
4 N-m!
Torque
Limit

BLACKBERRY RADAR R2 ITE100-1 INSTALLATION GUIDE
DRY VAN, INSULATED TRAILERS (BARN DOORS)—CARGO PERCENTAGE
20
!
2) Sealing Washer Application. We recommend installing the fasteners from the
outside of the trailer. This provides better sealing and protects the fastener’s
threads from continuous exposure to the weather.
If thread cutting screws are used, the door frame will hold the screws in place and
prevent the screws from turning when the locknuts are applied. Preventing the
screw from turning will allow lock nuts to be installed/removed from the inside of
the trailer—simplifying future maintenance. Apply the Sealing Washers to the
exterior side of the door frame, prior to installation.
INSUFFICIENT TORQUE
Possible Leakage
CORRECT TORQUE
No Leakage
EXCESSIVE TORQUE
Possible Leakage
35 in-lb.
4 N-m!
Torque
Limit
Sealing Washer Installation
