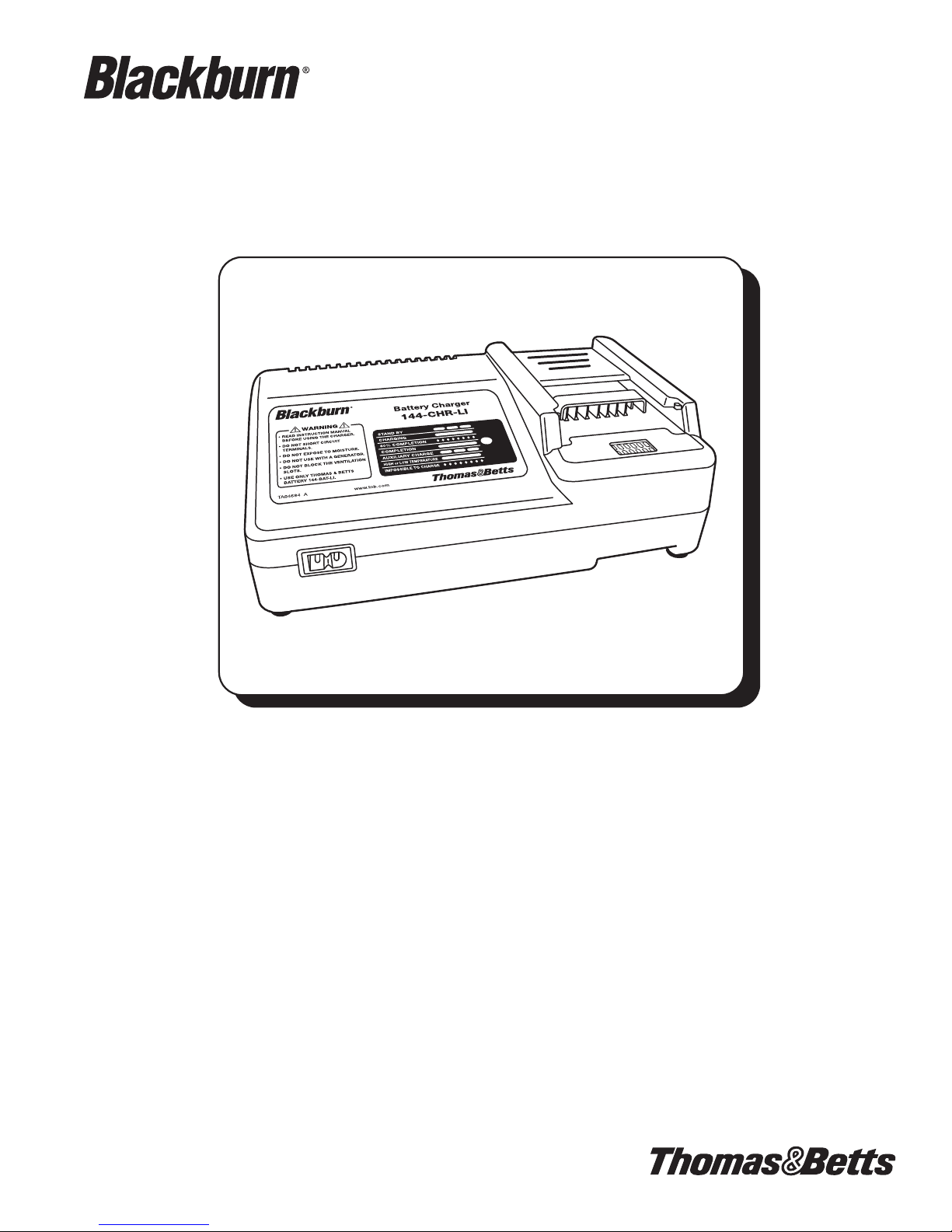

blackburn 144-CHR-LI User manual

TA04683 A Page 1 of 4
Operating Instructions for
BATTERY CHARGER
Catalog Number: 144-CHR-LI
TABLE OF CONTENTS
1.0 GENERAL INFORMATION.............................................................. 2
1.1 ABOUT THIS GUIDE ................................................................ 2
1.2 DESCRIPTION.......................................................................... 2
1.3 SAFETY GUIDELINES .............................................................. 2
2.0 PARTS & ACCESSORIES ............................................................... 2
2.1 CHARGER ................................................................................ 2
2.2 POWER CORD ......................................................................... 2
3.0 SPECIFICATIONS........................................................................... 3
3.1 CHARGER ................................................................................ 3
3.2 BATTERY PACK ....................................................................... 3
4.0 OPERATING INSTRUCTIONS ....................................................3 & 4
4.1 OPERATING TEMPERATURE RANGES................................... 3
4.2 POWER CORD CONNECTION ................................................ 3
4.3 BATTERY STATUS DISPLAY.....................................................4
4.4 CHARGING THE BATTERY....................................................... 4
4.5 TROUBLESHOOTING .............................................................. 4
WARRANTY...........................................................................................4

TA04683 A Page 2 of 4
IMPORTANT: Read and understand all of the
instructions and safety information in this manual
before operating or servicing this tool.
1.0 GENERAL INFORMATION
SAFETY GUIDELINES
1.3
DESCRIPTION
1.2
This battery charging system is designed to charge
Thomas & Betts 144-BAT-LI battery packs only. The
charger can be used with either 110V AC or 220V AC
power supply.
ABOUT THIS GUIDE
1.1
This guide presents the setup, use, maintenance and
troubleshooting of the charger along with instructions
for charging your batteries.
Before using the charger, read all instructions and cautionary markings on the charger, battery and on any product
using the battery.
WARNING
To reduce risk of injury, use this charger only with authorized products. Other batteries or adapters may
cause personal injury and/or damage.
•
Do not expose the charger to rain, snow or direct sunlight.
• Use the charger at an ambient temperature 50°F (10°C) to 95°F (35°C).
• Place the charger in a well-ventilated area, free of foreign objects/matter.
• To reduce risk of electric shock, unplug the charger from the outlet before cleaning.
• Dispose of used batteries in accordance with local hazardous material laws.
• Do not disassemble, incinerate, modify or short circuit batteries, charger or related components.

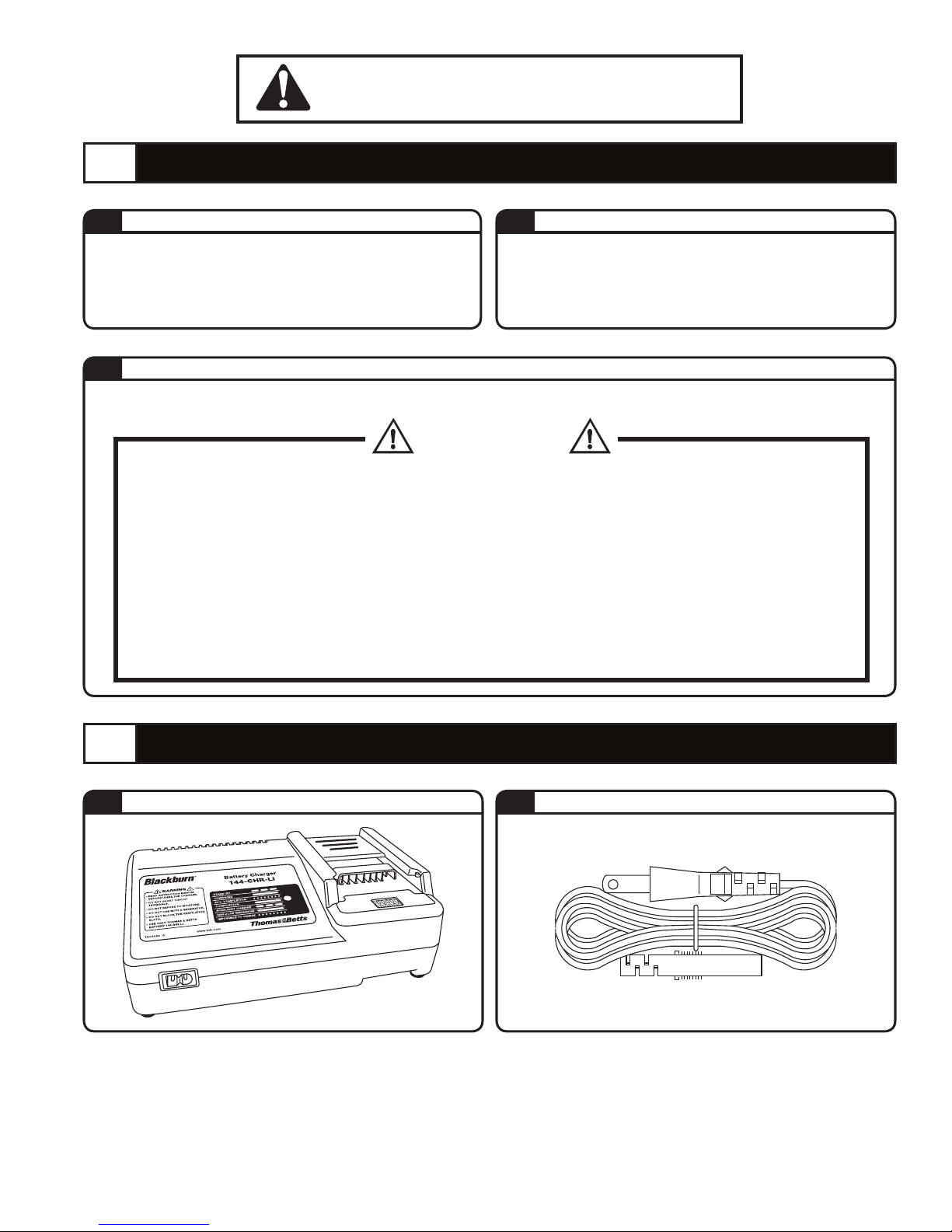

CHARGER (144-CHR-LI)
2.1 POWER CORD 2.2
AC POWER CORD
PARTS & ACCESSORIES
2.0

TA04683 A Page 3 of 4
3.0 SPECIFICATIONS
CHARGER
3.1
•Input Voltage: 100-240V AC 50/60 Hz
• Output: 10.8- 14.4 V DC 7A
28.8 V DC 3A
• Dimensions: 9”L x 5.7”W x 3.2”H
• Weight: 3.5 lbs.
BATTERY
3.2
•Battery Type: Lithium Ion
• Output: 14.4 V DC
• Capacity: 3.0 Ah
• Charging Time: 25 min. 80% Capacity
45 min. 100% Capacity
• Dimensions: 4.2”L x 3.3”W x 2.6”H
• Weight: 1.2 lbs.
batteries at room temperature 68°F -77°F (20°C -
25°C). Batteries charged in conditions above or below
room temperature will exhibit battery cycle life and
capacity below their rated values. This also applies to
the temperature of the battery itself. Allow batteries to
adjust to room temperature before charging.
OPERATING TEMPERATURE RANGES
CAUTION
Do not charge a battery that has been stored below
32°F (0°C). Allow the battery to warm up to room
temperature before charging.
The operating temperature range of the charger is
50°F (10°C) - 95°F (35°C). For best results, charge
4.1
4.0 OPERATING INSTRUCTIONS
GROUNDING PIN COVER OF GROUNDED
OUTLET BOX
ADAPTER
METAL SCREW
Connect the power cord and charger to a nominal 110-220 AC volt circuit. The indicator lamp should blink red,
indicating stand-by mode. If the power light on the charger fails to light, an internal fuse may have blown and
must be serviced by the manufacturer. Return the charger for repair or replacement immediately.
A temporary adapter can be used to
connect the grounding plug to a
properly grounded two-prong outlet.
A 110-volt adapter is shown below.
Connect the grounding plug on the
adapter to the outlet box using the
cover plate screw. Use the temporary
adapter only until a properly grounded,
three-prong outlet can be installed by a
qualied electrician.
POWER CORD CONNECTION
WARNING
Never alter an AC cord or its plug. If it does not fit into your outlet, have a proper outlet installed by a
qualied electrician. An improper connection can cause an electric shock. To reduce the risk of electric
shock, the charger must be grounded.
WARNING
Before using an adapter, ensure that the outlet box is grounded. If you are not sure the box is grounded,
have it checked and repaired, if necessary, by a qualified electrician.
4.2

TROUBLESHOOTING4.5
Symptom/Situation Probable Cause Corrective Action
Indicator (lamp) is not
showing stand by
mode (RED blinking) when
charger is plugged in.
AC power supply cord not
connected to wall outlet.
Power supply cord not
connected to battery charger.
Bad power cord.
Bad charger.
Check power cord
connections.
Replace power cord.
Replace charger.
Impossible to charge indicator
is displayed. (Rapid RED blinking)
Faulty condition identied.
Defective Battery.
Remove battery from
charger and reinsert.
Replace battery.
Charger will not go into Charge
mode. (GREEN solid indicator)
Battery not seated correctly.
Bad charger.
Defective battery.
Re-insert battery.
Replace charger.
Replace battery.
Battery becomes hot Defective battery. Immediately remove battery
from charger and replace.
TA04684 A www.tnb.com
Battery Charger
144-CHR-LI
STAND BY
CHARGING
80% COMPLETION
COMPLETION
AUXILIARY CHARGE
HIGH or LOW TEMPERATURE
IMPOSSIBLE TO CHARGE
W ARNING
•READ INSTRUCTION MANUAL
BEFORE USING THE CHARGER.
•DO NOT SHORT CIRCUIT
TERMINALS.
•DO NOT EXPOSE TO MOISTURE.
•DO NOT USE WITH A GENERATOR.
•DO NOT BLOCK THE VENTILATION
SLOTS.
•USE ONLY THOMAS & BETTS
BATTERY 144-BAT-LI.
•Insert the battery into the charger. When the battery is inserted, the charging system begins and the indicator lamp lights
green. When the charge cycle is completed, the indicator lights orange, and the battery is fully charged. A charged battery
may be stored in the charger indenitely.
• If indicator lamp lights red upon battery insertion, the battery is too hot or cold. Remove the battery from the charger and
allow it to reach room temperature before charging.
• If indicator lamp blinks red rapidly upon battery insertion, the battery is impossible to charge and must be replaced.
CHARGING THE BATTERY
4.4
INDICATOR LAMP
BLINKING RED:
• Charger in stand by mode, ready
for battery.
SOLID GREEN:
• Battery is charging.
RAPID BLINKING GREEN:
• Battery charging 80% complete.
SOLID ORANGE:
• Battery charging 100% complete.
SOLID RED:
•
Battery temperature too high or low.
RAPID BLINKING RED:
• Defective battery, impossible to
charge.
BATTERY STATUS DISPLAY
4.3
TA04683 A Page 4 of 4
For parts and service, contact the tool service center at 1-800-284-TOOL (8665).
© 2012 Thomas & Betts. All Rights Reserved.
Thomas & Betts Corporation.
Memphis, Tennessee
www.tnb.com
WARRANTY: Thomas & Betts sells this product with the understanding that the user will perform all necessary tests to determine the suitability of this product
for the user's intended application. Thomas & Betts warrants that this product will be free from defects in materials and workmanship for the period stated on
the enclosed warranty card. Upon prompt notification of any warranted defect, Thomas & Betts will, at its option, repair or replace the defective product or
refund the purchase price. Proof of purchase is required. Misuse or unauthorized modification of the product voids all warranties.
