INSTRUCTION MANUAL
Oven
BODE 62X

2
Dear Customer
You will find that the clean lines and modern look of your Blanco oven blends in
perfectly with your kitchen décor. It is easy to use and performs to a high stan-
dard.
Blanco also makes a range of products that will enhance your kitchen – such as
cook tops, rangehoods, dishwashers, microwaves, sinks and taps. There are
models to complement your new Blanco oven.
Of course, we make every effort to ensure that our products meet all your requi-
rements, and our Customer Relations Department is at your disposal, to answer
all your questions and to listen to all your suggestions.
Please complete the warranty section of this manual and keep your receipt as
proof of purchase. Retain all documents relating to the purchase of Blanco pro-
duct.
Blanco is committed to providing increasingly efficient products that are easy to
use, respect the environment and are attractive and reliable.
BLANCO

TABLE OF CONTENTS
3
SAFETY RECOMMENDATIONS P.04
HOW TO INSTALL YOUR OVEN
• Electrical connections P.08
• 1st connection or change of the power cable P.09
• Dimensions for installation use P.11
YOUR OVEN
• Description P.13
• Accessories P.14
HOW TO USE YOUR UPPER OVEN
• How to cook straightaway P.15
• Upper oven cooking modes P.16
HOW TO USE YOUR LOWER OVEN
• The programmer P.17
• How to set the clock P.18
• How to program for immediate cooking P.19
• How to set a cooking programme P.20
• How to use the timer P.22
• Lower oven cooking modes P.23
CLEANING AND MAINTENANCE
• How to change the bulbs P.25
• How to clean the inside area of the oven P.26
TROUBLESHOOTING P.26
AFTER-SALES SERVICE P.27
BLANCO CUSTOMER SERVICE P.28

4
IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND
RETAIN FOR FUTURE USE.
Important
When you receive the appliance, unpack it or have it
unpacked immediately. Give it an overall inspection. Make
note of any concerns or reservations on the delivery slip and
make sure to keep a copy of this form. Keep this user guide with
your appliance. If the appliance is ever sold or transferred to
another person, ensure that the new owner receives the user
guide. Please become familiar with these recommendations
before installing and using your oven. They were written for your
safety and the safety of others.
WARNING:
— The Appliance is not intended for use by persons (including
Children) with reduced physical,sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervised instruction concerning use of the appliance by a
responsible person for their safety. Cleaning and maintenance
operations must not be carried out by children without supervi-
sion.
— Children must be supervised to prevent them from playing with
the appliance.
WARNING:
— The appliance and the accessible parts of it will become hot
during use. Be careful not to touch the heated elements. Children
must not be allowed to touch the appliance, unless they are super-
vised continually.
Use
— Before using your oven for the first time, heat it while empty for
approximately 15 minutes. You should ensure you heat each ele-
ment in the oven before use. Make sure that the room is sufficiently
ventilated. You may notice a particular odour, or a small release of
smoke. All of this is normal.
— Your appliance is intended for standard household use. Do not
use it for commercial or industrial purposes or for any other purpo-
SAFETY INSTRUCTIONS

5
se than that for which it was designed.
— This oven was designed for use by private individuals in their
homes. It is intended solely for cooking foodstuffs. This oven does
not contain any asbestos-based components.
— Do not modify or attempt to modify any of the characteristics of
this appliance. This would be dangerous to your safety.
— Never pull your appliance by the door handle.
— When placing dishes inside or removing them from the oven, do
not place your hands close to the upper heating elements and use
heat-protective kitchen gloves.
— At the end of cooking, do not pick up oven or grill items (grid, ro-
tisserie,...) with your bare hands.
— Never place aluminium foil directly in contact with the floor of the
oven (see the chapter on oven description), as accumulated heat
may cause deterioration of the enamel.
— Do not place heavy weights on the open oven door, and make
sure that children are able neither to climb nor sit on it.
— Do not use your oven as a larder or to store any items after use.
— After using your oven, make sure that all the controls are in their
stop position.
— In addition to the accessories supplied with your oven, only use
dishes capable of withstanding high temperatures (follow the ma-
nufacturer’s instructions).
Maintenance and cleaning
— Do not use a steam cleaner.
— For any cleaning operation inside the oven cavity, the oven must
be switched off.
— Before removing the back, ensure that the appliance is powered
down. After cleaning, the back should be replaced in accordance
with the instructions.
— To clean both the electronic programmer window and the oven
door, use a window washing product applied to a soft cloth.
— Do not use abrasive creams or scouring sponges.
SAFETY INSTRUCTIONS

6
EN SAFETY INSTRUCTIONS
Warning:
Make sure the appliance is disconnected from the power
before replacing the lamp in order to avoid the risk of electric
shock. Change the lamp only when the appliance has cooled
down. To unscrew the view port and the light, use a rubber
glove, which will make disassembly easier.
Warning:
Installation should only be performed by qualified installers
and technicians.
Warning:
The electrical plug must remain accessible after installation.
It must be possible to disconnect the appliance from the
power supply, either using a plug or by fitting a switch on the
fixed wiring system in accordance with installation rules.
If the power cable is damaged, it must be replaced by a cable
or a special kit available from the manufacturer or its After-
Sales Service Department.

7
EN
SAFETY INSTRUCTIONS
PACKAGING
— This appliance’s packing materials are recy-
clable. Recycle them by depositing them in
local authority containers provided for this
purpose.
— Your appliance also contains many recyclable
materials. It is therefore marked with this logo to indi-
cate that used appliances must not be mixed with
other waste.
•

8
HOW TO INSTALL YOUR OVEN
The electrical connections are made be-
fore the oven is installed in its housing.
• Before connecting your oven, make
sure you are using the correct size cable.
The cross-section should be the same as
the cable connected to the oven. The
fuse for your installation must conform to
the table shown opposite.
• When the oven is connected using a
separate plug and socket this must be
accessible after the oven has been instal-
led.
• When the appliance is not connected
to the mains electricity supply by a plug,
an omnipolar cutout
device (with a contacts gap of at least 3
mm) must be fitted on the supply side of
the connection to meet
requirements.
• The oven must be connected using a
standard power cable for which the num-
ber of conductors is
dependent upon the type of connection
required and in conformity with the table
shown below.
min.
network voltage connection diameter fuse
of cable
➀230V- 50Hz 1 L + N 4 mm² 32 A
➁400V 2N-50Hz 2 L + N 1,5 mm² 16 A
230V 2-2N-50Hz 2 L + N 2,5 mm² 16 A
3
1
2
5
4
3
1
2
5
4
3
1
2
5
4
3
➀
➁
③
T
N
T
T
N
N
Ph 2
ELECTRICAL CONNECTIONS
•
Ph 1
Ph 1 Ph 2
N1 N2

9
HOW TO INSTALL YOUR OVEN
•
—The power cable (H05 RR-F, H05 RN-F or H05 VV-F)
must be of sufficient length to be connected to the build-
in oven while it sits on the floor in front of the cabinet.
To do this the appliance must be disconnected from the
electrical network:
—Open the inspection flap located at the lower right of
the back cover by unscrewing the two screws, then pivot
the inspection flap.
—Strip 12 mm along each wire of the new power cable.
—Carefully twist the strands together.
—Loosen the screws from the terminal board and remove
the power cord to be replaced.
—Insert the power cable through the side of the cover
into the cable clip located to the right of the terminal
board.
—All the strands of the electrical wires must be secured
tightly under the screws.
— The phase wire on the L terminal.
— The green-yellow coloured according table earth wire
should be connected to the terminal .
—The neutral wire (blue) on the N terminal.
--Connect the wires according table (on previous page).
—Screw down tightly the screws on the terminal board and
check the connection by pulling on each wire.
—Attach the cable with the cable clip located to the right
of the terminal board.
—Close the inspection flap using the two screws.
1
st CONNECTION OR CHANGE OF THE POWER CABLE
T

10
Warning
Wecannotbeheldresponsibleforanyaccident
resultingfrominexistent,defectiveorincorrectearthing.
Iftheelectricalinstallationinyourresidencerequiresany
changesinordertohookupyourappliance,contacta
professionalelectrician.
Iftheovenmalfunctionsinanyway,unplugtheappliance
orremovethefusecorrespondingtothesectorwherethe
ovenishookedup.
Youmustenabletheappliancetobedisconnectedfrom
thesupplynetworkafterinstallation.
Disconnectioncanbeenabledbyensuringthatthere
isanaccessiblepowerplugorbyincorporatinga
switchintothefixedwiringincompliancewith
theinstallationrules.
Theovenissoldwithoutacable.
HOW TO INSTALL YOUR OVEN

11
HOW TO INSTALL YOUR OVEN
875 mini
55
888
875
875
870
595
545
20 50
50
20
10
70 mm
fig.1
DIMENSIONS FOR INSTALLATION USE
•
•
CHOICE OF LOCATION
The above diagrams show the dimensions of a cabinet that will be
able to hold your oven.
The oven can be installed in a cabinet column (open* or closed)
that has the appropriate dimensions for built-in installation (see
diagram opposite).
Your oven has optimised air circulation that allows it to achieve re-
markable cooking and cleaning results if the following guidelines
are followed:
•Centre the oven in the unit so as to ensure a minimum distance of
10 mm between the appliance and the surrounding unit.
•The material of the unit supporting the appliance must be heat-
resistant (or covered with a heat-resistant material).
•For greater stability, attach the oven to the unit with 2 screws
through the holes provided on the side panels. (fig.1).
*

12
Tip
To be certain that you have properly installed your
appliance, do not hesitate to call on a household appli-
ance specialist.
BUILD-IN
To do this:
1) Remove the rubber screw covers to access the mounting
holes.
2) Drill a hole in the cabinet panel to avoid splitting the wood.
3) Attach the oven with the 2 screws.
4) Replace the rubber screw covers (they also absorb the shock
caused by closing the oven door).
(*) if the cabinet is open, its opening must be 70 mm (maximum).
•
HOW TO INSTALL YOUR OVEN

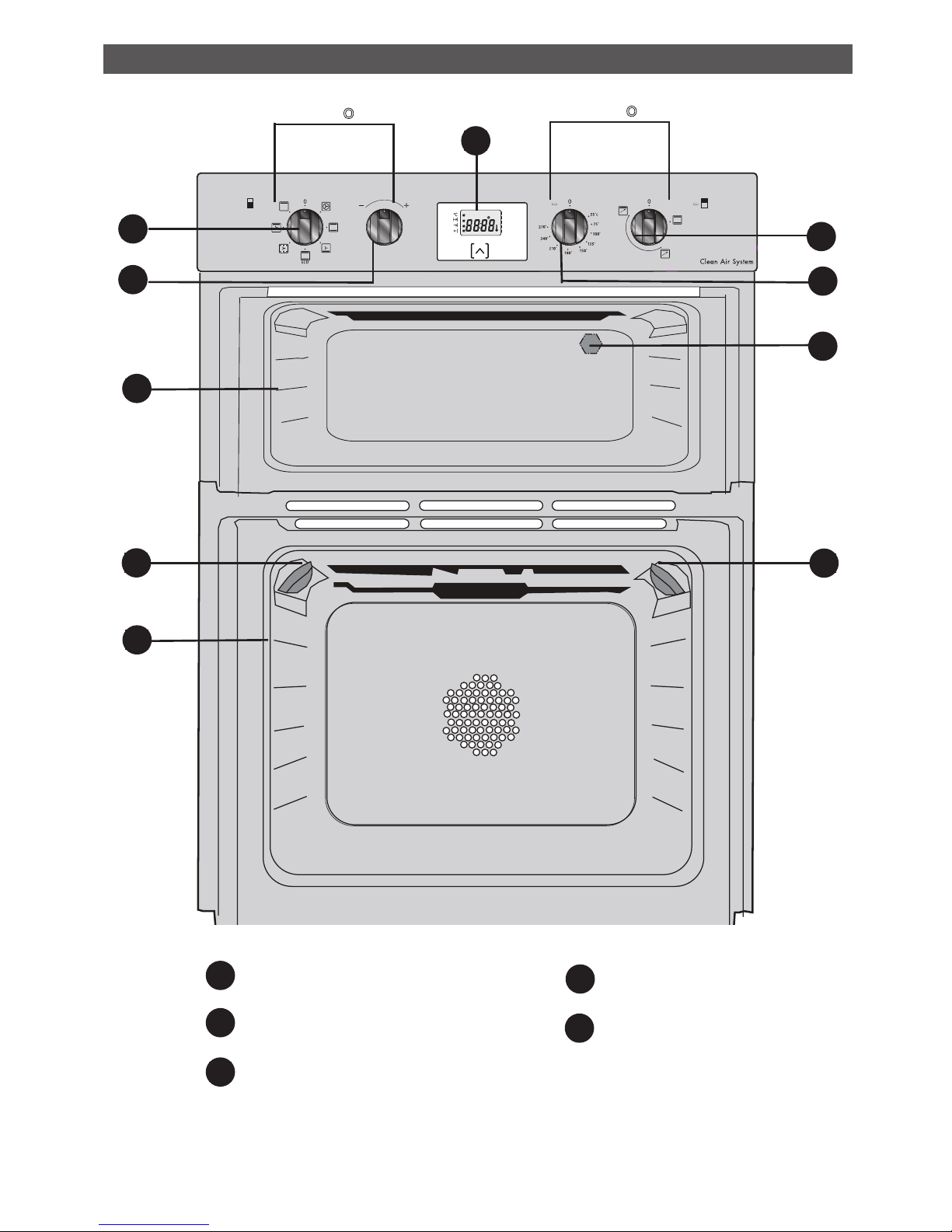

YOUR OVEN
13
C
Z
3
3
0
0
3
4
8
1
3
5
Feature selector
Temperature control
Programmable clock (Lower)
Lower oven Upper oven
A
B
C
D
E
A
B
C
D
E
A
B
D
Lights
Rail positions
D
E

HOW TO USE YOUR LOWER OVEN
A
A
B
Display for temperatures, times, cooking duration and timer.
Temperature display indicator.
Cooking time display indicator.
Cooking end time display indicator.
Independent timer display indicator.
Touch controls for accessing various programmer settings.
C
D
E
F
C
B
F
THE PROGRAMMER
•
14
D
E

ACCESSORIES
15
•Sloped 45 mm dish
equipped with a special
grid for grilling
It serves to collect juices and
fat from cooking meat or fish
placed directly on the grid
during a grill or fan grill
sequence.
Never place this dish on the
floor of the oven (it may dam-
age the enamel) unless it is in
the grill position (the bottom
heating element does not turn
on when the oven is set for
grilling).
ACCESSORIES
•
fig.1
Front
Rear
•Anti-tipping safety grid
(fig.1)
The grid can be used to hold
all dishes and moulds contai-
ning foodstuffs to be cooked
or browned.

HOW TO USE YOUR UPPER OVEN
16
— The timer display only shows the time of
day. It should not be blinking.
• Choose the cooking method:
Turn the dial until it is indicating your choice.
Example: position .
• Choose the cooking temperature:
Turn the dial to the temperature recommen-
ded for the food you are cooking.
Example: 210 temperature mark.
When you have done both these the oven
heats up and the temperature light glows.
HOW TO COOK STRAIGHTAWAY
•
COOKING USING THE GRILL
•
• Turn the function selector and set it to one
of the “grill” settings (double grill , single
grill ).
• Turn the thermostat knob to 270°C.
• You can switch off the cooking cycle by
turning the function selector back to the “0”
position.
Grilling should only be carried out with the
door closed.

HOW TO USE YOUR UPPER OVEN
17
UPPER OVEN COOKING MODES
•
CONVENTIONAL OVEN
•
The food is cooked by top and bottom elements.
•
Pre-heating is sometimes necessary to reach the required temperature.
•
Recommended to keep white meat, fish and vegetables juicy and succulent.
ADJUSTABLE GRILL
•
Cooking is carried out by the upper element.
•
The double grill covers the full surface of the oven shelf. The single grill is equally
efficient, but covers a smaller area.
•
Recommended for grilling cutlets, sausages, slices ofbread and
Mediterranean prawns placed on the oven shelf..
*
* Programme(s) used to obtain the results indicated on the energy label in compliance with European
standard EN 50304 and in accordance with European Directive EC/2002/40.

HOW TO USE YOUR LOWER OVEN
18
•How to set the time
-When plugged in, the displays flashes 12:00.
Set the time using the + and - setting seletor
(holding down the + or - allows you obtain a
rapid advancement of the numbers).
Press the touch control to confirm.
Example: 12:30
•Resetting the clock time
Continue to press until the time is displayed,
then release.
Adjust the clock setting with the + and -
setting seletor.
Press the touch control to confirm.
Warning
If the touch control is not pressed,
the setting will be automatically recorded
after a few seconds.
HOW TO SET THE CLOCK
•

HOW TO USE YOUR LOWER OVEN
19
•Immediate cooking
The analogue programmer should display only
the time; it should not be flashing.
Choose the cooking mode:
Turn the function selector to the position
of your choice.
Example: position -> The oven
begins heating.
Your oven recommends the most commonly
used temperature.
Place your dish inthe oven based on the
recommendations provided by the cook book.
It is, however, possible to adjust the tempera-
ture by turning the selector toward + or -.
Example: set to 210°.
After these steps, the oven heats up and the
display alternates between the temperature in
the oven and the selected temperature.
A series of beeps will be emitted when the
oven reaches the selected temperature.
Once the temperature is reached, it remains
fixed; the icon continues to flash.
Warning
All types of cooking are done with the door closed.
Warning
After a cooking cycle, the cooling fan continues to operate for a period of time in
order to guarantee optimal oven reliability.
HOW TO PROGRAM FOR IMMEDIATE COOKING
•

20
- Cooking with immediate start and pro-
grammed duration
- Select the desired cooking mode and adjust the
temperature (see paragraph: immediate cooking).
Example: position
Temperature 200°C.
- Press the touch control until the icon
cooking time indicator starts to flash.
The display flashes 0:00 to indicate that you can
now adjust the setting.
- Move the setting selector toward + or - to
choose the desired time.
Example: 25 min cooking time.
The cooking time is automatically recorded after
a few seconds -> the display no longer flashes
and again shows the temperature.
The countdown of the length of time begins
immediately after it has been set.
After these three steps, the oven heats up:
A series of beeps will be emitted when the oven
reaches the selected temperature.
At the end of cooking (end of programmed time),
- The oven stops,
- The cooking time indicator turns off,
- 0:00 is displayed
- A series of beeps is emitted for a few
minutes.
The beeps are definitively deactivated by retur-
ning the function selector to 0.
HOW TO SET A COOKING PROGRAMME
•
HOW TO USE YOUR LOWER OVEN
