Blankom ADE-264B Instruction manual

- 1 -
Encoder & IPTV Streamer with HDMI+CVBS Input
h.264 compatible encoder & IP streamer combined
HDMI- and CVBS (FBAS) compatible input for encoding
Stereo Audio embedded (HDMI) or external Stereo Input
(3.5mm Stereo-Jack)
CVBS: PAL/NTSC SD and
HDMI: HD Resolution 1080p, 1080i, 720p and lower
IP output: RTSP, RTMPs, UDP/RTP, HTTP, HLS, FLV
Distribution of Video Camera HD-SDI and other sources
content over LAN, WAN or internet
4 simultaneusly and independent Live stream broadcast
encoder engines to multiple destinations
Video-over IP applications
IPTV/OTT applications
Video conferencing, Camera streaming, INFO-Channels
IPTV on LAN applications, Corporate IPTV for Broadcasters
HD and SD video encoding (incl. 1080p)
Corresponding products: HDE-265/SDE-265, HDD-275
ADE-1264 in 1RU 19’’ , HDE-275Q = 2x 4Kp30 HDMI2IP
BLANKOM ADE-264B HDMI and CVBS compatible
encoders serving the distribution of SD and HD TV/video
content through IP networks in digital quality.
The live video can be received by Internet media server
by TV sets, with IPTV Set-Top Boxes,
with PC’s and Tablets/Smartphones using i.e. VLC Player
BLANKOM ADE-264B
IPTV encoder designed for TV
signal distribution in
excellent quality over LAN
and INTERNET.
The H.264 (AVC) compatible
compression technology
features low bit rates for
IPTV/OTT systems. The high-
efficient encoding chips saves
bandwidth cost through all
its resolution range.
Distribution of SD and HD TV
channels through the
IPTV/OTT network using
state-of-art IP technology
from almost any kind of
video input.
Excellent Video and Audio
quality.
High reliability.
No regular service and
maintenance need during
operation.
Available also as HDE-264
with only HDMI input
support.
ADE-264B
[email protected] www.blankom.de

- 2 -
Function
H.264 compatible Encoder and IP Streamer
INPUT
HDMI-Cable compatible (1.4) or Cinch for CVBS (BNC-Cinch-Adapter supplied)
Resolution
1080p, 1080i, 720p and below (HDMI IN), PAL, NTSC SD IN 576i and below
Video encoder
H.264 (AVC) compatible, 1x Main + 1x second (HDMI) 2x CVBS encoders
Audio encoder
AAC +/++, MP3, MPEG1Layer2, AC-3 (External analog stereo Input depending on Model)
Audio Bit-rate:
Bit-rate: 32k/48k/96k/128k/160k/192k, Data-rate: 64 kbps-384 kbps
Data interface
RJ45 GbE, 1000M Ethernet interface, management by web browser
Protocol
HTTP, RTSP, RTMPs, UDP/RTP, FLV, HLS ; Unicast/Multicast
Data Rate
32 kbps –32 Mbps
Encoding bitrate
CBR/VBR
GOP Structure
IBBP
ONVIF 2.x
Supported by RTSP: G711A/U
Picture adjust
De-interlacing, Noise reduction, Sharpening
OSD
4x Logo and Text Insertions as transparent overlay
Upgrade
Firmware- and Configuration-File for Backup UP- and Download by Web-IF (since V6.42... Nov. 2019)
Power supply
12V DC, 1A
Dimensions / Weight
165x85x24mm / 0.5 kg
Consumption
6W

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 3 -

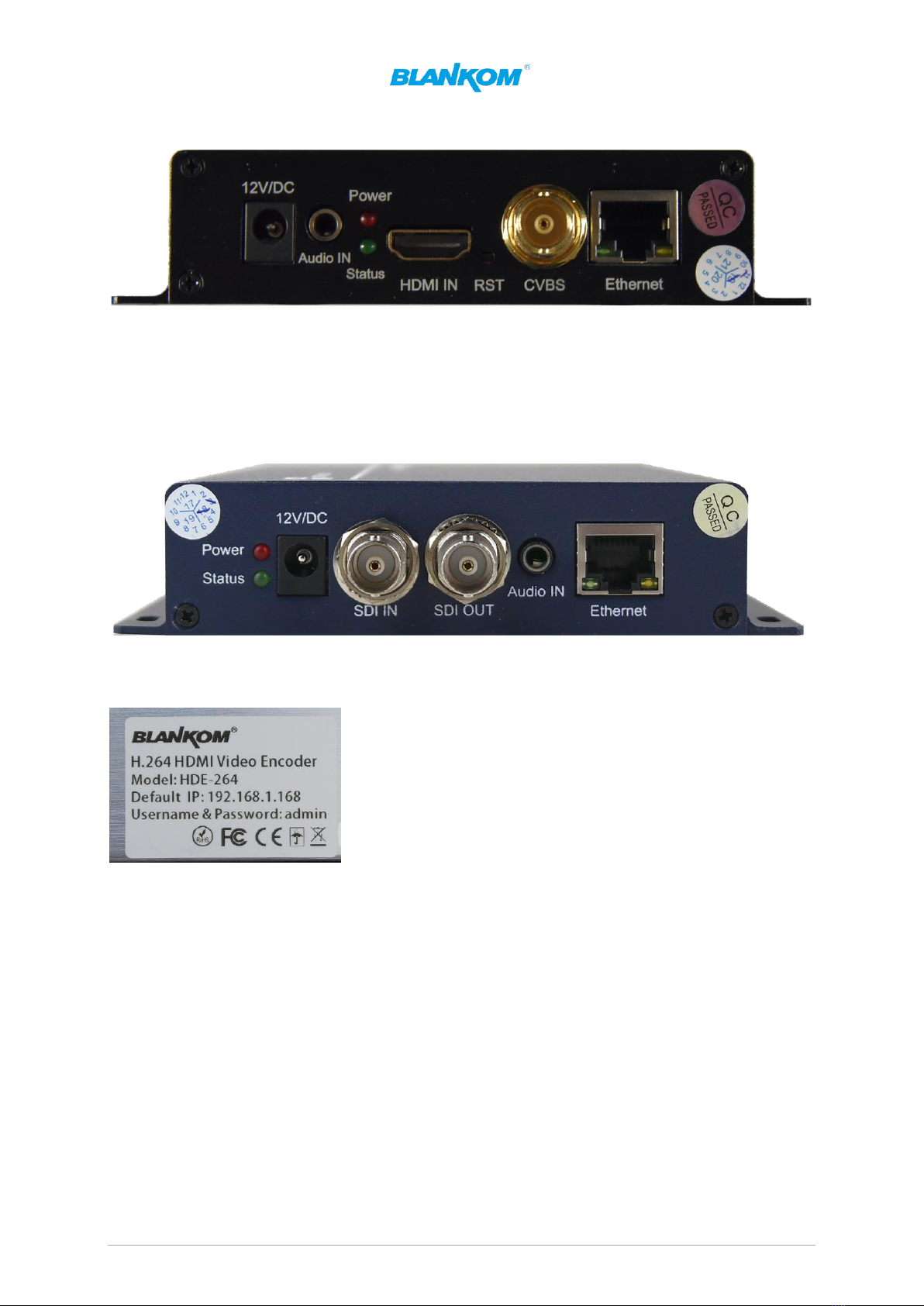

Appearance:
DC-Jack 12V, AUDIO 3.5mm Input, Status LEDs, HDMI IN, RESET Button-hole, CVBS/FBAS BNC, RJ-45
GbEthernet
Variant with SDI Inputs: SDE-265 (no 264 available any more)
SDI-Versions have a loop through to cascade the Input to other SDI-devices...
Sticker with default settings (MAC may be different)

- 4 -
Notes and Hints:
The Gigabit-Ethernet-port does not support PoE so please take care of not accidently using a
PoE switch- you can damage the port and the unit will be not accessible anymore.
We recommend to use an IGMP-V2/3 protocol capable GBE- Switch to avoid flooding your
network with unmanaged multicast streams. Also some consumer Internet routers do not like
Multicasts (UDP/RTP) and might reboot periodically.
An Internet-connection is not necessary as long as you need to use NTP and does not have an
own NTP server in your network.
Please asure that your HDMI –Output you like to encode is set to max. HD with 1080p60 or
lower. Higher values will not work.
The embedded Linux system takes some seconds to fully boot. After the System-LED is on, you
can connect your browser to it. We recommend Chrome, Opera, and Mozilla. For a preview
PopUp in the browser, a flash-player addon need to be installed for the browser.
Sometimes it is helpful to reload the browser –page to get the changed settings and values
because of different browser behaviours...
The RESET button will erase all your settings and the unit will be forced to start with factory
defaults. Use a thin wire to pass the small hole and press the inside button by it for at least 5-
10 seconds until the System LED will go off. The encoder would perform a restart than after
releasing the button.
The Web-Interface lookalike may vary between different Versions but basically its
selfexplaining.
The SDI versions supporting the first embedded Stereo-Audio-Pair to be encoded.
Setting up your PC/Laptop before connecting:
If you use a Windows based PC, you should assign its ethernet adapter into the same range
like the encoder: Use a static IP like follows:
1st: Open your network settings in System Menu:


Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 5 -
-> Maybe confirm
Administrator access-> Change IPv4 settings:
And confirm please. Linux users should know how to change the ethernet or WIFI settings.
Than open your browser and enter the http- Address of the box 192.168.1.168 (w/o https):
Depending on browser you’ll get a log-in-screen window:

- 6 -
Enter the default username = admin, default password = admin .... and here we go:

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 7 -
and second:
The STATUS page shows your Setup encodings for all the MAIN and the Substream(s).
Parallel and different streamings can be used for all encoder parts as long as the capacity of
the system is not claiming it: You will get a message if the encoding capacity will be reached
and one or more substreams would be disabled... The B-Models support only one streaming
Method enabled in Main and sec. Stream (= max. 2 outputs)

- 8 -
In some Sub-Streams Info-sections (model depending) you can check the Picture/Sound
directly in the browser by this button:
but you need to
enable the FLV or HLS stream before using that –and Flash-Player support is needed by your
browser:
Enabling it in the related Sub-Stream settings
-> Applying it by Set Up!
This doesn’t mean to restart the encoder but to restart your Stream-receiver-Decoder like
VLC or IPTV Settopbox to re-sync it to the new codec values. This message will popup every
time you change the encoder parameters. Receivers are stupid and might not react to the
changed values by themself.
Depending on Model: Preview in Browser is possible from within the status page as a link:
HINT: Adobe Flash does not work with HEVC h.265 codec!!!! You need to have h.264 encoding to be
set in the main or sub-stream menu (model depending).

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 9 -
Allow your browser to do that (here Mozilla):
CVBS-Preview with connected DVD-Player:

- 10 -
HDMI-Input stream- Preview:
Back to STATUS page:
Like the hint above, sometimes its helpful to reload the Status page i.e. if you see @0:
to gather the actual values like Input HDMI values:

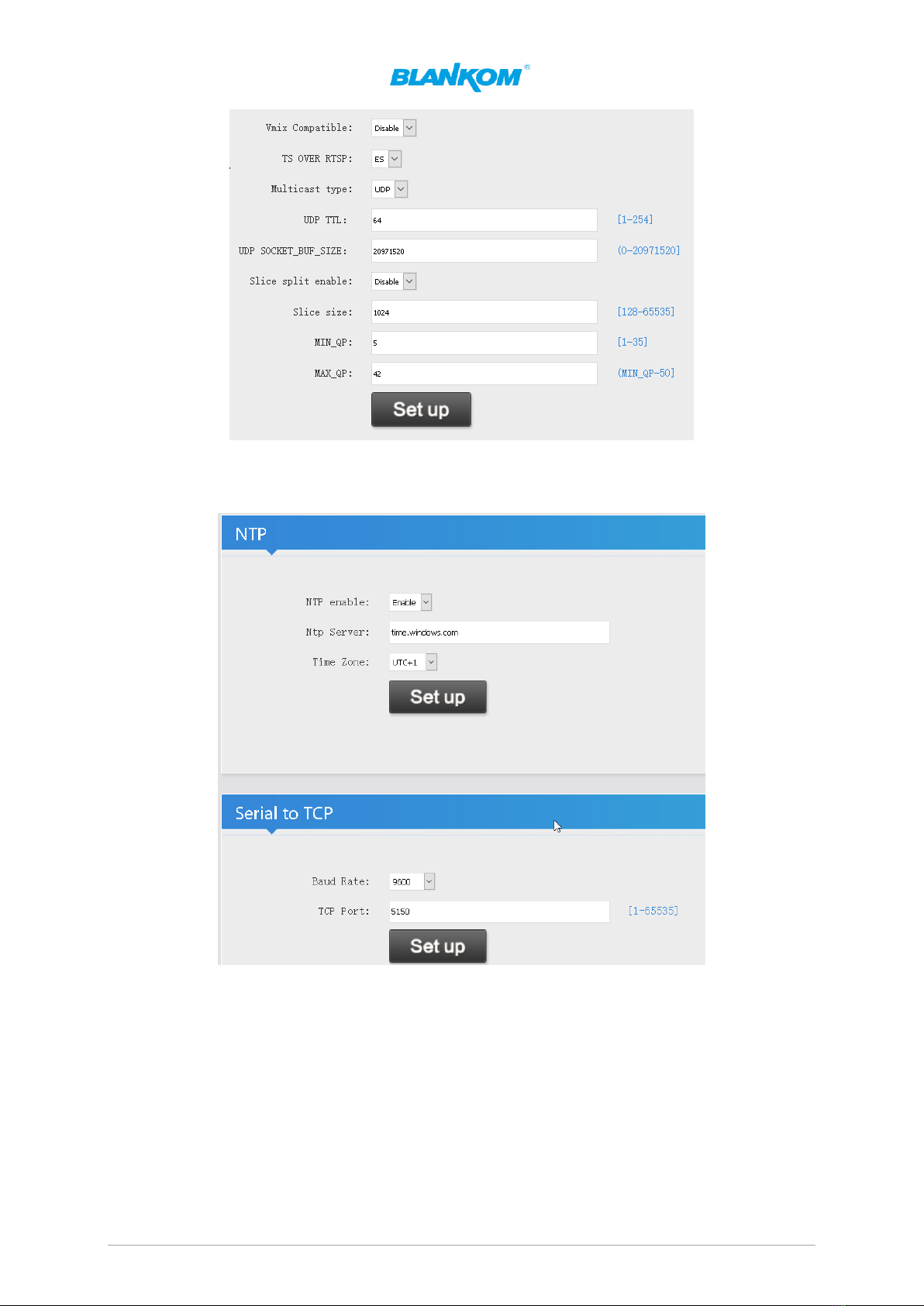

The device time can be adjusted by the Network-setup-part NTP-Server which you need to
tell the NTP server URI and UTC-time difference. UK = ‘0’, Germany normal is UTC+1...
If you press (Sync Time To Device) it will be updated.

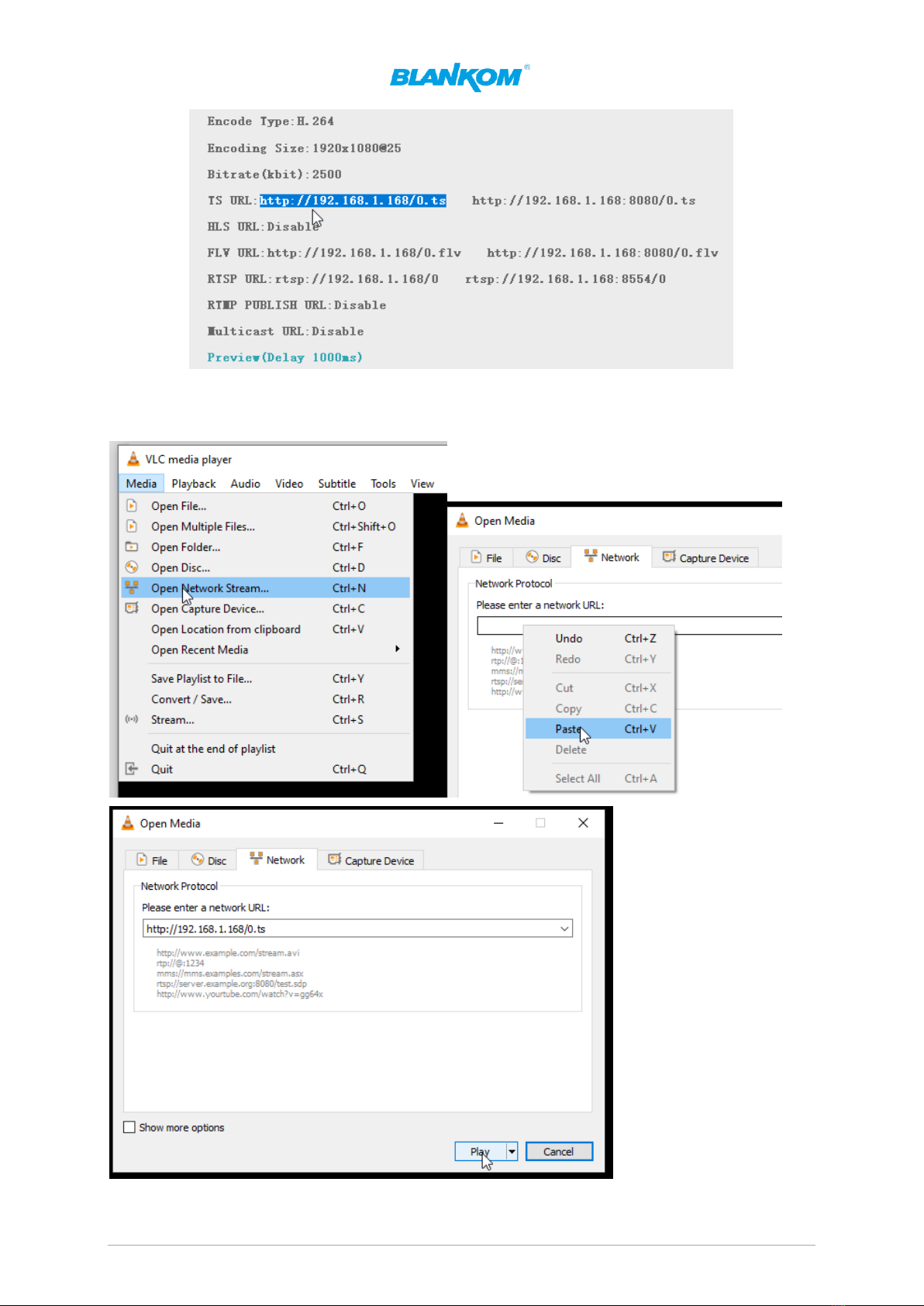

To also check your encoding streams you can copy the URI from the STATUS page:

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 11 -
Mark it by the mouse and COPY it - Than insert into VLC:

- 12 -
Note: If you more than one Network-Card in operation (like WIFI and GbE) in your receiving
machine, VLC often doesn’t recognize where to catch it from. Manually settings of METRIC
Values for both can solve this issue.

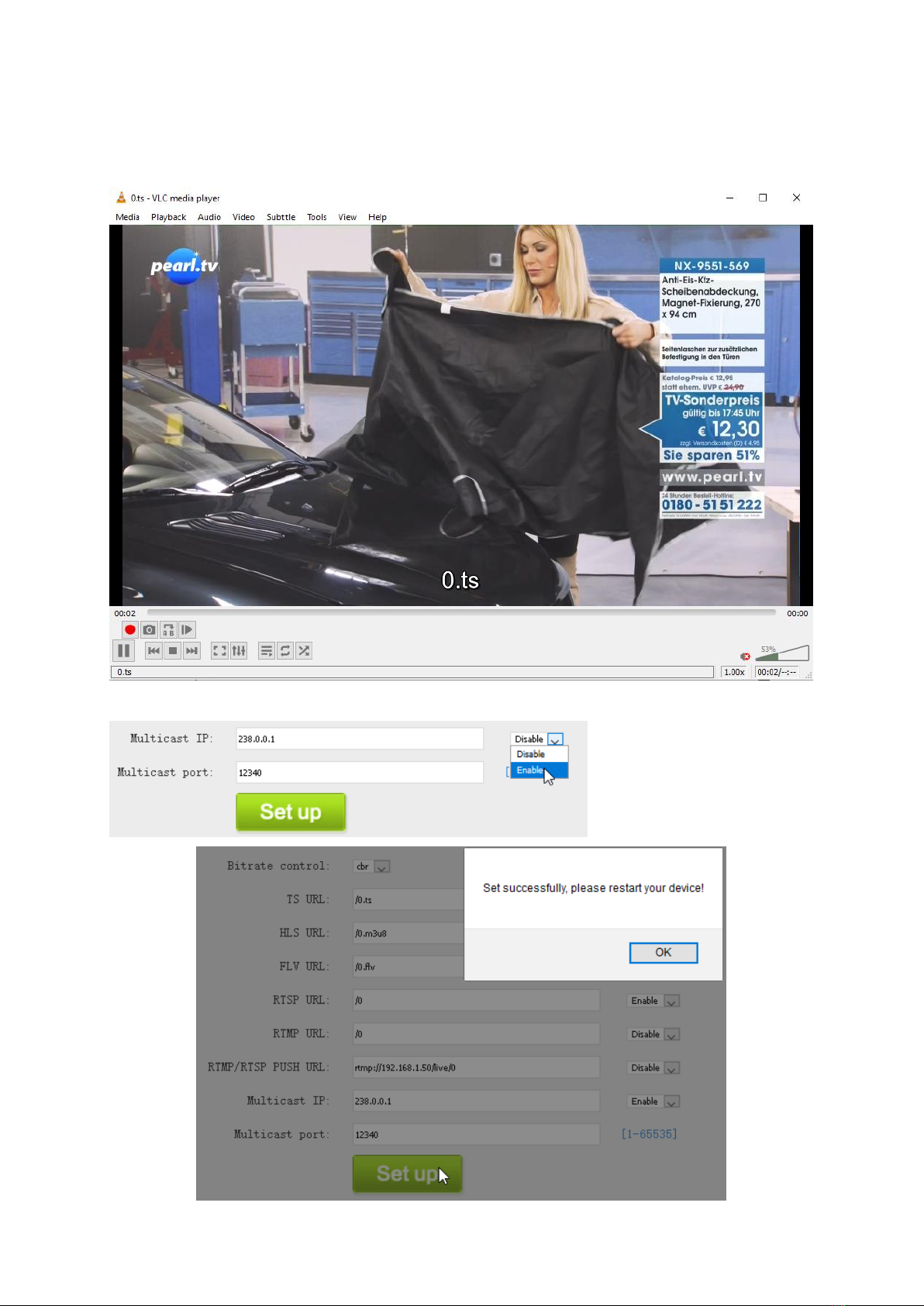

Note: UDP/RTP-Address will be taken by VLC with an @ and we have made it easy for you:
AGAIN: You do not need to restart the encoder only the receivers you have in your network
need to re-sync to the changed values!!!

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 13 -
Multicasts:

- 14 -
CVBS-Stream:
Network: Here you can change the encoders IP-address and mode:
If you change it to DHCP –after a reboot it will catch it from your router. Disadvantage: You
need to check the to the encoder given IP Address by your router in it’s own menu or use an
IP-Scanner-tool.
We assume, that you are familiar with the basic settings of a network.

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 15 -

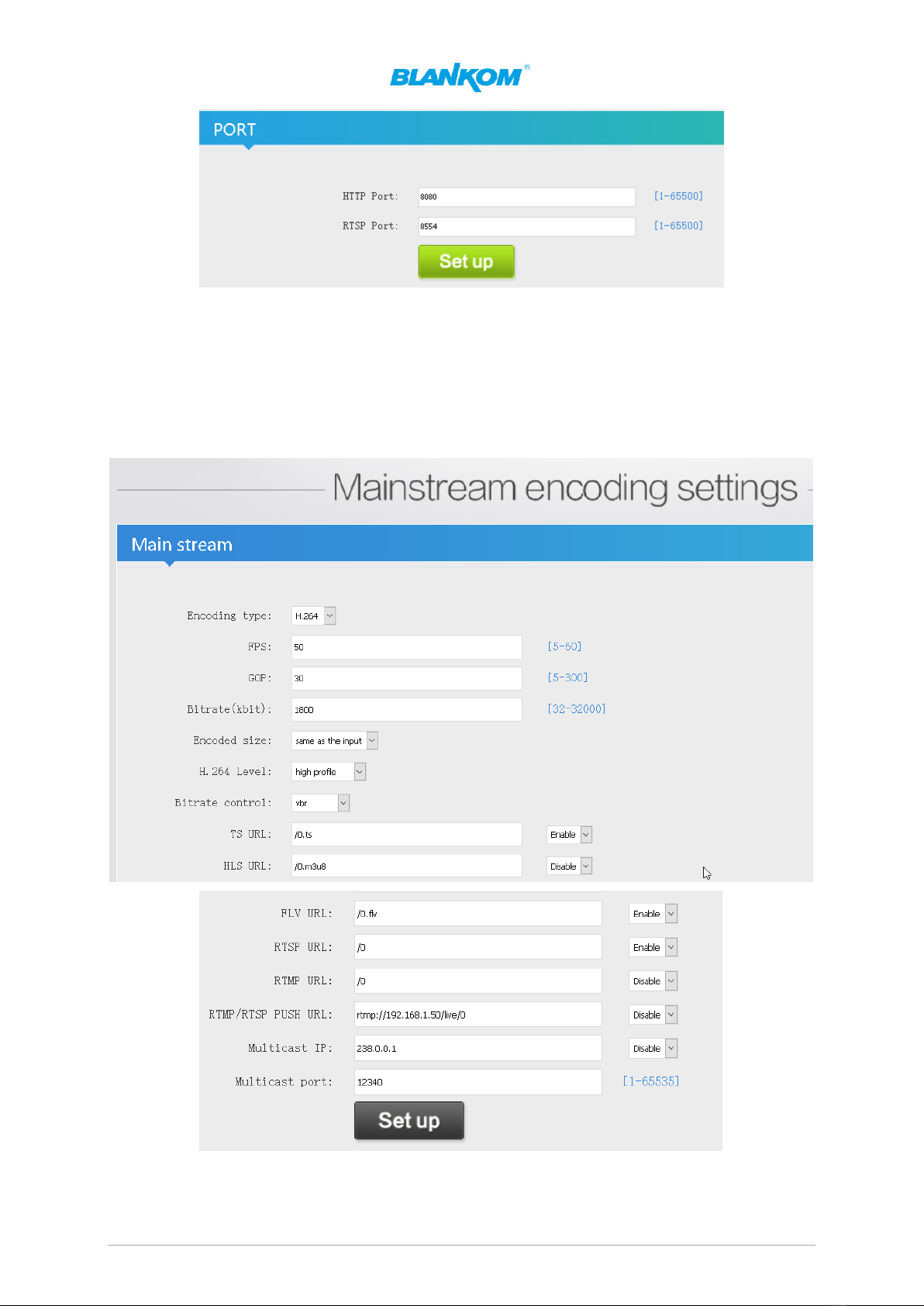

These are the basic ports for HTTP and RTSP-Streaming use. You can modify that but we
recommend to keep them as they are because RTSP –receivers might are fixed to that port
while HTTP isn’t. The bottom of the every of the menu-pages contain the ‘Set up’ buttons to
take and enable your changes.
The MAIN and SUB-Stream adjustments are nearly all similar:

- 16 -
On Screen Display Menu: You can ‘Overlay’ a Text or Logo over the encoded Picture in 4 Zones:
For deeper detailed explanations about the OSD feature refer to the full –Manual please.
Also for the ONVIF settings with RTSP.
It supports BMP with a special backgroud colour if you like to be that transparent –or simply use
already transparent PNG files. Names and limitations of size are shown in the web.

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 17 -
Audio settings are common for both stream encoder parts:

- 18 -
Self-explaining:
The default settings are usually Ok for most use-cases:
Playing with ‘Deinterlaced settings’ helps sometimes fixing moving picture artefacts. BOTTOM only
can solve right-left-camery stucking problems.

Quick-Start-Manual
All technical data are subject to change w/o further notice .... © Irenis GmbH 11-2019.................................... - 19 -
For more info... the full manual should explain... www.blankom.de
A schedules ‘restart’ can be programmed (NTP-Time = ON recommended):
Supporting Rserial function if needed (Linux like)

- 20 -
The settings as well as the Firmware can be back-upped and re-uploaded.
The config-settings file is a linux based text file named box.ini. Do not modify store upload that by a
windows editor except you will use notepad++ (freeware –please google...)
Finally i.e. after firmware update has been uploaded, the unit can be remotely reset to
factory defaults or rebooted:
