Blankom HDM-8512C User manual

Encoder Modulator User Manual
Variants:
HDM-8512C
DVB-C Mod with Mux, OSD
12x HDMI, 1x DVB-C, 128x IP | LogoOSD, MUX, 4x DVB-C, 4x MPTS
HDM-8512T
DVB-T Mod with Mux, OSD
12x HDMI, 1x DVB-C, 128x IP | LogoOSD, MUX, 4x DVB-T, 4x MPTS
HDM-8508C
DVB-C Mod with Mux, OSD
8x HDMI, 1x DVB-C, 128x IP | LogoOSD, MUX, 4x DVB-C, 4x MPTS
HDM-8508T
DVB-T Mod with Mux, OSD
8x HDMI, 1x DVB-C, 128x IP | LogoOSD, MUX, 4x DVB-T, 4x MPTS

Encoder Modulator User Manual
So what is correct? Scrambler port left?

Encoder Modulator User Manual
or is the scrambler connection a part of NMS port? (NO MAC address!)
Here again, MAC address rule violations.
About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate and to
install the product. Some chapters require some prerequisite knowledge in electronics
and especially in broadcast technologies and standards.

Encoder Modulator User Manual
Disclaimer
No part of this document may be reproduced in any form without the written permission
of the copyright owner.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. We shall have no liability for any
error or damage of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the
owners of the product that it is relevant to. It cannot be copied, modified, or translated
in another language without prior written authorization from us.
Directory
CHAPTER 1 INTRODUCTION ...................................................................................................................1
1.1 PRODUCT OVERVIEW.................................................................................................................................... 1
1.2 KEY FEATURES.............................................................................................................................................1
1.3 SPECIFICATIONS ...........................................................................................................................................1

Encoder Modulator User Manual
1.4 PRINCIPLE CHART.........................................................................................................................................1
CHAPTER 2 INSTALLATION GUIDE ...........................................................................................................4
2.1 GENERAL PRECAUTIONS ................................................................................................................................4
2.2 POWER PRECAUTIONS...................................................................................................................................5
2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING........................................................................5
2.4 ENVIRONMENT REQUIREMENT .......................................................................................................................5
2.5 GROUNDING REQUIREMENT ..........................................................................................................................6
CHAPTER 3 WEB NMS OPERATION .........................................................................................................6
4.1 ENCODER LOGIN .......................................................................................................................................... 6
4.2 ENCODER OPERATION...................................................................................................................................7
CHAPTER 4 TROUBLESHOOTING...........................................................................................................22
CHAPTER 5 PACKING LIST ..................................................................................................................... 23

Page 1 / 23
Encoder Modulator User Manual
Chapter 1 Introduction
1.1 Product Overview
This is a professional high integration device which includes encoding, multiplexing,
scrambling and modulation. It supports 8/12 HDMI input, one DVB-C tuner input and
128 IP input with Data1 (GE) and Data2 (FE) port. It also supports DVB-C or -T RF out
with 4 adjacent carriers, and support Data1 (GE) output port to support 4 MPTS out.
This full function device makes it ideal for small CATV head end system, and it’s a
smart choice for hotel TV system, entertainment system in sports bar, hospital,
apartment…
1.2 Key Features
Support QR code, LOGO, OSD insertion for every local channel
8/12 HDMI input, MPEG-4 AVC/H.264 Video encoding
1 DVB-C tuner input for re-mux (only for DVB-C RF out)
128 IP input over UDP and RTP protocol
MPEG1 Layer II Audio encoding and support audio gain adjustment
4 groups of multiplexing/scrambling/modulation output channels
Support 4 MPTS IP (DATA1 port only) output over UDP and RTP
Support 1 ASI output (Optional as ordered)
Support PID remapping/accurate PCR adjusting/PSI/SI editing and inserting
Control via web management, and easy updates via web
Lowest cost per channel, breakthrough price
1.3 Specifications
Input
8/12 HDMI inputs for option
1 DVB-C Tuner input for remux, F type interface (only for DVB-C RF out)
128 IP input over UDP and RTP
Video
Encoding
MPEG-4 AVC/H.264
Resolution
In-put
1920×1080_60P, 1920×1080_60i,

Page 2 / 23
Encoder Modulator User Manual
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
Out-put
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P,
Bit-rate
1Mbps~13Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame )
Audio
Encoding
MPEG-1 Layer 2
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbp
s
Multiplexing
Maximum PID
Remapping
180 input per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
Scrambling
Maximum
simulcrypt CA
4
Standard
EN300 429/ITU-T J.83A/B
Connection
Local/remote connection
Modulation
DVB-C
QAM Channel: 4
Standard: EN300 429/ITU-T J.83A/B
MER: ≥40db
RF frequency: 50~960MHz, 1KHz step
RF output level: -26~-1dBm (81~106 dbµV), 0.1dBm
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM
J.83A
J.83B
Constellation
16/32/64/128/256QAM
64/256
QAM
Bandwidth
8M
6M
DVB-T
Standard
EN300744
FFT mode
2K,
Bandwidth
6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥42 dB
RF frequency
50~960MHz, 1KHz step
RF out
4*RF COFDM DVB-T out (4 carriers
combined output)
RF output level
-28~ -3 dBm (77~97 dbµV), 0.1db step
Stream output
RF output (F type interface)
4 IP MPTS output over UDP/RTP, 1*1000M Base-T Ethernet interface (Data1
only)
1 ASI output (Optional as ordered)
System
Network management(WEB)

Page 3 / 23
Encoder Modulator User Manual
function
Chinese and English language
Ethernet software upgrade
Miscellaneous
Dimension(W×L×H)
482mm×410mm×44mm
Approx weight
8kg
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz
Power consumption
70W
1.4 Principle Chart
Encoding
Encoding
HDMI #1
HDMI #12
MUX 1# DVB-C 1#
IP 1
Carrier 1
MUX 4#
DVB-C Tuner
SCR1#
DVB-C 4#
IP 4
Carrier 4
SCR4#
MUX 2# DVB-C 2#
IP 2
Carrier 2
SCR2#
MUX 3# DVB-C 3#
IP 3
Carrier 3
SCR3#
IP1-128
DVB-C RF out
Encoding
Encoding
HDMI #1
HDMI #12
MUX 1# DVB-T 1#
IP 1
Carrier 1
MUX 4#
IP1-128 DVB-T 4#
IP 4
Carrier 4
MUX 2# DVB-T 2#
IP 2
Carrier 2
MUX 3# DVB-T 3#
IP 3
Carrier 3
DVB-T RF out

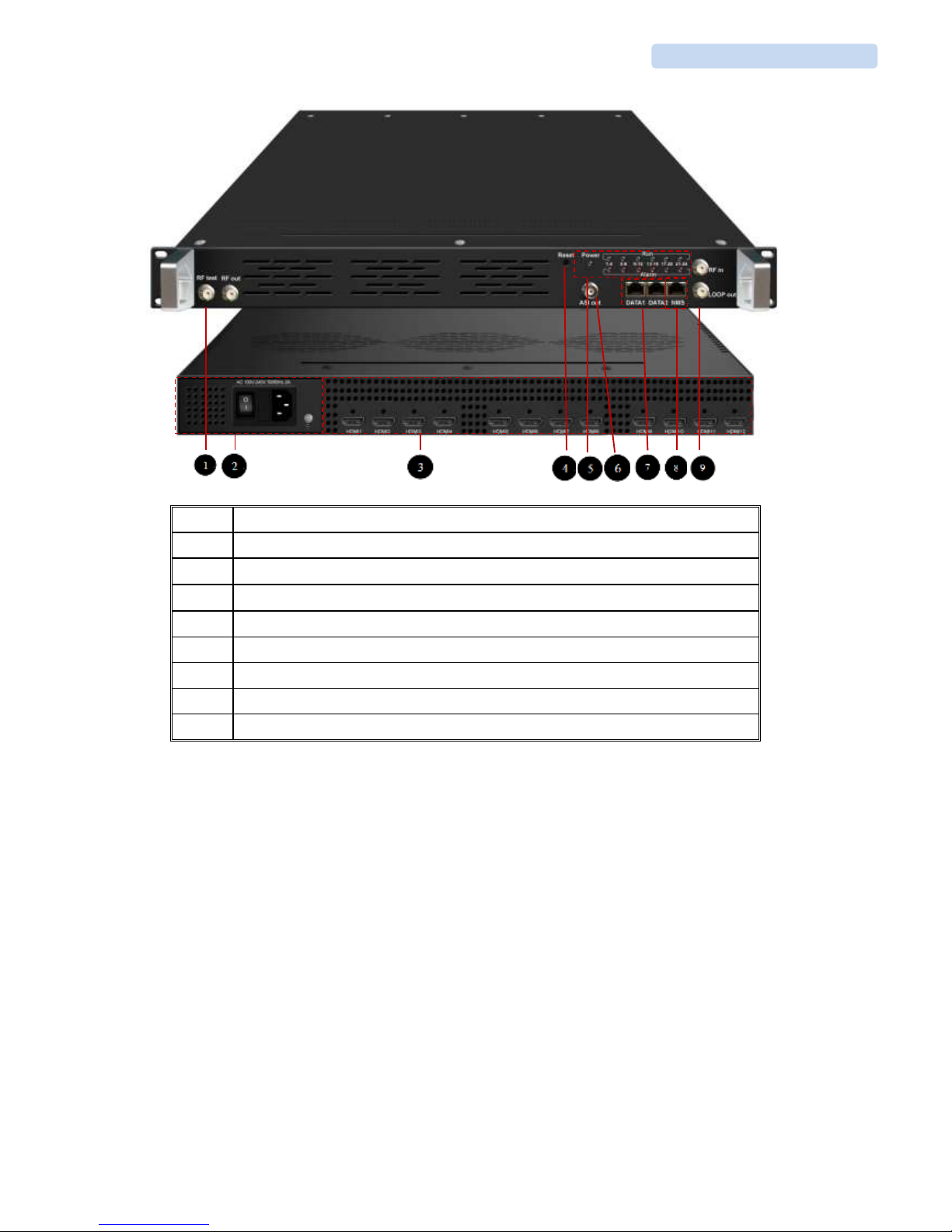

1.5 Appearance and Description
Front and Rear Panel Illustration

Page 4 / 23
Encoder Modulator User Manual
1
RF test and RF out port
2
Port Power supply and Grounding Pole
3
12HDMI input
4
Reset Key/Data Port Indicator
5
Indicator
6
ASI output port(optional)
7
DATA Port (for IP stream input/output)
8
NMS/CAS
9
RF in and Loop out
Chapter 2 Installation Guide
This section is to explain the cautions the users must know in some case that possible
injure may bring to users when it’s used or installed. For this reason, please read all
details here and make in mind before installing or using the product.
2.1 General Precautions
Must be operated and maintained free of dust or dirty.
The cover should be securely fastened, do not open the cover of the products when

Page 5 / 23
Encoder Modulator User Manual
the power is on.
After use, securely stow away all loose cables, external antenna, and others.
2.2 Power precautions
When you connect the power source, make sure if it may cause overload.
Avoid operating on a wet floor in the open. Make sure the extension cable is in good
condition
Make sure the power switch is off before you start to install the device
2.3 Device’s Installation Flow Chart Illustrated as following
Connecting
Grouding
Wire and
Power
Cord
Acquisition
Check Installing Device Setting Parameter Running Device
Connecting
Signal
cable
2.4 Environment Requirement
Item
Requirement
Machine Hall Space
When user installs machine frame array in one machine hall,
the distance between 2 rows of machine frames should be
1.2~1.5m and the distance against wall should be no less than
0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity
20%~80% sustainable 10%~90% short time
Pressure
86~105KPa
Door & Window
Installing rubber strip for sealing door-gaps and dual level
glasses for window

Page 6 / 23
Encoder Modulator User Manual
Wall
It can be covered with wallpaper, or brightness less paint.
Fire Protection
Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz. Please
carefully check before running.
2.5 Grounding Requirement
All function modules’ good grounding is the basis of reliability and stability of devices.
Also, they are the most important guarantee of lightning arresting and interference
rejection. Therefore, the system must follow this rule.
Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
Users should make sure the 2 ends of grounding wire well electric conducted and be
antirust.
It is prohibited to use any other device as part of grounding electric circuit
The area of the conduction between grounding wire and device’s frame should be no
less than 25 mm2.
Chapter 3 WEB NMS Operation
User not only can use front buttons to set configuration, but also can control and set
the configuration in computer by connecting the device to web NMS Port. User
should ensure that the computer’s IP address is different from other device’s IP
address; otherwise, it would cause IP conflict.
4.1 Encoder login
The default IP address of this device is 192.168.0.136. (We can modify the IP
through the front panel.)

Page 7 / 23
Encoder Modulator User Manual
Connect the PC (Personal Computer) and the device with net cable, and use ping
command to confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to
192.168.99.xxx (xxx can be 1 to 254 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder &
Modulator’s IP address in the browser’s address bar and press Enter.
It will display the Login interface as Figure-1. Input the Username and Password
(Both the default Username and Password are “admin”.) and then click “LOGIN” to
start the device setting.
Figure-1
4.2 Encoder Operation
Status
When we login into encoder module, it displays the status interface as Figure-2.

Page 8 / 23
Encoder Modulator User Manual
Figure-2
Parameters → Module 1-3
This encoder modulator maximum support up to 3 modules with 12 HDMI input. From
the menu on left side of the webpage, clicking “Module1-3”, it displays the information
of each encoding channel as Figure-3.
User can click any item here to enter
the corresponding interface to check
information or set the parameters.
Current software version
information

Page 9 / 23
Encoder Modulator User Manual
Figure-3
Parameters → TS Config:
From the menu on left side of the webpage, clicking “TS Config”, it displays the interface
where users can configure the TS output parameters.
TS Config→Stream select:
From the menu on up side of the webpage, clicking “Stream select”, it displays the
interface where users can select program(s) to multiplex out and modify program info.

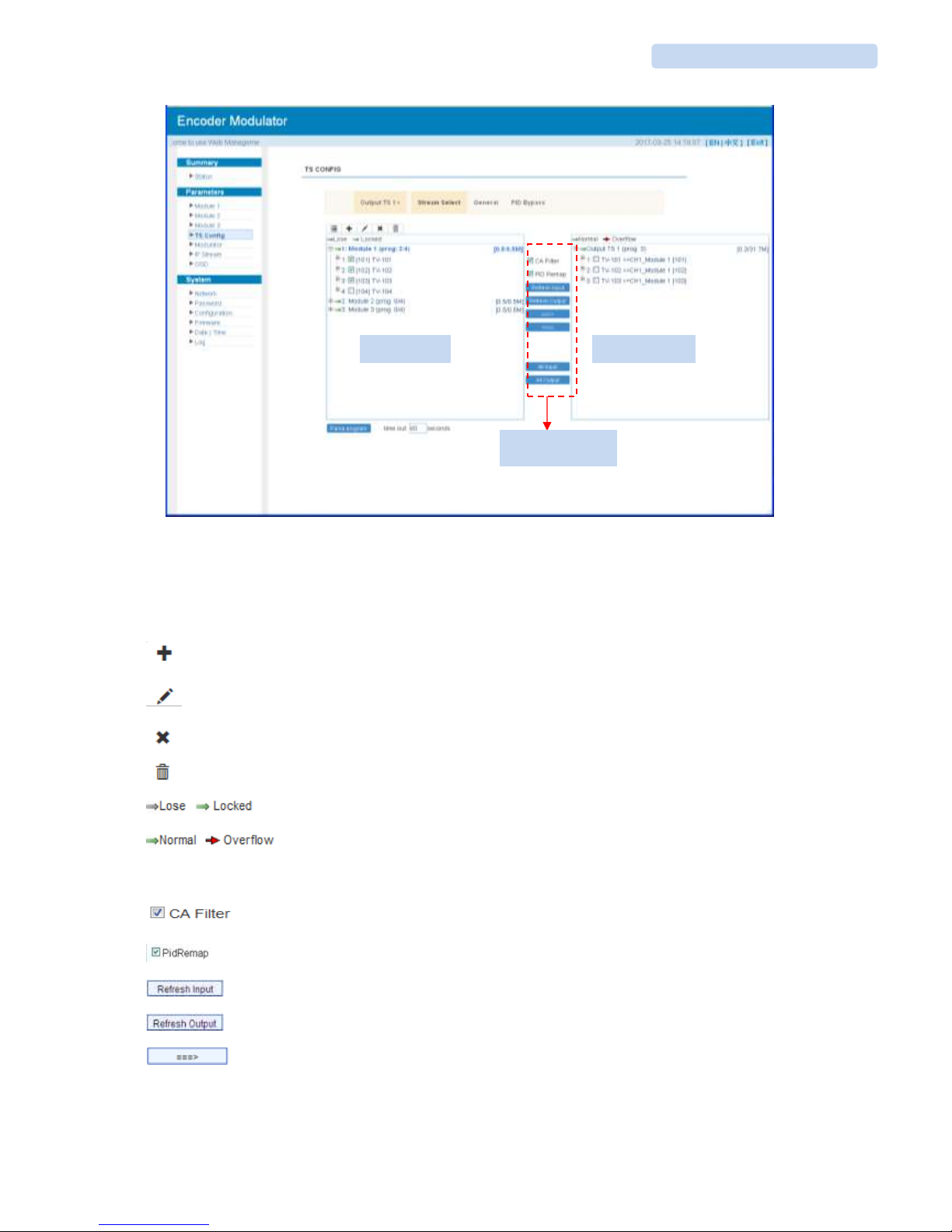

(Figure-4)
General settings for
the Encoding
program: User can
edit any item listed
as needed.
Video Status read area

Page 10 / 23
Encoder Modulator User Manual
Figure-4
Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are
as below:
: To add input channel which can from GE1/GE2/Connector
: To edit the input channel
: To delete the input channel
: To delete all inputs channel
: To check input IP lock or not, green means current IP locked
: To check current TS overflow or not, red color means current TS
overflow, need reduce program
: To filter/not filter the source CA information
: To enable/disable the PID remapping
To refresh the input program information
To refresh the output program information
Select one input program first and click this button to transfer the selected
program to the right box to output.
Input Area
Output Area
Operation Area

Page 11 / 23
Encoder Modulator User Manual
Similarly, user can cancel the multiplexed programs from the right box.
To select all the input programs
To select all the output programs
To parse programs time limitation of parsing input programs
Program Modification:
The multiplexed program information can be modified by clicking the program in the
‘output’ area. For example, when clicking , it triggers a dialog box
(Figure 5) where users can input new information.
Figure-5
TS Config→General:
From the TS Config menu on up side of the webpage, clicking “General”, it displays the
interface where users can set output mode, enable PSI/SI table out, NIT insert/VCT
insert, PCR correction. (Figure-6)

Page 12 / 23
Encoder Modulator User Manual

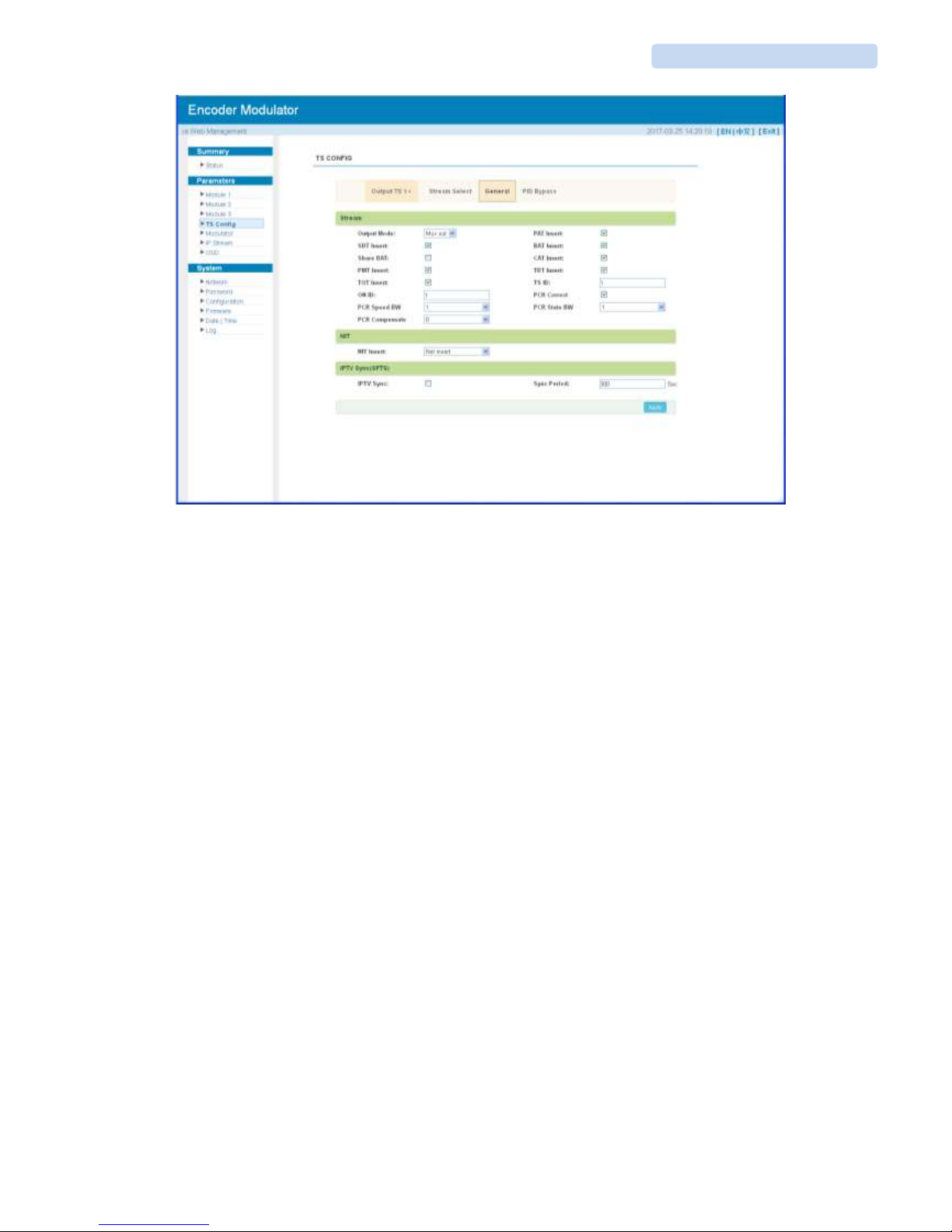

Figure-6
TS Config→PID Bypass:
From the TS Config menu on up side of the webpage, clicking “PID Bypass”, it displays the
interface as Figure-7 where user can add PIDs to be passed, click the “+” symbol, input
current IP channel number, then input current IP source Pid and output Pid which is
customer needed , then click “set”

Page 13 / 23
Encoder Modulator User Manual
Figure-7
Parameters → Modulator:
From the menu on left side of the webpage, clicking “Modulator”, it will display the
Modulator Configuration screen as Figure-8. Here user can set modulation parameters.
Figure-8

Page 14 / 23
Encoder Modulator User Manual
Parameters → IP Stream:
This encoder modulator supports TS to output in IP (4*MPTS) format through the DATA1
port.
Click ‘IP Stream’, it will display the interface where to set IP out parameters (Figure-9).
Figure-9
Parameters→ OSD:

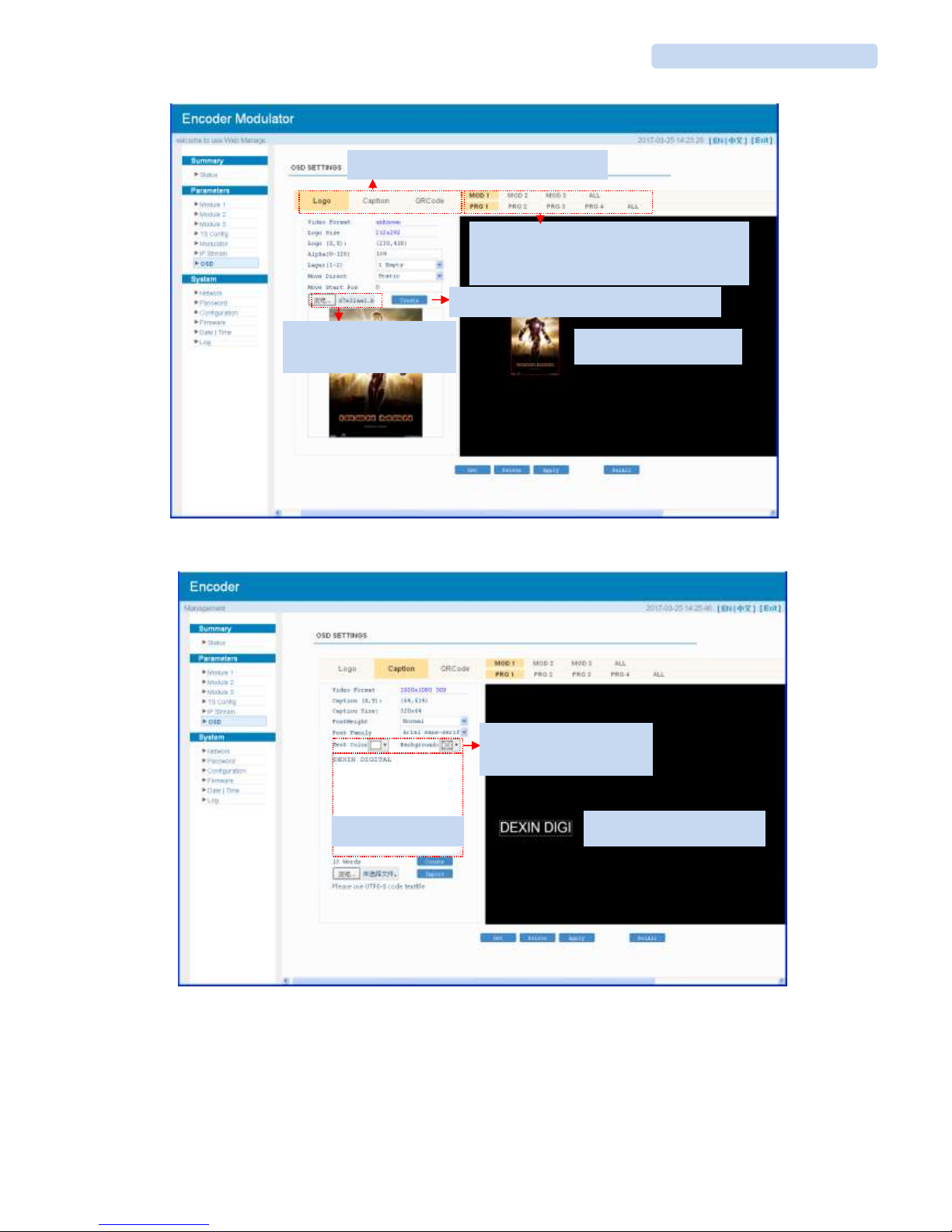

Click ‘OSD’, it will display the interface where to configuration the OSD parameters
(Figure-10)
Quickly Config
Channel Config

Page 15 / 23
Encoder Modulator User Manual
Figure-10
Figure-11
Enter your text here
Select the text color and
background color
Put your caption anywhere
Select to configure logo, caption or QRcode
Browse and select the Logo
which has been created
Put your logo everywhere
Click here to comfirm the LOGO you selected
Select program1/2/3/4 of Module1/2/3 to
apply the logo insertion, or you can select all to
apply all programs and all modules
