Blankom DRP 393 B-IRD Eagle User manual

BLANKOM Digital GmbH TecCenter 31162 Bad Salzdetfurth Germany Tel. [phone] / 2711-0 Fax [phone] / 2711-60
DRP 393 MPEG-4 Receiver / Decoder (548D10300002-Rev. L 08/11) www.blankom-digital.de
DRP 393
MPEG-4 Receiver / Decoder
Instruction Manual
* Manufactured under license from Dolby Laboratories. Dolby and double-D symbol are registered trademarks of Dolby Laboratories
Blankom Digital GmbH
TecCenter
31162 Bad Salzdetfurth
Germany
Phone [phone] / 2711 - 0
Fax [phone] / 2711 - 60
E-Mail [e-mail]
Web www.blankom-digital.de
*

DRP 393 MPEG-4 Receiver/Decoder
Page 2 (36) www.blankom-digital.de Rev. L
Important Notes!
This manual is for use by qualified personnel only. Handling this device or system requires special
electrotechnical knowledge. To reduce the risk of electrical shock or damage to the equipment, do not
perform any servicing other than the installation and operating instructions contained in this manual unless
you are qualified to do so. This device operates in the given voltage and frequency range without requiring
manual adjustment.
Special symbols that might appear on the equipment:
This symbol indicates that there are dangerous live parts
within the equipment, which are not insulated. Do not touch
these live parts, because serious injury or death may be the
result!
This symbol indicates that there are components under risk
from electrostatic discharge. To avoid equipment damages do
not touch these components or, observe the respective
handling rules!
For continued protection against fire, the fuses may only be replaced by identical fuses with the same
electrical specifications which are designed for the corresponding fuse positions.
No part of this publication may be reproduced in any form or by any means or used to make any derivative
work (such as translation, transformation or adaptation) without the written permission from BLANKOM
Digital GmbH. BLANKOM Digital GmbH reserves the right to revise this publication and make changes in its
content from time to time, whereby it shall not be obligatory for BLANKOM Digital GmbH to provide
notification of such revision or change.
BLANKOM Digital GmbH provides this manual without warranty of any kind, neither implied nor expressed,
this includes also any warranties regarding the merchantability and fitness for a particular purpose.
BLANKOM Digital GmbH may improve this manual or make changes in the products described herein at any
point of time.
Installation Notes
All types of the DRD/DRP family are 19“ devices with 1 RU height designed for installation in 19” racks. In
addition to the front panel screws an internal module support is required at the rack. At least 1 RU space is
required above the module for heat dissipation in the 19" rack.
Depending on the Frontend used and the operating adjustments, the input port carries DC voltage (13V /
18V, max. 500 mA).
By connecting a mains cable, the device can become functional without any auxiliary appliances. The power
supply units are not designed for the wide range of 100-240V AC; a manual adjustment of the voltage is not
necessary.
All the outputs are decoupled from one another. Thus, the circuit does not have any effect on the functioning
of the device. Connections that are not required need not be terminated.
Suggestion: CAT 6E Ethernet cable for GigEthernet
© 2009 BLANKOM Digital GmbH
All rights reserved!

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 3 (36)
Table of Contents
Important Notes!..............................................................2
Installation Notes.............................................................2
Table of Contents..............................................................3
General description...........................................................4
Input ............................................................................5
ASI interface..................................................................5
MPEG-4 video decoder.....................................................5
2nd Video output .............................................................5
HD-SDI/SDI output.........................................................5
Audio decoder ................................................................5
Wide-range power supply unit: .........................................6
Test Equipment ..............................................................6
Software Optionen ..........................................................6
Ordering Codes.................................................................7

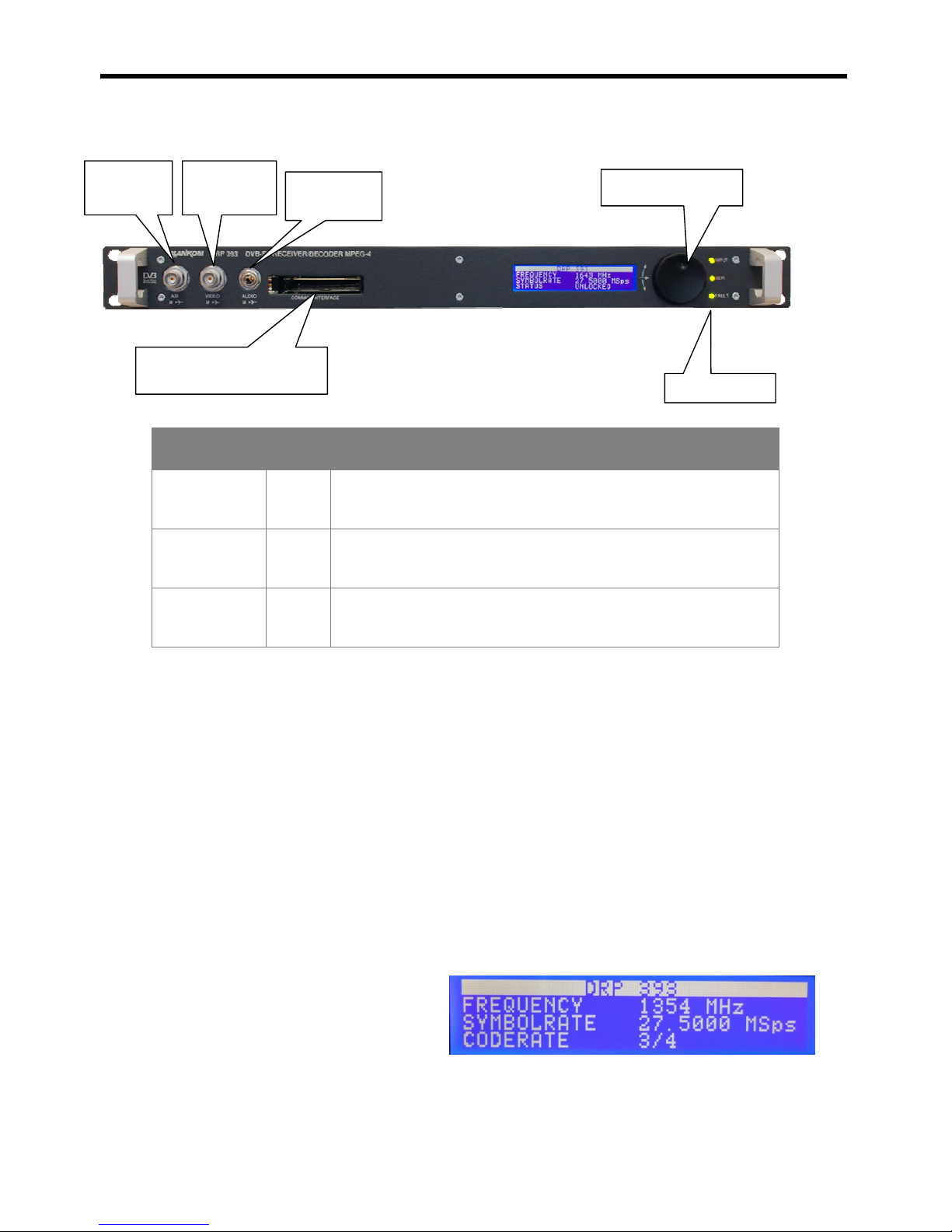

Control with display and navigation wheel .......................8
Description of menu ........................................................9
Control with web server..................................................10

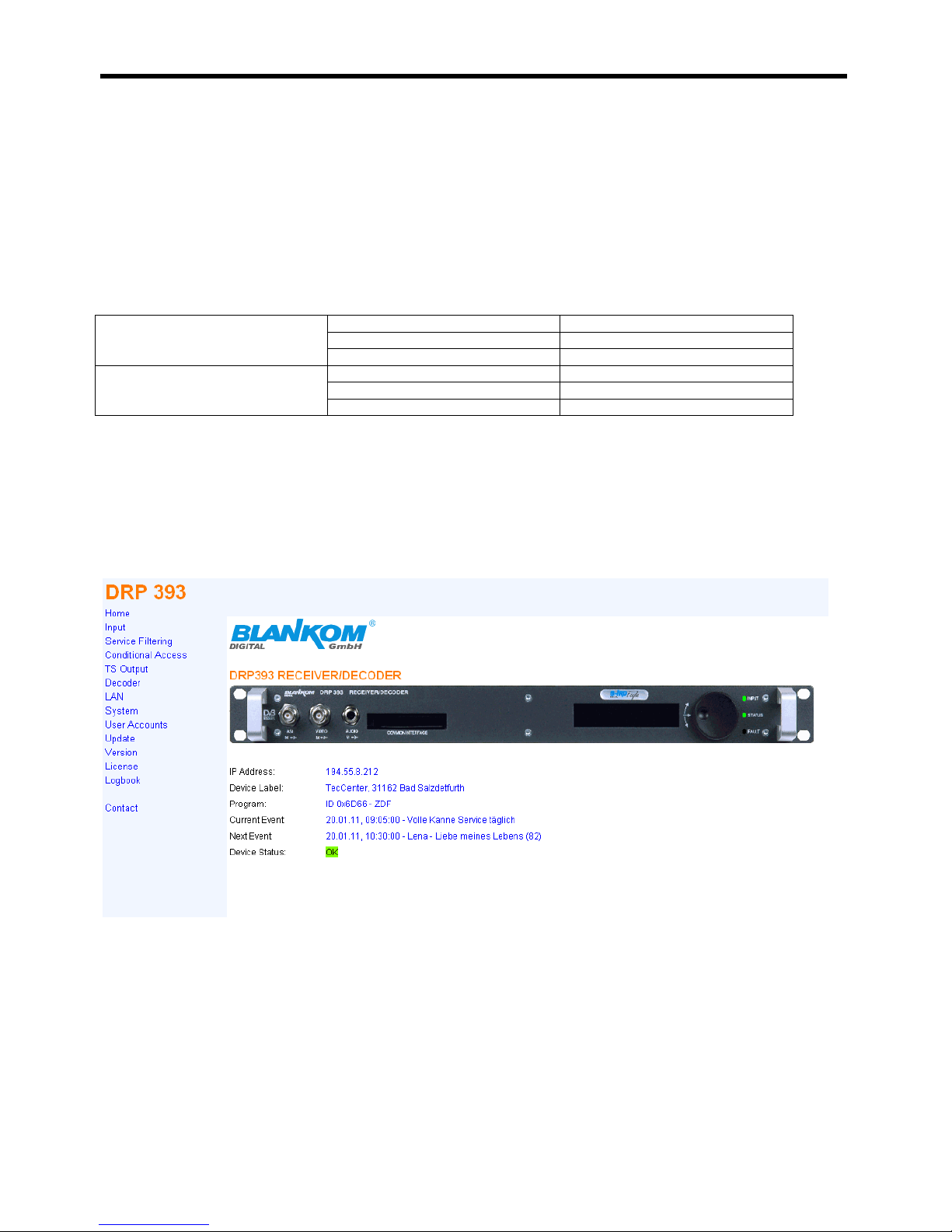

Home.......................................................................... 10

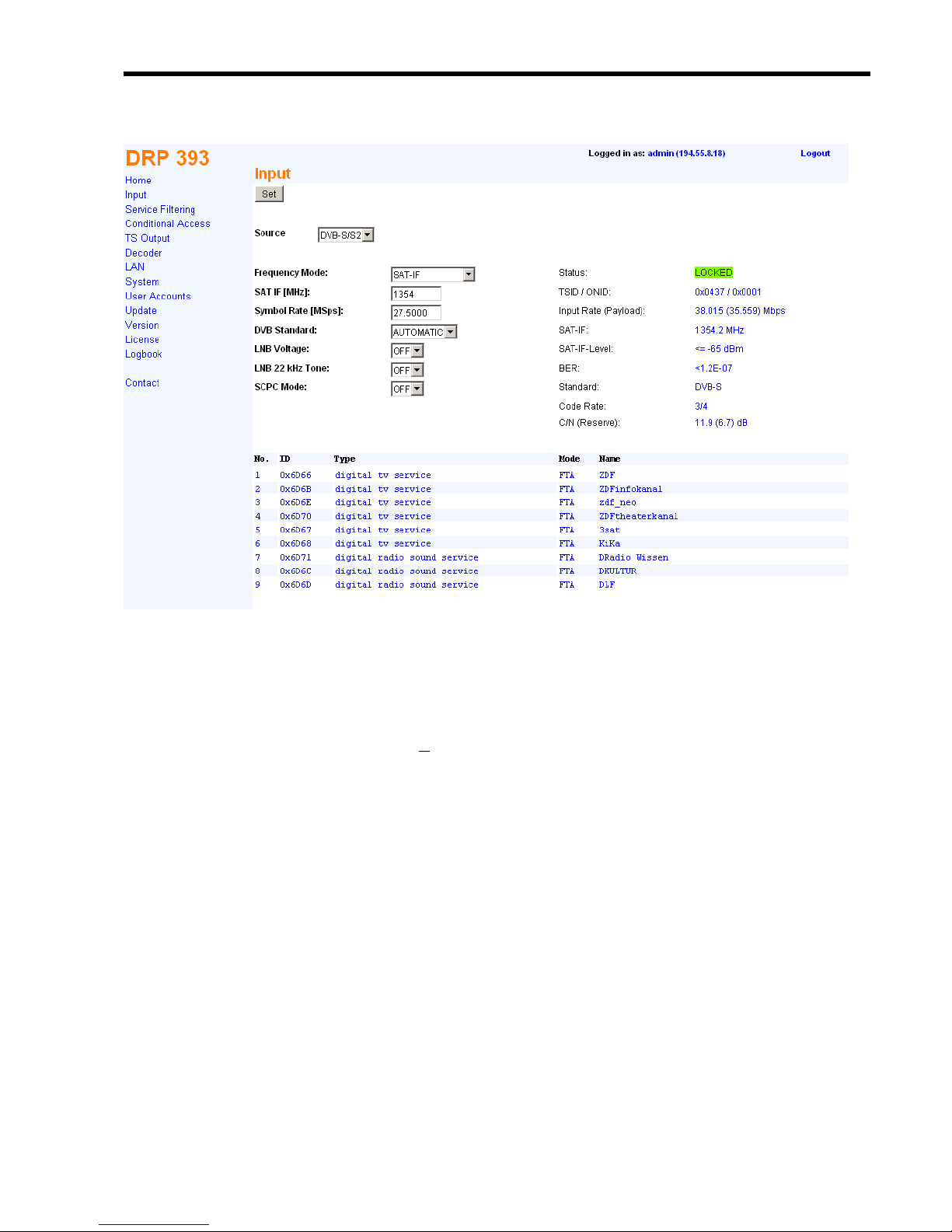

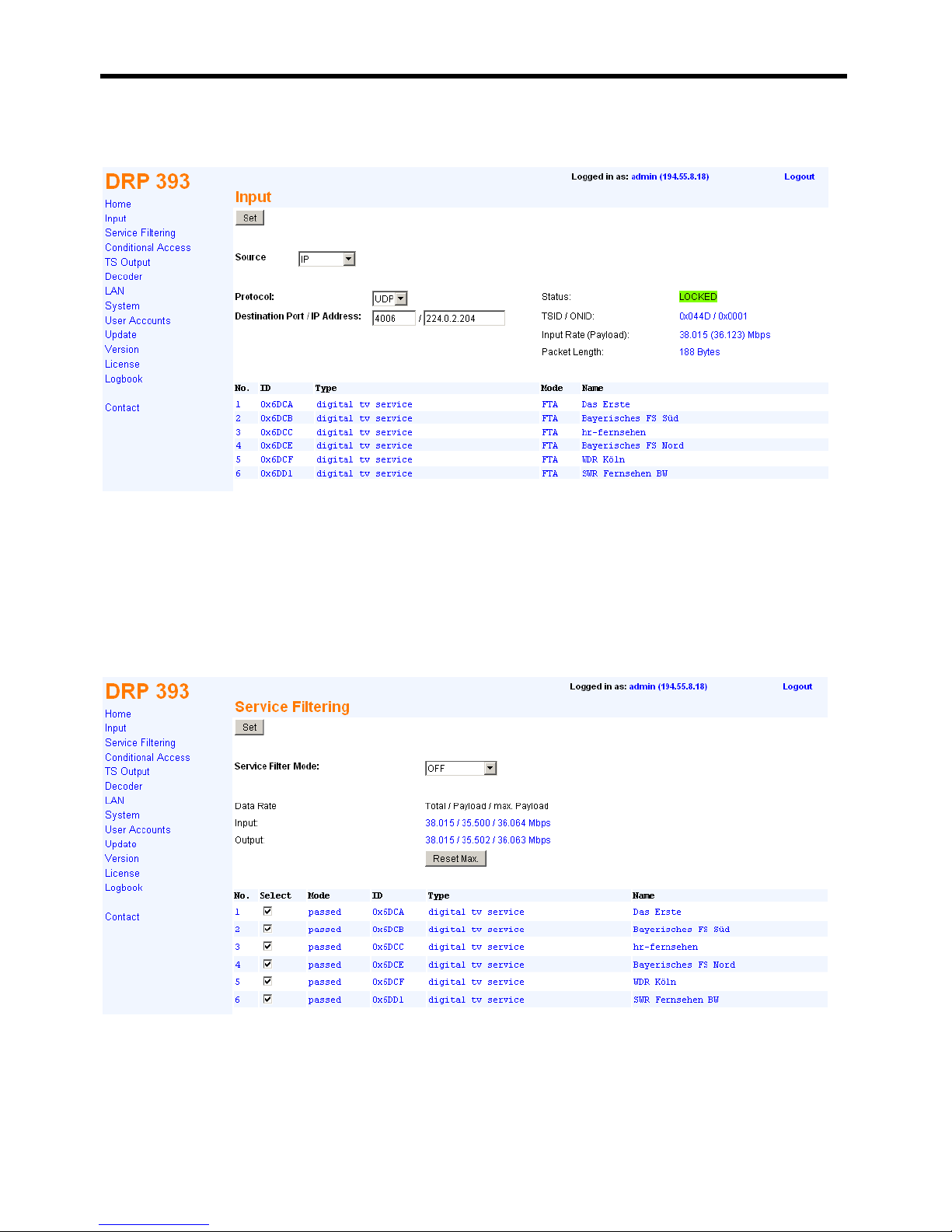

Input .......................................................................... 12
Input-DVB-S/S2 (Option)............................................... 13
IP Input (option): ......................................................... 14
Service Filtering ........................................................... 14

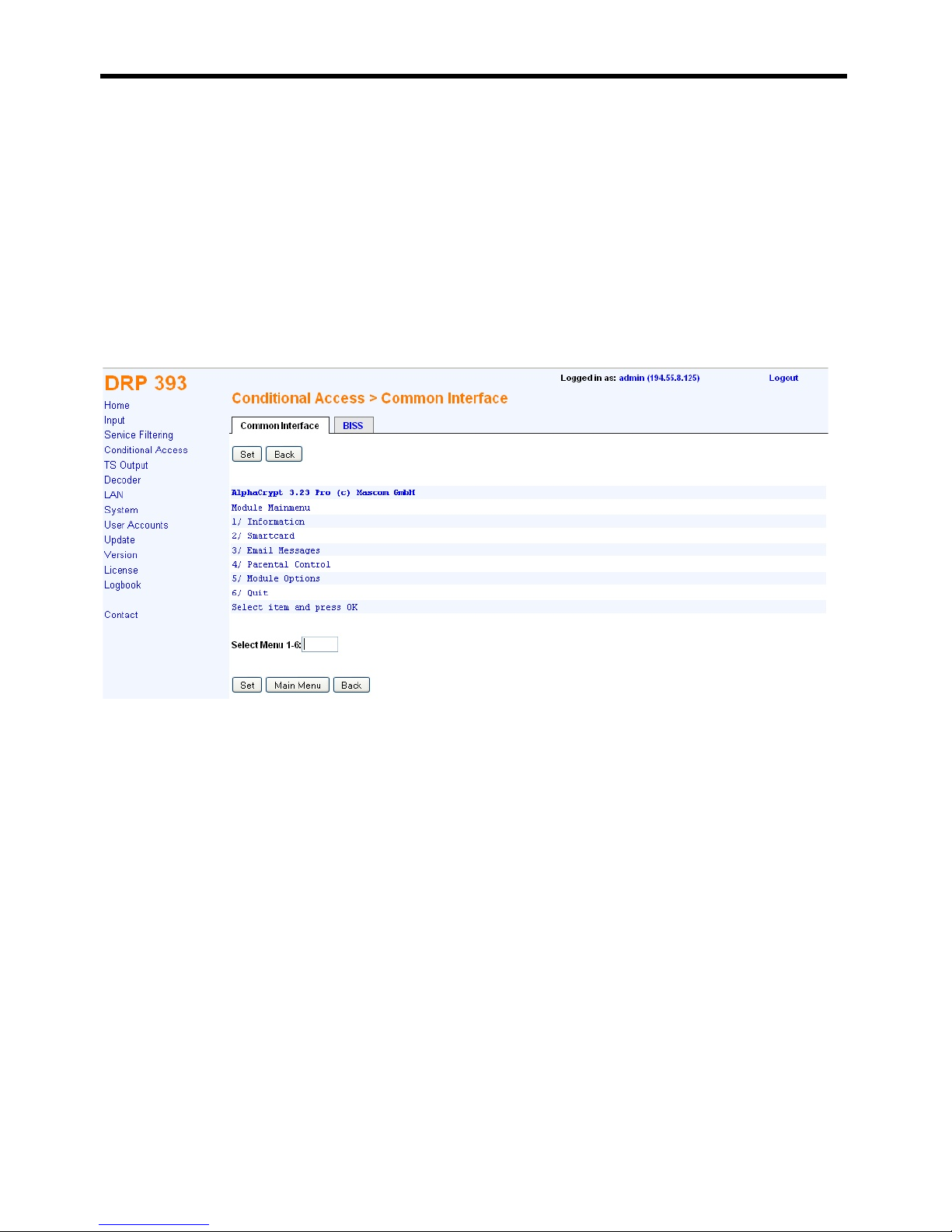

Conditional Access ........................................................ 15
BISS Decryption (Option)............................................... 16

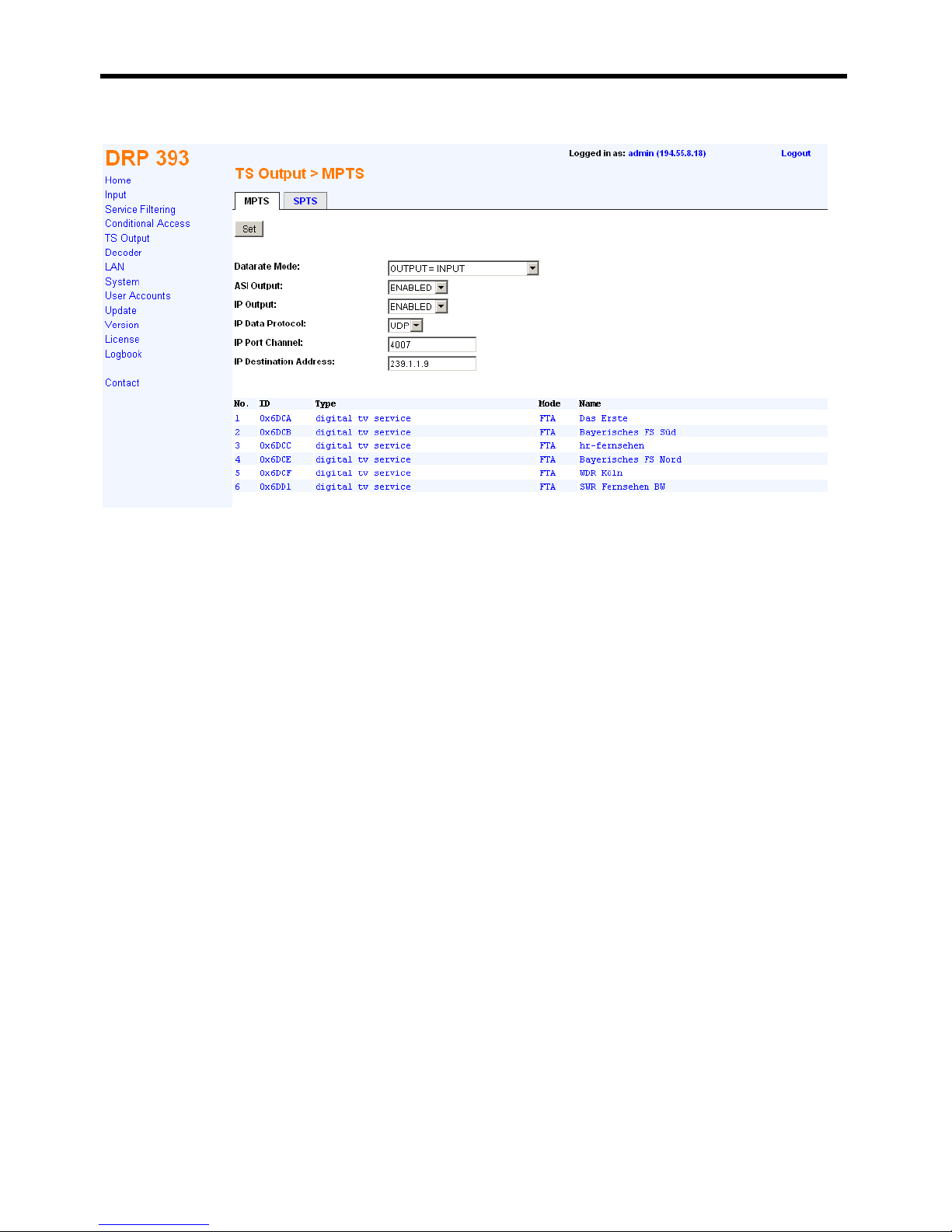

IP Output MPTS ............................................................ 18

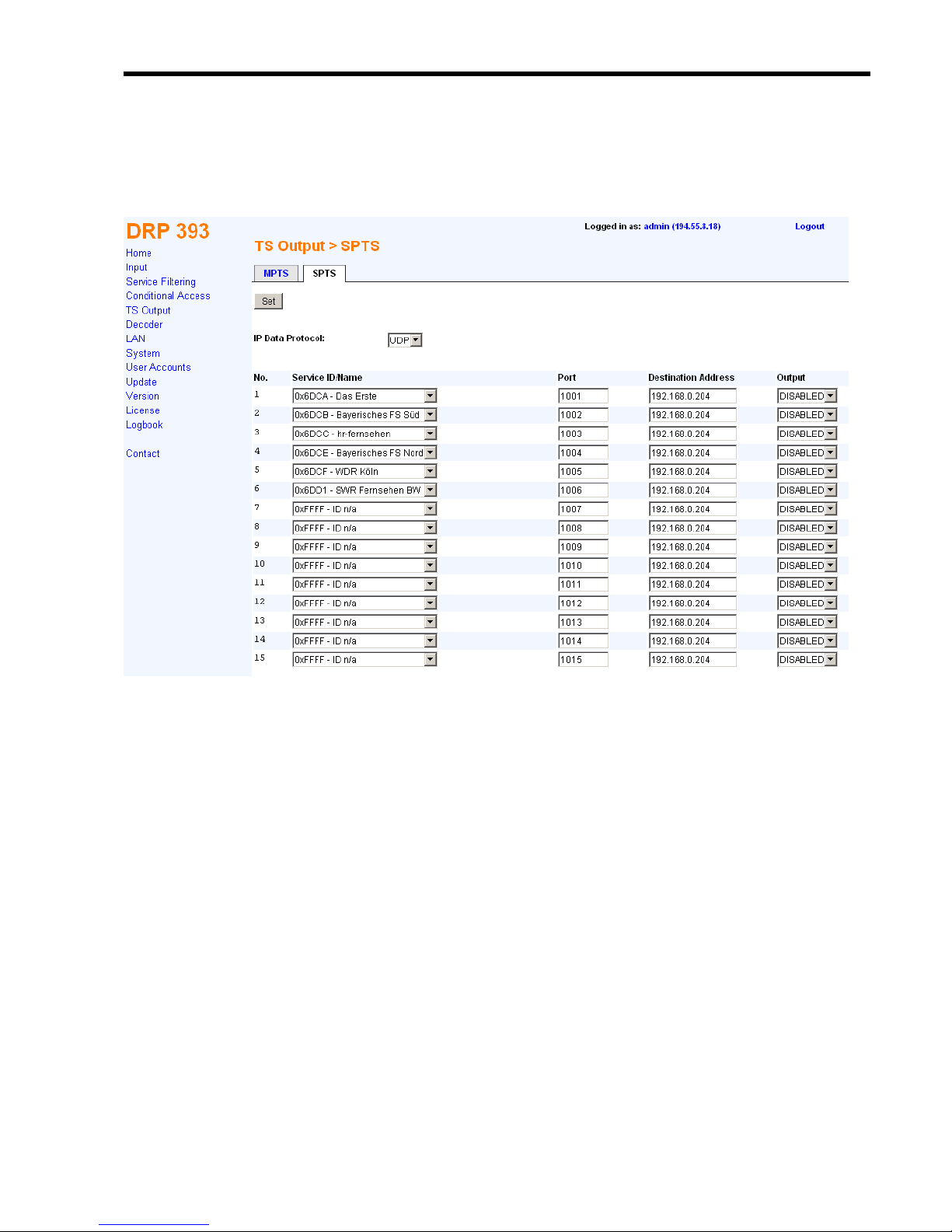

IP Output SPTS ............................................................ 19

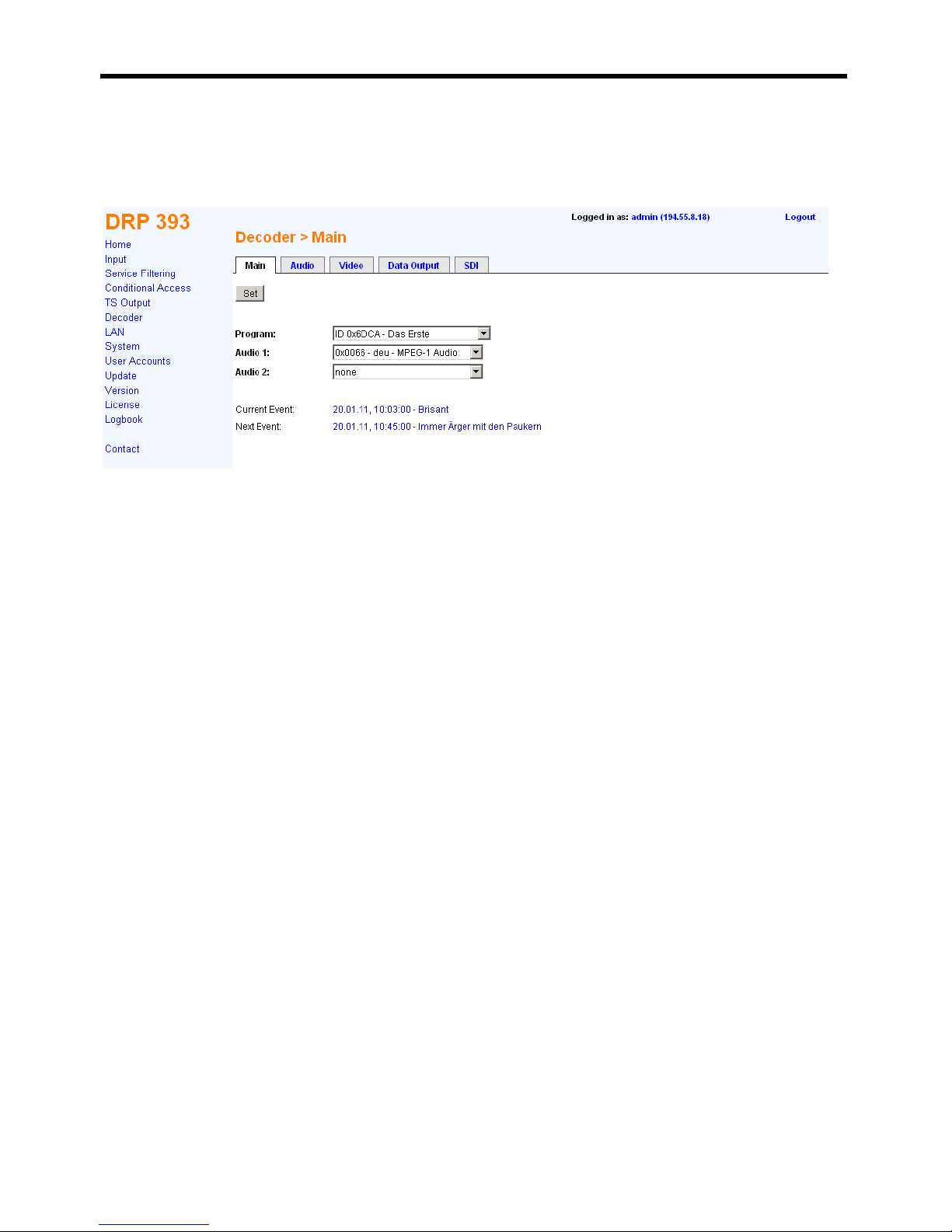

Decoder ...................................................................... 20
Decoder SDI (Option).................................................... 24
LAN ............................................................................ 25
LAN-SNMP ................................................................... 26
System ....................................................................... 27
Update........................................................................ 30
Connections....................................................................31
Technical data.................................................................32
History............................................................................35

DRP 393 MPEG-4 Receiver/Decoder
Page 4 (36) www.blankom-digital.de Rev. L
General description
DRP 393 is an MPEG-4 receiver / decoder in a 19“ 1 RU housing. MPEG-2/MPEG-4 SD/HD signals can be
processed. The input signals are demodulated, descrambled, decoded and are available as ASI transport
stream / stream and also as a video and audio signal at the output. For the descrambling, DRP 393 has a
twin DVB-CI slot, which enables appropriate CAM modules to decode the complete transport stream.
Optionally, different Frontends are available (DVB-S/DVB-S2, IP-Frontend) for receiving the Transport
stream. As a standard, the device has one ASI input. Optionally, the received transport Transport stream
can also be streamed in an IP network via a Gigabit-Ethernet interface. Another option is that the A/V
signal can be made available on a HD-SDI/SDI output.
The device is operated locally, either via a LCD display and an additional wheel or with the implemented
web server via a web browser. A SNMP agent with the corresponding MIB is built in for the integration in
a network management system. The device is controlled via a separate LAN connection, which has a
separate IP address; thus, the device can also be accessed from a distance.
The basic version of the DRP 393 comprises:
1 x ASI input
2 x ASI output
1 x ASI test output (front side)
Twin DVB common interface for the CAM modules
MPEG2 / MPEG4 decoder
1 x Video output CVBS
1 x Video test output (front side)
2 x Audio output (Stereo / dual-tone, XLR balanced)
1 x Audio test output (front side)
1 x SPDIF output, two-channel decoded or Dolby Digital pass through
1 x SFP interface for inclusion of Gigabit Ethernet SFP modules
1 x data interface (output, max. 38,4 kbps, RS-232)
10/100 Mbit LAN interface for web browser and SNMP
Isolated / potential-free switching contacts
LCD display with wheel and status LEDs
Wide-range power supply unit
The basic device can be extended with additional hardware / software options:
DVB-S/DVB-S2 Frontend in 50 Ohm or 75 Ohm (with LNB supply and 22kHz switch signal)
design, SCPC filter
DVB-S/DVB-S2 16APSK-/32APSK Frontend, 50 Ohm and 75 Ohm design, SCPC filter
DVB-T/C Frontend
DVB-T2 Frontend
IP Frontend (Gigabit-Ethernet) with electric / optical SFP module
MPTS after SPTS transformation (for IP)
Service filter, PID filter
Descrambler function for IP and ASI outputs
BISS descrambler
2 additional audio outputs with adapter cable
Additional video output (not simultaneously with SDI output)
HD-/SD-SDI output with embedded audio and additional AES/EBU interface

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 5 (36)
Input
Different DVB Input Frontends can be implemented. HF input variants are 75 Ohm F-port or 50 Ohm SMA-
port.
ASI interface
There are 2 equivalent ASI outputs on the back side of the device. There is 1 ASI test output on the device
front panel. If a fault occurs, the ASI operating outputs can be switched off. The test output cannot be
switched off. Depending upon the (software) configuration and option, the originally received TS or the TS
with one or more descrambled services can be maintained on the ASI outputs. As a standard, an ASI input is
provided for on the back side of the device. If an additional frontend is implemented, it is possible to switch
over between the ASI and Frontend input.
MPEG-4 video decoder
The decoder supports MPEG-4 part10 (AVC, H.264) as well as MPEG-2 decoding. During an anamorphous
16:9 video transmission, the decoder generates a Letterbox video format from this signal. Moreover, the
decoder can generate a SDTV signal (720x576) in the Letterbox format from the HDTV signal (1920x1080i,
1280x720p) by “downscaling”. This decoder also supports DVB subtitling. The output signal is the analogue
CVBS signal.
DRP 393 supports extensive VBI functionalities: The teletext lines, the data lines and the WSS signal as well
as the test lines are entered in the analogue output signal.
All the 13 data bytes are transferred to the VPS data line (line 16). The audio status is generated according
to the selected audio output format (basis: Audio output 1). The CNI code can be manually entered if it is
not available within the TS (Transport stream).
The test lines 17, 18, 330, 331 and 329 are generated within the device. Line 331 can be assigned the CCIR
or ramp signal. Line 329 can be assigned the sinx/x signal, teletext or data line.
The WSS signal (line 23) is generated according to the aspect ratio of the video output signal. If the
letterbox conversion leads to a disturbing stream like a “string of beads” in the enabled video signal, this can
be suppressed with the WSS letterbox muting function (blanking / suppression of line 59).
A colour bar test signal can be enabled for the purpose of testing.
2nd Video output
Optionally a 2nd video output is available. This output cannot be simultaneously integrated in the device with
the HD-/SD-SDI option.
HD-SDI/SDI output
The HD-/SD-SDI output is an optional setting / configuration for DRP 393. It is designed as an additional
plug-in module. This option supports SD-SDI with a data rate of 270 Mbpsas well as HD-SDI with a data rate
of 1.485 Gbps. Up to 4 additional audio channels can be embedded in the SDI signal. Besides, a separate
output is available AES/EBU audio signal.
Audio decoder
The basic device has 4 audio output channels (2 stereo / dual-tone). Two audio PIDs can be decoded within
the device. Thus, the audio track for blind persons (e.g. ZDF) and the dual tone can be generated from two
stereo PIDs (e.g. Arte). The level of every audio output can be set individually.
Dolby Digital is decoded and given out as a stereo signal.
Optionally, 4 other audio output channels can be activated.
Note: Dolby Digital (AC3) and MPEG audio signals cannot be decoded simultaneously!
For test purpose, 1 kHz test signal, nominal level +6 dBm can be enabled. The test signal is available on all
audio outputs.
Digital audio output SPDIF
The PID selected for audio decoder 1 can also be given out via the digital SPDIF output. If a Dolby Digital
signal (AC3) is selected, the AC3 signal (which is not decoded) can also be given out (“pass thru”).

DRP 393 MPEG-4 Receiver/Decoder
Page 6 (36) www.blankom-digital.de Rev. L
Wide-range power supply unit:
DRP 393 has a wide-range power supply unit. The input voltage range is 100V AC – 240V AC. In the event
of an operational disturbance or a fault in the mains supply the configuration is stored in a non-volatile
memory. Upon restart the operation automatically continues from the last setting.
Test Equipment
Devices delivered for demonstration and test purposes might have a limited duration of functionality. After
exceeding the test period the main functions are shut off.
Software Optionen
Description Type
IP-Input Streaming
(SFP module required)
Reception of MPEG2 transport stream encapsulated in UDP over IP interface
APA103-51
IP-Output Streaming (MPTS) incl. Service/PID-Filtering
(SFP module required)
Transmission of MPEG2 transport stream encapsulated in UDP over IP interface.
For reducing data rate selected services can be filtered out.
Bundle with
SFP-Modul:
OPD103-30
IP-Output Streaming (SPTS) incl. Service/PID-Filterung
(SFP module required)
Incoming MPEG2 transport stream with several services (MPTS) are split into several transport
streams with one service (SPTS) and streamed out over IP interface. For reducing data rate
selected services can be filtered out.
Bundle with
SFP-Modul:
OPD103-31
Multi-Service-Decryption
Decryption of several services of a MPEG2 transport stream. The number of decrypted services
is dependent of the type of CAM.
APA103-55
NDS
Due to the NDS Certification procedure NDS decryption is an option.
APA103-56
BISS Decryption
BISS (Basic Interoperable Scrambling System) Descrambler, MODE 0, MODE 1, BISS-E
BISS by CAM
See ordering
codes
DVB-Subtitling
Graphical overlay of service information within the MPEG2 transport stream.
APA103-58

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 7 (36)
Ordering Codes
Name Type Ordering code Remarks
Receiver / Decoder
Basic Version, MPEG-2 Only DRP 393 D103.01 MPEG-2
H.264AVC MPEG-4
DRP393 APA103-50 D103.01 + OPD10301 5000 MPEG-4
Frontends
DVB-S/S2 75 Ohm F OPD103-02 OPD10301 0200
In this range only one
Option is possible!
DVB-S/S2 50 Ohm SMA OPD103-13 OPD10301 1300
DVB-T/C 75 Ohm F OPD103-03 OPD10301 0300
DVB-T2 75 Ohm F OPD103-04 OPD10301 0400
DVB-S/S2 APSK 75 Ohm F OPD103-09 OPD10301 0900
DVB-S/S2 APSK 50 Ohm SMA OPD103-18 OPD10301 1800
Out
HD-SDI/SDI AES/EBU OPD103-07 OPD10301 0700 In this range only one
Option is possible!
2.Videoausgang/2nd Video output OPD103-14 OPD10301 1400
Adapter
Adapter Mini-Combicon-D-SUB-9 PUZ 157 Z120.01
Cable adapter!
Adapter D-SUB-15 - XLR PUZ 158 Z121.01
Adapter XLR - DIN PUZ104 PUZ 159 Z122.01
Optionen
IP-Input Streaming Interface APA103-51 OPD10301 5100
SFP Modul necessary!
IP-Output Streaming (MPTS) APA103-52 OPD10301 5200
IP-Output Streaming (SPTS) APA103-53 OPD10301 5300
Multi-Service-Decryption APA103-55 OPD10301 5500
NDS Decryption APA103-56 OPD10301 5600 Customer related NDS
certification.
BISS Decryption DCA 315 F038.01 BISS by CAM
DVB-Subtitling APA103-58 OPD10301 5800
Bundles
Bundle: SFP100 + MPTS OPD103-30 OPD103013000
Electrical SFP-Module, RJ45
incl. MPTS
Output Streaming (MPTS)
Bundle: SFP100 + SPTS OPD103-31 OPD103013100
Output Streaming (SPTS)
Activation of software options is described under Download.

DRP 393 MPEG-4 Receiver/Decoder
Page 8 (36) www.blankom-digital.de Rev. L
Front view
LED
Marking Colour Function
INPUT
Green
Red
Orange
Input signal available
Input signal missing
Invalid input signal
STATUS
Green
Red
Orange
Function OK
Function faulty (see LCD display)
Function critical (see LCD display)
FAULT Red Internal hardware fault
Control with display and navigation wheel
All configurations are made by turning and pressing the navigation wheel located at the front of the device
at the right side. By turning the wheel, one can navigate through the entire menu. The selected menu is
shown inversely. You can select the menu by simply pressing the navigation wheel.
If the navigation wheel is not operated for 30 minutes, the display illumination is automatically switched off.
If you start a new operation, the lights will be switched on once again!
Configuration mode (CFG)
For changing the configurations, the user must select “CFG” in the corresponding menu and keep the wheel
pressed for at least 3 sec. until a * appears behind “CFG”. Then, the user can select the corresponding
parameters with the wheel, which are presented with a blinking display.
You can now change the configuration with the navigation wheel. If a parameter is changed “SAVE” appears
in the display; by pressing the navigation wheel, this parameter can be selected for saving. “SAVE” is
displayed inversely; the configuration is saved in the device by simply pressing the wheel.
After 30 sec. the configuration mode is switched off automatically if the navigation wheel is not in use.
Operation display
If an input signal is connected the most important
information about the configured channel are
displayed. Example:
Navigation wheel
Status LEDs
DVB common interface
(top / bottom)
ASI test
output
Video test
output Audio test
output

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 9 (36)
Description of menu
The main menu items can be selected with the navigation wheel. By pressing the wheel, the user navigates
to the sub-menus, which are selected in the same manner. The configurations can only be changed in the
configuration mode (select “CFG” and press the wheel for at least 3s).
Main Menu Sub-menu
Parameter Description
Input
DVB-S/DVB-S2 Status
Frequency Configuration satellite IF frequency
Symbol rate Configuration symbol rate
DVB-S Mode
Configuration DVB-S/DVB-S2 receiving mode
DVB-S Receive only DVB-S signals
DVB-S2 Receive only DVB-S2 signals
Automatic Automatic identification of DVB-S and DVB-S2 sig
nals
LNB Voltage
(only at 75 Ohm)
Configuration LNB voltage (selection sat. polarization)
OFF LNB Power off
13V Polarization vertical
18V Polarization horizontal
LNB 22 kHz Tone
(only at 75 Ohm)
Configuration 22KHz tone (selection low/high-band)
OFF low band
ON high band
SCPC Mode ON/OFF Configuration of transport stream ID for SCPC signals
Decoder Under preparation
Audio Under preparation
Video Under preparation
Logbook Events Display of all 256 logbook entries
Erase Erase all logbook entries
System Reset/Preset Reset: Restart with stored parameters
Preset: Attention: Preset resets the IP addresses
LAN default: 192.168.0.202
Version Display of the device type, SW versions and serial no.
Date/Time Configuration date and time
LCD Contrast Configuration contrast of display
Common Interface Top Slot Display CA module informationen
Bottom Slot
LAN Control IP address (192.168.000.202)
Subnet mask (255.255.255.000)
Gateway address (192.168.000.001)
MAC address Display
Data (Option)

DRP 393 MPEG-4 Receiver/Decoder
Page 10 (36) www.blankom-digital.de Rev. L
Control with web server
DRP 393 has an integrated web server. This web server allows the configuration and status requests with a
standard web browser (Recommended: Internet Explorer V.8 and higher, Firefox V.3.6.x and higher, Opera
V.11.50 and higher). If you enter the current IP address of the DRP 393 into the web browser, the device
can be operated.
For deliveries that are made ex works, the following default IP addresses are configured. If the IP address is
not known, the factory configuration can be restored via Preset.
Factory configuration Standard IP address: 192.168.0.202
Control Port Subnet mask: 255.255.255.0
Gateway address: 192.168.0.1
Standard IP address: 192.168.0.203
Data Port (SFP option) Subnet mask: 255.255.255.0
Gateway address: 192.168.0.1
Home
After configuring the current IP address of DRP 393 on the web browser, the device notifies itself with the
following status information. You can request for further information and configurations by selecting the
corresponding menu items on the left side.

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 11 (36)
Under System, you can configure the date, time and LCD contrast of the display. If you press Reset, the
device restarts with the saved parameters.
If you click Preset, the device is reset to the factory parameters.
Note: While Presetting via the web browser or SNMP the IP address is not reset to the factory
setting!
While Presetting via the front panel, the IP address is reset to the factory setting
(192.168.0.202 and 192.168.0.203).
License show all the available as well as activated software options. It is also possible to activate further
options at a later time through a license file that can be applied for.
For activating another software option, select “Get configuration” under the menu item “Download”. The file
that is read out must be sent to Blankom Digital along with the purchase order for the option. A file that is
delivered by Blankom Digital having the corresponding options is then loaded in DRP 393 via “Download”.
Activation of software options is not free of cost.
Logbook shows all logbook entries of the DRP 393. A maximum of 256 logbook entries can be stored. Then
the oldest entries are overwritten by new events. Clear logbook delete all entries, Save logbook save all
entries in a Textfile “LOGBOOK_DRP393_xxxxxxx.log” (xxxxxxx=serial-no) in the specified Downloadarea.
Logout exits the configuration mode with a security message.
All the configuration entries are password-protected. Thus, the following login window appears after you
click a configuration menu item:
The default login settings are:
Name: admin
Password: Blankom
Requests for status and logbook entries are allowed without login. Click the logout button to exit the
configuration mode after the device is configured so as to avoid unauthorized access to the device. If no
further entries are made, the system automatically exits the configuration mode. The fallback time can be
adjusted by the user.
After making all the entries, the configuration must be transferred to the device by clicking Set.
If you click Refresh, the data can be once again read in by the device. Thus, you can check the changes
made to a configuration.

DRP 393 MPEG-4 Receiver/Decoder
Page 12 (36) www.blankom-digital.de Rev. L
Input
If the input source ASI is selected the status, the transport stream ID (TSID), the original network ID
(ONID) as well as the gross and net data rate are displayed.
Depending upon the implemented Input Frontend, the user can obtain corresponding status information by
clicking on Input. The image presented above applies to the input source ASI (Basic).

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 13 (36)
Input-DVB-S/S2 (Option)
If the input source DVB-S/S2 is selected, you will go to the following configuration menu, where you can
configure the parameters required for DVB-S/DVB-S2. Click Set to transfer the configured data to the
device. In this way the SAT-ZF DVB-S/S2 signal is selected as the input signal. ASI and IP Input are
disabled.
The lock-in range of the input frequency is +5 MHz while the retaining range is ±12 MHz. The symbol rate
must be precisely specified. The lock-in range of the symbol rate is ≤± 100 ksps. By pre-selecting the DVB-
S modes DVB-S or DVB-S2 the tuning procedure of the DRP 393 is accelerated. However the usual mode of
operation is AUTOMATIC.
The menu items 'LNB Voltage' and 'LNB 22 kHz Tone' are only displayed for the 75 Ohm variant and can be
configured accordingly.
The SCPC mode should be enabled if a narrow-band transport stream (< approx. 5 Msps) has to be received
and if there are several narrow-band transport stream on the transponder at the same time. By entering the
transport stream ID (SCPC TSID) it is ensured that the DRP 393 tunes on the selected transport stream. The
TSID must be entered in hexa-decimal format.

DRP 393 MPEG-4 Receiver/Decoder
Page 14 (36) www.blankom-digital.de Rev. L
IP Input (option):
The input source “IP” is accessible if this option is activated. The configuration of the IP Frontend is given
below.
Standard data protocol is UDP. RTP or proMPEG is optionally available. RTP enables fault detection during
transmission. ProMPEG includes fault protection that can correct transmission faults but needs additional
band width. The selected data protocol must correspond to the IP source protocol! In the same manner the
IP address and the port channel of the source must match. Multicast is possible by selecting the
corresponding IP addresses. Addresses in the range 224.0.0.0 to 239.255.255.255 are reserved for Multicast
transfer (one source, multiple recipients).
Service Filtering
Service filtering allows the filtering of services out of the transportstream. All DVB tables are adapted
according to the selection .
Service Filter mode:
Off: No filtering function, all services are passed through.
Drop mode: The selected services are filtered out , all other services are passed through If a new
service is in the transport stream this service will be passed through.
Pass mode: The selected services are passed through, all other services are filtered out . If a new service
is in the transport stream this service will be filtered out.

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 15 (36)
Conditional Access
This menu gives an overview of the programs included in the transport stream (TS). Moreover the user
procures information as to whether the TS is encoded and how many elementary stream PIDs of a service
are in the transport stream.
Multiple Service Decryption (also called Multi-decryption or Bulk Descrambling) is supported. Depending on
the CAM in operation up to 16 PIDs can be decoded in general. Professional CAMs support up to 32 PIDs.
There are a lot of different CAMs with different hardware and software option on the market please contact
your CAM vendor for more information about the number of services the CAM can descramble.
If you click on No. the Descrambling Monitoring System (DMS) menu will open. Here you can select
individual elementary PIDs for decoding via the common interface. After finishing all entries the
configuration must be transferred to the device by clicking Set Config.
The menu item Common Interface provides information about the used CAM and the supported CA System
ID of the encoding system. With the CA-PMT list, you can select from different initialisation methods during
the Multi-Decryption function. Some CAMs do not support all the methods.
only-add: The CA-PMT list is activated via ‘only’ and ‘add’ commands.
fist-more-last: The CA-PMT list is activated via ‘first’, ‘more’ and ‘last’.
The Reset button allows a targeted resetting of one CAM.
A click on CAM MMI gives the access to more information about CAM and Smart Card via an additional
menu.

DRP 393 MPEG-4 Receiver/Decoder
Page 16 (36) www.blankom-digital.de Rev. L
BISS Decryption (Option)
Basic Interoperable Scrambling System, usually known as BISS, is a satellite signal scrambling system.
Using BISS the transmission is protected by a 12 digit "session key" that is agreed by the transmitting and
receiving parties prior to transmission. The key is entered into both the encoder and decoder, this key then
forms part of the encryption of the digital TV signal and only receivers with the correct key will decrypt the
signal.
BISS Decryption with DRD700 is realized with Alphacrypt Classic Pro.
Select the appropriate slot > “CAM MMI” > “5” for Module Options > “5” for BISS Settings:
“3” and ENTER for BISS decryption ON, and “1” to edit the service IDs.

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 17 (36)
Select a free BISS setting, create a new setting or select a matched setting.
Enter the service-ID in decimal format and the 6 SW bytes (decimal).
After successful entering the settings, go back to the service list (Common Interface Slot x) and set the CA
Decryption of the appropriate service to ON.

DRP 393 MPEG-4 Receiver/Decoder
Page 18 (36) www.blankom-digital.de Rev. L
IP Output MPTS
The outgoing MPTS-IP data stream is configured in this menu. Standard protocol is UDP, RTP or proMPEG
are optionally available on request. The most efficient protocol is UDP. The proMPEG protocol increases the
data rate by up to 100% depending on the configuration A port must be selected for establishing a
connection with the receiver. The source (DRP 393) and the receiver must use the same port. Furthermore
the IP address of the receiver must be entered (Unicast).
Multicast is possible by selecting the destination IP address. IP addressed in the range 224.0.0.0 to
239.255.255 are Multicast addresses. The receiver must be set on the corresponding Multicast address.
Individual services from the transport stream can be removed if these do not have to be transferred in
MPTS. For this, three settings are available in the “Service Filter Mode”:
OFF: The service filter is disabled and all services of the input data stream are given out via MPTS.
PASS MODE: All services that are marked in the overview (selected services are ticked) are transferred. All
other services are blocked. If services are transmitted only occasionally in an input transport stream or if the
program assignment is changed only the marked services are transferred and all the other services in the TS
are blocked.
DROP MODE: In the drop mode all services that are marked are filtered out. All other services are
transferred. If the multiplex of the transport stream changes the changed or new services to be added are
also transferred. Only the marked services are removed from the TS.
If a service is removed from the transport stream all the elementary PIDs belonging to this service are
filtered out. All PIDs belonging to a service are listed in the PMT (Programme Association Table). DRP 393
gets the assignment from PID and Service. The elementary PIDs include video PID, audio PID, Teletext PID,
subtitle PID etc.

DRP 393 MPEG-4 Receiver/Decoder
Rev. L www.blankom-digital.de Page 19 (36)
IP Output SPTS
The processing of the SPTS data streams can be configured in the following menu for the signal processing
of IP boxes.
A MPTS input data stream can be converted into several SPTS IP output signals in DRP 393. Every individual
service can be transferred as SPTS via different ports or receiver IP addresses.

DRP 393 MPEG-4 Receiver/Decoder
Page 20 (36) www.blankom-digital.de Rev. L
Decoder
The decoder menu item has other sub-menu items with Audio, Video and Streaming. Basically you can select
the program in the Decoder main menu and the desired audio PIDs. Further configuration is made in the
following sub menu.
All the programs available in the transport stream are listed in the selection screen “Program”. The service
ID and the name of the programs are displayed. If a HD programme is selected a downscaling automatically
takes place. At the CVBS output an analogue video signal conforming to the standard is available. MPEG4
AVC, H.264, MPEG2HD as well as MPEG2 encoded video transport streams can be decoded.
If the selected service offers several audio PIDs the audio stream to be decoded can be selected in the menu
“Audio”. The audio PID, language as well as audio coding type are displayed. Two audio streams that are
encoded in the same manner and are available via the corresponding analogue outputs can be decoded
simultaneously.
A mixed decoding of MPEG and AC3-encoded audio streams is not possible!
The DRP 393 supports the following audio codecs: MPEG1, MPEG2, Dolby Digital, Dolby Digital Plus, HE AAC,
HE-AAC+.
