BLAUBERG Ventilatoren Turbo 125 User manual

USER’S MANUAL
Turbo
INLINE MIXED-FLOW FANS
EN

2
EN
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation
of the Turbo unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems
and should be able to work in accordance with workplace safety rules as well as construction norms and
standards applicable in the territory of the country.
CONTENTS
Delivery set................................................................................................................................................................................................................7
Brief description .....................................................................................................................................................................................................7
Operation guidelines ..........................................................................................................................................................................................8
Designation key ....................................................................................................................................................................................................9
Mounting ..................................................................................................................................................................................................................10
Control logic.............................................................................................................................................................................................................11
Technical maintenance......................................................................................................................................................................................13
Troubleshooting.....................................................................................................................................................................................................13
Storage and transportation regulations..................................................................................................................................................14
Manufacturer’s warranty...................................................................................................................................................................................15

3
EN
All user’s manual requirements as well as the provisions of all the
applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and
operating the unit.
Disconnect the unit from the power supply prior to any connection,
servicing, maintenance, and repair operations.
Only qualied electricians with a work permit for electrical
units up to 1000 V are allowed for installation. The present user’s
manual should be carefully read before beginning works.
Check the unit for any visible damage of the impeller, the casing, and
the grille before starting installation. The casing internals must be free
of any foreign objects that can damage the impeller blades.
While mounting the unit, avoid compression of the casing!
Deformation of the casing may result in motor jam and excessive
noise.
Misuse of the unit and any unauthorised modifications are not
allowed.

4
EN
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities,
sticky substances, or fibrous materials.
Do not use the unit in a hazardous or explosive environment
containing spirits, gasoline, insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the
efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the
document’s preparation.
The Company reserves the right to modify the technical
characteristics, design, or configuration of its products at any time in
order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.

5
EN
Connection to the mains must be made through a disconnecting
device, which is integrated into the fixed wiring system in accordance
with the wiring rules for design of electrical units, and has a contact
separation in all poles that allows for full disconnection under
overvoltage category III conditions.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in order
to avoid a safety hazard.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision

6
EN
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
CAUTION: In order to avoid a safety hazard due to inadvertent
resetting of the thermal cut-out, this unit must not be supplied
through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
Ensure that the unit is switched off from the supply mains before
removing the guard.
The appliance may adversely affect the safe operation of appliances
burning gas or other fuels (including those in other rooms) due to
back flow of combustion gases. These gases can potentially result
in carbon monoxide poisoning. After installation of the unit the
operation of flued gas appliances should be tested by a competent
person to ensure that back flow of combustion gases does not occur.

7
EN
DELIVERY SET
Fan — 1 pc.
Screws and dowels — 4 pcs.
Plastic screwdriver (for models with a timer) — 1 pc.
User’s manual — 1 pc.
Packing box — 1 pc.
BRIEF DESCRIPTION
The product described herein is a mixed-flow inline fan for supply or extract ventilation of premises.
The fan is designed for connection to ø 100, 125, 150, 160, 200, 250 and 315 mm air ducts.
The unit is equipped with a two speed motor.

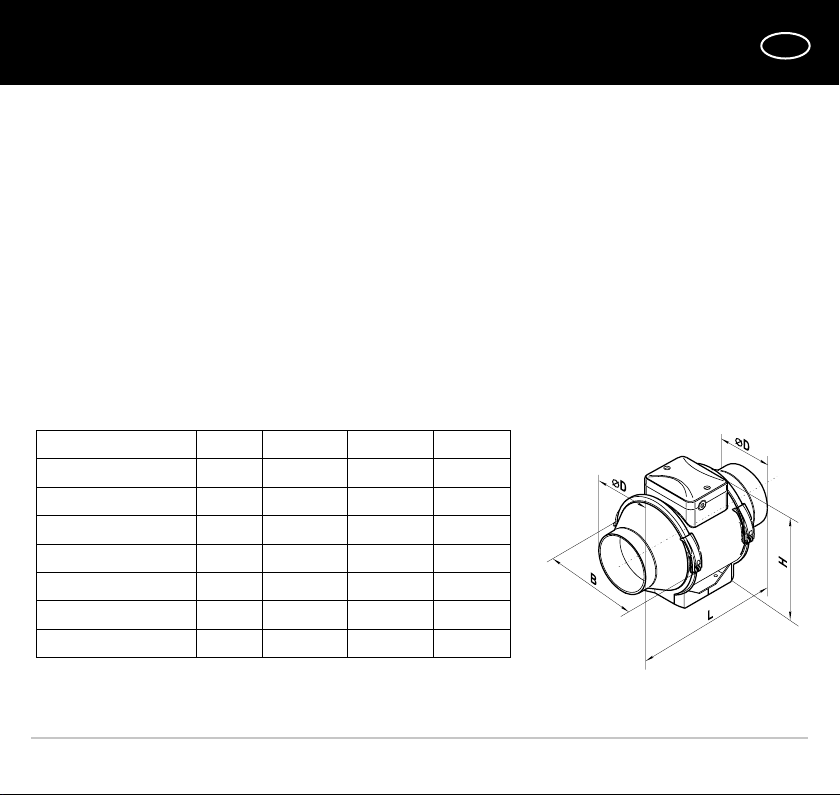

Ø D B H L
Turbo 100 97 195,8 241/255* 302,5
Turbo 125 123 195,6 241/255* 258,5
Turbo 150 148 220,1 251/265* 289
Turbo 160 158 220,1 251/265* 289
Turbo 200 199 239 261/278* 295,5
Turbo 250 247 287 323/340* 383
Turbo 315 310 362 408/424* 445
* Turbo GI1/G1/GTI1/GT1/GSI1/GS1/FR1

8
EN
OPERATION GUIDELINES
The fan is rated for connection to single-phase AC 220-240 V/50 Hz or 220 V/60 Hz power mains.
The unit is rated for continuous operation.
The arrow on the fan casing must match the air direction in the system.
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The unit is rated as a Class II electrical appliance.
The fan is rated for operation at the ambient air temperature from +1 °C up to +40 °C.
Power supply [V/Hz] Transported air temperature [°C]
220-240/50 -25...+60
220/60 -25...+40
To comply with the ErP 2018 regulation, a local demand controller and speed controller must be used.

9
EN
DESIGNATION KEY
Turbo 100 X
Options:
T: timer
W1: power cord with a plug
US: speed switch
Gl1: speed controller with an electronic thermostat and a temperature
sensor integrated inside an air duct. Temperature-based operation logic
G1: speed controller with an electronic thermostat and an outdoor
temperature sensor fixed on a 4 m cord. Temperature-based operation logic
GTl1: speed controller with an electronic thermostat and an integrated
temperature sensor. Timer-based operation logic
GT1: speed controller with an electronic thermostat and an outdoor
temperature sensor fixed on a 4 m cord. Timer-based operation logic
GSl1: speed controller with an electronic thermostat and an integrated
temperature sensor. Temperature-based switching on/off
GS1: speed controller with an electronic thermostat and an outdoor
temperature sensor fixed on a 4 m cord. Temperature-based switching on/
off
FR1: integrated smooth speed controller
Spigot diameter [mm]
Inline mixed-ow fan

10
EN
MOUNTING

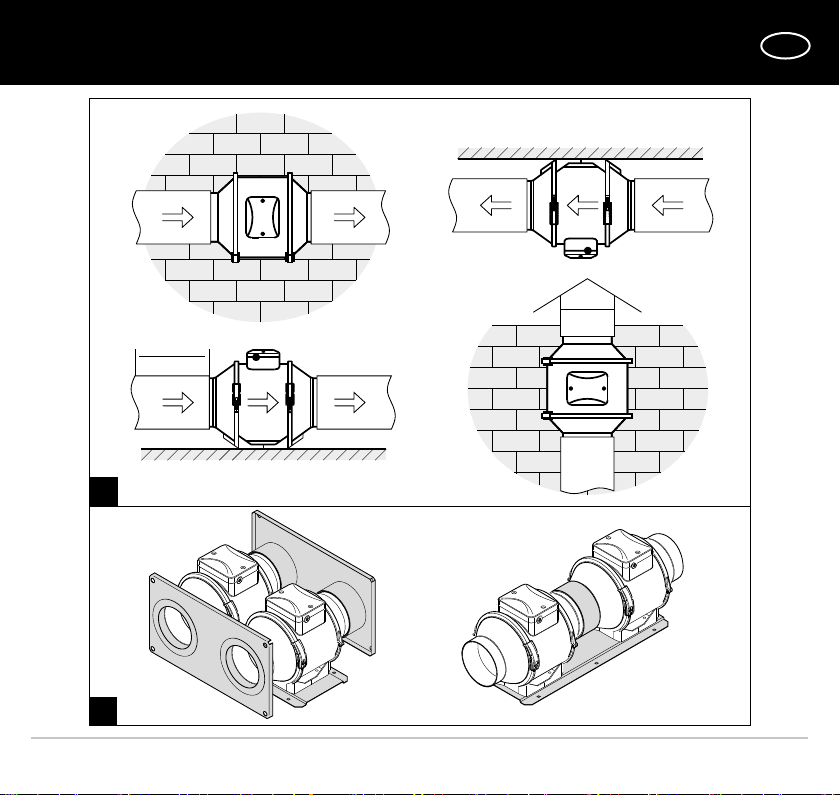

The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling (Fig. 1). The
fan can be installed independently or as part of a set with parallel or in-series connection (Fig. 2).
Install minimum 1 m long air duct on the intake spigot side in case of horizontal fan mounting or a hood in
case of vertical fan mounting.
The outlet spigot must always be connected to the air duct. The fan mounting sequence is shown in Fig. 3-11
and 14-19.

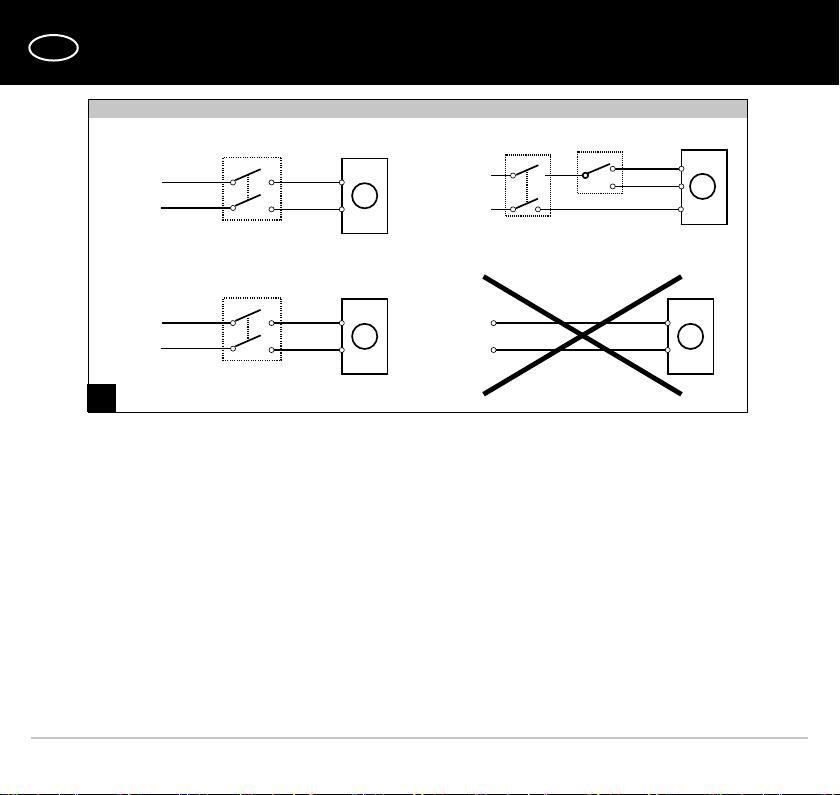

The fan wiring diagrams are shown in Fig. 12-13. Some fan models are equipped with a plastic limit stop in
front of the L1 terminal. Remove the limit stop for connection to the L1 terminal.
Designation:
L1 – minimum speed terminal
L2 – maximum speed terminal
QF – automatic circuit breaker
S– external speed controller
ST – external switch (for example, a light switch)
X – input terminal

11
EN
CONTROL LOGIC
It is possible to control the fan rotation speed without options by voltage, as well as by thyristor controllers.
The speed controller is purchased separately.
Warning!
When adjusting the voltage, make sure there is no unusual noise or vibration at reduced motor speed.
The motor current may exceed the rated current during voltage regulation.
The fan is equipped with a thermal switch with no self-reset.
To reset the thermal relay, switch off the power supply.
Find and eliminate the cause of overheating.
Make sure the motor has cooled down to operating temperature.
Switch on the power supply.
The Turbo (US)W1 fans are equipped with a speed switch (Fig. 21).
The Turbo XXX T fan starts running after the external switch supplies control signal to the LT input terminal
(for example, during turning the light on).
After removal of the control signal the fan continues to run within the set time (adjustable with the turn-off
delay timer from 2 to 30 minutes).
To adjust the fan turn-off delay time, rotate the control knob T clockwise to increase and counter-clockwise to
decrease the turn-off delay time respectively (Fig. 20).
Warning! The timer circuit is under mains voltage. Disconnect the fan from power supply prior to any
adjustment operations. The fan delivery set includes a specially designed plastic screwdriver for adjustment of
the fan parameters. Use exclusively the delivered plastic screwdriver to adjust the turn-off delay time. Do not
use a metal screwdriver, knife, etc. for adjustment operations not to damage the circuit board.

12
EN
The Turbo Gl1/GTl1/GSl1/GS1 fan is equipped with an electronic TSC control unit (speed controller with
electronic thermostat) for automatic speed control (air flow control) depending on the air temperature
(Fig. 22).
The terminal box cover incorporates 2 control knobs:
• for setting the fan speed;
• for setting the thermostat set point.
The thermostat LED light is located on the fan casing.
The thermostat LED glows as air temperature exceeds the set point.
To set the thermostat set point rotate the temperature control knob clockwise to increase or counter-clockwise
to decrease the temperature set point accordingly.
To set the fan speed (air flow) rotate the speed control knob in the same way.
The fan functioning logic may be based on temperature or timer controls:
Turbo Gl1/G1: the fan switches to the maximum speed as the room air temperature exceeds the set point.
As the air temperature drops down 2 °C below the temperature set point or if the initial temperature is below
the set point, the fan operates with the set speed.
Turbo GTl1/GT1: the fan switches to the maximum speed as the room air temperature exceeds the set point.
As the room air temperature drops down below the temperature set point, the timer starts 5 minutes
countdown and then the fan switches to the set speed.
Turbo GSl1/GS1:As the indoor air temperature exceeds the set point, the fan switches to the maximum speed.
As the air temperature drops 2 °C below the set point or if the initial temperature is below the set point, the
fan is turned off.
The Turbo FR1 fan is equipped with a speed controller that enables switching the fan on/off, smooth speed
(air flow) control from minimum to maximum value (Fig. 23).

13
EN
TROUBLESHOOTING
Problem Possible reasons Troubleshooting
When the unit is connected to power
mains, the fan does not rotate and
does not respond to any controls.
No power supply.
Make sure the power supply line
is connected correctly, otherwise
troubleshoot the connection error.
Internal connection fault. Contact the Seller.
Low air flow. The ventilation system is clogged. Clean the ventilation system.
Increased noise, vibration.
The impeller is clogged. Clean the impeller.
The fan is not secured well or is not
mounted properly. Troubleshoot the installation error.
The ventilation system is clogged. Clean the ventilation system.
TECHNICAL MAINTENANCE
The fan surfaces must be regularly cleaned (once in 6 months) from dirt and dust (Fig. 24-30). Disconnect the
fan from power mains prior to any maintenance operations. To clean the fan, use a soft cloth or a brush wetted
in a mild detergent solution. Do not allow water or liquid come into contact with electric components (Fig. 30).
Wipe the surfaces dry after cleaning.

14
EN
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with
temperature range от +5 ˚С до +40 ˚С and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion,
insulation, and sealing deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection
against precipitation and mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating
temperature for at least 3-4 hours.

15
EN
MANUFACTURER’S WARRANTY
Blauberg Warranty:
• This warranty is given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive,
Eastern Creek, New South Wales 2766, Australia. Phone [phone].
• From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a
period of 24 месяцев years from the date of purchase.
• The defective parts or unit must be returned to Blauberg Australasia Pty Ltd at your own cost before an
exchange or parts or unit will be given.
• A proof of purchase will be required before a warranty claim is accepted.
• The warranty will also not cover damage caused by misuse, neglect, shipping accident, incorrect
or improper installation, voltage supply problems, unauthorised modification or repairs of any kind,
exposure to corrosive conditions, exposure to weather and where no fault is found with the product.
• We will not cover any loss incurred by you in relation to the product or making the claim under this
warranty including without limitation any costs associated with installation, reinstallation, or transporting
the product.
Additional Information:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement of the purchased product for a major failure of the product. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure. Our ventilation products also come with a two year limited warranty given by
Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South Wales
2766, as set out in the instruction manual in the box. If your product does not provide the general features and
functions described in the user documentation in the five year period after delivery to you, please call Blauberg
Australasia Pty Ltd, ABN 85 637 003 582 on 1300 475-504 with details of your product, serial number and proof
of purchase. You maybe required to return the ventilation product to the address listed, in which case such a
return will be at your own cost. The benefits under this warranty are in addition to other rights and remedies
that you may have at law.

16
EN
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE
UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

17
EN
min 1 m
1.
2.

18
EN
QF
3. 4.
5. 6.

19
EN
7. 8.
9. 10. 11.

20
EN
MAX
MIN
MAX / MIN
N
L2
N
L
QF
~
QF
N
L1
L2
S
N
L
~
M
N
L1
N
L
QF
~M
M
L2
L1
N
L
~M
MAX
12.
Turbo
