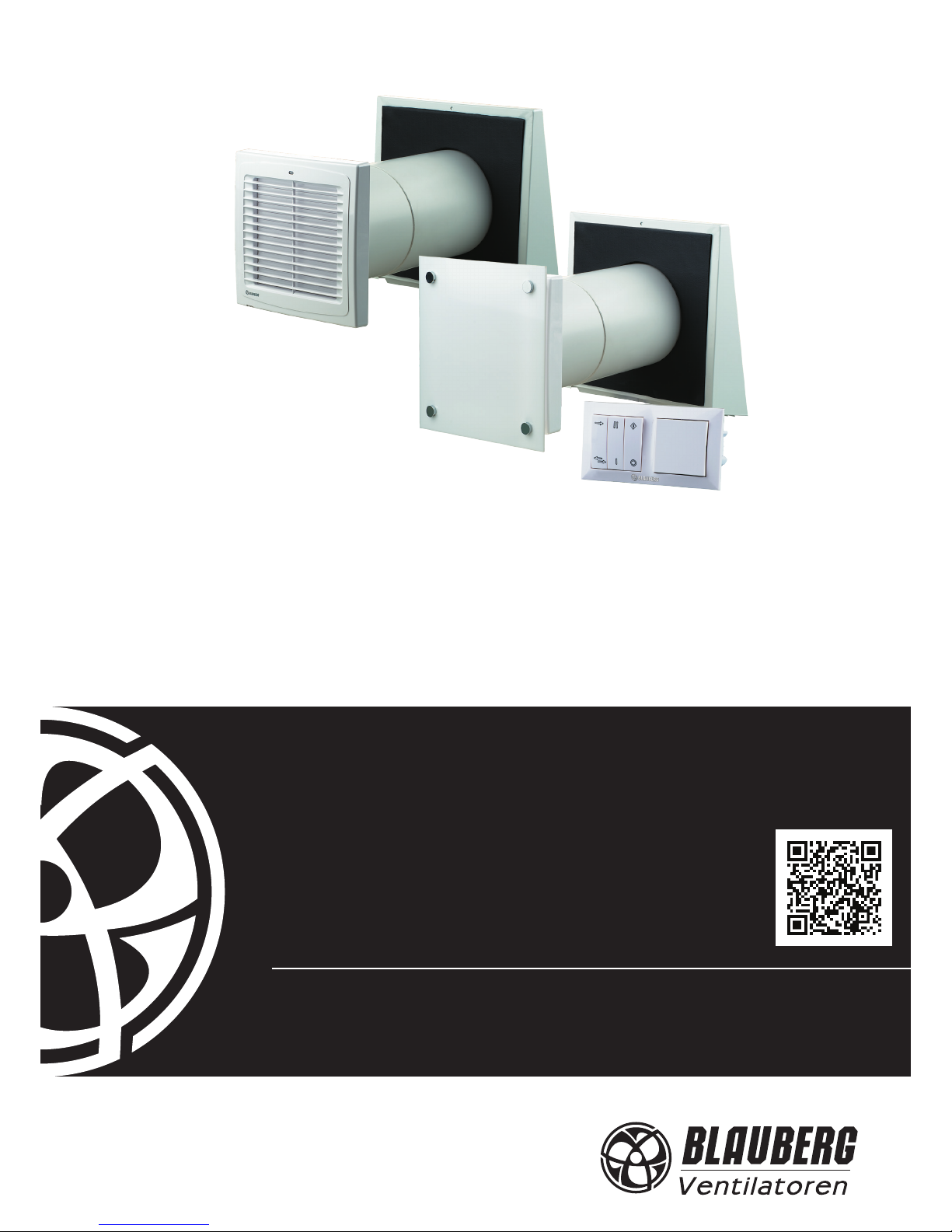

OPERATION MANUAL

VENTO A50

VENTO A50-1

VENTO A50 S

VENTO A50-1 S

Single-room reverSible unit with heat

and humidity recovery

2

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

Introduction 3

General 3

Safety rules 3

Transportation and storage rules 3

Manufacturer's warranty 3

Design and operating logic 4

Modications and options 5

Delivery set 5

Technical data 6

Mounting 6

Connection and control 9

Maintenance 14

Troubleshooting 15

Acceptance certicate 16

Connection certicate 16

Warranty card 16

CONTENTS

www.blaubergventilatoren.de

3

VENTO A50 / A50-1 / A50 S / A50-1 S

We are happy to oer your attention a new high-quality single-room

reversible unit with heat and humidity recovery VENTO A50 / VENTO A50-1.

The solid team of high-qualied professionals with many years of working

experience, technological innovations in design and production, high-

quality components and materials from the top worldwide producers have

become the precondition for the best energy saving unit in its class.

INTRODUCTION

The present operation manual contains technical description, technical

data sheets, operation and mounting guidelines, safety precautions and

warnings for safe and correct operation of the unit.

GENERAL

The single-room unit is designed for ecient energy saving supply and

exhaust ventilation of ats, houses, cottages and other small premises.

The heat recovery technology is used to minimize ventilation heat losses.

The unit is equipped with a high-tech ceramic heat accumulator

(regenerator) that provides utilization of extract air heat energy for warming

up of ltered supply air ow. The heat regeneration eciency is up to 91%.

The unit is designed for indoor application with the ambient temperature

ranging from -20 °C up to +50 °C and relative humidity up to 80%.

The unit is designed for external through-the-wall installation.

The unit is designed for continuous operation always connected to power

mains.

The unit is allowed for operation only after nal mounting, that includes

installation of protecting devices in compliance with DIN EN ISO 13875 (DIN

EN OSI 12100) as well as other construction safety equipment.

The unit design is regularly improved, so some models may slightly dier

from those ones described in this operation manual.

SAFETY RULES

The unit complies with the requirements according to the EU norms

and directives, to the relevant EU-Low Voltage Equipment Directives, EU-

Directives on Electromagnetic Compatibility.

All operations related to the electrical connection of the unit, like servicing

and repair works are allowed only after the disconnection from power mains.

All mounting and servicing operations are allowed for duly qualied

electricians with valid electrical work permit for electric operations at the

units up to 1000 V after careful study of the present operation manual.

The unit must be grounded!

Please follow the safety regulations and working instructions (DIN EN 50

110, IEC 364).

Make sure the impeller and the casing are not damaged before

connecting the unit to power mains. The casing internals must be free of any

foreign objects which can damage the impeller blades.

Disconnect the unit from power mains prior to any operations related to

the unit servicing and repair works.

Misuse of the unit or any unauthorized modication are not allowed.

The unit is designed for connection to AC single-phase power mains, see

the Technical Data. The unit is rated for permanent operation during non-

stop power supply.

Take steps to prevent ingress of smoke, carbon monoxide and other

combustion products into the room through open chimney ues or other

re-protection devices. Sucient air supply must be provided for proper

combustion and exhaust of gases through the chimney of fuel burning

equipment to prevent back drafting. The maximum permitted pressure

dierence per living units is 4 Pa.

The transported air must not contain any dust or other solid impurities,

sticky substances or brous materials.

The unit is not designed for use in an inammable and explosive medium.

Do not close or block the unit intake or exhaust vent not to disturb the

normal air passage.

Do not sit on the unit and do not put objects on the unit.

In case of unusual sounds, smoke disconnect the unit from power supply

and contact the service centre.

Follow the manual guidelines to ensure trouble-free operation and long

service life of the product.

Hazardous parts access and water ingress protection standard IP24.

STORAGE AND TRANSPORTATION RULES

Transportation of the unit is allowed by any vehicle provided the unit is

transported in the original package and is protected against weather and

mechanical damages.

Use hoist machinery for handling and transportation to prevent possible

mechanical damages of the unit. Full the requirements for transportation of

the specied cargo type during cargo-handling operations.

Store the unit in a dry and cool place in the original packing.

The storage environment must not be subjected to any aggressive and/

or chemical evaporations, admixtures, foreign objects that may provoke

corrosion and damage connection tightness.

Store the unit in an environment with minimized risk of mechanical

damages, temperature and humidity uctuations.

Do not expose the unit to the temperatures below +10°C and above +40 °C .

Connection of the unit to power mains is allowed after the unit has been

kept indoor for minimum two hours.

MANUFACTURER’S WARRANTY

The product complies with the requirements according to the EU norms

and directives, to the relevant EU-Low Voltage Equipment Directives, EU-

Directives on Electromagnetic Compatibility.

We hereby declare that the following product complies with the essential

protection requirements of Electromagnetic Council Directive 2004/108/

EC, 89/336/EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and

CE-marking Directive 93/68/EEC on the approximation of the laws of the

Member States relating to electromagnetic compatibility.

The manufacturer hereby warrants normal operation of the unit over

the period of 2 years from the retail sale date provided observance of the

installation and operation regulations.

In case of failure due to manufacturing fault during the warranty period

the consumer has the right to exchange it.

If case of no conrmation of the sale date, the warranty period shall be

calculated from the manufacturing date.

The replacement is oered by the Seller.

The manufacturer shall not be liable for any damage resulting from any

misuse of or gross mechanical interference with the unit.

Full the operation manual requirements to ensure a trouble-free and

long service life of the unit.

WARNING

Do not dispose in domestic waste.

The unit contains in part material that can be

recycled and in part substances that should not end up

as domestic waste.

Dispose of the unit once it has reached the end of

its working life according to the regulations valid where

you are.

ATTENTION

The product is not allowed for use by children and persons with reduced

physical, mental or sensory capacities, without proper practical experience

or expertise, unless they are controlled or instructed on the product opera-

tion by the person(s) responsible for their safety. Supervise the children and

do not let them play with the product.

4

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

DESIGN AND OPERATING LOGIC

The unit consists of a telescopic duct with adjustable length, a ventilation

unit and an outer ventilation hood.

Two lters and a ceramic heat accumulator (regenerator) are installed

inside of the telescopic air duct. The round Ø 150 mm air duct is made of

plastic and has an adjustable length:

– 240 up to 460 mm for the models VENTO A50 / A50-1;

– 120 up to 420 mm for the models VENTO A50 S / A50-1 S.

The unit is equipped with a high-tech ceramic heat accumulator with

regenerating eciency up to 91%. Due to the cellular structure is has larger

contact surface and higher eciency. The heat accumulator is featured with

excellent heat-conducting properties and thermal energy storage capacity.

The ceramic heat accumulator is used for extract air heat energy recovery

for warming up of supply air. The cord inside the regenerator facilitates its

removal for maintenance. The regenerator is installed on the insulation

material used as a sealer as well.

The ventilation unit must be installed on inner side of the wall. It is

equipped with automatic shutters that close the air duct when the unit is o.

Air is supplied and extracted with an axial reversible EC-fan with low

energy demand. The motor has overheating protection and ball bearings for

longer service life.

Two built-in lters with total lter class G3 are used for supply and extract

air ltration and the regenerator anti-soiling protection.

The outer ventilation hood must be installed on outer side of the building

to prevent ingress of large objects and water into the unit.

The integrated automation enables two-speed operation of the unit

(minimum or maximum speed):

– ventilation mode (air supply or air extract);

– reversible operation mode with heat regeneration.

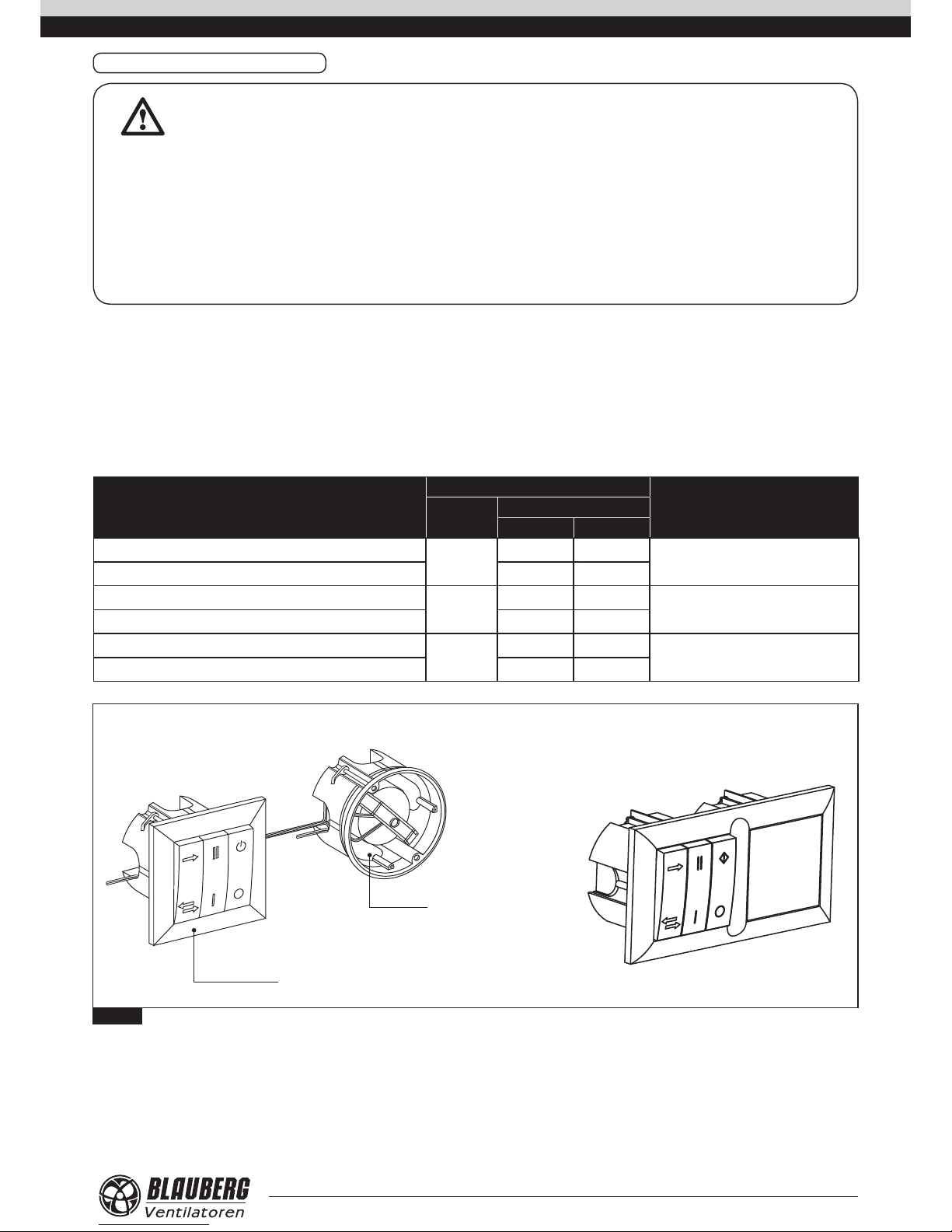

The external control and power unit SEA-T12 or the control panel SEA is

used for operation mode control.

The delivery set of the units VENTO A50 Pro / A50-1 Pro / A50 S Pro / A50-1

S Pro includes the control and power unit SEA-T12 consisting of the control

panel SEA and the 12W transformer AT-12.

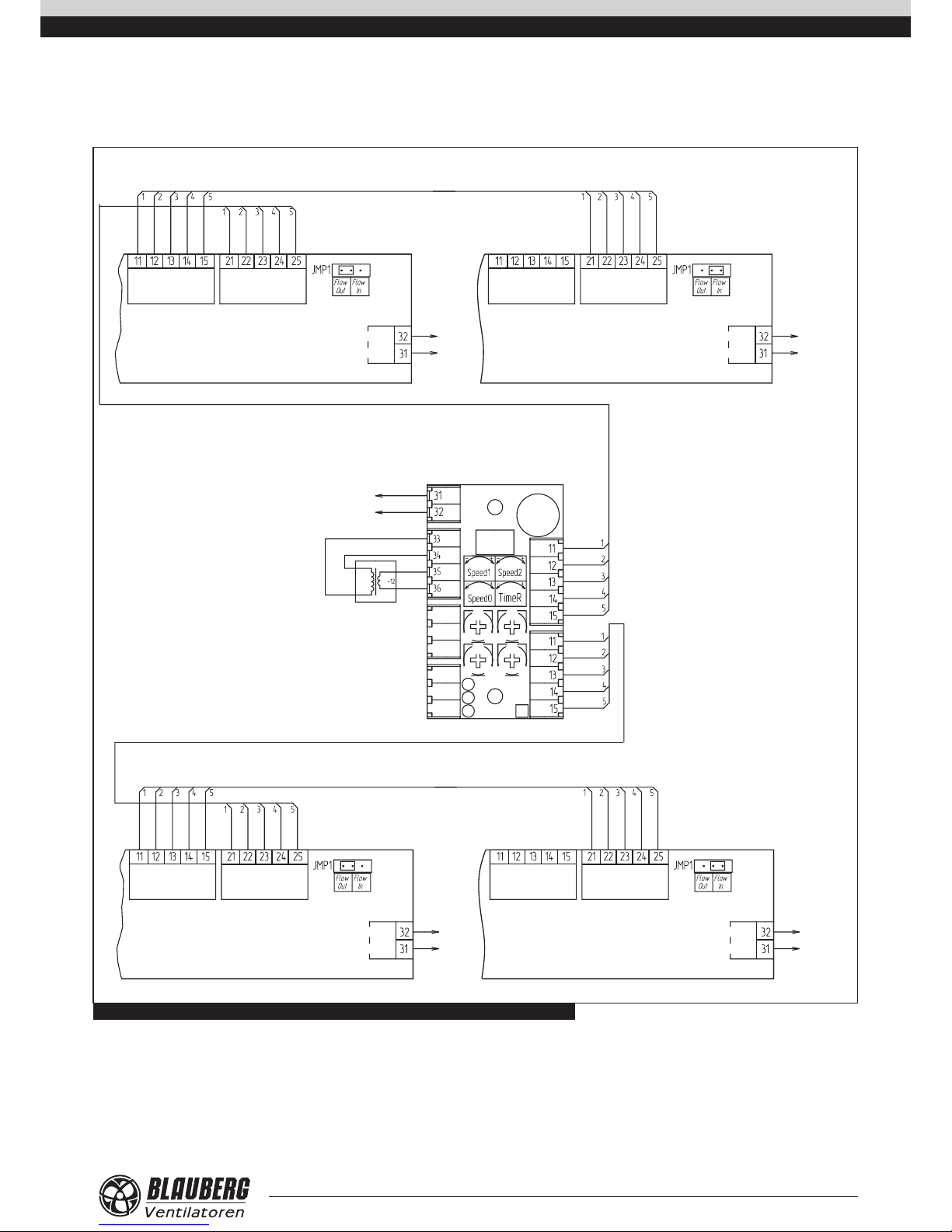

The single control and power unit SEA-T12 enables connection up to 4

units and their integration into a central controlled ventilation system.

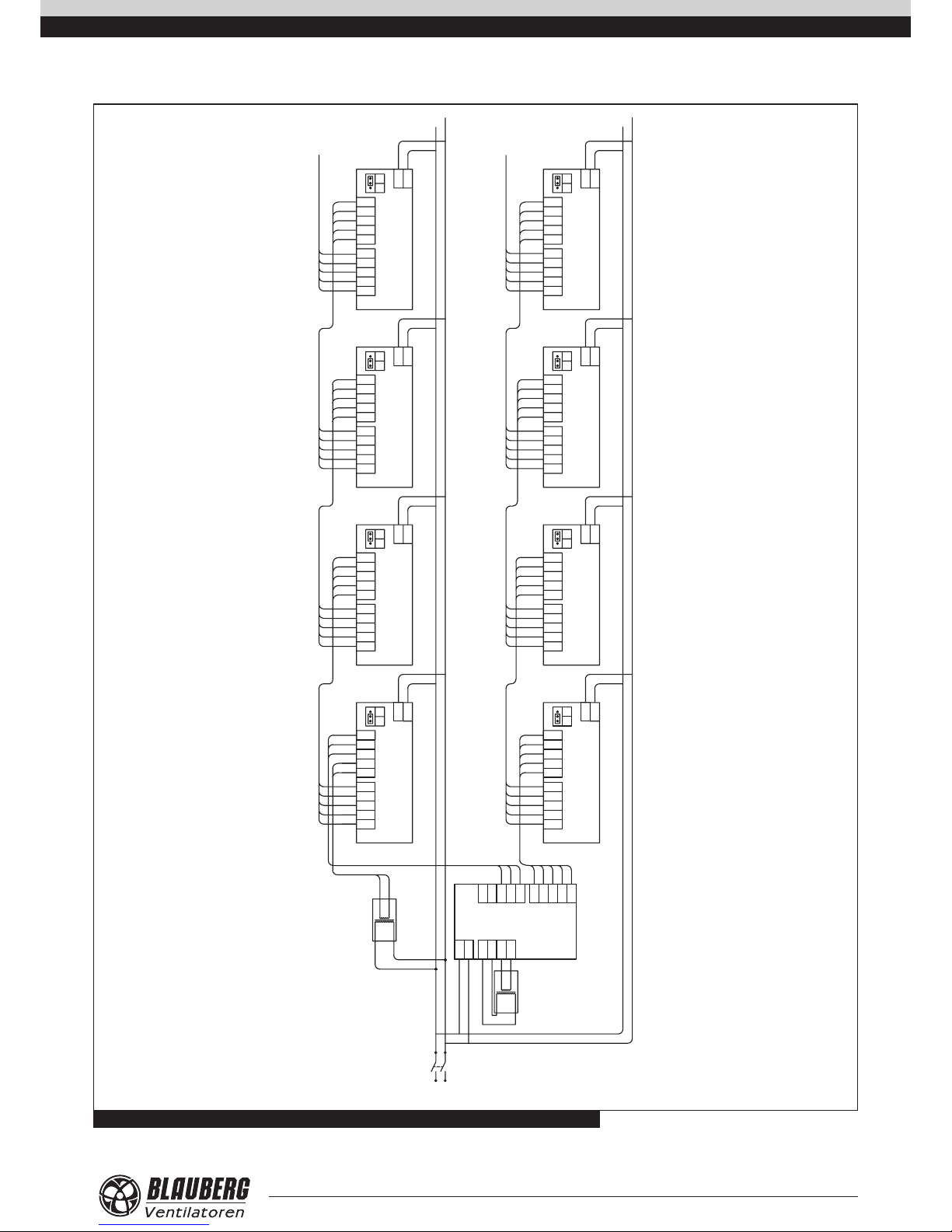

The following components are required to arrange a central controlled

ventilation system consisting of from 4 up to 12 ventilation units:

– required number of VENTO A50 units (no control unit is included);

– control panel SEA;

– 40W power transformer AT-40.

Outer ventilation hood

Outer air duct

Inner air duct

Ceramic regenerator

Distance ring

Filter

Air ow rectier

Ventilation unit

Decorative at front panel

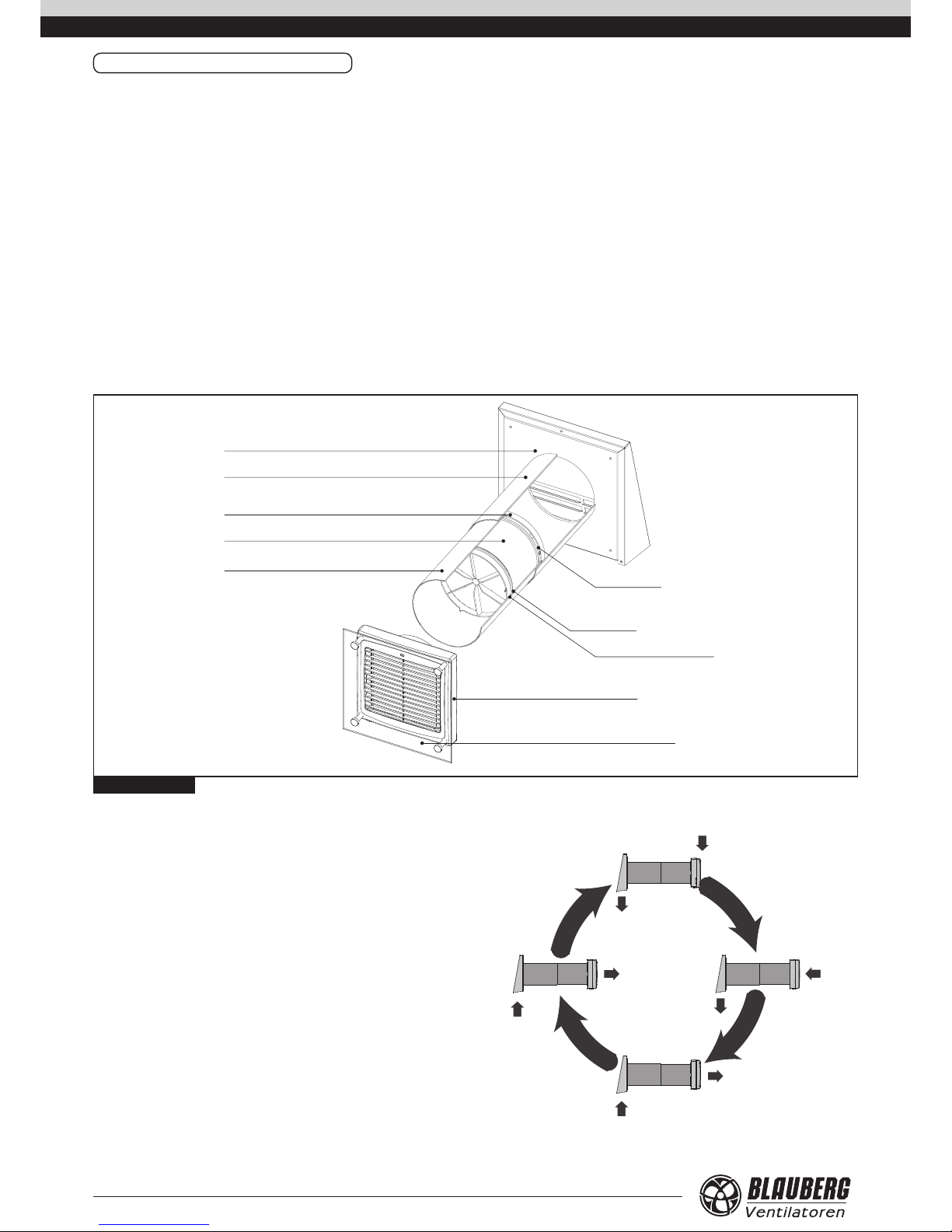

Fig. 1. Unit design

The unit has four ventilation modes:

1. Ventilation mode (air supply or air extract) at rst speed.

2. Ventilation mode (air supply or air extract) at second speed.

3. Reversible mode (regeneration) at rst speed.

4. Reversible mode (regeneration) at second speed.

In regeneration mode the unit operates in 2 cycles, 70 seconds each.

Cycle I. Warm stale air is extracted from the premise, ows through the

ceramic regenerator and transfers its heat energy. In 70 seconds the

ceramic regenerator gets warmed up and the unit is switched to the

supply mode.

Cycle II. Clean cold intake air ows through the regenerator, absorbs

humidity and is warmed up with the accumulated heat. In 70 seconds

the ceramic regenerator is cooled down and the unit is switched to the

extract air mode. The cycle begins anew.

CYCLE I

CYCLE II

-10 °С

+20 °С

+17 °С

-7 °С

7

0

s

e

c

.

7

0

s

e

c

.

A

I

R

E

X

T

R

A

C

T

A

I

R

S

U

P

L

Y

www.blaubergventilatoren.de

5

VENTO A50 / A50-1 / A50 S / A50-1 S

MODIFICATIONS AND OPTIONS

VENTO A50 / VENTO A50-1

The unit for the wall thickness from 240 up to 460 mm. The control panel

and the power unit are available on separate order.

VENTO A50 S / VENTO A50-1 S

The unit for the wall thickness from 120 up to 420 mm. The control panel

and the power unit are available on separate order.

VENTO A50 Pro / VENTO A50-1 Pro

The unit for the wall thickness from 240 up to 460 mm. Equipped with the

control panel and the control unit SEA-T12.

VENTO A50 S Pro / VENTO A50-1 S Pro

The unit for the wall thickness from 120 up to 420 mm. Compatible with

the control panel and the control unit SEA-T12.

DELIVERY SET

Unit - 1 item;

Fixing set - 1 item;

SEA-T12 - control and power unit for Pro models - 1 item;

Cable Unitronic LIYY UL CSA 5xAWG/7 (5x0.25), 3 m long - 1 item;

Operation manual - 1 item;

Packing box - 1 item.

ATTENTION

Make sure the unit has no visible transport damages while accepting the goods. Check the ordered and the delivered goods for

compliance.

Fig. 2. VENTO A50 / VENTO A50 -1

Fig. 4. VENTO A50 S / VENTO A50-1 S

Fig. 3. VENTO A50 Pro / VENTO A50-1 Pro

Fig. 5. VENTO A50 S Pro / VENTO A50-1 S Pro

6

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

TECHNICAL DATA

Table 1. Technical data of the unit

Parameters VENTO A50 / A50-1 / A50 S / A50-1 S

Supply Voltage / 50 Hz [V] 230

Speed 1 2

Total unit power [W] 3.68 4.83

Total unit current [A] 0.021 0.026

Max. air ow [m3/h] 26 53

Sound pressure level at 3 m distance [dBA] 24 34

Sound pressure level at 1 m distance [dBA] 14 24

Transported air temperature [°C] from -20 up to +50

Total ltering class of 2 lters G3

Heat regeneration eciency [%] up to 90

Regenerator type Ceramic energy accumulator

Ingress Protection Rating IP24

Fig. 6. Overall dimensions [mm]

Distance ring А

Inside Outside

Model А, mm

VENTO A50 / A50-1 10

VENTO A50 S / A 50-1 S 10-110

Fill the gaps with a mounting foam

MOUNTING

WARNING

Read the operation manual prior to any electric installations. Connection of the unit to power mains is allowed by qualiﬁed professionals.

The unit is designed for through-the-wall mounting in the building outer

wall.

Mounting sequence:

1. Prepare a round core hole through the outer wall. The size is shown in the

gure 7. While mounting several connected in series units provide a recess

for the cable layout during the hole preparation to enable series connection

of several units.

2. Install the telescopic air duct in the wall. The protruding telescopic air duct

section on outer wall side must be equal to the distance A, g. 8.

3. Fill the gaps between the wall and the telescopic air duct with a mounting

foam.

Fig. 8. Telescopic air duct mounting

170

Fig. 7. Size of the core hole

212

240-460

34

280

300

157

212

120-420

34

310

260

157

242

240-460

59

300

280

242

120-420

59

310

260

157

www.blaubergventilatoren.de

7

VENTO A50 / A50-1 / A50 S / A50-1 S

5. Install the ceramic regenerator with both lters, front and back, and the air

ow rectier in this sequence, g. 9.

6. Insert the dowels 5x25 in the wall and x the ventilation unit to the wall

with screws 3x25 from the delivery set, g. 10.

Fig. 9. Unit components mounting Fig. 10. Hole marking for the ventilation unit

Marking of the fastening holes

for the ventilation unit, mm

195

Ø6

4 holes

150

196

170

7. Mark the fastening holes for the outer ventilation hood:

• Fig. 11a − for the models VENTO A50 / A50-1;

• Fig. 11b − for the models VENTO A50 S / A50-1 S.

Drill 40 mm holes for the dowels 6x40.

Fig. 11а. Fig. 11b.

193,5

Ø6

4 holes

246,4

220

Ø6

4 holes

220

8. Insert the dowels 6x40 from the delivery set into the holes.

9. Disassemble the outer ventilation hood to enable access to the fastening

holes:

• Fig. 12a - models VENTO A50 / A50-1. Remove the upper part of the outer

ventilation hood.

• Fig. 12b - models VENTO A50 S / A50-1 S. Loosen these 5 screws and take o

the upper part of the outer ventilation hood.

Fig. 12а. Fig. 12b.

8

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

Screws

10. Fix the back part of the outer hood on the wall.

• Fig. 13a - models VENTO A50 / A50-1. Fix the back part of the outer ventilation

hood to the wall with the screws 4x40 from the delivery set.

• Fig. 13b -models VENTO A50 S / A50-1 S. Fix the back part of the outer

ventilation hood to the wall with the screws 4x40 from the delivery set.

11. Install the upper part of the outer ventilation hood:

• Fig. 14a − for the model VENTO A50 / A50-1;

• Fig. 14b − for the model VENTO A50 S / A50-1 S.

Fig. 13а.

Fig. 14а.

Fig. 13b.

Fig. 14b.

12. Install the control panel SEA-T12 with a power unit inside a prepared hole

in the wall, see g. 15. The control panel mounting place must be inaccessible

for children. During selection of the control panel mounting place consider the

supplied cable length. A longer cable may be used if required, of Unitronic LIYY

UL CSA 5xAWG/7 (5x0.25) type.

А-А

140 mm

Ø 68 mm

2 holes

SEA

А

70 mm

48 mm

70 mm

R35

2 radii

SEA-Т12

А-А

Fig. 15.

www.blaubergventilatoren.de

9

VENTO A50 / A50-1 / A50 S / A50-1 S

CONNECTION AND CONTROL

WARNING

Read the operation manual prior to any electric installations. Connection of the unit to power mains is allowed by a

qualiﬁed electrician only.

The rated electrical parameter are stated on the rating plate. No modiﬁcations of internal connections are allowed and will

result in void warranty.

Connect the fan only to power mains with valid electric standards. The unit must be connected to a correct mounted socket

with a grounded terminal or connected to a ﬁxed installed cable.

Follow the respective electric standards, safety rules (DIN VDE 0100), TAB der EVUs. The house cabling system must be

equipped with an automatic switch at the external input. Connect the unit to power mains through the automatic switch. The

contact gap on all poles at least 3 mm (VDE 0700 T1 7.12.2 / EN 60335-1).

Install the automatic switch to ensure prompt access.

The unit is controlled with the external control panel SEA or the control

and power unit SEA-T12. The control devices are available on separate order if

not included into the delivery set of the unit model.

The control and power unit SEA-T12 consists of a control panel and a 12

W power transformer, g. 16. In case of the control panel SEA either power

transformer AT-12 or AT-40 are used and are available upon separate order.

The unit is rated for connection to single-phase alternating current power

mains 230 V / 50 Hz or 120 V / 60 Hz, depending on the used transformer type.

Separate power supply must be provided both to the control panel and to

the ventilation unit to control the automatic shutters. The control and power

unit modications are customer selected depending on power mains voltage

and transformer power in compliance with the table 2.

Table 2. Control panel technical data

Control and power unit name

Transformer data

Note

Power [W] Voltage [V]

Input Output

Control and power unit SEA-T12

12

230 / 50 Hz 12 / 50 Hz

Rated for connection up to 4 units

Control and power unit SEA-T12 (120 V / 60 Hz) 120 / 60 Hz 12 / 60 Hz

Control panel SEA + transformer AT-40

40

230 / 50 Hz 12 / 50 Hz

Rated for connection up to 12 units

Control panel SEA + transformer AT-40 (120 V / 60 Hz) 120 / 60 Hz 12 / 60 Hz

Control panel SEA + transformer AT-12

12

230 / 50 Hz 12 / 50 Hz

Rated for connection up to 4 units

Control panel SEA + transformer AT-12 (120 V / 60 Hz) 120 / 60 Hz 12 / 60 Hz

Control panel SEA and power transformer AT Control and power unit SEA-T12

Control panel SEA

Transformer

Fig. 16.

10

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

Two control channels are used for connection of Vento A50 units to the

control panel SEA. Such design solution provides exibility during connection

of several Vento A50 units.

The impeller rotation direction at start of the regeneration mode or in

ventilation mode is determined by positioning the jumper JMP1 on the

ventilation unit circuit board. The jumper positioned in «Flow In» position sets

the unit to supply mode and the jumper positioned in «Flow Out» position

sets the unit to extract mode.

The VENTO A50 is connected to the control panel SEA with a ve-wire cable.

The wire colour marking corresponds to the supplied cable. The minimum

conductor cross section is 0.25 mm2(23 AWG).

Type and power of the step-down transformer T1 is selected to provide 12 V

alternatingcurrentvoltageand3W powerconsumptionofeachVentoA50unit.

Separate power supply (230 V / 50 Hz or 120 V / 60 Hz) must be connected

both to the control unit SEA (SEA-Т) and to the ventilation unit to enable

actuation of the automatic shutters (socket connectors 31-32 in each case).

All electric connection to the control unit and the ventilator are performed

with the socket connectors (detachable terminal blocks) for mounting and

servicing facilitation. Each mating part of the socket connector has colour

marking in compliance with marking on the circuit board to ensure correct

and quick electric installation.

The control panel SEA is used to set one of four operation mode of the unit,

g. 17:

1.Ventilation mode (air extract / air supply)* at the rst speed with air ow 26 m3/h.

2. Ventilation mode (air extract / air supply)* at the second speed with air

capacity 53 m3/h.

3. Reversible (regeneration) operation at the rst speed with air ow 26 m3/h.

The unit changes air ow direction every 70 seconds.

4. Reversible (regeneration) operation at the second speed with air ow 53 m3/h.

The unit changes air ow direction every 70 seconds.

* - air ow direction depends on position of the jumper JMP1 on the

circuit board. The jumper is set to supply mode by default, g. 18.

Unit on

Unit o

First

speed mode

Reversible

operation mode

Second

speed mode

Extract /

supply mode*

Fig. 17.

Fig. 18. General wiring diagram for connection of Vento A50 unit to the SEA control panel

31

32

33

34

35

36

11

12

13

14

15

11

12

13

14

15

1

2

3

4

5

1

2

3

4

5

31 32

33

34

35

36

3738

3940

ÕÒ3

25

21

22

23

24

15

14

13

12

11

5

1

2

3

4

1

2

3

4

5

31 32

33

34

35

36

3738

3940

ÕÒ3

25

21

22

23

24

15

14

13

12

11

5

1

2

3

4

L

N

5

4

3

2

1

SEA control panel

Vento A50

JMP1

Marking "1-5" on the

connecting cable socket

connector

Marking "11-15" on the

controller socket

connector

~120 V

or

~230 V

~120 V

or

~230 V

Marking "1-5" on the

connecting cable

socket connector

Marking "11-15" on the

controller socket

connector

Marking "21-25" on the

controller socket

connector

~120 V

or

~230 V

grey

brown

yellow

green

white

grey

brown

yellow

green

white

red

Transformer 12 W

АТ-12

www.blaubergventilatoren.de

11

VENTO A50 / A50-1 / A50 S / A50-1 S

Connection of the unit in compliance with the wiring diagram in g. 19

enables synchronous connection of up to 4 units. In this very case the 12 W

power transformer AT-12 is used.

Power supply 230 V / 50 Hz (or 120 V / 60 Hz) must be connected both to the

control panel SEA (SEA-Т) and to each ventilation unit to enable actuation of

the automatic shutters (socket connectors 31-32 in each case).

The inputs on the controller socket connectors are marked 21 to 25. The

outputs on the controller socket connectors are marked 11 to 15.

The socket connectors of the connecting cable supplied with the unit are

marked 1 to 5 and must be connected to the controller socket connectors

marked 11-15 for outputs or 21-25 for inputs.

Cable channel B:1. Vento A50

Cable channel A:1. Vento A50

Cable channel B:N. Vento A50

Cable channel A:N. Vento A50

SEA control panel

~120 V

or

~230 V

~120 В

или

~230 В

~120 V

or

~230 V

~120 V

or

~230 V

~120 V

or

~230 V

~120 V

or

~230 V

white

red

grey

brown

yellow

green

white

grey

brown

yellow

green

white

grey

brown

yellow

green

white

grey

brown

yellow

green

white

grey

brown

yellow

green

white

grey

brown

yellow

green

white

grey

brown

yellow

green

white

grey

brown

yellow

green

white

Transformer 12 W

АТ-12

Fig. 19. General wiring diagram for connection of up to 4 Vento A50 units to a single SEA control panel

12

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

Control panel SEA

Backside view

S1

ХТ1

Р2

Р1 Р3

Р4

31 32 33 34 35 36

ХТ2

ХТ4 ХТ3

1

Cable K1

А1

Connecting cable

socket connector

36

35

1

151413

12

11

15

1413

12

11

1

1234 5

A3- No.1

to the control

panel SEA

1

2

3

4

5

31

32

33

34

35

36

37

38

39

40

ХТ1

ХТ3

L N

25

21

22

23

24

15

14

13

12

11

ХТ2

ХТ4

ХТ5

А2

Cable K1

5

1

2

3

4

X1

12 V

NL

Т1

Transformer unit T1

Ventilation unit

Power cable with a plug

1

2

3

4

5

31

32

33

34

35

36

37383940

ХТ1

ХТ3

LN

25

21

22

23

24

15

14

13

12

11

ХТ2

ХТ4

ХТ5

5

1

2

3

4

to the next unit

A3- No.2

Jumper JMP1

Cable K1

Cable K2

Jumper JMP1

Connecting cable socket connector

Controller PCB

Connecting cable

socket connector

Power cable

~120 V or ~230 V

Power cable

~120 V or ~230 V

Connecting cable

socket connector

ventilation unit No.2

31 32

31

32

Up to 12 Vento A50 units may be connected to a single SEA control panel

powered by the 40W power transformer AT-40, g. 20.

First connect the 12W transformer wire leads to the contacts A1:35, 36 of the

controller A1 (SEA) using the socket connector at the cable K2. The cable is

included into delivery set of the 40W transformer model.

Then connect the rst unit A3-No.1 to the contacts A1:11-15 of the controller

SEA using the connecting cable supplied with the rst unit. Connect the

second unit A3-No.2 (contacts A2: 21-25) to the rst unit (contacts A2: 11-15)

using the connecting cable supplied with the second unit.

Connect all the other units, up to 12 items, in the same way.

Connect power supply (230 V / 50 Hz or 120 V / 60 Hz, depending on the unit

model) to the contacts A2: 31,32 of each unit.

The fan impeller rotation direction is determined by position of the jumper

JMP1 on the PCB of A2 unit: the leftmost position sets the unit to extract mode

(Flow Out) and the rightmost position sets the unit to supply mode (Flow In).

The jumper is used to set direction for each fan in the group. The transformer

unit is connected to power mains through the power cable with a plug, which

is prewired to the transformer unit terminal block by the manufacturer.

Fig. 20. Wiring diagram for connection up to 12 VENTO A50 units to SEA controller with AT-40 transformer

www.blaubergventilatoren.de

13

VENTO A50 / A50-1 / A50 S / A50-1 S

15

14

13

12

11

15

14

13

12

11

32

31

34

33

36

35

Control panel

SEA

Transformer 12W

AT-12

Transformer

12W AT-12

~12 V230 V

25

24

23

22

21

15

14

13

12

11

31

Vento A50

N

L

32

Flow

Out

Flow

In

25

24

23

22

21

15

14

13

12

11

31

32

25

24

23

22

21

15

14

13

12

11

31

32

25

24

23

22

21

15

14

13

12

11

31

32

25

24

23

22

21

15

14

13

12

11

31

Vento A50 32

25

24

23

22

21

15

14

13

12

11

31

32

25

24

23

22

21

15

14

13

12

11

31

32

25

24

23

22

21

15

14

13

12

11

31

32

Vento A50Vento A50Vento A50

Flow

Out

Flow

In

Flow

Out

Flow

In

Flow

Out

Flow

In

Flow

Out

Flow

In

Flow

Out

Flow

In

Flow

Out

Flow

In

Flow

Out

Flow

In

JMP1JMP1 JMP1 JMP1

JMP1JMP1JMP1JMP1

~12 V230 V

yellow

green

white

grey

brown

yellow

green

white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

1 grey

2 brown

3 yellow

4 green

5 white

Fig. 21. Wiring diagram for connection of unlimited number of VENTO A50 units to the controller SEA

The control panel SEA is capable of controlling unlimited quantity of the

connected units. In this case a required number of the transformers AT-12 or

AT-40 must be used for power supply.

Connection example with several transformers is shown in g. 21.

14

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

The unit technical maintenance consists in the periodic cleaning of the

unit surfaces and cleaning or replacement of the lters.

Remove dust with a soft brush, cloth or compressed air. Do not use water,

abrasive detergents, solvents, sharp objects.

1. Fan maintenance (once a year).

• Pull out the decorative fan grille and clean it.

• Disconnect the wires from the ventilation unit by using the connectros.

• Clean the impeller blades, g. 22. Remove dust with a soft brush, cloth

or compressed air. Cleaning with water, abrasive detergents, solvents,

sharp objects is not allowed. Clean the impeller blades at least once a

year.

2. Regenerator and lter maintenance (4 times a year).

• Remove the air ow rectier. Pull the cord to remove the regenerator

and the lters from the air duct. Do not let the regenerator fall down,

g. 23.

• Clean the lters as often as required, but at least once in three months.

To clean the lters ush those under running water or use a vacuum

cleaner, g. 24 Let the lters dry and install the dry lters inside the air

duct.

• Contact a local distributor for the lters stated above in the section

“Technical data”.

• Even regular lter maintenance may not completely prevent the dust

ingress into the regenerating unit. Clean the regenerator with a vacuum

cleaner at least once a year.

WARNING!

Disconnect the unit from power mains prior to maintenance operations!

Fig. 23. Removal of the unit components

Fig. 22. Impeller blade cleaning

Fig. 24. Cleaning of the ﬁlters and the regenerator

MAINTENANCE

3. Outer ventilation hood maintenance (once a year).

The outer ventilation hood may get clogged with leaves and other objects

that reduce the unit air capacity.

Check the outer ventilation hood twice a year and clean it as often as

required.

Cleaning of the outer ventilation hood:

• remove the upper part of the outer ventilation hood:

Fig. 25 − for the model VENTO A50 / A50-1;

Fig. 26 − for the model VENTO A50 S / A50-1 S.

• clean the outer ventilation hood and the air duct.

Fig. 25. Fig. 26

www.blaubergventilatoren.de

15

VENTO A50 / A50-1 / A50 S / A50-1 S

Fault Possible reasons Fault handling

The fan does not start

when the unit is on.

No power supply. • Make sure of correct power supply, otherwise troubleshoot

the connection error.

Jammed motor, soiled impeller blades.

• Turn the unit o.

• Troubleshoot the motor jam and the impeller clogging.

Clean the blades.

• Restart the unit.

Automatic switch tripping

during the unit start. Short circuit in power grid as a result of short circuit. • Turn the unit o.

• Contact the seller.

Low air ow.

Low set fan speed. • Set higher speed.

The lters, the fan or the regenerator are soiled.

• Clean or replace the lter.

• Clean the fan and the regenerator.

• For the regenerator and the lter maintenance, refer page

15.

Noise, vibration.

The impeller is soiled. • Clean the impeller.

Loose screw connection of the unit casing or the outer

ventilation hood.

• Tighten the screws of the unit or the outer ventilation

hood.

TROUBLESHOOTING

16

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

Single-room reversible unit with heat and humidity recovery

VENTO A50 Pro VENTO A50 VENTO A50-1 Pro VENTO A50-1

VENTO A50 S Pro VENTO A50 S VENTO A50 -1 S Pro VENTO A50 -1 S

is recognizes as serviceable.

The unit complies with the requirements according to the EU norms and directives, to the relevant EU-Low Voltage Equipment Directives, EU-Directives

on Electromagnetic Compatibility.

We hereby declare that the following product complies with the essential protection requirements of Electromagnetic Council Directive 2004/108/EC,

89/336/EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States

relating to electromagnetic compatibility.

This certicate is issued following test carried out on samples of the product referred to above.

Approval mark Manufacturing date ____________________

Company:

Name:

Date Signature

The single-room reversible unit with heat and humidity recovery

VENTO A50 Pro VENTO A50 VENTO A50-1 Pro VENTO A50-1

VENTO A50 S Pro VENTO A50 S VENTO A50 -1 S Pro VENTO A50 -1 S

is connected to power mains in compliance with this operation manual requirements by the professional:

SELLER

SALES DATE

REPRESENTATIVE IN EU

Blauberg Ventilatoren GmbH

Aidenbachstr. 52a,

D-81379 München,

Deutschland

ACCEPTANCE CERTIFICATE

CONNECTION CERTIFICATE

WARRANTY CARD

VENTO A50 Pro VENTO A50 VENTO A50-1 Pro VENTO A50-1

VENTO A50 S Pro VENTO A50 S VENTO A50 -1 S Pro VENTO A50 -1 S

www.blaubergventilatoren.de

17

VENTO A50 / A50-1 / A50 S / A50-1 S

_______________________________________________________________________________________

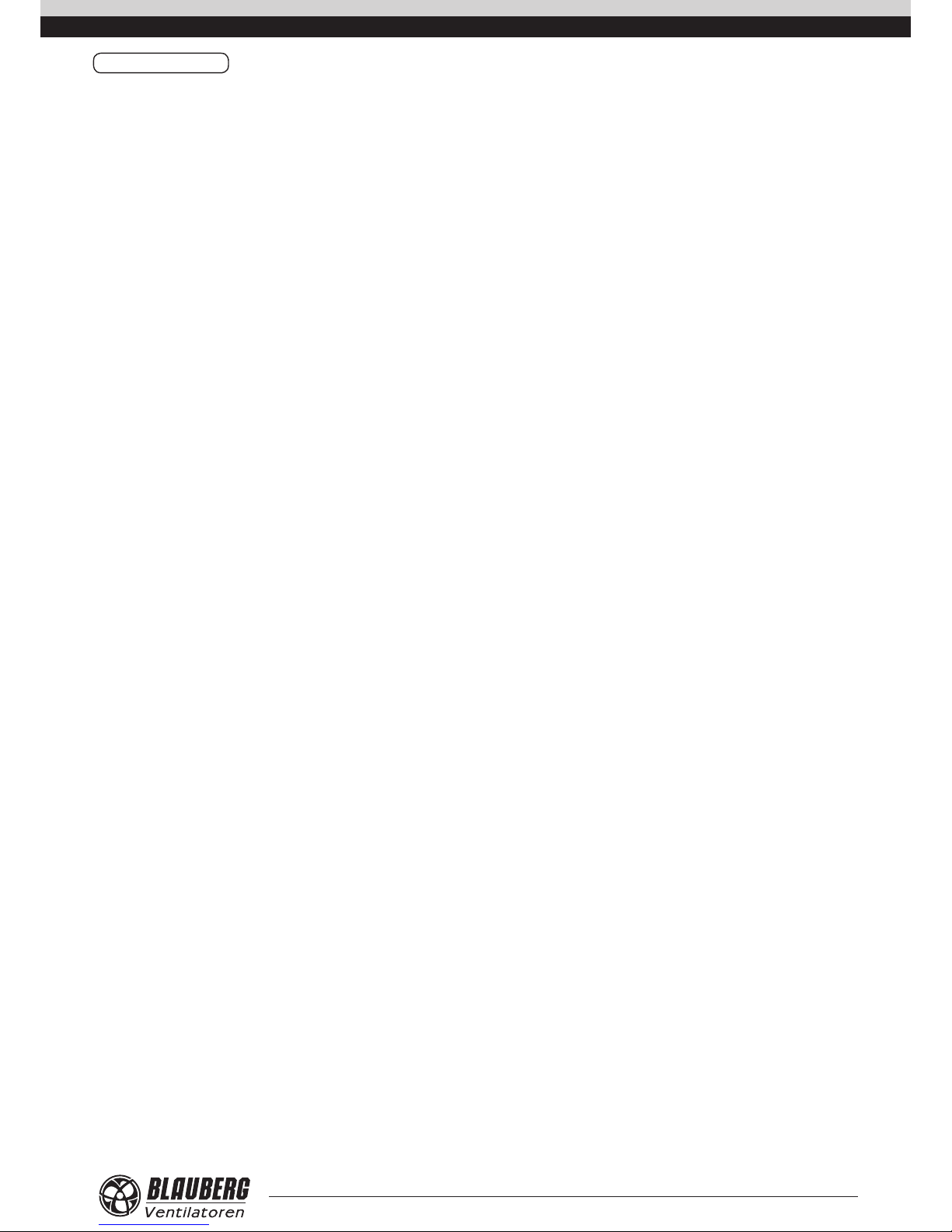

NOTES

18

www.blaubergventilatoren.de

VENTO A50 / A50-1 / A50 S / A50-1 S

_______________________________________________________________________________________

NOTES

www.blaubergventilatoren.de

19

VENTO A50 / A50-1 / A50 S / A50-1 S

_______________________________________________________________________________________

NOTES

www.blaubergventilatoren.de

VENTO A50 / v.5 (5) / 06-2014 / EN

BLAUBERG VENTO A50 User manual

Popular Ventilation manuals by other brands
