3
Content
I Attention Matters
II Features and Components
III Control Setting
IV Protection function
V Installation and adjustment
VI Drainage Instructions
VII Maintenance
VIII Out-of-season save
IX Troubleshooting
X Addendum
Inhaltsverzeichnis
I Sicherheitsvorschriften
II Merkmale und Teile des Gerätes
III Einstellung der Steuerung
IV Schutzfunktionen
V Installation und Einstellungen
VI Anweisungen zur Entwässerung
VII Reinigung und Wartung
VIII Aufbewahrung des Gerätes
IX Fehlersuche
X Ergänzungen
Spis treści
I Przepisy bezpieczeństwa
II Właściwości i części urządzenia
III Ustawienia sterowania
IV Funkcje zabezpieczające
V Instalacja i ustawienia
VI Instrukcja odprowadzania wody
VII Czyszczenie i konserwacja
VIII Przechowywanie urządzenia
IX Rozwiązywanie problemów
X Uzupełnienie
6
8
10
13
13
15
17
17
18
25
29
31
33
37
37
39
41
41
42
50
54
56
58
62
62
64
66
66
67
75

MBS0709E, MBS12E
www.blaupunkt.com
4

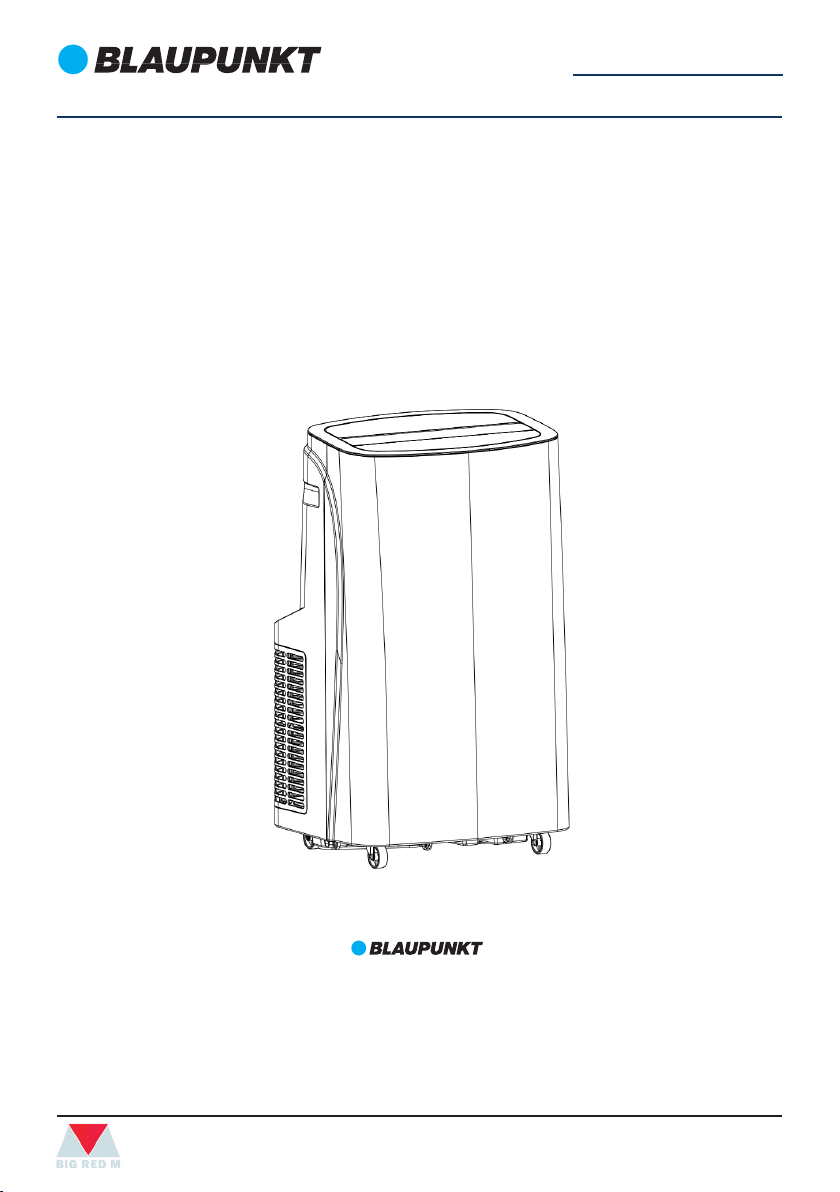

PORTABLE AIR CONDITIONER
Local air conditioners
Instruction Manuel
Mateko Sp. z o.o.
ul. Przyleśna 17A
05-126 Michałów-Grabina
e-mail: [e-mail]
www.blaupunkt.com

MBS0709E, MBS12E
www.blaupunkt.com
5
The refrigerant used in mobile air conditioners is the environmentally friendly hydrocar-
bon R290.This refrigerant is odorless, and compared to the alternative refrigerant, the
R290 is an ozone-free refrigerant, and its eect is very low.
Please read the instructions before use and repair.
The drawings provided in this manual may not be the same as the physical objects.
Please refer to the physical objects.

MBS0709E, MBS12E
www.blaupunkt.com
6
I Attention Matters
Warning matters:
1. Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
2. The appliance shall be stored in a room without continuously operating ignition
sources (for example: open ames, an operating gas appliance or an operating elec-
tric heater.)
3. Do not pierce or burn.
4. Be aware that refrigerants may not contain an odour.
5. Appliance shall be installed, operated and stored in a room with a oor area larger
than 12m².
6. Keep any required ventilation openings clear of obstruction;
7. Servicing shall be performed only as recommended by the manufacturer.
8. The appliance shall be stored in a well-ventilated area where the room size corre-
sponds to the room area as specied for operation.
9. Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certicate from an industry-accredited assessment au-
thority, which authorises their competence to handle refrigerants safely in accor-
dance with an industry recognised assessment specication.
10. Servicing shall only be performed as recommended by the equipment manufac-
turer. Maintenance and repair requiring the assistance of other skilled personnel
shall be carried out under the supervision of the person competent in the use of
ammable refrigerants.
11. All working procedure that aects safety means shall only be carried by competent
persons.
Caution, risk of re

MBS0709E, MBS12E
www.blaupunkt.com
7
Notes:
*The air conditioning is only suitable for indoor use, and is not suitable for other appli-
cations.
*Follow local grid interconnection rules while installing the air conditioning and ensure
that it is properly grounded. If you have any question on electrical installation, follow
the instructions of the manufacturer, and if necessary, ask a professional electrician to
install it.

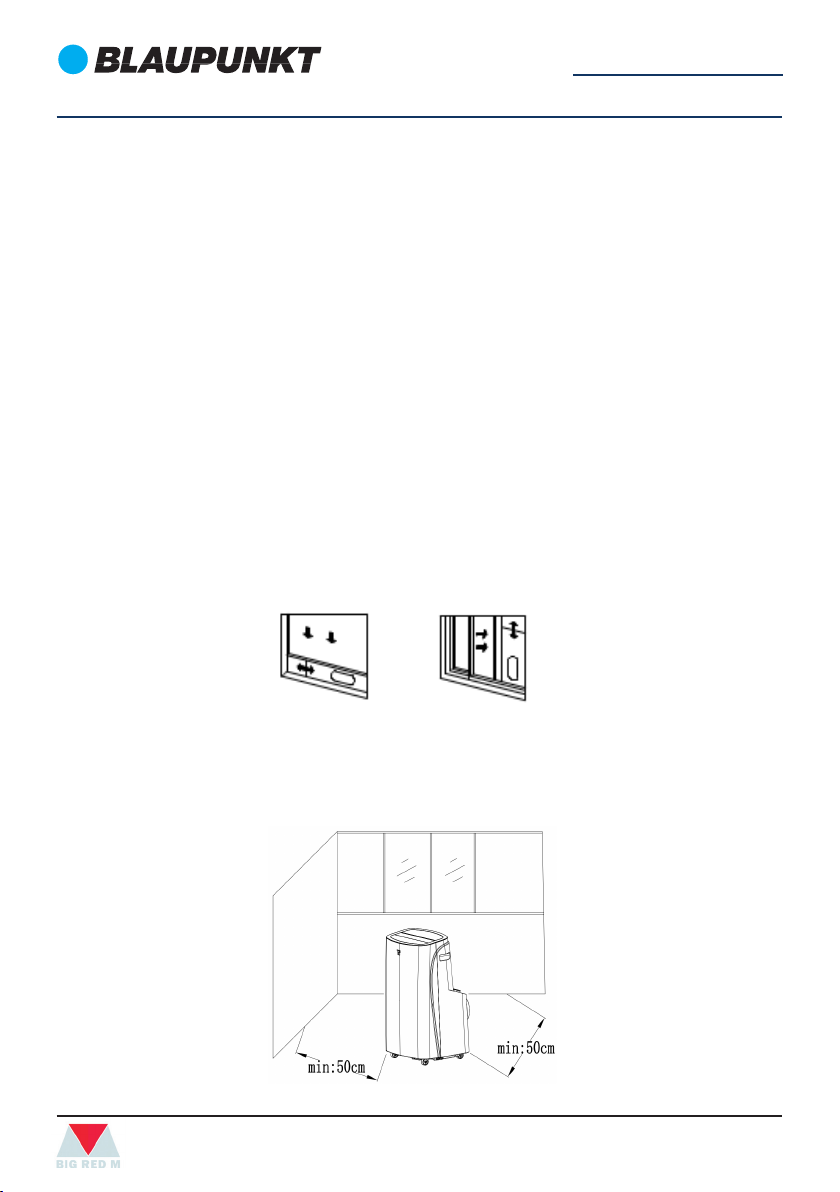

*Place the machine in a at and dry place and keep a distance of above 50cm between
the machine and the surrounding objects or walls.
*After the air conditioning is installed, ensure that the power plug is intact and rmly
plugged into the power outlet, and place the power cord orderly to prevent someone
from being tripped or pulling out the plug.
*Do not put any object into the air inlet and outlet of the air conditioning. Keep the air
inlet and outlet free from obstructions.
*When drainage pipes are installed, ensure that the drainage pipes are properly con-
nected, and are not distorted or bended.
* While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with
hands gently to avoid damaging wind-guide strips.
*When moving the machine, make sure that it is in an upright position.
*The machine should stay away from gasoline, ammable gas, stoves and other heat
sources.
* Don’t disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause
a machine malfunction or even bring harm to persons and properties. To avoid danger,
if a machine failure occurs, ask the manufacturer or professionals to repair it.
* Do not install and use the air conditioning in the bathroom or other humid environ-
ments.
* Do not pull the plug to turn o the machine.
* Do not place cups or other objects on the body to prevent water or other liquids from
spilling into the air conditioning.
*Do not use insecticide sprays or other ammable substances near the air conditioning.
* Do not wipe or wash the air conditioning with chemical solvents such as gasoline and
alcohol. When you need to clean the air conditioning, you must disconnect the power

MBS0709E, MBS12E
www.blaupunkt.com
8
supply, and clean it with a half-wet soft cloth. If the machine is really dirty, scrub with a
mild detergent.
* The appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and maintenance shall not
be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
Transportation, marking and storage for units
1. Transport of equipment containing ammable refrigerants Compliance with the
transport regulations
2. Marking of equipment using signs Compliance with local regulations
3. Disposal of equipment using ammable refrigerants Compliance with national reg-
ulations
4. Storage of equipment/appliances. The storage of equipment should be in accor-
dance with the manufacturer’s instructions.
5. Storage of packed (unsold) equipment. Storage package protection should be con-
structed such that mechanical damage to the equipment inside the package will
not cause a leak of the refrigerant charge. The maximum number of pieces of equip-
ment permitted to be stored together will be determined by local regulations.
II Features and Components
1. Features
*Brand new appearance, compact structure, smooth line, simple and generous shape.
*Functions of refrigeration, dehumidication, air supply and continuous drainage
*Outdoor interface is set high to facility assembly and keep the smooth ow of the heat pipe.

MBS0709E, MBS12E
www.blaupunkt.com
9
*LED displays the control panel, beautiful and fashionable, with high-quality remote
control.It adopts a user-friendly remote control design.
*Air ltration capability.
*Timing switch function.
*Protection function of automatically restarting the compressor after three minutes, a
variety of other protection functions.

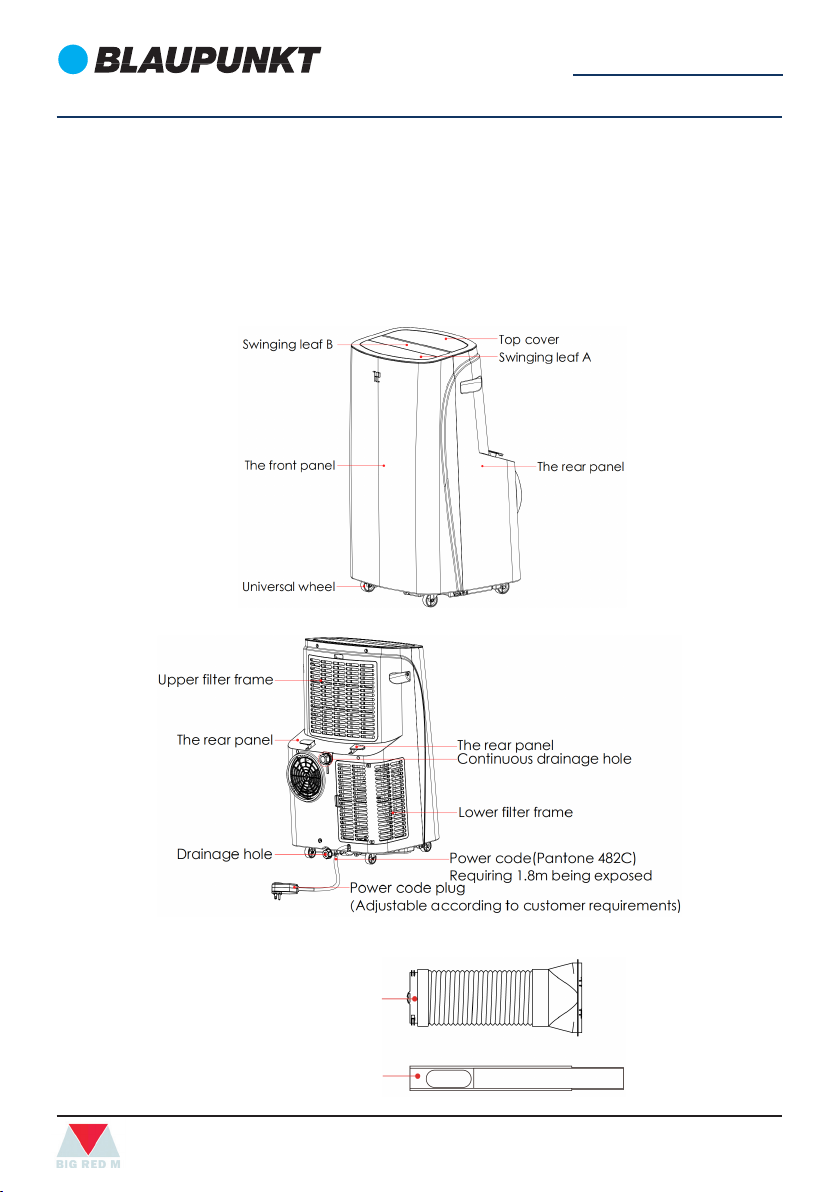

2. Components
Exhaust Pipe Assembly
Window Sealing Plate Assembly

MBS0709E, MBS12E
www.blaupunkt.com
10
III Control Setting
1. Control panel operation instructions
1) Operation interface 1.Power Key: Press this key to turn on and turn o the unit.
1. Power Key: Press this key to turn on and turn o the unit.
2. Sleep Mode: When the power is on and In the cooling mode (or heating mode),
press ‘SLEEP’ button to start the sleep mode. Under sleep mode, the FAN speed
is set to LOW speed and not adjustable. The SLEEP mode can be cancelled by
pressing the button.
3. Mode Key: In the case of power on, press this key to switch between cooling /
dehumidifying / fan / heating (Optional mode).
4. DOWN Key: Under timer mode, press this key can be adjusted downward the
time.Under cooling and heating mode, press this key can be adjusted down-
ward the temperature. Press this button to decrease the temperature setting or
set down the timer to the required timer setting. This function is not available
under FAN mode and DEHUMIDIFYING mode.
5. Display Window
6. UP Key: Press this button to increase the temperature setting or set up the timer
to the required timer setting. This function is not available under FAN mode and
DEHUMIDIFYING mode.
Power Key Sleeping Mode Mode Selection Key
Down Key Display Window Up Key
Wind Speed Selection Key Timing Key Auto Swing WiFi Key

MBS0709E, MBS12E
www.blaupunkt.com
11
7. FAN SPEED Key: In cooling, heating and fan mode, press this key to select high,
middle, low speed. This function is not available in SLEEP mode and DEHUMID-
IFYING mode.
8. TIMER Key: In the case of power on, press the key to close timing; in the case
of power o, press the key to open timing. Press the key, when the timing sym-
bol ashes, press up and down key to select the required timing value. Timing
values can be set in 1-24 hours and the timing value is adjusted up or down by
one hour.
9. SWING Key: The SWING function only can work after turn on the unit, but you
can turn on or o.
10. Wi- Key: Press this key to turn on or o Wi-.
2. Operation instructions of remote control
1) The remote control Panel is as follows: Instructions of key opera-
tion of the high-quality remote control are as follows:
1. Power: Press the key to turn on or turn o the machine.
2. Mode: press the key to switch between cooling, dehumi-
dication, fan and heating (single cold without such function)
mode.
3. Up: press the key to increase temperature and timing set
value.
4. Down: press the key to reduce temperature and timing set
value.
5. Fan: press the key to select high, medium and low wind
speed output circularly.
6. Timer: press the key to set timing value. Timing value can
be set with 1-24 hours and the timing value is adjusted up-
wards or downwards by one hour.
7. Swing: Press the louver will swing up and down.
8. Press the key to switch between Celsius and Fahrenheit.
9. Sleep Mode: Press the key to turn on the sleep mode.
绘图
校对
审核
核准
东莞市金鸿盛电器有限公司
机型:
客户:
图号:
制单号：
日期： 年 月 日
CMYK 100/0/0/0
CMYK 0/0/0/100

MBS0709E, MBS12E
www.blaupunkt.com
12
Information on the App “Smart Life - Smart Living”
The Smart Life - Smart Living app is available for android and iOS. Scan the correspond-
ing QR code to get directly to the download.
NOTE:
Depending on the provider, there may be costs involved in downloading the app.
Information on How to Use the App
This appliance allows you to operate the appliance via your home network. A prerequisite
is a permanent Wi-Fi connection to your router and the free app “Smart Life - Smart Living”.
You can easily access all functions of the appliance via the app. Since the app constantly
improved, we cannot provide a more detailed description here.
We recommend disconnecting the appliance from the power supply when you are away
from home to prevent unintentional switching on while you are on the road!
System Requirement for Use of the App
• iOs 8.0 or higher
• Android 4.4 or higher
Commissioning via the App
1. Install the “Smart Life - Smart Living” app. Create a user account.
2. Activate the Wi-Fi function in the settings of your appliance.
3. Place the air-conditioning appliance within a distance of around 5 meters of your
router.
4. Press and hold the button for about 3 seconds. The Wi-Fi indicator light
ashes rapidly.
5. Launch the app and select “+”.
6. Select the “air conditioner” menu and follow the instructions on the display.
7. Once the appliance has been connected successfully, the Wi-Fi indicator light
will be solid. Now you can operate the appliance using the app.
Google Play App Store

MBS0709E, MBS12E
www.blaupunkt.com
13
NOTE:
• The appliance can only be operated with 2.4 GHz routers. 5 GHz routers are not supported.
• The appliance is equipped with only one network connection. It cannot be turned o.
IV Protection function
3.1 Frost Protection Function:
In cooling mode, if the temperature of the exhaust pipe is too low, the machine will
automatically enter protection status; if the temperature of the exhaust pipe rises
to a certain temperature, it can automatically revert to normal operation.
3.2 Overow Protection Function:
When water in the water pan exceeds the warning level, the machine will auto-
matically sound an alarm, and the “FULL” indicator light will ash. At this point, you
need to move the drainage pipe connecting the machine or the water outlet to
sewer or other drainage area to empty the water (details see Drainage Instructions
at the end of this chapter). After the water is emptied, the machine will automati-
cally return to the original state.
3.3 Automatic Defrosting :
The machine has automatic defrosting function.Defrosting can be achieved
through four - way valve reversing. (only for heating model)
3.4 Protection Function of the Compressor
To increase the service life of the compressor, it has a 3-minute delay booting pro-
tection function after the compressor is turned o.
V Installation and adjustment
1. Installation:
Warning: before using the mobile air condi-
tioning, keep it upright for at least two hours.
The air conditioning can be easily moved in
the room. In the moving process, ensure that
the air conditioning is in the upright position
and the air conditioning should be placed on
a at surface. Do not install and use the air
conditioning in the bathroom or other humid
environments.

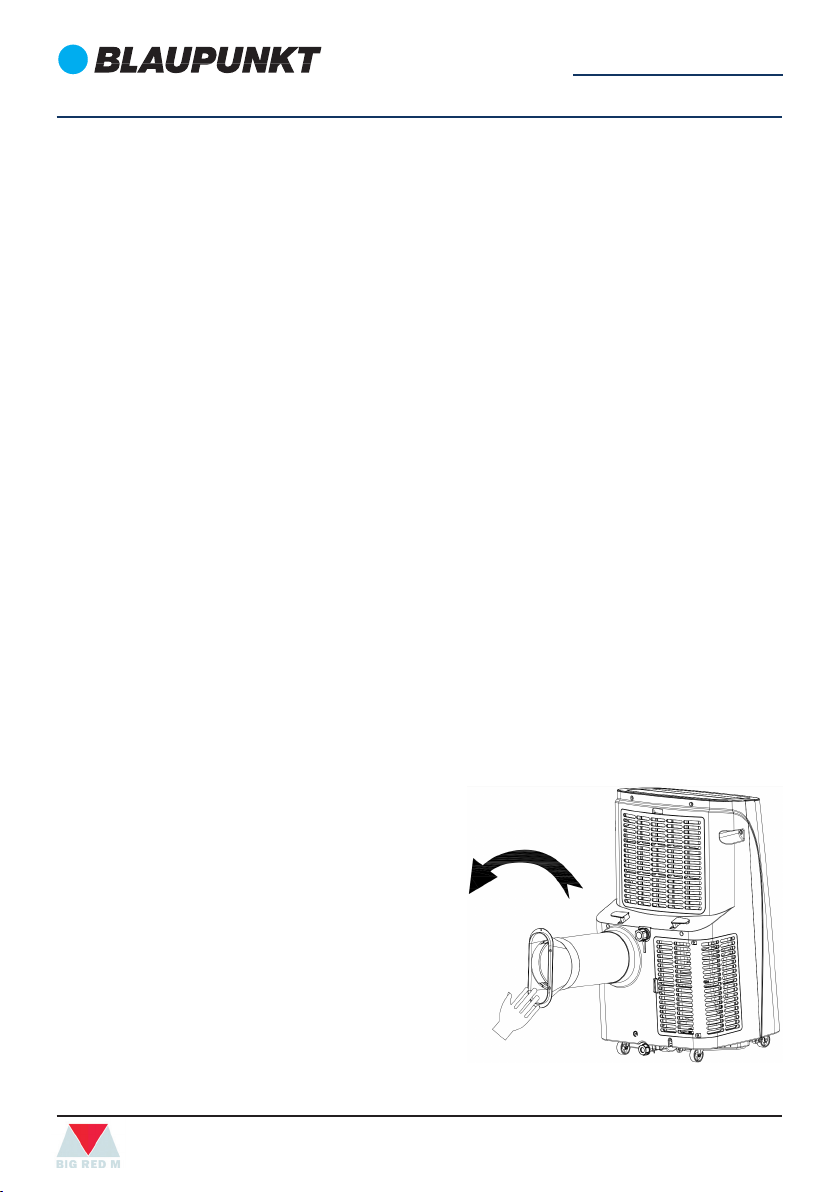

1.1 Install the heat pipe assembly
(as shown in Fig.1)
Figure 1

MBS0709E, MBS12E
www.blaupunkt.com
14
1) Take out the outer connector assembly and the exhaust pipe assembly, and remove
the plastic bags;
2) Insert the heat pipe assembly (the end of the exhaust joint) into the back panel vent
slot (push to the left) and complete the assembly (as shown in gure 1).

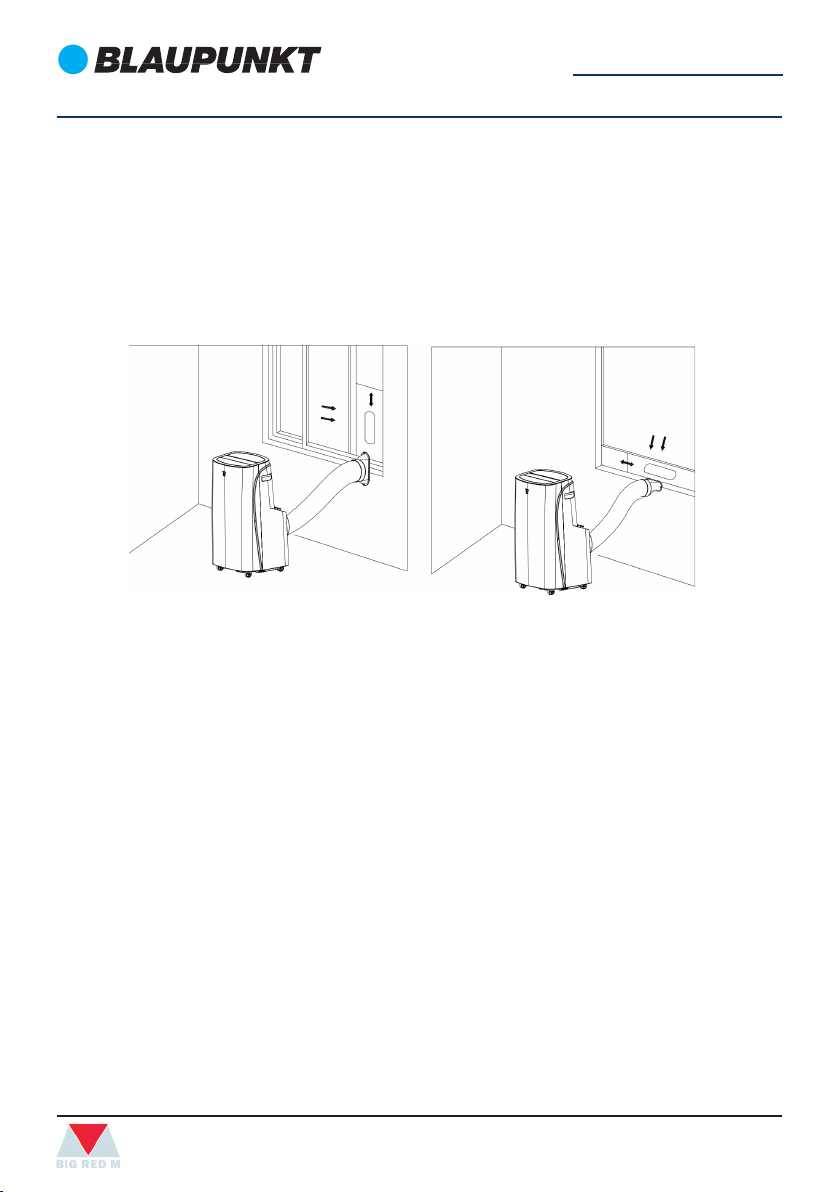

1.2 Installation of window sealing plate components
1) Half open the window,and mount the window sealing plate assembly to the window
(as shown in Fig.2 and Fig.3).Components can be placed in horizontal and vertical direction.
2) Pull various components of the window sealing plate assembly open, adjust their
opening distance to bring both ends of the assembly into contact with the window
frame, and x various components of the assembly.1.2 Install the window sealing plate
assembly
Notes:
1) The at end of the exhaust pipe joints must be snapped into place.
2) The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the
ventilation of the exhaust pipe not blocked.
1.3 Install the body
1) Move the machine with installed heat pipe and ttings before the window, and the
distance between the body and walls or other objects shall be least 50 cm (as shown in Fig.4).
Figure 2 Figure 3
Figure 3

MBS0709E, MBS12E
www.blaupunkt.com
15
3) Elongate the exhaust pipe and snap the at end of the exhaust pipe joints into the hole of
the window sealing plate assembly (as shown in Fig.5 and Fig.6) .
Notes:
1) The at end of the exhaust pipe joints must be snapped into place.
2) The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the ven-
tilation of the exhaust pipe not blocked.
Important Notice:
The length of the exhaust hose shall be 280~1,500mm, and this length is based on the speci-
cations of the air conditioning. Do not use extension tubes or replace it with other dierent
hoses, or this may cause a malfunction. Exhaust host must be not blocked; otherwise it may
cause overheating.
VI Drainage Instructions
This machine has two drainage methods: manual drainage and continuous drainage.
1. Manual drainage:
1) When the machine stops after the water is full, turn o the machine power and unplug the
power plug.
Notes:
Please move the machine carefully, so as not to spill the water in the water pan at the bottom
of the body.
2) Place the water container below the side water outlet behind the body.
3) Unscrew the drainage cover and unplug the water plug, the water will automatically ow
into the water container.
Figure 5 Figure 6

MBS0709E, MBS12E
www.blaupunkt.com
16
Notes:
1) Keep the drainage cover and the water plug properly.
2) During drainage, the body can be tilted slightly backwards.
3) If the water container cannot hold all the water, before the water container is full, stu the
water outlet with the water plug as soon as possible to prevent water from owing to the
oor or the carpet.
4)When the water is discharged, stu the water plug, and tighten the drainage cover
2. Continuous drainage (Optional) (only applicable to dehumidifying mode), as
shown in gure:
1) Unscrew the drainage cover, and unplug the water plug.
2) Set the drainage pipe into the water outlet.
3) Connect the drainage pipe to the bucket.

MBS0709E, MBS12E
www.blaupunkt.com
17
VII Maintenance
Cleaning: before cleaning and maintenance, turn o the machine and unplug the plug.
1. Clean the surface
Clean with surface of machine with a wet soft cloth. Don’t use chemicals, such as benzene,
alcohol, gasoline, etc; otherwise, the surface of the air conditioning will be damaged or even
the whole machine will be damaged.

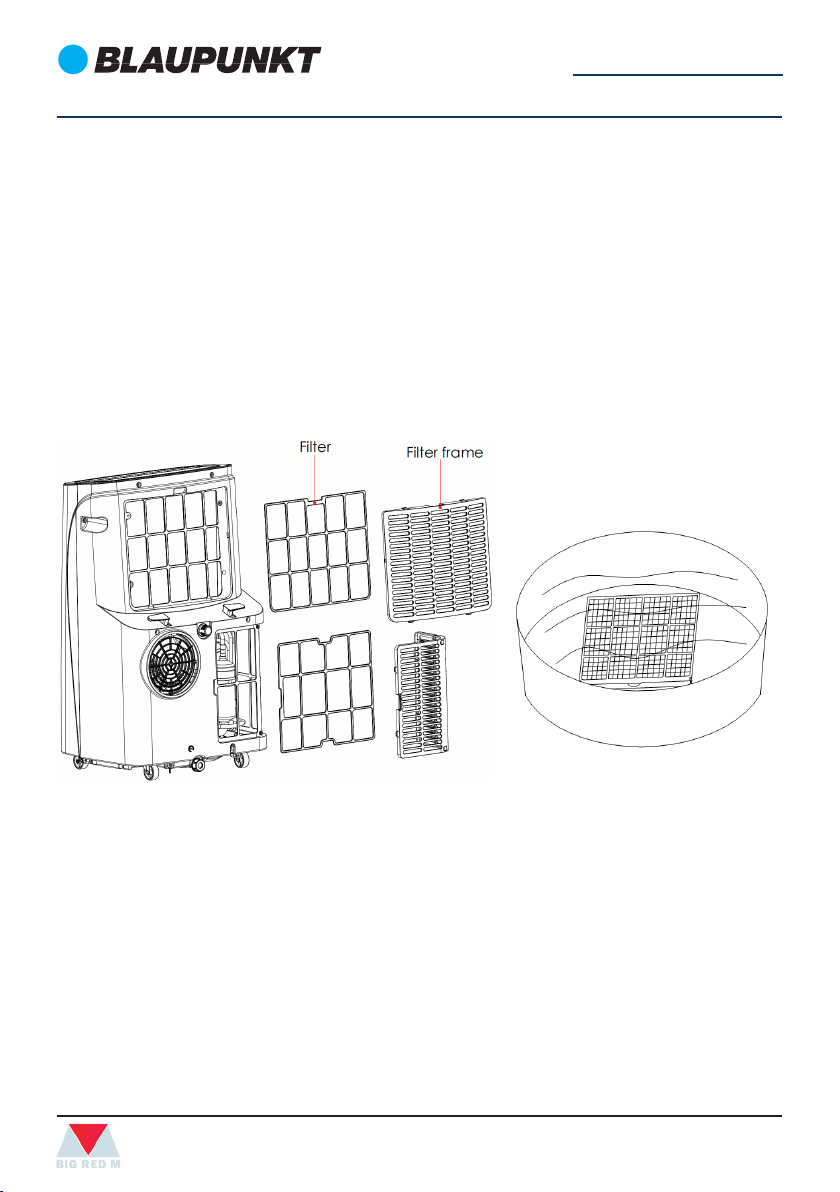

2. Clean the lter screen
If the lter screen is clogged with dust, and the eectiveness of the air conditioning is re-
duced, be sure to clean the lter screen once every two weeks.
3. Clean the upper lter screen frame
1) Unscrew one screw xed by EVA lter net and back shell with screwdriver, and take out
EVA lter net.
2) Put the EVA lter screen into warm water with neutral detergent (about 40˚C/ 104˚F) and
dry it in the shade after rinsing clean.
VIII Unit Storage:
1. Unscrew the drainage cover, unplug the water plug, and discharge the water in the wa-
ter pan into other water containers or directly tilt the body to discharge the water into
other containers.

MBS0709E, MBS12E
www.blaupunkt.com
18
2. Turn on the machine, adjust it to low-wind ventilation mode, and maintain this state
until the drainage pipe becomes dry, so as to keep the inside of the body in a dry state
and prevent it from mildewing.
3. Turn o the machine, unplug the power plug, and wrap the power cord around the
wrapping post; install the water plug and the drainage cover.
4. Remove the exhaust pipe and keep it properly.
5. Cover the air conditioning with a plastic bag. Put the air conditioning in a dry place, keep
it out of the reach of children, and take dust control measures.
6. Remove batteries of the remote control and keep them properly.
Note:
Ensure that the body is placed in a dry place and keep all machine components properly.
IX Troubleshooting
1. Information on servicing
1) Checks to the area
Prior to beginning work on systems containing ammable refrigerants, safety checks are nec-
essary to ensure that the risk of ignition is minimised. For repair to the refrigerating system,
the following precautions shall be complied with prior to conducting work on the system.
2) Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a am-
mable gas or vapour being present while the work is being performed.
3) General work area
All maintenance sta and others working in the local area shall be instructed on the nature
of work being carried out. Work in conned spaces shall be avoided. The area around the
workspace shall be sectioned o. Ensure that the conditions within the area have been made
safe by control of ammable material.
4) Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially ammable atmospheres. Ensure that the
leak detection equipment being used is suitable for use with ammable refrigerants, i.e.
non-sparking, adequately sealed or intrinsically safe.
5) Presence of re extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate re extinguishing equipment shall be available to hand. Have a dry powder or
CO2 re extinguisher adjacent to the charging area.

MBS0709E, MBS12E
www.blaupunkt.com
19
6) No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing
any pipe work that contains or has contained ammable refrigerant shall use any sources of
ignition in such a manner that it may lead to the risk of re or explosion. All possible ignition
sources, including cigarette smoking, should be kept suciently far away from the site of
installation, repairing, removing and disposal, during which ammable refrigerant can pos-
sibly be released to the surrounding space. Prior to work taking place, the area around the
equipment is to be surveyed to make sure that there are no ammable hazards or ignition
risks. “No Smoking” signs shall be displayed.
7) Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any hot work. A degree of ventilation shall continue during the period
that the work is carried out. The ventilation should safely disperse any released refrigerant
and preferably expel it externally into the atmosphere.
8) Checks to the refrigeration equipment
Where electrical components are being changed, they shall be t for the purpose and to
the correct specication. At all times the manufacturer’s maintenance and service guidelines
shall be followed. If in doubt consult the manufacturer’s technical department for assistance.
The following checks shall be applied to installations using ammable refrigerants: – The
charge size is in accordance with the room size within which the refrigerant containing parts
are installed;
– The ventilation machinery and outlets are operating adequately and are not obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for
the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings and signs that are
illegible shall be corrected;
– Refrigeration pipe or components are installed in a position where they are unlikely to
be exposed to any substance which may corrode refrigerant containing components,
unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
9) Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so
all parties are advised.

MBS0709E, MBS12E
www.blaupunkt.com
20
Initial safety checks shall include:
• That capacitors are discharged: this shall be done in a safe manner to avoid possi-
bility of sparking;
• That there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
• That there is continuity of earth bonding.
2. Repairs to sealed components
1) During repairs to sealed components, all electrical supplies shall be disconnected
from the equipment being worked upon prior to any removal of sealed covers, etc. If it
isabsolutely necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical point
to warn of a potentially hazardous situation.
2) Particular attention shall be paid to the following to ensure that by working on elec-
trical components, the casing is not altered in such a way that the level of protection is
aected. This shall include damage to cables, excessive number of connections, termi-
nals not made to original specication, damage to seals, incorrect tting of glands, etc.
Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have
not degraded such that they no longer serve the purpose of preventing the ingress of
ammable atmospheres. Replacement parts shall be in accordance with the manufac-
turer’s specications.
NOTE:
The use of silicon sealant may inhibit the eectiveness of some types of leak detection
equipment. Intrinsically safe components do not have to be isolated prior to working on
them.
3. Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without en-
suring that this will not exceed the permissible voltage and current permitted for the
equipment in use. Intrinsically safe components are the only types that can be worked
on while live in the presence of a ammable atmosphere. The test apparatus shall be at
the correct rating. Replace components only with parts specied by the manufacturer.
Other parts may result in the ignition of refrigerant in the atmosphere from a leak.
4. Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental eects. The check shall also take into
account the eects of aging or continual vibration from sources such as compressors
or fans.
