MULTIMEDIA NAVIGATION
MICHIGAN CITY 600
Operating and Installation Instructions

CAUTIONS
Safety Notes
This car radio has been manufactured according to
established safety guidelines. However, dangers may still
occur if the safety notes in this manual is not observed.
This manual is intended to familiarize the user with the
car radio’s important functions. Read this carefully, prior
to using the car radio. Keep this manual in an easily
accessible location. In addition, do observe the
instructions of the devices used in conjunction with this
car radio
Road Safety
Always observe the following notes for road safety:
•
•
•
General Safety Notes:
Observe the following for protection against injuries:
•
•
•
•
•
•
•
This manual may be updated from time to time without
any notice.
Disclaimer
In no event shall Blaupunkt be liable for any direct,
indirect, punitive, incidental, special consequential
damages to property or life and whatsoever arising out
of or connected with the use or misuse of our products.
USA & CANADA: This product is not intended for sale in
the United States and Canada. If purchased in the U.S. or
Canada, this product is purchased on as-is basis. No
warranty, whether expressed or implied is provided in
the U.S. or Canada.
1
Car radio must be used in a way that compliments
safety of the user when driving the vehicle. It is
recommended for the user to park at an appropriate
location when operating the car radio. While
driving, user is not recommended to use
applications that can be prone to distraction e.g.
streaming to medias etc.
Radios with Navigation : User is recommended to
proceed with proposed driving routes only if it does
not violate any trac regulations. Local trac signs
and regulations always prevail over the routes
proposed.
User is advised to keep the volume of the car radio
to a moderate level for the protection of the ears
and to increase the ability to hear any emergency
warning signals (e.g. police and ambulance sirens).
Do not increase the car radio volume while the car
radio is muted as it is not audible. The car radio
volume can be too loud when the car radio is
unmuted.
This car radio is intended for installation and
operation in a vehicle with 12V vehicle system
outage, hence the radio unit must be installed in a
DIN slot. Observe the output limits of the car radio.
Do not dismantle or modify the car radio.
Installation and repairs, if necessary, should be
performed by a specialist. We are not liable for any
loss or damage caused or resulting from
unauthorized disassembly or modication to the
product.
This car radio’s core components may result to
damage when the car is driven on bumpy roads for
a prolonged period of time or if it is used to play
non-standard or severely damaged discs.
Please do not operate the car radio under extreme
temperature conditions (extremely high
temperature or extremely low temperature); make
sure that temperature within the car ranges from
-20°C to 80°C before you connect the car radio to
the power supply.
For abnormalities, please refer to the
“Troubleshooting”section. If the problem cannot be
resolved, please press the Reset button to recover
its factory settings. Otherwise, please contact
respective installer/seller directly for help.
As SD/USB le formats, codecs, bitrate, resolution
and other parameters available in the market are
not all the same, there is no guarantee that this car
radio can play all media le formats.
Dierent cars may have dierent congurations. It is
normal that some CAN-Bus functions cannot be
enabled because it is not supported by the user’s
car or this car radio.
Solvents, cleaning and scouring agents as well as
dashboard spray and plastics care products may
contain materials which can damage the surface
and screen of the car radio. Use only dry or slightly
moistened cloth to clean the car radio surface and
screen.

KEY FUNCTIONS
Microphone
MicroSD Card Slot
Power Button
• Press and hold turn on or turn o
• Press to mute or unmute
Increase Volume
Decrease Volume
IR
Disc Slot
RESET Button
GPS
Eject
Home Page
Repeat
Answer/ End Call
Functions
1
2
3
4
5
6
7
8
9
10
11
12
13
3
Disposal Notes
Do not dispose of your old unit in the
household trash!
Use the return and collection systems
available to dispose of the old device.
Radios with Detachable Panel - Damage to the
control panel
•
•
•
•
Scope of Delivery
•
•
•
•
•
2
CAUTIONS
Never drop the control panel.
Transport the control panel so that it is protected
against impacts and the contacts cannot become
dirty.
Do not expose the control panel to direct sunlight
or another heat source.
Avoid direct skin contact
Car sound system
Operating / installation instructions
Remote control (include battery)
Connecting cable
GPS Antenna
2
1
3
4
5
6
8
9
10
12
11
13
7

EJECT
UP
SRC HOM E
DN MENU
VOL-
BAND
AMS
OSD
123
456
78 9
0
Sub-T
SETU P
SEARCH
REPEAT
VOL+ MUTE
SE L
*#
RD M
ZOOM ROOT
AUDI O ANGLE
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
5
REMOTE CONTROLREMOTE CONTROL
Press to eject disc
•
•
•
•
Press to adjust screen angle
Pause/Play
Decrease volume
•
•
•
•
Left button
Press and hold to search stations
•
•
•
Digit button
* button / Press to select audio sound track
Press to select the preferred mode
Press to enter home page
Press to adjust screen angle
Press to enter menu
Increase volume
Mute/ Unmute
Up button
Press to enter EQ setup menu
Press to Enter to select the preferred option
Right button
Down button
•
•
Press to select the preferred subtitles
Press to go to setting
Press to search preferred chapter/ track
# button / Press to change the viewing angle (subject
to media le’s setting)
Press to repeat 1/All
Press to turn on or o
Press to switch between media RADIO-DISC-USB-
SD-AUXIN
Radio mode : Press to increase radio frequency
manually. Press and hold to increase radio
frequency automatically
Playback mode : Press to skip to next track/
chapter. Press & hold to fast forward current
track.
Radio mode : Press to decrease radio frequency
manually. Press and hold to decrease radio
frequency automatically
Playback mode : Press to skip to previous track/
chapter. Press & hold to fast reverse current track.
Radio mode : Press to select radio band FM1-FM2-
FM3-AM1-AM2. Press and hold for automatic radio
stations scan and save
Playback mode : Press to enter manual selection
Phone (BT) mode : Press to answer call
Playback mode : Press to adjust screen ratio
Playback mode :
- Random : Press to turn on or o shue play
- On Screen Display : Press to enter on screen
display
Phone (BT) mode : Press to end call
Playback mode : Press to enter main menu in disc
mode
1
2
3
4
5
6
7
4
115
17
19
21
23
25
30
3
5
7
9
11
2 16
18
20
22
24
26
27
28
29
31
4
6
8
10
12
13
14

Pre-pair Bluetooth
Ensure mobile phone supports Bluetooth function
before pairing. Dierent mobile phone will have
dierent emissive power. To get the best
connection, the recommended distance range is
3m without any object obstruction.
Pairing
•
•
Pre-pair PhoneLink
iOS : Supported 1 way control
•
Android : Supported 2 way control
•
Pairing
Connect the unit with smartphone using USB
cable. The unit will begin to project smartphone’s
display when pairing successful.

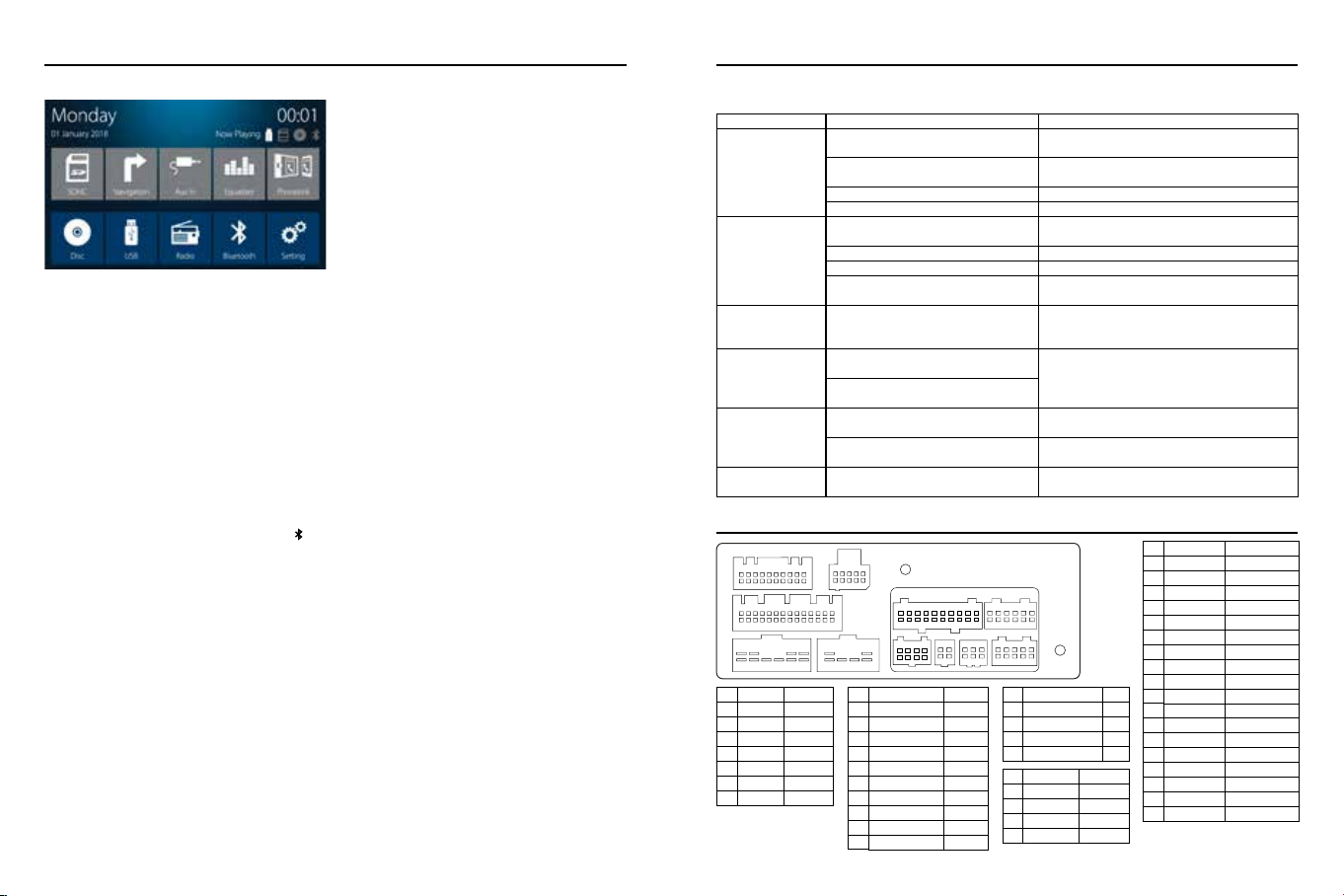

HOME PAGE
BLUETOOTH
•
•
PHONELINK
Android - Support iOS & Android
•
•
Turn on mobile phone’s Bluetooth to set up.
(Please refer to the instruction manual of the
mobile phone on how to operate Bluetooth)
“MICHIGAN CITY 600” should appear on your
available Bluetooth scanning list.
Select “MICHIGAN CITY 600” then insert password
“0000”, if password is required. Select conrm but-
tons when pairing prompt message appear. will
appear in white colour in the Home Page
when pairing successful.
Go to mobile phone’s Settings to turn on the
personal hotspot.
Go to mobile phone’s Settings to connect to car
radio’s Bluetooth (for audio output) and enable
USB debugging (Please refer to the instruction
manual of mobile phone on how to operate USB
debugging and Bluetooth setting).
TROUBLESHOOTING
WIRING DIAGRAM
Problems
Unable to start up
No sound
Dim screen or
black-&-white screen
while playing video
Slow in SD card
reading
No rear-view reverse
Unable to search
radio stations
Possible Causes
The car key is not inserted into the
ignition; ignition is o
Power Cable is not inserted into the
main body.
Burnt power fuse .
Drained car battery.
Audio cables are not properly connected
to the unit.
Mute setting is on.
Low volume.
No sound from front, rear, left & right
speakers due to Fade-Balance settings.
Brightness, contrast ratio and color
values are excessively adjusted.
The pixel of the picture le exceeds this
system’s capacity.
SD card may contain corrupted les or
virus.
The rear camera is not appropriately
connected with power supply.
Camera’s signal line not plugged in.
Radio’s antenna is not well inserted.
Solutions
Insert the car key and turn on the ignition.
Insert the power cable.
Replace it with a new fuse.
Charge or replace the car battery.
Ensure proper connection of the audio cables.
Unmute the volume.
Adjust the volume.
Select Equalizer from Home Page to adjust setting.
Ensure brightness, color and contrast ratio values
are in normal range.
Replace it with a new audio/video SD card with
compatible le formats.
Examine the camera’s power supply connectivity.
Insert the camera’s signal line into the interface
port of this unit.
Ensure radio antenna is properly installed.
If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt
authorized dealer if problem persist.
NO.
1
2
3
4
5
6
7
WIRE
BROWN
WHITE
BLACK
RED
BLACK
PINK
BROWN
A
REVERSE
AUX-L
AGND
AUX-R
KGND
KEY B
KEY A
NO.
1
2
3
4
WIRE
GREEN
PURPLE
GREEN/BLACK
PURPLE/BLACK
C
RL+
RR+
RL-
RR-
NO.
1
2
3
4
WIRE
RED
WHITE
YELLOW
BLACK
D
AUX-R IN
AUX-L IN
F-CAM
GND
NO.
1
2
3
4
5
6
7
8
9
10
WIRE
YELLOW
RED
WHITE
GREY
ORANGE
BLUE
BLUE
BLACK
WHITE/BLACK
GREY/BLACK
B
BAT T
ACC
FL+
FR+
ILL
P.ANT
P.CONT
GND
FL-
FR-
7
NO.
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
WIRE
WHITE
RED
BLACK
BLACK
BLACK
YELLOW
GREEN
YELLOW
RED
BLACK
GREEN
WHITE
RED/BLACK
PINK
BLACK
YELLOW
BLACK
GREEN
D
AUDIO OUT L
AUDIO OUT R
GND
GND
GND
VIDEO OUT
SUB OUT
AUX VIDEO IN
USB-5V
GND
USB-DP
USB-DM
CAM-POWER
REVERSE
GND
R-CAM
GND
PARKING
OPERATION
GENERAL
Power supply (12V)
Current consumption
Max. power output
Dimension (WxLxH)
Weight
Operation temperature
Screen size
Resolution
Aspect ratio
FM Stereo Radio
Frequency range
Preset memory stations
AM/MW Radio
Frequency range
Preset memory stations
Audio Specication
Frequency response
Input
CD/ DVD/ VCD/ USB 2.0/ MicroSD
Aux-in
Bluetooth
Hands-Free Calling : Accept/ Hang Up/ Reject Call
Phone Book Access
Audio Streaming
Streaming Audio/ Video Control
Support for Bluetooth Headset
Serial Port Prole
...........................................10.8 V ~ 16 V DC
................................................. max. 15 A
.......................................................... 4 x 50W
...................................178 x 165 x 100mm
......................................................................................1.02kg
........................................ -20°C ~ 60°C
.......................................................................... .6.8 inch
............................................................. 800 x 480 pixel
..................................................................... 4:3 / 16:9
................................................. 87.5 - 108MHz
........................................................... 18
................................................. 522 - 1620kHz
........................................................... 12
.............................................. 63Hz-16kHz
...........Audio : MP3, FLAC
Video : AVI, MP4
Image : JPG
........................................................................................... RCA
.......HFP
................................................................PBAP
....................................................................A2DP
....................................AVRCP
...........................................HSP
........................................................................SPP
6
1
1
5
2 1
1
4 5 6 7 8 9 101112
13
15
14 17
18 1920 21 22
16
2 3
3
2
4
6
3
97
4
108
A
B C
D
GPS
RADIO
25 36 47

Designed and engineered by Blaupunkt Competence Centre 1 104 19 017 36 01
