OPERATION & INSTALLATION MANUAL
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please SAVE THESE INSTRUCTIONS for future reference.
ASHFORD 30.1
SOLID FUEL WOOD CATALYTIC STOVE: AF30.1
Report #0142WS014S
is heater meets the 2015 U.S. Environmental Protection Agency’s particulate emission limits for wood heaters sold aer May 15, 2015.

OM-AF30.1 E V1.02 May 15, 2015
Page 2 AF30.1
TABLE OF CONTENTS
INTRODUCTION _____________________________________________________________ 4
SPECIFICATIONS _____________________________________________________________ 5
EMISSIONS __________________________________________________________________ 5
APPLIANCE DIMENSIONS______________________________________________________ 6
APPLIANCE DIMENSIONS—Ashford AF30.1 ................................................................................ 6
CERTIFICATION LABEL________________________________________________________ 7
SAFETY PRECAUTIONS ________________________________________________________ 8
INSTALLATION INSTRUCTIONS_________________________________________________ 11
PARTS INCLUDED WITH THE ASHFORD ................................................................................... 11
OPTIONAL EQUIPMENT............................................................................................................... 11
FLOOR PROTECTION .................................................................................................................... 11
MINIMUM CLEARANCES for AF30.1............................................................................................ 12
COMBUSTION AIR......................................................................................................................... 13
DRAFT............................................................................................................................................. 13
ROLE OF THE CHIMNEY............................................................................................................... 13
VENTING SYSTEMS ...................................................................................................................... 14
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS)........................................... 17
OPTIONAL ACCESSORIES............................................................................................................. 18
DOOR INSTALLATION AND CHANGE-OUT ............................................................................... 19
OPERATING INSTRUCTIONS ___________________________________________________ 20
YOUR FIRST FIRE!.......................................................................................................................... 20
BYPASS ............................................................................................................................................ 20
CATALYTIC THERMOMETER ....................................................................................................... 20
THERMOSTAT ................................................................................................................................ 20
SELECTING WOOD........................................................................................................................ 21
HOW TO USE MOISTURE METERS.............................................................................................. 22
EFFICIENCY.................................................................................................................................... 22
LIGHTING THE FIRE ..................................................................................................................... 23
RELOADING PROCEDURE (with the catalyst temperature in the active zone)............................... 24
RELOADING PROCEDURE (with the catalyst temperature still in the inactive zone) ..................... 24
OPTIMAL THERMOSTAT SETTING ............................................................................................. 25
FAN OPERATION ........................................................................................................................... 25
ICE - FORMATION AND PREVENTION ....................................................................................... 25
WOOD BURNING IN THE SHOULDER SEASON ......................................................................... 26
CATALYST MONITORING ______________________________________________________ 27
CATALYTIC COMBUSTOR, TESTING........................................................................................... 27
CATALYTIC COMBUSTOR, CLEANING ....................................................................................... 27
CATALYTIC COMBUSTOR, TROUBLESHOOTING...................................................................... 28
CATALYTIC COMBUSTOR, REPLACEMENT ............................................................................... 30

OM-AF30.1 E V1.02 May 15, 2015
Page 3
AF30.1
TABLE OF CONTENTS cont.
MAINTENANCE ______________________________________________________________ 33
RUN-AWAY OR CHIMNEY FIRE.................................................................................................... 33
CREOSOTE FORMATION AND REMOVAL .................................................................................. 33
ASH REMOVAL ...............................................................................................................................34
CHIMNEY MAINTENANCE........................................................................................................... 34
FIRE EXTINGUISHERS AND SMOKE DETECTORS..................................................................... 34
LOADING DOOR GASKET INSPECTION...................................................................................... 35
LOADING DOOR GASKET REPLACEMENT................................................................................. 35
BYPASS DOOR GASKET INSPECTION.......................................................................................... 36
BYPASS DOOR GASKET REPLACEMENT..................................................................................... 36
DOOR GLASS GASKET INSPECTION ........................................................................................... 37
DOOR GLASS GASKET REPLACEMENT ...................................................................................... 37
DOOR GLASS, CLEANING............................................................................................................. 37
LOADING DOOR TENSION ADJUSTMENT ................................................................................. 38
CHIMNEY DRAFTS ........................................................................................................................ 39
OPTIONAL FAN ASSEMBLY .......................................................................................................... 39
CARE OF SURFACES....................................................................................................................... 39
THERMOMETER ............................................................................................................................ 39
THERMOSTAT ................................................................................................................................ 39
TROUBLESHOOTING__________________________________________________________ 40
REPLACEMENT PARTS ________________________________________________________ 43
WARRANTY _________________________________________________________________ 47
INSTALLER NOTES____________________________________________________________ 52

OM-AF30.1 E V1.02 May 15, 2015
Page 4 AF30.1
INTRODUCTION
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS
PROHIBITED BY FEDERAL AND STATE LAWS.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to
operating instructions could cause fire or injury.
• Before installing this appliance, contact the local building or fire authority and follow their guidelines.
• This appliance must be installed by a qualified installer.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not operate without fully assembling all components.
• Do not let the appliance become hot enough for any part to glow red.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be sharp.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or
clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children
and others may be susceptible to accidental contact burns. Aphysical barrier is recommended if there are at risk individuals
in the house. To restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance. Objects placed in front of the appliance
must be kept a minimum of 48” away from the front face of the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants / toddlers from touching hot surfaces.
• Even after the appliance is out, all surfaces, including the glass and/or any attachment will remain hot for an extended period
of time.
• Check with your local hearth specialty dealer for safety hearth guards to protect children from hot surfaces. These guards
must be fastened to a wall and/or to the floor.
• Any safety guard removed for servicing must be replaced prior to operating the appliance.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe servicing a separate solid fuel burning appliance.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a
licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Operate only with the doors tightly closed.
• Stove will over-fire if door is not shut and latched.
• Only certified doors / optional fronts / and surrounds for inserts with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags,
these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements (ex. rain, etc.)
and keep the appliance dry at all times.
• The chimney must be sound and free of cracks and obstructions. Clean your chimney regularly as required.
• Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or ‘freshen up’ a fire in
this heater. Keep all such liquids well away from the heater while it is in use.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to smoke spillage in
your home.
• Higher efficiencies and lower emissions will generally result when burning air dried seasoned woods, as compared to wet,
green or freshly cut wood. Burning wet unseasoned wood can cause excessive creosote accumulation. When ignited it can
cause a chimney fire that may result in a serious house fire.
• The appliance is designed to burn natural wood only. Do not burn treated wood, coal, charcoal, colored paper, cardboard,
solvents or garbage.
• Burn wood directly on the firebricks. Do not use a grate or elevate the fire.
• Do not store wood within appliance installation clearances or within the space required for re-fueling and ash removal.
• Ashes must be disposed in a metal container with a tight lid and placed on a non-combustible surface well away from the
home or structure until completely cool.

OM-AF30.1 E V1.02 May 15, 2015
Page 5
AF30.1
SPECIFICATIONS
is unit was tested and listed UL 1482-2011 and ULC-S627-00 by
OMNI-Test Laboratories.
is manual describes the installation and operation of the Ashford
AF30.1 catalytic equipped wood heater.
is heater is certied to comply with the 2015 U.S. Environmental
Protection Agency’s particulate emission limits for wood heaters sold
aer May 15, 2015.
Under specic test conditions this heater has been shown to deliver heat at rates ranging from 6107 to 28636 Btu/hr.
is wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal regulations
to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this
manual.
is wood heater contains a catalytic combustor, which needs periodic inspection and replacement for proper operation.
It is against federal regulations to operate this wood heater in a manner inconsistent with operating instructions in this
manual, or if the catalytic element is deactivated or removed.
e combustor supplied with this heater is a Z0336A-M metal combustor. Consult the catalytic combustor warranty also
supplied with this wood heater. Warranty claims should be addressed to:
in Canada in USA
Blaze King Industries / Valley Comfort Systems
Warranty Department, 1290 Commercial Way
Penticton, BC Canada V2A 3H5, Ph: 250-493-7444
Blaze King Industries
Warranty Department, 146A Street
Walla, Walla, Washington 99362, Ph: 509-522-2730
Model Ashford 30.1 (catalytic)
Height 32 7/8” (835 mm)
Width 29 1/2” (750 mm) (without removable bypass handle)
Depth 29 3/8” (746 mm) (without optional fan kit)
31 1/8” (762 mm) (with optional fan kit)
Flue collar 6” I.D.
Recommended flue draft .05” water column (on high burn)
Fire door opening 18 5/8” x 9 7/8” (473 mm x 251 mm)
Firebox depth 18” (457 mm) brick to brick, 20 1/2” (521 mm) brick to glass
Firebox width 20” (508 mm)
Firebox height 12 7/8” (327 mm)
Fire box capacity 2.75 cu. ft.
Recommended Fuel length 18” max. (457 mm)
Wood capacity (approximate): White oak - 60 lbs. (27.2 kg)
Fir - 40 lbs. (18.1 kg)
Construction 10 gauge & 1/4” firebox, brick lined
Cast iron outer shell
Shipping Weight (Firebox only) 500 lbs. (226.8 kg)
Chimney recommendation (Minimum) 15’ from stove top to chimney cap.
EMISSIONS CO Average(%) g/hr
Low Burn 0.14 0.35
Med-low Burn 0.12 0.67
Med-high Burn 0.165 1.09
High Burn 0.16 1.73

OM-AF30.1 E V1.02 May 15, 2015
Page 6 AF30.1
APPLIANCE DIMENSIONS
APPLIANCE DIMENSIONS—Ashford AF30.1

OM-AF30.1 E V1.02 May 15, 2015
Page 7
AF30.1

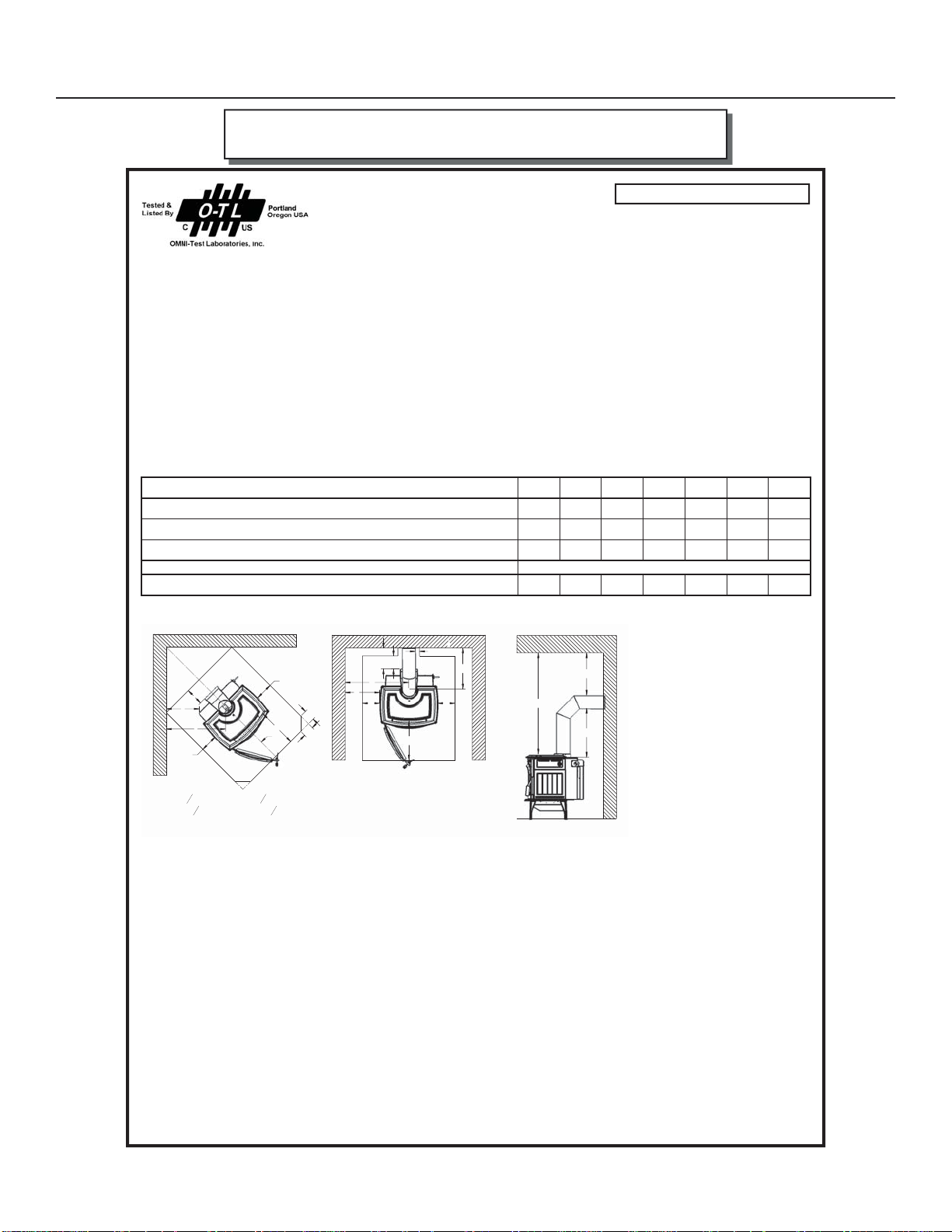

CERTIFICATION LABEL
MINIMUM CLEARANCES TO COMBUSTIBLES (See owners manual for complete description of all requirements)
DÉGAGEMENTS MINIMUM AUX COMBUSTIBLES (voir les directives d’installation pour la description complète de toutes les conditions)
Residential Installations / Installations Résidentielles ABCDEFJ
Roof exit, parallel and corner.
Sortie de toit, parallèle et coin. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 4” 102 mm 16.875”* 429 mm 37” 940 mm
Wall exit, parallel and corner.
Sortie de mur, parallèle et coin. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 4” 102 mm 16.875”* 429 mm 37”* 940 mm
Alcove roof exit. Fan kit required.
Sortie de toit en alcôve. Kit de ventilateur requise. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 37” 940 mmm
Mobile Home Installations / Installation pour Maison Mobile
Roof exit, parallel and corner. Fan kit and outside air kit required.
Sortie de toit, parallèle et en coin. Kit de ventilateur et kit d’air extérieur requis. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 4” 102 mm 16.875”* 429 mm 37” 940 mm
*Check with local codes and pipe manufacturers for pipe clearances. In Canada 18” clearances from single wall pipe is required.
* Vérifier avec le code du bâtiment local et avec le manufacturier de tuyaux pour les dégagements. Au Canada un dégagement de 18 po est exigé pour un tuyau à simple paroi.
Floor protection may be any non-combustible material or Listed Floor Protector, and must extend at least 18” (456 mm) in Canada or 16” (406 mm) in U.S.A., in front of the loading
door opening: In USA, minimum size is 35” x 42 1/8” (889 mm x 1070 mm)
In Canada, minimum size is 45 1/2” x 52 1/8” (1156 mm x 1324 mm)
U.S. ENVIRONMENTAL PROTECTION AGENCY - 2015 Standard - certified to comply with 2015 particulate emission standards (EPA test methods 28 and 5G with an emission-rate of
0.8 g/hr). Not approved for sale after May 15, 2020. This wood heater needs periodic inspection and repair for proper operation. Consult the owner’s manual for further information.
It is against federal regulations to operate this wood heater in a manner inconsistent with operating instructions in the owner’s manual, or if the catalytic element is deactivated or
removed.
*ONLY OPERATE WITH DOORS CLOSED. Open door to feed fire ONLY. *DO NOT OBSTRUCT COMBUSTION AIR OPENINGS. Do not obstruct the space beneath the heater. For
Use With Solid Wood Fuel Only - Do not burn other fuels, this may make the catalyst in the combustor inactive. The performance of the catalytic device or its durability has not
been evaluated as part of the certification. Combustor part number: Z0336A-M. Provide adequate outside air for combustion. *Replace with only ceramic glass, 5 mm. Thickness.
WARNING: This wood heater must be installed with the legs secured and attached to the stove as shown in the installation instructions.
POUR PRÉVENIR UN INCENDIE - Installer et employer seulement selon le manuel d’installation de Blaze King. Contacter les autorités locales en bâtiments ou en matière de
prévention d'incendies au sujet des normes d'inspection et d'installation dans votre secteur.
La dimension des conduits de cheminée est de 6”.
CHEMINÉE: NE PAS CONNECTER CETTE UNITÉA UNE CONDUITE DE CHEMINÉE SERVANT UN AUTRE APPAREIL. Excepté pour les situations détaillées ci-dessous, employer
une cheminée de 6” homologuée par le fabricant à des fins d'utilisation pour combustibles solides conformément à la norme ULC629 au Canada ou UL-103HT aux Etats-Unis ou
employer une cheminée en maçonnerie de type résidentiel.
L'installation dans une maison mobile, en espace restreint ou dans des endroits à faible dégagement, requiert l'utilisation de connecteurs muraux à doubles parois et ayant une
épaisseur 6” pour la cheminée. Ceux-ci doivent être homologués par le fabricant à des fins d'utilisation pour combustibles solides conformément à la norme ULC629 au Canada ou
UL-103HT aux Etats-Unis. L'installation dans une maison mobile est permise seulement avec une sortie passant par le toit.
Ne pas installer dans une chambre à coucher. Passer à travers un mur ou un plafond requiert une méthode spécifique décrite dans les instructions et dans le code local du bâtiment.
BLAZE KING CATALYST STOVE - POÊLE À BOIS CATALYTIQUE
ROOM HEATER, SOLID FUEL TYPE, ALSO FOR USE IN MOBILE HOMES. / APPAREIL APPROUVÉ DE TYPE CARBURANT SOLIDE,
AUSSI ADAPTÉ POUR INSTALLER DANS UNE MAISON MOBILE.
SUITABLE FOR MOBILE-HOME INSTALLATION. / CONCU POUR MAISONS MOBILES.
MODEL / MODÈLE: AF30.1
Tested to / Testé: UL 1482 (2011) / ULC S627-00
CERTIFIED IN BOTH UNITED STATES AND CANADA / CERTIFIÉ POUR LES ÉTATS-UNIS ET LE CANADA
MANUFACTURE DATE
JAN FEB MAR APR MAY JUN 
JUL AUG SEP OCT NOV DEC 
2015 2016 2017 2018 2019 2020 
La protection de plancher peut être de n’importe quel matériel non combustible ou Protecteur de plancher approuvé, et doit se prolonger au moins de 18” (456 mm) au Canada ou
16" (406 mm) aux États-Unis devant la porte de chargement: Aux États-Unis, la taille minimum est de 35” x 42 1/8” (889 mm x 1070 mm)
Au Canada la taille minimum est 45 1/2” x 52 1/8” (1156 mm x 1324 mm)
AGENCE DE PROTECTION DE L’ENVIRONNEMENT U.S.- STANDARD 2015 – certifié conformément aux normes standard d’émissions de particules 2015 (Méthodes de test 28 et
5G EPA avec un taux d'émission de 0.8 gr/hre). Non approuvé pour la vente après le 15 mai 2020. Cet appareil de chauffage au bois nécessite des inspections périodiques et des
réparations pour un fonctionnement adéquat. Consulter le manuel du propriétaire pour plus d’informations. Il est contre les règlements fédéraux de faire fonctionner cet appareil de
chauffage à l’encontre des instructions d’utilisation fournies dans le manuel du propriétaire, ou si l’élément catalytique est enlevé ou désactivé.
*Utiliser le uniquement avec les portes fermées. Ouvrir la porte pour alimenter le feu SEULEMENT. *Ne pas obstruer l’entrée d’air de combustion. Fournir l'apport d’air extérieur
adéquat pour alimenter la combustion. Ne pas obstruer l’espace sous l'appareil. Utiliser uniquement avec des combustibles solides - ne pas brûler aucun autre combustible, ce
qui peut rendre le catalyseur de la chambre à combustion inactif. La performance du catalyseur ou sa longévité n’a pas été évaluée dans le cadre de la certification. Numéro du
catalyseur: Z0336A-M. *Employer seulement le verre en céramique d’une épaisseur de 5mm si le remplacement est nécessaire. Attention: Ce poêle à bois doit être installé avec les
pieds de support attachés et fixés au poêle tel que montré dans les instructions d'installation.
PREVENT HOUSE FIRES - Install and use only in accordance with Blaze King’s installation and operation instructions. Contact local building or fire officials about restrictions and
installation inspection in your area. The flue size is 6".
CHIMNEYS: DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. Except for installation detailed below, use 6” listed factory built chimney suitable
for use with solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA or a masonry residential type chimney.
Mobile Home, residential close clearance, and residential alcove installations require a 6” listed double wall close clearance chimney connector, with matching listed factory built
chimney suitable for use with solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA. Mobile Home installations are only allowed with a roof exit.
Do not install in a sleeping room. Passing through a wall or ceiling requires special methods: see instructions and local building codes.
MANUFACTURED IN
USA:Blaze King Industries
146A Street
Walla Walla, WA.
99362
CANADA:
Valley Comfort Systems
1290 Commercial Way
Penticton, B.C.
V2A 3H5
Report #0142WS014S
SN -
ASHFORD AF30.1
#02220515.indd
G - 2 3/4” (70 mm) in U.S.A.
8” (203 mm) in Canada
H - 16” (406 mm) in U.S.A.
18” (456 mm) in Canada
I - 0” (0 mm) in U.S.A.
8” (203 mm) in Canada
K - 18” (456 mm) *
ALCOVE
min. width / min. largeur
max. depth / min. profondeur
min. height above stove top / min.
hauteur
51”
48”
37”
E
*1
I
H
G
G
F
*1
K
J
I
H
GG
AC
2"(51mm)
D
B
" in USA
8
*1= 578" in Canada and 218" in USA
*2 = 5758" in Canada and 555
*2
*3ft recomended
MIN.2ft*

OM-AF30.1 E V1.02 May 15, 2015
Page 8 AF30.1
This appliance must be connected to a listed high temperature (ULC629 IN CANADA OR
UL-103HT IN THE USA) residential type factory built solid fuel chimney or an approved
masonry chimney with a flue liner.
Chimney and chimney connector must be in good condition and kept clean.
NEVER vent the stove to other rooms of the building. Must be vented to the outside ONLY.
NEVER use a chimney or chimney connector smaller then the stove exhaust, unless
approved by your local inspector.
NEVER vent the stove into a “Class B” gas vent chimney.
DO NOT CONNECT IN CONJUNCTION WITH ANYAIR DISTRIBUTION DUCTWORK
UNLESS SPECIFICALLYAPPROVED FOR SUCH INSTALLATIONS.
Inspect the chimney connector and chimney regularly during each burning season and
clean when necessary.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
NEVER intentionally start a chimney fire to clean the flue.
When installed in a mobile home, this appliance must be bolted to the floor and provided
with outside air. WARNING: DO NOT INSTALL IN A SLEEPING ROOM
CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED.
Check with local building officials.
If the Optional Fan Kit is
installed, connect this unit to
a properly grounded, 110-volt
electrical outlet. Do not route
the power cord in front of or
under the stove.
Do not make any changes or
modifications to an existing
masonry fireplace or chimney
to install this appliance. Do
not make any changes to
the appliance to increase
combustion air.
SAFETY PRECAUTIONS
IF THIS BLAZE KING STOVE IS NOT PROPERLY INSTALLED OR OPERATED, A HOUSE FIRE MAY
RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL
BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA.
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM HEATER. FAILURE
TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

OM-AF30.1 E V1.02 May 15, 2015
Page 9
AF30.1
Never try to repair or replace
any part of this appliance
unless instructions are given
in this manual. All other work
must be done by a trained
technician.
Allow the appliance to cool
down before carrying out any
maintenance or cleaning.
Maintain the door and glass
seal and keep them in good
condition. A leaking door seal
will shorten burn times and
may harm the combustor.
Avoid placing wood against
the glass when loading. Do
not slam the door or strike the
glass.
Do not throw this manual
away. This manual has
important operating and
maintenance instructions that
you will need at a later time.
Always follow the instructions
in this manual.
Do not place clothing or other
flammable items on or near
this appliance.
Do not use a grate or other
device to elevate the fire off of
the firebox floor. Burn the fire
directly on the bricks.
Ashes should be placed in a
steel container with a tightly
fitting lid and moved outdoors
immediately. If the ashes are
disposed of by burial in soil or
otherwise locally dispersed,
they should be retained in
the closed container until
all cinders have thoroughly
cooled. Other waste shall not
be placed in this container.
SAFETY PRECAUTIONS cont.
It is recommended to install smoke and carbon monoxide detectors where heaters are
installed. Install at least one smoke detector on each floor of your home to ensure your
safety. It should be located away from the wood stove and close to the sleeping areas.
Locating a smoke detector too close to a wood stove can cause the smoke detector alarm
to sound if a puff of smoke is emitted while the wood stove door is open during reloading.
Follow the smoke detector manufacturers placement, installation, and maintenance
instructions.
DO NOT OVER FIRE THIS
HEATER. Attempts to
achieve heat output rates
that exceed heater design
specifications can result in
permanent damage to the
heater and to the catalytic
combustor. Over firing the
appliance may cause a house
fire. Never burn the stove so
hot that the stove or chimney
connector begins to glow.

OM-AF30.1 E V1.02 May 15, 2015
Page 10 AF30.1
Never burn the stove with the
loading door open. Leaving
the door cracked open may
damage the combustor.
Never block free airflow
through vents on this
appliance.
HOT WHILE IN OPERATION.
KEEP CHILDREN,
CLOTHINGAND FURNITURE
AWAY.
CONTACT MAY CAUSE SKIN
BURNS.
Do not touch the appliance
when it is hot and educate all
children of the danger of a
high temperature appliance.
Young children should be
supervised when they are
in the same room as the
appliance.
This appliance must be
properly installed to prevent
the possibility of a house
fire. The instructions must
be strictly adhered to. Do not
use makeshift methods or
compromise in the installation.
Never use gasoline, gasoline-
type lantern fuel, kerosene,
charcoal lighter fluid, or similar
liquids to start or ‘freshen up’ a
fire in this heater.
Keep all such liquids well away
from the heater while it is in use.
Some fuels could generate
carbon monoxide and are very
dangerous.
Contact local building officials
to obtain a permit and
information on any installation
restriction or inspection
requirements in your area.
Notify your insurance
company as well.
SAFETY PRECAUTIONS cont.
This appliance is designed and approved for burning cord wood only. DO NOT burn trash,
garbage; artificial or paper logs; gift wrappings; coal; lighter fluids; chemical cleaners;
chemical starters; treated or painted wood; salt water driftwood or foil-backed paper such
as gum wrappers or cigarette packages; lawn clippings or yard waste; materials containing
rubber (including tires), plastic, asbestos; waste petroleum products, paints or paint
thinners, or asphalt products; construction or demolition debris; railroad ties or pressure-
treated wood; manure or animal remains; unseasoned wood or paper products, cardboard,
plywood, or particleboard. The prohibition against burning these materials does not prohibit
the use of fire starters made from paper, cardboard, saw dust, wax and similar substances
for the purpose of starting a fire in an affected wood heater. Burning these materials may
result in the release of toxic fumes or render the heater ineffective and cause smoke.
Burn natural wood only. It will void all warranties and safety listings and may damage the
combustor.
Keep furniture, curtains,
wood, paper and other
combustibles a minimum of
48in (1219mm) away from
the front of the appliance.
ALSO, DO NOT STORE
COMBUSTIBLES UNDER
THE APPLIANCE (WOOD,
PAPER etc.).

OM-AF30.1 E V1.02 May 15, 2015
Page 11
AF30.1
INSTALLATION INSTRUCTIONS
FLOOR PROTECTION
If the stove sits on a combustible oor, a non-combustible shield must be used underneath the
stove and extending 16” out from the front and 8” on either side of the fuel-loading door in the
USA. In Canada a non-combustible shield must be used underneath the stove and extending 8”
on either side and rear and 18” out in front of the loading door.
A non-combustible shield is also required underneath the chimney connector and extending at
least 2” (50.8mm) on either side of the chimney connector.
See the next page for minimum sizes depending on model. is oor protection is required to
prevent sparks from falling onto the combustible oor. See CSA B365-M87). is product does
not require thermal hearth pad protection.
Blaze King grants no warranty, implied or
stated, for the installation or maintenance of the
appliance and assumes no responsibility of any
consequential damage(s).
PARTS INCLUDED WITH THE ASHFORD
1. Poker
2. Manual kit (w/ warranty cards, thermometer, fire starter, bypass handle)
OPTIONAL EQUIPMENT
1. Fan kit (Z2814) 2. Side shelf (Z2853)
3. Outside air kit (Z1726B)
• BEFORE INSTALLING THIS APPLIANCE, CONTACT THE LOCAL BUILDING OR FIRE OR OTHER
AUTHORITY HAVING JURISDICTION AND FOLLOW THEIR GUIDELINES.
• THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER. FOLLOW THE
INSTALLATION DIRECTIONS. DO NOT OPERATE WITHOUT FULLY ASSEMBLING ALL
COMPONENTS.
• IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF
CONTACTED. CHILDREN AND PETS MUST BE KEPT FROM TOUCHING THE APPLIANCE
WHEN IT IS HOT.
• COMBUSTIBLE MATERIAL SUCH AS FIRE WOOD, WET CLOTHING, ETC. PLACED TOO CLOSE
CAN CATCH FIRE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A
MINIMUM OF 48”(1219 MM) FROM THE FRONT OF THE APPLIANCE.

OM-AF30.1 E V1.02 May 15, 2015
Page 12 AF30.1
INSTALLATION INSTRUCTIONS cont.
MINIMUM CLEARANCES for AF30.1
G = 2 3/4” (70mm) in USA
8” (203mm) in Canada H = 16” (406mm) in USA 18” (456mm) in Canada I = 0” (0mm) in USA 8” (203mm) in Canada K = 18” (456mm) for single wall pipe in Canada
Ember protection shield (not required to have an insulation value)
is to be listed under UL 1618-2009 (type 1) and must have a minimum size of:
In USA: 35” x 42 1/8” (889 x 1070 mm)
In Canada: 45 1/2” x 52 1/8” (1156 x 1324 mm)
Min. Alcove minimum width 51”, maximum depth 48”, minimum height above stove top 37”.
This stove must be installed in compliance with all local codes and regulations.
Residential Installations A B C D E F J
Roof exit, parallel and corner. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 4” 102mm 16.875”* 429mm 37”
940 mm
Wall exit, parallel and corner. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 4” 102mm 16.875”* 429mm 37”*
940 mm
Alcove, roof exit. Fan kit required. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 37”
940 mm
Mobile Home Installation
Roof exit, parallel and corner. Fan kit and outside air kit required. 10.75”
273 mm 6” 153 mm 25.5” 648 mm 16.375”* 416 mm 4” 102mm 16.875”* 429mm 37”
940 mm
* Check with local codes and pipe manufacturer for pipe clearances. In Canada, 18” clearances from single wall pipe is required.
Clearances may only be reduced by means approved by the regulatory authority
E
*1
I
H
G
G
F
*1
K
J
I
H
GG
AC
2"(51mm)
D
B
" in USA
8
*1= 578" in Canada and 218" in USA
*2 = 5758" in Canada and 555
*2
*3ft recomended
MIN.2ft*

OM-AF30.1 E V1.02 May 15, 2015
Page 13
AF30.1
INSTALLATION INSTRUCTIONS cont.
COMBUSTION AIR
Insure adequate combustion air allowing for all other exhausting type appliances in the dwelling (range hoods,
dryers, etc.). In air tight homes and modern constructions, careful considerations must be taken into account
when using a wood burning appliance. Heat recovery ventilators (HRV) systems along with constant running
pan motors in air handlers must be taken into account when balancing the system. Failure to do so may result in
air starvation, smoke spillage and carbon monoxide threats. Consult a HVAC specialist for proper installation.
Ensure adequate combustion air allowing for all other exhausting type appliances in the dwelling (range hoods,
dryers, etc.). In airtight houses it is recommended to install a fresh air inlet into the room where the stove is
located, to prevent air starvation.
DRAFT
Dra in the chimney system is initiated by the air pressure dierence between the top and bottom of the
chimney. Heat generated within the rebox will rise and accelerate the dra in the chimney. Recommended
dra is .05 in. w.c. operated on high. Too little dra results in a sluggish re and smoke spillage into the room
when the stove door is opened. Too much dra (over 0.06 in. w.c.) makes it unsafe to operate the stove and will
void manufacturers warranty.
ROLE OF THE CHIMNEY
Without a proper installed chimney, this appliance will not burn correctly.
e role of the chimney is to pull the proper amount of air into the rebox for the purpose of complete
combustion. Incomplete combustion will lead to more smoke and pollution of the outside air. A proper
operating chimney will allow the user to enjoy peak performance at all burn operating levels from low to high.
Blaze King therefore recommends vertical installations with a minimum length of 15’ from stove top to chimney
cap. In all freestanding stove installations, use double wall stove pipe from the stove top to the ceiling support
box. e use of double wall stove pipe does allow for reduced clearances, however most importantly, it helps to
keep the chimney warm and improve dra.
For wall exits, the same suggestion applies. With the addition of the recommendation to use two 45 degree
elbows rather than a single 90 degree elbow. e use of two 45 degree elbows will allow for both a smoother
transition to the exterior chimney and will also shorten the horizontal run to the outside chimney. A minimum
36” rise is recommended prior to any elbows being used. When possible, outside chimney systems should be
isolated from direct exposure to winter weather by building a chase around the chimney, observing all clearances
as specied by the venting manufacturer. Doing so will help to keep the chimney warmer and improve dra.

OM-AF30.1 E V1.02 May 15, 2015
Page 14 AF30.1
VENTING SYSTEMS
e venting system consists of a chimney connector and a chimney. ese get extremely hot during use.
Temperatures inside the chimney may exceed 2000 degrees in the event of a creosote re. To protect against the
possibility of a house re, the chimney connector and chimney must be properly installed and maintained. A
listed thimble must be used when a connection is made through a combustible wall to a chimney. A chimney
support package must be used when a connection is made through the ceiling to a listed prefabricated chimney.
ese accessories are absolutely necessary to provide safe clearances to combustible wall and ceiling material.
is stove may be connected to a lined masonry chimney or a listed factory built chimney suitable for use with
solid fuels and conforming to, ULC629 in Canada or UL-103HT in the USA. Do not connect it to a chimney
serving another appliance. To do so will aect the safe operation of both appliances, and will void the stove
warranty. You must comply with the local authority having jurisdiction and/or in Canada, CSA installation
standard B365-M87.
e chimney connector must be 6” diameter, 24 MSG Black/Blue steel. Do not use aluminum or galvanized
steel. ey cannot properly withstand the extreme temperatures of a wood re. e chimney connector between
the stove and the chimney should be as short and direct as possible.
e chimney connector must be attached to either an approved masonry chimney or one of the listed factory
built chimneys suitable for use with solid wood fuel. All joints must be tight and fastened with sheet metal
screws.
THE CHIMNEY CONNECTOR IS TO BE USED ONLY WITHIN THE ROOM, BETWEEN THE STOVE
AND CEILING / WALL. NEVER USE A CHIMNEY CONNECTOR TO PASS THROUGH AN ATTIC
OR ROOF SPACE, CLOSET OR SIMILAR CONCEALED SPACE, OR A FLOOR, OR CEILING. AN
EFFECTIVE VAPOR BARRIER MUST BE MAINTAINED AT THE LOCATION WHERE THE CHIMNEY
OR COMPONENT PENETRATES TO THE EXTERIOR OF THE STRUCTURE. ALWAYS MAINTAIN
THE MINIMUM CLEARANCES TO COMBUSTIBLES AS REQUIRED BY THE APPLICABLE BUILDING
CODES.
INSTALLATION INSTRUCTIONS cont.

OM-AF30.1 E V1.02 May 15, 2015
Page 15
AF30.1
INSTALLATION INSTRUCTIONS cont.
CONNECTION TO A METAL PREFABRICATED CHIMNEY
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed
precisely. You must also purchase (from the same manufacturer) and install the ceiling support package or wall
pass through and “T” section package, re stops (when needed), insulation shield, roof ashing, chimney cap,
etc. Maintain the proper clearance to the structure as recommended by the manufacturer. is clearance is
usually a minimum of 2 inches, although it may vary by manufacturer or for certain components.
ere are basically two methods of metal chimney installation. One method is to install the chimney inside the
residence through the ceiling(s) and the roof. e other method is to install an exterior chimney that runs up
the outside of the residence (not recommended). If it is necessary to run the chimney outside, build an outside
chase around the chimney.
e chimney must be the required height above the roof or other obstruction for safety and for proper dra
operation. e requirement is that the chimney must be at least 3 feet higher than the highest point where it
passes through the roof and at least 2 feet higher than
the highest part of the roof or structure that is within
10 feet of the chimney, measured horizontally (Fig. 1).
e height requirement is necessary in the interest of
safety and does not necessarily assure proper ue dra.
Use a minimum total system height of 15 feet, measured
from the stove ue collar to the top of the chimney, not
including the chimney cap.

OM-AF30.1 E V1.02 May 15, 2015
Page 16 AF30.1
INSTALLATION INSTRUCTIONS cont.
CONNECTION TO A MASONRY CHIMNEY
Masonry chimney***
Ensure that a masonry chimney meets the minimum standards
(NFPA) by having it inspected by a professional. Make sure there are
no cracks, loose mortar or other signs of deterioration and blockage.
Have the chimney cleaned before the stove is installed and operated.
When connecting the stove through a combustible wall to a masonry
chimney, special methods are needed.
In Canada, the wall cut away is to provide 18” clearance for the
connector. e resulting space must remain empty. A ush mounted
sheet metal cover may be used on one side only. If covers are to be
used on both sides, each cover must be mounted on noncombustible
spacers at least 1” clear of the wall.
***Blaze King recommends the use of a Stainless steel liner,
preferably insulated, inside a masonry chimney. is to maintain
proper dra and overall better operation of the unit.
Your local dealer or local jurisdiction can provide details of
approved methods of passing a chimney connector through
a combustible wall in your area. In USA, the National Fire
Protection Association has minimum standards to comply
with. In Canada , this type of installation must conform to
CAN/CSA-B365, Installation Code for Solid Fuel Burning
Appliances and Equipment.

OM-AF30.1 E V1.02 May 15, 2015
Page 17
AF30.1
INSTALLATION INSTRUCTIONS cont.
MOBILE HOME (AND RESIDENTIAL ALCOVE INSTALLATIONS)
A fan kit is required for these installations (See next page for kit and part numbers). Mobile home installations
also requires an outside air kit (Z1726B). ey are easiest to mount before the stove is installed. See instructions
packed with each kit. NOTE: UNDER NO CIRCUMSTANCES SHOULD THE FRESH AIR TUBE EVER
BE INSTALLED HIGHER THAN THE BOTTOM OF THE APPLIANCE FIREBOX FLOOR
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed
precisely. You must also purchase (from the same manufacturer) and install the ceiling support package, re
stops (when needed), insulation shield, roof ashing, chimney cap, etc. Maintain the proper clearance to the
structure as recommended by the manufacturer.
Chimney connector must be double wall close clearance type with either ULC629 or ULCS610 designation.
Single wall pipe is not allowed in Mobile Homes or in Alcove Installations. Insulated chimney components
must be a listed factory built chimney suitable for use with solid fuels and conforming to, ULC629 in Canada or
UL-103HT in the USA. For Mobile home, the chimney needs to be removable to allow for transportation of the
mobile home.
DO NOT INSTALL IN SLEEPING ROOM. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING / ROOF MUST BE MAINTAINED.
In mobile home installations, the stove must be securely fastened to the oor using the tie-downs provided
in the outside air kit. Use the leg anchor kit (Z2872) to secure stove to oor.
ALSO, a #8 ground wire must be attached to the stove and an appropriate ground.

OM-AF30.1 E V1.02 May 15, 2015
Page 18 AF30.1
INSTALLATION INSTRUCTIONS cont.
OPTIONAL ACCESSORIES
Outside air kit or fan kit are optional accessories, but are required for the following installations:
MOBILE HOME INSTALLATION — Requires outside air kit and fan kit
RESIDENTIALALCOVE — Requires fan kit
FAN KIT (Z2814)
e fan kit is REQUIRED FOR:
MOBILE HOME, any installation
RESIDENTIAL ALCOVE
NOTE: Fan kit should be installed before the stove is placed into position.
INSTALLATION: See instructions included with fan kit. Tools needed: Square (Robertson no. 2) screw
driver and a 5/32” allen wrench.
ELECTRICAL CONNECTION
Your Blaze King fan kit is equipped with a three-prong (grounded) plug to decrease shock hazard. THIS
PLUG SHOULD BE INSERTED DIRECTLY INTO A PROPERLY-GROUNDED, THREE-HOLE
RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG.
Do not route the power cord in front or under the stove.
OUTSIDE AIR KIT (Z1726B)
REQUIRED FOR: MOBILE HOME (any installation)
e outside air inlet is a exible tube to bring outside air for combustion into the stove from outside the
residence, through the wall or up through the oor. e exible tube will allow some adjustment over or
around oor joists or plumbing. DO NOT CHANGE THE STRUCTURAL INTEGRITY OF THE
FLOOR. THE FRESH AIR TUBE AND OUTSIDE INLET SHOULD NEVER BE ABOVE THE
BOTTOM LEVEL OF THE FIREBOX. is air tube must be kept open at all times to provide outside air
for combustion.
INSTALLATION:
See instructions included with the outside air kit. Tools needed: 1/4" or 3/8" drill motor, saber saw, saber
saw wood & metal blades, 5/16" nut driver or wrench, 7/16" wrench, small tube of hi-heat silicone.

OM-AF30.1 E V1.02 May 15, 2015
Page 19
AF30.1
INSTALLATION INSTRUCTIONS cont.
DOOR INSTALLATION AND CHANGE-OUT
(Z2810BK)
To install the door assembly or to change it out, follow
these steps:
WARNING: CAST PARTS ARE HEAVY,
PLEASE HOLD FIRMLY.
REMOVAL
1. Remove catalytic thermometer and cast top
from stove. (Fig A)
2. Remove le and right cast sides from stove by
liing up and out from hangers. (Fig B) If
necessary use a 7/16” wrench to loosen the top
two bolts that secure the cast sides to the
rebox.
3. Remove the Cast iron front and door: is
operation requires two people as the cast iron
front is large and heavy. Loosen four 1/4-20
hex bolts and 1/4” spacer washers. (Fig C)
Use a 1/2” wrench. Have an assistant support
the front then remove the bolts and washers
INSTALLATION
Perform the above tasks in reverse order.

OM-AF30.1 E V1.02 May 15, 2015
Page 20 AF30.1
OPERATING INSTRUCTIONS
BYPASS
Most catalytic wood burning appliances have a bypass device
to allow the smoke from the re to temporarily bypass, or go
around, the catalytic combustor. e bypass door is located
inside the rebox at the top of the stove. e bypass is a steel
plate door, hinged inside the stove, and is controlled by the
bypass handle on the right side of the stove. When the handle
is pointing at you, the bypass is open, when pointing away, it is
closed. It is a clockwise rotation
from open to close. NEVER
OPEN THE LOADING DOOR
WITHOUT OPENING THE
BYPASS DOOR
Note: To ensure the bypass is
closed push down on the bypass
handle until you hear a positive
click.
YOUR FIRST FIRE!
e following pages contain information on the major components and operation of your stove. Please take time
to read about them as it will give you a better understanding of how your stove works. is understanding will
help you to operate your stove properly thus will extend the life of your stove and allow you to get the highest
eciencies from your stove.
CATALYTIC THERMOMETER
is thermometer is located on the top of the stove. It’s purpose is to show you if the
combustor is active. Always operate the stove in the “active” zone. When the combustor is
not active the stove will emit smoke and will not be ecient. For an accurate reading, turn
fans o for approximately 10 minutes and then read the thermometer.
THERMOSTAT
e thermostat knob is located on the top right rear corner of the stove. It controls the burn rate of the stove
Any thermostat position between LOW(thin line) and HIGH(wide line) will produce the desired clean burning
characteristics. However, since each installation is dierent, you may nd it necessary to operate the thermostat
to suit your situation. A HIGH(wide line) thermostat setting will produce maximum heat which is more than
suitable for heating the average size home. All adjustments to the thermostat should be done gradually. When
you rst light the stove set the thermostat to HIGH(wide line) setting for 20-30 minutes, or until the re is well
established. Once the re is established turn the thermostat to MED(middle of line) for 5 minutes and then to
a LOW(thin line) setting or the desired
setting. Too rapid an adjustment may
cause the stove to operate improperly.
e most common mistake new owners
make is continually adjusting the
thermostat.
